Hotpoint FZM80 User manual

FREEZER - MODELS FZM80, FZA80 & FZA50
INSTRUCTIONS FOR INSTALLATION & USE

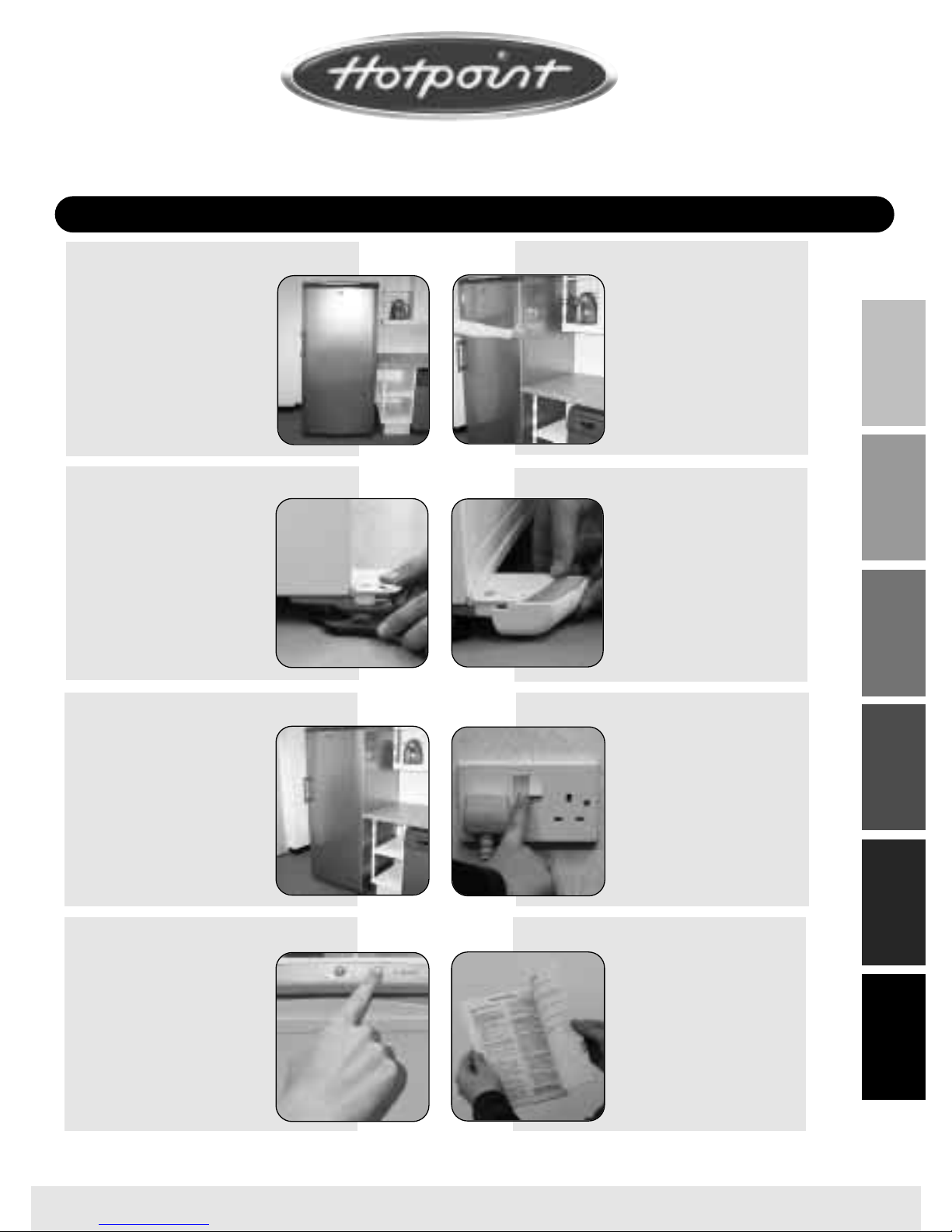

GETTING STARTED:
To ensure that your freezer runs reliably and efficiently follow these steps.
Choose a location for your
freezer, away from any
heat sources and allow
adequate ventilation -
100mm (4 inches)
gap above.
Level the freezer by
adjusting the front feet.
This will stop rocking or
vibration and keep the
door aligned.
Plug in and switch on.
Allow the freezer to cool
before placing food
inside.
The high temperature
light will stay on until the
freezer has cooled down.
All food in the freezer
should be covered.
Move the freezer into
position, using the sides
of the cabinet. Take care
to avoid damaging the
refrigerant circuit pipe
work on the rear.
Before plugging in and
switching on, leave the
freezer in its final
location for at least 15
minutes to allow it to
settle.
If you are freezing fresh
food, turn on fast freeze by
pressing the switch 24
hours before placing the
food inside.
Place the fresh food
inside.
Read the rest of these instructions to get the best from your appliance
and remember to fill in your guarantee registration.
Keep this Book in a safe place for quick reference.
STEP 1 STEP 2
STEP 3
STEP 5 STEP 6
STEP 7
SAFETY &
INSTALLATION CONTROLS USEFUL ADVICE
CLEANING &
MAINTENANCE
TROUBLESHOOTING
SERVICE &
GUARANTEE
Your freezer is now
working.
If after 24 hours your
freezer is not operating as
you want, refer to the
TROUBLESHOOTING
section.
STEP 8
Remember to turn fast freeze off
after 24 hours, however if you
forget to do so it will automatically
cancel after 48 hours.
After the front feet have
been adjusted and the
freezer is level fit the left
and right hand bottom
hinge covers supplied.
Align with the cover plate
slots and push into
position.
STEP 4
NB.The spanner is for illustration
only and is not supplied with the
freezer.

For Your Safety
For your safety, read the following advice:
The freezer cooling system contains a small amount of gas which is environmentally
friendly but flammable. To avoid any risk :-
●Install the freezer following the installation instructions and ensure
that ventilation openings are kept clear of obstruction.
●Take care when installing or moving the freezer to avoid damaging
the pipes on the rear.
●If you suspect a leak, do not switch on the freezer, but open the
windows and doors to ventilate the room.
●Do not use any electrical devices inside the freezer, for instance for
defrosting.
●Do not use any mechanical devices for defrosting other than any which may
have been supplied with the freezer as they may cause damage.
●Only use this freezer for storing domestic foodstuffs.
When installing your freezer :-
●Ensure that the mains cable is not trapped underneath or behind the freezer
when you install or move it.
●Do not stack any other appliance on top of this freezer as they may
damage the freezer or become unstable.
When using your freezer :-
●Do not sit or stand on top of your freezer.
●Do not store poisonous, flammable or dangerous substances in your freezer.
●Do not use aerosol sprays for defrosting or cleaning your freezer.
If you sell the freezer, pass on this booklet to the new owner.
2
SAFETY &
INSTALLATION

Installation
3

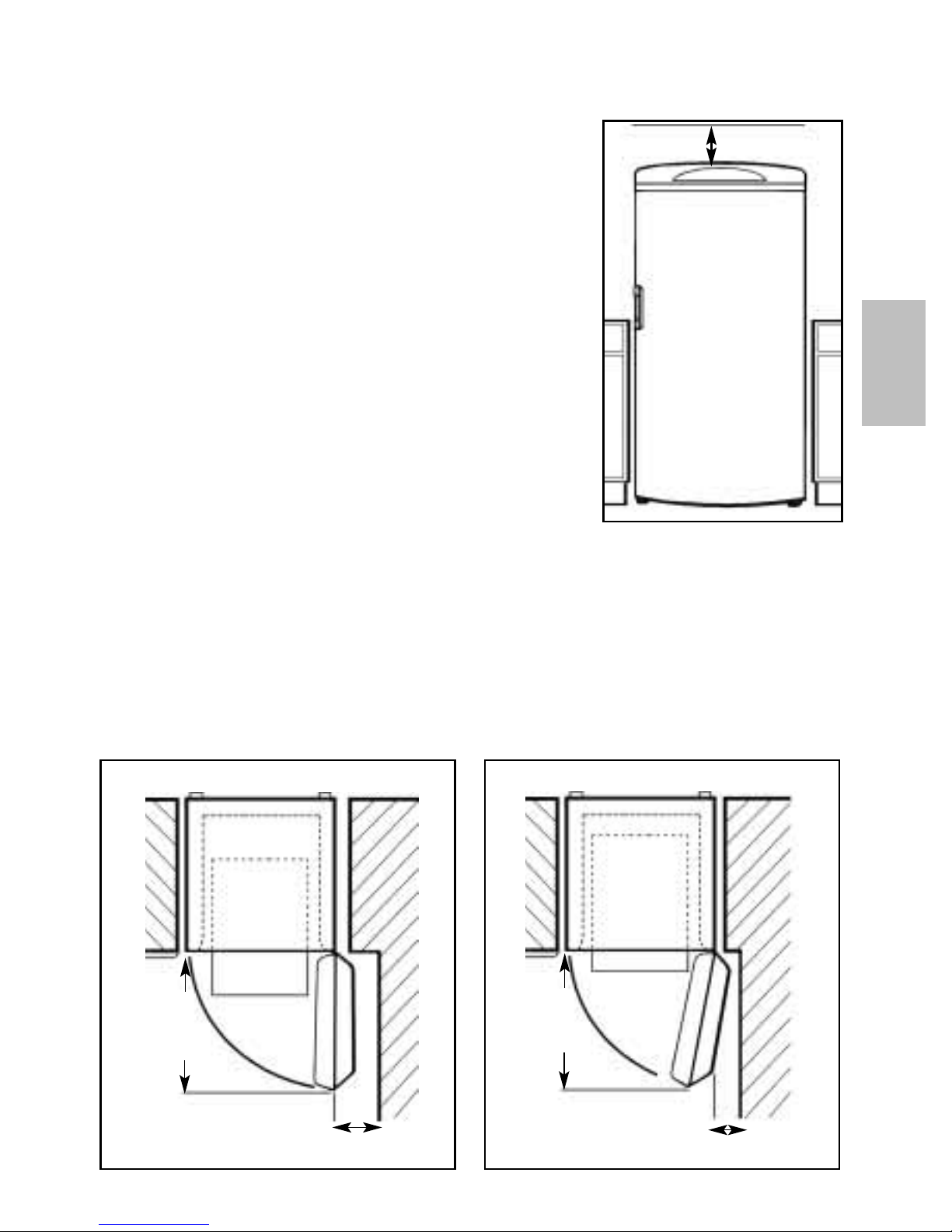

Minimum space required to open door
The freezer needs a space of 600mm (24 inches) in front to allow the door to
open.
When positioning the freezer next to a unit, a gap of 30mm (11/4inch) can be left
at the hinge side of the door to allow the easy removal of furniture. If preferred
the freezer can be positioned so that a gap is not left.This will restrict how far the
door can be opened but the furniture can still be removed (see diagrams below).
The door hinge side can be changed to make it easier to open (see ‘Door Reversal’
in the CLEANING & MAINTENANCE section).
SAFETY &
INSTALLATION
TOP VIEW TOP VIEW
less than 30mm
30mm or more
600mm
600mm
Location & Air Circulation
Locate your freezer away from sources of heat e.g.
cookers, radiators, direct sunlight as extreme temperature
will affect its performance.
Allow a minimum 100mm (4 inches) between the top of
the freezer and the ceiling or the underside of a wall
cupboard.
Providing you follow the recommended ventilation
requirements you will :-
●Prolong the life of the freezer.
●Minimise the risk of condensation on the outside of
the freezer.
●Minimise the running costs.
●Minimise operating sounds caused by vibration.
100mm
(4 inches)

Installation
Levelling:
Level the freezer when it is in its final location by adjusting the front feet, until firm
contact is made with the floor. This will stop rocking or vibration and keep the door
aligned which helps the freezer run reliably and efficiently.
Note: Before plugging in and switching on, leave the freezer standing in its
final location for at least 15 minutes to allow it to settle.
4
SAFETY &
INSTALLATION
Hinge Covers:

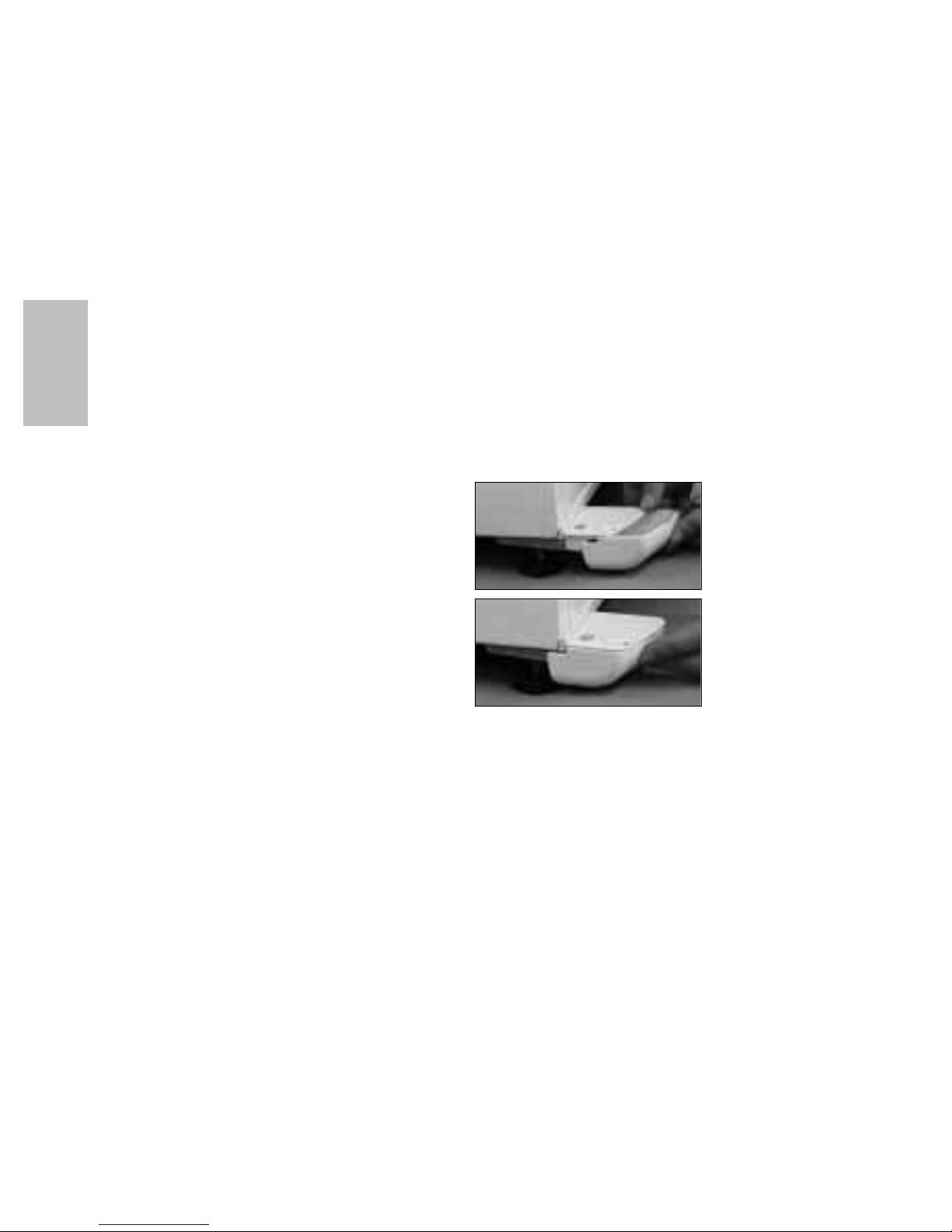

After the front feet have been adjusted and the freezer is level fit the left and right
hand bottom hinge covers supplied.
To fit:
Align the bottom hinge cover onto the
cover plate slots.
Push until the bottom hinge cover
clicks into place.

Installation
Electrical Supply
WARNING: This appliance must be earthed.
The appliance must be positioned so that the plug is accessible after
installation.
Fuses
Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the
fuse, only use those rated at 13A and ASTA approved to BS1362.
Changing the Plug
Cut off and dispose of the supplied plug if it does not fit your socket.
WARNING: To avoid a shock hazard do not insert the discarded plug into a socket
anywhere else.

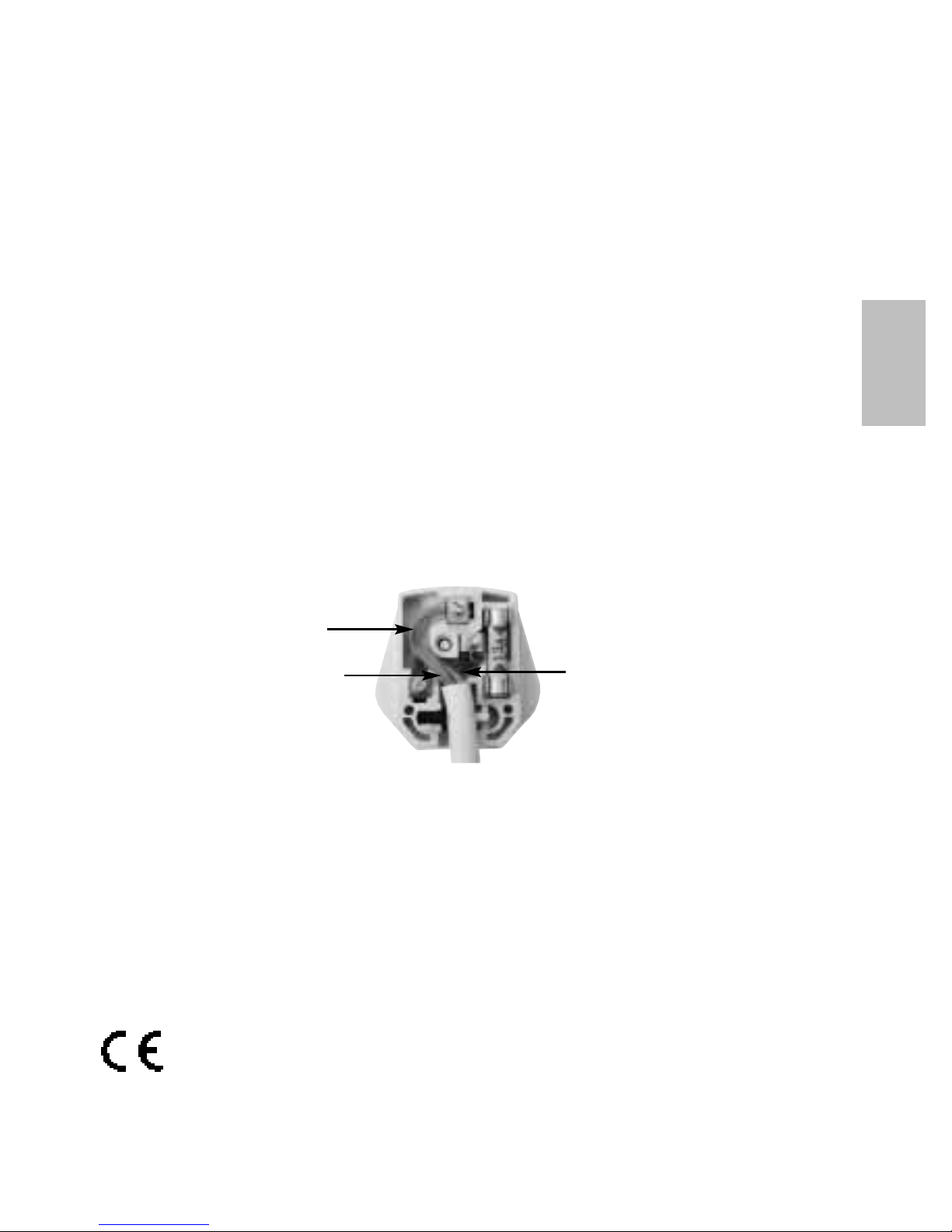

IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE
FOLLOWING CODE :
Green/Yellow - Earth
Blue - Neutral Brown - Live
If you change the plug, the colour of wires in the mains lead may not correspond with
the colour of the markings identifying terminals in the plug. You should therefore
wire it as shown above.
Changing the Mains Lead
This appliance is fitted with a special mains lead. If you need to replace the mains
lead due to damage, one can be bought from Hotpoint Service (see KEY CONTACTS,
back page). It is strongly advised that this work is carried out by a qualified
electrician.
CE Marking certifies that this appliance conforms to the following EEC
directives : Low Voltage Equipment - 72/23/EEC & 93/68 EEC
Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC
5
SAFETY &
INSTALLATION

Controls
Controlling the Temperature of the Freezer Compartment

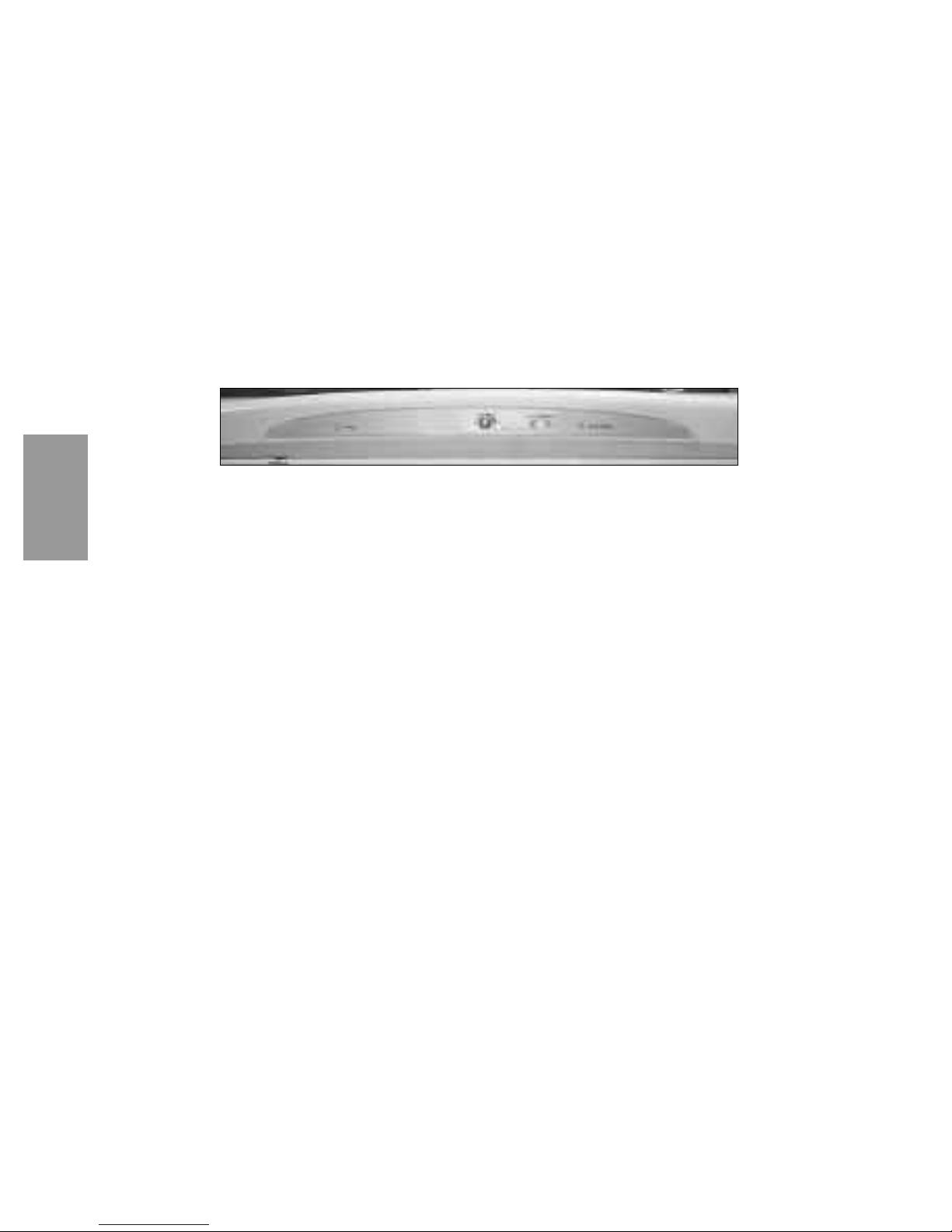

The control wheel on the front panel adjusts the internal freezer temperature.
The internal freezer temperature should be -18˚C or colder.
The setting of the control wheel will depend on the location of the freezer, the room
temperature and how often the door is opened. The normal set point (marked by a 3
on the dial) is usually suitable. If you need to adjust the temperature turn the control
wheel using a coin to avoid damage:
Clockwise (higher number) - Colder
Anti-clockwise (lower number) - Warmer
6
You can check the temperature of the freezer compartment by using a Fridge Freezer
Thermometer available from Hotpoint Genuine Parts and Accessories Mail Order
Hotline (see KEY CONTACTS back page).
WARNING: Do not use a mercury filled thermometer, as breakage would cause a
health hazard.
Your freezer must NOT be placed in a room where the temperature goes below 2˚C or
above 38˚C for prolonged periods, as the internal freezer temperature will not be
maintained.
CONTROLS

Controls
Indicator Lights
Green Mains Light
The green mains light will stay on as long as the electricity supply is not interrupted.
Amber Fast Freeze Light
The amber fast freeze light indicates that the fast freeze button has been pressed on.
By pressing this button ON, the freezer motor will run continuously for extra cooling.
Red High Temperature Warning Light
The red warning light will come on when the freezer is first switched on or when the
temperature inside the compartment rises above the correct storage temperature.
Check the TROUBLESHOOTING section before calling for advice. The red warning
light may come on for a short period when opening the freezer door to load or
unload food, in this case storage times will not be affected.
If the red warning light comes on during the fast freeze period (amber light on) and
you have followed the instructions for fast freezing large amounts of food, don’t
worry this is quite normal. After a period of time the light will go out without any
food being spoiled.
7
7
CONTROLS

Controls
8
CONTROLS
Fast Freeze Button - Freezing Fresh Food
Depending on your model - the bottom compartment drawer (FZA50), the bottom
two compartment drawers (FZA80 and FZM80) should be used to freeze fresh food.
Transfer already frozen food to one of the upper drawers.
- Before loading 2kg or more of fresh food select fast freeze for the required
pre-freeze time (see chart below).
- If freezing up to 2kg of fresh food just select fast freeze when loading.
Once the fresh food is loaded leave fast freeze on for 24 hours to freeze the food as
quickly as possible.
Maximum freezing capacity in 24 hours: FZA80/FZM80 16kg
FZA50 12kg
Note : Don’t forget to turn fast freeze off after 24 hours from the introduction of
fresh food to be frozen.
However fast freeze will turn off automatically after 48 hours if you do forget.
Pre-Freeze chart when selecting Fast Freeze:
Load for freezing Pre-freeze time Load position
12 to 16kg max. 24 hours
In the bottom drawer.
8 to 12kg max. 24 hours
6 to 12kg 12 hours
In the bottom drawer.
4 to 8kg 12 hours
2 to 6kg 6 hours
In the bottom drawer.
2 to 4kg 6 hours
up to 2kg not required In the bottom drawer.
Model
FZA80
FZM80
FZA50
FZA80
FZM80
FZA50
FZA80
FZM80
FZA50
FZA80
FZM80
FZA50

Useful Advice
9
Note:
The Rating Plate, which lists the appliance Model Number and Serial Number can
be found near the bottom of the interior wall.
USEFUL ADVICE

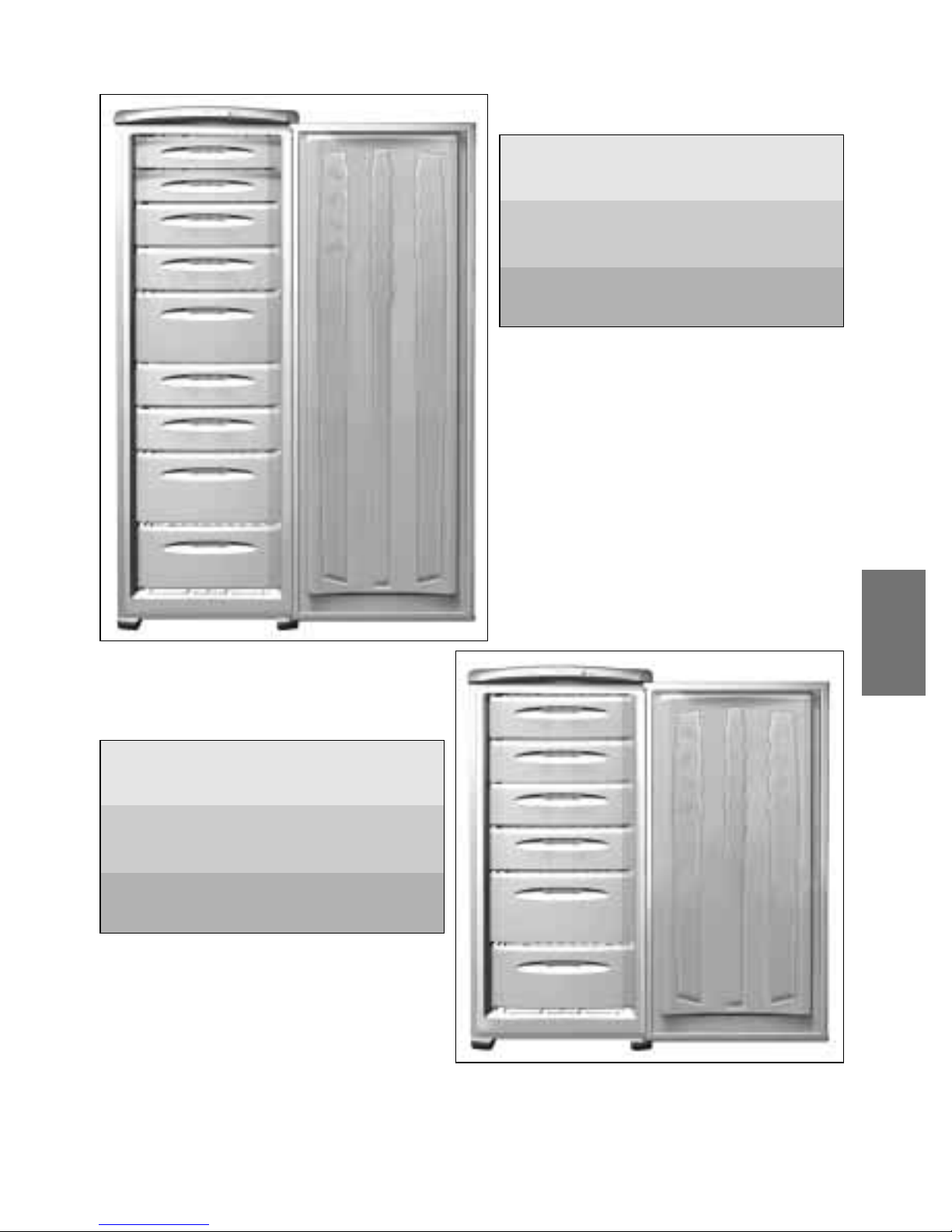

Frozen Food
Storage Capacity 63kg
Maximum Freezing
Capacity in 24 hours 16kg
Maximum Conservation
time from failure 9 hours
Frozen Food
Storage Capacity 45kg
Maximum Freezing
Capacity in 24 hours 12kg
Maximum Conservation
time from failure 13 hours
Fast Freeze
Fast Freeze
Fast Freeze
FZA80 and FZM80
FZA50

Useful Advice
10
Making the best use of your Freezer
To ensure that your freezer operates as efficiently as possible:
●Follow food packaging “best before/use by” instructions or your suppliers
advice on a suitable maximum storage time.
●Keep foods tightly covered to retain moisture and prevent flavour/odour
transference. Plastic bags, aluminium foil, plastic stretch wrap and containers
with lids are ideal.
●Select chilled and frozen food last when shopping, transport in a ‘cool bag’
and place in freezer as soon as possible after arriving home.
●Avoid opening the door unnecessarily or for longer than needed.
●Allow hot or warm food to cool down in covered containers before placing in
the freezer, as placing hot food inside reduces efficiency.
●Prepare fresh foods for freezing in small quantities to ensure that the food
freezes quickly and so that its quality does not deteriorate.
●Ensure that packets/containers of food are dry before freezing otherwise
they may freeze together.
USEFUL ADVICE
How Frost Free works
The frost free system completely eliminates the need for defrosting.
A fan circulates air around the freezer. This helps to remove moisture from the
compartment, therefore preventing the build up of ice.
It is normal to hear the fan when the freezer is cooling.
Additional benefits of the frost free system include:
●More even temperatures throughout the freezer.
●Faster cooling times.
Sealbreaker Grab Handle
●The sealbreaker grab handle is designed to
move and act upon the door seal to ease
door opening for the customer.
+ PIVOT
