Hotpoint RCNAA33 User manual

Instructions for use
GB
RCNAA33
RCNAA53

2
GB
Your new appliance is designed exclusively for
domestic use and for storing frozen food, freezing
fresh food and making ice cubes.
Regulations require that the appliance is earthed.
The manufacturer declines all liability for in ury to
persons or animals and for damage to property
resulting from failure to observe the above
procedures and reminders.
1. After unpacking, make sure that the appliance is
undamaged and that the lid closes perfectly tight.
Any damage must be reported to your dealer
within 24 hours after delivery of the appliance.
2. Wait at least two hours before switching the
appliance on in order to ensure the refrigerant
circuit is fully efficient.
3. Installation of the appliance and electrical
connections must be carried out by a qualified
electrician, in accordance with the manufacturer's
instructions and local safety regulations.
4. Clean the inside of the appliance before using it.
•Before connecting the appliance to the mains
supply, ensure that the voltage corresponds to
that given on the rating plate located on the
rear of the appliance.
•Electric l connections must be m de in
ccord nce with loc l regul tions.
Before using
the ppli nce

GB
3

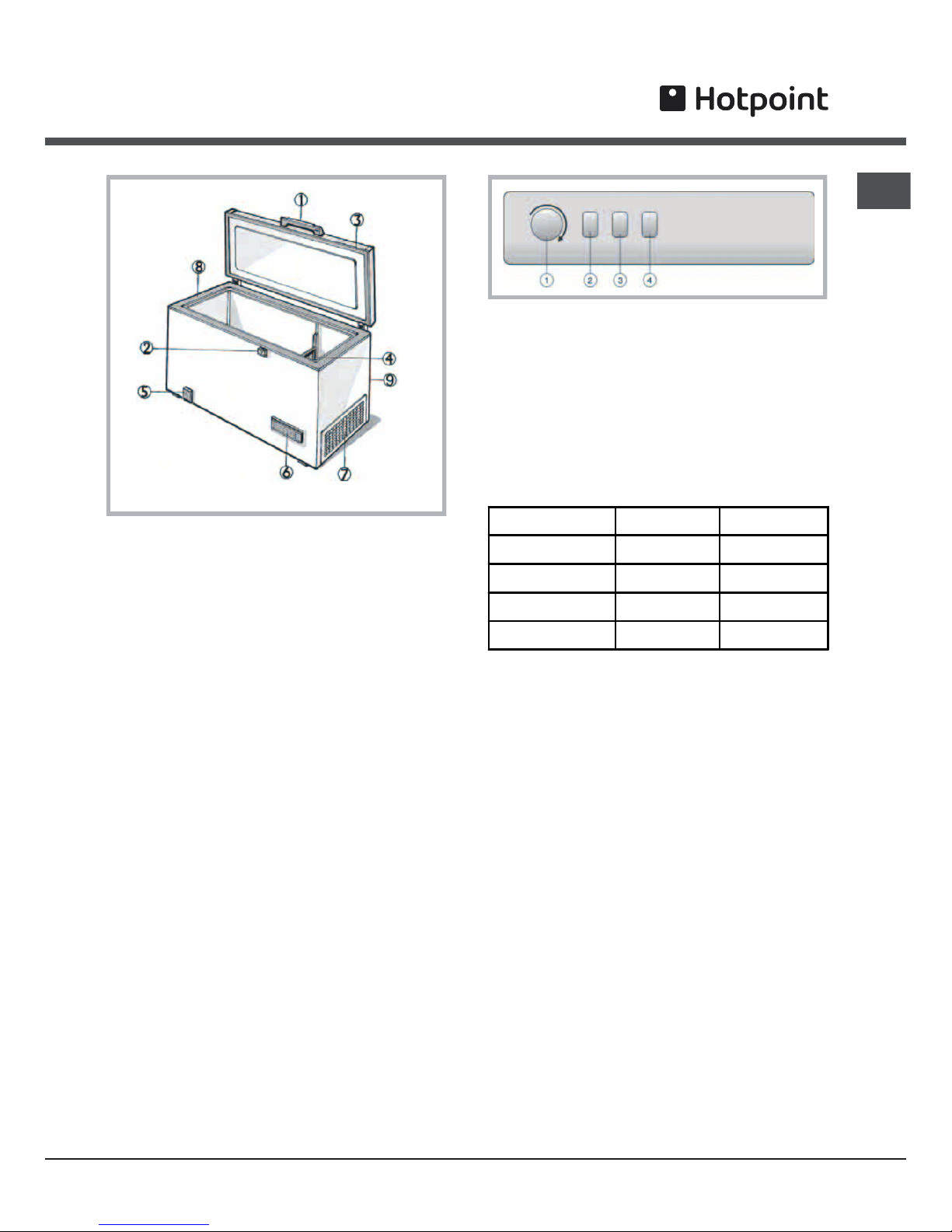

1. Lid handle.
2. Lock (if provided).
3. Seal.
4. Divider (if provided).
5. Defrost water drain plug.
6. Control panel.
7. Side motor cooling grille.
8. Upper edge.
9. Condenser (located at the rear)
1. Thermost t: Temperature ad ustment.
2. Red LED (if provided): indicates that the
appliance temperature is not sufficiently low.
3. Green LED (if provided): indicates that the
appliance is on.
4. Yellow LED (if provided): indicates that the fast
freeze function is active.
The ex ct configur tion of the controls m y v ry
ccording to the model.
Climatic Classe Amb. T. (°C) Amb. T. (°F)
SN From 10 to 32 From 50 to 90
N From 16 to 32 From 61 to 90
ST From 16 to 38 From 61 to 100
T From 16 to 43 From 61 to 110
Product description

4
GB
Inst ll tion
•Refer to chapter "Before using the appliance".
•Unpack the appliance.
•Remove the 4 protection pieces inserted between
lid and appliance.
•W rning: two of the four protection pieces must
be fitted in the seat of the condenser plastic
supports, located at the rear of the product. This
is necessary to ensure the correct distance from
the wall.
•Ensure that the defrosting water drainage plug (if
provided) is correctly positioned (5).
•For best operation of the appliance and in order to
avoid damage when the lid is opened, leave a
space of at least 7 cm from the rear wall and 7 cm
at the sides.
•Fit the accessories (if provided).
Switching on the ppli nce
•The appliance is factory set for optimum operation
at a temperature of -18°C.
•Plug in the appliance.
•The green LED lights up (if provided).
•Also the red LED (if provided) will switch on
because the temperature inside the appliance is
not yet sufficiently low for food storage. The red
LED will normally switch off within the first six
hours after the appliance is switched on.
•After connecting the ppli nce to the m ins
supply nd when the optim l temper ture h s
been re ched (this ph se t kes bout 1 hour
during which the lid will not open), ensure th t
the f st freeze button is not pressed (the yellow
LED, if provided, is off).
•Place food inside the product only when the red
LED (if provided) has switched off.
•Thanks to the efficient lid seal, the appliance lid
will not re-open easily immediately after closing.
Wait a few minutes before re-opening the lid of
the appliance.
Temper ture Adjustment
Use the thermostat to select the ideal storage
temperature.
To ad ust the internal temperature, proceed as
follows:
•Turn the thermostat knob to 1 for a storage
temperature that is less cold.
•Turn the thermostat knob to 6 / for a colder
storage temperature.
•When the appliance is only partially full, it is
advisable to set the thermostat to lower positions
(towards "E", if indicated on the thermostat scale).

GB
5
Prep r tion of fresh food for freezing
•Before freezing, wrap and seal fresh food in:
aluminium foil, cling film, air and water-tight
plastic bags, polyethylene containers with lids,
provided they are suitable for freezing foods.
•Food must be fresh, mature and of prime quality
in order to obtain high quality frozen food.
•Fresh vegetables and fruit should preferably be
frozen as soon as they are picked to maintain the
full original nutritional value, consistency, colour
and flavour.
•Always leave hot food to cool before placing in
the appliance.
Freezing fresh food
•Place foods to be frozen in direct contact with the
walls of appliance:
A) - foods to be frozen,
B) - foods already frozen.
•Avoid placing foods to be frozen in direct contact
with food already frozen.
•For best and fastest freezing, foods should be
split into small portions; this will also be useful
when the frozen items are to be used.
1. At least 24 hours before storing fresh food in the
appliance, press the fast freeze button. For
appliances without this button, turn the thermostat
to .
2. Place the food to be frozen and keep the lid of the
appliance closed for 24 hours. At the end of this
period, switch off the fast freeze button (if
provided).
Freezing Food

6
GB
 Refer to the table on the appliance (if provided).
Cl ssific tion of frozen foods
Put the frozen products into the appliance and
classify them; The storage date should be indicated
on the packs, to allow use within expiry dates.
Advice for storing frozen food
When purchasing frozen food products:
•Ensure that the packaging is not damaged (frozen
food in damaged packaging may have
deteriorated). If the package is swollen or has
damp patches, it may not have been stored under
optimal conditions and defrosting may have
already begun.
MONTHS FOOD
Food stor ge
•When shopping, leave frozen food purchases until
last and transport the products in a thermally
insulated cool bag.
•Once at home, place the frozen foods
immediately in the appliance.
•Avoid, or reduce temperature variations to the
minimum.
•Respect the best-before date on the package.
•Always observe the storage information on the
package.
Note:
Eat fully or partially defrosted foods immediately.
Do not refreeze unless the food is cooked after it
has thawed. Once cooked, the thawed food can be
refrozen. If there is a long power failure:
•Do not open the appliance lid except to place ice
packs (if provided) over the frozen foods on the
right and left of the appliance. This will slow down
the rise in temperature.

GB
7
Prec utions nd gener l
recommend tions
•After installation, make sure that the appliance is
not standing on the power supply cable.
•Do not store glass containers with liquids in the
appliance since they may burst.
•Do not eat ice cubes or ice lollies immediately
after taking them out of the appliance since they
may cause cold burns.
•Before servicing or cleaning the appliance, unplug
it from the mains or disconnect the electrical
power supply.
•Do not install the appliance in places exposed to
direct sunlight or near heat sources in order to
avoid increasing power consumption.
•Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any
other appliance. The fumes can create a fire
hazard or explosion.
•Install the appliance in a perfectly horizontal
position, on a floor strong enough to take its
weight and in an area suitable for its size and
use.
•Install the appliance in a dry and well-ventilated
place. The appliance is set for operation at
specific ambient temperature ranges, according
to the climatic class indicated on the data plate
located at the rear of the product. The appliance
may not work properly if it is left for a long period
at a temperature above or below the indicated
range.
•If the appliance is left empty for short periods, it
is preferable not to switch it off.
•Be careful not to damage the floors when you
move the appliance (e.g. parquet flooring).
•Do not use mechanical devices or any means
other than those recommended by the
manufacturer to speed up the defrosting process.
•Do not use electrical appliances inside the
product, unless such appliances are specifically
recommended by the manufacturer.
•This appliance is not designed for use by young
children or the infirm without supervision.
•To avoid the risk of children being trapped and
therefore suffocating, do not allow them to play or
hide inside the appliance.
•The power cable may only be replaced by an
authorized person.
•Do not use extension leads or adapters.
•Electrical disconnection must be possible either
by unplugging the appliance or by means of a
double-pole switch located upline from the
socket.
•Ensure that the voltage indicated on the appliance
data plate corresponds to the domestic supply
voltage.
•Do not ingest the contents (non-toxic) of the ice
packs (if provided).
•Restrict the number of times you open the lid.

8
GB
Defrosting the ppli nce
The appliance should be defrosted when the
thickness of ice on the walls reaches 5-6 mm.
•Disconnect the appliance from the mains power
supply.
•Remove the packs of food from the appliance and
wrap them close together in newspaper and store
in a very cool place or thermally insulated bag.
•Leave the appliance lid open.
•Remove the internal defrost water drain plug
(depending on model).

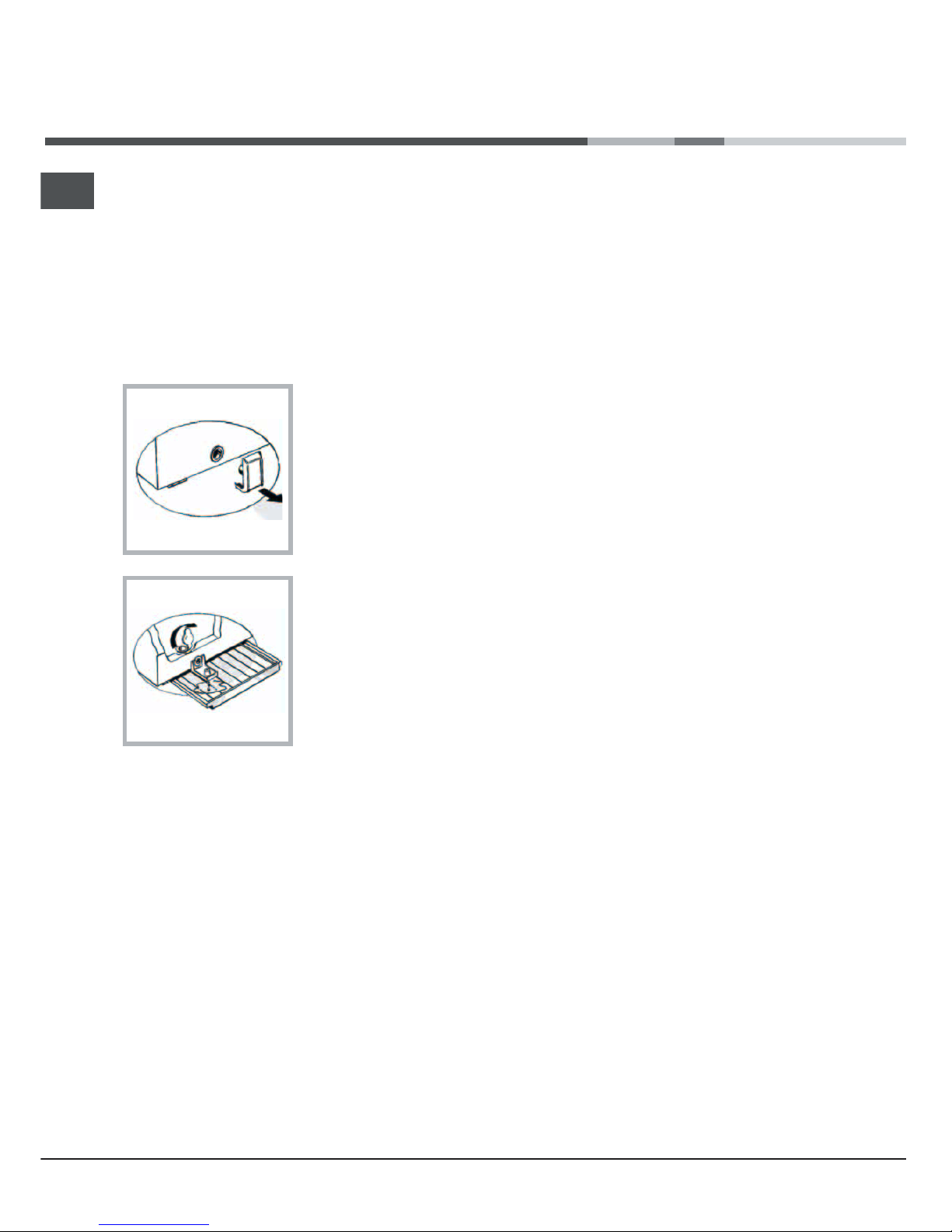

•Remove the external
defrost water drain plug
(depending on model)
and reposition it as
shown in the figure.
•Place a bowl
beneath the drainage
channel to collect the
residual water. If
available, use the
divider.
•Speed up defrosting by using a spatula to detach
the ice from the appliance walls.
•Remove the ice from the bottom of the appliance.
•In order to avoid permanent damage to the
appliance interior, do not use pointed or sharp
metal instruments for removing the ice.
•Do not use abrasive products or heat up the
interior artificially.
•Dry the interior of the appliance thoroughly.
•On completion of the defrosting, refit the plug.

GB
9
C re nd
M inten nce
•Remove the ice from the upper edge (see the
Troubleshooting Guide).
•Clean the inside after defrosting, using a sponge
dampened with warm water and/or mild detergent.
•Clean the side motor cooling grille (depending on
model).
•Remove dust from the condenser on the rear of
the appliance.
Before carrying out maintenance, unplug the
appliance.
Do not use abrasive products, scourers or stain-
removers (e.g. acetone, trichloroethylene) to clean
the appliance.
To obtain the best results from your appliance, carry
out cleaning and maintenance at least once a year.

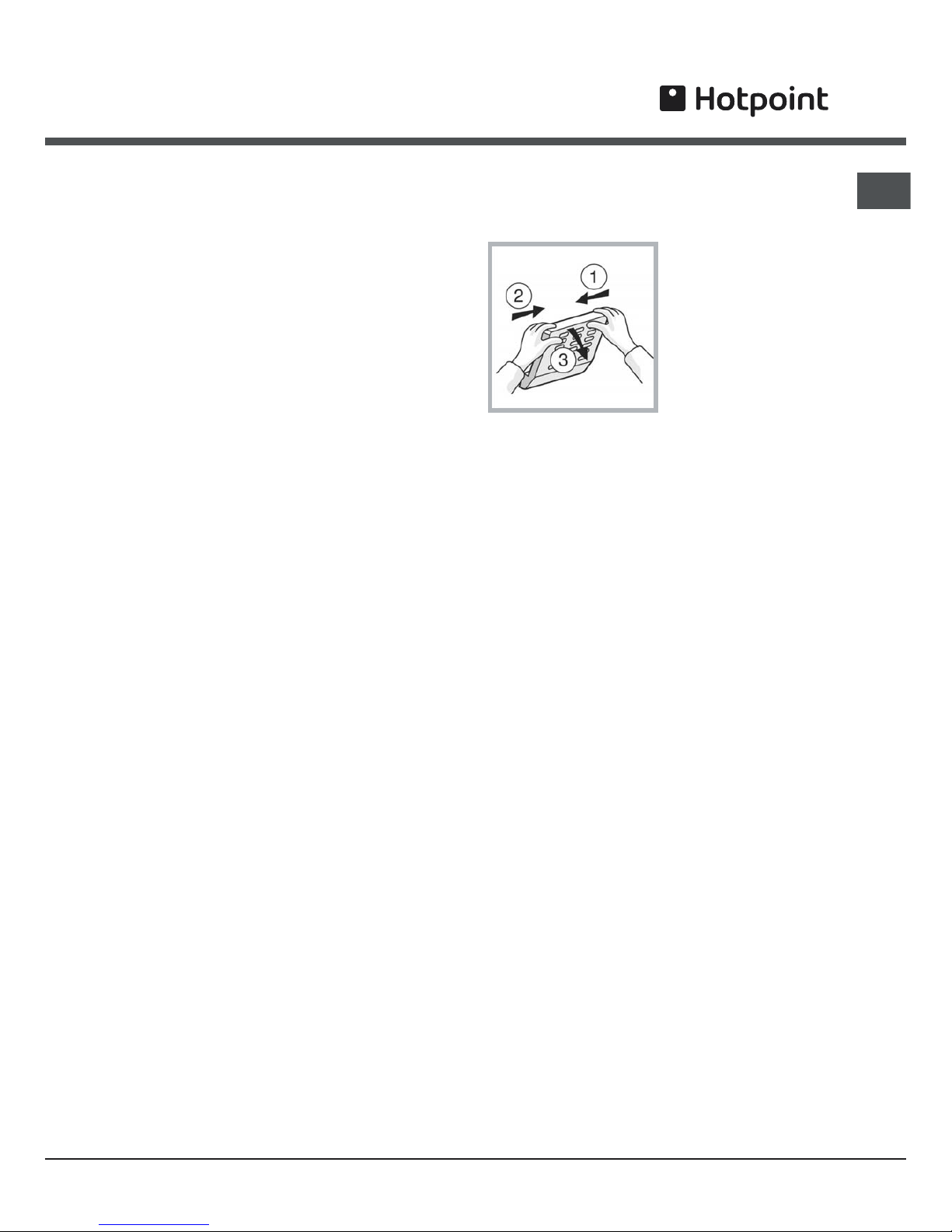

CHANGING THE LID LIGHT BULB (IF PROVIDED)
•Disconnect the appliance from the mains power
supply.
•Remove the diffuser
by following the
sequence of steps
shown in the figure.
•Unscrew the light bulb and replace it with an
identical bulb of the same wattage and voltage.
•Refit the diffuser and plug in the appliance.

10
GB
Troubleshooting guide
The red LED (if provided)
rem ins light.
The ppli nce is too noisy.
The green LED (if provided) is
off nd the ppli nce is not
working.
The green LED (if provided) is
off nd the ppli nce is
working.
The compressor runs
continuously.
Too much ice on the upper
edge.
Form tion of condens te on
the extern l w lls of the
ppli nce.
The l yer of ice on the
intern l w lls of the ppli nce
is not uniform.
•Is there a power failure?
•Is a defrosting operation in progress?
•Is the appliance lid properly closed?
•Is the appliance placed near a heat source?
•Is the thermostat setting correct?
•Are the ventilation grille and condenser clean?
•Is the appliance perfectly horizontal?
•Is the appliance in contact with other furniture or ob ects that may
cause vibrations?
•Has the packaging been removed from under the appliance?
Note: Gurgling noises from the refrigerating circuit after the compressor
cuts out are perfectly normal.
•Is there a power failure?
•Is the plug properly inserted in the socket?
•Is the electric cable intact?
•The green LED is not working. Contact the After Sales Service for a
replacement.
•Have hot foods been put in the appliance?
•Has the appliance lid been left open for a long time?
•Is the appliance placed in a very warm room or near heat sources?
•Is the thermostat setting correct?
•Has the fast freeze function (depending on model) been pressed by
mistake?
•Are the defrost water drainage plugs correctly positioned?
•Is the appliance lid properly closed?
•Is the appliance lid seal damaged or deformed? (See chapter
"Installation")
•Have the 4 protection pieces been removed? (See chapter
"Installation")
•It is normal for condensation to form under certain atmospheric
conditions (humidity above 85%) or if the appliance is located in a
damp or poorly ventilated room. The performance of the appliance is in
no way affected.
•This phenomenon is quite normal.

GB
11
1. Packing
The packaging material is entirely recyclable, and
marked with the recycling symbol. Follow local
regulations for scrapping. Keep the packaging
materials (plastic bags, polystyrene parts, etc.) out
of reach of children, as they are potentially
dangerous.
2. Scrapping
The appliance is manufactured using recyclable
material. This appliance is marked according to the
European directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, indicates that this
appliance may not be treated as household waste.
Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment.
Before scrapping, make the appliance unusable by
cutting off the power cable and removing the doors
and shelves so that children cannot easily climb
inside the appliance.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
Deliver the appliance immediately to an authorized
dump; do not leave it unattended even for a few
days, since it is potentiallydangerous for children.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local city office, your household waste
disposal service or the shop where you purchased
the product.
S fegu rding the
environment
Inform tion:
This appliance does not contain CFCs (replaced with
R134a) or HFCs (replaced with R600a).
Appli nces with Isobut ne (R600 ):
Isobutane is a natural gas with low environmental
impact. Caution is required, however, since
isobutane is flammable. Therefore, it is essential to
ensure that refrigerant pipelines are not damaged.
Decl r tion of conformity
•This appliance is designed to store food and is
manufactured in conformity with European
Directive 90/128/EEC, 02/72/EEC and Regulation
(EC) No. 1935/2004
•Thisappliance is designed, manufactured, and
retailed in compliance with:
- the safety ob ectives of the Low Voltage
Directive 73/23/EEC;
- the protection requirements of the "EMC"
Directive 89/336/EEC amended by Directive 93/
68/EEC.
•The electrical safety of the appliance can only be
guaranteed if the product is connected to an
approved earth connection.

12
GB
Assist nce
After S les Service
No one is better pl ced to c re for your ppli nce
during the course of its working life th n us - the
m nuf cturer.
Essenti l Cont ct Inform tion
Hotpoint Service
We are the largest service team in Europe offering
you access to 400 skilled telephon advisors and
1100 fully qualified engineers on call to ensure you
receive fast, reliable, local service.
UK: 08709 066 066
Republic of Irel nd: 0818 313 413
www.hotpointservice.co.uk
Ple se note: our dvisors will require the
following inform tion:
 model number
 serial number
 parts and accessoires
We supply a full range of genuine replacement parts
as well as accessory products that protect and
Hygienically clean your appliance to keep it looking
good and functioning efficiently throughout its life.
UK: 08709 077 077
Republic of Ire nd: 0818 313 413
www.hotpointservice.co.uk
Appli nce registr tion
We want to give you additionl benefits of ownership.
To activate your free 5 year parts guarantee you
must register your appliance with us.
UK: 0870 6092094
Republic of Irel nd: 01 230 0800
www.hotpointservice.co.uk
Indesit Comp ny UK Ltd. Morley W y,
Peterborough, PE2 9JB
Indesit Company Unit 49 Airways Industrial Estate,
Dublin 17
Recycling & Dispos l Inform tion
As part of Hotpoints continued commitment to
helping the environment, Hotpoint reserves the right
to use quality, recycled components to keep down
customer costs and minimise material wastage.
Please dispose of packaging and old appliances
carefully. To minimise the risk of in ury to children,
remove the door, plug and cut the mains cable off
flush with the appliance. Dispose of these parts
separately to ensure that the appliance can no
longer be plugged into a mains socket, and the door
cannot be locked shut.
03/2008 - 5019 613 01071
XEROX BUSINESS SERVICES
