Hotpoint RFA18 User manual

FRIDGE FREEZER - MODELS RFA18, RFM18, RFA66, RFM66
INSTRUCTIONS FOR INSTALLATION & USE
GETTING STARTED:
To ensure that your fridge freezer runs reliably and efficiently follow these steps.
SAFETY &
INSTALLATION CONTROLS USEFUL ADVICE
CLEANING &
MAINTENANCE
SERVICE &
GUARANTEE
TROUBLESHOOTING
Choose a location for your
fridge freezer, away from
any heat sources and
allow adequate
ventilation - 100mm
(4 inch) gap above.
Level the fridge freezer by
adjusting the front feet.
This will stop rocking or
vibration and keep the
door aligned.
Before plugging in and
switching on, leave the
fridge freezer in its final
location for at least 15
minutes to allow it to
settle.
If you are freezing fresh
food, turn on fast freeze
by pressing the switch 24
hours before placing the
food inside.
Place the fresh food
inside.
Move the fridge freezer
into position, using the
sides of the cabinet.
Take care to avoid
damaging the refrigerant
circuit pipe work on the
rear.
Plug in and switch on.
Allow the fridge freezer to
cool before placing food
inside.
The high temperature
light will stay on until the
fridge freezer has cooled
down.
All food in the fridge
freezer should be
covered.
STEP 1 STEP 2
STEP 3 STEP 4
STEP 5 STEP 6
Your fridge freezer is now
working.
If after 24 hours your
fridge freezer is not
operating as you want,
refer to the
TROUBLESHOOTING
section.
STEP 7
Read the rest of these instructions to get the best from your appliance and
remember to fill in your guarantee registration.
Keep this Book in a safe place for quick reference.
NB.The spanner is for illustration
only and is not supplied with the
fridge freezer.
Remember to turn fast freeze off
after 24 hours, however if you
forget to do so it will automatically
cancel after 48 hours.

For Your Safety
For your safety, read the following advice:
The fridge freezer cooling system contains a small amount of gas which is
environmentally friendly but flammable. To avoid any risk :-
Install the fridge freezer following the installation instructions and ensure
that ventilation openings are kept clear of obstruction.
Take care when installing or moving the fridge freezer to avoid damaging
the pipes on the rear.
If you suspect a leak, do not switch on the fridge freezer, but open the
windows and doors to ventilate the room.
Do not use any mechanical or electrical devices inside the fridge freezer, for
instance for manual defrosting, they may cause damage.
Only use this fridge freezer for storing domestic foodstuffs.
When installing your fridge freezer :-
Ensure that the mains cable is not trapped underneath or behind the fridge
freezer when you install or move it.
Do not stack any other appliance on top of this fridge freezer as they may
damage the fridge freezer or become unstable.
When using your fridge freezer :-
Do not sit or stand on top of your fridge freezer.
Do not store poisonous, flammable or dangerous substances in your fridge
freezer.
Do not use aerosol sprays for defrosting or cleaning your fridge freezer.
If you sell the fridge freezer, pass on this booklet to the new owner.
2
SAFETY &
INSTALLATION

Installation
Location & Air Circulation
Locate your fridge freezer away from sources of heat e.g.
cookers, radiators, direct sunlight as extreme temperature
will affect its performance.
Allow a minimum 100mm (4 inches) between the top of
the fridge freezer and the ceiling or the underside of a
wall cupboard.
Providing you follow the recommended ventilation
requirements you will :-
Prolong the life of the fridge freezer.
Minimise the risk of condensation on the outside of
the fridge freezer.
Minimise the running costs.
Minimise operating sounds caused by vibration.
3

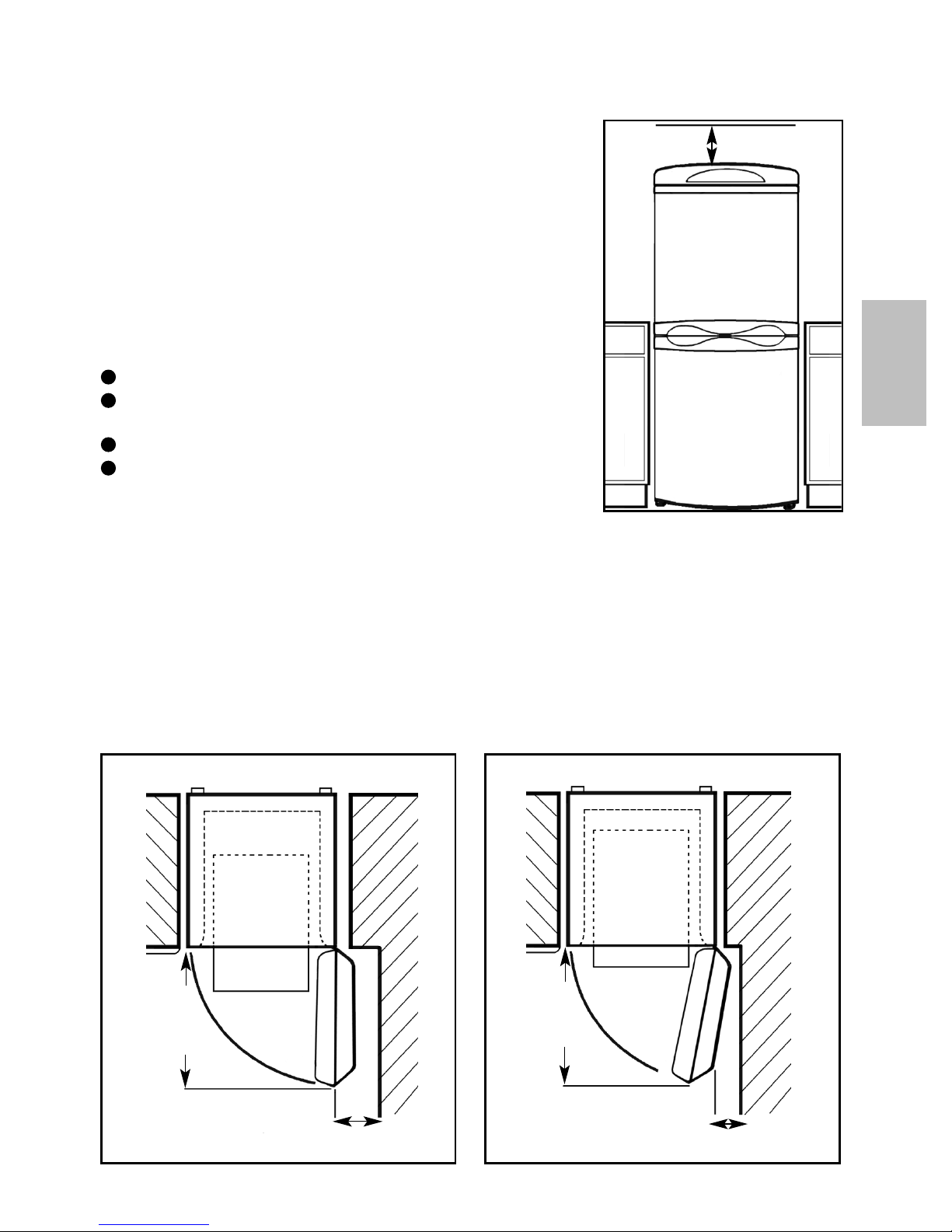

Minimum space required to open door
The fridge freezer needs a space of 600mm (24 inches) in front to allow the door
to open.
When positioning the fridge freezer next to a unit, a gap of 30mm (11/4inch) can
be left at the hinge side of the door to allow the easy removal of furniture. If
preferred the fridge freezer can be positioned so that a gap is not left.This will
restrict how far the door can be opened but the furniture can still be removed
(see diagrams below).The door hinge side can be changed to make it easier to
open (see ‘Door Reversal’ in the CLEANING & MAINTENANCE section).
SAFETY &
INSTALLATION
100mm
(4 inches)
TOP VIEW TOP VIEW
less than 30mm
30mm or more
600mm
600mm

Installation
Levelling:
Level the fridge freezer when it is in its final location by adjusting the front feet, until
firm contact is made with the floor. This will stop rocking or vibration and keep the
doors aligned which helps the fridge freezer run reliably and efficiently.
Note: Before plugging in and switching on, leave the fridge freezer standing
in its final location for at least 15 minutes to allow it to settle.
4
SAFETY &
INSTALLATION

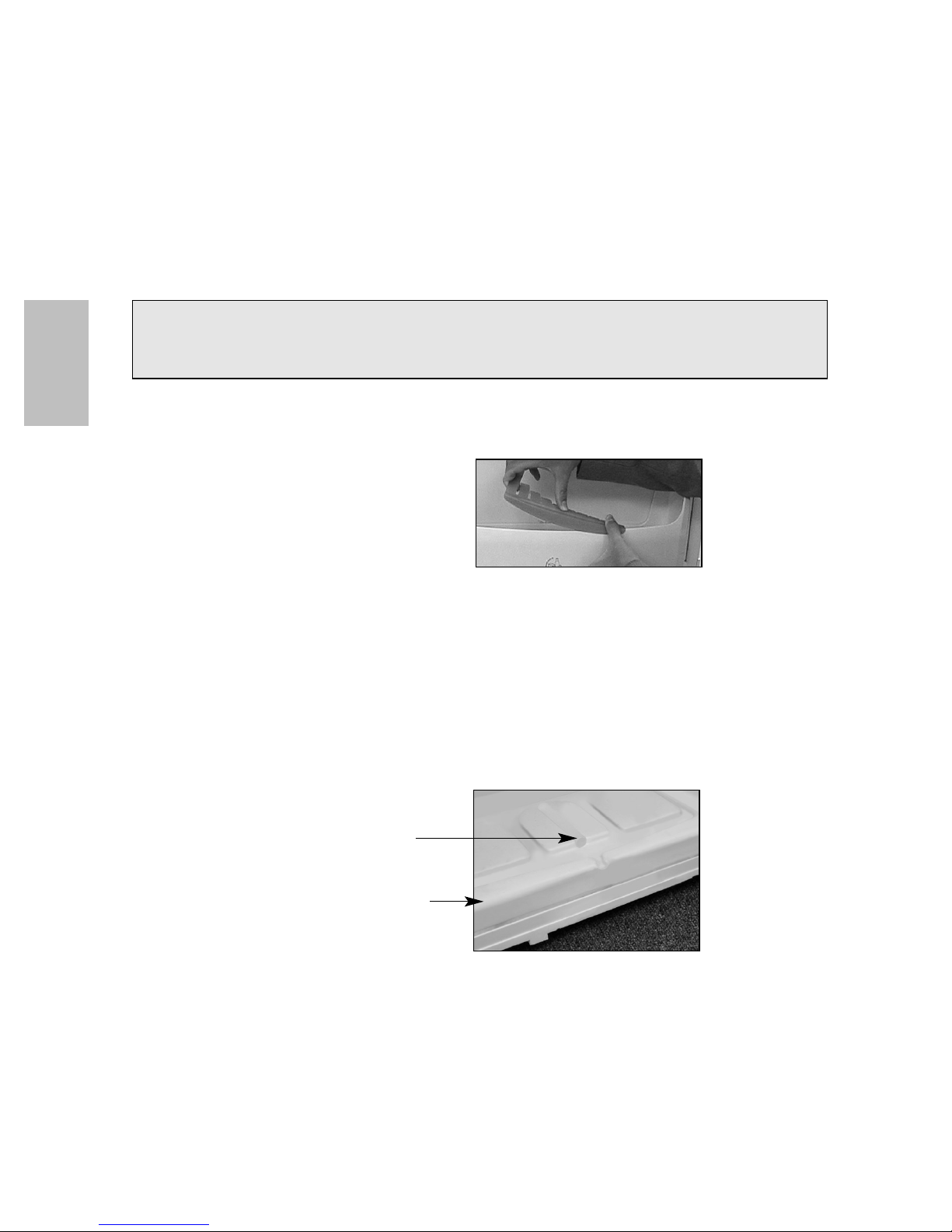

Defrost Tube:
A tube is supplied to help feed defrost water into a collecting vessel, ie. a bowl (see
‘Defrosting’ in the CLEANING & MAINTENANCE section).
For safe keeping until required, the tube can be stored in the floor of the freezer
compartment.
To fit the bottle rack retainer:
Locate the retainer groove at one end of
the bottle rack and then gradually press
down along the top edge until the
retainer is fully in the home position.
Bottle Retainer (not applicable to all models):
WARNING: Failure to level the appliance correctly may result in misalignment
of the cabinet and/or doors.
Floor of the freezer compartment
Defrost tube in storage position

Installation
Electrical Supply
WARNING: This appliance must be earthed.
The appliance must be positioned so that the plug is accessible after
installation.
Fuses
Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the
fuse, only use those rated at 13A and ASTA approved to BS1362.
Changing the Plug
Cut off and dispose of the supplied plug if it does not fit your socket.
WARNING: To avoid a shock hazard do not insert the discarded plug into a socket
anywhere else.
IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE
FOLLOWING CODE :
Green/Yellow - Earth
Blue - Neutral Brown - Live
If you change the plug, the colour of wires in the mains lead may not correspond with
the colour of the markings identifying terminals in the plug. You should therefore
wire it as shown above.
Changing the Mains Lead
This appliance is fitted with a special mains lead. If you need to replace the mains
lead due to damage, one can be bought from Hotpoint Service (see KEY CONTACTS,
back page).
It is strongly advised that this work is carried out by a qualified electrician.
CE Marking certifies that this appliance conforms to the following EEC
directives : Low Voltage Equipment - 72/23/EEC & 93/68 EEC
Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC
5
SAFETY &
INSTALLATION

Controls
Controlling the Temperature of the Fridge Compartment
The left hand control wheel on the front panel adjusts the internal fridge compartment
temperature. The internal temperature should be 5˚C or colder, although some sections
such as the salad bin will be slightly warmer.The setting of the control wheel will depend
on the location of the fridge freezer, the room temperature and how often the door is
opened. The normal set point (marked by a 3 on the dial) is usually suitable. If you
need to adjust the temperature turn the control wheel using a coin to avoid damage:
Clockwise (higher number) - Colder
Anti-clockwise (lower number) - Warmer
Controlling the Temperature of the Freezer Compartment
The right hand control wheel on the front panel adjusts the internal freezer compartment
temperature. The internal temperature should be -18˚C or colder.The setting of the
control wheel will depend on the location of the fridge freezer, the room temperature and
how often the door is opened. The normal set point (marked by a 3 on the dial) is usually
suitable. If you need to adjust the temperature turn the control wheel using a coin to
avoid damage:
Clockwise (higher number) - Colder
Anti-clockwise (lower number) - Warmer
6
You can check the temperature of the fridge freezer compartments by using a Fridge
Freezer Thermometer available from Hotpoint Genuine Parts and Accessories Mail
Order Hotline (see KEY CONTACTS back page).
WARNING: Do not use a mercury filled thermometer, as breakage would cause a
health hazard.
Your fridge freezer must NOT be placed in a room where the temperature goes below
6˚C or above 38˚C (models RFA18, RFM18), below 6˚C or above 43˚C (models RFA66,
RFM66) for prolonged periods, as the internal temperatures will not be maintained.
CONTROLS
Temperature Indicator (not applicable to all models)
The temperature indicator is located on the bottom right
hand side of the fridge compartment wall.
This indicator shows when the fridge compartment of your
fridge freezer is operating at the correct temperature.
After plugging in and switching on PLEASE WAIT 24 HOURS for the fridge compartment
temperature to stabilise. After this time the indicator should clearly show OK and that
indicates the fridge compartment is operating at the correct temperature.
If the indicator is completely black, the compartment temperature is too high and
you should adjust the left hand control wheel to a colder setting (see above).
If you have to adjust the temperature setting please WAIT A MINIMUM OF 10 HOURS,
this is time for the temperature to stabilise before checking that the indicator is
showing OK.
If large quantities of food have been added or if the fridge compartment door has
been opened frequently it is normal for the temperature indicator not to show OK.
WAIT A MINIMUM OF 10 HOURS before adjusting the temperature to a colder setting.

Controls
7
CONTROLS
Indicator Lights
Green Mains Light
The green mains light will stay on as long as the electricity supply is not interrupted.
Amber Fast Freeze Light
The amber fast freeze light indicates that the fast freeze button has been pressed on.
By pressing this button ON, the freezer motor will run continuously for extra cooling.
Amber Holiday Light (Models RFA18,RFM18 only)
The amber holiday light indicates that the holiday mode is set.
Red High Temperature Warning Light
The red temperature warning light will come on when the freezer is first switched on
or when the temperature inside the compartment rises above the correct storage
temperature. Check the TROUBLESHOOTING section before calling for advice. The
red light may come on for a short period when opening the freezer door to load or
unload food, in this case storage times will not be affected.
Holiday Function (Models RFA18,RFM18 only)
This feature allows you to set your fridge compartment to a warmer setting while you
are away on holiday, to reduce running costs without affecting the freezer.
To set up holiday mode:
1. Remove any food, from the fridge compartment, that will deteriorate while you
are away. Make sure the fridge is clean.
2. Close the door.
3. Press the holiday button and the amber holiday indicator light will show that
holiday mode is set.
To reset to normal operation:
1. Press the holiday button OR open the fridge door. The amber holiday indicator
light will go out to show holiday mode is cancelled.
2. The fridge compartment will return to the temperature set on the fridge
temperature control wheel.
Note : Opening the door or pressing the holiday button at any time after holiday
mode has been set will turn the function off. The holiday button works
independently of the fridge temperature control wheel.

Controls
8
Fast Freeze Button - Freezing Fresh Food
The top compartment with or without the drawers, should be used to freeze fresh
food. Transfer already frozen food to one of the lower compartments/drawers.
- Before loading 2kg or more of fresh food select fast freeze for the required
pre-freeze time (see chart below).
- If freezing up to 2kg of fresh food just select fast freeze when loading.
Once the fresh food is loaded leave fast freeze on for 24 hours to freeze the food as
quickly as possible.
Maximum freezing capacity in 24 hours:
RFA18,RFM18,RFA66,RFM66 15kg
Note : Don’t forget to turn fast freeze off after 24 hours.
However fast freeze will turn off automatically after 48 hours if you do forget.
CONTROLS
Model
RFA/M18
RFA/M66
RFA/M18
RFA/M66
RFA/M18
RFA/M66
All
Pre-Freeze chart when selecting Fast Freeze:
Load for freezing Pre-freeze time Load position
10 to 15kg max. 24 hours Directly on the top compartment grid only.
5 to 10kg 12 hours Directly on the top compartment grid
OR in the top drawer.
2 to 5kg 6 hours Directly on the top compartment grid
OR in the top drawer.
up to 2kg not required Directly on the top compartment grid
OR in the top drawer.

Useful Advice
9
Note:
The Rating Plate, which lists the
appliance Model Number and Serial
Number can be found near the bottom
of the freezer compartment on the
interior wall.
Note:
The photographs indicate the Fast
Freeze and storage areas (see tables).
The fridge cabinet and door furniture
will vary according to each model
specifications.
USEFUL ADVICE
D
C
B
B
B
AA
Fast Freeze
Models: RFA66,RFM66
D
C
B
B
B
AA
Fast Freeze
Models: RFA18,RFM18

Making the best use of your Fridge Freezer
Note : Always use the handle provided to open the fridge / freezer door.
To ensure that your fridge freezer operates as efficiently as possible :
Follow food packaging “best before/use by”instructions or your suppliers
advice on a suitable maximum storage time.
Keep foods tightly covered to retain moisture and prevent flavour/odour
transference. Plastic bags, aluminium foil, plastic stretch wrap and containers
with lids are ideal.
Select chilled and frozen food last when shopping, transport in a ‘cool bag’
and place in freezer as soon as possible after arriving home.
Avoid opening the doors unnecessarily or for longer than needed.
Allow hot or warm food to cool down in covered containers before placing in
the fridge or freezer, as placing hot food inside reduces efficiency.
Prepare fresh foods for freezing in small quantities to ensure that the food
freezes quickly and so that its quality does not deteriorate.
Ensure that packets/containers of food are dry before freezing otherwise
they may freeze together.
Storing Food in a Fridge
Pack and store cooked and fresh food separately.
Wrap raw or defrosting meat and poultry in polythene or foil and store
below cooked foods and dairy products to avoid contamination of dripping
food juices.
Wrap cheese in greaseproof paper and place in an airtight container or
polythene bag.
Bring to room temperature before consuming.
Empty left over canned food into a covered storage containers before
placing in the fridge.
Position food to allow cold air to circulate freely, ensuring nothing comes
into contact with the back of the fridge compartment, or covers the defrost
gutter drain hole below this.
Use the different storage zones inside your fridge compartment to store a
wide variety of food items.
Useful Advice
10
USEFUL ADVICE
STORAGE ZONES
Zone Type Food Storage
A Cool Dairy products, Cheese, butter, margarine,
Low fat spreads, cooking fats / lards
Preserves - Jam, curd, marmalade,
spread, salad dressing or sauces.
B Colder General food storage
C Coldest Meat fish & poultry
Pre-cooked / chilled food
D Salad Bins Vegetables, fruit and salad items
(Not recommended for the storage of
bananas or onions).

Useful Advice
11
USEFUL ADVICE
Advice on Adjusting Shelves
Make the most of the interior storage
space by repositioning shelves to suit the
various heights of individual items you
wish to store.
Note : Only the front half of the
shelf can be repositioned, the back
half must remain in its original
position.
Split glass shelf (not applicable to all models):
The split shelf can be used as a standard shelf but also as
two half shelves.
The front half can be repositioned above or below to
enable storage of larger items.
To remove, ensure that the door is open fully.
Slide the shelf forward and tilt from position.
Egg Rack (not applicable to all models):
The egg rack can be used in conjunction with any commodity rack and is easily
removed for cleaning.
Note: Wipe, don’t wash eggs.
Commodity and Bottle Racks
Commodity racks can be repositioned in the door to suit your storage requirements.
The lidded commodity rack is recommended for the storage of dairy items, such as
butter, margarine and cheese.
To remove, lift rack vertically to release from fixing supports. To replace, align grooves
on either side of the rack above fixing supports and push down until secure.
In order to get the best results from the bottle retainer it is advised that it be
positioned centrally on the bottle rack.

Salad Bins
For the storage of fruit, vegetables and salad items.
When storing vegetables, remove unusable leaves and soil. Leave lettuce, cabbage
and cauliflower on the stem.
It is advisable to clean the salad bin regularly, it can be removed by sliding it out from
position.
Note : Care must be taken to ensure that the salad bin is pushed in fully before
shutting the fridge door.
Useful Advice
12
Wine Rack (not applicable to all models):
The wine rack is suitable for cans, wine bottles and 2 litre bottles. The maximum load
recommended is three 2 litre bottles and two wine bottles.
Position the wine rack in the second runner down from the top of the fridge when
storing longer length bottles. This will ensure the bottles clear the door furniture and
allow the door to close properly.
To remove:
Ensure that the fridge door is fully open. Slide the wine
rack forward and tilt from position.
Note: DO NOT remove a fully loaded wine rack, just remove bottles as necessary.
Microban® is a unique antibacterial technology which is built into interior
components of your fridge during manufacture. Microban® protects against growth
of potentially harmful and odour causing bacteria on the interior fridge surfaces,
thereby keeping your fridge fresher and more hygienically clean during use.
Microban® will not wash out or wear out and will provide continuous protection
against bacteria for the life of your fridge. Microban® technology has been proven
safe, durable and effective over many years of use in personal care and household
consumer products. In addition, Hotpoint operate a rigorous antibacterial testing
programme through approved independent testing laboratories.
Note : You should continue to clean your fridge as recommended (see
CLEANING & MAINTENANCE section). Microban® provides an extra level of
hygiene protection in your fridge in between cleanings.
(not applicable to all models):
USEFUL ADVICE

Useful Advice
13
Storing Food in a Freezer
Freeze and store either fresh food or long term
commercially frozen foods.
Generally speaking long term storage means up to 3
months but this can vary, so always follow your
supplier’s recommendations otherwise refer to the
pictorial guide on the door liner (as shown, right).
Place frozen food in the freezer compartment as soon
as possible after buying it.
Liquid-filled bottles or sealed fizzy drinks must not be
stored in freezer, as they may burst.
Lollipops and water ices should not be given to children
directly from the freezer the low temperature may cause ‘freezer burns’.
Store ice cream towards the top front of the freezer and remove from freezer
15-30 minutes before serving.
Ensure food is labelled and dated before placing in freezer.
When freezing fresh food follow the instructions for using fast freeze (see
CONTROLS section).
Do not allow fresh food to come into contact with food already frozen, the
frozen food could start to defrost.
Once thawed, food should be cooked and eaten within 24 hours or cooked and
refrozen.
Fully defrost your freezer when the ice is between 3-5mm thick (1/4inch) (see
CLEANING & MAINTENANCE section).
Note : A thick layer of ice will increase the running costs of your freezer.
STORAGE GUIDE
ALL
Frozen Food
Storage Capacity 30kg
Maximum Freezing
Capacity in 24 hours 15kg
Maximum Conservation
Time from Failure 18 hours
USEFUL ADVICE

Useful Advice
14
Advice on Using Freezer Drawers
The freezer compartments can be used with or without the drawers. However, the
bottom drawer needs to remain in position at all times (to maintain the correct
storage temperature).
It is generally more convenient to use the drawers but if a lot of food is to be stored
the drawers can be taken out and food placed directly onto the grids.
Ensure that packets/containers of food are thoroughly dry before placing onto the
grids.
The storage drawers can be easily removed. Pull the drawer towards you until it
reaches it’s stop position. Hold securely on both sides, lift the front of the drawer to
release and remove.
For cleaning advice see CLEANING & MAINTENANCE section.
When using the frozen food storage drawers, ensure that they are pushed back fully
before closing the door.
Food can be separated into different storage drawers for easy identification.
When lifting or removing the large deep drawer it is important to hold the side
handles and not the front handle.
WARNING: The freezer drawers can become heavy when fully loaded with food. Care
must be taken if attempting to lift or carry a full freezer drawer. It is recommended to
remove the required food, rather than the whole freezer drawer.
Note : It is important not to touch or move any of the freezer drawers/parts
with wet hands as it may cause freezer burn or discomfort.
Ice Tray
When making ice, use the tray provided. Take care not to overfill with water.
Uncovered food should not be placed near the ice tray as it can affect the flavour of
the ice.
Note : Empty, wash and refill the ice tray periodically to ensure freshness..
USEFUL ADVICE
(Models RFA66 and RFM66 only):
If the top drawer is not used DO NOT store food
on the top shelf in front of this point.

Defrosting
15
Defrosting
Fridge compartment
No manual defrosting required
The fridge compartment will defrost automatically. During defrost periods water
droplets form on the interior back wall of your Fridge and refreeze afterwards.
WARNING: Ensure that stored food does not come into contact with the interior
back wall of your Fridge. Also ensure the defrost gutter drain hole is kept clear see
‘Cleaning’ in the CLEANING & MAINTENANCE section.
Freezer compartment
Regular use of your appliance causes ice to gradually build up on internal surfaces
increasing the running costs of your appliance. When the ice is between 3-5mm
(1/4inch) Hotpoint recommend‘fully defrosting your freezer’.
Fully defrosting your freezer...
WARNING: Switch off electrical supply and pull out the mains plug.
1. Remove frozen food, wrap or cover it and place into insulated containers to
keep frozen whilst the freezer defrosts.
2. Remove the storage drawers.
3. Insert the supplied defrost tube into the groove situated in the floor at the
front of the freezer. Place a container beneath the tube to collect the defrost
water.
4. As the frost begins to melt, use the supplied plastic scraper to remove frost.
Never use sharp metal tools to remove frost as they may damage your
freezer beyond repair.
5. Sponge out excess defrost water which collects at the bottom of the freezer.
NOTE : When defrosting is complete, clean the interior thoroughly
following the instructions overleaf.
6. Replace storage drawers.
7. Replace mains plug and switch on. Unwrap food and replace.
CLEANING &
MAINTENANCE

Cleaning
16
Cleaning
WARNING: Switch off electrical supply and pull out mains plug before cleaning.
Interior Note : We recommend you use a straw to keep the defrost gutter drain hole
clear of any blockage. DO NOT use sharp metal tools which could cause
damage beyond repair.
WARNING: Do not use abrasive powder, household cleaner, bleach or wax polish
to clean the interior, they will leave a smell in the fridge freezer.
1. Remove stored food, wrap or cover it and place into insulated containers to
keep cool/frozen whilst cleaning.
2. Remove salad bins, racks, shelves and drawers from each compartment.
Wash in warm water and washing up liquid using a soft cloth, dry
thoroughly.
DO NOT use any cleaning agents on the wine rack, just wipe with a soft
cloth.
3. Wipe interiors and fittings with a clean cloth wrung out in a solution of
either one teaspoon of bicarbonate of soda to one pint of water or Milton™
sterilising fluid, diluted according to the manufacturer’s instructions.
4. Dry interior compartments thoroughly with a clean cloth before replacing
fittings and food.
Note : It is important to ensure that cleaned shelves, racks, drawers and
bins are thoroughly dried before refitting into the fridge freezer
compartments.
Exterior
WARNING: Do not use abrasive powder, household cleaner or bleach, they can
damage the exterior of your fridge freezer.
1. Use a clean soft cloth wrung out in warm water and washing up liquid to
wipe the exterior surface, dry thoroughly.
2. Use a soft brush or vacuum cleaner to remove dust from underneath the
fridge freezer and from the compressor and condenser situated at the back
of the fridge freezer.
WARNING: Do not damage the pipework.
Door Seals
Use warm water and a clean soft cloth to wipe along and in between the creases of
the door seals, dry thoroughly. Take care not to damage the seals and avoid using
sharp objects.
WARNING: Do not use detergent, it will damage the seals.
CLEANING &
MAINTENANCE

Going Away
If you are going away and don’t want to use your fridge freezer, switch off electricity
supply and pull out the mains plug. Remove food and follow the cleaning
instructions on the previous page.
Note : Leave the doors ajar to prevent an accumulation of odours.
Changing the Light Bulb
WARNING: Switch off electricity supply and pull out the mains plug
Obtain a replacement SES 15 watt bulb from the Hotpoint Genuine Parts and
Accessories Mail Order Hotline (see KEY CONTACTS back page) and fit as follows :
1. Remove any shelves from directly below the interior light, to make access
easier.
2. Squeeze the side of the lamp guard lightly to unclip. Remove and retain.
3. Remove old bulb and fit new one.
4. Refit lamp guard.
5. Plug in and switch on electrical supply.
Maintenance
17
Models RFA18,RFM18 only: Alternatively, if you want to keep your freezer running
but want to empty the fridge you could set the holiday mode.
See CONTROLS section.
CLEANING &
MAINTENANCE

Door Reversal
You will need a selection of small hand tools, screwdrivers, spanners etc. to carry out
this procedure.
Our Service Department can arrange for an Engineer to do the conversion for you but
a charge will be made.
WARNING: Switch off electrical supply and pull out the mains plug.
Remove all door furniture and all loose items/fittings from inside the fridge freezer.
If you have previously set up and used the fridge freezer and since decided to reverse
the doors, you must remove stored food, wrap or cover it and place into insulated
containers to keep cool/frozen whilst carrying out this operation.

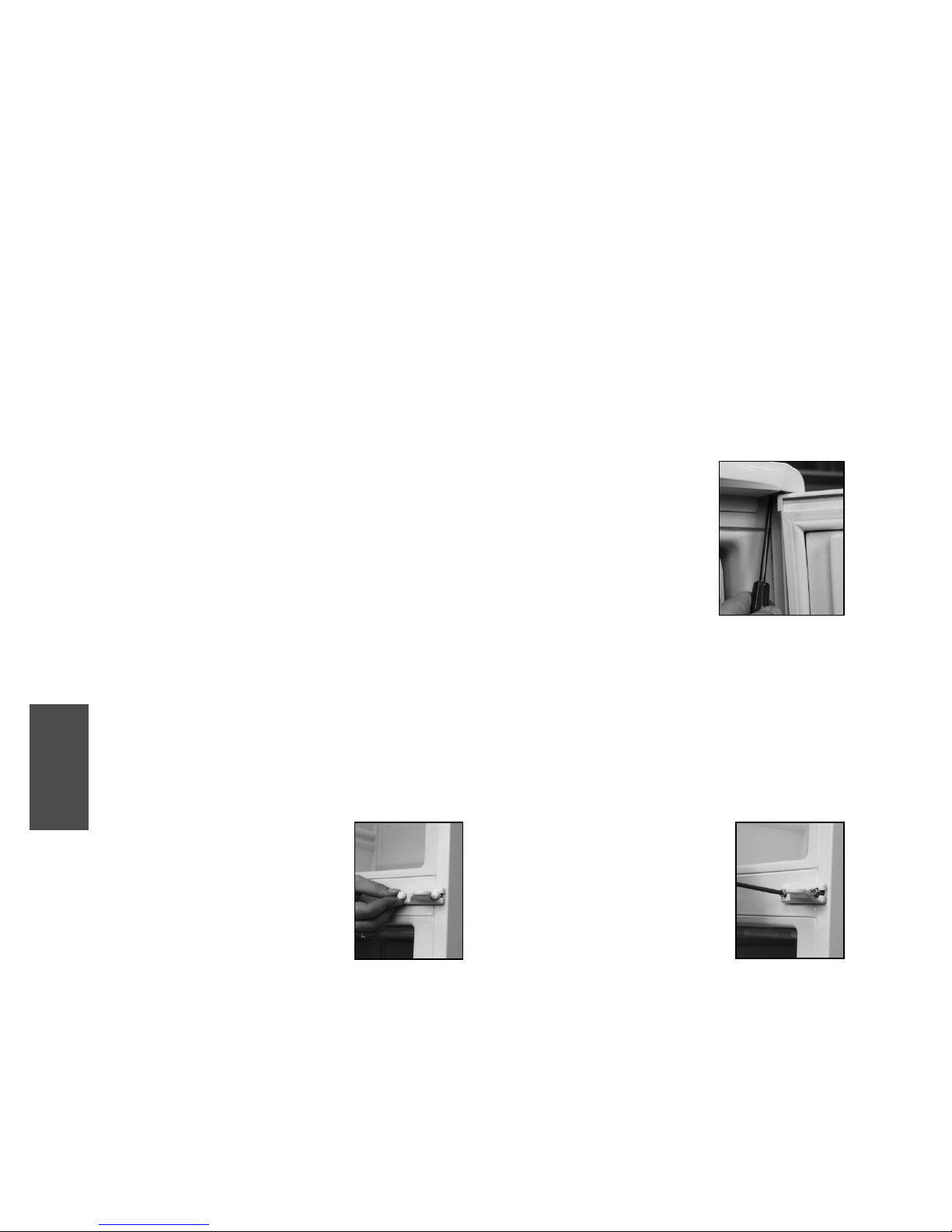

Remove Top Door
1. Open the door as wide as possible.
Note : You may require assistance to do this:
2. Support the door and using a screwdriver, remove the screw
securing the top hinge.
3. Lower the top hinge and carefully tilt the door to remove the
top hinge from the cabinet. Lift the door off the centre hinge.
4. Remove the top hinge from the door.
Remove Lower Door
Note : You may require assistance to do this:
5. Open the lower door and while supporting the door, remove the spacing
washers and pin from the centre bracket.
Note which way up the pin is fitted.
6. Lift the door off the bottom hinge.
Door Reversal
18
CLEANING &
MAINTENANCE
7. Take the two screw
covers off the centre
hinge.
8. Unscrew the two
screws to remove the
centre hinge.
9. Remove any spacing washers fitted to the bottom hinge and store safely.
Note : You may require assistance to do this:
10. Using the packaging from the appliance or a suitable substitute to support
the back of the appliance. Lay the appliance on its back, ensuring the
pipework at the back is not damaged or bent.
Be careful that the appliance does not run away with you when the wheels
touch the floor.

Refit Lower Door

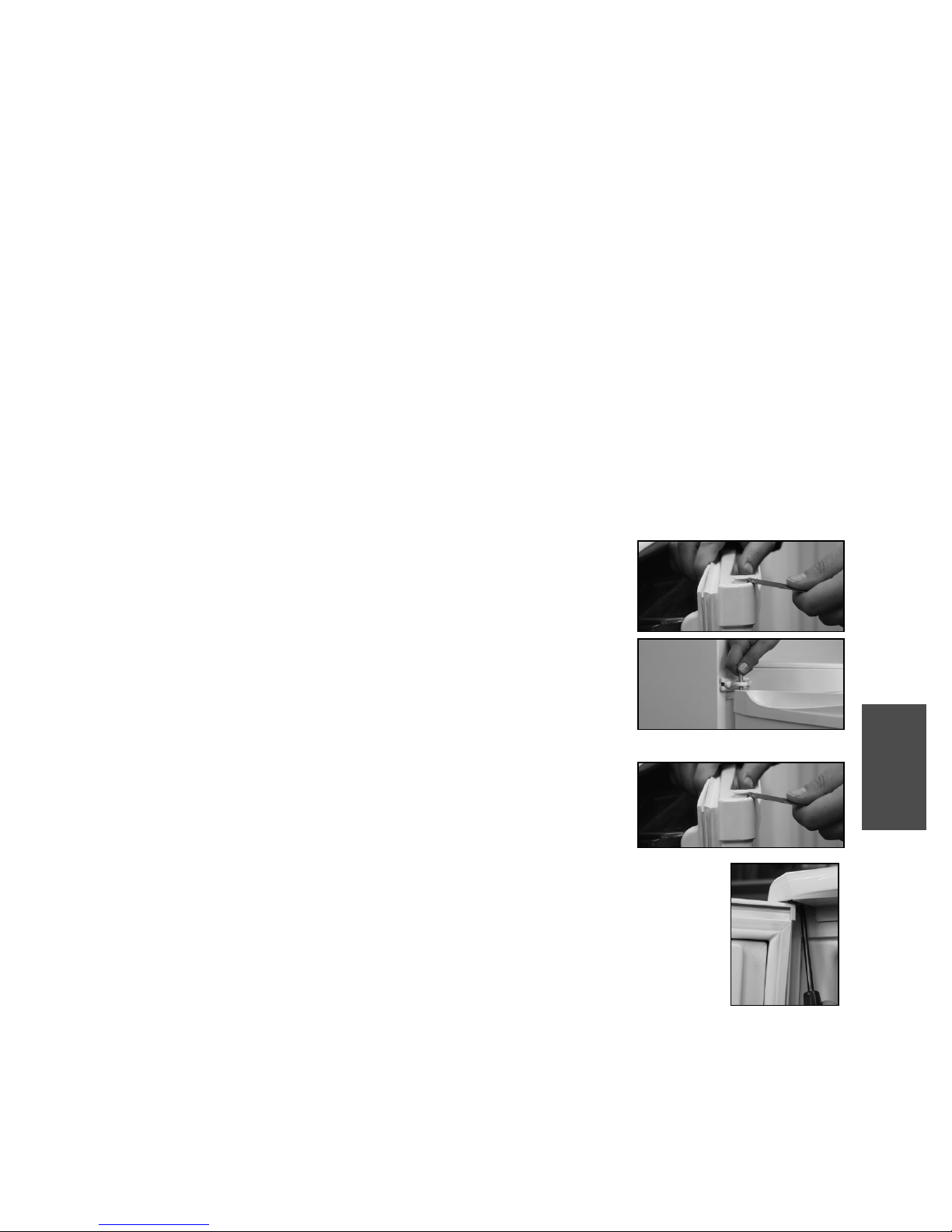

14. Take off the two screw covers from the left hand centre panel and remove
the two screws. Fit these screws and covers over on the right hand side.
15. Fit the centre hinge on the left hand side with the original screws, cover the
screws with the original covers.
16. Using a thin blunt instrument, remove the hinge
bush cap from the top left of the lower door and fit
on the top right.
Note : You may require assistance to do this:
17. Place the lower door onto the lower hinge pin.
18. Offer the door up to the centre hinge.
Put the hinge pin through the centre hinge and
ensure it locates into the door. Check that the hinge
pin is positioned the right way up.
Refit Top Door
19. Using a thin blunt instrument, remove the hinge
bush cap from the top left of the door and refit on
the top right.
20. Replace the spacing washers onto the centre hinge bracket.
Note : You may require assistance to do this:
22. If necessary, slacken off the screws on the centre hinge pin and adjust the
doors so that they line up with the cabinet.
23. Adjust the front feet (see ‘Levelling’ SAFETY & INSTALLATION section).
Note : Let the appliance stand upright in it’s final location for at least 15
minutes before plugging in and switching on the electricity supply.
WARNING: Failure to level the appliance correctly may result in
misalignment of the cabinet and/or doors.
Door Reversal
19
Door Reversal continued...
11. Unscrew the foot and hinge bracket fitted to the bottom right hand side of
the appliance. Unscrew the foot and footplate fitted to the left hand side of
the appliance.
12. Refit the hinge bracket and footplate to the opposite sides of the appliance.
Screw in the feet until there is approximately 35mm projecting from the
bottom front edge of the appliance.
Note : You may require assistance to do this:
13. Lift the appliance from the rear of the tabletop and stand it on its feet and
wheels. Be careful that the appliance does not run away with you when the
wheels touch the floor.
Refit the spacing washers.
21. Place the top door hinge onto the top left of the door, slide the
door onto the centre hinge pin. Support the door while
screwing the top hinge into position.
Ensure that the hinge bracket locates correctly.
CLEANING &
MAINTENANCE

Troubleshooting
IS THE FRIDGE FREEZER WORKING AS
YOU WANT?
Have you read through the instruction
book ?
If you still have a problem, before calling
our service organisation see if any of the
tips below help.
The fridge freezer will not work
1. Check plug is firmly positioned in the
socket outlet and the power supply is
switched on.
2. Check power supply with another
appliance.
3. Check fuse/circuit breaker.
4. Check the door is closed properly.
The fridge freezer is making a lot of
noise
1. Check that the rear pipe work is clear
of the wall, skirting board and other
obstacles.
2. Check that all feet/wheels are firmly
in contact with the floor and the
fridge freezer is level.
3. See OPERATING SOUNDS next page.
The temperature is too warm
1. Turn the control wheel to a higher
number. See CONTROLS section.
2. If the fridge freezer is close to a heat
source, move it to another location.
3. Check that there is enough
ventilation around the fridge freezer.
4. Check that the door has been closed
properly.
The temperature is too cold
1. Turn the control wheel to a lower
number. See CONTROLS section.
The red warning light will not go out?
1. Has the fridge freezer just been
installed? If so, this is normal and the
light will go out when the correct
temperature has been reached.
2. Has the fridge freezer been loaded
with a large quantity of food? If so,
the light will go out when the correct
temperature has been reached.
3. Have the doors been closed
properly?
The amber fast freeze indicator light is
on?
1. Fast freeze is selected. Remember to
turn fast freeze off after 24 hours.
However if you forget, it will
automatically cancel after 48 hours.
The amber holiday indicator light is
on? (Models RFA18,RFM18 only)
1. Holiday mode is selected.
Press the holiday button or open the
fridge door to cancel this function
and return the fridge freezer to
normal operation.
The holiday mode setting won’t stay
on? (Models RFA18,RFM18 only)
1. The holiday mode setting can only be
set when the door is closed. Opening
the door or pressing any other button
will turn holiday mode off.
See CONTROLS section for details on
how to set the holiday mode.
The front of the cabinet feels warm
You may notice the cabinet front is
sometimes warm, this is normal and part
of the refrigerant circulating system
designed to help prevent condensation
on the door seal.
20
TROUBLESHOOTING
