Hotpoint RB526HCC - 30 Inch Electric Range User manual

Coil Top and
Radiant Top Models
Standard
Clean Models
JBS03
JBS07
JBS15
JBS27
RB525
RB526
RB536
RB540
Self-Clean
Models
JB600
JBP15
JBP21
JBP22
JBP60
RB740
RB757
RB787
RB790
RB800
183D6379P028 49-88022 08-05 JR
Safety Information . . . . . . . . . . 2–6
Operating Instructions
Adjust the Oven
Thermostat . . . . . . . . . . . . . . . . . . .21
Clock and Timer . . . . . . . . . . .15, 16
Oven . . . . . . . . . . . . . . . . . . . . .12–14
Oven Controls . . . . . . . . . . . . .10, 11
Sabbath Feature . . . . . . . . . . . .19, 20
Selecting Types of Cookware . . . . .9
Self-Cleaning . . . . . . . . . . . . . .24, 25
Special Features . . . . . . . . . . . . . . .18
Surface Units . . . . . . . . . . . . . . . . 7, 8
Timed Baking and Roasting . . . . .17
Warming Drawer . . . . . . . . . . . 22, 23
Care and Cleaning . . . . . . . . 24–33
Glass Cooktop . . . . . . . . . . . . .32, 33
Self-Cleaning Oven . . . . . . . . .24, 25
Installation Instructions
Anti-Tip Device . . . . . . . . . . . .34, 40
Before You Begin . . . . . . . . . . . . . 34
Electrical Connections . . . . . . .36–39
Leveling . . . . . . . . . . . . . . . . . .40, 41
Troubleshooting Tips . . . . . . 42–46
Accessories . . . . . . . . . . . . . . . . . . 47
Consumer Support
Consumer Support . . . . .Back Cover
Product Registration . . . . . . . . 49, 50
Warranty . . . . . . . . . . . . . . . . . . . . 51
ge.com
Write the model and serial
numbers here:
Model # __________________
Serial #____________________
You can find them on a label,
behind the storage drawer or
warming drawer on the oven
frame.
Owner’s Manual and
Installation Instructions
Ranges
Electric Coil & Radiant

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, personal injury, or loss of life.

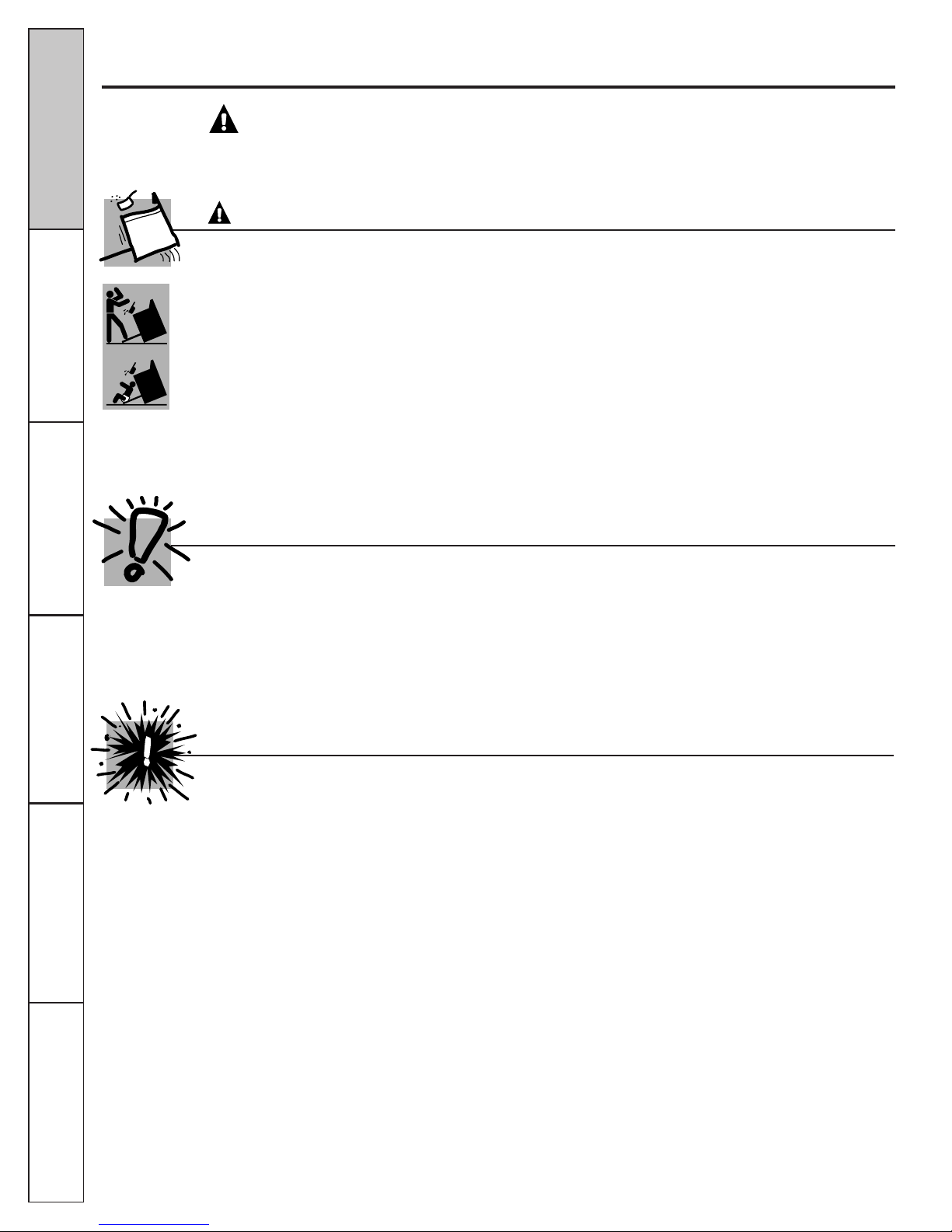

All ranges can tip and injury could result.
To prevent accidental tipping of the range, attach
it to the wall by installing the Anti-Tip device
supplied.
If the Anti-Tip device supplied with the range does
not fit this application, use the universal Anti-Tip
device WB2X7909.
To check if the device is installed and engaged
properly, carefully tip the range forward. The
Anti-Tip device should engage and prevent
the range from tipping over.
If you pull the range out from the wall for
any reason, make sure the device is properly
engaged when you push the range back against
the wall. If it is not, there is a possible risk of the
range tipping over and causing injury if you or
a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information
in this manual. Failure to take this precaution
could result in tipping of the range and injury.
WARNING ANTI-TIP DEVICE
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of
California to publish a list of substances known
to the state to cause cancer, birth defects or other
reproductive harm, and requires businesses to
warn customers of potential exposure to such
substances.
The fiberglass insulation in self-clean ovens gives
off a very small amount of carbon monoxide during
the cleaning cycle. Exposure can be minimized by
venting with an open window or using a ventilation
fan or hood.
When using electrical appliances, basic safety precautions should be followed, including the following:
■Use this appliance only for its intended
purpose as described in this Owner’s Manual.
■Be sure your appliance is properly installed
and grounded by a qualified technician in
accordance with the provided installation
instructions.
■ Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
■ Before performing any service, disconnect
the range power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker.
■ Do not leave children alone—children
should not be left alone or unattended in
an area where an appliance is in use. They
should never be allowed to sit or stand on
any part of the appliance.
■ Do not allow anyone to climb, stand or
hang on the door, storage drawer, warming
drawer, or cooktop. They could damage the
range and even tip it over, causing severe
personal injury.
■ Do not store flammable materials in an oven
or near the cooktop.
■ CAUTION: Items of interest to
children should not be stored in cabinets
above a range or on the backsplash of a
range—children climbing on the range to
reach items could be seriously injured.
SAFETY PRECAUTIONS
2
Operating
Instructions Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support

3
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support
ge.com
COOK MEAT AND POULTRY THOROUGHLY…
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an
INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.
■ Never wear loose-fitting or hanging garments
while using the appliance. Be careful when
reaching for items stored over the range.
Flammable material could be ignited if
brought in contact with hot surface units
or heating elements and may cause severe
burns.
■ Use only dry pot holders—moist or damp
pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
touch hot surface units or heating elements.
Do not use a towel or other bulky cloth.
■ For your safety, never use your appliance
for warming or heating the room.
■ Do not let cooking grease or other flammable
materials accumulate in or near the range.
■ Do not use water on grease fires. Never pick
up a flaming pan. Turn the controls off.
Smother a flaming pan on a surface unit by
covering the pan completely with a well-
fitting lid, cookie sheet or flat tray. Use a
multi-purpose dry chemical or foam-type
fire extinguisher.
■Flaming grease outside a pan can be put
out by covering it with baking soda or,
if available, by using a multi-purpose dry
chemical or foam-type fire extinguisher.
■Flame in the oven or warming drawer
can be smothered completely by closing the
door and turning the oven off or by using a
multi-purpose dry chemical or foam-type fire
extinguisher.
■ Do not touch the surface units, the heating
elements or the interior surface of the oven.
These surfaces may be hot enough to burn
even though they are dark in color. During
and after use, do not touch, or let clothing
or other flammable materials contact, the
surface units, areas nearby the surface units
or any interior area of the oven; allow
sufficient time for cooling first.
■Potentially hot surfaces include the cooktop,
areas facing the cooktop, oven vent opening,
surfaces near the opening, crevices around
the oven door and metal trim parts above
the door.
■REMEMBER: The inside surface of the oven
may be hot when the door is opened.
■ Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
■ Keep the hood and grease filters clean
to maintain good venting and to avoid
grease fires.
■ Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly with correct combustion. Air
openings are located at the rear of the
cooktop, at the top and bottom of the oven
door, and at the bottom of the range under
the warming drawer or storage drawer.
WARNING!
SAFETY PRECAUTIONS

■Do not clean the door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage or
move the gasket.
■Clean only parts listed in this Owner’s
Manual.
■Do not use oven cleaners on self-clean
models. No commercial oven cleaner or
oven liner protective coating of any kind
should be used in or around any part of
the oven. Residue from oven cleaners will
damage the inside of the oven when the
self-clean cycle is used.
■Before self-cleaning the oven, remove the
broiler pan, grid and other cookware.
■Be sure to wipe up excess spillage before
starting the self-cleaning operation.
■If the self-cleaning mode malfunctions,
turn the oven off and disconnect the power
supply. Have it serviced by a qualified
technician.
■Take the shelves out of the oven before
you begin the self-clean cycle or they
may discolor.
SELF-CLEANING OVEN (on some models)
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
4
■ Stand away from the range when opening
the oven door. Hot air or steam which
escapes can cause burns to hands, face
and/or eyes.
■ Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■ Keep the oven vent unobstructed.
■ Keep the oven free from grease buildup.
■ Place the oven shelf in the desired position
while the oven is cool. If shelves must be
handled when hot, do not let pot holder
contact the heating elements.
■ Pulling out the shelf to the stop-lock is a
convenience in lifting heavy foods. It is also
a precaution against burns from touching
hot surfaces of the door or oven walls.
■ When using cooking or roasting bags in the
oven, follow the manufacturer’s directions.
■ Do not use the oven to dry newspapers.
If overheated, they can catch on fire.
■ Do not use the oven for a storage area.
Items stored in an oven can ignite.
■ Do not leave paper products, cooking
utensils or food in the oven when not in use.
OVEN
Operating
Instructions Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support

5

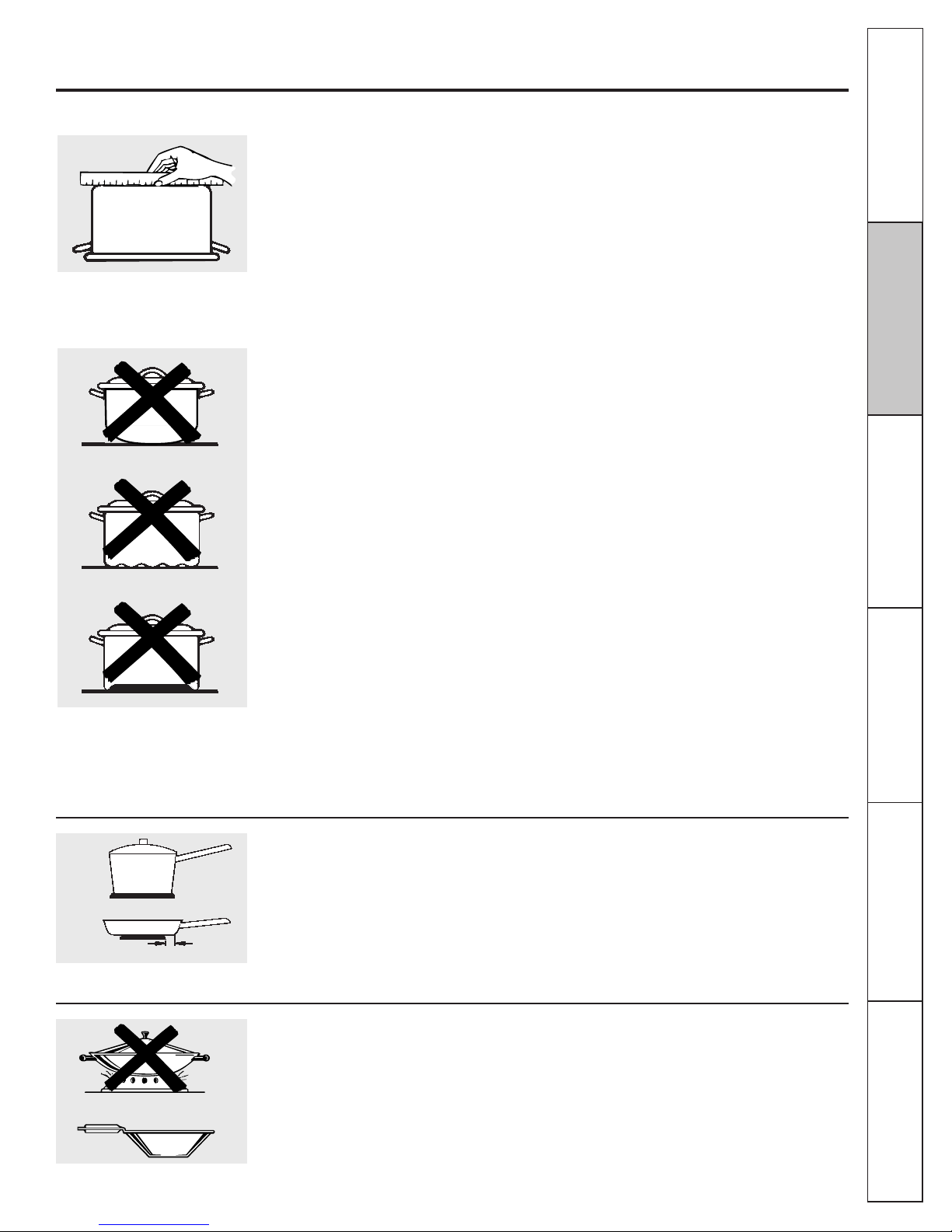

Use proper pan size–select cookware having flat bottoms large enough to cover the surface unit
heating element. The use of undersized cookware will expose a portion of the surface unit to direct
contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also
improve efficiency.
■Never leave the surface units unattended at
high heat settings. Boilovers cause smoking
and greasy spillovers that may catch on fire.
■Only certain types of glass, glass ⁄ceramic,
earthenware or other glazed containers are
suitable for cooktop service; others may
break because of the sudden change in
temperature.
■To minimize the possibility of burns,
ignition of flammable materials and spillage,
the handle of a container should be turned
toward the center of the range without
extending over nearby surface units.
■Always turn the surface units off before
removing cookware.
■Do not flame foods on the cooktop. If you
do flame foods under the hood, turn the
fan on.
■Keep an eye on foods being fried at high or
medium high heat settings.
■Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and
over the sides of the pan.
■Use little fat for effective shallow or deep fat
frying. Filling the pan too full of fat can
cause spillovers when food is added.
■If a combination of oils or fats will be used in
frying, stir together before heating, or as fats
melt slowly.
■Always heat fat slowly, and watch as it heats.
■Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
SURFACE UNITS—ALL MODELS
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support
ge.com
■The purpose of the warming drawer is
to hold hot cooked foods at serving
temperature. Always start with hot food;
cold food cannot be heated or cooked
in the warming drawer.
■Do not use the warming drawer to dry
newspapers. If overheated, they can catch
on fire.
■Do not leave paper products, cooking
utensils or food in the warming drawer
when not in use.
■Never leave jars or cans of fat drippings in
or near your warming drawer.
■Always keep wooden and plastic utensils
and canned food a safe distance away from
your warming drawer.
■Do not warm food in the warming drawer
for more than two hours.
■Do not touch the heating element or the interior
surface of the warming drawer. These surfaces
may be hot enough to burn.
REMEMBER: The inside surface of the
warming drawer may be hot when the
drawer is opened.
■Use care when opening the drawer. Open
the drawer a crack and let hot air or steam
escape before removing or replacing food.
Hot air or steam which escapes can cause
burns to hands, face and/or eyes.
■Do not use aluminum foil to line the drawer.
Foil is an excellent heat insulator and will
trap heat beneath it. This will upset the
performance of the drawer and it could
damage the interior finish.
WARMING DRAWER (on some models)

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
6
■Avoid scratching the glass cooktop. The
cooktop can be scratched with items such as
sharp instruments, rings or other jewelry and
rivets on clothing.
■Large scratches or impacts to glass doors
or cooktops can lead to broken or shattered
glass.
■Do not operate the radiant surface units if
the glass is broken. Spillovers or cleaning
solution may penetrate a broken cooktop
and create a risk of electrical shock. Contact
a qualified technician immediately should
your glass cooktop become broken.
■Never use the glass cooktop surface as a
cutting board.
■Do not place or store items that can melt or
catch fire on the glass cooktop, even when it
is not being used.
■Be careful when placing spoons or other
stirring utensils on the glass cooktop surface
when it is in use. They may become hot and
could cause burns.
■Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a
hot surface unit, be careful to avoid steam
burns. Some cleaners can produce noxious
fumes if applied to a hot surface.
NOTE: We recommend that you avoid wiping
any surface unit areas until they have cooled
and the indicator light has gone off. Sugar
spills are the exception to this. Please see
Cleaning the glass cooktop section.
■When the cooktop is cool, use only the
recommended cleaning cream to clean
the cooktop.
■To avoid possible damage to the cooking
surface, do not apply cleaning cream to the
glass surface when it is hot.
■After cleaning, use a dry cloth or paper towel
to remove all cleaning cream residue.
■Read and follow all instructions and
warnings on the cleaning cream labels.
■Do not lift the cooktop. Lifting the cooktop
can lead to damage and improper operation
of the range.
Use care when touching the cooktop. The glass surface of the cooktop will retain heat after the controls
have been turned off.
WARNING!
RADIANT SURFACE UNITS (on some models)
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Operating
Instructions Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
■ Clean the cooktop with caution. If a
wet sponge is used to wipe spills on a hot
cooktop, be careful to avoid steam burns.
■ To avoid the possibility of a burn or electric
shock, always be certain that the controls for
all surface units are at the OFF position and
all coils are cool before attempting to lift or
remove a unit.
■ Do not immerse or soak the removable
surface units. Do not put them in a
dishwasher.
■ Be sure the drip pans and the vent duct are
not covered and are in place. Their absence
during cooking could damage range parts
and wiring.
■ Do not use aluminum foil to line the drip
pans or anywhere in the oven except as
described in this manual. Misuse could
result in a shock, fire hazard or damage
to the range.
WARNING!
COIL SURFACE UNITS (on some models)

7
Using the surface units. ge.com
Throughout this manual, features and appearance may vary from your model.
Push the knob in and turn in either
direction to the setting you want.
At both OFF and HI the control clicks
into position. You may hear slight clicking
sounds during cooking, indicating the
control is keeping the power level you set.
A HOT SURFACE or HOT COOKTOP
(depending on model) indicator light will
glow when any radiant element is turned
on and will remain on until the surface is
cool enough to touch.
A SURFACE UNIT on or BURNER ON
(depending on model) indicator light will
glow when any surface unit is on.
NOTE: The SURFACE UNIT on indicator light may
glow between the surface control settings of LO
and OFF, but there is no power to the surface units.
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support
Be sure you turn the control knob
to OFF when you finish cooking.
How to Set Indicator Lights (on radiant glass models only)

About the radiant surface units…
The radiant cooktop features heating units
beneath a smooth glass surface.
NOTE: A slight odor is normal when a new cooktop
is used for the first time. It is caused by the heating
of new parts and insulating materials and will
disappear in a short time.
The surface unit will cycle on and off to
maintain your selected control setting.
It is safe to place hot cookware from the
oven or surface on the glass surface when
the surface is cool.
Even after the surface units are turned off,
the glass cooktop retains enough heat to
continue cooking. To avoid over-cooking,
remove pans from the surface units when
the food is cooked. Avoid placing anything
on the surface unit until it has cooled
completely.
Do not slide cookware across the cooktop
because it can scratch the glass—the glass
is scratch resistant, not scratch proof.
■Water stains (mineral deposits) are removable
using the cleaning cream or full-strength white
vinegar.
■Use of window cleaner may leave an iridescent
film on the cooktop. The cleaning cream will
remove this discoloration.
■Don’t store heavy items above the cooktop. If they
drop onto the cooktop, they can cause damage.
■Do not use the surface as a cutting board.
Using the radiant surface units. (on some models)
8
;;;;
;;;;;;;;
;;;;;;;;;;;
;;;;;;;;;;
;;;;;;;
;;;
SURFACE
COOKING
Never cook directly on the glass.
Always use cookware.
;;;;
;;;;;;;;
;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;
;;;;;;;
;;;
OFF CENTER
Always place the pan in the center of
the surface unit you are cooking on.
Every radiant surface unit has a
temperature limiter.
The temperature limiter protects the glass
cooktop from getting too hot.
The temperature limiter may cycle the
units off for a time if:
■The pan boils dry.
■The pan bottom is not flat.
■The pan is off center.
■There is no pan on the unit.
Temperature Limiter
Operating
Instructions Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
;;
;;;;;;
;;;;;;;;;
;;;;;;;;;;;
;;;;;;;;;;
;;;;;;;
;;;;
DRAGGING

9
Selecting types of cookware. ge.com
The following information will help you choose cookware which will give good performance on glass cooktops.
Stainless Steel:
recommended
Aluminum:
heavy weight recommended
Good conductivity. Aluminum residues
sometimes appear as scratches on the
cooktop, but can be removed if cleaned
immediately. Because of its low melting
point, thin-weight aluminum should not
be used.
Copper Bottom:
recommended
Copper may leave residues which can
appear as scratches. The residues can be
removed, as long as the cooktop is cleaned
immediately. However, do not let these pots
boil dry. Overheated metal can bond to
glass cooktops. An overheated copper
bottom pot will leave a residue that will
permanently stain the cooktop if not
removed immediately.
Porcelain Enamel Covered Cast Iron:
recommended
As long as the cookware is covered
completely with porcelain enamel, this
cookware is recommended. Caution is
recommended for cast-iron cookware
that is not completely covered with smooth
porcelain enamel, as it may scratch the
glass-ceramic cooktop.
Glass-ceramic:
usable, but not recommended
Poor performance. May scratch the surface.
Stoneware:
usable, but not recommended
Poor performance. May scratch the surface.
Home Canning Tips:
Be sure the canner is centered over the
surface unit.
Make sure the canner is flat on the bottom.
Use recipes and procedures from
reputable sources. These are available
from manufacturers such as Ball®and
Kerr®and the Department of Agriculture
Extension Service.
To prevent burns from steam or heat, use
caution when canning.
Check pans for flat bottoms by using
a straight edge.
Pans with rounded, curved,
ridged or warped bottoms are
not recommended.
Wok Cooking
We recommend that you use only a flat-bottomed
wok. They are available at your local retail store.
Do not use woks that have support rings.
Use of these types of woks, with or without
the ring in place, can be dangerous.
Placing the ring over the surface unit will
cause a buildup of heat that will damage
the porcelain cooktop. Do not try to use
such woks without the ring. You could be
seriously burned if the wok tips over.
Use only flat-bottomed woks.
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support
Use medium- or heavy-weight cookware.
Aluminum cookware conducts heat faster
than other metals. Cast-iron and coated
cast-iron cookware are slow to absorb heat,
but generally cook evenly at low to medium
heat settings. Steel pans may cook unevenly
if not combined with other metals.
For best cooking results, pans should be
flat on the bottom. Match the size of the
saucepan to the size of the surface unit.
The pan should not extend over the edge
of the surface unit more than 1 inch.
Not over 1 inch
1″
The following information will help you choose cookware which will give good performance on coil cooktops.
Surface Cookware Tips

Operating
Instructions Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
or
or
Oven Control, Clock and Timer Features and Settings
BAKE/TEMP RECALL Pad
Touch this pad to select the bake function.
BAKE Light
Flashes while in edit mode—you can change
the oven temperature at this point. Glows when
the oven is in bake mode.
START/ON Pad
Must be touched to start any cooking or
cleaning function.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil or
self-cleaning mode and the times set for
the timer or automatic oven operations.
The display will show PRE while preheating.
When the oven reaches the selected
temperature, the oven control will beep and
the display will show the oven temperature.
If “F– and a number or letter” flash in the display and the
oven control signals, this indicates a function error code.
If your oven was set for a timed oven operation and
a power outage occurred, the clock and all programmed
functions must be reset.
The time of day will flash in the display when there has been
a power outage. Reset the clock.
If the function error code appears during the self-cleaning
cycle, check the oven door latch. The latch handle may have
been moved, even if only slightly, from the latched position.
Make sure the latch is moved to the right as far as it will go.
Touch the CLEAR/OFF pad. Allow the oven to cool for
one hour. Put the oven back into operation. If the function
error code repeats, disconnect the power to the range and
call for service.
KITCHEN TIMER ON/OFF
or TIMER ON/OFF Pad
Touch this pad to select the timer feature.
Then touch the +and –pads to adjust the
timer.
TIMER Light
Flashes while in edit mode—you can change
the set time at this point. Glows when the timer
has been activated. Flashes again when the time
has run out until the control is reset.
CLOCK Pad
To set the clock, press this pad twice and then
press the +and –pads. The time of day will
flash in the display when the oven is first
turned on.
START TIME Pad (on some models)
Use along with the COOKING TIME or
SELF CLEAN pads to set the oven to start
and stop automatically at a time you set.
START TIME Light
Flashes while in edit mode—you can change
the start time at this point. Glows when the
function has been activated.
COOKING TIME Pad (on some models)
Touch this pad and then touch the +or –
pads to set the amount of time you want your
food to cook. The oven will shut off when the
cooking time has run out.
COOKING TIME Light
Flashes while in edit mode—you can change
the set time at this point. Glows when the
function has been activated. Flashes again when
the time has run out until the control is reset.
Throughout this manual, features and appearance may vary from your model.
Using the oven controls. (on some models)
10

11
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support
ge.com
Oven Control, Clock and Timer Features and Settings
AUTOMATIC OVEN Light (on some models)
This lights anytime the oven has been
programmed using the COOKING TIME or
START TIME functions.
OVEN LIGHT or Pad
Touch this pad to turn the oven light on or off.
– Pad
Short taps to this pad will decrease the time
or temperature by small amounts. Touch
and hold the pad to decrease the time or
temperature by larger amounts.
+ Pad
Short taps to this pad will increase the time
or temperature by small amounts. Touch
and hold the pad to increase the time or
temperature by larger amounts.
SELF CLEAN Pad
Touch this pad to select the self-cleaning
function. See the Using the self-cleaning oven
section.
CLEAN Light
Flashes while in edit mode—you can change
the length of time for the self-clean cycle at this
point. Glows when the oven is in the self-clean
cycle. After the self-clean cycle, the light will
turn off. Unlatch the door.
CLEAR/OFF Pad
Touch this pad to cancel ALL oven operations
except the clock and timer.
BROIL HI/LO Pad
Touch this pad to select the broil function.
BROIL Light
Flashes while in edit mode—you can switch
from HI to LO BROIL at this point. Glows when
the oven is in broil mode.
Indicator Lights (on some pads)
EDIT mode lasts several seconds after the last
pad press. START TIME ON/OFF and COOKING
TIME ON/OFF will be the only pads lit if either
of these options is selected. (Example: START
TIME is selected with BAKE—the START TIME
pad will remain lit until the clock reaches the
programmed time, at which point it will turn
off and the BAKE/TEMP RECALL pad light will
light up).

12
Operating
Instructions Safety Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
To avoid possible burns, place the shelves in the
desired position before you turn the oven on.
The shelves have stop-locks, so that when
placed correctly on the shelf supports (A
through E), they will stop before coming
completely out, and will not tilt.
When placing and removing cookware,
pull the shelf out to the bump on the
shelf support.
To remove a shelf, pull it toward you, tilt the
front end up and pull it out.
To replace, place the end of the shelf (stop-
locks) on the support, tilt up the front and
push the shelf in.
NOTE: The shelf is not designed to slide out
at the special low shelf (R) position.
Before you begin…
Using the oven.
KITCHEN TIMER ON/OFF Pad
Touch this pad to select the timer feature.
CLOCK Pad
Touch this pad before setting the clock.
Display
Shows the time of day and the time set for the timer, cook time or start time.
SET +/- Pads
These pads allow you to set the clock and timer.
Clock and Kitchen Timer (on some models)
Appearance may vary.
The oven has 5 shelf positions.
It also has a special low shelf
position (R) for extra large items,
such as a large turkey.
(On some models—
appearance will vary)
(On some models—
appearance will vary)
How to Set the Oven for Baking or Roasting (on models without an oven temperature knob)
Touch the BAKE pad.
Touch the +or –pads until the
desired temperature is displayed.
Touch the START/ON pad.
The oven will start automatically. The
display will show PRE while preheating.
When the oven reaches the selected
temperature, the oven control will beep and
the display will show the oven temperature.
To change the oven temperature during BAKE cycle,
touch the BAKE pad and then the +or –pads to
get the new temperature.
Check food for doneness at minimum
time on recipe. Cook longer if
necessary.
Touch the CLEAR/OFF pad when
baking is finished and then remove
the food from the oven.
Type of Food Shelf Position
Frozen pies (on cookie sheet) C
Angel food cake, B
bundt or pound cakes
Biscuits, muffins, brownies, B or C
cookies, cupcakes,
layer cakes, pies
Casseroles B or C
Turkey R or A
Roasting R, A or B
The oven has a special low shelf (R)
position just above the oven bottom.
Use it when extra cooking space is
needed, for example, when cooking
a large turkey. The shelf is not
designed to slide out at this position.
OVEN TEMP
2
0
0
2
5
0
3
0
0
3
5
0
4
0
0
4
5
0
5
0
0
B
R
O
I
L
C
L
E
A
N
O
F
F
Oven Temperature Knob (on some models)
Turn this knob to the setting you want.
■The oven cycling light comes on during cooking.

Preheat the oven if the recipe calls for it.
To preheat, set the oven at the correct
temperature. Preheating is necessary for
good results when baking cakes, cookies,
pastry and breads.
For ovens without a preheat indicator light or tone,
preheat 10 minutes.
On some models, the display will show “PRE”
while preheating. When the oven reaches the
selected temperature, the oven control will beep
and the display will show the oven temperature.
Baking results will be better if baking pans
are centered in the oven as much as
possible. Pans should not touch each other
or the walls of the oven. If you need to use
two shelves, stagger the pans so one is not
directly above the other, and leave
approximately 11⁄2″from the front of the
pan to the front of the shelf.
Place the meat or fish on the broiler
grid in the broiler pan.
Follow suggested shelf positions in the
Broiling Guide.
If your range is connected to 208 volts, rare steaks
may be broiled by preheating the broiler and
positioning the oven shelf one position higher.
Use LO Broil to cook foods such as poultry
or thick cuts of meat thoroughly without
over-browning them.
Touch the BROIL HI/LO pad once for
HI Broil.
To change to LO Broil, touch the
BROIL HI/LO pad again.
Touch the START/ON pad.
When broiling is finished, touch the
CLEAR/OFF pad.
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support
Never cover the oven bottom with
aluminum foil.
You can use aluminum foil to line the
broiler pan and broiler grid. However,
you must mold the foil tightly to the
grid and cut slits in it just like the grid.
Aluminum foil may also be used to catch
a spillover. To do so, place a small sheet of
foil on a lower shelf several inches below
the food.
Never entirely cover a shelf with aluminum
foil. This will disturb the heat circulation
and result in poor baking.
Leave the door open to the broil stop
position. The door stays open by itself,
yet the proper temperature is
maintained in the oven.
Preheating and Pan Placement
Type of Margarine Will Affect Baking Performance!
Aluminum Foil
How to Set the Oven for Broiling (on models without an oven temperature knob)
ge.com
Cut slits in the foil just like the grid.
Most recipes for baking have been
developed using high fat products such
as butter or margarine (80% fat). If you
decrease the fat, the recipe may not
give the same results as with a higher
fat product.
Recipe failure can result if cakes, pies, pastries,
cookies or candies are made with low fat spreads.
The lower the fat content of a spread product, the
more noticeable these differences become.
Federal standards require products labeled
“margarine” to contain at least 80% fat by
weight. Low-fat spreads, on the other hand,
contain less fat and more water. The high
moisture content of these spreads affects
the texture and flavor of baked goods. For
best results with your old favorite recipes,
use margarine, butter or stick spreads
containing at least 70% vegetable oil.
13

Using the oven.
14
Operating
Instructions Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
Quantity and/ Shelf* First Side Second Side
Food or Thickness Position Time (min.) Time (min.) Comments
Ground Beef 1 lb. (4 patties) C 10 7–10 Space evenly.
1⁄2to 3⁄4″thick
4 lbs. (16 patties) C 15 11
Beef Steaks
Rare† 3⁄4to 1″thick E 6 4 Steaks less than 3⁄4″
Medium 1 to 1 1⁄2lbs. D 8 6 thick are difficult
Well Done D 10 7–10 to cook rare.
Slash fat.
Rare† 1 1⁄2″thick C 10 8
Medium 2 to 2 1⁄2lbs. C 15 10–12
Well Done D 20 20
Chicken 1 whole cut up B 25 25 Brush each side with
2 to 2 1⁄2lbs., melted butter.
split lengthwise Broil skin-side-down
Breast B 25 15 first.
Bakery Product
Bread (toast) 2 to 4 slices D 3 1 Space evenly. Place
English Muffin 2 (split) E 3-4 English muffins cut-
side-up and brush
with butter if desired.
Lobster Tails 2–4 B 18–20 Do not Cut through back of
turn shell. Spread open.
over. Brush with melted
butter before broiling
and after half of
broiling time.
Fish Fillets 1 lb. (1⁄4to 1⁄2″thick) D 5 5 Handle and turn very
carefully. Brush with
lemon butter before
and during cooking,
if desired.
Salmon
Steaks 2 (1″thick) D 10 5 Turn carefully. Do not
Fillets 2 (1⁄2to 3⁄4″thick) D 10 turn skin side down.
Ham Slices 1⁄2″thick C 6 6
(precooked) 1″ thick C 8 8
Pork Chops 2 (1⁄2″thick) C 10 10 Slash fat.
Well Done 2 (1″thick) about 1 lb. C 15 15
Lamb Chops
Medium 2 (1″thick) about 10 D 7 4 Slash fat.
Well Done to 12 oz. D 10 9
Medium 2 (11⁄2″thick) about 1 lb. D 9 6
Well Done D 14 10
Broiling Guide
The size, weight, thickness,
starting temperature
and your preference of
doneness will affect
broiling times. This guide
is based on meats at
refrigerator temperature.
†The U.S. Department of Agriculture
says “Rare beef is popular, but you
should know that cooking it to only
140°F. means some food poisoning
organisms may survive.” (Source:
Safe Food Book. Your Kitchen Guide.
USDA Rev. June 1985.)
The oven has 5 shelf positions.
*See illustration for description of shelf positions.

or
Not all features are on all models.

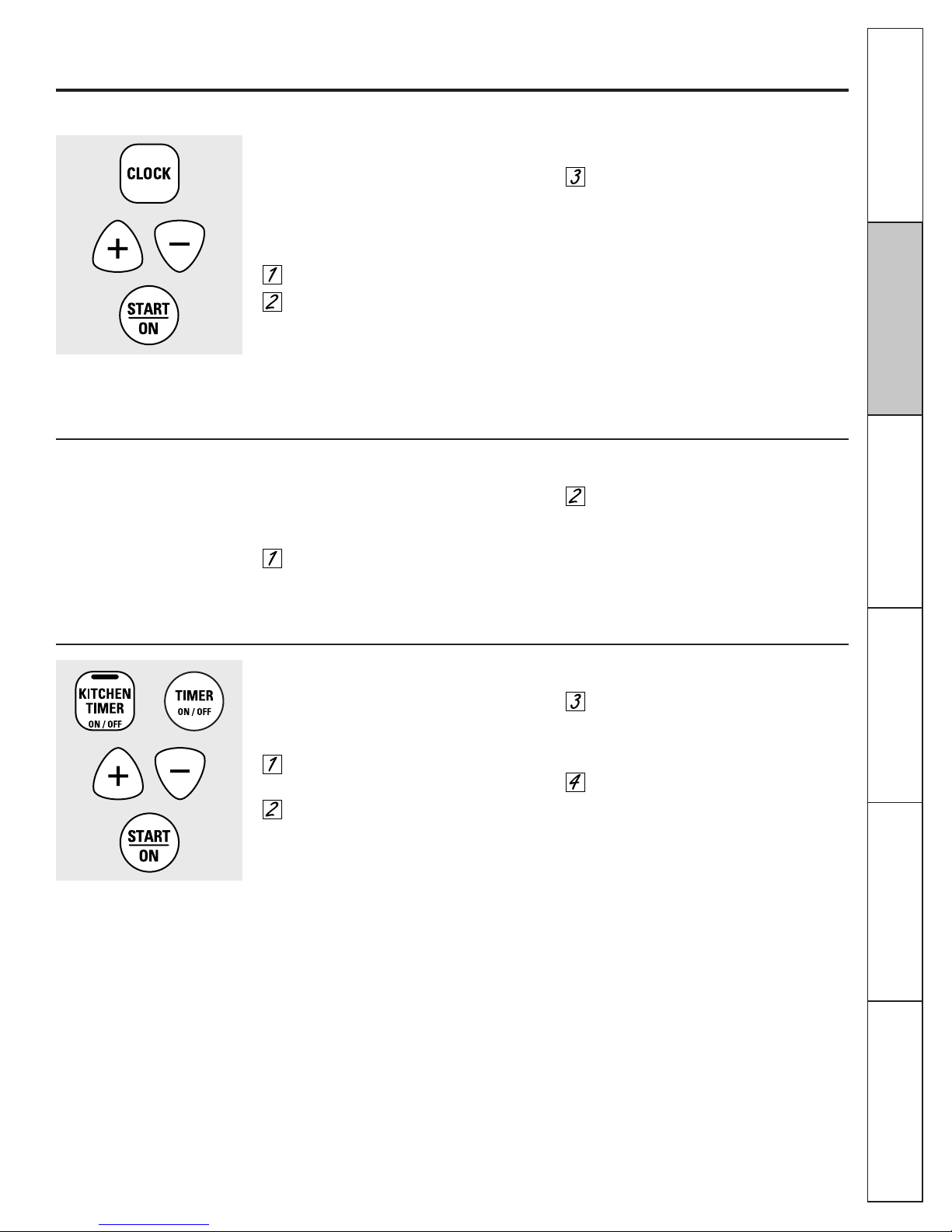

To Set the Timer
The timer does not control oven operations.
The maximum setting on the timer is 9 hours
and 59 minutes.
Touch the KITCHEN TIMER ON/OFF or
TIMER ON/OFF pad.
Touch the +or –pads until the
amount of time you want shows in
the display. The maximum time that
can be entered in minutes is 59.
Times more than 59 minutes should
be changed to hours and minutes.
If you make a mistake, touch the KITCHEN TIMER
ON/OFF or TIMER ON/OFF pad and begin again.
Touch the START/ON pad. The time
will start counting down, although
the display does not change until one
minute has passed.
When the timer reaches :00, the
control will beep 3 times followed by
one beep every 6 seconds until the
KITCHEN TIMER ON/OFF or TIMER
ON/OFF pad is touched.
The timer is a minute timer only.
The CLEAR/OFF pad does not affect
the timer.
Using the clock and timer. (on some models) ge.com
To Set the Clock
The clock must be set to the correct time
of day for the automatic oven timing
functions to work properly. The time of day
cannot be changed during a timed baking
or self-cleaning cycle.
Touch the CLOCK pad twice.
Touch the +or –pads.
If the +or –pads are not touched within
one minute after you touch the CLOCK pad,
the display reverts to the original setting.
If this happens, touch the CLOCK pad and
reenter the time of day.
Touch the START/ON pad until the
time of day shows in the display. This
enters the time and starts the clock.
To check the time of day when the display is
showing other information, simply touch the
CLOCK pad. The time of day shows until another
pad is touched.
Make sure the clock is set to the
correct time of day.
15
To Turn Off the Clock Display
If you have several clocks in your kitchen,
you may wish to turn off the time of day
clock display on your range.
Touch the CLOCK pad once to turn
off the time of day display. Although
you will not be able to see it, the clock
maintains the correct time of day.
Touch the CLOCK pad again to recall
the clock display.
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support

Operating
Instructions Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
16
Not all features are on all models.
Using the clock and timer. (on some models)
To Reset the Timer
If the display is still showing the time
remaining, you may change it by touching
the KITCHEN TIMER ON/OFF or TIMER
ON/OFF pad, then touch the +or –pads
until the time you want appears in the
display.
If the remaining time is not in the display
(clock, delay start or cooking time are in
the display), recall the remaining time by
touching the KITCHEN TIMER ON/OFF or
TIMER ON/OFF pad and then touching the
+or –pads to enter the new time you want.
To Cancel the Timer
Touch the KITCHEN TIMER ON/OFF
or TIMER ON/OFF pad twice.
End of Cycle Tones (on some models)
Clear the tones by pressing the pad of the
function you are using.
Power Outage
If a flashing time is in the display, you have
experienced a power failure. Reset the clock.
To reset the clock, touch the CLOCK pad
twice. Enter the correct time of day by
touching the +or –pads. Touch the
START/ON pad.
or
or

Do not lock the oven door with the latch during timed cooking. The latch is used for self-cleaning only.
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for
more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.
Using the timed baking and roasting features. (on some models) ge.com
How to Set an Immediate Start and Automatic Stop
The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time, the oven will turn off automatically.
Touch the BAKE pad.
Touch the +or –pads to set the
oven temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the +or –pads to set the
baking time.
The cooking time that you entered will be
displayed. (If you select Cooking Time first
and then adjust the Bake Temperature, the
oven temperature will be displayed instead).
Touch the START/ON pad.
The display shows either the oven
temperature that you set or the cooking
time countdown. (The display starts with
PRE if showing the oven temperature.)
The oven will continue to cook for the
programmed amount of time, then turn
off automatically.
Touch the CLEAR/OFF pad to clear
the display if necessary.
Remove the food from the oven. Remember, even
though the oven shuts off automatically, foods
continue cooking after controls are off.
How to Set a Delayed Start and Automatic Stop
The oven will turn on at the time of day you set,
cook for a specific length of time and then turn off
automatically.
Make sure the clock shows the correct
time of day.
Touch the BAKE pad.
Touch the +or –pads to set the
oven temperature.
Touch the COOKING TIME pad.
Touch the +or –pads to set the
desired length of cooking time.
Touch the START TIME pad.
Touch the +or –pads to set the time
of day you want the oven to turn on
and start cooking.
Touch the START/ON pad.
NOTE: An attention tone will sound if you are using
timed baking and do not touch the START/ON pad.
NOTE: If you would like to check the times
you have set, touch the START TIME pad to
check the start time you have set or touch
the COOKING TIME pad to check the length
of cooking time you have set.
When the oven turns on at the time of day
you have set, the display will show PRE until
it reaches the selected temperature, then it
will display the oven temperature.
At the end of cooking time, the oven
will turn off and the end of cycle tone
will sound.
Touch the CLEAR/OFF pad to clear
the display if necessary.
Remove the food from the oven. Remember, even
though the oven shuts off automatically, foods
continue cooking after controls are off.
17
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support

Operating
Instructions Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
18
Your new touch pad control has additional features that you may choose to use. The following are the features and
how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain in the
control’s memory until the steps are repeated.
When the display shows your choice, touch the START/ON pad. The special features will remain in memory after a
power failure.
NOTE: The Sabbath feature and the Thermostat Adjustment feature are also Special Features, but they are addressed
separately in the following sections.
Special features of your oven control.
12 Hour Shut-Off
With this feature, should you forget and leave the
oven on, the control will automatically turn off the
oven after 12 hours during baking functions or after
3 hours during a broil function.
If you wish to turn OFF this feature, follow
the steps below.
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the CLOCK pad. The display will
show ON (12 hour shut-off). Touch the
CLOCK pad repeatedly until the display
shows OFF (no shut-off).
Touch the START/ON pad to activate
the no shut-off and leave the control
set in this special features mode.

19
The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning or
Delay Start cooking.
NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the
door is closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch
on the control panel, the oven light may be turned on and left on.

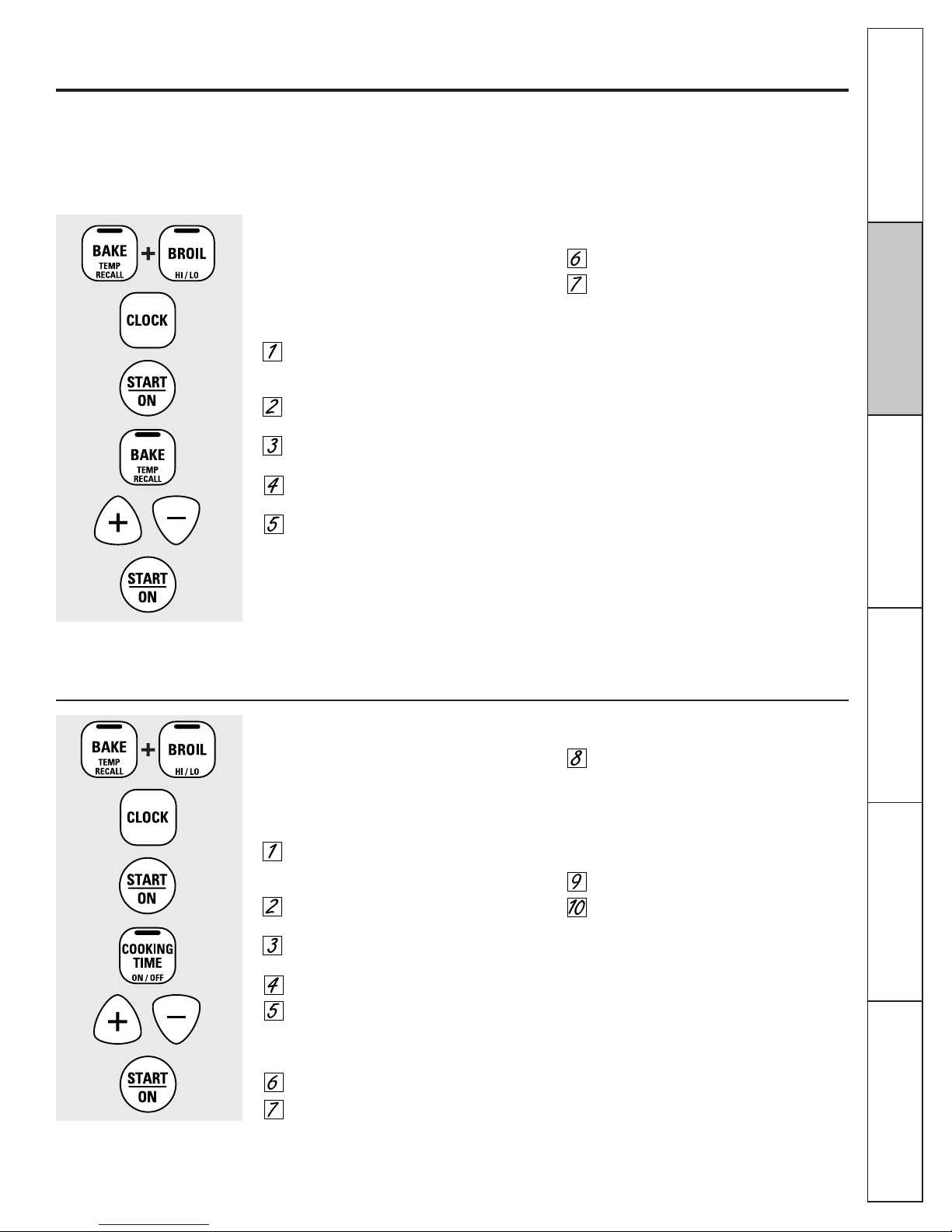

How to Set for Timed Baking/Roasting—Immediate Start and Automatic Stop
NOTE: To understand how the oven control works,
practice using regular (non-Sabbath) Immediate Start and
Automatic Stop before entering the Sabbath mode.
Make sure the clock shows the correct time of day
and the oven is off.
Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time,
until the display shows SF.
Tap the CLOCK pad until SAb appears
in the display.
Touch the START/ON pad and ⊃ will
appear in the display.
Touch the COOKING TIME pad.
Touch the +or –pads to set the desired
length of cooking time between 1 minute
and 9 hours and 59 minutes. The cooking
time that you entered will be displayed.
Touch the START/ON pad.
Touch the BAKE pad. No signal will
be given.
The preset starting temperature will
automatically be set to 350.° Tap the +
or –pads to increase or decrease the
temperature in 25° increments. The
temperature can be set between 170°
and 550.° No signal or temperature
will be given.
Touch the START/ON pad.
After a random delay period of
approximately 30 seconds to 1 minute,
⊃will appear in the display indicating
that the oven is
baking/roasting. If ⊃
doesn’t appear in the display, start again
at Step 7.
To adjust the oven temperature, touch the
BAKE pad and tap the +or –pads to increase
or decrease the temperature in 25° increments.
Touch the START/ON pad.
When cooking is finished, the display will change
from ⊃to ⊃, indicating that the oven has
turned OFF but is still set in Sabbath. Remove
the cooked food.
⊃
⊃
⊃
Using the Sabbath Feature. (on some models)
(Designed for use on the Jewish Sabbath and Holidays) ge.com
How to Set for Regular Baking/Roasting
NOTE: To understand how the oven control works,
practice using regular baking (non-Sabbath) before
entering Sabbath mode.
Make sure the clock shows the correct time of day
and the oven is off.
Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time,
until the display shows SF.
Tap the CLOCK pad until SAb appears
in the display.
Touch the START/ON pad and ⊃ will
appear in the display.
Touch the BAKE pad. No signal will
be given.
The preset starting temperature will
automatically be set to 350.° Tap the +
or –pads to increase or decrease the
temperature in 25° increments. The
temperature can be set between 170°
and 550.° No signal or temperature
will be given.
Touch the START/ON pad.
After a random delay period of
approximately 30 seconds to 1 minute,
⊃will appear in the display indicating
that the oven is
baking/roasting. If ⊃
doesn’t appear in the display, start again
at Step 4.
To adjust the oven temperature, touch the
BAKE pad and tap the +or –pads to increase
or decrease the temperature in 25° increments.
Touch the START/ON pad.
NOTE: The CLEAR/OFF and COOKING TIME pads
are active during the Sabbath feature.
⊃
⊃
When the display shows ⊃ the
oven is set in Sabbath. When the
display shows ⊃the oven is
baking/roasting.
⊃
When the display shows ⊃ the
oven is set in Sabbath. When the
display shows ⊃the oven is
baking/roasting.
⊃
Operating
Instructions Care and Cleaning Installation
Instructions Troubleshooting Tips
Safety Instructions Consumer Support

Operating
Instructions Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting Tips
Consumer Support
Using the Sabbath Feature. (on some models)
(Designed for use on the Jewish Sabbath and Holidays)
How to Exit the Sabbath Feature
Touch the CLEAR/OFF pad.
If the oven is cooking, wait for a
random delay period of approximately
30 seconds to 1 minute, until only ⊃ is
in the display.
Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time,
until the display shows SF.
Tap the CLOCK pad until ON or OFF
appears in the display. ON indicates
that the oven will automatically turn
off after 12 hours. OFF indicates that
the oven will not automatically turn
off. See the Special Features section for
an explanation of the 12 Hour Shut-Off
feature.
Touch the START/ON pad.
NOTE: If a power outage occurred while the oven
was in Sabbath, the oven will automatically turn off
and stay off even when the power returns. The oven
control must be reset.
20
