Hotpoint WMXTF922GUK Operating and installation instructions

Whirlpool UK Appliances Ltd
© 2016 Reg. Office: Peterborough PE2 9JB Registered in London: 106725
Service
Information
WASHING
MACHINE
SMALL DIGIT
Model Comm.
Covered Code
WMXTF922GUK 85885
5407926 Issue 1 April 2016
C00384298 ~ SM032030
Changes in this Issue
• Add New Model
* New Manual (First Issue)

2 of 27
Service Manual UK
Indesit Company
English
SAFETY NOTES & GENERAL SERVICING ADVICE
1. This manual is NOT intended as a comprehensive repair/maintenance guide to the appliance.
2. It should ONLY be used by suitably qualified persons having technical competence applicable
product knowledge and suitable tools and test equipment.
3. Servicing of electrical appliances must be undertaken with the appliance disconnected (unplugged)
from the electrical supply.
4. Servicing must be preceded by Earth Continuity, Earth Resistance and Insulation Resistance
checks.
5. Personal safety precautions must be taken to protect against accidents caused by sharp edges on
metal and plastic parts.
6. After servicing the appliance must be rechecked for Electrical Safety. In the case of appliances
which are connected to a water supply (i.e.: Washing Machines, Dishwashers & Food Centres etc.)
checks must be made for leaks from seals gaskets and pipe work and rectification carried out where
necessary.
7. It can be dangerous to attempt 'DIY' repairs / maintenance on complex equipment and the Company
recommends that any problem with the appliance is referred to its own Service Organisation.
8. Whilst the Company has endeavoured to ensure the accuracy of the data within this publication they
cannot hold themselves responsible for any inconvenience or loss occasioned by any error within.
9 These appliances are manufactured with a '3 phase' motor and uses a different type of power
module. This power board is fitted with a large aluminium heat sink which remains live after
the power is disconnected.
Under no circumstances should the board be removed under the time shown below.
Alternative 'quick methods' of discharging the board SHOULD NOT be used or attempted.!
IMPORTANT NOTE
Risk of Electric Shock
The metal heatsink fitted on the Power Module
may hold an electrical charge for a short period
after switching off the machine.
Allow 5 minutes after disconnecting the
machine from the electrical supply before
commencing ANY work.

3 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English
INDEX
Safety & Servicing Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Index and Manufacturing Serial Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Specifications & Introduction Dates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 9
First Wash Cycle / Cleaning the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Controls & Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 14
Controls Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Wash Cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Special Wash Cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Wiring Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Wiring Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Power Module Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Error Codes & Possible Causes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 24
Dismantling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 - 27
SERIAL NUMBER / INDUSTRIAL CODE EXPLANATION
Serial Number Example
3 10 02 0895
Four remaining digits = Build number that day 895th built
Third two digits = Day of manufacture 2nd of month
Second two digits = Month of manufacture October
First digit = Year of manufacture 2013
Industrial Code Example
37 24455 0010
Last four digits = 0000 original production.
Second five digits = COMMERCIAL CODE*
First two digits = Factory of origin
* Vital for correct model information and system identification
Other numbers denote major production changes

4 of 27
Service Manual UK
Indesit Company
English
SPECIFICATIONS
Models Covered WMXTF922GUK (85885)
Colour G = Graphite
Country of Origin Factory 80 - Comunanza, Italy
Electrical Supply 220 - 240 Volt AC @ 50 Hz Fuse 13 amp
Energy Energy Class: A+++
Wash Load 9.0 kg Cottons
Spin Speed 1200 rpm
Water Supply Cold Valve - Coil Resistance 3.8 K:
Max Pressure = 1 Mpa (10bar)
Minimum Pressure = 0.05 Mpa (0.5bar)
Wash Heater 1800 Watts @ 230 volts Resistance 30:approx.
Thermistor NTC Resistance: 20 K:@ 20°C
Pump 2 Pole Synchronous
220 / 240 Volt 25 Watt, Resistance = 162 :
Door Lock P.T.C. Solenoid with emergency door release
Control Module Three Phase - Arcadia
Motor 3 phase induction motor CIM2/55 (50 stator)
195 V - 3A - 800 W - 310 Hz - 17500 rpm Ins Class F
Tacho 115.4 :@ 2.0 ± 7%
Weight 5.0 kg
Dimensions Height 850 mm Width 595 mm
Depth 605 mm Weight 73.4 kg Packed approx. 75.0 kg

5 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English

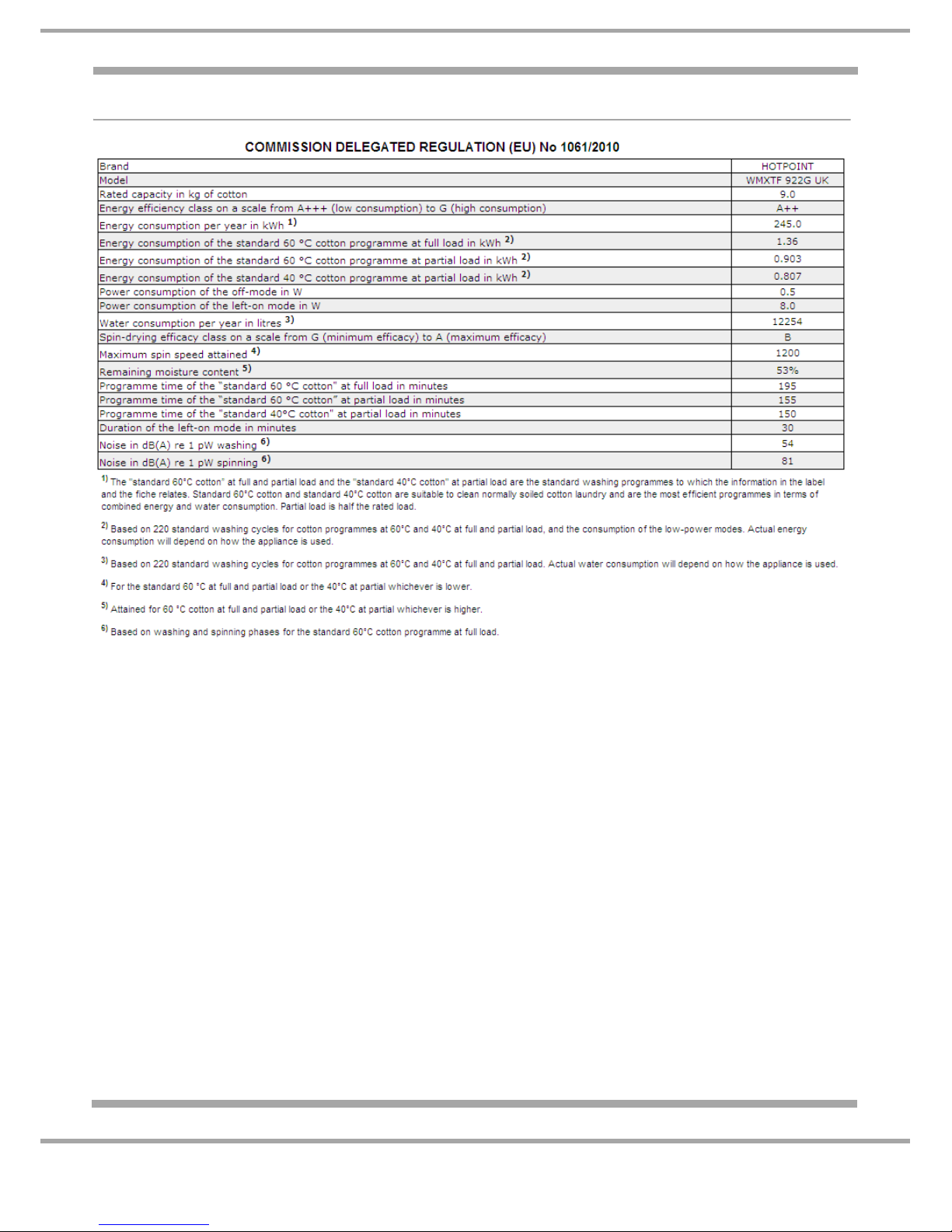

WMXTF922GUK

6 of 27
Service Manual UK
Indesit Company
English
INTRODUCTION DATES
Model: WMXTF922GUK
First Produced: October 2013
Location: Comunanza Factory (80) - Italy
Industrial Code: 80858850100
Controls: 3 Phase - Arcadia 2
Model: WMXTF922GUK
First Produced: May 2014
Location: Comunanza Factory (80) - Italy
Industrial Code: 80858850195
Controls: 3 Phase - Arcadia 2
Model Number Definition
Category Sub Brand
Display
Type Capacity
Spin
Speed rpm
Energy Efficiency
Colour
WM =
Washing
Machine
XT = Extra F - Small
Digit
6 = 6 kg
7 = 7 kg
8 = 8 kg
9 = 9 kg
1 = 1100
15 = 1500
2 = 1200
3 = 1300
35 = 3500
4 = 1400
5 = 1500
55 = 1550
6 = 1600
1 = A+
2 = A++
3 = A+++
P = Polar White
G = Graphite
X = Stainless
K = Black
Washing Extra Small 9 kg 1200 rpm Graphite Country
WM XT F 9 2 2 G UK
A+++
Digit

7 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English
INSTALLATION
Unpacking
1. Unpack the washing machine and check whether the it has been damaged during transport.
If this is the case, do not install it and contact the retailer.

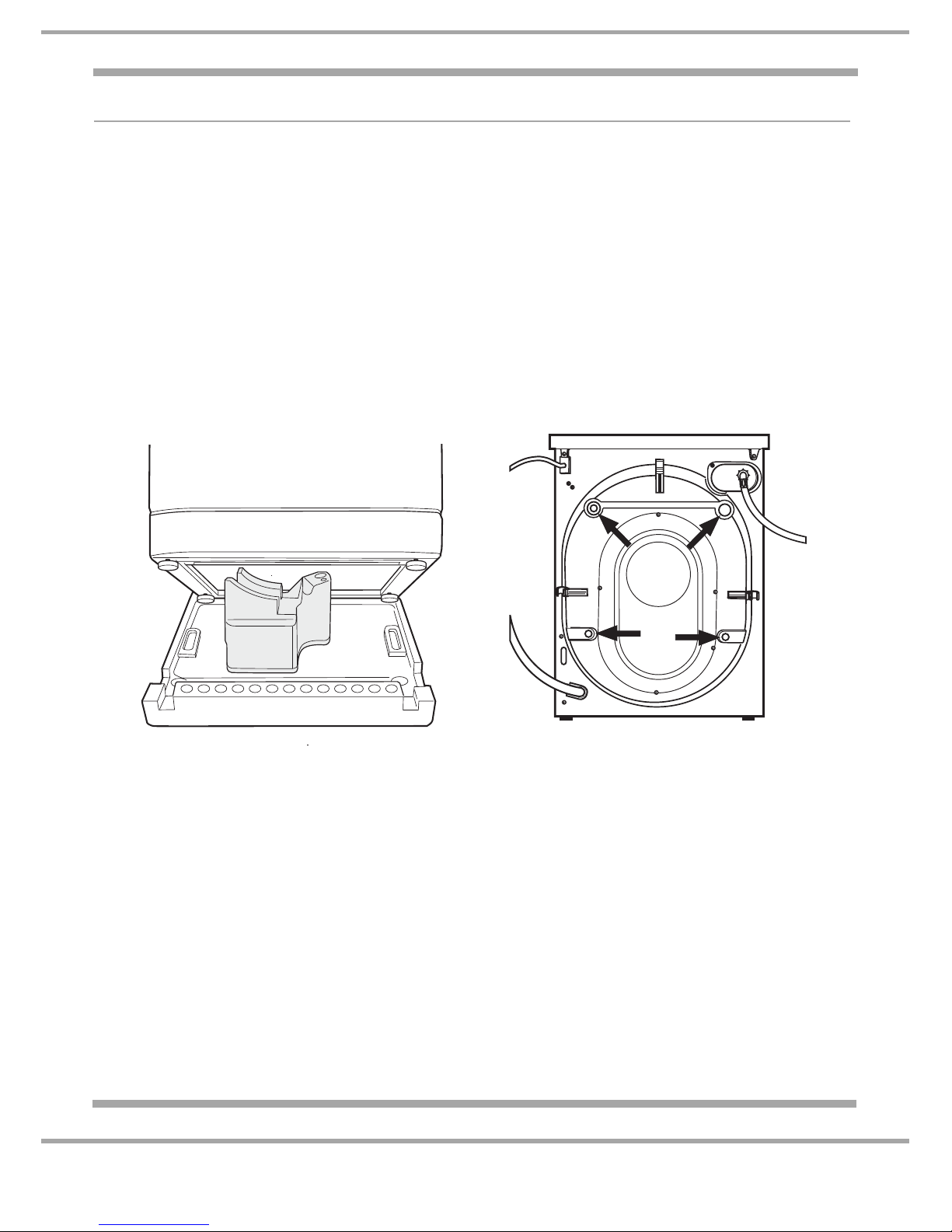

2. Remove the four protective screws (transit bolts) and the rubber washer with the respective spacer,
situated on the rear of the appliance (see Figures below).
3. Fit the blanking plugs provided into the holes vacated by the bolts.
4. Use the plug provided to seal the holes where the mains plug was housed (if supplied), situated on
the lower right hand side on the rear of the appliance.
5. Keep all the removed parts as they will be required again if the washing machine needs to be
moved to another location.
Levelling
1. Install the washing machine on a flat sturdy floor, without resting it up against walls, cabinets etc.
2. Compensate for any unevenness by tightening or loosening the adjustable front feet. The angle of
inclination, measured according to the worktop must not exceed 2°.
Levelling the appliance correctly will provide it with stability and avoid vibrations, noise and shifting
during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow
enough room for ventilation underneath the appliance.
This raised part is attached to the polystyrene base
and should have been removed when unpacking. Remove 4 transit bolts.

8 of 27
Service Manual UK
Indesit Company
English
Connecting the water inlet hose.
Before making the water
connection to the 3/4"
thread, allow the water
freely from the supply tap
until it is perfectly clear.
Check that seal is in place
inside the hose end cap.
Connect the other end of
the water inlet hose to the
washing machine,
screwing it onto the cold
water inlet, situated on the
top right-hand rear of the
appliance - see
illustration.
Screw the inlet end with the blue cap onto the cold water supply tap.
Turn the tap on and check for leaks: tighten if necessary.
Make sure there are no kinks or bends in the hose.
The water pressure at the tap must be within the values indicated in the
Specifications page.

9 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English
DRAINAGE CONNECTIONS
A. Connect the drain hose, without kinking it, to a
draining duct or a wall drain fixed at a height
between 65 and 100 cm from the floor. See Fig. 1.
B. Alternatively, place it over the edge of a basin, sink
or tub, fastening the hose supplied to the tap.
See Fig. 1.
The free end of the hose should not be under water.
Note: We advise against the use of hose
extensions. In case of absolute need, the extension
must have the same diameter as the original hose
and must not exceed 150 cm in length.
Undersink Connections:
The drain hose may be connected to an undersink trap.
Before connecting the drain hose from the machine
ensure that any blanks or removable ends have been
taken off the spigot. See Fig. 2.
Note: The hose must also be raised up in a similar way
to a standpipe installation to prevent backflow of waste
water from the sink into the machine. See Fig. 1.
Electrical Connections
Before plugging the appliance into the mains socket, make sure that:
- the socket is earthed and in compliance with the applicable law.
- the supply voltage is included within the values indicated in the Specifications page.
- the socket is compatible with the washing machines plug. If this is not the case, replace the socket
or the plug.
Location
! The washing machine should not be installed in an outdoor environment, not even when the area is
sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.
! When the washing machine is installed, the mains socket must be within easy reach.
! Do not use extensions or multiple sockets.
! The power supply cable must never be bent or dangerously compressed.
! The power supply cable must only be replaced by an authorised serviceman.
WARNING!
The company denies all liability if and when these warnings are not respected.
The first wash cycle
Once the appliance has been installed and before you use it for the first time, run a wash cycle with
detergent and no laundry, using programme 'Auto Clean'.
Fig. 1
Fig. 2

10 of 27
Service Manual UK
Indesit Company
English
FIRST WASH CYCLE / CLEANING THE MACHINE
Cleaning the Washing Machine
• The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked
in lukewarm soapy water. Do not use solvents or abrasives.
• The washing machine has a 'Auto Clean' programme for its internal parts that must be run with
no load in the drum.
To help the wash cycle you may want to use either the detergent (i.e. a
quantity 10% the quantity specified for lightly-soiled garments) or
special additives to clean the washing machine. We recommend
running a cleaning programme every 40 wash cycles.
To start the programme press button A for 5 seconds (see figure).
The programme will start automatically and will run for about 70
minutes. To stop the cycle press the START/PAUSE button.
Detergent Dispenser Drawer
Successful washing results also depend on the correct dose of detergent: adding too much detergent
will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your
appliance and contribute to environmental pollution.
! Use powder detergent for white cotton garments, for pre-washing, and for washing at
temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
! Do not use hand washing detergents; they create too much foam.
Open the detergent dispenser drawer and pour in the detergent or
washing additive, as follows.
! Do not pour detergent into the middle compartment (*). Detergent
should only be poured into the compartment 1.
Compartment 1: Detergent for the wash cycle (powder or liquid)
If liquid detergent is used, it is recommended that the removable plastic
partition A (supplied) be used for proper dosage.
If powder detergent is used, place the partition into slot B.
Compartment 2: Additives (fabric softeners, etc.)
The fabric softener should not overflow the grid.
A
Compartment 1
Compartment 2
A
B
*

11 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English
CONTROLS
DIGIT MODEL (image below for guidance only)
ON-OFF / SELECTING A PROGRAMME
The machine is switched on by pressing the ON-OFF button.
All the indicator lights will light up for a few seconds, then only the indicator lights relative to the
selected programme settings will remain lit, and the Start/Pause Indicator will flash.
Turn the programme selector dial to the to the desired programme.
Load the laundry and detergent.
Select the Option you require, a time will be indicated in the display window.
Press the Start / Cancel button.
A beep will be heard followed by a CLUNK from the door lock solenoid as it locks the door, at this stage
the door locked indicator symbol will light.
On-Off Button
Wash Cycle Selector Knob Cleaning Action Button
Spin Button
Start/Pause
Child Lock Button
Display
Delay Timer Button
Temperature Button
Option Button & Indicator Light
Button &
Indicator Light

12 of 27
Service Manual UK
Indesit Company
English
TO STOP OR CHANGE A PROGRAMME
Press the ON-OFF button for approximately 3 seconds.
Select PUMP OUT on the programme dial.
Switch on and re-start.
When the machine has finished emptying.
Press the ON-OFF button.
Select a new programme and re-start.
NOTE: If you cancel a HOT wash or Dry programme, take care when removing the laundry, it may still
be VERY HOT.
DOOR LOCKED INDICATOR LIGHT
The 'Door Locked' indicator light will come on when you press the START / PAUSE button and will stay
lit throughout the programme. When the programme has finished the indicator light will go out and you
can then open the door, a double CLUNK noise will be heard from the door lock Solenoid at this point.
If the door is not closed properly prior to starting a programme the door lock solenoid will 'CLUNK'
approximately 5 times followed by a flashing DOOR indication in the display window, every 5 seconds
from then onwards there will be an audible beep.
Push the door closed and press START / PAUSE button to commence the cycle.
STAND-BY MODE
This washing machine, in compliance with new energy saving regulations, is fitted with an automatic
stand-by system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF
button briefly and wait for the machine to start up again.

13 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English

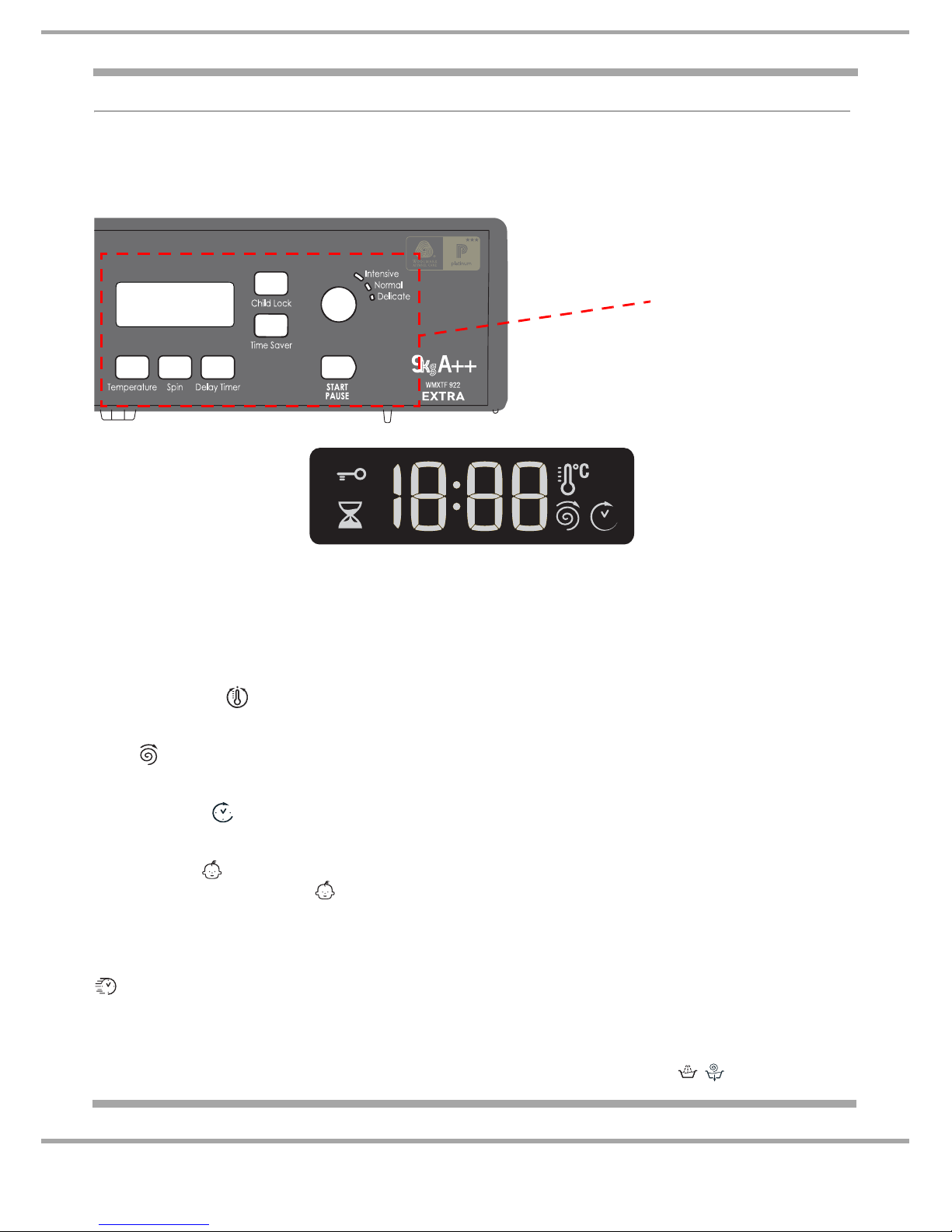

OPTIONS
Options are selected by pressing the button and confirmed by illumination an orange LED situated in
the button.
If an option is not available with a programme, the LED will flash and a bleeping noise will be heard
when pressing the button.
The display is useful when programming the machine and provides a great deal of information.
The duration of the available wash cycles and the remaining time of a running cycle appear; if the
DELAY TIMER option has been set, the countdown to the start of the selected wash cycle will appear.
Pressing the corresponding button allows you to view the maximum spin speed and temperature
values attained by the machine during the set wash cycle, or the values selected most recently, if these
are compatible with the set wash cycle.
TEMPERATURE button: press to reduce or completely exclude the temperature; the value
appears on the display.
SPIN button: press to reduce or completely exclude the spin cycle; the value appears on the
display.
DELAY TIMER button: press to set a delayed start for the selected wash cycle; the delay period
appears on the display.
CHILD LOCK button: to activate the control panel lock, press and hold the button for approximately
2 seconds. When the symbol is illuminated, the control panel is locked (apart from the ON/OFF
button). This means it is possible to prevent wash cycles from being modified accidentally, especially
where there are children in the home. To deactivate the control panel lock, press and hold the button
for approximately 2 seconds.
TIME SAVER
If you select this option, the wash cycle duration will be reduced by up to 50%, depending on the
selected cycle, thereby guaranteeing simultaneous water and energy saving. Use this cycle for lightly
soiled garments.
It cannot be used in conjunction with wash cycles 1, 2, 7, 8, 10, 11, 12, 13, 14,
Options



 

14 of 27
Service Manual UK
Indesit Company
English
CUSTOMISE THE WASH CYCLE
Use the relevant buttons:
Modify the Temperature and/or Spin Speed
The machine automatically displays the maximum temperature and spin speed values set for the
selected cycle, or the most recently-used settings if they are compatible with the selected cycle.
The temperature can be decreased by pressing the button, until the cold wash 'OFF' setting is
reached. The spin speed may be progressively reduced by pressing the button, until it is
completely excluded (the 'OFF' setting). If these buttons are pressed again, the maximum values are
restored! Exception: if the programme is selected, the temperature can be increased up to a value
of 90°C.
Setting a Delayed Start
To set a delayed start for the selected cycle, press the corresponding button repeatedly until the
required delay period has been reached. When this option has been activated, the symbol lights up
on the display. To remove the delayed start setting, press the button until the text 'OFF' appears on the
display.
Set the Desired Wash Intensity
Option makes it possible to optimise washing based on the level of soil in the fabrics and on
desired wash cycle intensity.Select the wash programme: the cycle will be automatically set to
'Normal' as optimised for garments with an average level of soil (this setting is not applicable to the
'Wool' cycle, which is automatically set to 'Delicate').
For heavily-soiled garments press button until the 'Intensive' level is reached. This level ensures a
high-performance wash due to a larger quantity of water used in the initial phase of the cycle and due
to increased drum rotation. It is useful when removing the most stubborn stains.For lightly-soiled
garments or a more delicate treatment of the fabrics, press button until the 'Delicate' level is
reached. The cycle will reduce drum rotation to ensure washing results that are perfect for delicate
garments.
Modify the Cycle Settings
• Press the button to enable the option; the indicator light corresponding to the button will switch on.
• Press the button again to disable the option; the indicator light will switch off.
! If the selected option is not compatible with the set wash cycle, the indicator light will flash and the
option will not be activated.
! The options may affect the recommended load value and/or the duration of the cycle.






15 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English
CONTROLS INFORMATION
A single control board located at the back of the machine contains all the circuitry to control the
machine and interfaces with the programme selector, option buttons and LEDs located on the console
panel. The control board has an access port to the rear of the machine.
Programmes are selected by turning the rotary switch to one of the 16 positions. Special options can
be selected by pressing the appropriate buttons and the programme process followed by LEDs.
The machine is switched on using the On/Off button and selected programmes started by pressing the
Start/Cancel button.
Automatic Features
Auto Half Load
Auto half load adjusts the amount of water in the wash load depending on the absorbency of garments
in the wash load.
Fabric Conditioner Dispensing
Dispensing of fabric conditioner is achieved by energising both the Pre-Wash and Main Wash cold
valves.
Load Balancing System
Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a
uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing
rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a
reduced spin speed. If the load is excessively unbalanced, the washing machine performs the
distribution process instead of spinning. To encourage improved load distribution and balance, we
recommend small and large garments are mixed in the load.
Out of Balance Protection
The machine has an inbuilt feature to prevent spinning with an unbalanced load. A calculation via the
motor tacho and control board detects the current drawn by the motor during distribution.
Before each spin, the controls senses the load within the drum and if the load is calculated to be out of
balance the machine will not automatically spin to the full speed.
There are two levels of out of balance, level 1 @ 480 grammes and level 2 @ 1030 grammes.
If the out of balance is below level 1 the machine will spin at full speed, if between level 1 and level 2
the machine will spin at the reduced speed of 600 rpm and above level 2 spin at reduced speed of 400
rpm. There are 15 attempts at level 1 with 57 attempts in total, this being the same for both cotton and
synthetic spins.
The Wool Spin has one level of out of balance @ 1.8 kg. The controls will make three attempts to
achieve a balance, if after three attempts a balance is not achieved; the spin is reduced to a speed of
90 rpm.

16 of 27
Service Manual UK
Indesit Company
English
WASH CYCLES
8EFPISJTVSKVEQQIWERH[EWLG]GPIW
8LIPIRKXLSJG]GPIWLS[RSRXLIHMWTPE]MWERIWXMQEXMSRSRP]ERHMWGEPGYPEXIHEWWYQMRKWXERHEVH[SVOMRKGSRHMXMSRW8LIEGXYEPHYVEXMSRGERZEV]EGGSVHMRKXSJEGXSVW
WYGLEW[EXIVXIQTIVEXYVIERHTVIWWYVIXLIEQSYRXSJHIXIVKIRXYWIHXLIEQSYRXERHX]TISJPSEHMRWIVXIHPSEHFEPERGMRKERHER][EWLSTXMSRWWIPIGXIH
8IWX[EWLG]GPIMRGSQTPMERGI[MXLHMVIGXMZIWIX[EWLG]GPI[MXLEXIQTIVEXYVISJ'
8LMWG]GPIMWHIWMKRIHJSVGSXXSRPSEHW[MXLERSVQEPWSMPPIZIPERHMWXLIQSWXIJJMGMIRXMRXIVQWSJFSXLIPIGXVMGMX]ERH[EXIVGSRWYQTXMSRMXWLSYPHFIYWIHJSVKEVQIRXW
[LMGLGERFI[EWLIHEX'8LIEGXYEP[EWLMRKXIQTIVEXYVIQE]HMJJIVJVSQXLIMRHMGEXIHZEPYI
8IWX[EWLG]GPIMRGSQTPMERGI[MXLHMVIGXMZIWIX[EWLG]GPI[MXLEXIQTIVEXYVISJ'
8LMWG]GPIMWHIWMKRIHJSVGSXXSRPSEHW[MXLERSVQEPWSMPPIZIPERHMWXLIQSWXIJJMGMIRXMRXIVQWSJFSXLIPIGXVMGMX]ERH[EXIVGSRWYQTXMSRMXWLSYPHFIYWIHJSVKEVQIRXW
[LMGLGERFI[EWLIHEX'8LIEGXYEP[EWLMRKXIQTIVEXYVIQE]HMJJIVJVSQXLIMRHMGEXIHZEPYI
*SVEPP8IWX-RWXMXYXIW
0SRK[EWLG]GPIJSVGSXXSRWWIX[EWLG]GPI[MXLEXIQTIVEXYVISJ'
0SRK[EWLG]GPIJSVW]RXLIXMGWWIX[EWLG]GPI[MXLEXIQTIVEXYVISJ'
;EWLG]GPIW
(IWGVMTXMSRSJXLI[EWLG]GPI
1E\
XIQT
'
1E\
WTI
IH
VTQ
(IXIVKIRXW
1E\PSEH
OK
6IWMHYEP
HEQTRIWW
)RIVK]GSR
WYQTXMSRO;L
8SXEP[EXIVPX
']GPIHYVE
XMSR
;EWL
*EFVMG
WSJXIRIV
'0)%24PYW
%RXM7XEMR   zz    
;LMXIW   zz    
'SXXSR7XERHEVH'LIEZMP]WSMPIH[LMXIWERHVIWMWXERXGSPSYVW 
1E\  zz    
'SXXSR7XERHEVH'PMKLXP]WSMPIHVIWMWXERXERHHIPMGEXIGSPSYVW   zz    
'SXXSR7XERHEVH'PMKLXP]WSMPIHVIWMWXERXERHHIPMGEXIGSPSYVW   zz    
7]RXLIXMGWLIEZMP]WSMPIHVIWMWXERXGSPSYVW   zz
    
7]RXLIXMGWPMKLXP]WSMPIHVIWMWXERXGSPSYVW   zz
    
8-1)>32)
6IJVIWLXSVIJVIWLKEVQIRXWYWMRKJEFVMGWSJXIRIVSRP]MXMWEHZMWEFPI
RSXXSEHHER]HIXIVKIRXMRXSXLIQEGLMRI    z    
1M\;EWLXSVIJVIWLPMKXP]WSMPIHKEVQIRXWUYMGOP]RSX
WYMXEFPIJSV[SSPWMPOERHGPSXLIW[LMGLVIUYMVI[EWLMRKF]LERH   zz
    
*EWX[EWLXSVIJVIWLPMKXP]WSMPIHKEVQIRXWUYMGOP]RSX
WYMXEFPIJSV[SSPWMPOERHGPSXLIW[LMGLVIUYMVI[EWLMRKF]LERH   zz
    
 *EWX[EWLXSVIJVIWLRSVQEPWSMPIHKEVQIRXWUYMGOP]RSX
WYMXEFPIJSV[SSPWMPOERHGPSXLIW[LMGLVIUYMVI[EWLMRKF]LERH   zz
    
74)'-%07
 %RXM%PPIVK]  zz    
 7LMVXW   zz    
 ;SSPJSV[SSPGEWLQIVIIXG   zz    
 (IPMGEXIW   zz    
4EVXMEPWG]GPIW
6MRWI    z    
7TMR4YQTSYX         

17 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English
SPECIAL WASH CYCLES
Anti Stain: The programme 1is suitable to heavily-soiled garments with resistant colours. It ensures a
washing class that is higher than the standard class (A class). When running the programme, do not
mix garments of different colours. We recommend the use of powder detergent. Pre-treatment with
special additives is recommended if there are obstinate stains.
Whites: Use this cycle 2to wash white clothes. The programme is designed to maintain the brightness
of white clothes over time. Use powder detergent for best results.
Anti Allergy: Use programme 11 to remove major allergens such as pollen, mites, cat’s and dog’s
hair.
Wool: The 'Wool' wash cycle on this Hotpoint machine has been tested and approved by The
Woolmark Company for washing wool garments labelled as hand washable provided that the garments
are washed according to the instructions on the garment label and those issued by the manufacturer of
this washing machine. Hotpoint is the first washing machine brand to be approved by The Woolmark
Company for Apparel Care- Platinum for its washing performance and consumption of energy and
water (M1127) .
Delicates: Use programme 14 to wash very delicate garments with decorative features such as
diamantes and sequins.
To wash silk garments and curtains select the cycle 14 and set the 'Delicate' level from option .
We recommend turning the garments inside out before washing and placing small items into the
special bag for washing delicates. Use liquid detergent on delicate garments for best results.
Cotton Standard 20°: (programme 5) Ideal for heavily soiled cotton loads. The effective performance
levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a
mechanical action which operates at varying speed, with repeated and frequent peaks.

Whirlpool UK Appliances Ltd
18 of 27
Service Manual UK English
WIRING DIAGRAM
1
2
3
2
1
467
1
3
1
3
LN
PL
9
TF
3 4 5
2
1
3
1
J9 J9
JE8
JE11
J10
J10
JE13
J11
JE15
3
?
??
?
54 3
2
+5V
5 3
41
GND
P
JE7
134
45
JE14
1
2
220 - 240 Vac
12V D Gnd SCL SDA
JE12
L
CN
22
1
12
3
4
5
1
2
4
6
8
9
1
3
1234
21
3
45 1
2
3
4
1
2
3
4
5
???
34
1
Linea Neutro
Q7
Triac
Triac
opzionale
Q6
Triac
Q2
Triac
Q3
Triac
Q4
Triac
Q5
Triac
R
4
5
67
K?
Deviat
K?
Resist
43
1
K?
Res. Asc.
Wash
Heater
with
thermal fuse
Test Connector
Pump
Linear
Pressure
Switch
Wash
NTC
Pre-
Wash Wash
Motor
(3 phase)
Tacho
Water valves
Brown
Brown
DISPLAY / CONTROL
Door
Lock
Mains Filter
Brown
Brown
RedRed
Red
Neutral Neutral
Neutral
Live
Live
Red
Red
Light Blue
Black Black
White White
Light Blue
Signal
Light Blue
Black Black
Black
Light Blue Light Blue
Blue
Blue
E
Arcadia 2 - 3 phase WM
5407721wd.ai

19 of 27
Whirlpool UK Appliances Ltd
Service Manual UK English
WIRING LEGEND
EV Solenoid valve N Neutral or Terminal board
EVA Drying solenoid valve PS Drain pump
EVC Hot water solenoid valve R Heating element
EVF Cold water solenoid valve RR Heating element
EVL Wash solenoid valve TG Main earth
EVP Prewash solenoid valve NNeutral or Terminal board
IP Door switch
LLine or Lamp
MR Microdelay device

20 of 27
Service Manual UK
Indesit Company
English
WIRING CONNECTIONS
RED 0.35 X 1550
RED 0.35 X 1550
RED 0.35 X 1550
RED 0.35 X 1550
DISPLAY
RED 0.35 X 1550
PRESSURE SWITCH
BROWN 1.00 X 1700
DOOR LOCK / PUMP
EARTH
J10
MRC
MRL
MRN -1-
-2-
-3-
-1-
-2-
PS
1J10
1JE7
MOTOR
MOTOR
JE7
-7-
-6-
-5-
-4-
-3-
-2-
-1-
BLACK 0.75 X 730
BLACK 0.75 X 730
RED 0.50 X 730
RED 0.50 X 730
BLACK 0.75 X 730
MAINS FILTER
J9
FA2
FA1
R.TF.
R.R.
L/N
BLUE 1.00 X 530
BROWN 1.00 X 530
BLUE 1.00 X 900
BROWN 1.00 X 900
4J9
-2-
-1-
GREEN/YELLOW 1.0 X 1220
TG
TR
LIGHT BLUE 0.35 X 570
LIGHT BLUE 0.35 X 570
VALVES / NTC THERMISTOR
EVL
EVP
WASH
NTC
WHITE 0.35 X 1520
WHITE 0.35 X 1520
LIGHT BLUE 0.35 X 1520
LIGHT BLUE 0.35 X 1520
1
3
1
3
1
3
2
4
1
6
7
9
JE11
JE15
BROWN 1.00 X 1700
RED 0.50 X 1700
RED 0.50 X 600
RED 0.50 X 600
Display
3J9
2J9
1J9
2J10
3J10
4J10
5J10
2JE7
3JE7
4JE7
5JE7
3
2
4
5
1
3
2
4
5
1
MODULE
MODULE MODULE
MODULE
PREWASH
MAIN
MODULE
DOOR
LOCK
PUMP
celeste 0.35 X 1390
celeste 0.35 X 1390
JE8
celeste 0.35 X 1390
Press/
Sens
3
2
4
5
1
3
2
4
5
1
