User & Installation Guide
LAM2400
LAM2402
Stainless Steel
Chimney Extractor

www.howdens.com
Page _ 2
LAMONA Appliances
Dear Customer,
Congratulations on your choice of a LAMONA domestic appliance which has been designed to give you
excellent service.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the product.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
This product’s packaging material is recyclable. Help recycle it and protect the environment by dropping it
off in the municipal receptacles provided for this purpose. Your product also contains a great amount of
recyclable material. It is marked with this label to indicate the used appliances that should not be mixed
with other waste. This way, the appliance recycling organised by your manufacturer will be done under
the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and
Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest
to your home. We thank you doing your part to protect the environment.

Exclusive to Howdens Joinery.co Page _ 3
User manual LAM2400 LAM2402
Index
Before using the extractor 03
Safety 03
General 03
Safety for children 03
Safety when working with electricity 03
General information and operation 04
Extractor layout 04
Control panel layout 04
Care and maintenance 05
General Cleaning 05
Grease Filters 05
Carbon Filters 05
Replacing the Lamps 06
Installation 07
Methods of extraction 07
Extraction Via Ducting 07
Extraction Via Recirculation 07
PartsIdentication   08
Hanging your extractor 09
Decorative Chimney Fitting 10
Electrical Connections 11
Technical specication 12
Troubleshooting 12
Your Guarantee 13

www.howdens.com
Page _ 4
LAMONA Appliances
• Makesurethatyouhaveremovedallpackaging,wrappings,stickersandlmsfromtheExtractor
• Itisrecommendedthatyoucleantheextractor’ssurfacebeforeusingforthersttime.
Before using the Extractor
This appliance is for domestic extraction
purposes only. It must not be used for other
purposes. Commercial use will void the guarantee.
The manufacturer shall not be liable for any damage
caused by improper use, installation or handling
errors
General
This product is not intended to be used by persons
with physical, sensory or mental disorders or
unlearned or inexperienced people (including
children) unless they are supervised by a person
who will be responsible for their safety or who will
instruct them accordingly in the use of the product.
• Do not operate the product if the power cable
isdamaged.Callqualiedserviceagent.
• Donotcarryoutanyrepairsormodications
on the product. However, you may remedy
some the problems that do not require any
repairsormodications.SeeTroubleshooting,
at the rear of this manual.
• Never wash down the product with excessive
water, as there is the risk of electric shock!
• Never use the product when your judgment or
coordination is impaired by the use of alcohol
and/or drugs.
• Product must be disconnected from the mains
during installation, maintenance, cleaning and
repair procedures.
• Repair procedures must always be performed
byqualiedserviceagents.Themanufacturer
shall not be held responsible for damages
arising from procedures carried out by
unauthorised persons, which may also void
the guarantee.
•
• Keep all ventilation slots clear of obstructions,
as this may cause premature failure of the
appliance
• Do not trap the mains cable and do not route
it over surfaces which may become hot. The
cableinsulationmaymeltandcauseareas
a result of a short circuit.
• Make sure that the product function buttons
are switched off after every use.
• Productmustbeinstalledbyaqualiedperson
in accordance with the regulations in force
otherwise, the guarantee may become void.
Safety for children
Electrical products can be dangerous to children.
Keep children away from the product when it is
operating and do not allow them to play with or near
the product.
The packaging materials will be dangerous for
children. Keep the packaging materials away
from children. Please dispose of all parts of the
packaging according to environmental standards.
Safety when working with
electricity
In case of any damage, switch off the product and
disconnect it from the mains. To do this, turn off the
fuse at the fuse box.
Make sure that fuse rating is compatible with the
product.
Safety

Exclusive to Howdens Joinery.co Page _ 5
User manual LAM2400 LAM2402
1.
3.
5.
4.
6.
2.
7.
1.
3.
5.
4.
6.
2.
7.
5.
6.
2.
7.
8.
8.
1.
3.
4.
1.
3.
5.
4.
6.
2.
7.
8.
1. Upper chimney section
2. Recirculation vent
3. Lower chimney section
4. Fan and light controls
5. Extractor body
6. Greaselters
7. Light
General Information & operation
0
1. 2. 3. 4. 5.
1. 2. 3. 4. 5.
1. 2. 3. 4. 5.
Extractor layout
Control panel layout
1. Extractor Power off
2. Extractor power level 1
3. Extractor power level 2
4. Extractor power level 3
5. Extractor Light on/off

www.howdens.com
Page _ 6
LAMONA Appliances
Before cleaning or attempting any type of maintenance, always make sure that the electricity
supply is disconnected.
To avoid the possibility of re, adhere strictly to all of the recommendations included in this
booklet, paying particular attention to the grease lters to ensure grease deposits do not build up.
The manufacturer declines all liability in cases where the instructions for the appropriate installation,
maintenance and use of the extractor hood are not observed.
If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call
theservicenumberontherearcoverofthisbookletorasuitablyqualiedrepairer.
General Cleaning
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use
abrasive cleaners.
Care and maintenance
The Grease Filters
Thegreaselterisofametallicmaterialandshould
be washed using a neutral detergent.
To Remove the grease lters:
1 Push latch
2Lowerltertoremove.
The Carbon Filters
Carbonltershavealimitedlife.Weadviseyou
to change them when there is a noticeable drop
in performance. The intervals between changing
thelterwilldependentirelyupontheamountof
cooking you do, but on average they will last about
6 months. Please quote the part refrence number
HJA2910 (pack of 2) when re-ordering.
• Togainaccesstothecarbonlters,rstofall
removethegreaseltersasabove.
• Removetheoldltersandinstallnewcharcoal
ltersbyturningthemgently
1
2
1
2
3

Exclusive to Howdens Joinery.co Page _ 7
User manual LAM2400 LAM2402
Replacing the Lamps
Theextractorhoodisttedwithx2E1428w
halogen lamps that may need to be replaced
periodically.
To do this, ensure that the power is switched off and
the lamps have had time to cool.
• Removethegreaselterstogainaccess.
• Unscrew the lamps and replace with new
lamps of the same type and wattage.
Lamp replacement is not covered by your
guarantee
The lamps on this appliance should only be used
during operation of the cooker hood. They should
not be left on permanently and used as a main
lighting source. The extractor is for domestic use
only.

www.howdens.com
Page_8
LAMONA Appliances
Methods of Extraction
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits
maybepurchasedfromthedepotwhereyouboughttheextractor.)Youdonotneedcharcoallterswhen
using the external ducting mode.
Ducting kit
Supplied Separately
Vent through external
wall or ceiling
Filtered air
recirculated
Fig 1.
Ducting mode
(Nocharcoalltersrequired)
Fig 2.
Recirculation mode
(Charcoalltersrequired)
Extraction Via Ducting
Never use the hood in areas where devices with
exhaust pipes connected to the outside are
already operating unless perfect ventilation can be
guaranteed.
• Connect the external ducting kit to the outlet
of the extractor.
Charcoalltersarenotrequirediftheextractor
is to be ducted out.
Extraction Via Recirculation
For extraction via recirculation, attach 2 charcoal
lterstothesidesofthemotorinsidethehood.
(Part reference HJA2910)
Before attempting to change or t the
charcoal lters ensure power to the extractor is
switched off.
• Removethegreaselters
• Alignthecarbonltersoverthepinslocated
on either side of the fan motor.
• Turn the carbon gently, until you feel them
click into postilion.
• Replacethegreaseltersbeforethepower
supply it turned back on.
Installation

Exclusive to Howdens Joinery.co Page _ 9
User manual LAM2400 LAM2402

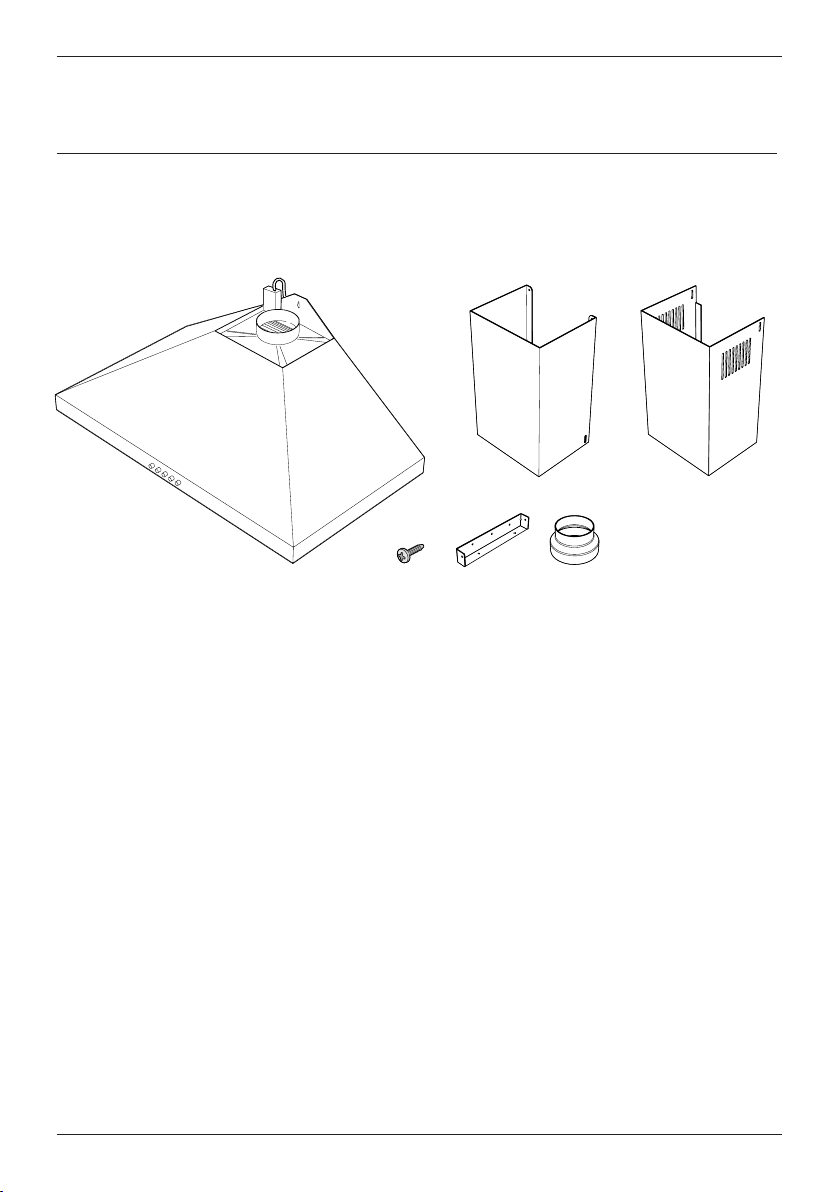

PARTS IDENTIFICATION
Onopeningyourboxyouwillndtheextractorbody,atwo-piecetelescopicdecorativechimney,twoxing
brackets, and ducting connector and reducer.
1. Main Extractor Body
2. Lower Chimney
3. Upper Chimney
4. 5mm Screw
5. Chimney Bracket
6. Outlet Reducer
1. 2. 3.
6.5.4.
1. 3.
2.
4.
5.
6.
7.
11.9.8. 10. 12. 13.

www.howdens.com
Page _ 10
LAMONA Appliances
Hanging Your Extractor
This instruction must be strictly adhered to. Failure to comply could result in overheating and
serious damage to your appliance. It is recommended that the installation is carried out by two people.
Before drilling or chiselling the ceiling or wall, check for pipes and power cables.
• If ducting externally ensure the ducting tube is kept as short as possible and with the minimum
ofbendstopermitthesmoothestairow.(Maximumlength3metres.).Ductedairmustnotbe
dischargedintoaue,whichisusedforexhaustingfumesfromappliancessuppliedwithenergyother
than electricity. (E.g. gas boilers)
• Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust
air.
• Ensure adequate room ventilation is provided when the extractor is used in the same room as
appliances supplied with energy other than electricity.
• Neverductintoahotairowsuchasacentralheatingduct
We strongly advise that all exterior outlets be tted with a non return ap or louvred slatting.
700 mm Minimum distance to worktop
750 mm Recommended distance to worktop
**
**
**
**
**
Worktop
Wall
228mm
(**) Please use rawl plugs and screws appropriate
to the type of wall (not supplied)
700 mm Minimum distance to worktop
750 mm Recommended distance to worktop
40 mm
275 mm
195 mm Please use rawl plugs and screws
appropriate to the type of wall
Wall
=
=
2
1
2
3
1.
9.
9.
9.
8.
8.
8.
6.
700 mm Minimum distance to worktop
750 mm Recommended distance to worktop
200 mm
50 mm
128 mm
190 mm
105 mm
110 mm
Please use rawl plugs and screws
appropriate to the type of wall
**
• Removethegreaseltersbeforetryingtoinstall.
• Therecommendedxingheightforthehoodis750mmabovetheworktop.Thiscanbereducedtoa
minimum of 700mm if required.
• Mark and drill the holes required to mount the extractor body.
• Theprincipalsecuringpointisthetopkeyholeslot;xthisscrewrstleavingapproximately5mm
between the screw head and the wall.
• With the help of an assistant, level and secure in position through the lower two holes tightening the
upper screws as necessary.

Exclusive to Howdens Joinery.co Page _ 11
User manual LAM2400 LAM2402

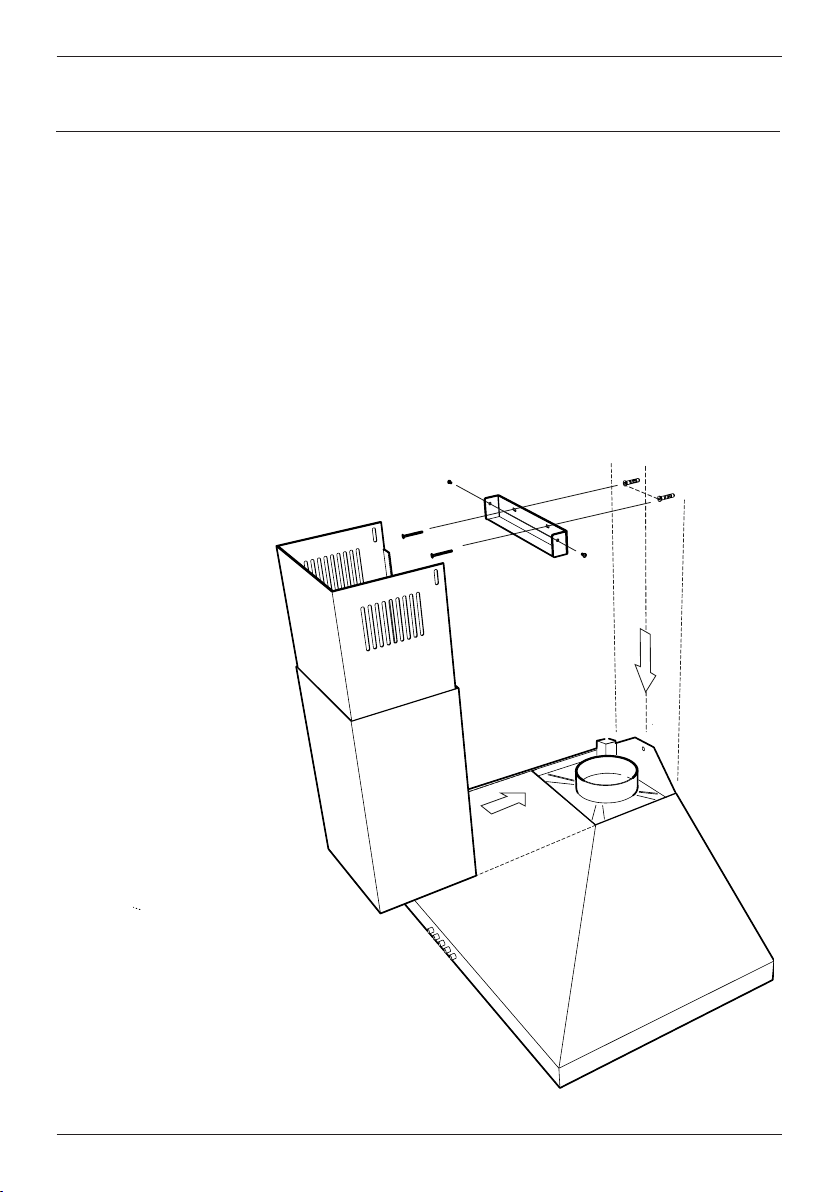

Decorative Chimney Fitting
• Connect the extractor to the electricity supply (see electrical connections page). We recommend an
isolation switch that is accessible after installation.
• Theoutletreducer‘8’mayberequireddependingonyourductingkit.
• Fit the Appropriate ducting kit if venting externally.
• Rest the chimney sections on the main extractor body and extend the upper section to the ceiling
• Usetheextendedchimneytomark-upthepositionoftheupperxingbracket‘5’
• Removethechimneysection,drillandxtheupperxingbracket‘5’intoposition.
• Resit the chimney sections on to the extractor body and secure to the upper wall bracket using the
screws ‘4’ provided.
• Finallyre-tthegreaselters
DO NOT: Operate the extractor without the grease lters in position.
3.
2.
1.
5.
**
**
4. 150mm.
(**) Please use rawl plugs and
screws appropriate to the type of
wall (not supplied)
200mm
3.
2.
1.
7.
4.
5.
700 mm Minimum distance to worktop
750 mm Recommended distance to worktop
p

www.howdens.com
Page _ 12
LAMONA Appliances
Electrical Connections
IMPORTANT: Ensure that the electricity supply is switched off before connecting.
Yourappliancemustbeconnectedtoxedwiringviatheuseofadoublepoleswitchedfusedspuroutlet
with at least 3mm contact separation, The isolation switch must be accessible after installation. (See
technical data for fuse rating).
We strongly recommend the appliance is connected by a qualied electrician
The terminology DOUBLE POLE -/+ means that both the live and neutral supplies are switched and
disconnected at the same time.
The terminations labelled SUPPLY are the connections for the internal house wiring and the terminations
labelled LOAD are for connection to the appliance.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue..........Neutral
Brown......Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which is
marked with the letter ‘L’ or coloured RED.

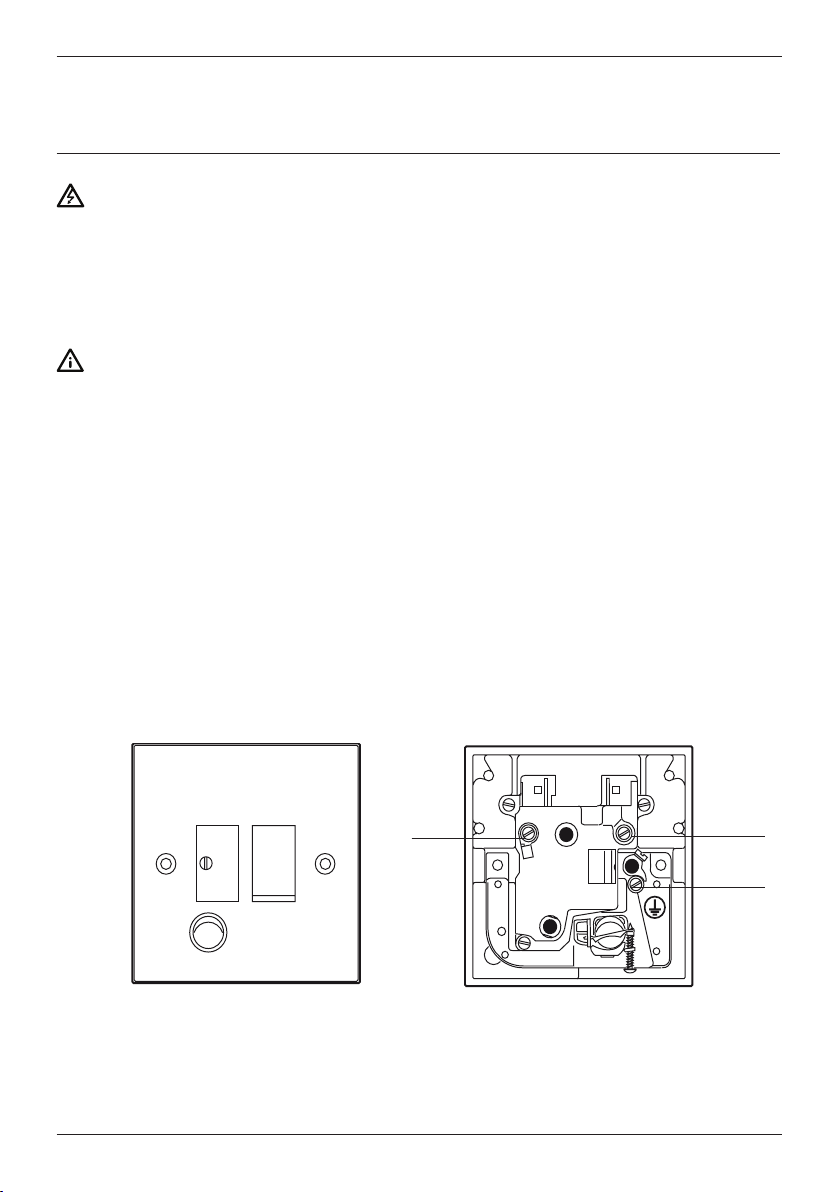

Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP 250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
Green / Yellow.
(Earth)

Exclusive to Howdens Joinery.co Page _ 13
User manual LAM2400 LAM2402
TROUBLESHOOTING GUIDE
Symptoms Possible Cause Solutions
Lamps fail to operate? • A replacement lamp is probably
necessary,butrstcheckthatthe
lampiscorrectlyttedintoitsholder.
(Remember that the lamps are not
covered by the guarantee.)
Disconnect the mains electricity supply before adjusting
or replacing the lamps.
The extractor lamps may become hot; therefore ensure
thebulbhascooledsufcientlybeforereplacing.
• Power is cut. Check if there is power. Check the fuses in the fuse box. If
necessary, replace or reset the fuses.
Motor is on but fan does
not seem to be as efcient
as usual?
• Cloggedlterscanreducethe
product’sefciency.Checkthegrease
andcharcoallters(iftted)also
ensure any venting is not obstructed?
Cleanthegreaselterswithwarmwaterandmild
detergent,and/orreplaceanycharcoallters
The extractor works normaly
but smells linger?
• Cloggedlterscanreducethe
product’sefciencyandmaycause
unwanted smells.
Cleanthegreaselterswithwarmwaterandmild
detergent,and/orreplaceanycharcoallters.
Product does not operate? • The mains fuse maybe defective or
has tripped
Check fuses in the fuse box. If necessary, replace or
reset them.
• Product is not connected properly. Check all power connections.
If you cannot eliminate the problem after following the instructions in this section, consult your
depot or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
Troubleshooting
Technical specication
TECHNICAL INFORMATION
General
Total power consumption 206W
Fuse 3 A
Voltage /Frequency 220-240 V ~ 50 Hz
Cable type / section 0.75mm², 2 core or equivalent
Cable length max. 1.3m
Lamps E1428Weach

www.howdens.com
Page _ 14
LAMONA Appliances
Your guarantee
Product Guarantee Details (UK only)
Your appliance has the benet of a comprehensive manufacturer’s guarantee which covers the cost of
breakdown repairs. (Details of which are shown on your Proof of Purchase Document).
• Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE)
• The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alternations which are likely to affect the
product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way affects your statutory or legal rights)
What to do if you need to report a problem-
Please ensure you have ready:
• The product’s model & serial numbers
• Howdens Proof of Purchase document
• Your full contact details
Call the Service Line on 0845 00 60 006

Exclusive to Howdens Joinery.co Page _ 15
User manual LAM2400 LAM2402
Notes

If supplied, please stick your self adhesive product rating plate
here, or make a note of the product serial number below in the
box below for future reference.
Serial Number : ...........................................................................................
