HPC EI Series Installation instructions

ELECTRONIC IGNITION
OUTDOOR FIREPLACE INSERT
EISeries
Hi/Lo Models
Installation&OperationInstructions
Hearth Products Controls
Fire-inspired since 1975.
660-EION/OFF
DBOF28EI
LBOF28EI
C US
fire-parts.com

1
This is a Safety Alert Symbol
WhenyouseethissymbolontheEI Control Panel,orin thismanual, lookfor
oneofthefollowingsignalwordpanelsalertingyouto thepotentialfor
personalinjury,deathormajorpropertydamage.
WARNING: For Outdoor Use Only.
Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish an open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire
department.
Failure to follow these instructions could result in fire or
explosion, which could cause property damage, personal
injury, or death.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space
such as a camper, tent, car or home.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
fire-parts.com

2
TableofContents
1 ImportantSafetyInformation ................................................................................................. 3
Technical Support .....................................................................................................................3
Symbol Legend.........................................................................................................................4
Important Safety Information for Installers ...............................................................................5
Important Safety Information for End-Users.............................................................................6
2 ProductFeaturesandPartsList .............................................................................................. 7
3 SelectingtheFireplaceInsertLocation ....................................................................................... 8
4 Minimum Fireplace Cavity Size ............................................................................................. 9
5 Fireplace Enclosures Requirements .............................................................................................. 10
6 Installing the Fireplace Insert .............................................................................................. 15
7 Adding Approved Media ................................................................................................................... 16
8 OperatingtheFireplaceInsert ................................................................................................... 17
9 Maintaining the FireplaceInsert ............................................................................................. 18
10 Troubleshooting ............................................................................................................................... 24
11 WiringDiagram ................................................................................................................... 26
12 Replacement Parts .......................................................................................................................... 27
13 Warranty ............................................................................................................................................. 28
fire-parts.com

3
1 Important Safety Information
SELECT MODELS
Certified to
ANSI Z21.97-2017
CSA 2.41-2017
C
US
• HearthProductsControlsCompanyrecommendsthatourproductsareinstalled
byprofessionalslocallylicensedbytheauthorityhavingjurisdictioningaspiping.
Allinstallationinstructionsmustbefollowedtoensureproperperformanceand
safety.HearthProductsControlsCompanyassumesnoresponsibilityforproblems
relatingtotheinstallation.
• Toqualifyforwarranty,allinstructionsmustbestrictlyfollowed.Otherwise,
warrantymaybevoid.Never alterproductorconfiguration inanyway.
• Annual servicingshouldbehandledbyprofessionalscertified in theUS bythe
NationalFireplaceInstitute(NFI)asNFIGasSpecialistsorinCanadabyWETT
(Wood Energy Technical Training).
• Itistheinstaller’sresponsibilitytoensureasafeinstallationandtoeducatethe
end-userregardingthefeatures,safetyrecommendationsandproperoperation
of this product.
• Pleasereferencepage1forallwarnings.
Technical Support
ForinformationandsupportcontactyourHearthProductsControlsdealer.
fire-parts.com

4
1 Important Safety Information
IMPORTANT
Symbol Legend
This is a Safety Alert Symbol
Whenyouseethissymbolonthe EI Control Panel,or inthismanual,lookfor
one ofthefollowingsignalwordpanelsalertingyoutothepotentialfor
personal injury,deathormajorpropertydamage.
Necessary instructions
fire-parts.com

5
1 Important Safety Information
IMPORTANT
Please reference page 1 for all warnings.
Important Safety Information for Installers
Leave this manual with the end-userand instruct them toretainitforfuture
reference.Instructions andproductupdatesarealsoavailableatwww.hpcfire.com
under the Support tab.
Installersmustcarefullyfollowtheinstructionsinthismanualtopreventpersonal
injuryorpropertyloss.Theseinstructionscontaininformationcriticaltothesafe
installationandoperationofthefireplace.
• Instructionsareupdatedas needed.Itistheresponsibilityoftheinstallersto
check for product updates and installation manual updates at www.hpcfire.com/
support.htmlpriortoinstallation.
• Itistheresponsibilityoftheinstallertofollow:
- TheNationalFuelGasCode,ANSIZ223.1/NFPA54orInternationalFuel GasCode.
- Natural Gas and Propane Installation Code CSAB149.1 or CSA B149.2
- TheNationalElectricalCode,ANSI/NFPA70. In Canada, Canadian Electrical Code CSA 22.1.
- Localcodes
• Controloptions:Useof wallswitch, optionalremotecontrol(#578-C),automatic
shut-offtimerorwholehousesystem.
Gas
• Onlyuse the gas/fuel typespecifiedforthis fireplace insert,refertothelabelon
theEIControlPanel.Neveruseanalternativefueltoincludebiofuel,ethanol,lighter
fluidor anyotherfuel.
• Gaspressureandtype shouldbecheckedpriorto useandinstallation.
- Natural Gas Fire Pit: Supply Pressure:Minimum: 6.0inchesW.C.;
Maximum:7.0inchesW.C.
- LPGas: SupplyPressure:Minimum:8.0inchesW.C.;
Maximum:11.0inchesW.C.
If pressure is low, this will reduce flame height on HIGH
setting, possibly resulting in little to no flame variation.
fire-parts.com

6
1 Important Safety Information
IMPORTANT
• Ifnotusingsuppliedflexline,ensureanyflexline that maybeusedfrom the
permanent main fuel supply to the product is rated tothe stated max BTU of the
productandcertified toANSIZ21.75*CSA 6.27.
• TheEISeriesisnotforusewithsmallLPTanksandmustutilizepermanentfixed
pipingforfuelsupply.
Electrical
• Verifycorrect 120 VAC –1 amp or 24 VAC–4 amp power supply. Only use the type
specifiedfor this fireplace insert.Refer to the label on the EI Control Panel. All
electronic applicationsshouldutilizeaGFCI-protectedcircuit.
- If removing power cord plug and hard wiring within junction box, use only a
certified Electrician and must follow the National Electrical Code (NEC), NFPA
70 and all local codes.
24 VAC powered fireplace inserts:
- Fire Pit will not perform properly if power supply rating is
below 100W or wire size is too small.
- HPC highly recommends using our HPC/Sebco 24 VAC
100W power supply series (311-PS1, 311-PS3, 311-PS5
Models)
A Class II 24 VAC, 4 amp, 100 W transformer must be used to power the EI
Control Panel and be able to beswitched on and off from a remote location to
allow for easy accessoremergency.
-
24 VAC wire sizing: Wire lengths 75 ft or less: 14 gauge
-
Wire lengths 76 ft or more: 12 gauge
ImportantSafetyInformationforEnd-Users
• Neverleaveanoperatingfireplace insertunattendedorwithsomeonenot
familiarwith itsoperationoremergencyshut-offlocations.
• Bothchildrenandadultsshouldbe alerted tothehazards ofhighsurface
temperaturesand shouldstayawaytoavoidburnsandclothing ignition.
• Youngchildrenshould becarefullysupervisedwhentheyareintheareaof thefireplace.
• Keeptheapplianceareaclearandfreefromcombustiblematerials,gasoline,
andotherflammablevaporsandliquids.
fire-parts.com

7
2 ProductFeaturesand PartsList
Product Features
PartsList
• FireplaceInsert
• EI Control Panel
• GasInputFlexLine–24"
• Installation and Operation Instructions

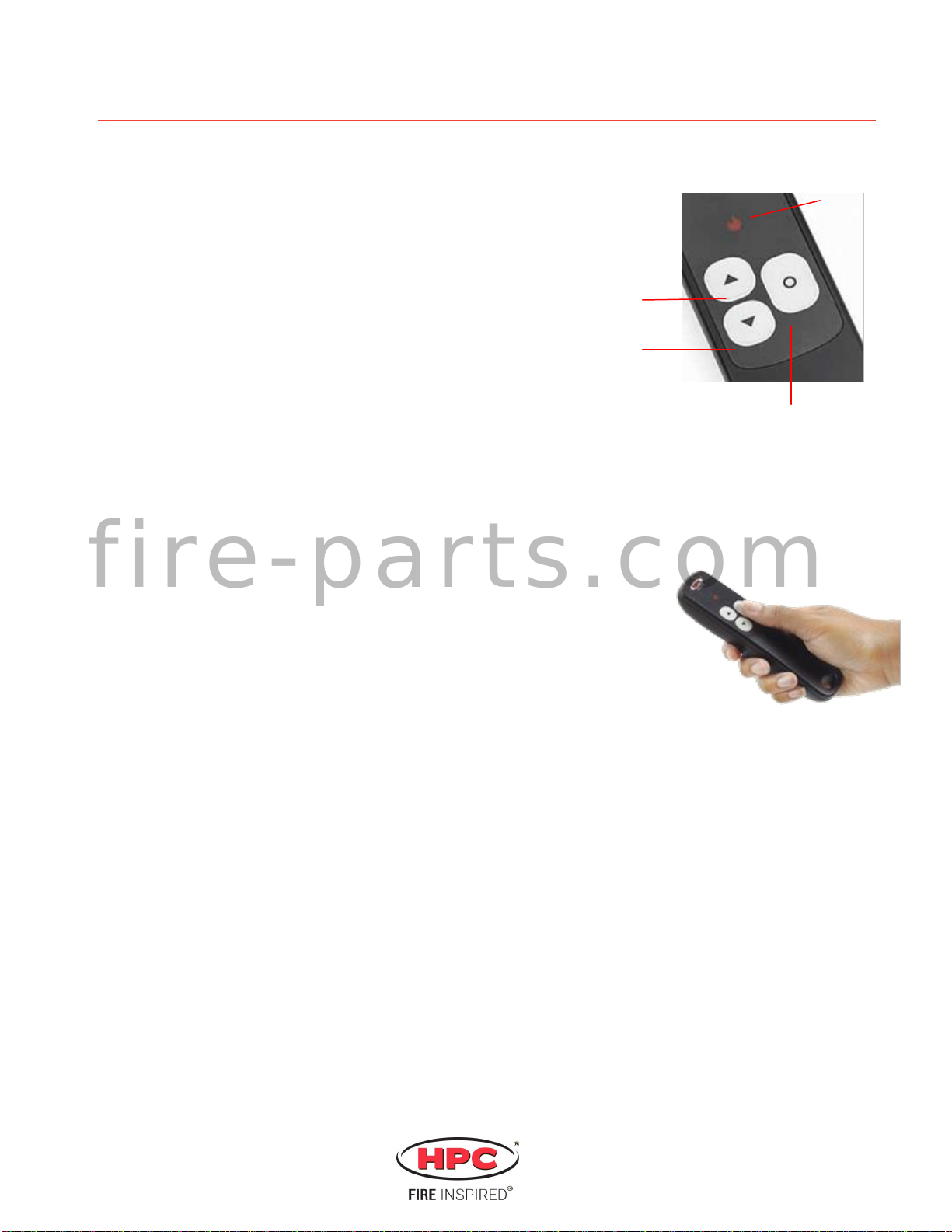

• Remote Control (Bluetooth) &
Antenna Extension Cable
Pan
Ignition System
Blowout Box
Burner
EI On/Off Control Panel
LBOF28EI
Antenna Bracket
Antenna
Antenna
Extension
Remote
Control
fire-parts.com

8
3 Selecting the Fireplace Insert Location
IMPORTANT
NOTE: All fireplace inserts and systems are designed and intended for outdoor use only.
It is recommended that material such as granite, marble
or other dense stone be kept away from heat and
especially flame due to risk of cracking. HPC is not
responsible for damage resulting from failure to follow
these recommendations.
• Selectalocationthat
- ensuresabove-gradeinstallationofthefireplace.
- allowseasyaccessforinstallationandmaintenanceofthefireplace.
- providessufficienthorizontalroomtoenjoythefirepitwhileallowingasafe
distancefrom theheatandflame.
• Fireplace insertscreateveryhightemperatures.Forclearancesrefertotable
4.1. Clothingorotherflammablematerialsshouldnot be placedonornear
firepit.
fire-parts.com

9
4 Minimum Fireplace Cavity Size
ClearancesaroundFireplace Insert
It’simportantto reviewtheclearance requirementsbelowforanytypeofoverhead
structuretoensure that the distances are met. Figures 4.1
Table4.1 –Clearances for standard firepit up to200k BTU
We recommend all mantels made from noncombustible material. If using combustible materials, follow the guidelines below.
Table 4.3.
Table 4.3 –Combustible Materials clearances for mantels
PART NUMBERS
MINIMUM FIREPLACE CAVITY
SIZE
HEIGHT
(A)
FRONT
OPENING
WIDTH (B)
DEPTH
(C)
DBOF22EI
18"
36"
18"
DBOF28EI
18"
42"
18"
LBOF22EI
18"
26"
18"
LBOF28EI
18"
42"
18"
LBOF46EI
18"
60"
18"
LBOF58EI
18"
72"
18"
LBOF70EI
18"
84"
18"
LBOF82EI
18"
96”
18"
B
C
A
Table4.2 –Cavity dimension key
fire-parts.com

10
5 Fireplace Enclosure Requirements
Locationanddesign
• Refer tocut sheets on our website for
importantdimensionalinformationforyourfireplace insert.Visitwww.hpcfire.com
• Itisrecommendedthatmaterialsuch asgranite,marbleorotherdense stone
be keptawayfrom heatandespeciallyflameduetoriskof cracking.
Manufacturer isnotresponsiblefordamage.
• Theenclosuremust beconstructedonastablesurfaceandbe level.
• Theproductmustbeaccessibleforservice.
• EI Control Panel must be mounted at a minimum of 24” above ground
• Fireplace enclosure should be built and inspected by a certified professional following all local codes.
NOTE: HPC cannot guarantee the fireplace insert pan on all of
our products will be perfectly flat and will not warp due
to heat.
Gas
• Fireplacemust have a gas shutoff on the exterior of the fireplaceto allow for
emergencyshutoffandmaintenance.Thegasshutoffshould NOTbeused
to adjustflame height.
• Fuellinesizingistheresponsibilityoftheinstallerandmustbeabletosupply
the stated maximum BTU for the product –referto product label on EI Control
Panel.
• Gas lines should be behind or to the side of the fireplace insert. See Figure
5.1. Center fireplace in opening.

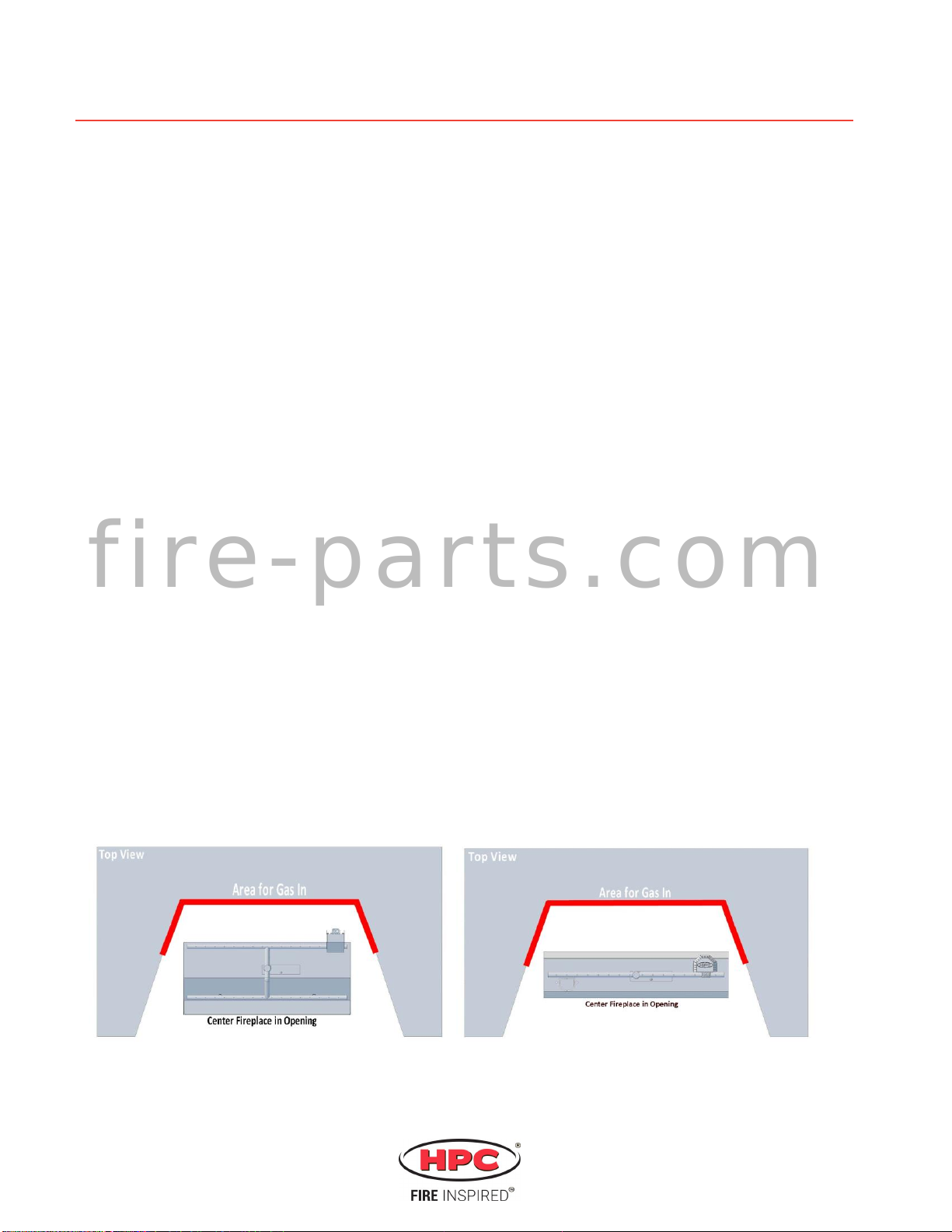

Figure 5.1 –Gas lines and fireplace locations
fire-parts.com

11
5 Fireplace Enclosure Requirements
Construction materials
• Usenon-combustiblematerialsandconstructionforgassupply,power
and enclosure.
Venting if Enclosing EI Control Panel
• Theenclosuremust incorporatevents toallow heatand orresidualfuel toescape.
Failuretoproperlyventtheenclosuremayresultinthefirepitoverheating or
explosion.
• Someenclosuresmayrequiremoreventilationbasedonmaterial,size,and
extended use.
• Failuretoproperlyventtheenclosuremayresultinthefireplaceoverheating
orexplosion.Continuousoverheatingcouldleadtoheatdamagetointernal
components.
• OVERHEATING:thefireplace willautomaticallyclosethegasvalveif the
temperature exceeds190°Finsidethecontrolboxtopreventcomponent
damage.Turnmain power tothefire pit off andon toreset.Tocorrect
overheating, ensure enclosure hasadequateventilationpertheguidelinesinthis
section.
• Ensureenclosure hasadequateventilationpertheguidelinesinthissection.
fire-parts.com

12
5 Fireplace Enclosure Requirements
IMPORTANT
IMPORTANT
IMPORTANT
Fuelline
• Fireplacemust have a gas shutoff on the outside of the exterior of the fireplaceto
allow foremergencyshut offandmaintenance. The gas shutoffshouldnotbe
usedto adjustflameheight.
• Theinstallerisresponsibleforusingthecorrectfuellinesizingthatisabletosupply
the stated maximum BTU for the product –refer to product label on the fire pit for
specifications.
• Performallleaktestswithleakdetectororleak reactant.
To prevent damage, isolate the appliance when
performing any pressure testing.
Burn Testing: It is the responsibility of the qualified
installer to test for gas leaks at all connections.
Gas Plumbing Connections: Use joint compound or tape
that is resistant to all gases. Apply joint compound only to
all male pipe fittings. DO NOT use on flex line flared
fittings. Be sure to tighten every joint securely.
Installation Steps:
1. Set fireplaceinsertin properlyconstructed fireplace enclosure,readSection 5 –
FireplaceEnclosure Requirements.
2. Positionfireplaceinsertfollowingsafetyrecommendationswithaccesstoallgas connections
for testing. Read Section 3 –Selecting the Fireplace Insert Location for more details.
3. Mount the EI Control Panel on the outside of the fireplace at least 24” off the ground and
in the vertical position, 4 screws (not included). See Figure 6.1.
4. Mount optional antenna extension cable –see page page15. Antenna must be mounted
in a location with line of sight.
5. Shut off gas supply to fireplace.
6. Connectproper120 VACor 24VACelectricalpowerfollowingalllocalcodes.
7. Connect EIControlPaneltomain gassupply. Warning:avoid sharp bends withflex line to
prevent whistling.
INSTALLATION
Wesuggestthatourproductsbeinstalledbyprofessionalsthatarelocally
licensedbytheauthorityhavingjurisdictioningaspiping.
Figure6.1–EI Control Mount
fire-parts.com

13
5 Fireplace Enclosure Requirements
8. Turnon gassupply,purgegas linesof airand perform leak testonallinlet
connections.Repairasneeded.
9. Initial Start-up after install:
Several “ON/OFF” cycles may be necessary to purge air in gas lines after
system installation.
1. Turn “ON” electrical power to fire pit via wall switch or breaker.
2. Turn “ON” gas to fire pit.
3. Remove Blowout Box lid to allow viewing of hot surface igniter.
4. Pointing remote control towards antenna, press and release the Power
ON/OFF button, Figure 6.2.
NOTE: Remote Control LED- 2 flashes indicates signal received.
5. Hot surface igniter should begin to glow within 10 seconds.
6. Pilot flame will eventually igniter. NOTE: This may take several cycles due to
air in the gas line. Unit will lockout after 15 cycles- to reset, please turn “OFF”
electrical power using wall switch or breaker then turn “ON”, repeat step 4.
7. Main burner will igniter.
8. Pointing remote control towards antenna- test High/Low function.
10. Oncefireplace insertis lit,perform leaktestonallgasconnections.Repairas needed.
11. Turnoff EI Control Panel and allow it to cool.
12. Applymediaas described in Section 7, Adding ApprovedMedia.Whenfilling
thepan with lava rock and/ordecorative glass, the instructions in Section7 must
befollowed.
13. TurnonEI Control Panelagainandperform leaktestwithmediacorrectly
installed.Ifgas leakisdetectedverifycorrectmediaapplicationandrepairas
needed.
14. Verifycorrectoperationandlighting.
15. Reviewsafetymanualwithend-user.Instructend-userthatfireplaceinsert,EIControl
Panelormediamust notbe changed or modified.
16. Leavemanualwithenduser.
17. Apply the Start Up and Shutdown decal next to EIControl Panel in an obvious
and highly visible position.
Figure6.2–Remote.
PowerOn/Off
High
Low
LEDfor flash
count
fire-parts.com

14
6 Installing the Fireplace Insert
Fastener holes
Antenna hole

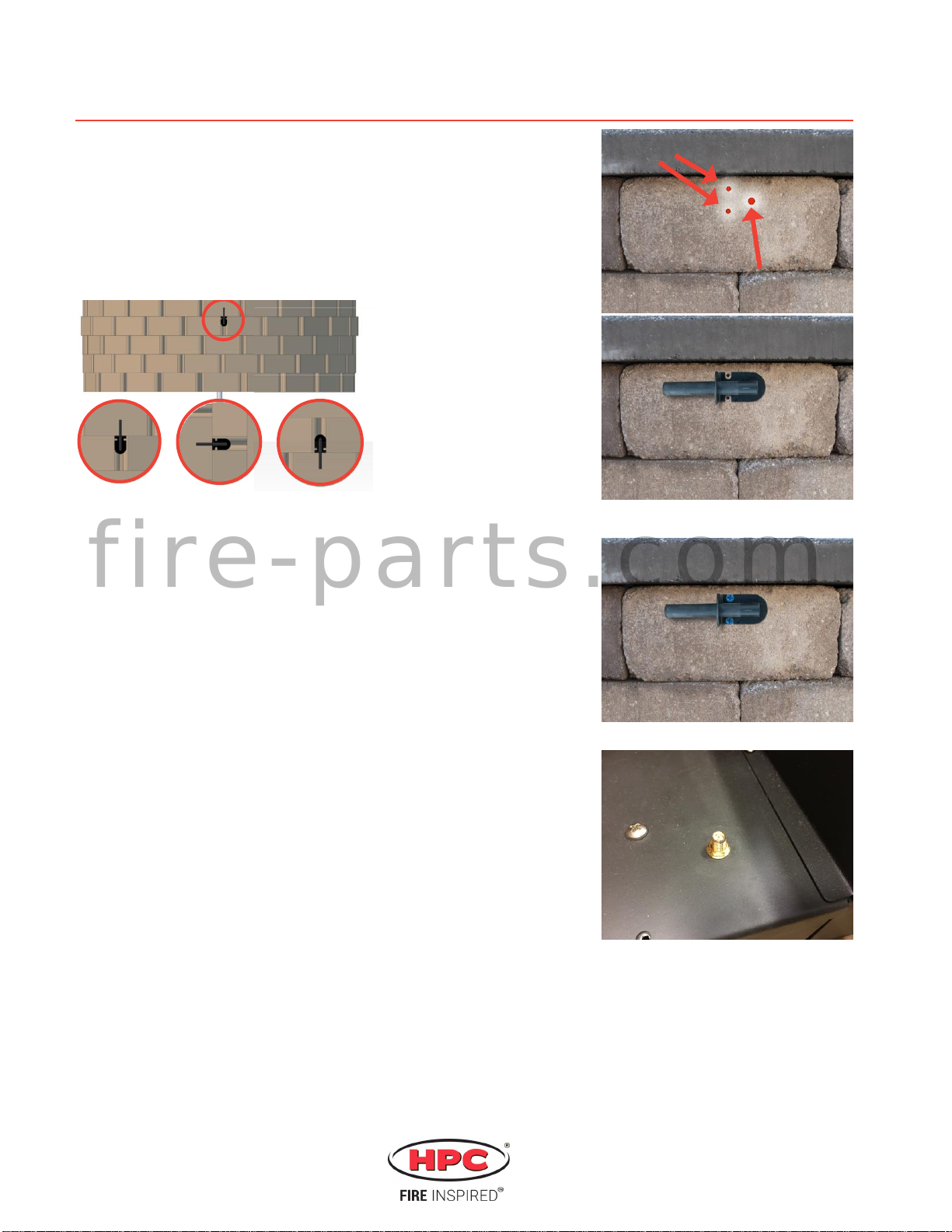

Antenna Extension Cable Mounting (Optional)
Beginbydecidingwheretheantennabracketwillbeinstalled,depending
onthe type of enclosure,Figure6.2.
1) Antennamustbeinstalledontheoutsideoftheenclosure.
2) Placeantennaonsidewheremostusagewilloccur and line of sight.
Figure6.3–Plottheholelocations
Figure6.3–Antennaplacement
•Plotthehole locationsthat willbedrilledtofastentheantenna
bracket.SeeFigure6.3.
NOTE: Thetwosmallerholes areforfasteningthe bracket andtheone
largerholeisfortheantennacabletoslidethrough.Whendrilling
holes,ensurethereis nodebrisandthattheantennacablehole
islarge enoughtonot damage theantenna cable.
•Drillholeforantennausingthe properdrillbits dependingonthe
typeof finish onthe enclosure.
•Therecommendedholesizefortheantennais3/8"(.375").
•Afterdrilling,dryfitthebracketwhileslidingtheantennabracketinto
theenclosure.Figure6.4
•Mark holes for fastening bracket to enclosure
•Drill holes for fasteners
•Fastendownthebracketbyusingproperfastenersdepending
onthe typeof finish on theenclosure,Figure6.5.
-Example: For brick finishuse Tapcon® screws.
•Attachantennacableendontothevalveboxbeing carefulnot to
damagecenterpin, lightlytighten with wrenchto ensureconnection.
Figure6.6.
Figure6.5 –Dryfitthe bracket
Figure6.6–Fastendown thebracket
Figure6.7–Attachantennacable
fire-parts.com

15
6 Installing the Fireplace Insert
WARNING
FOR GLASS MEDIA USAGE WITH LP GAS - WHEN USING APPROVED
DECORATIVE GLASS TO COVER BURNER APPLY ONLY ENOUGH TO HIDE
BURNER. APPLYING OVER 1/2" MAY CREATE BACK PRESSURE AND GAS
LEAKAGE FROM AIR MIXER RESULTING IN LP POOLING.
WARNING
FOR GLASS MEDIA USAGE WITH LP GAS - THE UNIT MUST BE TESTED WITH
MEDIA OVER BURNER FOR CONFIRMATION OF NO BACK PRESSURE CREATING
GAS TO LEAK OUT OF AIR MIXER VENTURI HOLES.
WARNING
NEVERUSE ANY MATERIAL THAT IS NON-POROUS OR HOLDS MOISTURE
SUCH AS GRAVE, PEBBLES, RIVER ROCK, ETC. WHEN HEATED, NON-
POROUS MATERIAL WILL NOT ALLOW HEATED STEAM TO READILY ESCAPE
WHICH CAN BREAK AN CAUSE PERSONAL INJURY OR DAMAGE. MATERIAL
THAT HOLDS MOISTURE CAN BOIL AND FRACTURE UNEXPECTEDLY WHEN
EXPOSED TO HEAT.
•
IMPORTANT The fireplace insert is designed to use approved media
correctly installed over the burner to achieve proper
combustion.
• Neverinstallameshorscreenunderthemedia.
• Mediaaffectsflamepatterngreatly.Itispossibletocreateanunusualflamepattern
thatcoulddamageyourenclosure.Enclosuredamagefrom anopenflamefire
featureisnotcoveredunderanywarranty.

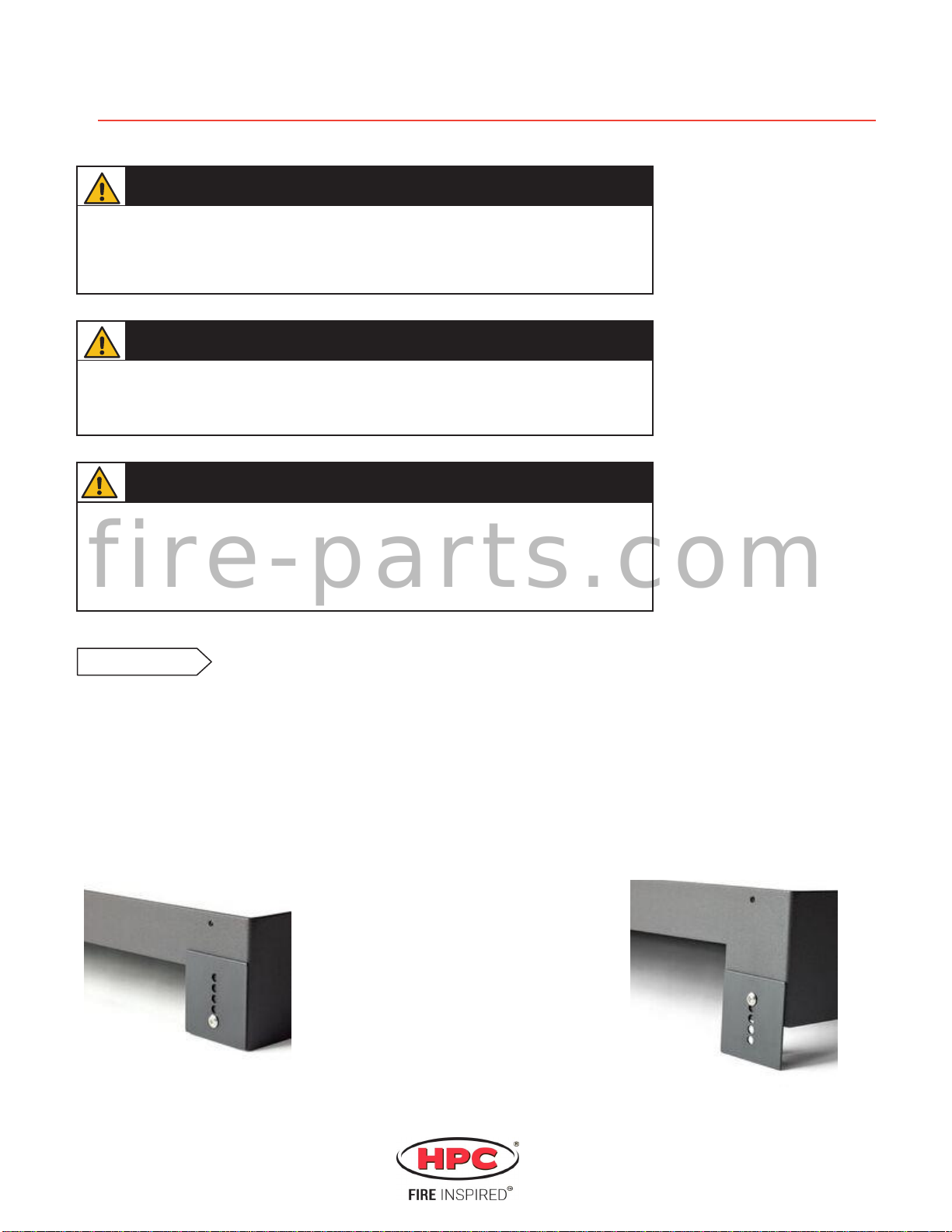

DBOF inserts height adjustments are
located on the rear of the pan. Adjust
height as needed, not necessary, to
achieve the desired flame presense.
fire-parts.com

16
7 Adding Approved Media
ApplicationofApprovedMedia
Please follow the instructions below to addthe finishing touch to yourfireplace
insert. Particularattentionneedstobeonthepilot assemblyarea.
Incorrectmediainstallation willcause thepilotflametosuffocateandturnoff
fireplace insert ordelaymainburnerignition.
Lava Rock Only Application
Decorative Glass Application
3) Installyourfireplace insertperinstructions.
4) Applylavarock ONLYdeep enoughto coverburner.
5) Blowout Box: Leave vents open. Do not cover
vents with lava rock or allow any rock to block
flameopening.Incorrectmediainstallationwill
cause the pilot flame to suffocateand turn off
fireplace insert ordelaymainburnerignition.
1) Installyourfireplace insert perinstructions.
2) Fill pan with media. Cover burner with 1/4 to 1/2
inchesofglass.Donotoverfillpanwithglass.
AllLPinstallations mustbecheckedforback
pressurewithmediainstalled.Failuretodosomay
resultinpersonalinjuryorpropertydamage.
3) Blowout Box: Do not cover blowout box vents or
openingwithglass.Incorrectmediainstallationwill
cause the pilot flame to suffocateand turn off
fireplace inset ordelaymainburnerignition.
DO NOT COVER THE VENTS
DO NOT COVER THE VENTS
fire-parts.com

17
8 Operating the Fireplace Insert
• Beforeuse, besureto test all gas connections for leaks. Do not use fireplace insert
if thereis anyevidenceofleakinggas.Ifleakinggassuspected,turnoffthemain
gassupply andrepairimmediately.
• Donotuse the enclosureas aseating area.Windand gusty conditions willaffectthe
flamein anunpredictablemanner.If conditionsexistthat arenotsafeforpatrons,
turn off the fireplaceinsert.
• The hose should be inspected before each use of thefireplaceinsertand replaced
prior to useifthereisevidenceofexcessiveabrasionorwearorif thehoseis
damaged. Thereplacementhoseassemblyshallbethatspecifiedbythe
manufacturer.
• Donotusethe fireplace insertif anyparthasbeenunder water.Immediatelycalla
qualified service technician to inspect the unitand to replaceanypart of the control
system andanygas control that has been under water.
• Neveruseanymaterialthatisnon-porousandholdsmoisturesuchasgravel,
pebbles,riverrock,etc.Thismaterial,whenheatedwillcausethetrappedmoisture
toboilandfractureunexpectedly.Thismaterialis notsufficientlyporous toallow
heatedsteam toreadilyescapewhichcanbreak andcausepersonalinjuryor
damage.
• Solidfuels shallnot beburnedin thefireplace insert.
• Leaves,sticks, wood,paper,clothing,foodmaterial,shouldbekept awayfrom the
fireplaceinsert.Clothingorotherflammablematerialsshouldnotbehungfrom the
appliance orplacedon orneartheappliance. Keeptheappliance areafreefrom
gasoline,and otherflammablevaporsandliquids.
• Fireplaceinsertis not for cooking.
• Make surethatthereis no vegetation or other objects over the top or sides of
thefireplace insertthatcouldinterferewithsafeoperation.See clearances in
Section 3 – Selecting the Fireplace Insert Location.
• If lava rock is wet, allow the firepit to burn for 45 minutes prior to coming within
15 feet of the fireplace insert.
• Whentheunitisnotin operation,turn offgasvalve.
fire-parts.com

18
9 Operating the Fireplace Insert
DANGER
If you smell gas:
1) Shut off gas to appliance.
2) Extinguish any open flame.
3) If odor continues, keep away from
appliance and immediately call
gas supplier or fire department.
Start-up
InitialStart-up:Several“ON/OFF” cyclesmay
benecessarytopurgeairingaslinesaftersystem
installation. EIControlPanelwilllockoutafter 15attemptsto
light pilot,pleasepowerOFF thenONtorestart.
Sequence of Operation:
1. Theigniterwillbepowered(glowred)forfiveseconds
beforepilotvalveopens.
2. The igniter will only bepoweredtheinitial 15secondsof the 30-secondpilot cycle.
Thissequencewillrepeatupto15times(approximately15minutes)beforegoing
into lockout. To reset, turn “OFF” power then back “ON” again.
3. Pilotflame willignite andwarm thermocouple;it maytake30 seconds attimesfor
thermocouple to get hot. If thermocouple is not hot in 60 seconds, system will shut
down. If this occurs, go back to Step 1.
4. Oncethermocoupleishot,mainvalvewillopenallowingmainburnertoignite.
5. Ifpilot flameis blownout at any time, system willshut down, andthen automatically
restart(Step1).
EIFirePitShutdown
1. Turn“OFF” fireplace insert usingremote or
app.
IMPORTANT FOR REMOTE CONTROL
USE, YOU MUST ALSO
TURN OFF POWER TO
ELECTRICAL OUTLET OR
GAS TO FIREPLACE
INSERT TO PREVENT
ACCIDENTAL START.
EIFirePitStartUp- Bluetooth HI/LOW
1. STOP! Read the safety information on “What
to Do If Smell Gas” (Pg. 1).
2. Confirm thereis nodebris in thefireplace
insert(as mentionedinwarnings)
includingwater.
3. Turn“ON” electrical power and gas to EI Control
Panel.
4. Using remote or app to turn “ON” EI Control
Panel - this may takeseveralcyclestopurge
anyair.
5. Toreset after lockout, power unit down, wait 5
minutes,thenrestart.
6. Oncethe fireplace inserthasignitedDO
NOT leave unattended.
This product is not for use with small tanks.
fire-parts.com

19
9 Operating the Fireplace Insert
The following sections explain operation of:
•Remote control B. Smartphone control
A. HPC Remote Control –After turning ON the gas to fireplace insert, operate as
follows:
1. Normal Remote Operation –Figure 8.1
a. PowerON/OFF–2Flash
b. High–4Flash
c. Low–3Flash
d. PoorCommunication–10Flash(Movecloserorchangepositions.)
e. RemoteResponse Time–Whennotinuseformorethan30seconds, the
remotewillgointo asleep mode to save battery life. If remoteis insleep mode it
may take a few extra seconds for a command to be executed.
2. Remote sync –Theremoteis alreadysyncedtothe EI Control Panel.Figure8.2
a. If you need to sync the remote to afire place insert:
1. Ensurepoweris OFFtofireplace insert.
2. DepresstheLOWandOFFbuttonsimultaneouslyandholduntilthe remote
flashesrapidly(8to10seconds)
3. ReleasetheLOWandOFFbuttons
4. Apply power to the fire pit within 10 seconds –Fire pit will accept a new
remotefor the first 60 minutes it is on.
5. Allow the remote to finish flashing which could take up to 30 seconds
6. Yourremoteshould operate thefireplace insert
NOTE: If steps 5 or6 fail, pleaserepeatSteps 1 through7. Also confirm antenna is in a location to receive signal from
remote.
Figure8.2
Figure8.1
PowerOn/Off
High
Low
LEDfor
flashcount
fire-parts.com
