HPE AP-68 User manual

AP-68 Ceiling Rail Adapter
Installation Guide
0510793-01 | August 2010 1

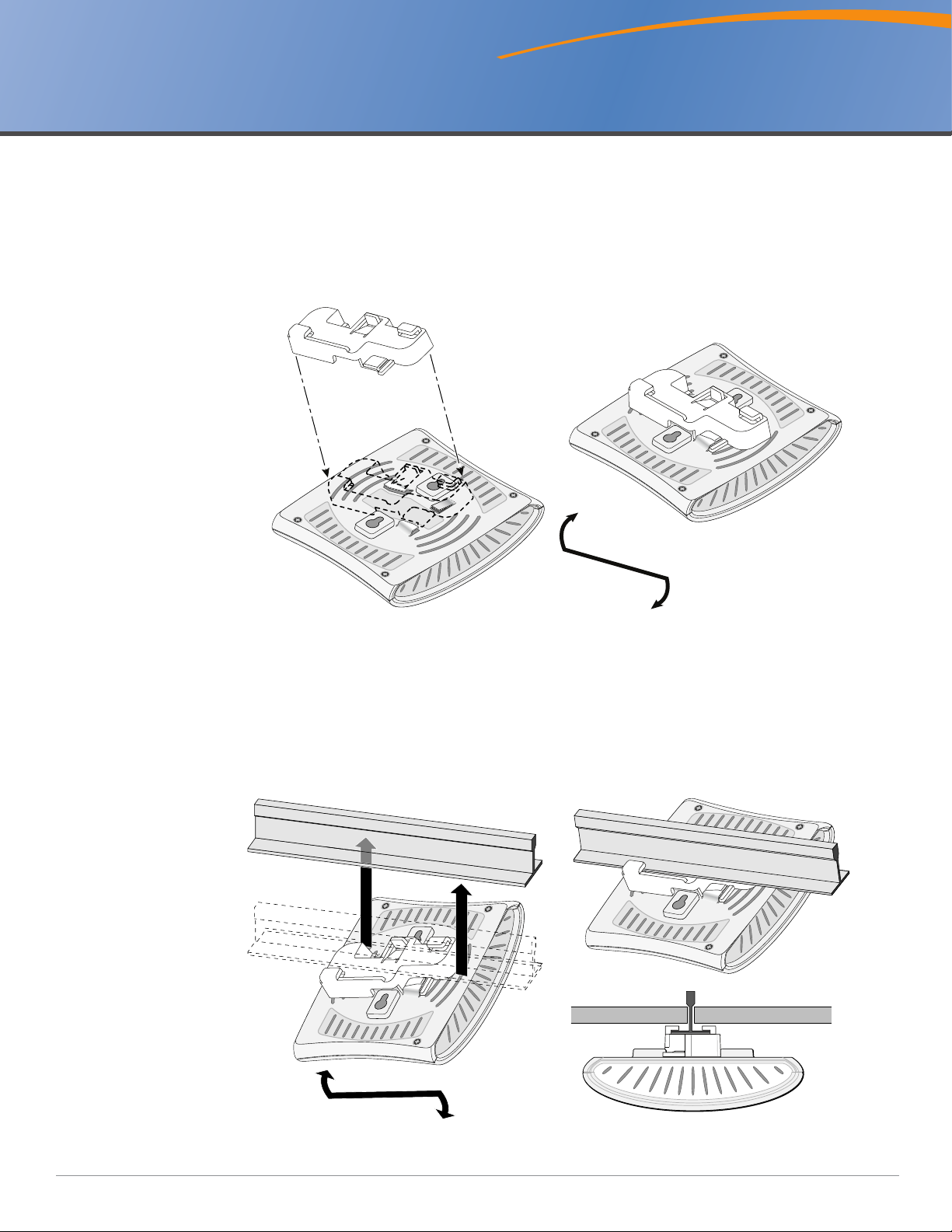

To attach ceiling rail adapter to the AP-68 Series :
1. Place the adapter against the back of the AP with the adapter at an angle of approximately 30
degrees to the tabs.
2. Twist the adapter clockwise until it snaps into place in the tabs.
After the adapter is attached to the AP, mount the AP on a ceiling tile rail as follows:
1. Align the AP with a ceiling tile rail, placing the AP so that the mounting tabs on the adapter are at an
angle of approximately 30 degrees to the ceiling tile rail. Make sure that slack in connected cables is
above the ceiling tiles.
2. Pushing toward the ceiling tile, rotate the AP clockwise until it clicks into place on the ceiling tile
rail.
AP-68_006
AP-68_007

2AP-68 Ceiling Rail Adapter | Installation Guide
安装 AP-68 系列吊顶板轨道转接器
1. 将吊顶板轨道转接器安置于 AP 背部与转接器安装槽呈大约 30 度角 (请参阅图 1)。
2. 顺时针方向旋转 AP，直至装置咔嗒一声卡入到位 (请参阅图 1)。
吊顶板轨道转接器安装后，吊顶板轨道安装方式 :
1. 将 AP 固定在吊顶板轨道旁，使吊顶板轨道转接器与吊顶板轨道呈大约 30 度角。确保任何松弛的电缆
都位于吊顶板之上。
2. 一边朝吊顶板方向推动，一边沿顺时针方向旋转 AP，直至装置咔嗒一声在吊顶板轨道上卡入到位。
AP-68_006
AP-68_007
