HSR S4 Standup 2007 User manual

Page 1/134

Page 2/134
Table of Content
1. General Information......................................................................7
1.1. 2007 HSR personal watercraft Identification Numbers.......................................7
1.2. HIN number .............................................................................................................7
1.3. Engine number .......................................................................................................8
1.4. Three stars – ultra low emission...........................................................................8
1.5. Safety instructions .................................................................................................8
1.6. CE Sticker................................................................................................................8
1.7. Service Guidelines - Safety Warnings..................................................................9
1.8. General data..........................................................................................................11
1.8.1. Standard Torque Specifications......................................................................12
1.8.2. Convertion Chart.............................................................................................12
1.9. Service Tools ........................................................................................................14
1.10. Operating materials..............................................................................................15
1.11. Fuel ........................................................................................................................15
1.12. Lubricant ...............................................................................................................16
1.13. Running the Engine..............................................................................................16
1.14. Operating the engine without sea water.............................................................16
2. Maintenance ................................................................................18
2.1. Maintenance work by the user of the vehicle ....................................................19
2.1.1. Regular checks before driving ........................................................................19
2.1.2. Rinse sea water cooling circuit after driving ...................................................19
2.2. Maintenance intervals..........................................................................................20
2.3. Decommissioning at the end of the season.......................................................20
2.4. Motor oil and oil filter...........................................................................................21
2.4.1. Oil level check.................................................................................................21
2.4.2. Changing the motor oil and oil filter ................................................................23
2.4.3. Draining the motor oil......................................................................................23
2.4.4. Changing the oil filter ......................................................................................25
2.4.5. Refilling the motoroil .......................................................................................26
2.5. Spark Plugs...........................................................................................................26
2.5.1. Checking the spark plugs ...............................................................................26
2.5.2. Removing the spark plugs ..............................................................................26
2.5.3. Checking the spark plugs ...............................................................................28
2.6. Valve play..............................................................................................................28

2.6.1. Checking and setting the valve play ...............................................................28
2.6.2. Removing the valve cover ..............................................................................29
2.6.3. Checking the valve play..................................................................................30
2.6.4. Adjusting the valve play ..................................................................................31
2.6.5. Checking the valve of the 2nd cylinder.............................................................34
2.7. Malfunctions .........................................................................................................34
2.7.1. Engine does not crank ....................................................................................34
2.7.2. Engine cranks but does not start ....................................................................36
2.7.3. Engine stalls but can be started again............................................................37
2.7.4. Engine stalls and cannot be started again......................................................37
2.7.5. Engine loses power (speed limitations) ..........................................................38
3. Engine Removal and Installation...............................................40
3.1. Engine Removal....................................................................................................40
3.2. Engine Installation................................................................................................41
4. Engine Disassembly/Assembly.................................................43
4.1. Engine Specifications ..........................................................................................43
4.1.1. Engine Fastener Torque Specifications..........................................................47
4.1.2. Engine Specific Fastener Torque Specifications ............................................48
4.1.3. Engine Specific Fastener Torque Specifications ............................................49
4.1.4. Turbocharger Specific Fastener Torque Specifications..................................49
4.1.5. Intake Manifold Specific Fastener Torque Specifications ...............................50
4.1.6. Alternator Assembly Specific Fastener Torque Specifications .......................50
4.1.7. Fuel Rail Specific Fastener Torque Specifications .........................................50
4.1.8. Engine Management Components/ Sensor Specific Fastener Torque
Specifications ..................................................................................................................51
4.1.9. Balance Plate/ PTO Specific Fastener Torque Specifications........................51
4.1.10. Engine Mounts Specific Fastener Torque Specifications................................51
4.2. Oil filter assembly.................................................................................................52
4.3. Valve cover assembly ..........................................................................................53
4.4. Valve train assembly............................................................................................54
4.5. Dry sump oil pump assembly..............................................................................55
4.6. Thermostat housing assembly............................................................................56
4.7. High pressure oil pump assembly......................................................................57
4.8. Exhaust-side chain guide/tensioner assembly..................................................58
4.9. Engine case/cylinder head assembly.................................................................59
4.10. Piston assembly ...................................................................................................61
4.11. Valve assemblies..................................................................................................62
Page 3/134

4.12. Balance plate/PTO assembly...............................................................................63
4.13. Crankshaft/Counter balancer assemblies..........................................................64
4.14. Engine Disassembly Process..............................................................................65
4.15. Engine inspection procedures............................................................................73
4.15.1. Valve Inspection .............................................................................................73
4.15.2. Cylinder Head Inspection................................................................................75
4.15.3. Cylinder Block Inspection ...............................................................................76
4.15.4. Camshaft Inspection .......................................................................................76
4.15.5. Rocker Arm Inspection ...................................................................................78
4.15.6. Crankshaft Inspection .....................................................................................79
4.15.7. Connection Rod Inspection.............................................................................81
4.15.8. Balance Shaft Inspection ................................................................................82
4.15.9. Piston Inspection ............................................................................................82
4.15.10. High Pressure Oil Pump Inspection............................................................84
4.15.11. Chain Tensioner..........................................................................................85
4.15.12. Starter Motor Clutch....................................................................................85
4.15.13. Timing Chain...............................................................................................86
4.16. Engine Assembly..................................................................................................86
4.17. Timing Chain Installation/TDC Procedure..........................................................91
4.17.1. Timing Chain Installation ................................................................................91
4.17.2. Engine Assembly ............................................................................................95
4.18. Thermostat Removal/Installation......................................................................100
4.19. Water Pump Removal/Installation.....................................................................100
4.20. Oil Lubrication System ......................................................................................101
4.20.1. Low Pressure Oil Circuit ...............................................................................102
4.20.2. High Pressure Circuit....................................................................................102
4.20.3. Crankcase Ventillation ..................................................................................103
4.20.4. Low Pressure Pump Removal/Installation ....................................................103
4.20.5. High Pressure Pump Removal/Installation ...................................................104
4.20.6. High Pressure Oil Supply..............................................................................105
5. Electrical System ......................................................................107
5.1. Installing the Keyspan USB to RS-232 Adapter...............................................107
5.2. Configure the Keyspan Adapter........................................................................111
5.3. Configure the HSR Diagnostic Tool..................................................................115
5.4. Diagnostics .........................................................................................................117
5.4.1. Installation.....................................................................................................117
5.4.2. Starting the diagnostic program for the first time ..........................................119
5.4.3. Diagnostic .....................................................................................................120
Page 4/134

5.4.4. ECU Setup....................................................................................................126
5.4.5. Control the throttle body attitude...................................................................127
5.5. Electrical System................................................................................................130
6. Appendix....................................................................................132
6.1. General Data .......................................................................................................132
6.2. Directives ............................................................................................................132
6.3. Proof of maintenance for work carried out......................................................133
Page 5/134

Page 6/134

1.General Information
Model information, Identification number, Engine number, safety warning
1.1. 2007 HSR personal watercraft Identification Numbers
The engine I.D. number and hull I.D. number are used to register the watercraft. They are
unique numbers that distinguish each watercraft from others of the same model.
If the watercraft is ever stolen these numbers will help identify it. The owner should keep a
record of these numbers in a place other than the watercraft. A second hull number is hidden
inside the Hull, only the manufacturer knows where is this number on each ski.
1.2. HIN number
AT : Manufacturing Country
HSR : HydroSpace Racing Manufacture
000608 : Sequential Serial Numbers
Production Month : K (Month code : AJanuary, BFebruary)
Production Year : 6
Model Year : 06 (Model year : 6= 2006)
Page 7/134

1.3. Engine number
Number is above the starter motor
Engine Number : #10017203
1.4. Three stars – ultra low emission
The three-star label identifies engines that meet the
Air Resources Board’s Personal Waterwraft and
Outboard marine engine 2008 exhaust emission
standards. Engines meeting these standards have
65% lower emissions than One Star – Low Emission
Engines
1.5. Safety instructions
Under the handpole
1.6. CE Sticker
Under the handpole bracket
Page 8/134

1.7. Service Guidelines - Safety Warnings
Clean inside and outside of watercraft prior to servicing.
Clean all parts before installing.
Always use a service apron to prevent damage to foot well and top- deck fiberglass.
Watch for sharp edges which can cause personal injury.
Protect hands and arms when working with sharp components.
Always use a soft- faced hammer and extreme care when removing difficult or stuck
components.
Some fasteners are installed with locking agents or lubricants. Use of impact drivers will aid
in fastener removal.
Always follow torques specifications located throughout manual.
Fasteners secured with either too little or too much torque may fail and cause severe
property damage, injury or death.
Always follow torque sequence patterns when founding this manual.
Tighten each fastener evenly and to the specified torque value, and with specified locking
agent.
Always use new gaskets, o- rings and seals, clips, cir- clips, and snap rings when
assembling components.
Never reuse Nylokt or Flex Lockt nuts when assembling components.
Never reuse Oetikert clamps when removed from fuel lines. Replace with small gear clamps.
Always use Hydrospace authorized lubricants, greases, and locking agents when assembling
components. Failure to do so may cause severe engine or vehicle damage.
Always disconnect the black (- ) negative cable first from the battery when removing the
battery. When installing the battery, attach the red (+) positive cable first, then the black (- )
negative cable.
Wear appropriate clothing, eye protection, and rubber gloves when working with batteries.
Battery acid contains sulphuric acid and is extremely poisonous. Serious burns can result
when in contact with skin, clothing, eyes or internal body components. If battery acid is
ingested, drink large quantities of water or milk. Follow with milk of magnesia, beaten egg or
vegetable oil. Call a physician immediately. Flush eyes for15minutes with water and seek
prompt medical attention if acid comes in contact with eyes. Thoroughly wash affected
external body parts that come in contact with battery acid with water.
Keep hands, arms, legs, feet and hair away from rotating parts, hot engine and exhaust
components, drive pump and impeller and engine induction when engine is running.
Page 9/134

Never attempt engine or driveline inspections and/or repairs without first removing lanyard
and battery cables.
Gasoline is highly flammable and explosive under certain conditions.
Always exercise extreme care when handling gasoline.
Do not smoke or allow open flames in or near the area where refueling is performed or where
gasoline is stored.
Always refuel the watercraft outdoors and in a well- ventilated area.
Do not fill the tank to the fuel cap.
If you get gasoline or oil on your skin or clothing, wash it off immediately with soap and water
and change clothing.
The engine exhaust from this product contains chemicals known to cause cancer, birth
defects or other reproductive harm.
Only run engine outdoors or in a well- ventilated area.
Never run the engine for more than 15 seconds without cooling water supply.
Page 10/134

1.8. General data
2007 Hydrospace S4 Turbocharged
Length: ..........…………….. 2,29 m (90,15 in.)
Width:…………………….. 0,74 m (29,13 in.)
Height:……………………. N/A
Dry Weight:………………. 168kg (370,16 in.)
Category: …………………. Stand-up
Riders:…………………….. 1
Fuel Capacity: 18 liters 4,75 US Gal
Emission Certification: Three Star - Ultra Low Emission
ENGINE
Emission control system SFI ( Sequential Fuel Injection )
FUEL Unleaded Gasoline 91/95/98 Octane R+M/2
SPARK PLUG Champion RC7PYCB Platinium
SPARK PLUG GAP 0,7 – 0,8 mm ( 0.0028 – 0.032 in.)
HORSEPOWER 82Kw (110 HP)
ENGINE DISPLACEMENT 749cc
NUMBER OF CYLINDER 2
CYLINDER Lining Material Nicasil
BORE x STROKE 85 x 66 mm
COMPRESSION RATIO 9.0:1
CYLINDER COMPRESSION 9,6 +/- 1 bar ( 140 +/- 14,5 psi )
Cooling System Open loop with intercooler and thermostat
THERMOSTAT 70°c
OVER HEATING WARNING Exhaust Manifold Overheart switch – RPM limit
OVER HEATING Cooling Cooling manifold Sensor – 90° cut engine
INDUCTION TYPE Intercooler / Turbo charged
LUBRIFICATION Dry Sump
OIL REQUIREMENT Hydrospace 100% Synthetic 10w60
RPM LIMITER 7800 to 8400 RPM – Determined by ECU
Exhaust System Turbo exhaust manifold / Waterbox with water injector
ENGINE MANAGEMENT SYSTEM
FUEL DELIVERY WALBRO Multi-point fuel injection
IDDLE SPEED 1450 +/- 50 rpm
MAGNETO GENERATOR OUTPUT 25A / 350 W @ 3000 rpm
BATTERY 12 Volts / 20A
FUSES 30A – Alternator, 15A – Fuel Pump, 7,5A – Stop switch,
30A - Main
STARTING Electric motor 12V – 800w
PROPULSION
JET PUMP TYPE Solas – Axial Flow – 12 Veins – Steel stator
Page 11/134

IMPELLER 12/17 Stainless steel – 3 blade – 140 mm
COUPLING TYPE Six piece coupler + Damper
MINIMUM DEPH FOR OPERATION 60cm (2 Ft)
HULL / BODY
Hull material Fiberglass texalium reinforced Carbon elements
1.8.1. Standard Torque Specifications
The following torque specifications are to be used as a general guideline.
Use standard torque values for the appropriate size fastener when torque values are not
specified.
Always consult the specific manual section for torque values of fasteners and use of
locking agent.
RECOMMENDED TORQUE SPECIFICATION
STAINLESS STEEL FASTENERS (METRIC)
4 mm 40–42 in.lbs.
5 mm 45-52 in.lbs.
6 mm 66-78 in.lbs.
7 mm 13-16 ft.lbs.
10 mm 26-30 ft.lbs.
12 mm 40-44 ft.lbs.
1.8.2. Convertion Chart
ft. lbs. x 12 = in. lbs.
in. lbs. x 0,0833 = ft. lbs.
ft. lbs. x 1,356 = Nm
in. lbs. x 0,115 = kg-m
Nm x 0,7376 = ft. lbs.
kg-m x 7,233 = ft. lbs.
kg-m x 86,796 = in. lbs.
kg-m x 10 = Nm
in. x 25,4 = mm
mm x 0,03937 = in.
in. x 2,54 = cm
mile (mi.) x 1,6 = km
Page 12/134

Km x 0,6214 = mile (mi.)
Ounces (oz.) x 28,35 = Grams (g)
Grams (g) x 0,035 = Ounces (oz.)
lb. x 0,454 = kg
kg x 2,2046 = lb.
Cubic inches (cu in) x 16,387 = Cubic centimeters (cc)
Cubic centimeters (cc) x 0,061 = Cubic inches ( cu in)
Imperial pints (Imp pt) x 0,568 = liters (l)
Liters (l) x 1,76 = Imperial pints (imp pt)
Imperial quarts (Imp qt.) x 1,137 = liters (l)
Liters (l) x 0,88 = Imperial quarts (Imp qt)
Imperial quarts (Imp qt.) x 1,201 = US quarts (US qt)
Liters (l) x 1,057 = US quarts ( US qt)
US gallons (US gal) x 3,785 = Liters (l)
Liters (l) x 0,264 = US gallons (US gal)
Pounds – force per square inch
(psi)
x 6,895 = Kilopascals (kPa)
Kilopascals (kPa) x 0,145 = Pounds – force per square inch (psi)
Kilopascals (kPa) x 0,01 = Kilograms- force per square cm
Kilograms- force per square cm x 98,1 = Kilopascals (kPa)
°C to °F: 9 (°C + 40) ⎟ 5 - 40 = °F °F to °C: 5 (°F + 40) ⎟ 9 - 40 = °C
Page 13/134

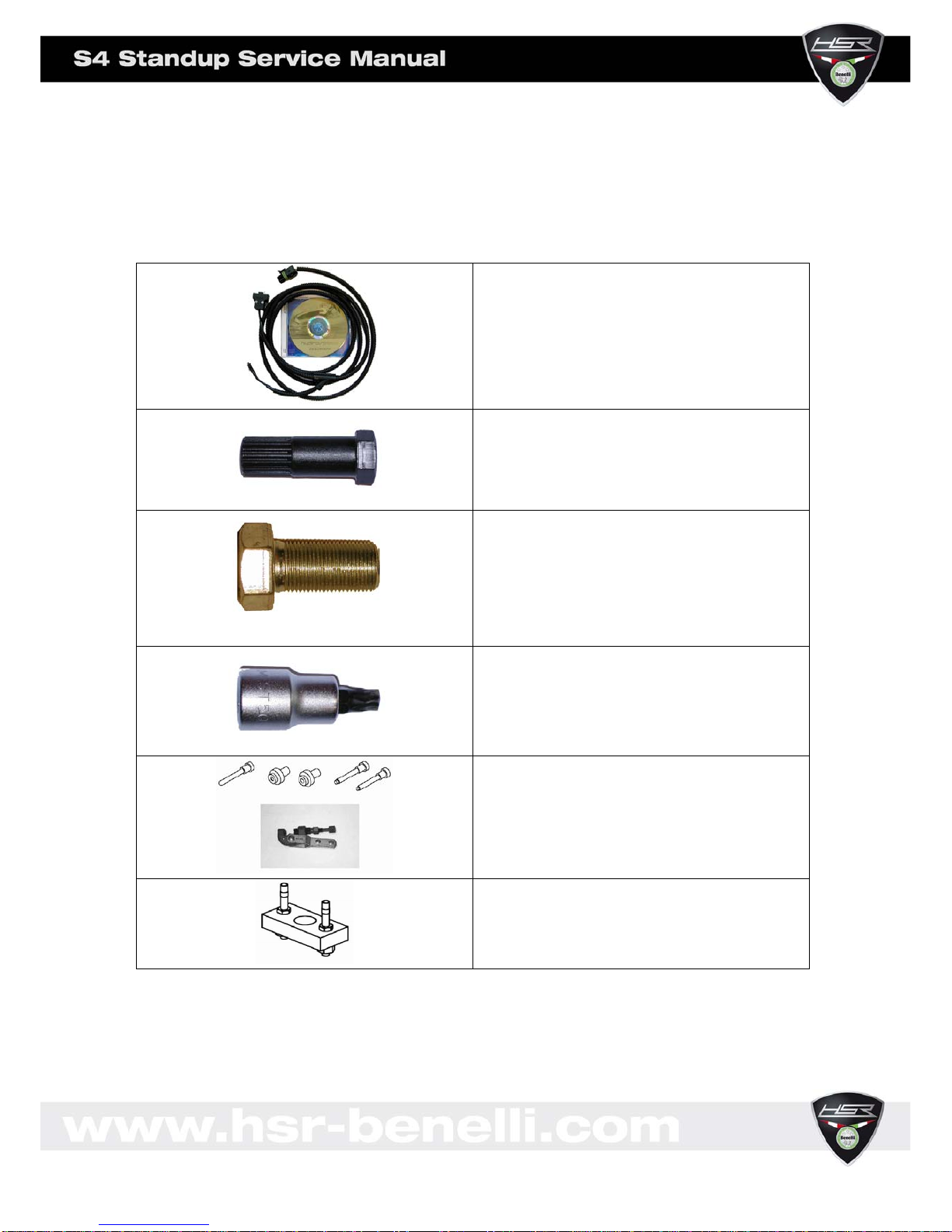

1.9. Service Tools
HR00_99_20_002 Diagnostic cable and Software
HSR00_9920_003 Impeller tool
HSR00_99_01_076 Flywheel removal tool
HSR00 Torx 50 for Head cylinder
Chain Remover tool Not Available
Balance Shaft Remover tool Not Available
Page 14/134

Oil removing tool Not Available
1.10. Operating materials
The use of other operating materials causes
damage to the engine and the voiding of the
warranty.
1.11. Fuel
Unleaded gasoline according to DIN 51607 („superunleaded“), with an octane rating of at
least 95 ROZ [RON] or 85 MOZ [MON]. In case of emergency, unleaded fuel with 91 ROZ
[RON] or 82.5 MOZ [MON] may be used for a short time.
Lower-quality fuels should only be used in case
of emergency. If used regularly, they cause
decreases in performance and possibly damage to
the engine.
Page 15/134

1.12. Lubricant
Oil specification
Recommendation: HSR oil 10w60, ACEA, A3/B3/B4, API SL
Filling quantity
Initial filling 3.3liters[3.5qt(US)]
Oil change with filter 2.4-2.6 liters [2.5-2.7qt(US)]
1.13. Running the Engine
HSR recommends that during the first five hours of operation, you should not
operate the engine over 6,000 U/min [RPM]. This protective running-in has a positive
effect on the engine‘s lifespan.
1.14. Operating the engine without sea water
If it is necessary to operate the engine longer than 30 seconds without sea water, the
vehicle‘s rinsing equipment must be used.
See chapter Maintenance - Rinse sea water cooling circuit after driving.
The engine may only be operated at idle speed
for a maximum of 30 seconds without sea water.
Engine damage due to overheating.
Page 16/134

Page 17/134

2.Maintenance
The table in chapter Maintenance intervals provides the manufacturer’s recommended
intervals for maintenance work. If you follow the maintenance recommendations, a
long lifespan of the engine can be achieved and unnecessary environmental damage
prevented. The Maintenance intervals specified in the table should not be exceeded by
more than 10%.
If not stated otherwise, all activities on the engine described in this manual must be carried
out by trained service personnel.
During the warranty period, maintenance and repair work may only be carried out in
Weber Motor service stations or in associated shops. If necessary, contact your vehicle
dealer.
Weber Motor AG reserves the right to demand that proof of warranty be provided in writing
for warranty service. See Proof of maintenance for work carried out.
The vehicle owner or user is responsible adhering to
the maintenance intervals. HSR assumes no liability
for damage that arises due to maintenance not carried
out.
Page 18/134

2.1. Maintenance work by the user of the vehicle
2.1.1. Regular checks before driving
Always check the oil level before driving. See Chapter Oil level check.
Under running and exceeding the motor oil fill level
Specified in this manual can cause damage to the
Engine.
2.1.2. Rinse sea water cooling circuit after driving
In order to protect the sea water cooling circuit against soiling, calcium deposits, and such,
the sea water cooling circuit must be rinsed after each use.
See the vehicle manufacturer‘s service manual.
Soiling in the sea water cooling circuit can cause
severe engine damage.
Page 19/134

2.2. Maintenance intervals
Activities on the engine must be carried out by trained service personnel.
Maintenance
interval h¹
Activity Procedure 1st maintenance
h¹
after 10 - 12 Every
25 Every 100
At end of
season
Motor oil and
oil filter Change
■2)
■2)
■4)
Check/Clean ■4)
Spark plugs Change ■3)
Valve play Check/Set ■3) ■3)
1) h = hours of operation
2) or at least once a year if the hours of operation specified above are not reached before
that.
3) or at least every two years if the hours of operation specified above are not reached
before that.
4) See chapter Decommissioning at the end of the season.
2.3. Decommissioning at the end of the season
The decommissioning of the vehicle is necessary ...
•at the end of the season if the vehicle will be decommissioned during the winter
months.
•if the vehicle will not be used for more than 30 days.
In addition to the maintenance work described in the maintenance interval table under
end of the season, various other service work is also required.
•Conserve the cylinders
Check spark plugs. See Chapter Checking the spark plugs.
Page 20/134
