Quidway® NetEngine 40 Series Universal
Switching Router Flexible Plug-in Card Series
Overview
The Quidway® NetEngine 40 universal switching router (USR) series (abbreviated as NE40)
provides a variety of flexible cards. The flexible card consists of line processing unit (LPUF)
and PIM card. The LPUF is designed for processing and encapsulation of protocols at the link
layer, data stream classification and packet filtering as well as control of packet processing.
The PIM card provides various physical interfaces such as GE, FE, E1, CE1, E3, T3, POS and
ATM. A LPUF has 2 slots, where 1 or 2 PIM cards can be located. It allows mixed insertion of
different types of PIM sub-cards.

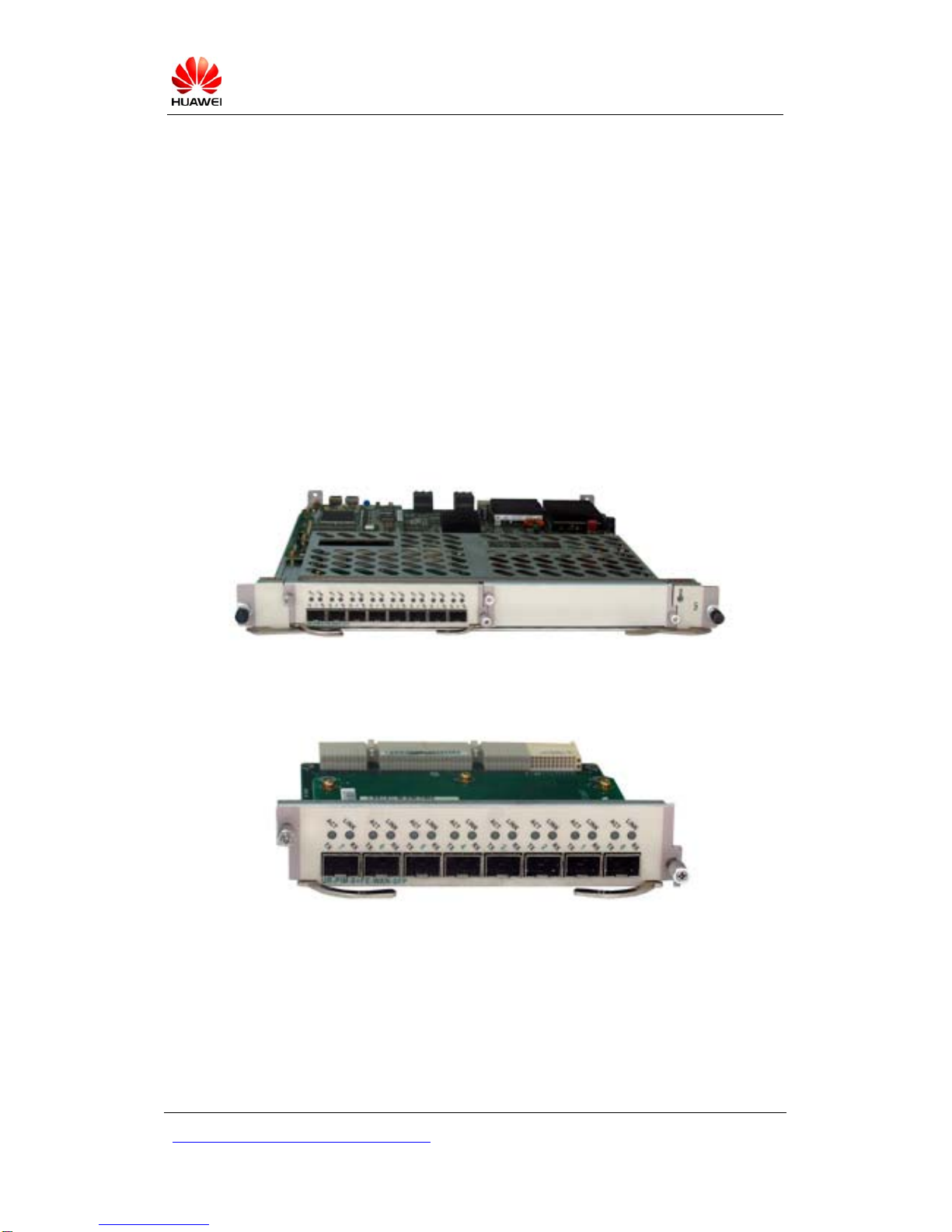

UR-LPUF
UR-PIM-E8FF-WAN

Quidway® NetEngine 40 Series Universal Switching Router Flexible Card Series
Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.
http://www.huawei.com/products/datacomm/ 2
UR-PIM-3xE3
Ethernet PIM card (including GE and FE) is divided into routing board (WAN board) and
switching board (LAN board) depending on functionality. As a line board of L3 switching type,
the switching board has L2/L3 features of a L3 switch. It provides Ethernet interfaces that are
always used for convergence of a MAN. So it has the alias of L2 board or LAN board. Routing
board, as a line board of router type, provides more powerful IP/MPLS route forwarding
function, QoS capability, multicast function and more MPLS VPN features compared with
switching board. Ethernet interfaces provided by a routing board are used for interconnection
of WANs, so the routing board earns the name of WAN board. A WAN board can be used in
the backbone layer of Internet.
With flexible cards, NE40 is able to provide high-density WAN and LAN interfaces and make a
network much more flexible. Furthermore, the flexible card technology delivers solutions with
low cost and individuating features to meet the requirements of middle-/small-sized
enterprises. Currently NE40 flexible cards are widely accepted by operators and enterprises.
Specifications
PIM cards supported by the NE40 provide the following types:
z10/100M adaptive Ethernet electrical interface PIM(WAN)
z10/100M adaptive Ethernet electrical interface PIM (LAN)
z100M Ethernet optical interface PIM (WAN)
z100M Ethernet optical interface PIM (LAN)
zGE optical interface PIM (WAN)
zGE optical interface PIM (LAN)
zE1/CE1/E3/T3 electrical interface PIM
zPOS optical interface PIM
zATM optical interface PIM
Refer to the table below for details.

Quidway® NetEngine 40 Series Universal Switching Router Flexible Card Series
Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.
http://www.huawei.com/products/datacomm/ 3
Module name Interface
type Description
UR-LPUF -
LPU line board (support flexible card and can hold
1 or 2 PIM sub-cards)
UR-PIM-16xFE-WAN RJ45 16-port 100M Ethernet electrical interface PIM card (WAN board), supporting 10/100Mbps
adaptive
UR-PIM-16xFE-LAN RJ45
16-port 100M Ethernet electrical interface PIM
card (LAN board), supporting 10/100Mbps
adaptive
UR-PIM-E8FF-WAN LC
8-port 100M Ethernet optical interface PIM card
(WAN board), allowing to select different SFP
optical modules based on transmission distance
UR-PIM-E8FF-LAN LC
8-port 100M Ethernet optical interface PIM card
(LAN board), allowing to select different SFP
optical modules based on transmission distance
UR-PIM-2xGE-WAN LC
2-port GE optical interface PIM card (WAN board),
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-2xGE-LAN LC
2-port GE optical interface PIM card (LAN board),
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-1xGE-WAN LC
1-port GE optical interface PIM card (WAN board),
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-1xGE-LAN LC
1-port GE optical interface PIM card (LAN board),
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-8xCHE1 RJ45 8-port E1 PIM card (can be channelized to 64k)
UR-PIM-3xE3 SMB 3-port E3 PIM card
UR-PIM-3xT3 SMB 3-port T3 PIM card
UR-PIM-P2CS LC
2-port 155M POS SFP optical interface PIM card,
allowing to select different SFP optical modules
based on transmission distance

Quidway® NetEngine 40 Series Universal Switching Router Flexible Card Series
Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.
http://www.huawei.com/products/datacomm/ 4
Module name Interface
type Description
UR-PIM-P4CS LC
4-port 155M POS SFP optical interface PIM card,
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-A1CF LC
1-port 155M ATM optical interface PIM card,
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-A2CF LC
2-port 155M ATM optical interface PIM card,
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-A4CF LC
4-port 155M ATM optical interface PIM card,
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-A8CF LC
8-port 155M ATM optical interface PIM card,
allowing to select different SFP optical modules
based on transmission distance
UR-PIM-A2HF LC
2-port 622M ATM optical interface PIM card,
allowing to select different SFP optical modules
based on transmission distance
The NE40 provides the following four 155M SFP optical modules, applicable to 100M optical
interface PIM card, 155M POS optical interface PIM card and 155M ATM optical interface PIM
card.
Interface rate 155 Mbps
Maximum transmission
distance 2 km 15 km 40 km 80 km
Center wavelength 1310 nm 1310 nm 1310 nm 1550 nm
Min. -19 dBm -15 dBm -5 dBm -5 dBm
Transmitting
optical power Max. -14 dBm -8 dBm 0 dBm 0 dBm
Receiving sensitivity -30 dBm -28 dBm -34 dBm -34 dBm
Overload optical power -14 dBm -7 dBm -9 dBm -10 dBm
Fiber type Multi-mode Single-mode Single-mode Single-mode

Quidway® NetEngine 40 Series Universal Switching Router Flexible Card Series
Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.
http://www.huawei.com/products/datacomm/ 5
The NE40 provides the following five GE SFP optical modules.
Interface rate 1250 Mbps
Transmission distance 550 m 10 km 40 km 40 km 70 km
Center wavelength 850 nm 1310 nm 1310 nm 1550 nm 1550 nm
Min. -9.5 dBm -9.0 dBm -2.0 dBm -4.0 dBm -4.0 dBm
Transmitting
optical power Max. 0.0 dBm -3.0 dBm 5.0 dBm 1.0 dBm 2.0 dBm
Receiving sensitivity -17.0
dBm
-20.0
dBm -23.0 dBm -21.0 dBm
-22.0
dBm
Overload optical power -3.0 dBm -3.0 dBm -3.0 dBm -3.0 dBm -3.0 dBm
Fiber type Multi-mode Single-
mode
Single-
mode
Single-
mode
Single-
mode
The NE40 provides three 622MATM SFP optical modules as follows:
Interface rate 622 Mbps
Maximum transmission
distance 15 km 40 km 80 km
Center wavelength 1310 nm 1310 nm 1550 nm
Min. -15 dBm -3 dBm -3 dBm
Transmitting
optical power Max. -8 dBm 2 dBm 2 dBm
Receiving sensitivity -28 dBm -28 dBm -28 dBm
Overload optical power -8 dBm -8 dBm -8 dBm
