ENGLISH
4 Proprietary. Humaneyes Technologies
ENGLISH
Welcome,
Humaneyes VR Camera is a 3D 360 VR camera – it captures full spherical videos and photos in
stereoscopic 3D. The footage is stitched to a spherical format using proprietary stitching technology
developed for use with the camera.
The camera is provided together with Vuze Camera App and Humaneyes VR Studio.
Vuze Camera App is designed to control the camera remotely and manage media stored on the internal SD
card.
Humaneyes VR Studio edits captured media using spherical editing tools and renders and stitches media
using proprietary stitching technology.
Support and Contact Information
Should you have technical issues concerning the camera please contact us directly:
Humaneyes Technologies
Email to: [e-mail]
www.vuze.camera
Date: March 13, 2017
Document #: DOC00001A
Document Revision: Rev_A14
Proprietary. Humaneyes Technologies

Safety
Proprietary. Humaneyes Technologies 5
Safety
Please read the following safety information before using your camera. Attention to these warnings will help
prevent personal injuries and damage to the product.
This camera should be used in a responsible manner for its intended purpose. Humaneyes Technologies
shall not assume responsibility for damages caused by disregarding these safety guidelines.
Before use, please check there are no signs of damage to the camera. If the camera appears damaged, do
not operate it and contact customer service at www.vuze.camera/contact/
The basic safety instructions and the product documentation should be kept in a safe place and passed on
to subsequent users.
The following safety signs and symbols are used in the manual:
Storage, Service, Cleaning and Caring
The camera should be stored at an ambient temperature between -20 to 60 °C (-5 to 140 °F) and relative
humidity under 95%.
Indicates a hazardous situation which, if not avoided, may result in death or injury.
Indicates the possibility of incorrect operation which can result in damage to the product.
Indicates information related to safety or system proper use.
•The camera should be kept out of the reach of children, infants and pets. A strap
or cord wound around a child’s neck may result in asphyxiation.
•Care should be taken of possible loose or broken parts that could cause injury. If
internal components become exposed as a result of damage to the camera do not
touch them and contact customer support immediately.

Safety
6 Proprietary. Humaneyes Technologies
Charger Electrical Safety
We recommend you charge the camera in an ambient temperature from 0° to 30°C
(30 to 85 °F) while the camera is off. We recommend to use the original camera charger under the
suggested operating conditions for optimal charging time.
•When not in use, avoid placing or storing the product in the following places or
under the following conditions:
oExposed to direct sunlight.
oInside a car.
oIn a humid environment or exposed to dust.
•Before cleaning the camera disconnect it completely from the power supply and
make sure the interface panel cover is closed. Use a soft, non-linting cloth to clean
the product. Never use chemical cleaning agents such as alcohol, acetone or
diluents for cellulose lacquers.
•This camera does not contain any user replaceable or serviceable parts. Do not
take apart or attempt to service the camera yourself. The internal battery is not
user replicable. Never remove the cover or any part of the housing of the camera.
In the event of an equipment malfunction, all repairs must be performed either by
Humaneyes Technologies or by an authorized agent. For service information
contact Humaneyes Technologies customer support at www.vuze.camera/contact
•Be careful not to subject the camera to high impact. If the camera was subject to a
fall or other high impact, check the camera carefully for any damage. If any
damage is visible the use of the camera must be stopped immediately.
•This product contains an internal non-replaceable Li-ion polymer battery.
•The following information on electrical safety must be observed, failing to follow these
instructions may lead to electric shock, fire and/or serious personal injury or death.
•Never use the charger if the power cable is damaged. Check the power cable on a
regular basis to ensure that it is in proper operating condition.
•Before charging the camera and plugging the charger into the main power supply,
always ensure that the nominal voltage setting on the charger matches the nominal
voltage of the AC supply network.
•Do not insert the charger plug into electrical outlets that are dusty or dirty. Insert the
plug firmly and all the way into the outlet. Otherwise, sparks that result may lead to fire
and/or injuries.
•Do not insert any metallic or wet objects into the camera interfaces. Only the intended
cable and memory cards should be inserted in the camera interfaces.

Safety
Proprietary. Humaneyes Technologies 7
Operation
The camera operating ambient temperature is 0 to 40 °C (30 to 100 °F) and relative humidity under 95%.
The camera may be operated only under the operating conditions as specified by Humaneyes
Technologies. The camera should not be operated in extreme conditions.
The camera should not be used near dangerous or flammable gasses or in any location where instructed
not to use cameras or connective devices.
When the camera is used for an extended period and/or at high ambient temperature and/or exposed to
direct sunlight it is normal for the camera body to feel warm. Take care when placing the camera on
elevated surfaces and avoid placing it on unstable surfaces.
•Do not overload any outlets, extension cords or connector strips; doing so can cause a
fire or electric shocks.
•Do not insert or remove the plug with wet hands.
•Never remove the cover or any part of the housing of the charger, doing so will expose
circuits and components and can lead to electric shock, injuries, fire or damage to the
product.
•Stop using the camera immediately if it emits smoke or a strange smell, or otherwise
behaves abnormally.
•Avoid overheating the camera. Do not cover or obstruct the airflow around the camera
while operating. Use the camera in ambient temperatures as advised in the
specifications only.
•Do not place the camera on heat-generating surfaces, or near heat emitting devices or
direct flame. Verify that there is sufficient clearance between the product and any other
warm air exhaust.
•Disregarding these guidelines could lead to overheating, possibly resulting in burns or
damage to your camera.
•The camera adheres to the IP64 protection standard and as such is dust tight and
splash proof. This splash protection does not hold if the interface panel cover is open. If
the interface panel cover is open, take extra care to avoid damp environments or
possible liquid penetration and keep clear of dust or other elements that could
penetrate your camera.
•Even when the cover is closed, it is recommended to avoid using the camera in
extremely wet environments.
•If the necessary precautions are not taken you may suffer electric shock or the camera
itself may be damaged, which can also lead to personal injury.

Package Contents
8 Proprietary. Humaneyes Technologies
Package Contents
Check the package contents for damage. If any item is damaged, do not use the camera
and contact support at www.vuze.camera/contact

Description
Proprietary. Humaneyes Technologies 9
Description
3D 360 Camera
Interface Panel
The camera’s Interface Panel, hidden behind the cover, has various interfaces and indicators. These
interfaces are intended for connection to various external devices.
Open the cover to reveal the interface panel.
Standard ¼”-20
tripod socket
Capture button
On/Off button
Interfaces Panel
Lens x8
Microphone x4

Description
10 Proprietary. Humaneyes Technologies
Handle
1. Fold the handle to the open position:
2. Screw the small handle to the tripod socket.
For storage and when not in use, fold the handle flat against the camera.
WiFi On/Off button
Micro SD card slot Micro USB interface Charging/PC
Battery charge status LED
WiFi status LED

Operation
Proprietary. Humaneyes Technologies 11
Operation
Before Using Your Camera
Before you use your camera, make sure it is fully charged and the internal clock is synced with the Vuze
Camera App. Please follow the recommendations below:
•The camera should be fully charged before use. Make sure you charge it about 3 hours.
•The camera has an internal clock. This clock affects the time-stamp on the footage captured. Your time
zone will be automatically updated when the Camera is connected to your mobile device through the
Vuze Camera App. To ensure the correct time zone connect your camera to the Vuze Camera App as
instructed below.
Power On / Off
•On – Press the On/Off button. You will hear 3 beeps and the indication light will blink.
•Off - Press the On/Off button for 2 seconds. You will hear 3 beeps and the indication light will blink.
Operation Modes
You can use the camera for recording videos and for taking photos.
The LED color of the On/Off button indicates the operation mode, as follows:
Video Mode
Photo Mode
To change between modes press the On/Off button. Two beeps will confirm the change and the On/Off
button will blink twice and change color
.
Capture
•
Start / Stop Video – Press Capture button (in Video Mode). You will hear a single beep when
beginning and two beeps when ending a recording.
•
Take a Photo – Press Capture button (in Photo mode). You will hear a single beep before and after
and the indication light will blink once.
When switching between operation modes the camera must be in standby mode.

Operation
12 Proprietary. Humaneyes Technologies
Please make sure that the camera lenses are clean before recording videos or taking
photos.
Charging the Camera
1. Turn off the camera.
2. Connect the USB cable to the Micro USB camera interface.
3. Connect the other end of the cable to the charger.
4. Plug the charger into an electrical outlet. Charging indication appears. It should take about 3 hours to
fully charge your camera.
Using the Camera with an External Power Bank
To extend battery life, you can use an external power bank while capturing with your camera. Note that you
need to hide the power bank under your camera to avoid interfering with the cameras field of view.
1. Connect the USB cable to the Micro USB camera interface.
2. Connect the other end of the cable to the external power bank.
3. Turn the camera on.
Use a special USB connector with a folded neck to avoid interference with the recording.

Operation
Proprietary. Humaneyes Technologies 13
SD Card Replacement
•Insert the SD card into the micro SD slot and press it into place.
•To remove the card, press on it and then remove it. Place a new SD card into the slot and press
into place.
The camera will support micro SD cards with UHS-I (Ultra High Speed) speed class and
above.
The camera allows two bit rate settings for recording- 15MB and 10MB (set through the
mobile app). When recording at 15MB bit rate we recommend to use UHS-I (U3) – Ultra
High Speed Class with U3 Speed Class Mark.
When recording 10MB bit rate we
recommend to use UHS-I (U1) (Ultra High Speed Class with U1 Speed Class Mark) SD
cards.
We tested and validated SD cards types
from different vendors. You can find the
recommended SD card list on our website www.vuze.camera/support

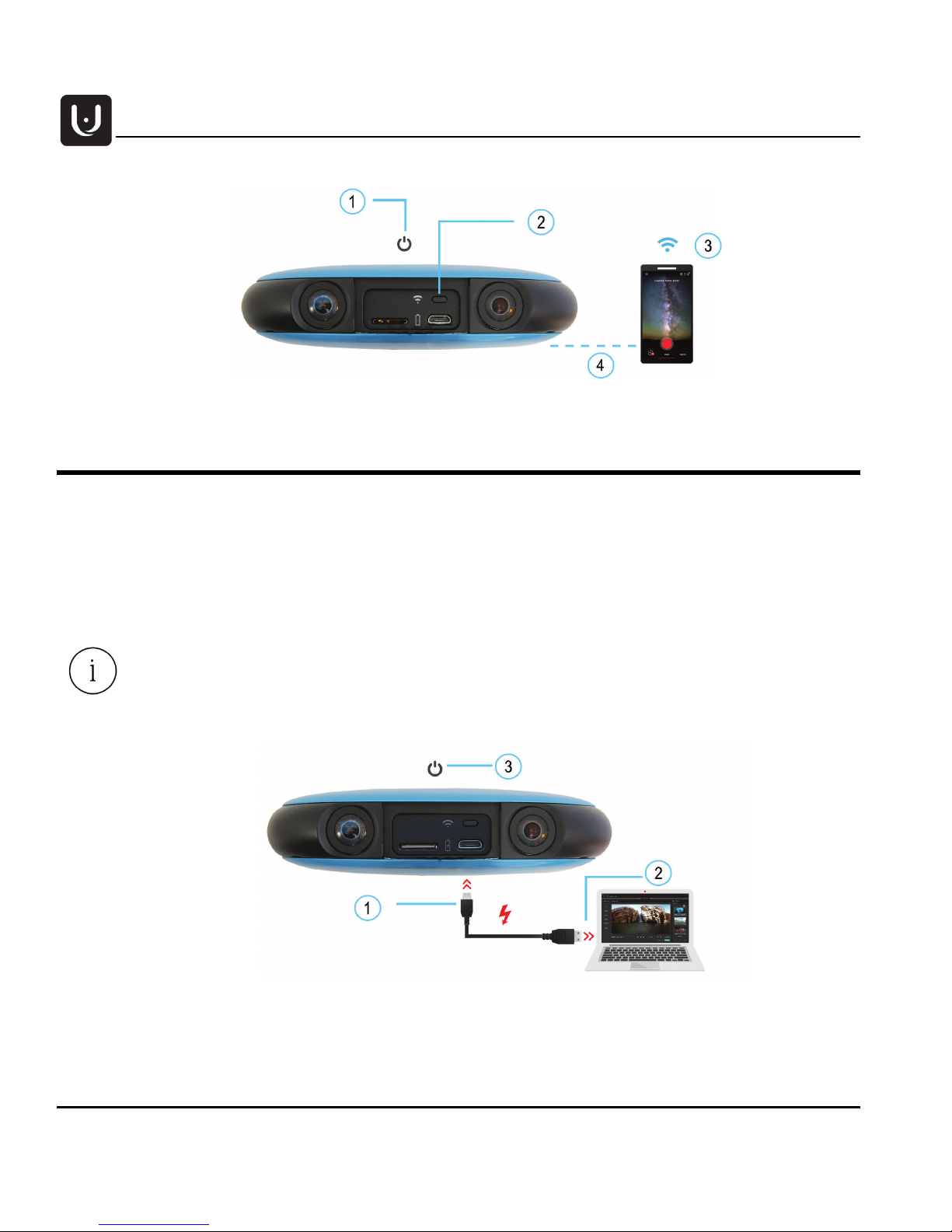

Connect to Vuze Camera App – WiFi On/Off
Vuze Camera App allows you to control your camera remotely using your mobile device. You can download
Vuze Camera App from Google Play or Apple Store and follow the steps below to connect to your camera:
1. Turn the camera on.
2. Push the WiFi button. Blue LED starts to blink.
3. Connect your mobile device to the camera’s WiFi. Your camera’s WiFi SSID is its Serial Number, as
appears on the bottom of the camera. The default password for your WiFi is 12345678. The WiFi name
and password can be changed through the App’s settings after the first connection. Once connected
the blue LED will turn on.
4. Operate the camera via the Vuze Camera App.
Do not remove the SD card while capturing with your camera or while the camera is
connected to a computer.

Operation
14 Proprietary. Humaneyes Technologies
Connect to Computer & Studio
Humaneyes VR Studio allows you to edit the media you capture and generates your VR content. It can be
installed from our website at www.vuze.camera/vr-software . Once you’ve installed Humaneyes VR Studio
connect your camera as follows:
1. Connect the USB cable to the Micro USB camera interface.
2. Connect the other end of the cable to the computer.
3. Turn the camera on.
You can also use Humaneyes VR Studio by removing the SD card from your camera and
inserting it directly into an SD slot in your computer.

Operation
Proprietary. Humaneyes Technologies 15
Camera and WiFi Reset
Press and hold the On/Off button for 16 seconds when the camera is on. This can be used in a situation
where the camera is not responding.
To reset the camera’s WiFi to the default password and SSID press and hold the WiFi button for 3 seconds.
Firmware Upgrade
See our support page for updates regarding Firmware updates. www.vuze.camera/support.
1. Turn the camera off.
2. Download firmware from www.vuze.camera/vr-software
3. Copy the firmware.bin file to the SD card root folder.
4. Insert the SD card into the camera’s micro SD slot and press it into place.
5. Turn the camera on.
6. The camera will boot normally.
7. The Firmware upgrade starts when the orange LED starts to blink.
8. When Firmware upgrade is complete the camera will reboot and go into standby mode.
9. You can check your camera’s firmware version through the Vuze Camera App’s settings.

Indications
16 Proprietary. Humaneyes Technologies
Indications
Battery is charging or connected to power bank
Blinking - Charging error
Battery is charged
Camera is not recording
Blinking – Camera is recording
Single blink – Photo capture
Camera is off
Video mode / Standby, Blinking while booting
Blinking, 4 beeps - Memory full / No memory card
Alternating, 3 beeps - High temperature
Alternating - Low memory
Alternating - Low battery
Photo mode / Standby
Critical error!
4 blinks and beeps – Battery empty
On – WiFi is connected
Blinking – WiFi is on but not connected

Capturing with Your Camera
Proprietary. Humaneyes Technologies 17
Capturing with Your Camera

Capturing with Your Camera
18 Proprietary. Humaneyes Technologies

Specifications
Proprietary. Humaneyes Technologies 19
Specifications
Optics
Sensors
8 Sony FHD image sensors imx408
Media FOV
360⁰x180⁰ (Full Spherical)
ISO
100-1600
Operation
Processors
Two Ambarella A9 video processors
Controls
One button operation, remote-control mobile application
Indications
Colorful LED indications
IP rating
IP64 (Dust tight, splash proof)
Operating temperature
0 - 40⁰C
Operating Humidity
Under 95% RH
Battery type
Li-ion 3,700 mAh (3.8V)
Battery life
About 2 hours operation
Motion tracking
Inertial measurement units (IMU): Accelerometer,
Gyroscope, Compass
WiFi
IEEE 802.11b/g/n 2.4 GHZ
USB port
USB 2 (for charging and data connection)
Memory
Replaceable Micro SD card, compatible with UHS 1 and
above.
Video/Image
Spherical Resolution
4K (per eye)
Frame rate
30 fps
Bit rate
15 MB/sec or 10MB/sec (configurable by app)
360 Video Format
mp4
Video Compression
H.264
360 Photo Format
JPEG
Audio
Microphones
Four MEMS 48Hz microphones
Format
Four ACC audio tracks
General
Camera weight
~ 450 g
Camera dimensions
~ 120x120x30 mm
Package dimensions
240x160x60 mm
Camera colors
Black, Yellow, Red, Blue
Camera model
HETVZ-1-xxx
Included Accessories
Hardshell case, Mini-handle, Mini glasses, USB cable,
Power adaptor (model KSA29B0500200D5), Lens cleaning
cloth

Warranty
20 Proprietary. Humaneyes Technologies
Warranty
THE CAMERA LIMITED CONSUMER WARRANTY
Who is this Warranty from? This limited consumer warranty (herein the “Warranty”) is granted by
Humaneyes Technologies Ltd. (herein the “Company,” “Us,” or “We”).
What are the products as defined in this Warranty? The Product/s refers to any new hardware devices
purchased from Us, directly or through our authorized distribution channels.
Who is this Warranty to? This Warranty is issued to You as an original purchaser (herein “You”) of a new
Product from the Company or an authorized retailer.This Warranty cannot be transferred or reassigned to
any other user.
What does this Warranty do? This Warranty gives You specific legal rights in case there is a problem
with the Product. You may have additional rights based on Your location. This Warranty does not affect
any rights you have under the laws in your jurisdiction regarding the sale of consumer goods. By using
Your Product, You are agreeing to the terms of this Warranty. If You do not agree to these terms, please
do not use the Product.
What does this Warranty cover? This Warranty covers the Products in the event of defects in materials
and workmanship when the Products are used normally and for their intended use in accordance with
Company's published guidelines. The Company’s published guidelines include but are not limited to
information contained in technical specifications, user manuals and service communications.
How long does this Warranty last? This Warranty lasts for period of ONE (1) YEAR from the date of
Your original date of purchase (the “Warranty Period”). Your location may provide You a longer period of
protection.
What will We do if there is a problem that is covered under this Warranty? If during the Warranty
Period You submit a claim to the Company, the Company may, at its option, subject to applicable law,
either: (i) repair the Product using new or previously used parts that are equivalent to new in performance
and reliability; (ii) replace the Product with the same model (or with Your consent a product with similar
functionality) formed from new and/or previously used parts that are equivalent to new in performance and
reliability; or (iii) exchange the Product for a refund of the price for which You purchased the Product
(Collectively herein, the "Warranty Service".)
What do You have to do prior to requesting Warranty Service?
Subject to the Terms of Use of the Product available at http://vuze.camera/terms-of-use/, You are required
to register the Product in Our system following your purchase of certain Products (herein the
"Registration"). This Registration must be completed before You can make a Warranty claim and receive
the Warranty Service. Additionally please note that Your order number serves also as Your warranty
number for the Product and it is Your responsibility to retain this number.
Before Submitting a Warranty claim the first thing You should do if You suspect a problem is contact Us
through Our Customer Support Team at http://vuze.camera/contact/ to see if We can help You.
