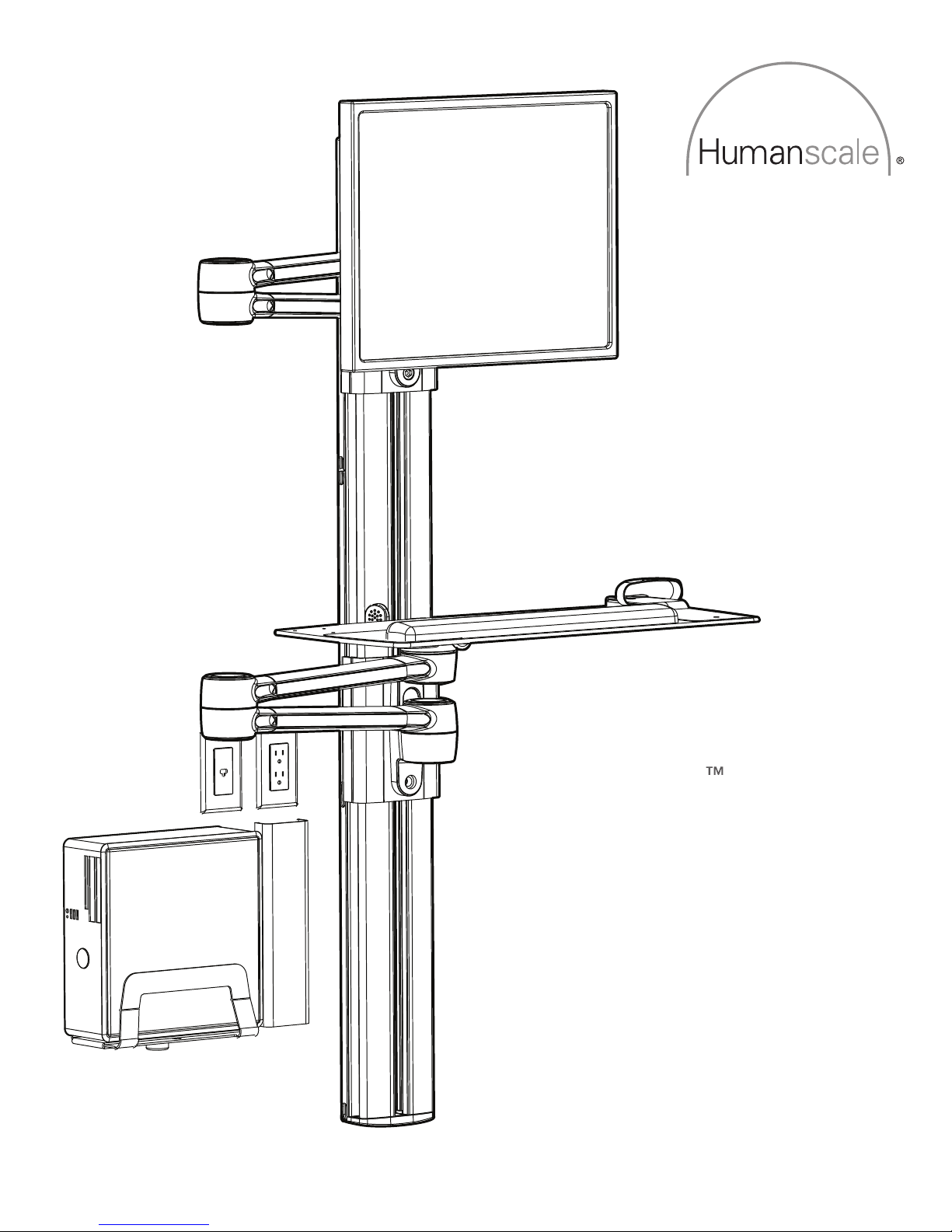

Humanscale V7 User manual

Installation
Instructions
V7

a. Unscrew aluminum nut from
the bottom of Aluminum
Bushing (A).
INSTALLATION HARDWARE
STEP 1: MOUNT TRACK TO WALL
b. Choose the desired
hole location for top
fastener, ideally 66” to
68” off the floor. Drill hole
and install appropriate
fastener.
c. Hold Track against the
wall and fasten using the
appropriate fastener in
pre-drilled hole.
d. Use level to ensure
Track is perfectly plumb.
Mark the other 4
mounting hole locations.
e. Pre-drill the 4 remaining
mounting holes and install
appropriate fastener.
f. Fasten Track with
appropriate fasteners in
the remaining mounting
holes. Be sure to tighten
fully so fastener heads do
not protrude beyond track
surface.
STEP 2: ATTACH MONITOR ARM
TO TRACK
1b
1d
1e
66 - 68 “
2a
4 Standard VESA Bracket Screws
4 Plastic Spacers
4 Extended VESA Bracket Screws
VESA Bracket
Hex Key (2mm)
Two-Prong Spanner Wrench 10 mm Flat Wrench
4 Keyboard Tray Screws
Hardware Kit
Additional hardware required:
Electric drill with 3” driver or driver extension
a. For new construction, Track can be mounted to a wall
stud or mounting board. For existing construction, test
the wall by drilling a pilot hole to determine what fasteners
are most suitable for installation. Be sure to drill the pilot
hole in a spot that will be covered by the Track.
Recommendations:
For wood – Use 2” #10 flat-head wood screws.
For metal – Use 2 ¾” #10 flat-head self-tapping screws.
For drywall – Use 3/16” flat-head toggle bolts
(Hilti brand recommended).
Note: For exact fastener requirements, please refer to
OSHPD specifications (OPA-2238-07) included.
A
4 3M Dual Lock Coins

STEP 3: ATTACH KEYBOARD ARM
TO TRACK
a. Repeat Step 2 to attach
Keyboard Arm.
b. Insert Threaded Screw
attached to the length of
Cable (A) into the hole in Slider
Assembly. Tighten fully.
c. Distribute cable evenly
throughout Keyboard Arm,
ensuring equal amounts of
slack are available at each joint.
Note: Release Handle will
not function properly unless
cable is evenly distributed
throughout the arm.
d. Try Release Handle (B) to
ensure it functions properly.
Arm should move freely when
the Release Handle is
triggered.
Note: If necessary, adjust
cable tension using adjust-
ment under the Keyboard
Mount (C) and at the point
where it connects to Track
(D). Additional cable tension
adjustment can be achieved
by tightening the screw on
Mount (E).
STEP 4: ATTACH KEYBOARD TRAY
TO KEYBOARD ARM
a. Place Keyboard Tray (A) on
top of Keyboard Arm and align
holes.
b. Fasten Keyboard Tray to
Keyboard Arm using 4
Keyboard Tray Installation
Screws.
c. Snap Palm Rest (B) into the
holes on Keyboard Tray.
2d
2c
2b
3d
3b
3d note
b. Slide Aluminum Bushing into
top Slider Assembly (B),
ensuring set screw is aligned
with the small notch in the
mount. Be sure Plastic Washer
sits between Monitor Arm and
Track Mount.
c. Using the ball end of the
2mm Hex Key (provided),
tighten Set Screw located
inside Aluminum Bushing.
Note: Set Screw does not
need to be fully tightened,
but should prevent Bushing
from rotating.
d. Reattach the aluminum nut
to the bottom of Aluminum
Bushing. Tighten using
Two-Prong Spanner Wrench
(provided).
B
3c
AB
A
B
D
E
C

STEP 5: ATTACH MONITOR TO
MONITOR ARM
a. Attach appropriate VESA
bracket to Monitor.
i. Place VESA Bracket in
position on back of
Monitor with Lips (A) on
the left and right. Attach
using 4 Standard VESA
Bracket Screws.
ii. If mounting space for
75mm VESA bracket is
inset into back of Monitor,
place 4 Plastic Spacers (B)
between VESA Bracket
and Monitor. Align hole
pattern. Using 4 Extended
VESA Bracket Screws (C),
attach through Spacers.
b. Slide VESA Bracket into
Ball Joint (D) until it clicks.
c. Monitor should ride up and
down effortlessly and stay in
position when set. If Monitor
tends to drift up or down,
tension may be adjusted via
the two center screws (E)
under the white plastic slide
on each side of Mount. Using
Hex Key located under
Keyboard Tray, loosen screws
to increase tension and
tighten screws to decrease
tension.
Note: Do NOT adjust top or
bottom screw.
CABLE MANAGEMENT
a. Route monitor cables
starting from Monitor going
to Track.
b. Route monitor cables
through Track.
i. Remove cable
management covers on
one side of Track. Insert
monitor cables into the
groove of Track. Replace
cable management covers.
5b
5c
a
b
E
a. Place 4 3M Dual Lock Coins on the underside of Keyboard.
b. Once attached, remove the film from the exposed
sides of Dual Lock Coins and attach to Keyboard Tray.
ii. Route cables down through Monitor Arm’s center joint.
Repeat above step to route cables through Monitor Arm’s
rear link. Check that Monitor Arm has enough slack to
bend and move, then replace rear arm cover.
ATTACH KEYBOARD TO KEYBOARD TRAY
i. Remove gray arm covers
from one side of Monitor
Arm. Insert monitor cables
into the groove of Monitor
Arm’s front link. Thread
cables behind the cable management tabs to hold them
in place. Check that Monitor has enough slack to rotate,
then replace front arm cover.
C
B
A
D
Note: Where monitor cables exit
Track should be determined by the
location of your CPU and nearest outlet.
c. Repeat above steps to route
keyboard and mouse cables.
