User Manual ver.1.0
HTP-T2M1000ISWB
2.0 Megapixel Speed Dome

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
2/54
Safety Precaution
Make sure to turn off the power before installing HTP-T2M1000ISWB.
Do not install under the direct sunlight or in dusty areas.
Make sure to use the product within the temperature and humidity specified in the specification.
Do not operate the product in presence of vibrations or strong magnetic fields.
Do not put electrically conducting materials in the ventilation hole.
Do not open the top cover of the product. It may cause a failure or electric shock on the
components.
To prevent from overheating, make sure to keep the distance at least 10cm from the ventilation
hole.
Make sure proper voltage (220V/100V) before connecting the power.
We appreciate your purchasing HTP-T2M1000ISWB.
Before installing the product, please read the following with care.

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
3/54
Table of Content
1. Introduction.................................................................................................................................4
About this manual.....................................................................................................................4
Features...................................................................................................................................4
Product and Accessories..........................................................................................................7
Part Names and Functions.......................................................................................................8
System Connections.................................................................................................................9
2. Installation.................................................................................................................................12

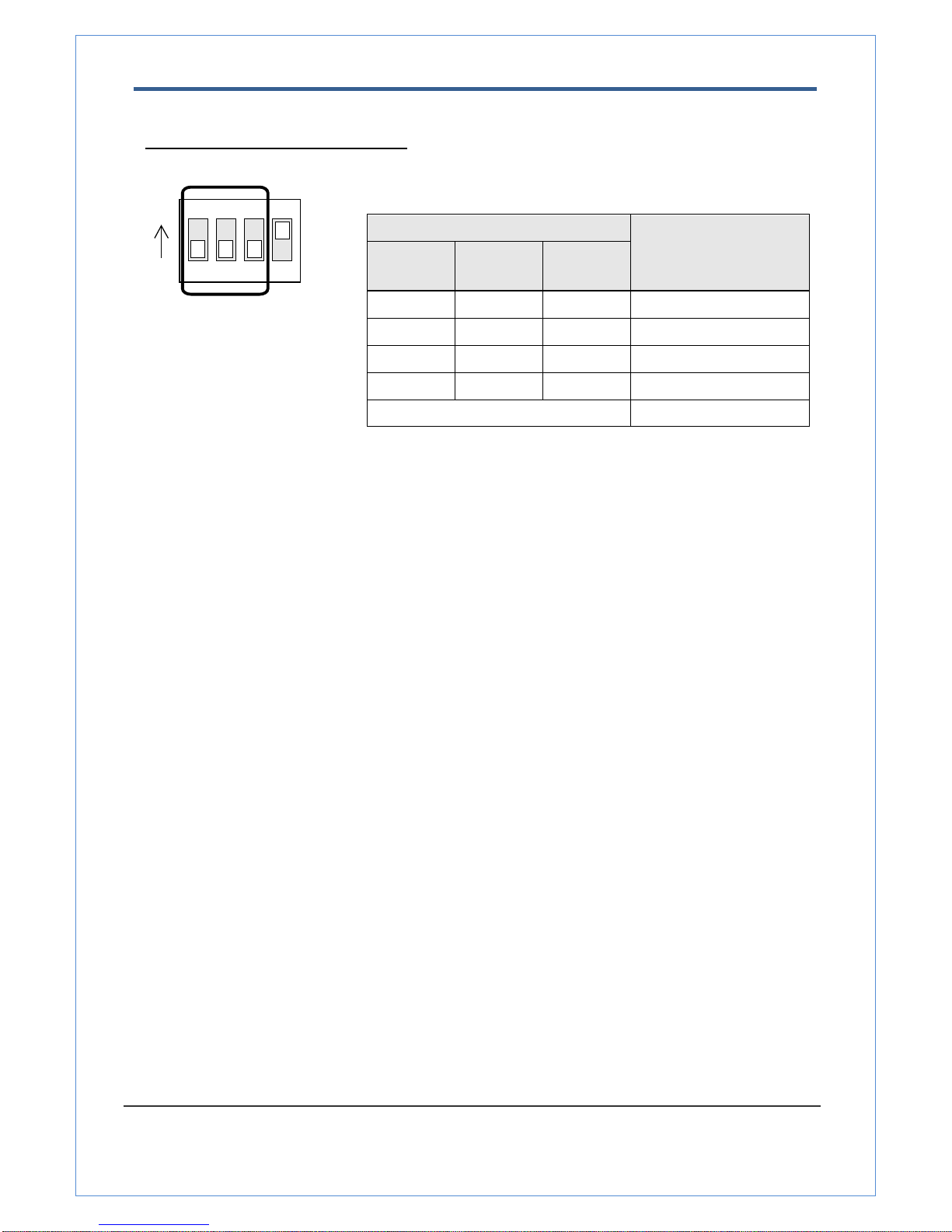

DIP Switch Setup....................................................................................................................12
Installation Camera with Brackets...........................................................................................14
Wiring/Cabling & Connecting..................................................................................................16
Check if it works .....................................................................................................................19
3. System Operation.....................................................................................................................20

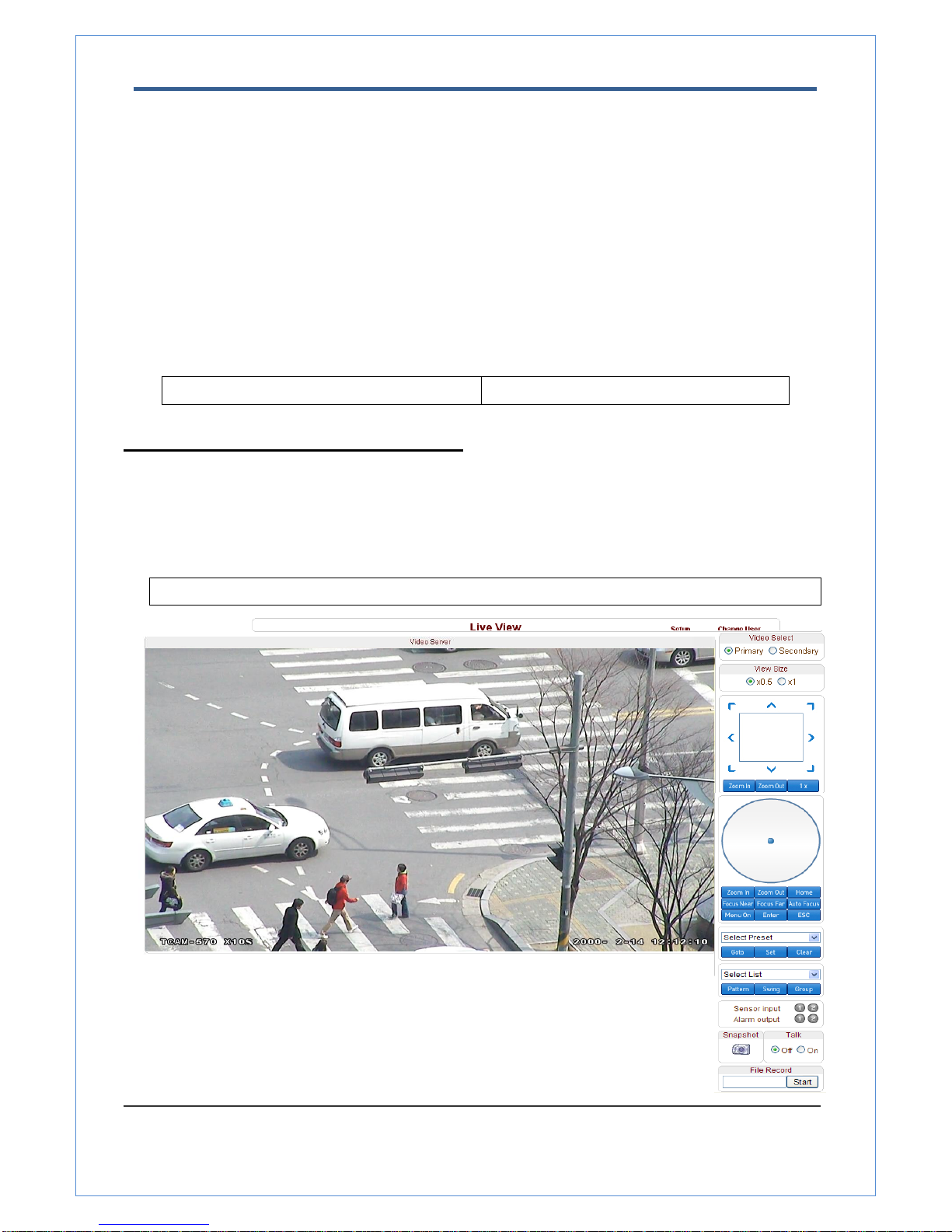

Remote Video Monitoring.......................................................................................................20
Initialization of IP address.......................................................................................................23
4. Remote Configuration...............................................................................................................24
Using Web Brower..................................................................................................................24
System Configuration.............................................................................................................25
Video Configuration................................................................................................................29
Audio Configuration................................................................................................................34
Network Configuration............................................................................................................35
Serial Configuration................................................................................................................40
Event Configuration................................................................................................................42
PTZ Configuration ..................................................................................................................45
Record Configuration..............................................................................................................49
User Configuration..................................................................................................................50
Camera Configuration ............................................................................................................52

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
4/54
1. Introduction
About this manual
This User Manual provides information on operating and managing the premium network camera, HTP-
T2M1000ISWB. The Manual includes instructions of installation, operation and configuration of HTP-
T2M1000ISWB as well as how to make troubleshooting.
Features
HTP-T2M1000ISWB is a 2.0M PTZ network-based camera with remote live monitoring, audio monitoring
and control via an IP network such as LAN, ADSL/VDSL, and Wireless LAN.
Camera
•1/3”2Megapixel CMOS Image Sensor
•X10 optical zoom, x12 digital zoom
•True Day & Night (ICR)
Video
•Highly efficient compression algorithm, H.264 & MJPEG support
•18 kinds of compression and resolutions: CIF (352x240) - Full HD (1920x1080)
•Wide range of transmission rates: 32kbps ~ 8Mbps
•Various transmission modes: CBR, VBR
•Motion detection
•Composite video output
•HD-SDI video output (Option)
Audio
•Multi-transmission mode: Simplex (HTP-T2M1000ISWB Client PC or Decoder, Client PC or
Decoder HTP-T2M1000ISWB), Full Duplex
Network
•Fixed IP & Dynamic IP (DHCP) support
•1:1, 1:N support
•Multicasting
•Various types of Protocol support : TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP,
RTSP

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
5/54
Serial Data
•RS-485 support
•Data pass-through mode : Serial data communication between HTP-T2M1000ISWB and
Decoder
Sensor and Alarm
•Support direct connections of external sensor and alarm devices
•Event Alarm notification.
•2 alarm sensor Inputs and 2 alarm Output relays are available
•If an external sensor is activated, camera can be set to move to the corresponding Preset
position.
User Interface
•Diagnose and upgrade through dedicated program called True Manager
•System configuration using Internet Explorer
High Reliability
•Reliable embedded system
Powerful Pan/Tilt Functions
•Max. 360/sec high speed Pan/Tilt Motion
•Using Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a
result, time to target view is reduced dramatically and the video on the monitor is very natural to
watch.
•For jog operation using a controller, since ultra slow speed 0.05/sec can be reached, it is very
easy to locate camera to desired target view. Additionally it is easy to move camera to a desired
position with zoom-proportional pan/tilt movement.
Preset, Pattern, Swing, Group
•MAX. 128 Presets are assignable and characteristics of each preset can be set up
independently,
•Max. 8 set of Swing action can be stored. This enables to move camera repetitively between
two preset positions with designated speed.
•Max. 4 of Patterns can be recorded and played back. This enables to move camera to follow
any trajectory operated by joystick as closely as possible.
•Max. 8 set of Group action can be stored. This enables to move camera repetitively with
combination of Preset or Pattern or Swing. A Group is composed of max. 20 entities of
Preset/Pattern/Swings.

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
6/54
PTZ(Pan/Tilt/Zoom) Control
•With RS-485 communication, max. 255 of cameras can be controlled at the same time.
•Pelco-D or Pelco-P protocol can be selected as a control protocol in the current version of
firmware..
Easy Installation and Perfect Outdoor Environment Compatibility
•Fans and heaters are built-in in camera for cold and hot temperature environment. Also
idealistic mechanical design protects camera from water and dust. (IP 67)
•It is easy to install and maintain camera with terminal for cable connection in brackets.

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
7/54

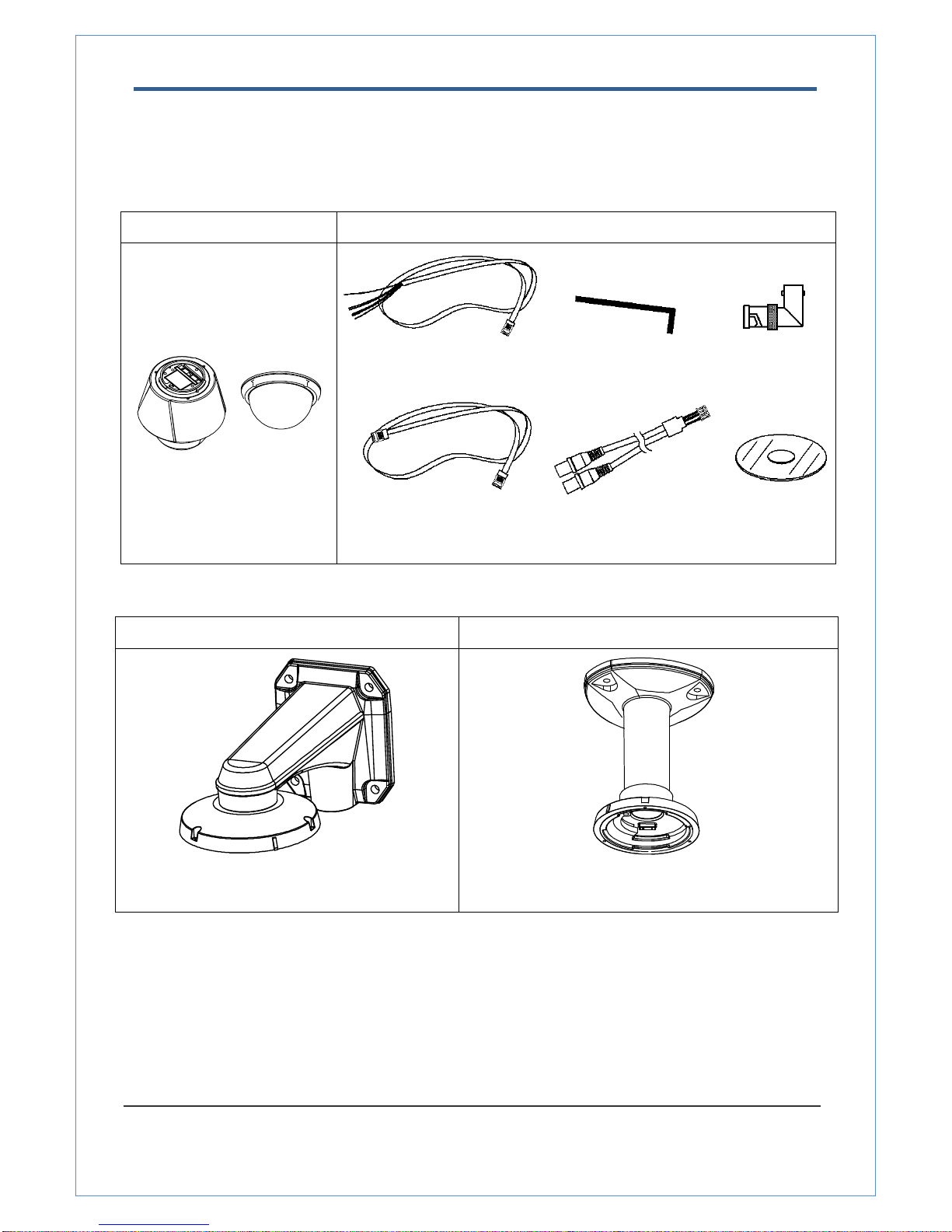

Product and Accessories
Note: Mount Brackets are optional.
Wall Mount Bracket
Ceiling Mount Bracket
[Screws : Torx Secrew M418, Hex Lag #1450]
[Screws : Torx Screw M418, Anchor Bolt 3/8"70]
Main body & Dome Cover
Accessories
Main Cable Wrench Driver 2EA of BNC
Cross LAN Cable Audio Cable CD

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
8/54
Part Names and Functions
•Dome Cover
Do not detach protection vinyl from dome cover before finishing all
installation process to protect dome cover from scratches or dust.
•DIP Switch
Sets up camera ID and protocol.
•Drop Prevention
Spring
This part keeps the camera from dropping during installation and
maintenance. After install the Bracket, please, hang the spring to
the drop prevention hook of main body as shown in picture for
further tasks.
•Mounting Screw
Hole
This hole is for screws that assembles the main body with a
bracket.
•IP Reset Switch
Reset its network configuration to the factory defaults. You will lose
all data that had been entered previously. To initialize the system
to the factory default, press the reset button for more than 5
seconds.
•LAN Port
Used for the Ethernet connection
•Audio Port
Used for the audio in/out connection.
•Video (BNC)
Used for the composite video out or HD-SDI video out connection
according to models
•Main Connector
Used for the power wire, the RS-485 communication cable, alarm
in/out connection cable.
①

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
9/54

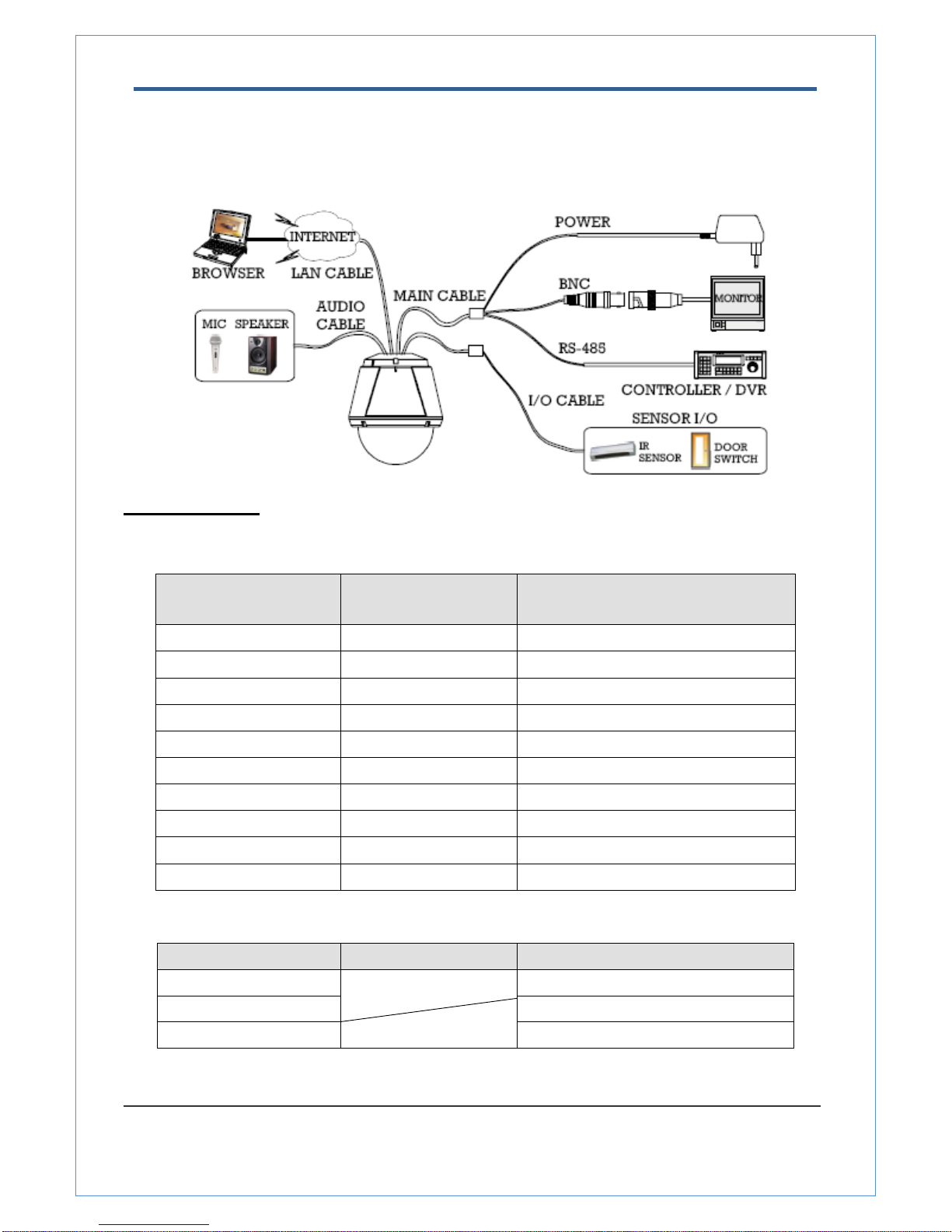

System Connections
HTP-T2M1000ISWB IP Cameras can be connected in either 1 to 1 connection where one HTP-
T2M1000ISWB is connected to one PC client or a decoder system or 1 to many connections where one
HTP-T2M1000ISWB can be connected to several PCs and decoder systems. (TCS-2000 video server
can work as a video decoder which takes the data from a video server or IP camera, decodes and
outputs analog video.)
Topology
Generally, HTP-T2M1000ISWB and PC or a decoder is connected in 1-to-1 mode or 1-to many
configuration.

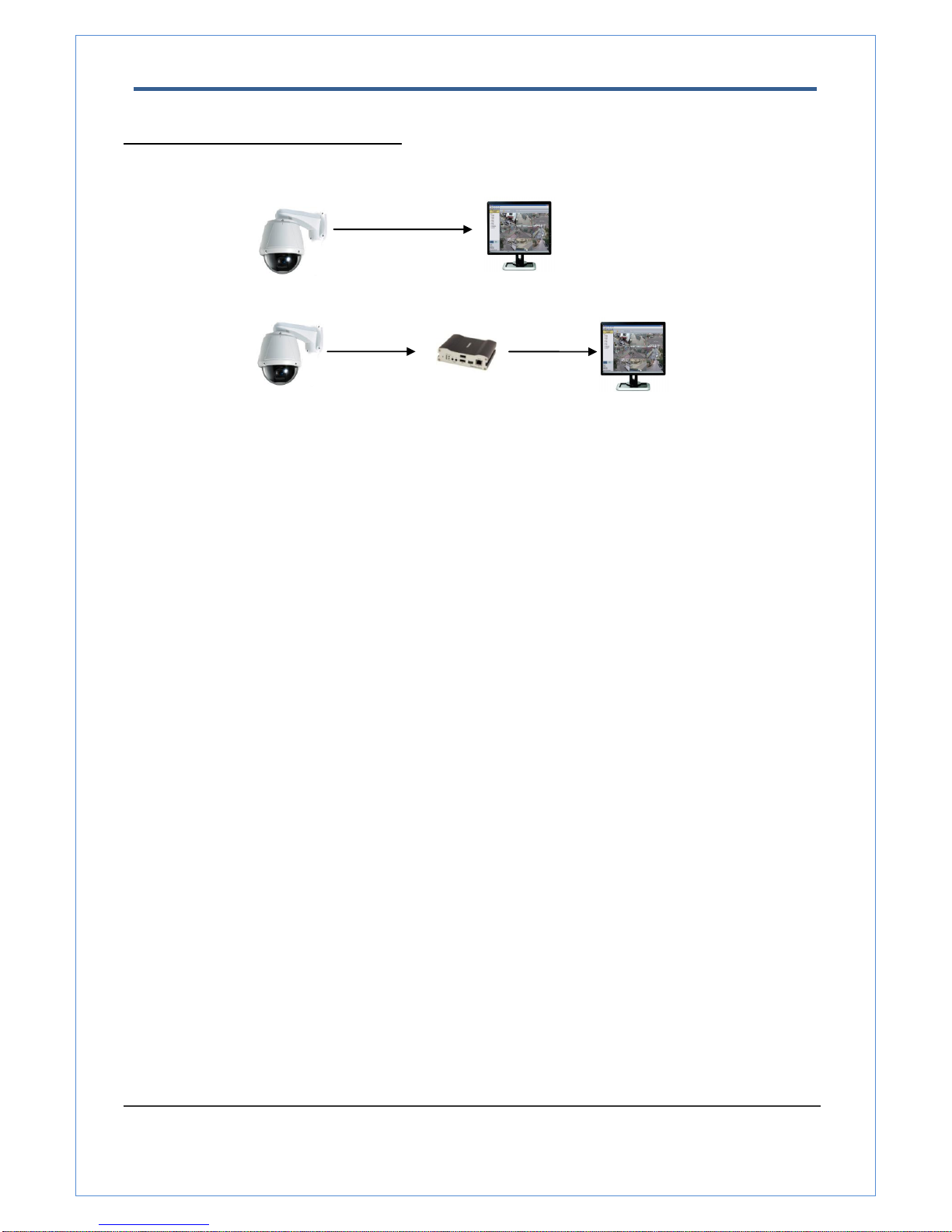

1:1 Connection .
One HTP-T2M1000ISWB is installed at a site where video images are transmitted. A PC or a decoder is
installed at a central location to receive and view the video images on an analog monitor. Audio and
serial data are transferred in either direction.
Site
Remote Center (Decoder)
Remote Center
Site
Remote Center (PC SW)

HTP-T2M1000ISWB User Manual
2.0 Megapixel Speed Dome Manual
10/54
or
or
or
1:N Connection .
In this configuration, a site can be monitored from many remote central locations. Although up to 64 PCs
or decoders can be connected to one HTP-T2M1000ISWB, in the real network environment, network
bandwidth can limit the maximum connections. Functionally, the central monitoring system (CMS)
software provided can replace the decoder.
Multicast Mode
If the network supports multicasting, a large number of decoders can be used to receive video effectively
from a HTP-T2M1000ISWB using a single streaming of video and audio. However, multicast mode is
possible only when network environment supports multicast.
Relay
Video and audio data can be retransmitted from a center to another center. The arrangement is useful
when the network bandwidth to the site is limited while there are more than one center want to monitor
the site.
Site
Remote Center
Site
Center 1(Decoder)
Center 2 (Decoder)
