Huvitz HIIS-1 User manual

1
HUVITZ Integrated Image Server,
HIIS-1
HUVITZ Integrated Image Server
HIIS-1
User Manual

2
HUVITZ Integrated Image Server,
HIIS-1
■Precautions
This product may malfunction due to the electromagnetic wave, generated from mobile phone, two-way
radio, wireless calibration machine. Keep it away from device that affects this product.
This user manual’s contents were examined carefully in detail, and we believe that they are accurate in
overall. However, Huvitz does not assume any responsibility for any latent mistake or omission that
results from the use of information included in this user manual.
Huvitz has the right to modify this product or product specifications any time, without special notification,
and this modification may not be renewed in this document.
Huvitz does not guarantee any responsibilities for abnormal symptoms causing from the
installation of S/W not related to the equipment
Do notinstallthis program inHOCT-1/1F, and Huvitz doesnot guaranteeany responsibilities for abnormal
symptoms causing from the installation.
■Revision History
Revision
Date
Approval
Description
A
2020.10.05
Initial release
B
2022.06.03
- Swiss Authorized Representative Information Added
- Overview and Instruction regarding Myopic
Management Analysis Screen Added
C
2022.11.30
- Added Import Watcher daemon setting method.
- Added equipment connection configuration diagram
and connection setting method.
- Added DICOM Setting
© 2018 Huvitz Co., Ltd.
38, Burim-ro 170beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Republic of Korea
All rights reserved.
Under copyright laws, this manual may not be copied, in whole or in part, without the prior written
consent of HUVITZ Co., Ltd
9000ENG0097-B
(2022.06)

3
HUVITZ Integrated Image Server,
HIIS-1
CONTENT
1Introduction 6
Overview 6
Intended Use 6
Safety Caution 6
Recommended Specifications for the Installation 7
1.1.1 Server 7
1.1.2 Client 7
Classification 7
Symbol Information 8
2Installer Installation 9
New Installation 9
Version Upgrade 20
3Screen Description 28
Access Screen 28
Log-in Screen 30
Administrator Screen 31
3.1.1 User Management 31
3.1.2 Configuration 33
Patient Information Screen 34
Patient Add-on Screen 35
Move to Analysis Screen 36
Analysis Screen Overview 36
Macular 3D Analysis Screen –Summary (1) 37
Macular 3D Analysis Screen –Summary (2) 38
Macular 3D Analysis Screen –Summary (3) 39
Macular 3D Analysis Screen –Summary (4) 40
Macular 3D Analysis Screen –OU 41
Macular 3D Analysis Screen –Progression (1) 41
Macular 3D Analysis Screen –Progression (2) 42
Macular 3D Analysis Screen –Comparison 42
Macular 3D Analysis Screen –3D (1) 43
Macular 3D Analysis Screen –3D (2) 43
Macular Wide Analysis Screen 44
Macular Line Analysis Screen –Summary 44
Macular Line Analysis Screen –OU 45
Macular Line Analysis Screen –Comparison 45
Macular Cross Analysis Screen –Summary 46
Macular Cross Analysis Screen –OU 46

4
HUVITZ Integrated Image Server,
HIIS-1
Macular Cross Analysis Screen –Comparison 47
Macular Radial Analysis Screen - Summary 47
Macular Radial Analysis Screen –OU 48
Macular Radial Analysis Screen –Comparison 48
Macular Raster Analysis Screen –Summary 49
Macular Raster Analysis Screen –OU 50
Macular Raster Analysis Screen –Comparison 50
Disc 3D Analysis Screen –Summary 51
Disc 3D Analysis Screen –OU 52
Disc 3D Analysis Screen –Progression 52
Disc 3D Analysis Screen –Comparison 53
Disc 3D Analysis Screen –3D 53
Disc Radial Analysis Screen –Summary 54
Disc Radial Analysis Screen –OU 54
Disc Radial Analysis Screen –Comparison 55
Disc Raster Analysis Screen –Summary 55
Disc Raster Analysis Screen –OU 56
Disc Raster Analysis Screen –Comparison 56
Disc Circle Analysis Screen –Summary 57
Disc Circle Analysis Screen –OU 57
Disc Circle Analysis Screen –Comparison 58
Anterior Radial Analysis Screen –Summary 58
Anterior Radial Analysis Screen –OU 59
Anterior Radial Analysis Screen –Comparison 59
Anterior Line Analysis Screen –Summary 60
Anterior Line Analysis Screen –OU 60
Anterior Line Analysis Screen –Comparison 61
Anterior Wide Analysis Screen –Summary 61
Anterior Wide Analysis Screen –OU 62
Anterior Wide Analysis Screen –Comparison 62
Angiography Analysis Screen - Summary (1) 63
Angiography Analysis Screen - Summary (2) 64
Angiography Analysis Screen –OU 65
Angiography Analysis Screen –Comparison 66
Angiography Analysis Screen –Progression 67
Color Fundus Analysis Screen –Summary (1) 68
Color Fundus Analysis Screen –Summary (2) 68
Color Fundus Analysis Screen –OU 69
Color Fundus Analysis Screen –Comparison 69

5
HUVITZ Integrated Image Server,
HIIS-1
Color Fundus Analysis Screen –Stereo 70
Color Fundus Analysis Screen –Panorama 70
Biometry Analysis screen –Summary 72
Biometry Analysis Screen - OU 73
Topography Analysis Screen - Summary 74
Topography Analysis Screen - Detailed 75
Topography Analysis Screen - OU 76
Topography Analysis Screen - Comparison 77
Topography Analysis Screen - Progression 78
Refraction Screen Overview 83
Refraction Analysis Screen 84
Overview of Myopic Management Analysis Screen 85
How to use the Myopia Management Analysis Screen 85
After operation 88
Trouble Shooting Guide 88
4Import Cannon fundus Data (EyeScape) 90
Import Watcher daemon 90
5Huvitz’s equipment connection diagram 91
Huvitz’s equipment connection diagram 91
6Setting method for device connection 92
HIIS (v2.3.0) HUVITZ Integrated Image Server 92
HOCT-1/1F, HFC-1 (v1.3.3) Optical Coherence Tomography 93
HIS-5000U (v4.04.20) Slitlamp & Imaging System 95
HRK-9000A Auto Ref / Keratometer 97
HRK-Mate (v1.0.12) 100
HDR-9000 (v1.1.2) Digital Refractor 101
HDR-Mate 102
HLM-9000 Auto Lensmeter 103
HTR-1A Optometry & intraocular pressure 105
HNT-1/1P Non-contact Tonometer 108
HBM-1 & HTG-1 Standalone Biometry & Topography / Only Topography 109
7DICOM Setting 110
8Specifications and Accessories 111
Standard Accessories 111
Optional Accessories 111
Specifications. 111
9Information Needed for Service 112

6
HUVITZ Integrated Image Server,
HIIS-1
1
1 Introduction
Overview
Huvitz Integrated Image Server, HIIS-1 (hereafter, HIIS-1) films eyeball’s eyeground or
retina’s shape in a non-contact non-invasive manner, and it is the software that provides
information that helps with the ophthalmic complications.
This software of the Server-Client structure exchanges data with the software built-into
HUVITZ’S ophthalmic device (hereafter, device). PC with HIIS-1 server installed (hereafter,
server) becomes Server while device becomes Client. Server and device (Client) operate
regardless of the distance as long as they are in the same network. Here, same network
includes Internet when seen broadly and even the 1:1 cable connection when seen
narrowly.
Image filmed on the device is transmitted to the server and user can check the result filmed
from the personal PC through Web browser. Personal PC does not need to be installed
with special software, and it can be used with the regular Web browser such as Internet
Explorer, Chrome, Safari and Firefox. (HIIS-1 is optimized to the latest Chrome version,
and there may be function that does not operate in other Web browser.)
Intended Use
This software (HIIS-1) is a web-based software that can view, store, transmit, and analyze
the medical images of patients acquired from ophthalmic imaging devices such as fundus
cameras, optical coherence tomography, auto ref/keratometer, etc. on the computer where
the software is installed.
Safety Caution
1. Do not make a diagnosis base on a single captured image. Doctors are responsible for
making the final diagnosis based on the present and past medical records of the patient
such as captured images. Without sufficient information, proper diagnosis may not be
made.
2. User must not change the setting supported by the manufacturer. This change might
make some trouble in program. The manufacturer isn't responsible for the problem.
3. The software must be operated by a trained and qualified person or under his or her
supervision.
4. Repair of this instrument must be conducted by HUVITZ’s service technicians or other
authorized persons.
5. Maintenance by users must observe the User’s Manual and Service Manual. Any
additional maintenance may only be performed by HUVITZ’s service technicians or other
authorized persons.

7
HUVITZ Integrated Image Server,
HIIS-1
6. Manufacturers are responsible for the safety, reliability,and performance of this program
only when the following requirements are fulfilled.
(1) When the program has been installed in a proper PC, following the manual.
(2) When the program has been operated and maintained according to the manual
and service manual.
7. Manufacturers are not responsible for the damages caused by unauthorized alterations.
Such tampering will forfeit any rights to receive services during the term of guarantee.
8. Only those whohave undergoneproper training andinstructionsare authorized toinstall,
use, operate, and maintain this instrument.
9. Keep the User’s Manual and Service Manual in a place easily accessible at all times for
persons operating and maintaining the equipment.
10. The program may beimpaired ifit isusedin a manner not specified by themanufacturers
or manual.
Recommended Specifications for the Installation
1.1.1 Server
O/S: Windows 7 or greater (Windows 10 recommended)
CPU: Intel i5 or greater
Memory: 4GB or greater (8GB recommended)
Ethernet: Fast Ethernet (Gigabit Ethernet recommended)
1.1.2 Client
O/S: Windows 7 or greater (Windows 10 recommended)
CPU: Intel i5 or greater
Memory: 4GB or greater (8GB recommended)
Ethernet: Fast Ethernet (Gigabit Ethernet recommended)
Browser: Chrome (recommended), IE 11 or greater
Classification
•Classification of product: Class IIa according to Annex IX (Rule 11) of the Medical Device Regulation
2017/745.
•Resistance against electric shock: Not applicable.
•Protection class against electric: Not applicable .
•This device is medical device.

8
HUVITZ Integrated Image Server,
HIIS-1
Symbol Information
Symbol
Indication
CE Mark
(Marque CE)
Authorized representative in the European Community – EU
ONLY
(Représentant autorisé dans la Communauté européenne-
EU seulement)
Authorized representative in Switzerland
(Représentant autorisé dans la Suisse)

9
HUVITZ Integrated Image Server,
HIIS-1
2
2 Installer Installation
New Installation

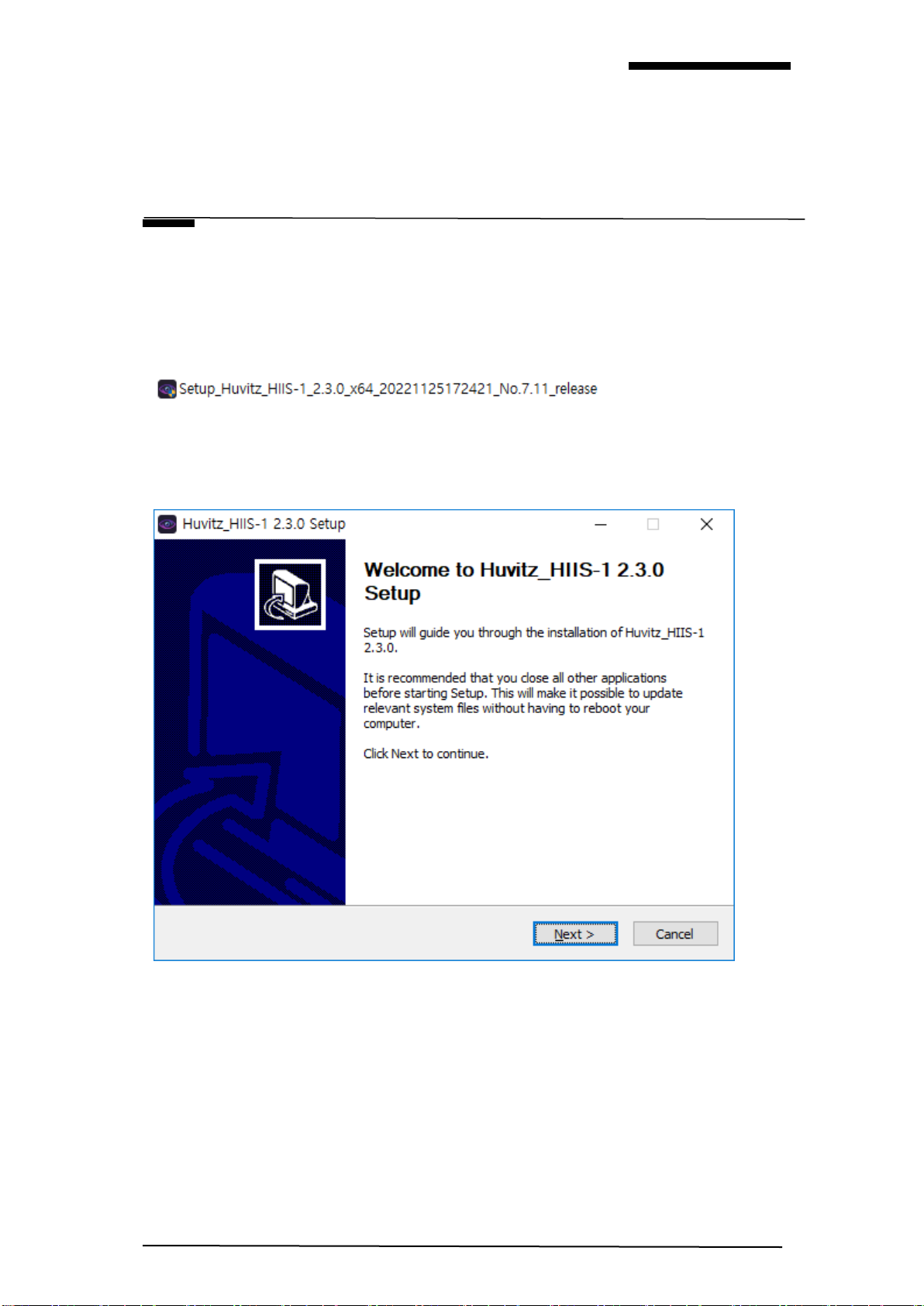

1 Execute Setup_Huvitz_HIIS-1_X.X.X_x64_XXX_No.X.XX_release.exe Installer.
2 Start installation. Press on the Next button.

10
HUVITZ Integrated Image Server,
HIIS-1
3 Select the component to install. In case of new installation, select both
‘PostgreSQL_Database’ and ‘Huvitz HIIS-1’.
If it is not a new installation, uncheck the ‘PostgreSQL_Database’ item.
4 Designate the path to install the program. Use the default value.

11
HUVITZ Integrated Image Server,
HIIS-1

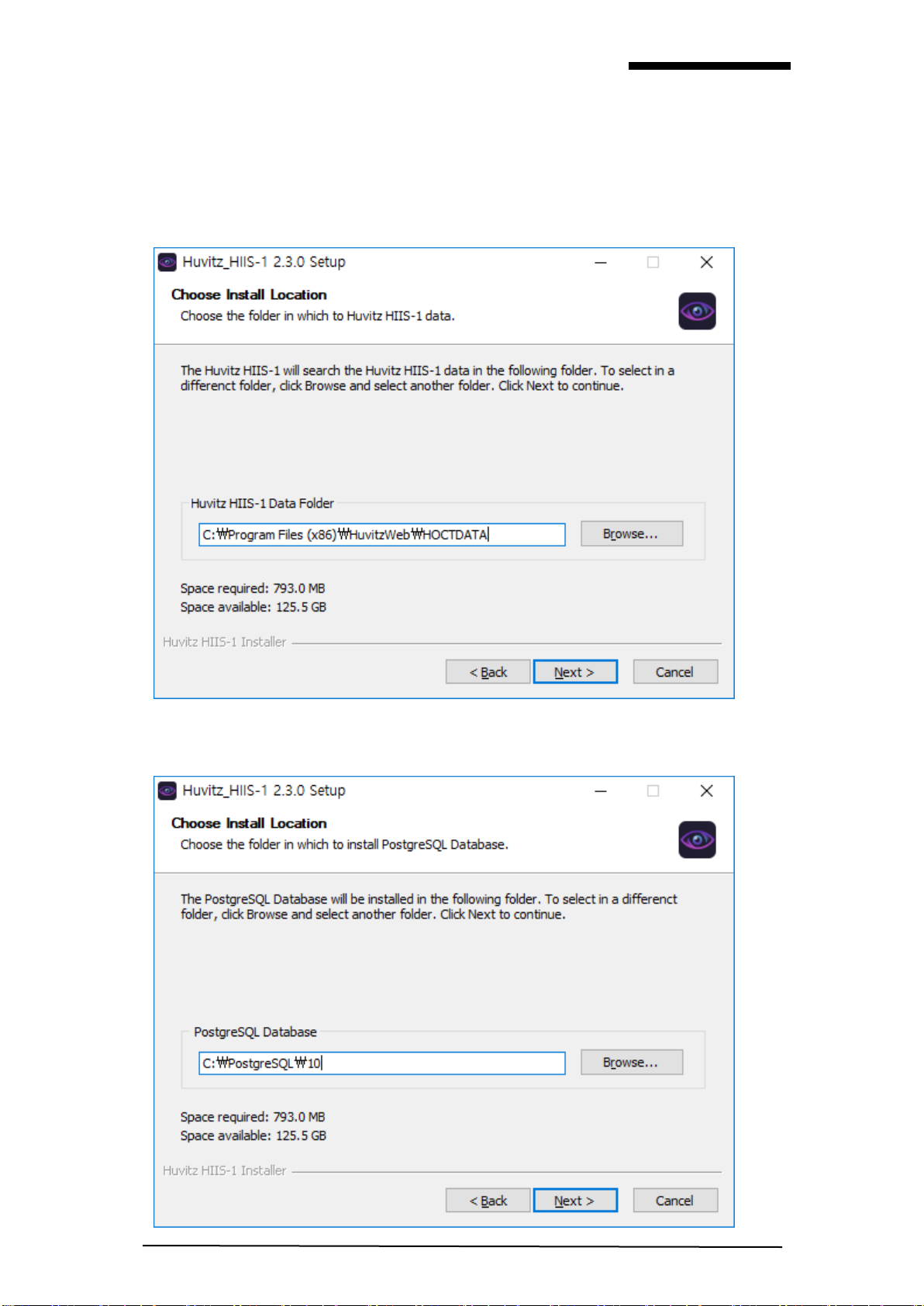

5 Designate the path to save the patient data. Since the size of image data is large (5~25MB by
each measurement), save on the disc with sufficient available space.

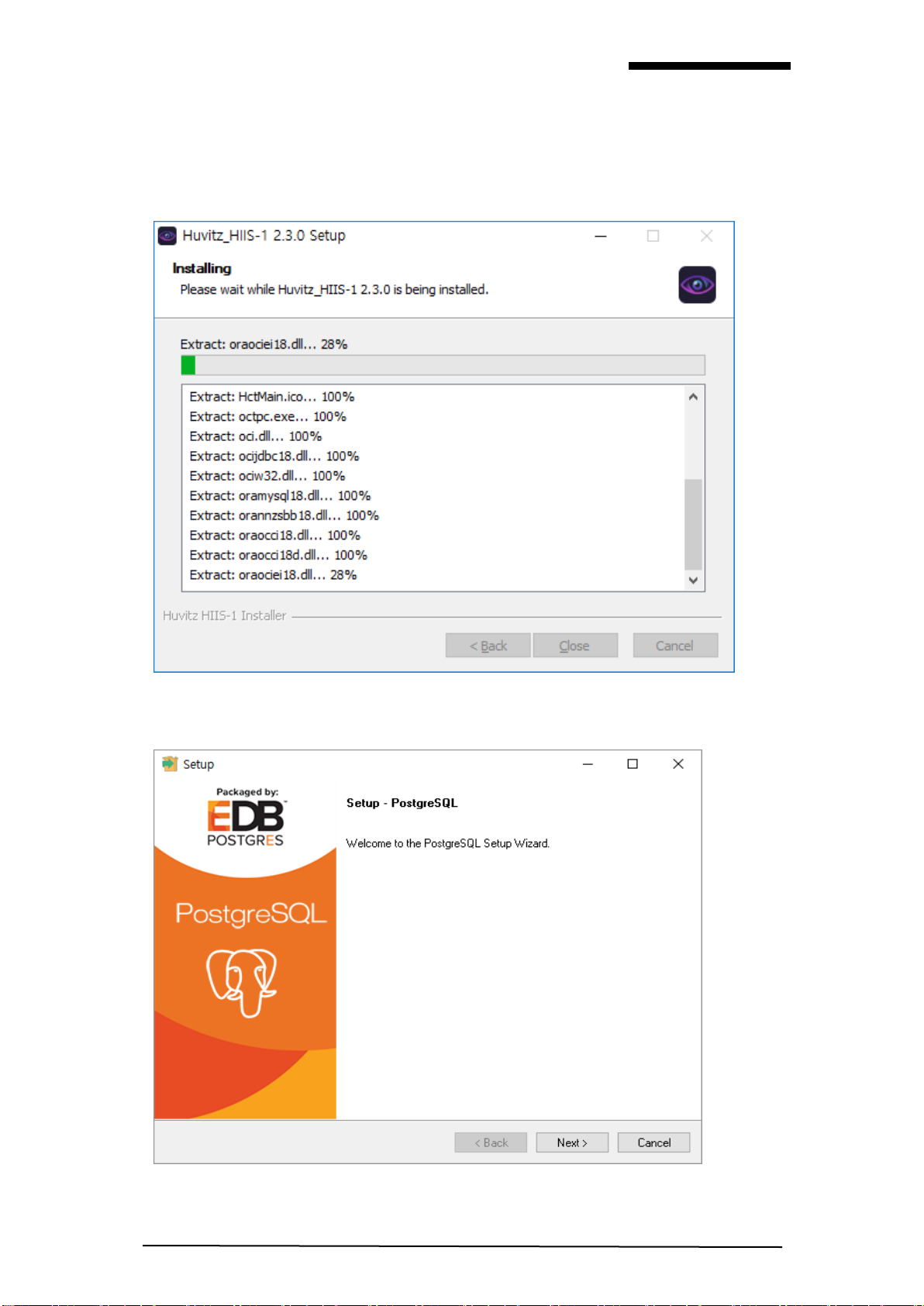

6 Designate the path to install the program for the PostgreSQL database.

12
HUVITZ Integrated Image Server,
HIIS-1
7 Designatesthe port number to be used in the HIIS-1. Make sure to rememberthis port number
since it is the number that is used when contacting from the personal PC via Web browser.
For instance, when port number, set during this stage is 8080 and when the address of the
installed server is http://192.168.1.3 is assumed, HIIS-1’s contact address becomes
http://192.168.1.3:8080. WebConnector is the internal server that is provided so that the HIIS-
1 can divide its work. Since this port number is used for the communication among servers,
user does not need to remember. When two port numbers overlap, server does not work.
Thus, it is necessary to set so that the port numbers do not overlap. Screen of the next stage
gets output when the port numbers overlap.
8 The following error message gets output when the port number is already being used by other
program. Other port number can be used, but must remember the input port number.

13
HUVITZ Integrated Image Server,
HIIS-1
9 Designates port number to use in the PostgreSQL database. Use default value if possible
since the port number is the number used by the system internally. There is no need to
remember this port number.
10 Error message gets output when the number that is the same as the HIIS-1’s port number is
already in use. Set to another number when the following message appears.

14
HUVITZ Integrated Image Server,
HIIS-1
11 Displays installation progress.
12 Install PostgreSQL database Start mid-way. Click on the Next button.

15
HUVITZ Integrated Image Server,
HIIS-1
13 Do not modify default value and continue to click on the Next. May malfunction when the
default value is modified.
14 Designates PostgreSQL database installation path. Continue to click on the Next button.

16
HUVITZ Integrated Image Server,
HIIS-1
15 Designates PostgreSQL administrator password. Do not modify since it is used in the system
internally. Continue to click on the Next button.
16 Previously set port number is designated automatically. Do not modify and continue to click
on the Next button.

17
HUVITZ Integrated Image Server,
HIIS-1
17 Sets up the PostgreSQL database language. Continue to click on the Next button since it is
possible to use default value.
18 Continue to click on the Next button.

18
HUVITZ Integrated Image Server,
HIIS-1
19 Installation is executed. Wait for a moment.
20 PostgreSQL database installation is completed. Click on the Finish.

19
HUVITZ Integrated Image Server,
HIIS-1
21 When the black screen appears as follows, do not close the window. Instead, wait and it will
close automatically. Since database initialization is in progress, it does not operate normally
when it is closed mid-way.
When the next window pops up, click the “Ok” button.
22 HIIS-1 installation is completed.

20
HUVITZ Integrated Image Server,
HIIS-1
Version Upgrade
To upgrade version, re-install after removing the installed HIIS-1 program.
Uninstallation of installed version will automatically start when the upgrade version of HIIS-1
installer starts.
1. To remove installed version, please click ‘OK’ button.
2. Confirm the installed version, and click ‘Yes’ to start uninstallation.
3. Removal in progress.
