HX A4000-E1 User manual

HX A4000-E1
QUICK START GUIGE

Table of contents
1 Precautions ………………………………………………………….. 1 - 2
2 Warning ………………………………………………………….. 2 - 3
3 Technical parameters ………………………………………………………….. 4
4 Standard package ………………………………………………………….. 5
5 Appearance and key introduction ……………………………………………… 6
6 Charging the camera ………………………………………………………….. 6 - 7
7 Storage card …………………..……………………………………… 7
8 Power ON/OFF ……………..…………………………………………… 7
9 Indicator light ………..………………………………………………… 8
10 Video recording mode ………..………………………………………………… 8
11 Still photography mode ………..………………………………………………… 8
12 Slow motion mode ………..………………………………………………… 9
13 Playback mode ………..………………………………………………… 9
14 Settings mode ………..………………………………………………… 10
15 Video settings ………..………………………………………………… 10
16 Photo settings ………..………………………………………………… 11
17 Advanced settings ………..………………………………………………… 11 - 12
18 System settings ………..………………………………………………… 12
19 WiFi and smart device use ………..………………………………………………… 12 - 13
20 USB connection modes ………..………………………………………………… 13
21 Remote control ………..………………………………………………… 14
22 Connect device to HDTV ………..………………………………………………… 14 - 15
23 Details and precautions on the use of batteries ………..………….. 15 - 16

1
Thank
Thank you you for for purchasing purchasing this this camera. camera.
Please
Please read read these these operating operating instructions instructions carefully
carefully in in order order to to use use the the camera camera correctly. correctly.
Keep
Keep the the instructions instructions in in a asafe safe place place after after reading reading so so that that you you can can refer refer to to them them later
later
Before using the camera, please carefully read the precautions to ensure a
correct and safe use of the camera, and to achieve the best performance and a
prolonged lifespan of it.



Keep the camera and lens away from direct sunshine. Otherwise, image sensor
of the camera may be damaged.
Please be careful with the camera to avoid water or sand entering the camera
while using it on sand beach or by water. Water, sand, dust or particles
containing salt may damage the camera;
Keep the camera away from contacting dust and chemical materials. It is a
must to keep the camera at a cool and dry place with good ventilation. Do
not place the camera at a place with high temperature, humidity or with
much dusts to prevent abnormal operation caused to the camera;


In case of dirt or dust accumulated on the camera or lens, clean them with a
piece of soft, clean and dry cloth. In case of sand on the camera or lens, it is to
gently blow the sands off. Do remember not to clean it with a piece of cloth.
Otherwise, surface of the camera or lens may be damaged;

To clean surface of the camera lens, it is firstly to blow off the sands on it, and
then clean it with a piece of mop or paper suitable for optical instruments. If
needed, please clean camera with cleanser. It is strictly prohibited to clean the
camera with organic solution;

Touching surface of the lens with finger is strictly prohibited;

In case of the first time of using memory card of the camera, please firstly
make a back-up of the data, and then format the memory card in a one-off
way;

External TF card is a precise electronic component. The followings may cause
loss or damage of the data:
1. Improper use of the memory card;
before using it.
.
.

2
2. Bended card, fallen cards or impact against the memory card
3. High temperature and humidity or direct sunlight;
4. Static field or electromagnetic field nearby;
5. When removing the memory card or interfering with the power
of the camera when handling the memory card with the camera or
6. Contact metal surface of the memory card with finger or metal article;
7. Beyond lifespan of the memory card (Please regularly purchase the new
memory card).
Please read and understand the safety measures here down described before
using the device.
•Please read all instructions and guidelines before starting to use the device.
•Keep this manual close at hand for future reference if needed.
•The safety and operating instructions should be applied.
•Do not use the device near water or let it come in contact with moisture.
•The device must not be exposed to dripping or splashing water, and no object
containing liquid should be placed on the device.
•Make sure that no liquid can be spilled in the device openings.
•Move the product with care, and avoid shocks.
•Do not obstruct the ventilation with items, such as newspapers, tablecloths,
curtains, etc.
•Do not install the device near a heat source (e.g. a radiator) and do not
expose it to the sun.
•Do not put any naked flame source on the device, such as lighted candles.
•To avoid static electricity, do not use the machine in a very dry atmosphere.
•Connect the device cables as shown in this manual.
•Turn off the power before inserting or removing a memory card.
•Charge the internal battery when the battery icon is empty and flashes, or if
the device powers itself off.
•Never try to open the device or modify it yourself. Maintenance and
repairs must be performed by qualified technicians.
•Use only properly recommended accessories. Use of power sources other
than those specifically recommended can cause overheating, deformation of
materials, fire, electric shock and other hazards.
Warning

3
•Do not unplug the device during a format or data transfer operation to avoid
damaging programs.
•When this device is used in USB mode, operating instructions relative to data
transfer must be strictly observed. Incorrect operations can cause data loss, in
which case the manufacturer responsibility shall not be engaged.
•Clean the camera lens regularly.
•This product contains a sealed rechargeable lithium battery, not accessible to
the user and therefore not replaceable.
Note: There is a risk of explosion if battery is incorrectly replaced: the battery
must be replaced by an equivalent type.
•If any replacement is necessary, please contact a qualified technician or the
manufacturer for service.
•Do not expose the battery to excessive heat such as sunshine, fire, a radiator
or similar sources.
•The user should not manipulate the device beyond what is described in this
manual. Otherwise, the warranty shall be void.

WiFi
4
Reference HX-A4000-E1
Sensor 8MP ULTRA HD sensor
LCD screen
2.0 Inch HD LCD screen
Resolution of photos
16MP/ 12MP/ 8MP/ 5MP/ 2MP
Format photos
JPEG
Resolution of recorded
video
4K 30 fps/ 2.7K 30 fps/ 1080P 60 fps/ 1080P 30 fps/
720P 120fps/ 1280*720 60 fps/ 1280*720
30 fps
Video format MP4
Video compression
format
H.264
Ports
Mono directional Micro USB
Micro SD (up to 64GB) = No internal memory
Micro HDMI
YES
Waterproof depth Down to 30 meters
Field of View
170°
Lens F2.2 / f=2.5mm
Zoom
X4
Slow photography 1080P 60 fps/ 720P 120 fps
Light frequency Automatic, 50 Hz, 60 Hz
PC CAM YES - Connect to PC
Battery capacity
Built-in 900Mah chargeable lithium battery
Time of video recording
About 80 minutes @ 1080P 30 fps
Time of charging up the
battery
About 2 hours
Language options
English, simplified Chinese, traditional Chinese,
Korean, Russian, French, German, Italian, Spanish,
Portuguese, Japanese etc.
OS Windows XP/ 7/ 8/ Vista & Mac 10.5 or above
Size / Weight 59 x 41 x 29 mm / 60g (with battery)
Technical parameters
RF max power
Operating frequency
range
0.63 Wh
2402-2480MHz
WiFi

5
: 900mAh li-ion battery, wrist remote, USB cable, waterproof casing,
fastening shield, base, bicycle handlebar mount, helmet mount, adaptor 1,
adaptor 2, straps.
Adaptor 1
Adaptor 1
Adaptor 1
Included
Standard package

6
1
2
3
4
5
6
7
8
Power/Mode Button
Camera Lens
LCD Display Screen
Active Indicator Light
Charging Light Indicator
UP/WiFi Button/Zoom in
DOWN Button/Zoom out
Speaker
9
10
11
12
13
14
15
Microphone
Micro SD Card Slot
Micro USB
Micro HDMI Output
WiFi Indicator Light
OK/Enter Button
Battery Compartment
- The action camera includes a rechargeable lithium-ion battery.
- Please ensure the battery is fitted inside the battery compartment and that the
cover is firmly closed.
- To charge the battery, connect the end of the charge cable to the micro USB
port on the side of the camera and the other end a USB wall charger (not
included), computer.
Appearance and key introducon
Charging the camera
15

7
Note: There is no built-in memory unit in the camera, please insert a Micro SD
into the slot before use.
Important note: Files can be transferred from this camcorder's card to a PC via
the USB port, but cannot transferred from a PC to this camcorder.
1.
Gently insert the micro SD into
the slot
2.
To remove the storage card,
gently push in the micro SD card, it
will pop-up automatically for
removal.
PLEASE NOTE: We recommend the
use of a high-speed (Class 6 or
Higher) memory card for the best
results in 1080 mode, (Class 10
memory card for best results in 4K
mode).
This Action Camera will operate with
memory cards up to a 64GB
capacity.
Press and hold the front Power/Mode button to switch the camera ON or OFF.
Storage card
Power ON/OFF

8
- When the camera is busy recording or taking photos, the red indicator light will
show.
- If you turn on the WiFi function, the top indicator will light up Yellow.
- The side indicator will also blink red while charging.
To change camera mode, tap the front POWER button to scroll between VIDEO,
STILL PHOTO, SLOW MOTION, PLAYBACK, SETTINGS.
-Use this mode to take a video.
- Press the top OK button once to start and
press once again to stop the recording.
- The time of the current recording is displayed
on the bottom centre of the screen.
- Briefly pressing the side DOWN button will
activate or deactivate showing a microphone icon on the bottom left of the
screen with a line through it if audio recording is switched off.
- Briefly pressing the side UP button activates the WiFi mode.
- Holding down the side UP or DOWN buttons will activate the digital zoom
function up to X4 zoom.
- Hold the UP button to zoom in and the DOWN button to zoom out.
- Please note that it is normal for the resolution to reduce slightly when using
digital zoom.
- Use this mode to take a still photo.
- Press the top OK button to take a photo.
- Holding down the side UP or DOWN buttons
will activate the digital zoom function up to X4
zoom.
- Hold the UP button to zoom in and the
DOWN button to zoom out.
- Please note that it is normal for the resolution to reduce slightly when using
digital zoom.
- Briefly pressing the side UP button activates the WiFi mode.
Indicator light
Video recording mode

9
-Use this mode to take a video to be played
back in slow motion.
-Press the top OK button once to start and
press once again to stop the recording.
- The time of the current recording is
displayed on the bottom centre of the
screen.
-If it is activated in the settings, the front
indicator light will also flash.
- Briefly pressing the side UP button will activate or deactivate showing a
microphone icon on the bottom left of the screen with a line through it if
audio recording is switched off,
- Holding down the side UP or DOWN buttons will activate the digital zoom
function up to X4 zoom.
- Hold the UP button to zoom in and the DOWN button to zoom out.
- Please note that it is normal for the resolution to reduce slightly when using
digital zoom.
-Use this mode to view video and photos
recorded on the camera.
- Use the side UP and DOWN buttons to
scroll through your recordings.
- Tapping the top OK button will begin
playing back video recordings.
- Holding down the top OK button will bring
up a delete option should you want to erase
a recording permanently.
Slow moon mode
Playback mode

10
-In the settings menu tap the top OK button
to access the settings.
- The front POWER button changes
between Video settings, Camera settings,
Advanced Image setting, System settings,
Menu Exit.
- Then use the side UP and DOWN buttons to
change the highlighted setting.
- Press the top OK button to select the highlighted setting of your choice. Now
use the side UP and DOWN buttons to change the individual selection and press
the top OK button to confirm.
-Video Resolution:
Options are: 4K 30fps, 2.7K 30fps, 1080P 60fps, 1080P 30fps, 720P 120fps, 720P
60fps and 720P 30fps.
-Recording Sound: On/Off
-Time Lapse Video Recording:This will record a single frame at each time period
so when played back, the video will be speeded up dramatically. This mode is
ideal for filming things which happen slowly over several minutes or even hours
for fast playback.
Options are: Off, 0.5s, 1s, 2s, 5s, 10s, 30s and 60s.
-Loop Recording: Instead of recording continuously, the recording will stop and
restart at each time cycle creating multiple individual videos automatically.
Options are: Off, 2 minutes, 3 minutes and 5 minutes.
-Slow Motion: Selects HD 720P or Full HD 1080P modes for Slow Motion
recording.
Sengs mode
Video sengs

11
-Photo Resolution:
Options are: 16MP / 12MP / 8MP / 5MP / 2MP.
-Timed: This allows a time delay between the time the shutter button is pressed
and the camera takes the photo.
Options are: Off, 3, 5, 10 and 20 seconds.
-Auto: This will continuously take a single photo when the shutter button is
pressed at the timed interval, press the OK button to stop.
Options are: Off, 3, 10, 15, 20 and 30 seconds.
-Drama shot: This will take multiple single photos in 1 second.
Options are: Off, 3, 5 and 10.
-Exposure: This controls how bright the photo imago will be. Settings are from
-3 to +3.
-White Balance: This adjusts the white colour balance for different
environmental conditions.
Options are: Auto, Sunny, Cloudy, Incandescent lighting and
Fluorescent Lighting.
-Image Rotation: This rotates the entire screen 180 degrees.
-Driving Mods: Use this mode to record multiple segments as a car
Dash Cam
-WiFi: Activates the WiFi function.
Light Source Frequency: This matches the shutter frequency to the scan
rate when filming a TV or monitor to prevent flicker.
Options are: Auto, 50Hz, 60Hz.

12

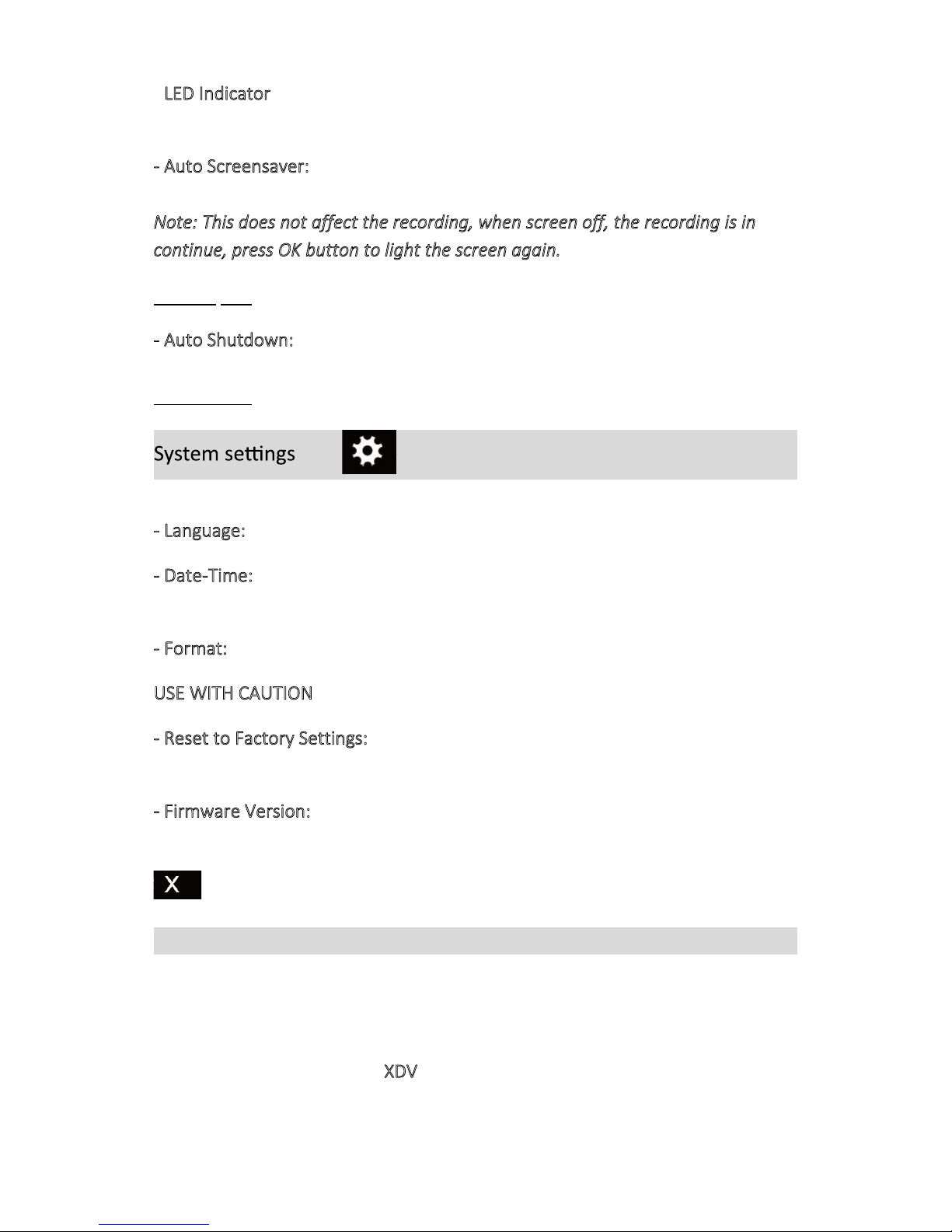

-LED Indicator: This activates the indicator light on the front of the
camera.
-Auto Screensaver: This switches off the camera screen to save
battery.
Note: This does not affect the recording, when screen off, the recording is in
continue, press OK button to light the screen again.
Options are: Off, 10, 20 and 30 seconds. The default setting is 30 seconds.
-Auto Shutdown: This switches the camera off totally after the selected
time if there is no recording or activity.
Options are: 1, 3 and 5 minutes.
- Language: This selects the on-screen language.
-Date-Time: Use this to set the current date and time on the camera.
The top button selects and side buttons change the setting.
-Format: This will erase all recordings on the memory card.
USE WITH CAUTION.
-Reset to Factory Settings: This will change all camera settings to the default
settings.
-Firmware Version: This displays the software version the camera is
using.
:This is to exit the settings menu
- The action camera can pair with a WiFi enabled devices such as a smartphone
or tablet to control the camera remotely.
- To enable this function on your smartphone/tablet, please scan below QR code
to download and install the “XDV" application from the Google Play or Apple
Store.
WiFi and smart device use

13
Activate WiFi mode on the camera by pressing the Up/WiFi button. Search for
new WiFi connections on your smartphone/tablet and connect to the device “4K
action cam".
After connecting your smartphone/tablet to the action camera, you will now be
able to view and control the camera through the "XDV” application.
QR CODE for ANDROID smart phone QR CODE for IOS smart phone
When connecting a Micro USB cable to a computer and the camera,
3 options are displayed, use the side buttons to change mode and the top
button to select.
- USB Mode: This will show the contents of the memory card on the computer.
Use your computer file manager to view or copy files.
-Charge Mode: This will only charge the camera from the computer USB port.
-PC CAM Mode: The LCD will display the lens icon. Now you can start the web
cam through application.
USB connecon modes

14
Connect the video camera to an HDTV with a HD cable (not included) as shown
in the following figure, display signals in the camera will be output into the HDTV
automatically, and you can browse HD videos and photos that are recorded or
taken in the HDTV.
Signal transmission
Diagram of connection
Remote control
Connect device to HDTV

15
Notes:
1/ Before connecting or removing the HDMI cable, please stop video recording
and disconnect WiFi first!
2/ Specifications could be subject to modifications due to upgrading. Please
regard the actual product as the standard form.
- Do not discard a used battery in nature or garbage, that pollutes and prevents
the recovery of recyclable materials.
It is important to limit consumption of batteries and follow these guidelines:
•Focus on alkaline batteries (that last longer than the saline batteries) and
when possible, rechargeable batteries deposit batteries and accumulators in
specific containers arranged among traders.
•For example, metals will pollute the environment because they contain
heavy metals hazardous to health and the environment primarily (cadmium
and nickel)
- The piles must be installed by respecting the polarity indicated on the
apparatus and the pile.
An incorrect positioning can damage the apparatus, to cause escapes on the
level of the pile, is to the extreme to cause a fire or the explosion of the pile.
- To ensure proper operation, the batteries must be in good condition. In case of
abnormality in the functioning of the device, put fresh batteries in.
- Never attempt to recharge non-rechargeable batteries. They could get ruin,
get hot, cause a fire or explosion.
- Replace all batteries at the same time. Never mix zinc batteries with alkaline
batteries or rechargeable batteries
- Also, remove the batteries from your device if you do not use it for a long time,
if the batteries may leak and cause damage.
- Never try to short-circuit the battery terminals.
- Never dispose of batteries in fire, they might explode.
- Charging of batteries is to be performed by an adult.
- Remove batteries from the device before reloading.
- We recommend an adult to supervise children when they change the
batteries so that these instructions are complied with or to make himself the
replacement of batteries.
- If a battery is swallowed, immediately consult a doctor or poison control center
nearest you. Do not forget to carry the product with you.

16
Imported by Hobbex AB, Box 927, 501 10 Borås, Sweden

Innehåll
1 Försiktighetsåtgärder ………………………………………………………….. 1
2 Varning ………………………………………………………….. 2
3 Tekniska parametrar ………………………………………………………….. 3
4………………………………………………………….. 4
55
6 Ladda kameran ………………………………………………………….. 5 - 6
7 Minneskort …………………..……………………………………… 6
8 PÅ/AV ……………..…………………………………………… 6
9 Indikatorlampa ………..………………………………………………… 7
10 Videoinspelning ………..………………………………………………… 7
11 Fotografera ………..………………………………………………… 7 - 8
12 ………..………………………………………………… 8
13 Playback ………..………………………………………………… 8
14 Inställningar ………..………………………………………………… 9
15 Videoinställningar ………..………………………………………………… 9
16 Fotoinställningar ………..………………………………………………… 10
17 Avancerade inställningar 10 - 11
18 Systeminställningar ………..………………………………………………… 11
19 Anslutning av WiFi-akverad enhet 12
20 USB anslutning ………..………………………………………………… 12
21 Fjärrkontroll ………..………………………………………………… 13
22 Anslut enheten till HDTV ………..………………………………………………… 13 - 14
23 ……....................... 14 - 15
………..…………………………………………………
………..…………………………………………………
…………………………………………………

1
Tack
Tack f fö ör ratt att du du k kö öpte pte den den h hä är rkameran. kameran.
L
Lä äs snoggrant noggrant igenom igenom anv anvä ändarhandboken ndarhandboken f fö ör ratt att du du ska ska kunna kunna anv anvä ända nda
kameran
kameran korrekt. korrekt. Spara Spara anv anvä ändarhandboken ndarhandboken f fö ör rsenare senare referenser. referenser.
F
Fö örsiktighets rsiktighetså åtg tgä ärder rder
Innan du använder kameran, läs noggrant försiktighetsåtgärderna för att säkerställa en
korrekt och säker användning av kameran och för att uppnå bästa prestanda och en längre
livslängd.

Håll kameran och kameralinsen borta från direkt solljus, annars kan bildens sensor
på kameran bli skadad.

Var försiktig med kameran för att undvika att vatten eller sand kommer in
i kameran när du använder den på sandstrand eller vid vatten. Vatten, sand,
damm eller partiklar som innehåller salt kan skada kameran.

Håll kameran borta från damm och kemiska material. Förvara kameran på ett
svalt och torrt ställe med god ventilation. Placera inte kameran på ett ställe
med hög temperatur, fuktighet eller med mycket damm för att förhindra
onormal drift.

Har kameran inte använts på länge, kontrollera att den fungerar som den ska.
Om smuts eller damm samlats på kameran eller linsen, rengör dem med en
mjuk, ren och torr trasa. Om det finns sand på kameran, torka sakta sakta
av den. För att undvika att kamerans yta blir skadad använd inget annat än
en ren, mjuk och torr trasa.
För att rengöra ytan av kameralinsen börja med att blåsa av sanden och
rengör sedan med putsduk lämpligt för optiska instrument. Rengör kameran med
rengöringsmedel om det behövs. Det är strängt förbjudet att rengöra kameran med
organisk lösning.

Att vidröra linsens yta med fingret är strängt förbjudet.

Vid första användningen av minneskort från kameran, börja med att säkerhetskopiera och
därefter kan kortet formateras.

Externt TF-kort är en elektronisk komponent.
Följande kan orsaka förlust eller skada av data:
1. Felaktig användning av minneskortet
2. Böjt kort, tappade kort eller annan påverkan på minneskortet
3. Hög temperatur, fuktighet och direkt solljus
4. Statiskt eller elektromagnetiska fält i närheten
5. Vid uttagning av minneskortet eller störning av kamerans strömförsörjning vid
hantering av minneskortet med kameran eller datorn (som betyder läsning, skrivning
eller formatering)
6. Kontakt med fingret på metallytan på minneskortet eller metallföremål
7. Livslängden på minneskortet (kan behöva köpa minneskort regelbundet)
