HYDRALOOP H300 User manual

20221031 HYDRALOOP OWNER MANUAL H300 & H600
OWNER MANUAL HYDRALOOP H300 & H600
ORIGINAL INSTRUCTIONS
Hydraloop H300 and H600 have been tested and certified under IAPMO R&T and NSF/ANSI
350.
Dear customer,
Thank you for purchasing this Hydraloop device.
Read this owner’s manual before using the device and keep it in a safe place for future
reference.
To ensure safe and proper operation, we recommend regular maintenance.
Our service and customer service organization are available for assistance.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
TABLE OF CONTENTS
1. Glossary
2. Safety
1. General safety instructions
2. Recommendations
3. Responsibility and Liability
1. Manufacturer
2. Installer
3. User
3. Introduction
4. Product details
5. Design, construction & components
6. Installation principle
7. Startup time
8. Period of 'non-activity'
9. Power outage
10. System malfunction
11. Visual and audible alarms
12. Maintenance
13. FAQs
14. Limitations
15. Hydraloop APP
16. Warranty

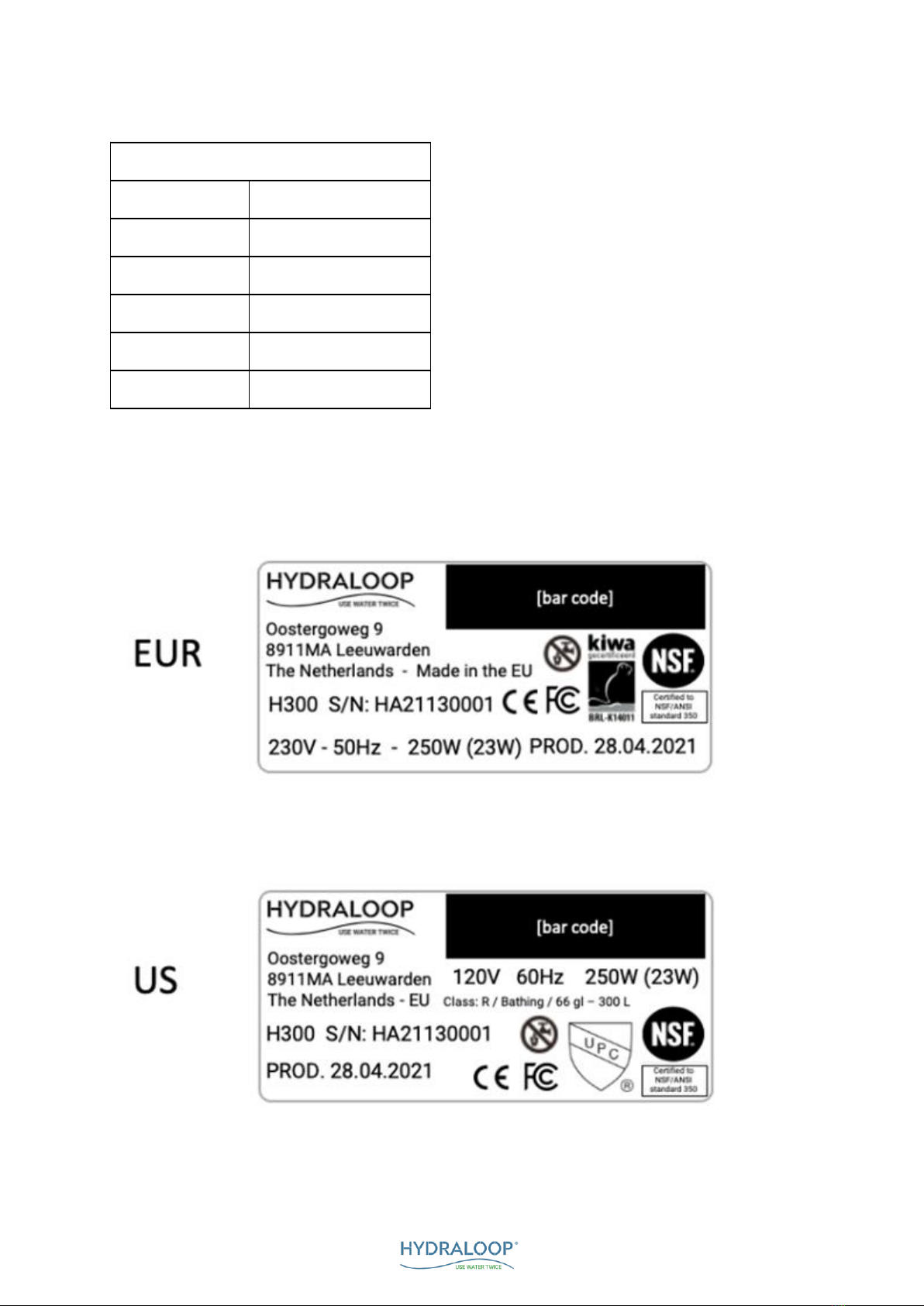

17. Specifications & Data Plate

20221031 HYDRALOOP OWNER MANUAL H300 & H600
GLOSSARY OF TERMS
Greywater: Lightly contaminated domestic water coming from the drains of bath, showers
and washing machines.
Blackwater: Contaminated wastewater containing pathogens from human waste and other
organic materials. This wastestream can come from toilets, bidets, hand showers, floor
drains, dishwashers, and kitchen sinks.
Reusable water: Greywater that has undergone various steps of treatment in order to be
reused for toilet flushing, water for the washing machine and/or outdoor uses (irrigation,
pool top-up).
Backup water: Water that is used as a main source of water in the facility. This could be
municipal water, well water, rain water etc. Another term for backup water is ‘mains water’.
Inlet diverter: This optional valve allows for the intake of greywater from sources other than
the shower/bath i.e. the washing machine. By adding this valve to the inlet of the Hydraloop
device, greywater from the washing machine can be treated for reuse.
Auxiliary Outlet: This valve allows for the distribution of reusable water to be used for the
garden, irrigation or pool top-up (depending on your region). This outlet is non-pressurized.
HDM: Hydraloop Device Manager –online monitoring system for the Hydraloop device.
Through this platform the Testing, Verification and Activation of the Hydraloop device are
conducted as well as the monitoring, maintenance, troubleshooting and ticket
generation. The HDM requires a login from your Hydraloop Sales Engineer in order to be
activated. This login is generated by the Hydraloop Sales Engineer.
Hydraloop APP: This is an APP that device owners can download on their smartphone to
monitor how their Hydraloop device is functioning, offer tips on how to save more water and
give encouragement when water savings in the home is at a high level. The APP will notify
user when the 21 day Activation date has been reached (and a minimum of 20
showers/baths) and when reusable water can begin to be distributed.
Start-up Time: The Hydraloop device requires a minimum of 21 days (3 weeks) or 20
showers to develop the biological treatment process in the T2 tanks and become fully
operational. If by 21 days of operation 20 showers has not been sensed by the device, the
start-up time will last longer than the indicated 21 days.
Ventilation: This is placed along the greywater line to prevent anti-siphoning of water out of
airlock. Ensure that the greywater input and sewage output both have proper two-way
ventilation. Ventilation for greywater input should be above all greywater lines and end
outside the building.
Recycle Ready: This is a Hydraloop guide for configuring the plumbing in the home to be
ready to receive and recycle greywater. This guide provides all the necessary information to
get any building Recycle Ready.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING
•Read this manual before installing and/or operating your Hydraloop device.
•The Hydraloop device produces NON-POTABLE water. DO NOT use the Hydraloop
device output water for potable use. Please note that the backup water outlet and
non-potable outlet are close in proximity.
•The device should only be opened or serviced by Hydraloop staff or certified
Hydraloop partner and/or installers. Risk of electric shock may occur.
•The Hydraloop device should be installed according to installation manual for safe
operation.
WARNING
•A damaged power cable should always be replaced by Hydraloop staff or certified
Hydraloop partner and/or installers.
•Always disconnect the Hydraloop device from backup water supply before servicing
or performing maintenance.
ATTENTION
•Following commissioning and/or work on the Hydraloop device, lines should always
be checked for leaks and potential cross connection.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
RECOMMENDATIONS
ATTENTION
•The Hydraloop device should only be installed indoors with an ambient temperature
between 14-35°C | 57-95°F.
•The Hydraloop device should never be exposed to sunlight.
•Reusable water should never be connected to a bidet and/or a toilet hand-shower.
•The Hydraloop device should always be accessible for service and maintenance.
ATTENTION
•The Hydraloop device should only be moved or transported in an upright, vertical
position.
•Care should be taken not to damage the exposed underside of the device.
ATTENTION
•Never direct greywater from kitchen sinks, floor drains or dishwasher to the
Hydraloop device.
•Only use greywater from shower/bath, and optionally from washing machines.
•In cases of excessive soap use, foam may form within the Hydraloop device.
RESPONSIBILITY AND LIABILITY
MANUFACTURER
Hydraloop guarantees the proper working of the device according to its general sales
conditions.
As a manufacturer, Hydraloop is not liable in the following cases:
•Failure to follow instructions for Recycle Ready preparation, installation, maintenance,
and/or operation of the device
•Inadequate or insufficient maintenance of the device
INSTALLER
The installer is responsible for the installation and activation of the Hydraloop device:
•Installation shall be according to local legislation, electrical and plumbing codes
•Installer must have obtained login details from Hydraloop Sales Engineer
•Testing and activation via the HDM and all necessary checks
•Maintain commissioning report and record of maintenance within their log
•Explanation of operation as well as the Hydraloop APP to the user/owner

20221031 HYDRALOOP OWNER MANUAL H300 & H600
USER
To ensure optimal functioning of the Hydraloop device, please observe the following:
•Owner’s manual
•The assistance of an approved, trained, and qualified installer for Preparation,
Installation, Testing, Verification, Activation, and regularly scheduled maintenance of
the device
•Regular maintenance is required in which the interval is subject to the quality of the
input water
•The operation of the Hydraloop APP
INTRODUCTION
Hydraloop Systems B.V. offers a range of patented residential greywater recycling products.
The device collects lightly contaminated greywater from shower, bath, and optionally from
washing machines, bathroom hand basins, heat pumps and/or air-conditioning systems
(depending on the model). The greywater is treated and disinfected so that it can be reused
for flushing toilets, operating the washing machine, irrigating the garden, or topping up
swimming pools. Optionally, approximately 50% of the washing machine greywater can be
treated through the inlet diverter. Prior to installation, the lines need to be prepared in the
house by isolating the waste stream of the showers/baths from the waste stream of other
water sources (such as sinks, kitchen, and toilets). The toilet fixtures and the washing
machine have dedicated lines and inlets for receiving reusable water processed by your
Hydraloop device (separated from potable water). Hydraloop H300/H600 are certified by
IAPMO R&T against NSF/ANSI 350.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
PRODUCT DETAILS
Models: H300, and H600
•A decentralized greywater recycling device for shower/bath and washing machine
greywater:
•One reusable water outlet to feed toilet flushing,
•A second reusable water outlet to feed washing machine,
•The auxiliary outlet for outdoor garden use (optional)
•In addition to treating shower/bath greywater, 50% of the laundry greywater can be
treated with the inlet diverter option.
Your Hydraloop device is not intended to treat wastewater (blackwater) from toilets, kitchen
sinks, dishwashers, or floor drains.
NOTE: Reusable water cannot be fed to bidets and/or toilet hand showers in the home.
DESIGN, CONSTRUCTION & COMPONENTS
The Hydraloop device is a turnkey greywater recycling device. It is a pre-assembled product
that includes:
•Tanks for treatment and storage of both greywater and treated reusable water.
•Booster pump to distribute the reusable water to toilets, washing machine and/or
outdoor irrigation.
The Hydraloop device requires:
•Isolated greywater inlet from shower/bath greywater and optionally washing machine
greywater via the inlet diverter option,
•One or more independent reusable water outlets depending on model and version
(auxiliary outlet),
•Connection to backup water supply,
•Connection to sewer,
•Connection to electrical power,
•Connection to permanent Wi-Fi.
INSTALLATION PRINCIPLE
The Installation, Verification and Activation of the Hydraloop device should only be carried
out by approved installers who have prearranged for their HDM login. This has been
completed by your authorized installer and a Hydraloop Sales Engineer.
The drawing below is a reference to the piping configuration that has been completed by
your plumber/installer via the Recycle Ready Guide.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
IMPORTANT:
As a source, you can use shower and bath greywater, and optionally greywater from washing
machines, heat pumps and air conditioning units (depending on the model). Greywater from
kitchen sinks, floor drains and dishwashers may not be connected. Washbasin greywater can
be connected to the H600 device.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
STARTUP TIME
Following Verification, the Hydraloop device requires a minimum of 21 days (3 weeks) and
20 showers to develop the biological treatment process in the T2 tanks and become fully
operational. The greywater treatment will start from the initial start-up; however, this reusable
water will be purged into the sewer and the backup water will be supplied instead. After this
start-up period of 21 days (3 weeks) and 20 showers, the Hydraloop device will automatically
switch over to deliver reusable water to the toilets, washing machine and/or auxiliary outlet
(outdoor irrigation).
PERIOD OF 'NON-ACTIVITY'
Your Hydraloop device works completely automatically, adopting to the water use in the
house/facility. It is advised to always keep your device switched on, even if there is no water
use for an extended period (up to one month). If the Hydraloop device does not detect any
incoming or outgoing greywater for a period of 72 hours, it will assume that there is no
occupancy, and the purge valve will activate to empty the lower storage tank until 15 L |3.5
gallons is remaining. The two treatment tanks will keep the minimum volume of greywater in
standby mode and will continue to aerate this water in intervals, leaving the treatment
system on standby for the next incoming volume. If the inactive period is longer than 1
month the device will purge the upper tank and will go into ‘deep’ standby mode. Once
incoming greywater enters the device it will ‘wake-up’ and begin functioning automatically.
However, after a ‘deep’ standby mode the treatment process needs to be reactivated again,
just like at the initial startup at the installation. This reactivation begins automatically.
POWER OUTAGE
If there is a power outage, the Hydraloop device will not supply reusable water to the toilets
and washing machine until power is restored. However, the Electronic Control Unit (ECU) will
continue to function via backup batteries. If power is restored within one (1) hour, the device
will automatically begin operating normally. Stored reusable water or backup water will be
available immediately. If power is not restored within the hour, reusable water in the storage
tank and all greywater in the upper processor treatment tank will be purged to the sewer
using the backup battery power. Once power is restored, the Hydraloop device will
automatically be operational again, supplying backup water until reusable water is available.
If power outages occur often in your area you could opt to install a low-cost Uninterrupted
Power Supply (UPS) to maintain power to the device.
SYSTEM MALFUNCTION
Your Hydraloop device is very reliable, with all critical components being monitored
continuously by the Hydraloop server through your Wi-Fi internet connection. In the unlikely
event a component fails - for example the UV lamp - the Hydraloop system will automatically
switch to backup water with no reusable water being distributed as a precaution.
Note: Hydraloop Systems BV is not liable for any damage if the above or any other abnormal
substances enters the Hydraloop device causing the system and/or the washing machine
damage.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
EXPLANATION VISUAL ALARM LIGHT AND AUDIBLE ALARM
Visual Alarm Notifications:
Blue light: A blue light on the LED panel indicates that there is currently no reusable water
available and backup water is being used for all functions.
Blue white alternate light: A blue and white alternating light on the LED panel indicates that
there is reusable water in storage tank (T3), but not enough for a full washing machine cycle.
White light: A white light on the LED panel indicates that there is a sufficient volume of
reusable water for all uses.
Green light: A green light on the LED panel indicates that the first collection tank (T1) or
storage tank (T3) is directing greywater directly to drain (waste). You now know that the
device is in automatic cleaning mode.
Purple light: A purple light on the LED panel indicates that the Hydraloop device is detecting
that the washing machine is in operation.
Orange light: An orange light on the LED panel indicates that there is an issue with the
Hydraloop device, and the greywater is not being treated. Action needs to be taken.
Red light: A red light on the LED panel indicates that there is an issue with the Hydraloop
device, and no water can be distributed to the toilets and washing machine. Immediately
contact your installer or Sales Engineer to begin the troubleshooting process.
Audible Alarm Notifications:
High water level warning: Buzzer alarm 2 beeps every minute, visual alarm 2 pulses every
minute
Air pump failure: Buzzer alarm 3 beeps every minute, visual alarm 3 pulses every minute
UV lamp failure: Buzzer alarm 4 beeps every minute, visual alarm 4 pulses every minute
Water storage tank re-disinfection circulation failure: Buzzer alarm 5 beeps every minute,
visual alarm 5 pulses every minute
Water distribution pump failure: Buzzer alarm 6 beeps every minute, visual alarm 6 pulses
every minute
If you need assistance, call your Hydraloop Partner, your installer or contact Hydraloop Sales
Engineer via [e-mail].

20221031 HYDRALOOP OWNER MANUAL H300 & H600
MAINTENANCE
We recommend maintenance be performed on the device once per year. The device should
only be opened or serviced by Hydraloop staff or certified Hydraloop partner and/or
installers.
This check contains the following elements:
•Descaling of Hydraloop device with a citric acid solution.
•Remove, clean, and descale the air diffuser.
•Replace the rubber membranes of the air pump every three years (according to the
manual of the air pump supplier).
•Replace the UV light bulb every two years by unscrewing the lid on the UV-C lamp
housing.
•Collect effluent samples using the water valve that is connected to the washing
machine.
In regions with very high levels of water hardness more frequent descaling of the water tanks
may be necessary. Please check water hardness during installation.
FAQs
Please see the following page: Frequently Asked Questions
LIMITATIONS
The maximum water temperature Hydraloop can process is 140°F |60°C. Water with
temperatures higher than 140°F |60°C can damage the device.
Hair dye entering the Hydraloop device is not allowed. Doing so may damage the functioning
of Hydraloop device’ s biological treatment system as well as its seals. If this happens by
accident, you will need to change the settings on your APP to have backup water feeding the
outlets of your device. Please contact your installer. Hydraloop Systems B.V. is not
responsible for damage caused by products such as hair dye, paints, or bleach to your
laundry.
It is imperative that human waste going NOT go down the drain of your shower or bath. An
infrequent or rare accident will not cause problems with the device; however, this may only
happen incidentally, not frequently.
Cleaning the shower and bath with aggressive cleaning products containing bleach is not
permitted. Doing so may damage the functioning of the device’ s biological treatment system
and affect its seals. If these products are introduced, you will need to set the device to
backup water using the smartphone APP. You then should contact your installer. We
recommend using environmentally friendly cleaning products. If using more regular cleaning
products, please check they do not contain bleach.
The operating temperature of the Hydraloop device is between a minimum temperature of
57°F | 14°C and a maximum temperature of 95°F | 35°C. The Hydraloop device must be
protected from direct sunlight.
We are here to help! Please don’t hesitate to contact us with your questions and send your
e-mail to [e-mail].

20221031 HYDRALOOP OWNER MANUAL H300 & H600
HYDRALOOP APP
The Hydraloop APP is a free APP that device owners can download on their smartphone to
monitor how their Hydraloop device is functioning, gather tips on how to save potable water
use and receive encouragement when water savings in the home/facility is at a high level.
Once the APP has been downloaded on your smartphone open it up to find the Dashboard
page. Here you will be able to enter your Hydraloop device serial number, model number and
version number as well as personal information about your device and its location. Your WiFi
details can then be inputted into the APP.
What can I do with the Hydraloop APP?
1. The APP is a tool where you can see your device status at all times.
The following status indicators will give indication of what your device is doing:
1. White light: Your device is distributing reusable water.
2. Blue light: Your device is distributing backup water.
3. Purple light: Your washing machine is active.
4. Green light: A self-cleaning process is now engaged.
5. Blue & White alternating light: There is reusable water in T3 tank but not
enough for a complete washing machine cycle.
2. The APP allows you, the user, to determine the priority of your reusable water use. On
the Settings page you have the option of chosing the priority for the reusable water
for either the toilet, washing machine or to the auxiliary outlet (outdoor irrigation).
3. The APP will indicate warning signals based on how the device is performing:
1. White light: None
2. Orange light: High water level warning
3. Orange light: Air pump failure
4. Orange light: UV lamp failure
5. Orange light: Re-disinfection circulation failure in the reusable water storage
tank
6. Red light: Water distribution pump failure
4. There is a Statistics page that you can look at giving you a ‘Water Recycled’
graph. This will show you how your water savings per month, week or day depending
on how closely you want to monitor your water savings.
5. Within the Settings page you can find an option called ‘Self Service’ which can be a
useful tool for you the user. There may be times where bleach or hair dye is
accidentally introduced to the greywater from the bath or shower. In these cases you
can simply have your device direct your greywater to sewer to ensure that your device
continues to operate effectively.
6. By activating the Information page you, the user, have access to all documentation
available on the Hydraloop website. This page will offer weblinks to frequently asked
questions, troubleshooting manuals, installation manuals and direct contact to our
service team.
WARRANTY
For warranty details, please check your Warranty Certificate. Ensure that all your personal
details have been entered into your Hydraloop APP.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
SPECIFICATIONS AND DATA PLATE
H300
Capacity
300 liters | 80 gallons
Dimensions
Height –189 cm| 74”
Width –35 cm| 14”
Length - 82 cm | 32”
Weight –92 kg | 203 lbs. (dry)
Voltage
Versions for 100-120V (60Hz)
or 200-240V (50 Hz), 24 Volt internal
Power consumption
On average: 180 kWh| yr. per system
Noise level
± 44 dB
Greywater input sources
- shower
- bath
- washing machine (inlet diverter)
H600
Capacity
600 liters | 160 gallons
Dimensions
Height –189 cm | 74”
Width –70 cm | 27.5”
Length –82 cm| 32”
Weight –175 kg |386 lbs. (dry)
Voltage
Versions for 100-120V (60Hz)
or 200-240V (50 Hz), 24 Volt internal
Power consumption
On average: 650 kWh|yr. per system
Noise level
± 44 dB
Greywater input sources
- shower
- bath
- tumble dryer
- air conditioning
- heat pump
- washing machine (inlet diverter)

20221031 HYDRALOOP OWNER MANUAL H300 & H600
AVERAGE REUSABLE WATER QUALITY
NSF 350 Effluent Parameters
CBOD5
10 ppm (mg/L) - AVG
TSS
10 ppm (mg/L) -AVG
Turbidity
5 NTU - AVG
E. coli
14 MPN/100 mL
pH
6-9
Noise level
= + 44 dB
DATA PLATE / SERVICE LABEL
The Hydraloop device has a permanent data plate attached on the top of the device that
should look like the example below.

20221031 HYDRALOOP OWNER MANUAL H300 & H600
•This document and its contents are the sole property of Hydraloop Systems B.V. and
must not be copied to a third party either in part or whole without prior written
consent of Hydraloop Systems B.V.
•Hydraloop reserves the right to change the specifications stated in this document.
•Hydraloop products are protected by patents and patents pending. The Hydraloop
brand name is a registered trademark.
Hydraloop Systems B.V.
Wetsus Building, Water Campus
Oostergoweg 9
8911 MA Leeuwarden
The Netherlands
[phone]
Hydraloop Inc.
Global Water Center,
247 W. Freshwater Way, Suite 210
Milwaukee, WI 53202
United States of America
[phone]
Hydraloop MENA LLC
Business Centre 1
M Floor, The Meydan Hotel
Nad Al Sheba, Dubai
U.A.E.
[phone]
E-Mail: supp[email protected]
Website: www.hydraloop.com
