Hypro ARAG Series 466 Instructions for use

ARAG®Series 466 Console
Operating Instructions and Parts Manual
Form 1481
7-03
Description
All part numbers include: power cables, 10' extension
cable,16.5' boom section output cables, pressure gauge,
connection hose and fittings.
Part Number Sections Gauge
4665-3-OP100-3 3 100 psi
4665-3-OP300-3 3300 psi
4665-5-OP100-5 5 100 psi
4665-5-OP300-5 5 300 psi

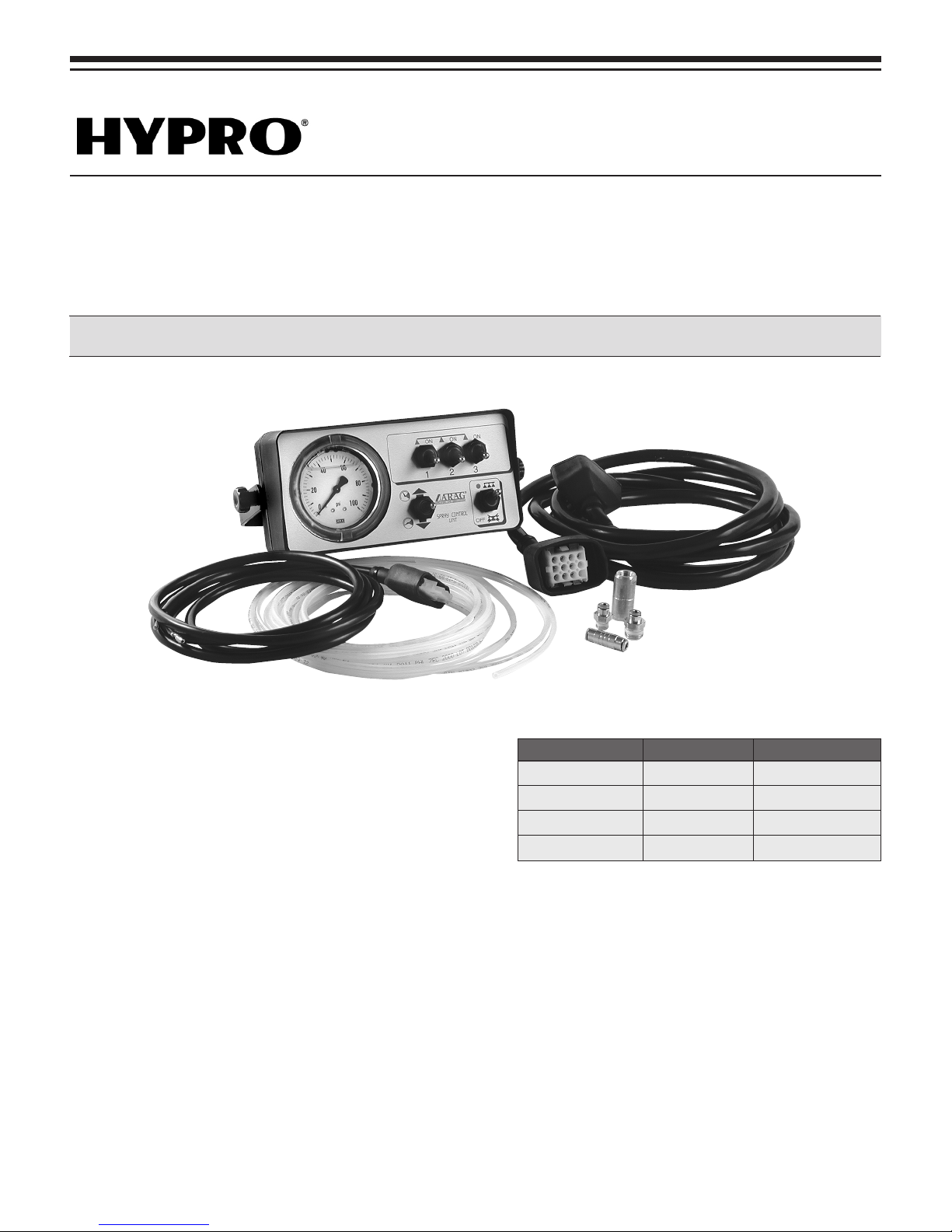

Series 466 Console
These sprayer consoles allow the operator to
monitor and control boom pressure and control each
boom section. These controls can be easily mounted in
the sprayer and tractor cabs. Control valves are kept on
the sprayer frame.
Features:
• Sealed switches
• High brightness LED indicators
• Master valve and pressure regulating switches
• General protection fuse, automotive type
• Switches tested to last more than 100,000 cycles
• 12 VDC operation
• Liquid-filled pressure gauge, 2.5" diameter with rear connection

-2-
Warning!
Read the instructions in this manual carefully. Hypro/ARAG cannot be held responsible for damage caused by
improper use or installation.
PRECAUTIONS:
1. Never spray the console with a pressure washer.
2. Never use solvents for cleaning.
3. In case of electric welding, make sure that the power supply to the console is disconnected. If necessary,
disconnect the battery cables.
4. Use only original Hypro/ARAG replacement parts.
This equipment is for installations on agricultural spraying machines.
This product is manufactured in accordance to:
-E. U. norm 89/336/CEE dated 03/05/1989 and to its subsequent modifications
- EN ISO 14982 (electro-magnetical compatibility - agricultural and forest machinery).
These consoles work best with Arag electric valves
and use 2-wire reversing polarity circuits.
Console
1. Install the console (Ref. A in Fig. 3) close to the operator, in a clearly visible but protected position, using the
bracket provided.
2. Choose the best position, taking care that the controls are easy to operate and that the device does not limit the
driver's visibility.
3. Connect the extension cable (Ref. C in Fig. 6) to the console. Connect the other end to the end cable (Ref. D in
Fig. 6), and bring the end cable to the point where the control unit is to be installed.
4. Route the wiring so that it cannot come into contact with moving parts.
Connecting the Valves
Fit the gaskets on the connectors which connect the valves to the end cable (Ref. D, Fig. 6). Secure the connectors
to the valves, following the codes provided in the diagrams in Fig. 6 and as appropriate to the type of console.
P-Proportional valve
G - General of main ON/OFF (not used in our application)
1-Boom valve 1 2 - Boom valve 2
3-Boom valve 3 4 - Boom valve 4*
5-Boom valve 5*
*Boom valves 4 and 5 are only used when using a 5-boom console.
Power Supply Cable
5. Supply power to the console by means of the ignition key, using the power supply cable provided
(Ref. B, Fig. 6).
6. Connect the two-pin outlet connector to an ignition circuit capable of providing a continuous load of 10A. Make the
connections shown in Fig. 1. If a 10A protected circuit is not available, insert relay as shown in Fig. 2.
7. Protect the line with a 10A fuse (Fig. 1 and 2).
8. Use cables with wire gauge of at least 15 gauge or larger.
Technical and Operating Specifications
Description Value
Power supply voltage 12 Vdc ±10%
Operating temperature 0° - 70°C
Fuse 10A
Possible Applications
Installation

-3-
To avoid the risk of short circuits, do not connect the power supply cable until the installation has been completed.
WARNING: Make sure that the voltage of the tractor battery is the same as that of the
switch box (12Vdc).
Installation Continued
Fig. 1
Fig. 3
Fig. 2

-4-
Instructions for Wiring 466 Series Consoles to Non-Hypro/Arag Valves
WARNING: Non-Hypro/Arag valves typically draw more amps. Do not exceed a total amp draw capability of 10 amps.
WARNING: Modifying cable harnesses will void the warranty.
Three-wire boom section valves (motorized ball valves)
1. See Fig. 4 for wiring schematic.
2. Use standard flat spade connectors to insert into DIN connector.
3. Secure and seal with electrical tape.
Fig. 4
Three-wire boom section valves (motorized ball valves)

-5-
Instructions for Wiring 466 Series Consoles to Non-Hypro/Arag Valves
Two-wire solenoid valves
1. See Fig. 5 for wiring schematic.
2. Use standard flat spade connectors to insert into DIN connector.
3. Secure and seal with electrical tape.
Two-wire regulating valves
1. Use the 466 series console controls regulating valves byreversing polarity.
2. Use cable marked “P.”
3. Use standard flat spade connectors to insert into the DIN connector.
4. Use positions 1 and 2.
5. If the direction of the valve is wrong, switch positions of the spade connectors in the DIN connector.
6. Secure and seal with electrical tape.
Fig. 5
Two-wire solenoid valves

-6-
Operation
Pressure Adjust Switch: Acts on the regulator valve to increase (lever up) or decrease
(lever down) the pressure in the system.
Master Switch: Single switch override for boom section switches.
Switch 1-5: Opens (lever up) and closes (lever down) the relative section valve.
Troubleshooting
PROBLEM
1. The LEDs illuminate, but it is not
possible to operate the valves.
2. The LEDs are off and the valves are
not working.
3. The switches are on OFF, but the
valves are open.
4. The pressure regulating valve
works in the opposite direction.
CAUSE
Connectors not connected.
Fuse blown.
No power supply.
Power supply cable
reversed.
Polarity of “P” cable
reversed.
REMEDY
Be sure connectors are attached
properly with gasket and screw
securely fastened.
Checkthe fuse. Replace as
necessary with 10A fuse only.
Check the power supply through
cable B in Fig. 6.
Checkthe polarity of the power
supply cable.
Check the polarity of the power
supply cable B in Fig. 6. For non-
Hypro/ARAG valves, reverse the
spades in the DIN connector.

Parts Breakdown
Part Number 466550-080 466530-090 466550-090 466530-230 466550-230
Number of Sections N/A 3 5 3 5
Description power cable extension cable extension cable boom section cable boom section cable
Meters 1 3 3 5 5
Feet 410 10 16.5 16.5
SPARE PARTS
COMPLETION
CABLES
COMPLETE CONSOLE ONL
Y
Part Number 46625CPV02-910
Fig. 6
-7-
B
A
C C D D
