Hyundai HBA20V2A User manual

EN
1
20V2Ah / 4Ah LITHIUMIONBATTERY
HBA20V2A
HBA20V4A

EN
2
1. SAFETY INFORMATION
WARNING! Read all safety warnings and all instructions.Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create
a risk of injury and fire.
c) When battery pack is not in use, keep it
away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects
that can make a connection from one terminal to another. Shorting the battery terminals together may cause
burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact.If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
SPECIFIC SAFETY INSTRUCTIONS
Theproductisnotintendedforusebypersons(including
children) with reduced physical, sensory or mental
capabilities,orlackofexperienceandknowledge,unless
they have been given supervision or instruction concerning
useoftheproductbyapersonresponsiblefortheirsafety.
Childrenshouldbesupervised to ensurethattheydo not
play with theproduct.
Pleasereadandobservetheseinstructionsbeforeusingthe
product.
The battery pack for this tool has been shipped in a low
chargecondition.Youshouldchargethebatterypackfully
beforeuse.
Do not incinerate the battery pack even if it is seriously
damaged or can no longer hold a charge.
The battery pack can explode in a fire.
Batteries can explode in the presence of a source of
ignition,suchasa pilotlight.To reduce theriskofserious
personal injury, never use any cordless product in the
presence of open flame. An exploded battery can propel
debris and chemicals. If exposed, flush with water
immediately.
Donot crush, drop or damagebatterypack.Donot use a
batterypackorchargerthathasbeen droppedorreceiveda
sharp blow. A damaged battery is subject to explosion.
Properly dispose of a dropped or damaged battery
immediately.
Donot crush,drop or damage battery pack. Do not usea
batterypackorchargerthathas been droppedorreceiveda
sharp blow. A damaged battery is subject to explosion.
Properly dispose of a dropped or damaged battery
immediately.
Asmallleakageofliquidfromthebatterypackmayoccur
under extreme usage or temperature conditions. This does
not necessarily indicate a failure of the battery pack.
However,iftheoutersealisbrokenandthisleakagecomes
into contact with your skinwash theaffected area quickly
withsoapandwater.Iftheleakagegetsinyoureyesflush
your eyes with clean water for a minimum of 10minutes
andseekimmediatemedicalattention.
Informthemedicalstaffthattheliquidisa25-35%solution
of potassiumhydroxide.
Never attempt to open the battery pack for any reason. If
the plastic housing of the battery pack breaks open or
cracks,immediatelydiscontinueitsuseanddonotrecharge
it.
Do not store or carry a spare battery pack in a pocket or
toolboxoranyotherplacewhereitmaycomeintocontact
with metal objects. The battery pack may be short- circuited
causingdamagetothebatterypack,burnsorafire.
Do not charge battery tool in a damp or wet location.
Following this rule will reduce the risk of electric shock.
Forbestresults,changethe batterytoolinalocationwherethetemperatureismorethan10°Cbutlessthan37°C,to
reducetherisk of seriouspersonalinjury,donotstoreoutsideorinvehicles.

EN
3
RE-CHARGEABLE BATTERIES
⚫ Batteriesmayleakorexplodeifnotchargedorhandledcorrectly.Alwaysobservethefollowingprecautionswhen
handing batteries.
⚫ Ensurethatthemachineisswitchedoff beforeremoving orfittingbatteries.
⚫ Donotusethis batterywith anyother product.
⚫ Donotattemptto fit the battery the wrong wayround.
⚫ Donotshortout,orattempttodismantlethebattery.
⚫ Donotexposethebatterytoflamesorexcessiveheat.
⚫ Donotimmersein or expose the battery to water.
⚫ Donotstoreortransportthebatterywith loose metalobjectssuchasdrilland drivebits.
⚫ Batteriesarepointstoleakagewhendischarged.Toavoiddamagetotheproduct,removeorre-chargethebattery
whennochargeremains.Storethebatteryinacoolplacewhennotin use.
⚫ Afterprolongedusethebatterymaybecomehot.Beforeremovingthebattery,switchthemachineoffandallowthe
batterytocooldown.Donotusethebatteryifyounoticeanydiscolorationordistortionofthebatterycasing.
2. Intended Use
The Li-Ion battery specially design to work with Hyundai range of cordless power tools as below.
HTHP20V
20V LITHIUM EXTENDED HEDGE TRIMMER
HELP20V
18V LITHIUM POLE SAW
HTH20V
20V LITHIUM HEDGE TRIMMER
HCB20V
20V LITHIUM GRASS TRIMMER
HSC20V
20V LITHIUM CIRCULAR SAW
HSS20V26
20V LITHIUM RECIP SAW
HSS20V
20V LITHIUM JIGSAW
HMT20V
20V LITHIUM MULTI TOOL
HM20V
20V LITHIUM ANGLE GRINDER
HBC20V38
20V LITHIUM IMPACT WRENCH
HVC20V
20V LITHIUM IMPACT DRIVER
HPP20V
20V LITHIUM CORDLESS IMPACT DRILL
HPV20V
20V LITHIUM CORDLESS DRILL

EN
4

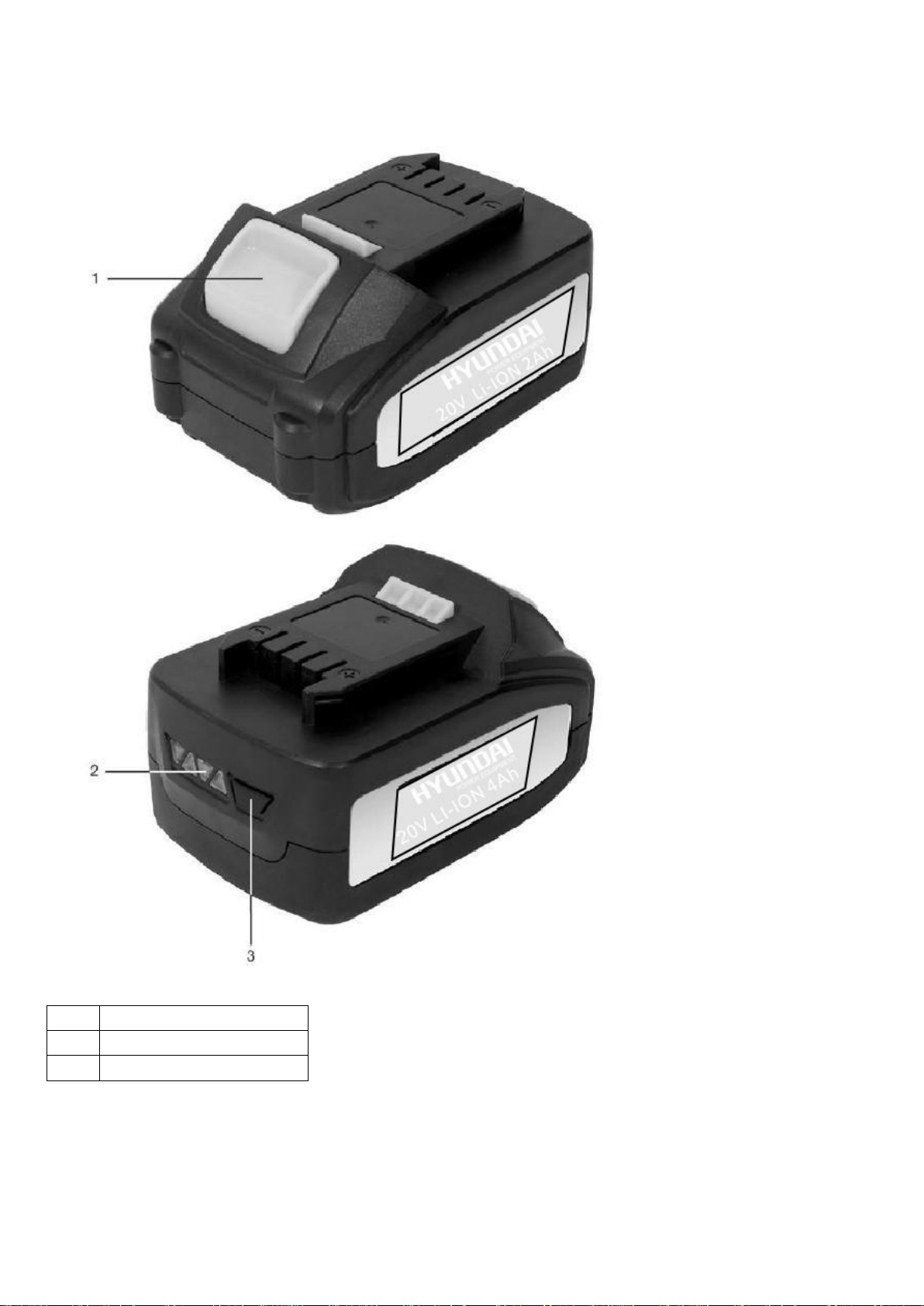

3. COMPONENTS ( FIG.1)
1
Battery release catch
2
Charge level indictor
3
Charge level indictor botton

EN
5
Battery pack
4. OPERATION
4.1. Charging the batterypack
HBA20V2A
HCH20V
HBA20V4A
Warning ! Only charge in compatible 20V chargers. Use of other chargers may result in fire, damage or serious personal
injury.
Thebatterypackforthistoolhasbeenshippedinalow
chargeconditiontopreventpossibleproblems.Therefore,
youshouldchargeituntilthegreenLEDonthefrontright
handsideofthechargercomeson.
Note:Batterieswillnotreachfullchargethefirsttimethey
are charged. Allow several cycles (operation followed by
recharging)forthemtobecomefullycharged.
Firstreadthesafetyinstructionsthenfollowthecharging
instructions.
Plugthechargerintoastandard230V,50Hzmainssocket
outlet,thegreenLEDonthefrontlefthandsideofthe
chargerwill illuminatetoindicate.
Donotallowthecabletobecomeknottedorkinked.
Placethebatterypackintothechargerbase.
(Notethebatteryhasraisedribswhichallowsittofitinto
thechargeronlyoneway).Timethechargefor60/130
minutes only.
2.0 Ah-battery, charge for 60 minutes.
4.0 Ah-battery, charge for 130 minutes.
TheredLEDonthefrontrighthandsideofthechargerwill
illuminatetoindicatechargingisinprogress.AgreenLED
willilluminatewhenthebatteryisfullycharged.
Unplugthechargerwhennotinuseandstoreitina
suitable storagecabinet.
Avoidchargingyourbatteryinfreezingconditionsas
chargingpowerwillnot besufficient.
Whenchargingmorethanonebatterypackinsuccession
allowatleast30minutesforthechargertocooldown
beforecharginganadditional battery.
Alwaysremovethebatterypackandstoreitsafelywhen
the tool isnot in use.
Caution:Ifatanypointduringthechargingprocessnoneof
theLEDsarelit,removethebatterypackfromthecharger
toavoiddamagingtheproduct.DONOTinsertanother
battery.
Charger (Not included)

EN
6
4.2. CHARGE STATUS (Fig.1)
To display the amount of charge left in the battery, press the charge level indicator button (3),
Charge level indicator
Amount of charge remaining
0-10%
10-25%
25-50%
50-75*
5. MAINTENANCE AND STORAGE
MAINTENANCE
Thebatterieshavebeendesignedtoprovidemaximumtrouble-freelife.However,likeallbatteries,theywilleventually
wear out. DO NOT disassemble battery pack and attempt to replace the batteries. Handling of these batteries, especially
whenwearing rings andjewellery,could result inseriousburns.
Toobtainthelongestpossiblebatterylife,removethebatterypackfromthechargeronceitisfullychargedandreadyfor
use.
STORAGE
Store the battery pack where the temperature is below 27°C.
Store battery packs in a "charged" condition (minimum of 30%-50% charged).
Tochargethebatterypackafterasixmonthsstorageperiod,itisrecommendedtodischargethebatteryabout^0%-20%
(byrunning itina tool)andchargeafterwardstomaximizethebatterylifetime.
6. SPECIFICATIONS TECHNIQUES
Model
HBA20V2A
HBA20V4A
Voltage
20V DC
20V DC
Capacity
2.0Ah
4.0Ah
Charge time
60 minutes
130 minutes
Cell type
Lithium-ion
Lithium-ion
75-100%

EN
7

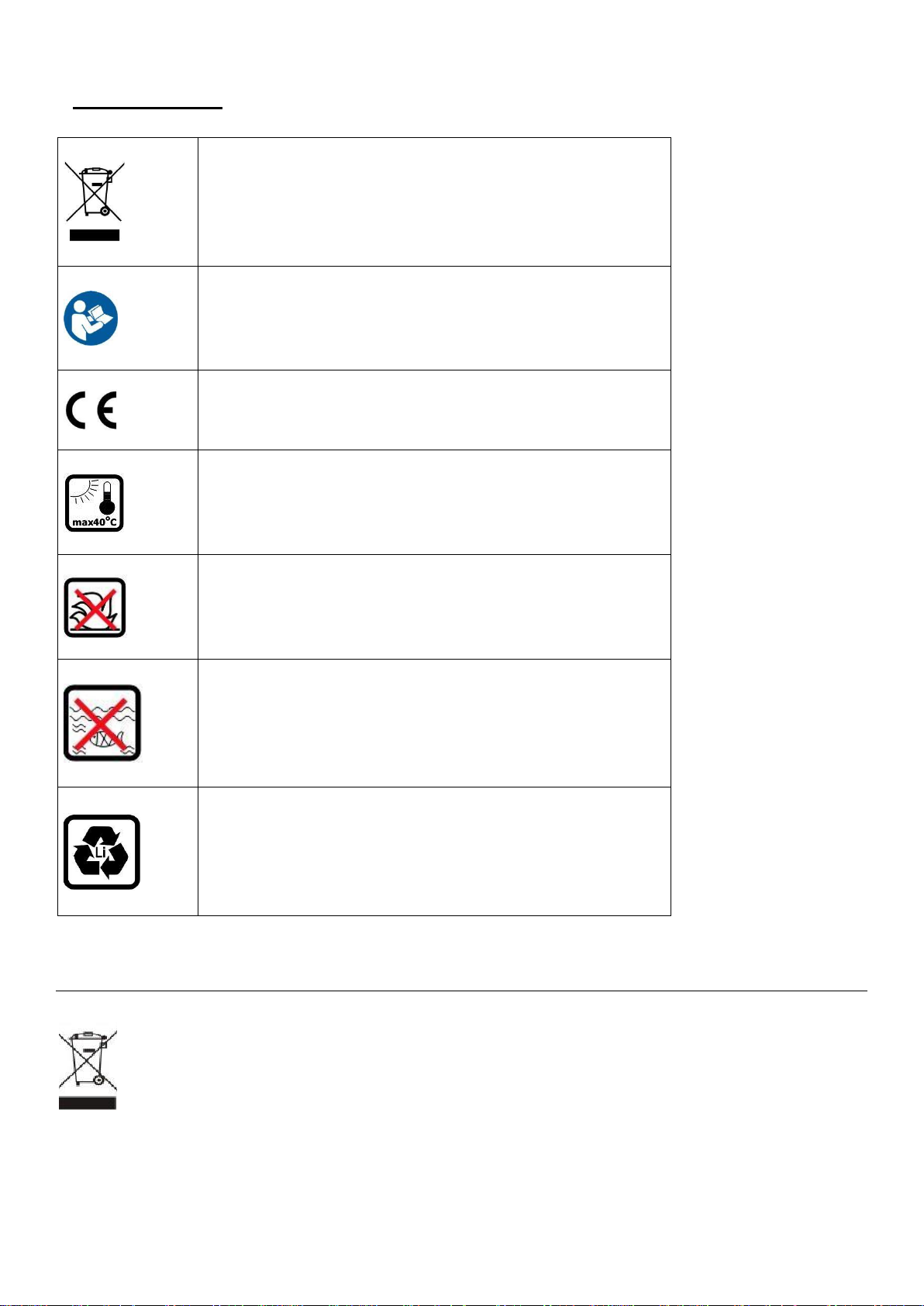

7. Symbols explication
Do not dispose of old appliances with domestic rubbish .
To reduce the risk of injury, the user must read and understand
this manual before using this product.
Conforms to relevant safety standards
Do not expose batteries to temperatures exceeding 40 degrees.
Do not dispose of batteries in fire. They could explode and cause
injury
Do not dispose of batteries in water.
Recycling
8 DISPOSAL
Electricpowertools,aswellastheiraccessoriesandpackaging,musteachbeabletofollowanappropriate
recycling pathway. Only forthe countriesof the EuropeanUnion:
Do not throw away your electrical appliance with the household waste! In accordance with the European
Directive2012/19/EUonwasteelectricalandelectronicequipmentanditsimplementationinnationallaws,
powertoolsthatcannolongerbeusedmustbeseparatedandfollowanappropriaterecyclingpathway.
