Iceco VL45S User manual

Please email us at: offi[e-mail]
VL45S

Catalogue
1 1
-----------------------
What's Inside
2 2
---------------------------
Operation
3 6
--------------
Care And Maintenance
4 7
- - - - - - - - - - - -
Error Codes & Solutions
5 9
- - - - - - - - - - -
Warranty & Return Policy
6 10
- - - - - - - - - - -
Troubleshooting (Q & A)
7 15
- - - - - - - - - - - - - - - -
Safety Instructions

What's Inside
Refrigerator x1 Wired Basket x2
6 Feet 110V AC Wall
Outlet Cable x1
8 Feet 12/24V
DC Cigarette
Lighter Plug Cable x1
01
1
MODEL VL45S
External dimensions
(LxWxH)
Net weight
Supply voltage
Temperature setting
Insulation
Shell material
23.0 kg (50.7 lbs)
DC 12/24V & AC 110-120V & 50/60 Hz
C-pentane
Metal cabinet
696×401×488 mm
( 27.4x15.8x19.3 inch)
-18°C to + 10°C (0°F to 50°F)
Storage volume 45 liters (47 quarts)

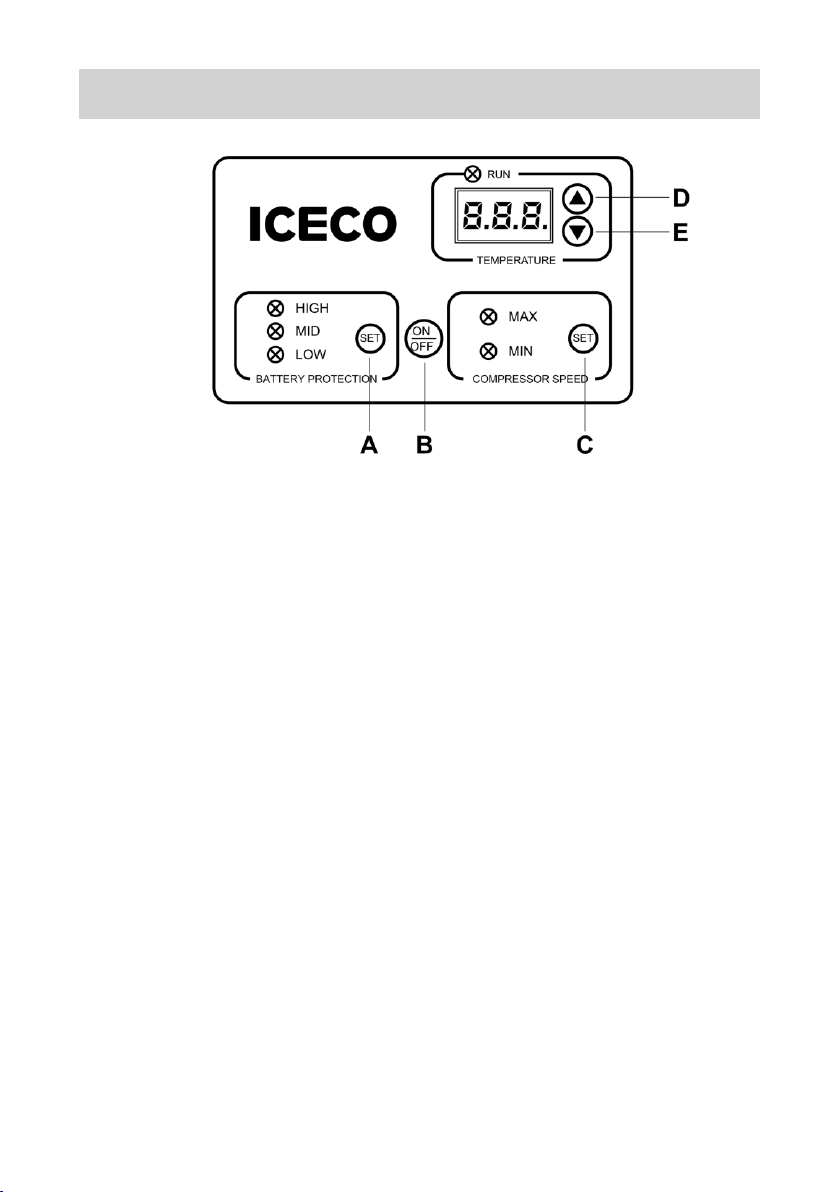

Operation
2
ABattery Protection Setting
(DC only)
BPower (Press & Hold to turn on/off)
CCompressor Speed
(MAX / MIN Mode)
DTemp. Setting UP
ETemp. Setting DOWN
02

2.1 MAX & MIN Mode
After the fridge turned on (Press & Hold B /
Power Button), you can press the SET Button C
to switch between MAXIMUM or MINIMUM
compressor speed for the fridge.
03
2.2 Switch Between °C to °F
After the fridge turned on, press and hold Botton
C & E to switch between Celsius & Fahrenheit.

04
After the fridge turned on, the fridge's
CURRENT interior temperature reading will
appear on the display, as a solid / non-flashing
number.
To change the fridge's set temperature: Use
Temperature Up(D) or Temperature Down(E)
Buttons to change the fridge's set temperature.
The SET temperature will appear as a
FLASHING number, and after the temperature
is SET, the display will return to showing the
fridge's CURRENT interior temperature.
2.3 Setting Temperature

05
2.4 Triple Battery Protection Operation
After the fridge turned on, Press A / SET Botton
to adjust the fridge's low battery protection level
pre-sets.
NOTICE: Details of Battery Protection
Mode could be found in Page 12.

06
Care And Maintenance
3
Please use a wet cloth and warm water mixed
with gentle non-abrasive detergents to clean
the interior and exterior of your fridge.
Please power off and unplug the unit before
cleaning
Please use non-abrasive detergent to cleaning
the interior/exterior of the fridge
Please don't scrap the interior of the fridge to
defrost/de-ice the fridge
Please don't pressure-wash/spray the fridge
with a running water hose
3.1 Cleaning
3.2 DOs and DON'Ts

07
Error Codes & Solutions
4
The DC voltage is below the protection
settings and the battery protection
mode is activated.
E1
Code Description
The cooling fan is over-loaded with
more than 1A of current.
E2
Motor start error
The motor of compressor is blocked or
the pressure difference in the
refrigeration system is too high.
E3
Minimum motor speed error
The compressor is over-loaded, and the
motor cannot maintain its minimum
speed of 1850 rpms.
E4
Thermal cut-out of electronic unit
Thermal cut-out error. If the refrigeration
system overloads, or the ambient
temperature is too high, the thermal
sensor is overheated.
E5
NTC failure (open circuit)
LL
NTC failure (short circuit)
HH

08
Solutions
If this error code appears when the fridge is
operating on 12V DC, please try to lower the
battery protection setting and see if the error
is resolved. The battery protection mode may
be triggered prematurely on certain vehicles
due to small wiring imperfections, contributing
to a measured DC voltage drop at compressor
start-up. Lowering the battery protection
setting may resolve this issue.
Please also care about the reading of your
battery voltage to make sure it is not
depleted/discharged.
If possible, please connect the AC power to try
if the refrigerator appears error code.
Please contact us directly if the error persists.

09
Warranty & Return Policy
5
30 days refund guarantee.
5 years Compressor Warranty.
1 year General Warranty.
For returns or exchanges, please fill out the
following return and exchange registration
form in the package as a proof of return. All
materials must be returned in the original
condition and packaging. Thank you for your
cooperation.
If the product is received damaged or
defective during transportation, you need to
contact our customer service within 2
business days. Make sure to provide
relevant photos or videos, your order ID
number and your name. A customer service
agent will help assist into solving the issue
at a timely manner. (Return, Exchange, or
Discount Compensation) A free return label
will be provided if needed.

10
Troubleshooting (Q & A)
6
1. Heat resistance & water resistance
ICECO refrigerators are engineered to operate at
an ambient temperature of up to 55 °C(131 °F).
Heat resistance
ICECO refrigerators can operate under light rain
conditions. Please keep the vents above clear
of water, and please add some clearances to
the bottom of the fridge if the ground is wet.
Weather Proof
We DO NOT recommend exposing the fridge
to moderate or heavy rain.
As with all electrical appliances, over-exposure
to moisture may shorten the fridge’s life.

Model Insulation Test
VL45S
Ambient temperature of 25°C (77°F),
refrigerator temperature from -18°C
(0°F) to 20°C (68°F) needs 5.5
hours on average.
11
2. How long can the ICECO refrigerator
keep the temperature after powering
off?
The following data only represented the result of
the lab experiment with empty box. Everything
is based on the actual situation.
Insulation Performance
3. Why did it change back to the original
temperature after setting the
temperature?
The Solid/Non-Flashing number on the display
is the CURRENT interior temperature.
The Flashing number is your SET temperature
after adjustment. The compressor will shut off
when the SET temperature is reached.

12
4. What should I do if the refrigerator is
upside down when it is delivered?
Please leave your refrigerator upright for 24
hours to allow the compressor lubricant to
resettle before powering on the fridge.
Otherwise it may contribute to certain operation
abnormalities.
5. What is the function of triple battery
protection? How do they work?
The triple battery protection is designed to
prevent over-discharge and battery depletion.
When the measured DC voltage is below the
set value, the compressor is shut off to prevent
battery depletion.
LOW
VOLTAGE
PROTECTION
POSITION
DISPLAY
12V
CUT OFF
(V)
CUT IN
(V)
CUT OFF
(V)
CUT IN
(V)
24V
1 Bar
2 Bars
3 Bars
9.6 10.9 21.3 22.7
10.4 11.7 22.8 24.2
11.1 12.4 24.3 25.7
MED
HIGH

13
For example, when you switch to a LOW MODE,
the battery voltage is under 9.6 volts, the
refrigerator will automatically cut the power OFF;
The refrigerator will start again till the battery
voltage reached back to 10.9 volts.
6. What is the power draw in max/ fast
cooling mode?
Model Electrical
Power
GO12 50W
Model Electrical
Power
JP42 55W
GO20 50W VL35
Series 65W
JP Series 60W VL Series 85W
This data is only suitable for laboratory testing,
and the actual power is subject to actual
conditions.
VL45 ProS 45W VL60 ProS 47W
VL75 ProD 57W VL90 ProD 61W

14
8. What kind of cable do I need to use in
the car and at home?
The DC cable is provided. You can power it
from your vehicle's cigarette lighter plug using
the DC cable. You can also power it at home,
but you need to use with AC cable as
precondition.
9. What is the specification of the fuse
of the refrigerator?
The supply line is protected by a 15A fuse
located in the refrigerator.
Because of the sinking nature of cold air, the
different temperatures may exist in different
locations in the refrigerator (the temperature of
the bottom will be the lowest). The panel only
shows the average temperature of the refrigerator.
7. Why is there a temperature difference
(between the actual temperature of the
refrigerator and the set temperature)?

15
SAFETY INSTRUCTIONS
Please read the user manual and safety
instructions carefully before using the appliance.
By ignoring the safety instructions, the
manufacturer cannot be held responsible for
the damage.
The use of accessories that are not
recommended by manufacturer can cause
injuries and will invalidate any warranty that
you may have.
The appliance shall not be exposed to
moderate/heavy rain.
Place the refrigerator on a dry, secure surface,
with adaquate ventilation.
Safety Instruction
7

16
Do not leave the refrigerator unattended
in uncovered, outdoor areas exposed to
the elements.
！
Do not use this appliance near direct
heatsources, such as an open flame or
radiator.
！
Do not place open containers of liquid
inside the fridge.
！
Please don't put hot/warm food into the
fridge directly without letting it cooling
off. Place/arrange the content of your
fridge securely when using the refrigerator
inside a moving vehicle.
！
To maximize energy savings, please make sure
the lid is closed and secure, and only open the
fridge when you need to.
The power cable must only be replaced by
qualified technical personnel and by an
assistant body authorized by the manufacturer.
Before carrying out any maintenance operations
on the refrigerator, disconnect all power sources
from the fridge.
This appliance is suitable for camping use.

17
WARNING!
Please keep the fridge in a well ventilated
area.
！
Do not use mechanical devices or other
means to accelerate the defrosting
process, other than those recommended
by the manufacturer.
！
Do not use electrical devices inside the
food storage compartments of the
appliance, unless approved/recommended
by the manufacturer.
！
Do not store explosive items, such as
aerosol cans with a flammable propellant
in this appliance.
！
Risk of fire and electrical shock.
！
Do not let hot items touch the plastic parts
of the appliance.
！
Do not put flammable products or items in,
near or on the appliance.
！
