ICODIS Vivid 818 User manual

RD-818
INSTRUCTION MANUAL
English / 日本語

PROJECTOR OVERVIEW....................................... 02
SPECIFICATIONS....................................................04
REMOTE CONTROL................................................05
POWER ON/OFF......................................................07
FOCUS.....................................................................08
SELECTING THE SIGNAL SOURCE.......................08
USING THE USB INTERFACE.................................09
THE HDMI INTERFACE............................................11
MENU SETTING.......................................................12
CHARGING THE PROJECTOR................................13
IMAGE ADJUSTMENT..............................................14
AUDIO.......................................................................14
TIRPOD....................................................................15
SAFETY INSTRUCTIONS........................................16
TROUBLESHOOTING..............................................17
日本語....................................................................... 20
CONTENTS
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37

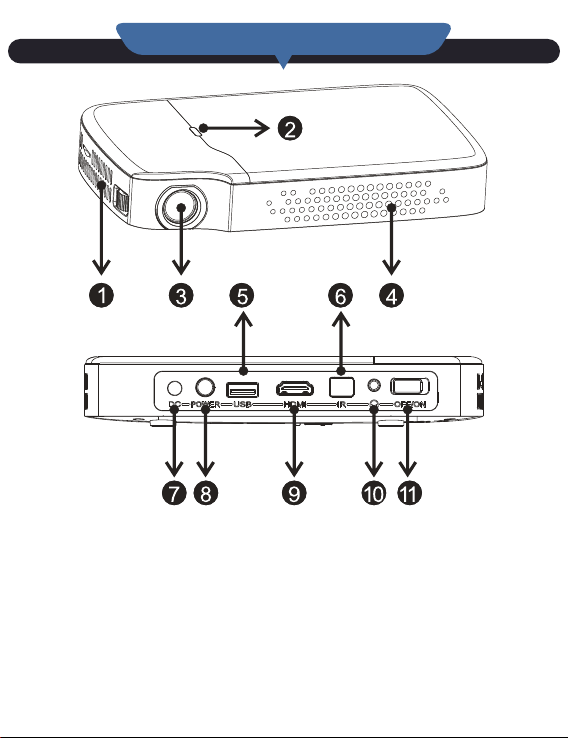

1.Ventilation slots
2.LED indicator light
3.Projector lens
4.Ventilation slots
5.USB port
6.IR remote sensor
7.DC-IN terminal
8.Power on/off button
9.HDMI port
10.AUX cord port
（Earphone port）
11.Main switch
PROJECTOR OVERVIEW
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37

PROJECTOR OVERVIEW
1.Bracket
2.Air inlets
3.Speaker
4.Stand hole(M6)
5.TF card slot
6.Ventilation slots
7.Focus wheel
Warning:
It‘s prohibited to block the air inlets, which may get the
projector overheating to damage the device.
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37

SPECIFICATIONS
Physical Parameters
Projection size:20-120 inch Throw ratio: 1.4:1
Offset:100% Keystone: Auto Vertical 40
Focus mode: manual Power adapter: DC19V/1.8A
Power: 28W Speaker: 4Ω/2W
Size: 170*105*28mm N.W.: 380g
Physical interface
DC port x1
USB 2.0 x1
HDMI x1
3.5mm earphone port x1
TF card slot x1
Accessories
Instruction Manual x1
Charing Accessories x1
Remote Control x1
HDMI Cable x1
Tripod x1
Customer service card x1
Optical Parameters
Display chip: 0.2" DMD RGB-LED
Lens: High light transmittance coating glasses
Brightness uniformity: 98%
NTSC:≥120%
Resolution: 854 x 480
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37

REMOTE CONTROL
1.Power
2.Main menu
3.Arrow keys
4.Mute
5.Volume Down
6.Play / Stop
7.Source
8.OK
9.Volume Up
10.Exit
11.Ratio
1.Power: Power on or off
2.Main menu: Operate multiple functions
3.Arrow key: Move up or down, Move left or right
4.Mute: Silent mode
5.Volume Down: Decrease volume
6.Play/ Stop: Play or stop operation
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37

REMOTE CONTROL
7.Source: Choose the input signal source
8.OK: Select a menu option
9.Volume up: Increase volume
10.Exit: Return to the previous screen
11.Ratio: Choose aspect ratio
Note:
Please use the remote control aiming at the back of the projector
(IR remote sensor), not the screen or the wall. The batteries
should be inserted into the remote to work.
TIP:
If the remote control is lost or broken during use, please contact
our Customer Service Team to get a new remote control.
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37

Power ON
Step 1 : Connect the power adaptor to the DC-IN terminal of the
projector.
Step 2: Push the main switch from left to right, then press the
power key when the red indicator light is on.
Power OFF
Step1: Press the power key, then the projector will be off after the
indicator light become red.
Step2: Push the main switch to the ‘OFF’ position after the
projector is off.
Main Switch
Towards the left is OFF Towards the right is ON
POWER ON/OFF
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37

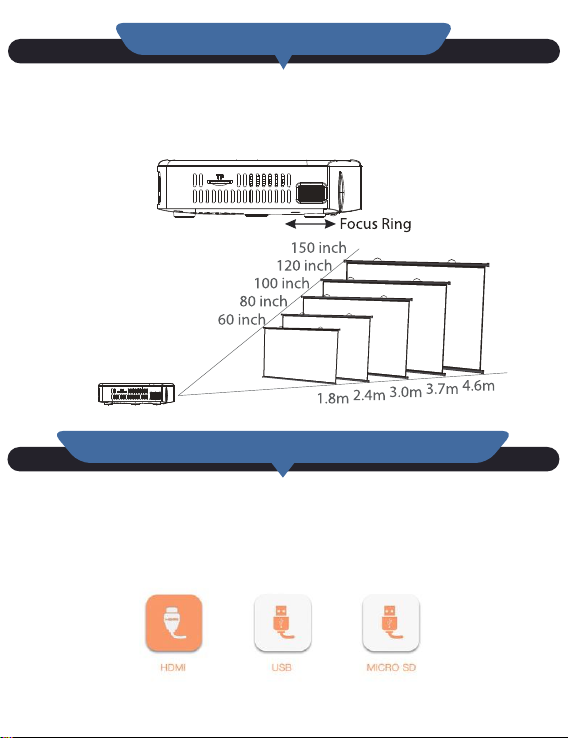

Adjust the focus wheel slightly until the projected image is
clear enough.
FOCUS
Press the ‘source’ button on the remote control, then the menu
below will show up on the screen, after which you can select the
connected device you want.
SELECTING THE SIGNAL SOURCE
01 02
03 04
05 06
07 08
09 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
