ICON PX-Sub10A User manual

N16549
PX-Sub10A
Active Studio Subwoofer System

WARNING: To reduce the risk of fire or electric shock, do not expose this unit to
rain or moisture
PX-Sub10A
Important Safety Instructions
1. Read this manual thoroughly before using this unit.
2. Keep this manual for future reference.
3. Take notice of and comply with all warnings included in the user's manual or indicated
on the appliance.
4. Follow all instructions included in this manual.
5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled
on this unit.
6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly
damp soft cloth.
7. Do not block any ventilation openings or interfere with the proper ventilation of this unit.
Install in accordance with the manufacturer's instructions.
8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or
other heat-producing appliances.
9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type plug h
as two blades and a third grounding prong. These are designated for your safety. If the
provided plug does not fit into your outlet, consult an electrician.
10. Protect the power cord from being walked on or otherwise damaged by items placed
on or against them. Particular attention should be given to the plugs, receptacles, and
the point where the cord exits the appliance.
11. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is
in operation.
12. Only use attachments/accessories specified by the manufacturer.
13. Unplug this unit and all connected electrical equipment during lightning storms or when
left unused a long period of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
appliance has been damaged in any way or fails to operate normally.

Introduction
What's in the package
Intended use
Register your ICON ProAudio product to your personal account
Features
Rear Panel Layout
Controls and Connections
Setting Up your PX-Sub10A Subwoofer System
Settings and Adjustments
Specifications
Services
Contents
2
3
4
6-7
8
1
10
9
PX-Sub10A
5

Introduction
1
PX-Sub10A
What's in the package?
PX-Sub10A Active Subwoofer System
Users' Manual
Power Cable
Intended use
The ICON PX-Sub10A Studio Subwoofer system is a loudspeaker with an
integrated amplifier for the reproduction of the deepest audio frequencies.
This product has been specifically designed and developed for use in a
professional studio environment. The reliability and performance of this
product cannot be guaranteed for other applications or uses.
Thank you for purchasing the ICON PX-Sub10A active studio monitor system.
We sincerely trust this product will provide years of satisfactory service, but if
anything is not to your complete satisfaction, we will endeavor to make things
right.
In these pages, you'll find a detailed description of the features of the PX-Sub
10A, step-by-step instructions for its setup and use, and full specifications.
Please register the product on our website at the below link www.iconproaudio.
com/registration:
You'll also find a warranty card enclosed---please don't forget to fill it out and
mail it so that you can receive online technical support at: www.iconproaudio.com.
And so we can send you updated information about these and other ICON
products in the future. As with most electronic devices, we strongly recommend
you retain the original packaging. In the unlikely event the product must be
returned for servicing, the original packaging (or reasonable equivalent) is required.
With proper care , your PX-Sub10A will operate without any trouble for many years. We
recommend that you record your serial number in the space provided below for
future reference.

Register your ICON ProAudio product to your
personal account
1.Check serial number of your device
Please go to http:// iconproaudio.com/registration or scan the QR code
below.
Input your device’s serial number and the other information on the
screen. Click“Submit”.
A message will pop up showing your device information such as
model name and its serial number - Click “Register this device to my
account” or if you see any other message, please contact our after-
sales service team
2.Log in to your personal account page for existing user or sign
up for new user
Existing user: Please log into your personal user page by inputing
your user name and password.
New user: Please click “Sign Up” and fill in all the information.
3.Download all useful materials
All your registered devices under your account will show on the
page. Each product will be listed along with all its available files
such as drivers, firmware, user manual in different languages and
bundled software etc. for download.
Please make sure you have download the necessary files such as
driver before you begin device installation.
2

Features
PX-Sub10A
The ICON PX-Sub10A Active Studio Subwoofer system provide a powerful and
precise low-frequency reproduction. Here are some of its main features:
10" Woofer
Phase adjustment in 0 / 180
29-200 Hz precision low-frequency reproduction
Balanced XLR output connectors
Subwoofer output level control (gain)
Adjustment of crossover frequency ranges
Low-frequency extension adjustment
200W power handling @ 8 Ohms
Studio cabinet ideal for professional applications
0 0
3

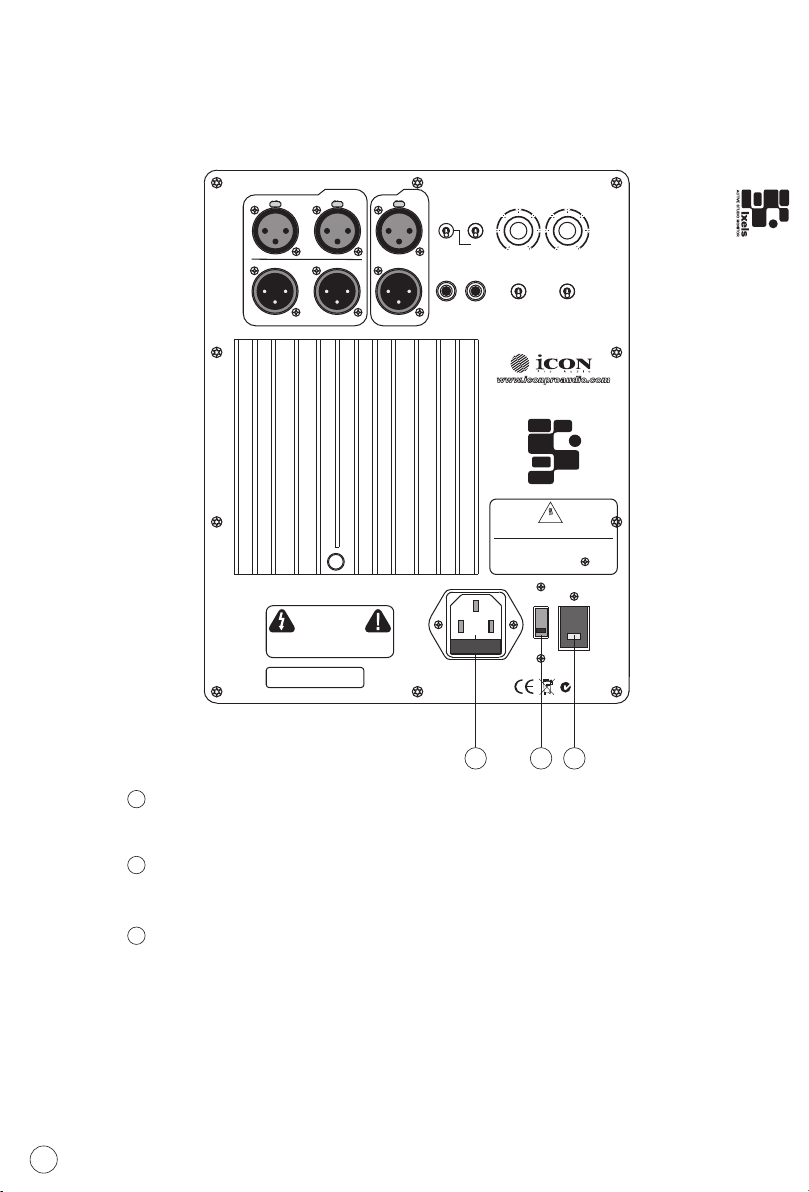

Rear Panel Layout
AC In
Main power input
Voltage Selector
110V / 220V input voltage selector
Power Switch
Turns the unit on/off.
1
2
3
123
PX-Sub10A
SAT/SUB
Power
N16549
Risk of electrical shock
Do not open
Risque de shock electrique
Ne pas ouvrir
CAUTION
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT REMOVE BOTTOM COVER.
NON SERVICABLE PARTS INSIDE.
DO NOT EXPOSE THIS EQUIPEMNT TO RAIN OR MOISTURE.
REFER SERVICING TO QUALIFIER PERSONNEL
ON
OFF
Voltage
Selector
~115V T2AL 60Hz
~230V T1AL 50Hz
MADE IN PRC
HOT
Rear panel may become too hot to touch. Leave
enough space for proper ventilation.
Warning
This equipment is capable of delivering sound
pressure levels considerably
high, which may cause
permanent damage to your ear.
PX-Sub10A
Pixels Series 10" Act ive S tud io
Subwoofer System
AC in
Right Channel Left Channel
In
Out
LFE
LFE/Slave
Slave
High Pass
80Hz
60Hz
Flat
HP
R L
Low Pass
50Hz 150Hz
Gain
Min Max
Out Phase
0
180
0
0
Mode
LFE
Slave
S/N
In
Out
Ixels
ACTIVE STUDIO MONITOR
220V
4

Controls and Connections

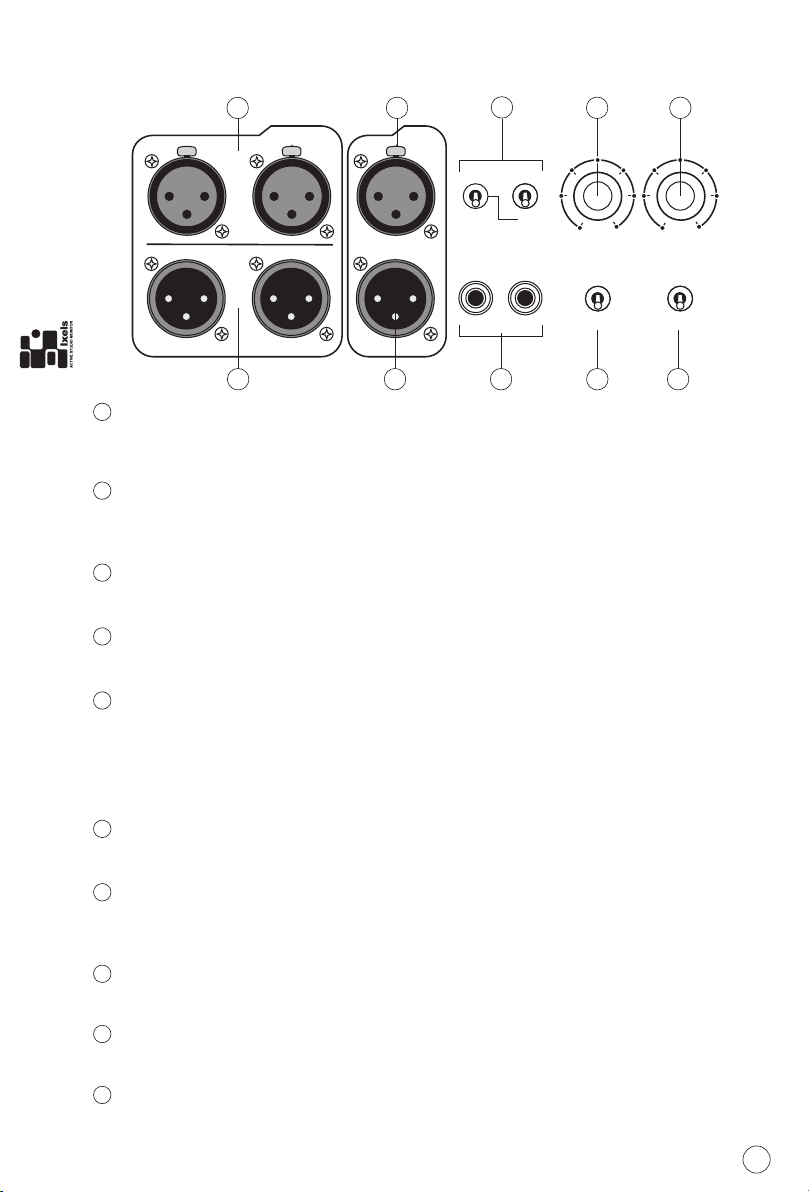

SAT/SUB Input
Input for full bandwidth signal. The signal is processed according to
the High Pass setting and provided at the SAT/SUB Output.
1
2457
1
2
3
4
5
6
PX-Sub10A
SAT/SUB
Right Channel Left Channel
In
Out
LFE
LFE/Slave
Slave
High Pass
80Hz
60Hz
Flat
HP
R L
Low Pass
50Hz 150Hz
Gain
Min Max
Out Phase
0
180
0
0
Mode
LFE
Slave
In
Out
3 6 8
9
10
SAT/SUB Output (Balanced)
Output to connect a satellite loudspeaker system. Signal is
processed according to the High Pass setting.
LFE/Slave Input
Input for LFE signal (Low Frequency Effect)
Slave Output
Output to next subwoofer (if installed)

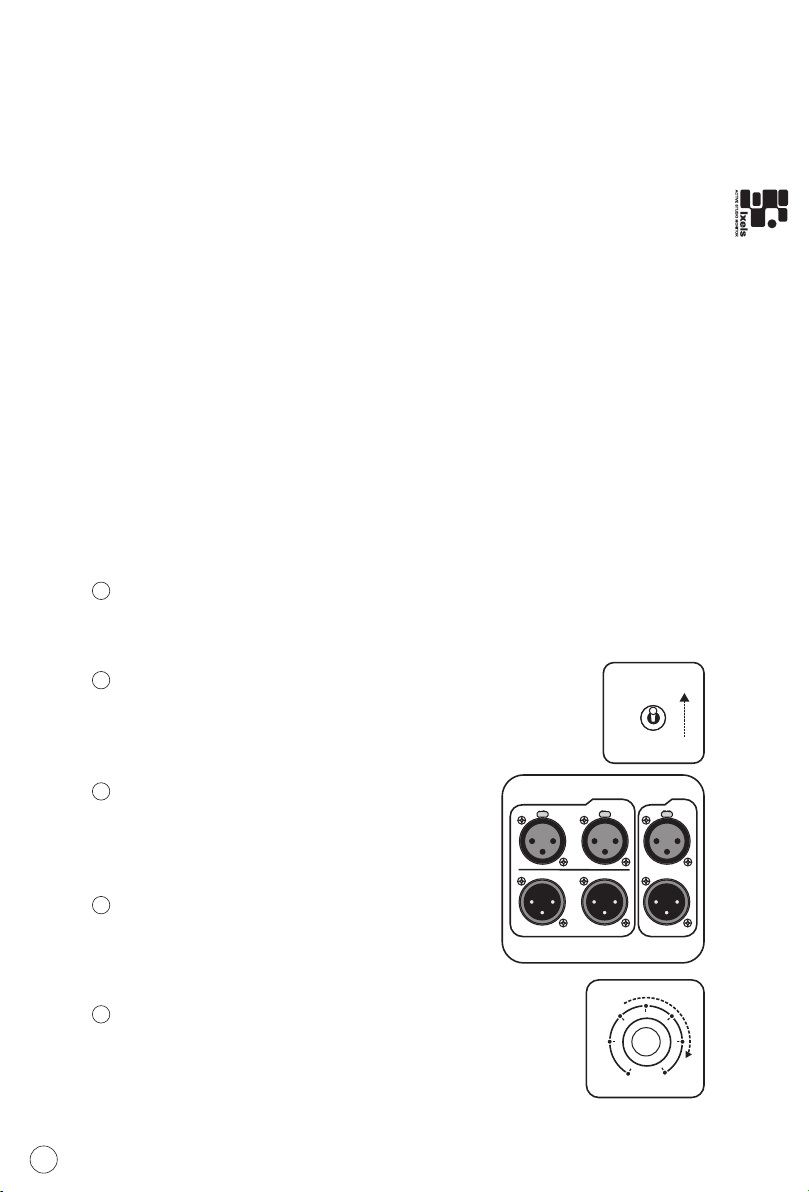

High Pass Selectors
Allows cutting off low frequencies of the signal provided to the
SAT/SUB Output terminal. If "Flat" is selected, the signal is not
limited. If "HP" is selected, signal is cut off at 50 HZ or 80 HZ
(according to selection).
Unbalanced Output
Output to connect a satellite loudspeaker system.
Low Pass Selector
Controls the subwoofer low pass frequency continuously variable
from 50 to 150 HZ.
Phase Selector
phase can be set to 0 or 180
Gain
Main volume control
Mode Selector
Select "LFE" for normal and Master use. Select "Slave" setting for
second and all following subwoofers.
0 0
7
8
9
10
5

Setting up your PX-Sub10A Subwoofer System
Input Connection Options
Your PX-Sub10A Subwoofer features inputs for two different signal
types.
PX-Sub10A
LFE /Slave Input Allows connection to a LFE channel
(Low Frequency Effect).
SAT/SUB Input Allows connection of a full bandwidth signal.
Signals connected via the LFE/Slave Input is processed and
reproduced by the subwoofer and routed to the Slave Output for
connection to a second subwoofer.
Full bandwidth signals at the SAT/SUB Input are reproduced by the
subwoofer and routed to the SAT/SUB and the Slave Output terminals
with frequencies cut off according to the High Pass and Low Pass
settings. Use the SAT/SUB Output Terminal for connection to a power
amplifier or active speakers.
Basic Set-up and Operation
Before connecting your PX-Sub10A subwoofer, make sure that the
power of all your system components is turned off. Also, turn the
main volume control (gain) on your subwoofer all the way down.
Set the Mode switch on your subwoofer to LFE (Note:
if connecting more than one subwoofer, the first
subwoofer will be set to LFE. Set the Mode to "Slave"
for the second and all subsequent subwoofers.)
Connect LFE Channel to the LFE/Slave
Input on your subwoofer. Connect full
bandwidth signals to the SAT/SUB
Input.
After all instrument, speaker, and
component connections have been made,
turn on your subwoofer and other powered
components.
Slowly raise the volume on your PX-Sub10A
subwoofer to the desired level by adjusting the
Gain control.
1
2
3
4
5
Mode
LFE
Slave
Right Channel
SAT/SUB
Left Channel
In
Out
LFE
LFE/Slave
Slave
In
Out
Gain
Min Max
6

PX-Sub10A
Setting up your PX-Sub10A Subwoofer System
Multiple Subwoofer Set-up
Connecting multiple subwoofers may be desired in large studios or
other spaces featuring difficult acoustic conditions. PX-Sub10A
subwoofers can be easily linked by connecting the Slave Output
terminal on the first unit to the LFE/Slave Input on the second terminal,
and so on.
Loudspeaker Connection
To connect loudspeakers to your subwoofer, use the SAT/SUB Output
terminals to connect an XLR cable to the input on your power amplifier.
(Be sure to note the manufacturer's instructions and specifications for
proper amplifier and speaker set-up).
The first subwoofer will act as the "Master" and should be set up as
indicated on page 5 (and the diagrams showing below), with the Mode
set to "LFE." Set the mode to "Slave" on each additional subwoofer.
Note: when using multiple subwoofers, the volume and phase settings
of the Master will control all subwoofers.
Mode
LFE
Slave
First Subwoofer
Mode
LFE
Slave
Additional Subwoofer
SAT/SUB
Right Channel Left Channel
In
Out
LFE
LFE/Slave
Slave
In
Out
Left Active
Monitor
Speaker
Right Active
Monitor
Speaker
7

PX-Sub10A
Settings and Adjustments
Low Pass setting
The Low Pass control defines the frequency range of the
subwoofer and cuts off frequencies above the selected
level. Frequencies above the selected level are routed to
the SAT/SUB Output while those below the Low Pass
setting are reproduced by the subwoofer and available
at the Slave Output Terminal.
The correct setting of the Low Pass control is important to ensure
balance between the subwoofer and speakers. Adjust the Low Pass
setting to the desired level between 50 and 150 HZ.
Note: Only signals at the SAT/SUB Input are affected by the Low Pass
control.
High Pass setting
The bass capabilities of satellite speakers can potentially
overlap the frequency range of your subwoofer. Poor
sound quality can result when the system is not matched
properly or when using small speakers or low-powered
amplifiers. The High Pass filter can be used to limit the
bass range of speakers connected via the SAT/SUB
Output terminals.
PX-Sub10A subwoofers are equipped with three High Pass settings:
Flat
50 Hz
80 Hz
No limitation
Frequencies below 50 Hz are cut off
Frequencies below 80 Hz are cut off
To select the desired High Pass setting, first choose between "Flat" or
"HP" (High Pass). If "HP" is selected, choose the preferred cut-off
frequency 50 Hz of 80 Hz.
Phase Setting
Set up your system components as described above
Play a bass-rich soundtrack that includes frequencies
in the overlap
Switch the Phase Setting between 0 and 180 to
find which setting provides the most bass.
1
2
30 0
Low Pass
50Hz 150Hz
High Pass
80Hz
60Hz
Flat
HP
Phase
0
180
0
0
8

PX-Sub10A
Specifications
System:
Bass principle:
Frequency reponse:
Inputs
LFE/Slave:
SAT/SUB:
Input Impedance
+ barnch:
- branch:
Sensitivity:
Max. input voltage:
Outputs
Slave:
SAT/SUB:
Output impedance:
XLR Connector:
Mode selector:
Phase adjustment:
High pass:
Low pass:
Power modes:
Amplifier power:
Power Consumption
Standby:
Max.:
Woofer
Cone:
Coil:
Dimensions:
Cabinet volume:
Weight:
Main:
Active subwoofer
Bass reflex
30Hz to 200Hz
XLR
Right/Left full bandwidth, XLR
20K Ohm
10K Ohm
75mV to 5V , adjustable
8 V
XLR
Right/Left, Highpass filtered, XLR & RCA
100 Ohm (each branch)
Pin 1: 0 / Pin 2 : + / Pin 3 : -
LFE & Slave
0 / 180
Flat / 60Hz / 80Hz
50 Hz to 150 Hz
On / Auto
120W, 4 Ohm
<5W
300W
256mm / 10", long throw, paper cone
50mm / 2" voice coil
360(H) x 330(W) x 450(D) mm
14.2(H) x 13(W) x 16.3(D) inch
29 liters
20 Kg
120V, 50/60Hz
220V, 50/60Hz
RMS RMS
RMS
0 0
9

10
PX-Sub10A
Services
If your needs servicing, follow these instructions.
If
PX-Sub10A
Check our online Help Center at http://support.iconproaudio.com/hc/en-us, for
information, knowledge, and downloads such as:
1. FAQ
2. Download
3. Learn More
4. Forum
Very often you will find solutions on these pages. If you don’t find a solution, create
a support ticket at our online Help Center at the link below, and our technical support
team will assist you as soon as we can.
Navigate to http://support.iconproaudio.com/hc/en-us and then sign in to submit
a ticket.
As soon as you have submitted an inquiry ticket, our support team will assist you to
resolve the problem with your ICON ProAudio device as soon as possible.
To send defective products for service:
1. Ensure the problem is not related to operation error or external system devices.
2. Keep this owner's manual. We don't need it to repair the unit.
3. Pack the unit in its original packaging including end card and box. This is very
important. If you have lost the packaging, please make sure you have packed
the unit properly. ICON is not responsible for any damage that occurs due to
non-factory packing.
4. Ship to the ICON tech support center or the local return authorization. See our
service centers and distributor service points at the link below:
If you are located in US
Send the product to:
North America
Mixware, LLC –U.S. Distributor
11070 Fleetwood Street –Unit F.
Sun Valley, CA 91352; USA
Tel.: [phone]
Contact:
you are located in Hong Kong
Send the product to:
ASIA OFFICE:
Unit F, 15/F., Fu Cheung Centre,
No. 5-7 Wong Chuk Yueng
Street, Fotan, Sha Tin, N.T., Hong Kong.
www.mixware.net/help
If you are located in Europe
Send the product to:
Sound Service GmbHEuropean
HeadquarterMoriz-Seeler-Straße
3D-12489 Berlin
Telephone: [phone]
Fax: [phone]
E-Mail: [e-mail]
5. For additional update information please visit our website at:
www.iconproaudio.com
