Iconic 1100 Front User guide

Iconic 1100
Including: Front, Bay, See Through, Corner and Room Divider models
INSTALLATION, SERVICING
AND USER INSTRUCTIONS
For use in IE & GB (Ireland and United Kingdom)
This appliance has been tested and certified for other countries (see technical data). However to install appliance in other
countries, modification of the appliance and its method of installation may be necessary in order to use the appliance safely and
correctly. The manual for the local language must be obtained. Contact Heat Design for further information.
IssD 22nd February 2018
File: Iconic-1100.doc

IE & GB
2

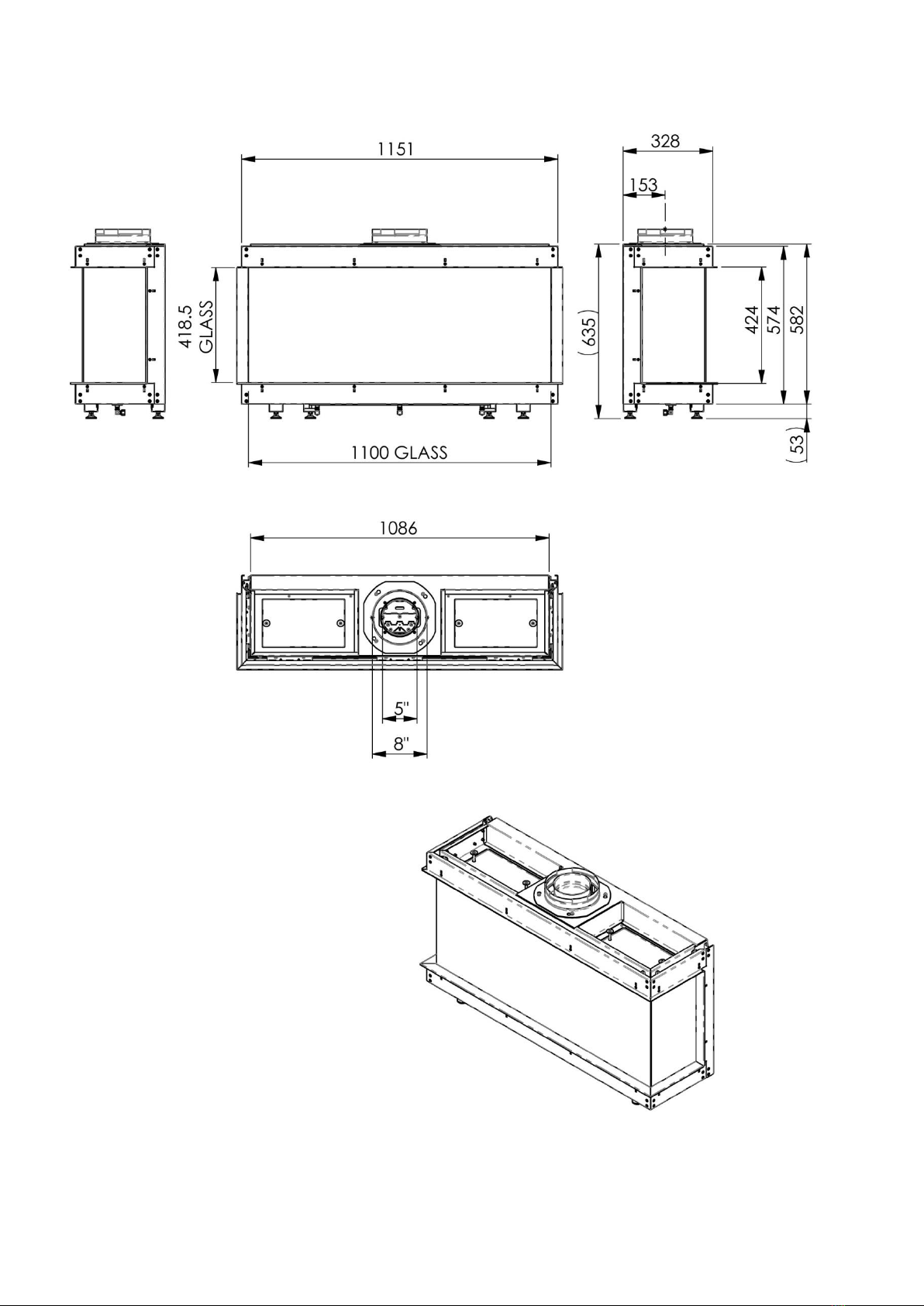

This Manual covers all models IC1100FR, IC1100BAY, IC1100CL/CR, IC1100RD, IC1100ST in pages 2-6
Iconic 1100 Front - IC1100-FR

3

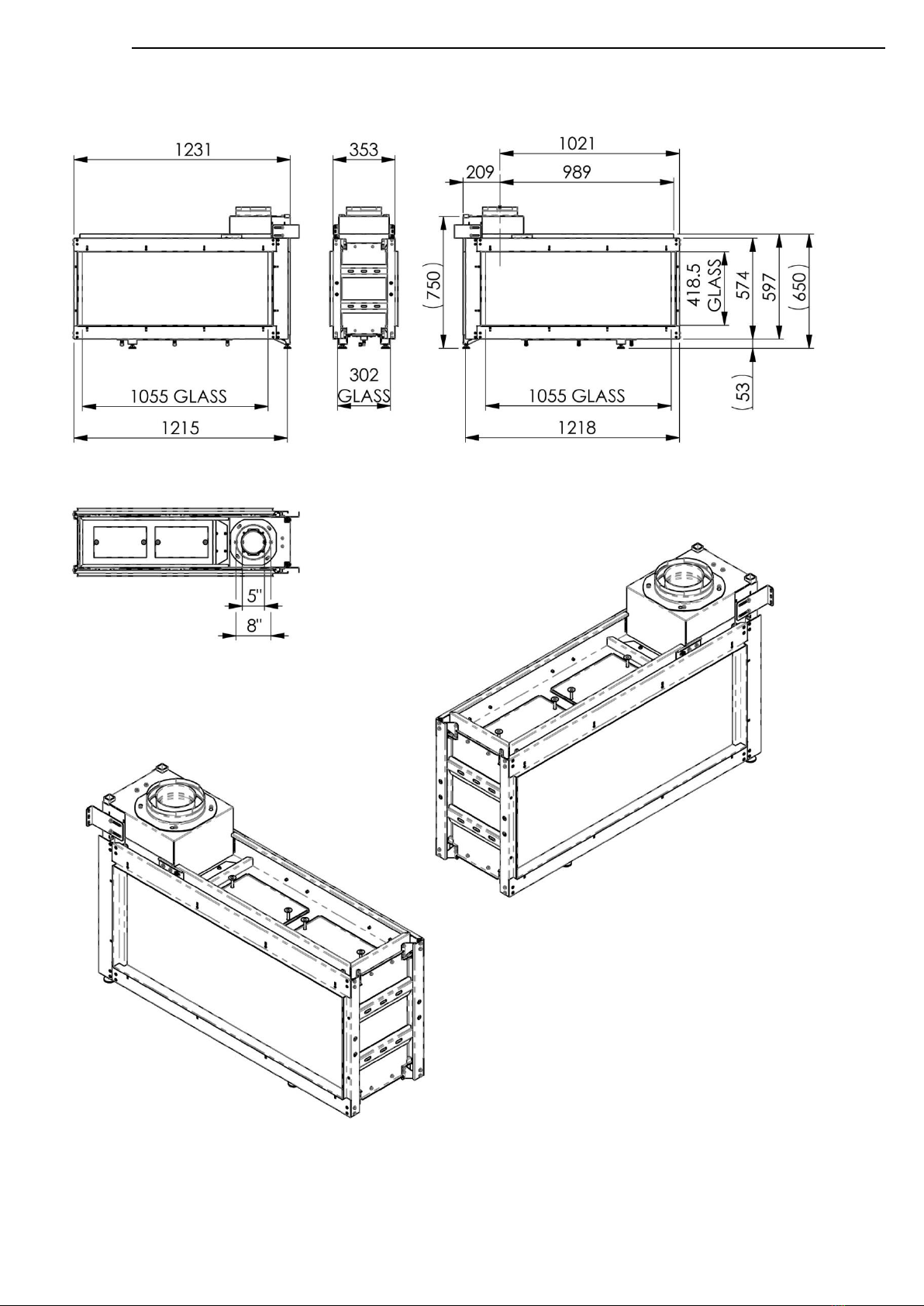

Iconic 1100 Bay - ICONIC1100-3S

IE & GB
4
Iconic 1100 Corner Left &Right - IC1100-CL & CR

5
Iconic 1100 Room Divider - ICONIC1100-RD

IE & GB
6
Iconic 1100 See Through - IC1100-ST

7

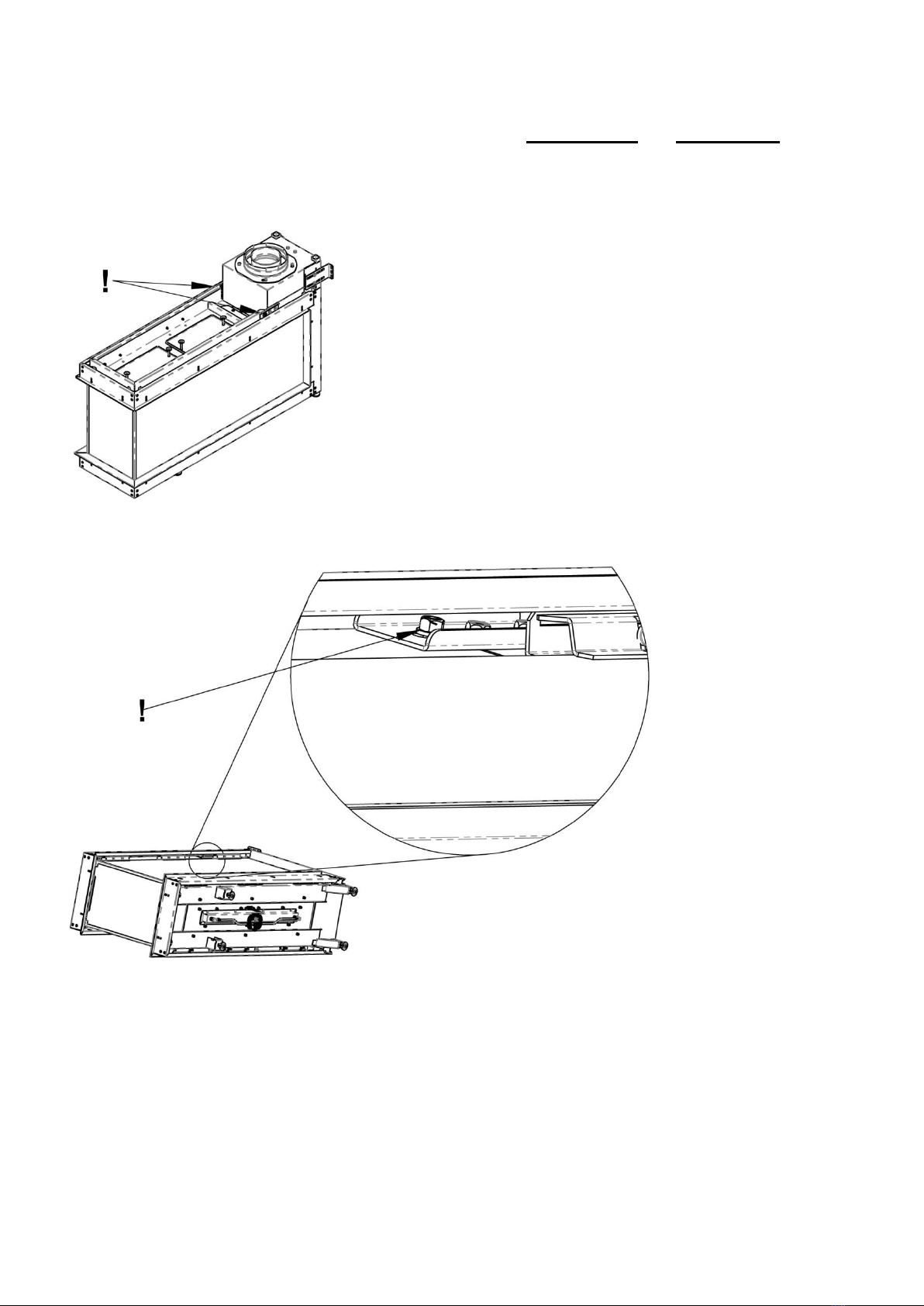

ATTENTION ! - TRAVEL LOCK NUTS on Room Divider and See Through models.
There are two travel locking nuts (one either side)
These must be released by one turn each before the appliance is fired.
The nuts can be also be accessed between the Glass and the Frame.

IE & GB
8
Content
1. General Notes 9
2. User instructions. 10
2.1 First Time of Operation 10
2.2 Remote Control Overview 10
2.3 Batteries 11
2.4 Replacing the batteries 11
2.5 Setting the Transmitter code 12
2.6 To Ignite the appliance 13
2.7 To Turn the appliance OFF 13
2.8 Adjusting the Flame setting 13
2.9 Using the "Effect" Burner 13
2.10 Setting °C/24 hour or °F/12 hour clock 13
2.11 Setting the Time 13
2.12 Cleaning and Maintenance 14
3. Installation instructions. 15
3.1 Gas Connection 15
3.2 Ventilation 15
3.3 Appliance Fireplace Installation 15
3.4 Flue Connection 20
3.5 Fuel Bed Arrangements 25
3.6 Commissioning the appliance 34
4. Servicing 35
4.1 Cleaning the Ceramics 35
4.2 Servicing the Burners 35
4.3 Spare parts 36
5. Technical Information 37
5.1 Countries of Use 37
5.2 Technical Data 38

9
1. General Notes
This Heat Design gas appliance is a High Efficiency, Balanced Flue Live Fuel Effect appliance. It provides radiant
and convected heat using the latest burner technology. As well as having a variable heat output, these fires also
utilise a special control system that allows the appliance to use three burners for high output or a single burner
for lower outputs.
One of the burners will be designated as the "Main" Burner, this is the Centre, The second and third burners will
be designated as the "Effect" Burners. The Effect burners can be switched ON or Off whilst the appliance is
alight.
Before Installation, check that the local distribution conditions, nature of the gas and pressure, and adjustment
of the appliance are compatible.
This appliance is intended for use on a gas installation with a governed meter.
This Gas Installation may only be installed by a registered professional competent person (A Qualified Gas
Engineer in IE and UK). The installation must adhere to the requirements of the local and national Building
regulations and national standards. The installation manual must also be followed.
Ensure that the Flue Terminal is not in any way obstructed and is clear of vegetation, i.e. trees, shrubs etc. and
that no objects are leant against the terminal or guard.
Always clean the Window Panel before the fire is ignited. Any finger prints must be removed, as
these will be burnt into the glass and will be un-removable.
Do not operate this appliance if the glass panel has been broken (or cracked), removed or is open.
The appliance is designed to fit numerous installation situations as listed in these installation instructions.
However only flue approved by Heat Design for this appliance may be used.
This appliance is a balanced flue product and is room sealed and as such requires no additional ventilation for
operation. However an adequate supply of fresh air to maintain temperatures and a comfortable environment is
recommended.
This appliance is designed as a heating appliance, and as such will get very hot in operation; all surfaces (except
the controls and access door) are considered to be working surfaces and as such should not be touched. The
front windows and surrounds are not considered to be fully secure guards against accidental contact. It is
recommended that an approved fire screen be used if children, the elderly or persons with limited mobility are
to be present in the same area.
Do not place curtains, laundry, furniture etc. within a safe distance of 300mm of this appliance.
Do not attempt to burn rubbish on this appliance.
If this appliance is extinguished, on purpose or other, no attempt to relight should be made within 3 minutes.

IE & GB
10
2. User instructions.
2.1 First Time of Operation Standard GV60 RC (For Symax RC see Annex 1-page 39)
Before igniting the appliance, ensure that all packaging, safety stickers and any protective wrapping have been
removed, and that the glass has been cleaned, including all fingerprints from the glass as these will be burnt on
the glass otherwise.
Ensure that the room is adequately ventilated the first time that the appliance is ignited; we would recommend
opening windows if possible. Run the appliance at full setting for a few hours so that the paint gets an
opportunity to fully cure. During this period it is possible for some fumes and vapours to be given off. We would
recommend keeping children and pets out of the area at this time.

11
2.2 Remote Control Overview
This Heat Design Gas Appliance has been constructed with an advanced remote control system. This consists of
three main parts; Handset (fig. 1.1), Receiver (fig. 1.2) and Gas Valve with Manual Override (fig. 1.3). The Gas
control valve and the Receiver are behind the access door. This is also where the product Data Label is located.
• The Remote Handset has 4 Buttons; these will perform all
operations of the fire.
• Always leave the dial on the Gas Control Valve set to "ON",
the "MAN" position is only for servicing and emergency use if the
handset is misplaced, or the battery fails.
• With each successful button press of the handset, the
receiver will emit an audible signal.
• A toggle switch is present on the Gas Control Valve; this
should be put into the "O" position if the appliance is not
operated for a long period (over a week).
• The heat output can be manually adjusted by turning the
setting knob on the Gas Control Valve.

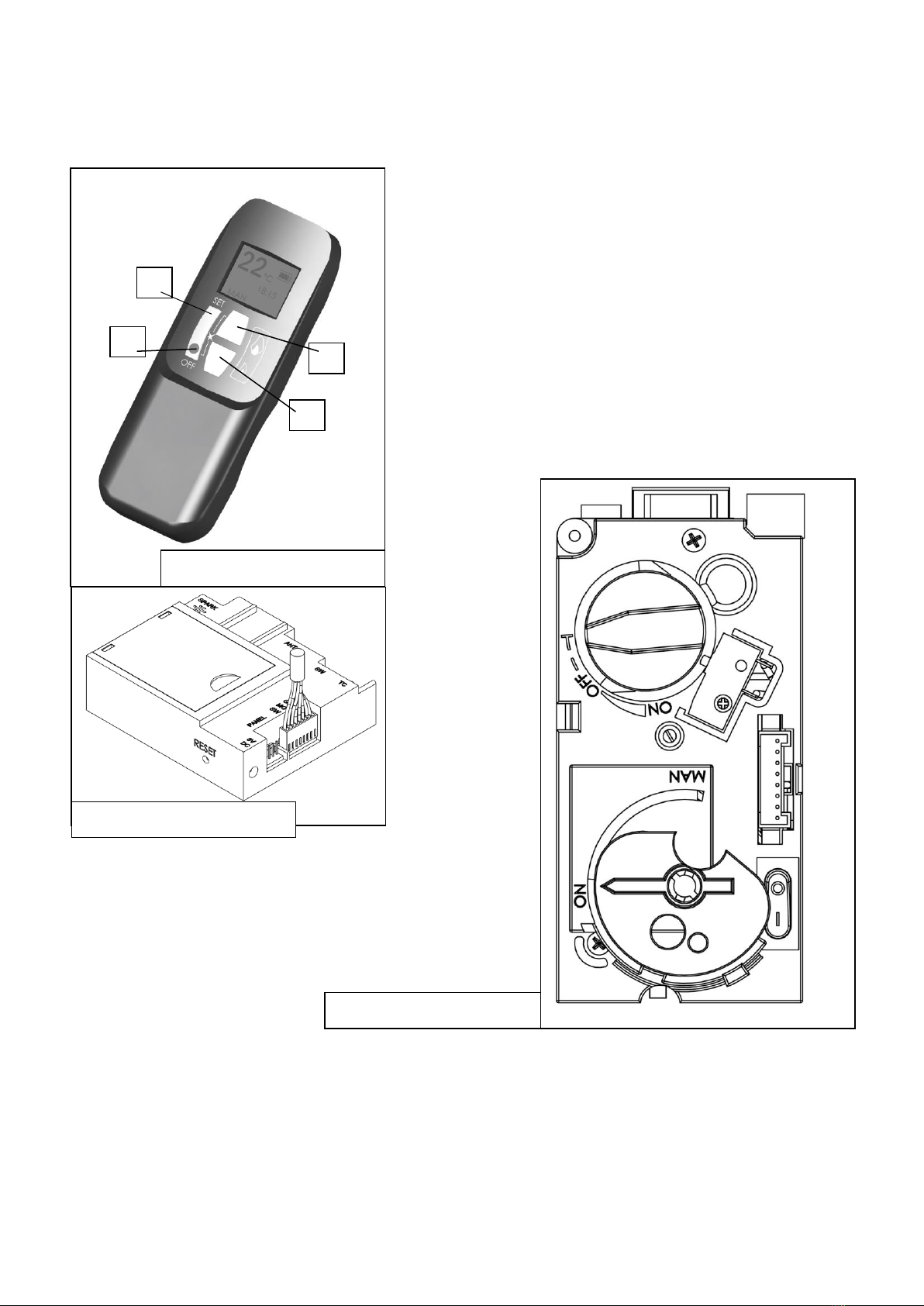

fig. 1.1 Remote Handset
fig. 1.2 Remote Receiver
fig. 1.3 Gas Control Valve
A
B
C
D

IE & GB
12
2.3 Batteries
Remote Handset:
1 x 9V "PP3" Battery, Quality alkaline recommended
Receiver:
4 x 1.5V "AA", Quality alkaline recommended for maximum life.
An alternative AC Mains Adaptor may be used to power the Receiver instead of the 4 AA batteries. Only an AC
Mains Adapter supplied by Heat Design may be used. The Mains Adaptor is plugged into the DC 6V socket on the
end of the receiver.
Note - if the AC Mains Adapter is used, remove the 4 AA's from the Receiver, failure to do so could result in
damage and failure of the Receiver. During a period of power outage, the receiver may be unplugged and
batteries returned to the Receiver.
2.4 Replacing the batteries
Handset:
There is a battery level indicator on the display of the handset. When this gets low remove the cover on the rear
of the handset and replace the battery with another 9V PP3 battery.
Receiver:
Three short audible beeps will sound when the appliance is on to indicate that the batteries in the receiver are
getting low.
When the batteries get very low the appliance will be turned off by the remote control. This will fail to happen
if the power supply is interrupted.
To replace the Receiver batteries on the ICONIC 1100 model, slide the cover off of the top of the receiver and
use the ribbon to pull the batteries out. Replace the batteries with new 1.5V AA's, ensuring that the ribbon is
located under the batteries and that the polarity is correct on all 4 batteries.
Never mix new batteries with old; this will result in the new batteries being emptied very quickly.
When the batteries are replaced, it may be necessary to reset the transmitter code, as detailed in the next
section.

13
2.5 Setting the Transmitter code
Press and hold the RESET button with a sharp object (pen or screwdriver) until you hear two audible beeps.
After the second, longer beep, release the RESET button.
Within the next twenty seconds press the down button (Button D fig 1.1) on the remote handset until you hear
an additional long signal confirming the code is set.
On the ICONIC 1100 model the Receiver is located in the Control Access panel.

IE & GB
14
2.6 To Ignite the appliance
Note - If this appliance is extinguished or goes out in use for any reason, wait 3 minutes before attempting
to relight the appliance. The Gas Control Valve has an interlock device which will not allow relighting until
the 3 minutes have passed.
To be able to use the Remote control Handset (fig. 1.1), the rocker switch on the Gas Valve, must be turned
"ON" (the "1" position) and the manual Dial set to the "On" position.
- Simultaneously press and hold buttons B & C (Star and Large Flame), until a short acoustic beep confirms
the start sequence has begun; release the buttons.
- Continuing signals confirm the ignition is in process.
- Once pilot ignition is confirmed, there will be gas flow and the main burner will ignite.
- Repeat process if pilot ignition fails.
2.7 To Turn the appliance OFF
Press the OFF button (Button B fig. 1.1) on the Handset. This will extinguish all Burners including Pilot.
Note: - Repeated presses of the small flame (Button D fig. 1.1) will turn the main burner OFF, but will leave the
Pilot alight.
2.8 Adjusting the Flame setting
To increase the flame height; press the large flame button (Button C fig. 1.1).
To decrease the flame height; press the small flame button (Button D fig. 1.1).
2.9 Using the "Effect" Burner
Note: The solenoid valve will not operate for one minute after Ignition.
The solenoid valve cannot be operated manually. If the battery runs down, the solenoid will remain in its
last operating position.
During normal operation the solenoid will be reset to the ON (Open) when the Gas Valve is switched OFF
via the Handset.
Upon ignition both "Main" and "Effect" burner are ON.
To switch the "Effect" burner OFF, simultaneously press the OFF and Large Flame buttons (buttons B & C fig.
1.1).
To switch the "Effect" burner ON, simultaneously press the SET and Large Flame buttons (buttons A & C fig. 1.1).
Printed instructions are located on the battery cover on the rear of the handset.
2.10 Setting °C/24 hour or °F/12 hour clock
Simultaneously press OFF and Small Flame buttons (buttons B & D fig. 1.1) until display changes from
Fahrenheit/12 hour clock to Celsius/24 hour clock and vice versa.
2.11 Setting the Time
The display will flash after either:
a. Installing the battery or
b. Simultaneously pressing the Large Flame Button and Small Flame Button (buttons C & D fig. 1.1)
Press the Large Flame button (button C fig. 1.1) to set the hour.
Press the Small Flame button (button D fig. 1.1) to set the minutes.

15
Press OFF (button B fig. 1.1) to return to standard operating mode or simply wait and it will return to standard
mode after approximately 15 seconds.
2.12 Cleaning and Maintenance
This appliance should be inspected and serviced once a year by a qualified, competent and registered person.
The inspection and maintenance must at least take place once a year to ensure that the appliance is working
correctly and safely. It is advisable to clean the appliance of any dust and debris before regularly during the
heating season and especially if the appliance has not been used for some time. This can be done with a soft
brush and a vacuum cleaner or a damp cloth and if required a non-abrasive cleaning agent. Do not use corrosive
or abrasive substances to clean the appliance.

IE & GB
16
3. Installation instructions.
Before commencing Installation, confirm that the details on the appliance data plate correspond to the local
distribution conditions, gas type and pressure to which the appliance is to be installed.
Ensure that gas supply and supply pipe is capable of delivering the required volume and pressure of gas and is in
accordance with the rules in force.
3.1 Gas Connection
This appliance has a gas inlet connection of Ø 8mm.
3.2 Ventilation
This appliance is a Balanced Flue room sealed appliance, and as such needs no additional ventilation. However
an adequate supply of fresh air to maintain temperatures and a comfortable environment is recommended.
This appliance may be installed in a completely sealed or mechanically ventilated house.
3.3 Appliance Fireplace Installation
Determine the position required for the appliance.
Create a gas connection for the appliance in approximately the correct location for the gas controls.
The gas controls are connected to the Burner of the appliance. These controls need to be located in the control
access box, so an appropriate position for the access box needs to be determined for the ICONIC 1100.
This appliance has fully adjustable legs, these must me set to the desired length before the flue position is
finalised. Fine adjustment of the legs is available via the feet.
Do not make any adjustments to the appliance, except the leg length.

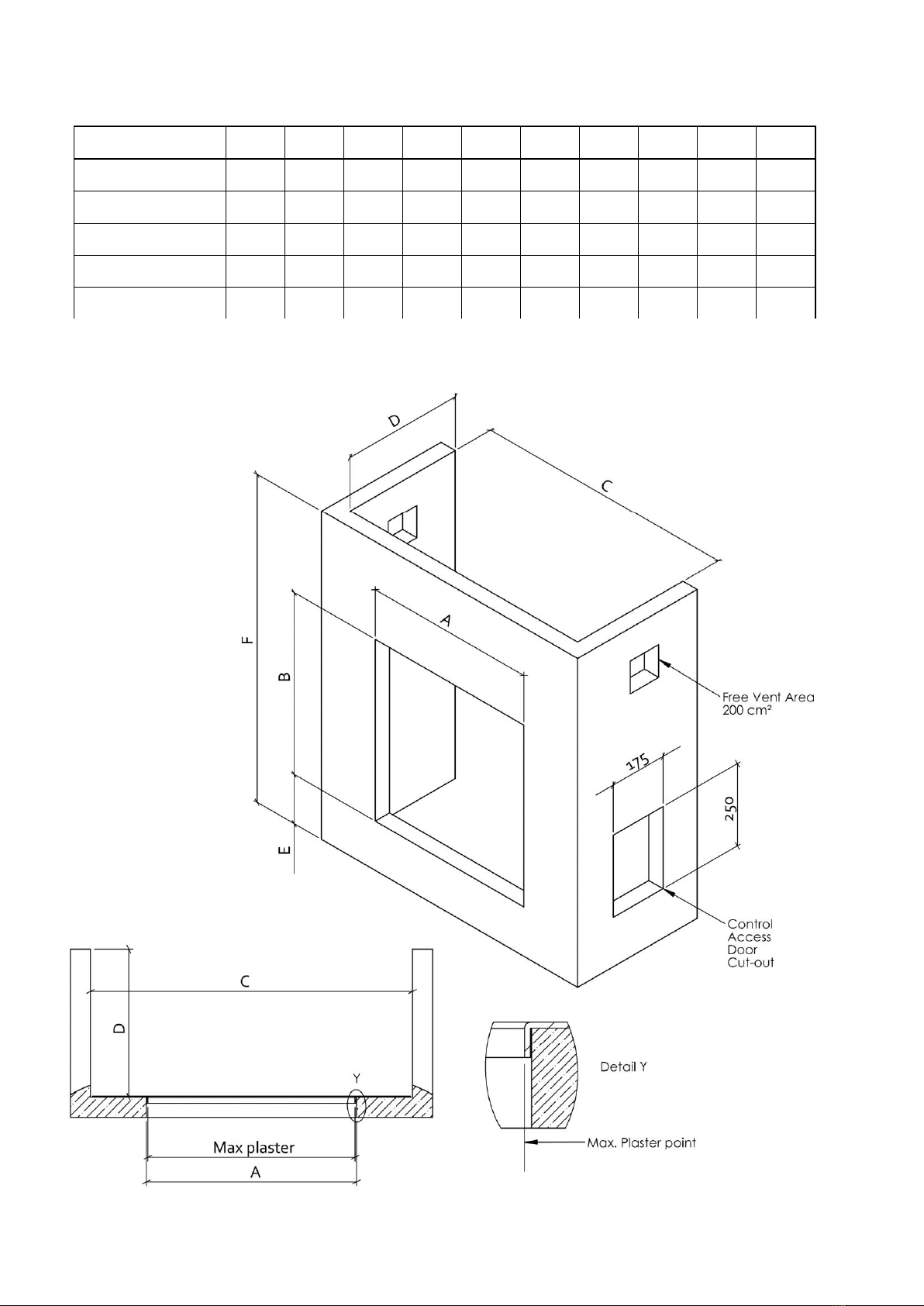

The appliance should be fitted with a minimum clearance of 150mm from any combustible objects or materials;
this includes any combustible materials used for the fireplace construction. This clearance distance can be
reduced to 50mm if a Cement Board, of minimum thickness 12mm is used. This Cement Board will act as a
Thermal Break.
The clearance distance of the Flue from combustibles must not be less than 75mm. This dimension can be
reduced to 25mm as the distance from the underside and the sides of Horizontal Flue runs.
As this is a room sealed appliance and the appliance stands on appropriate legs, a hearth is not required for this
appliance.
The Fireplace should be ventilated with convection ducts into the room from the fireplace chimney breast with
openings giving a total free vent area of 200 cm².
A gap of 50mm should be left all round the appliance.
If a shelf is to be fitted above the fireplace opening, a gap of 150mm minimum should be left between the
opening and the shelf. See section 3.3.3, Mantel Clearances.
The brackets supplied may be used for securing the appliance to a rear wall.
3.3.1 Building the Fireplace
Construct a studwork fireplace to the desired sizes, minimum sizes are shown in section 3.3.2. Any combustible
material used to construct the Fireplace must not be closer than the minimum dimensions quoted in section 3.3
above. Cement Board of minimum thickness 12mm, can be used as a Thermal Break and can be used directly
against the Frame Face on the appliance.
Do not use insulation material (or other) to pack the void around or above the appliance.
Provide ventilation from the fireplace to the minimum amount quoted in 3.3 above.
Provide a cut-out for the Control Access Door.

17
3.3.2 Built-In Fireplace Sizing (assuming a Cement Board Lining is used)
Appliance
A min
Bmin
C min
D min
E min
F min
G min
G2min
Hmin
W min
Iconic 1100 FR
1110
425
1250
380
130
685
n/a
n/a
n/a
n/a
Iconic 1100 3S
n/a
425
1155
380
130
685
265
265
n/a
n/a
Iconic 1100 CL /CR
n/a
425
1200
380
130
685
265
n/a
1115
n/a
Iconic 1100 RD
n/a
425
355
1280
130
800
1115
1115
n/a
n/a
Iconic 1100 ST
1110
425
1330
n/a
130
800
n/a
n/a
n/a
355

IE & GB
18
Built in fireplace sizing
Bay and Room Divider
Built in fireplace sizing
Corner appliances

19
3.3.3 Mantel Clearances
3.3.3.a Combustible Mantel –Side view

IE & GB
20
