ICStation ZK-1001B User manual

ICStation ZK-1001B 100W TWS Bluetooth Amplifier Audio Module https://www.icstation.com/

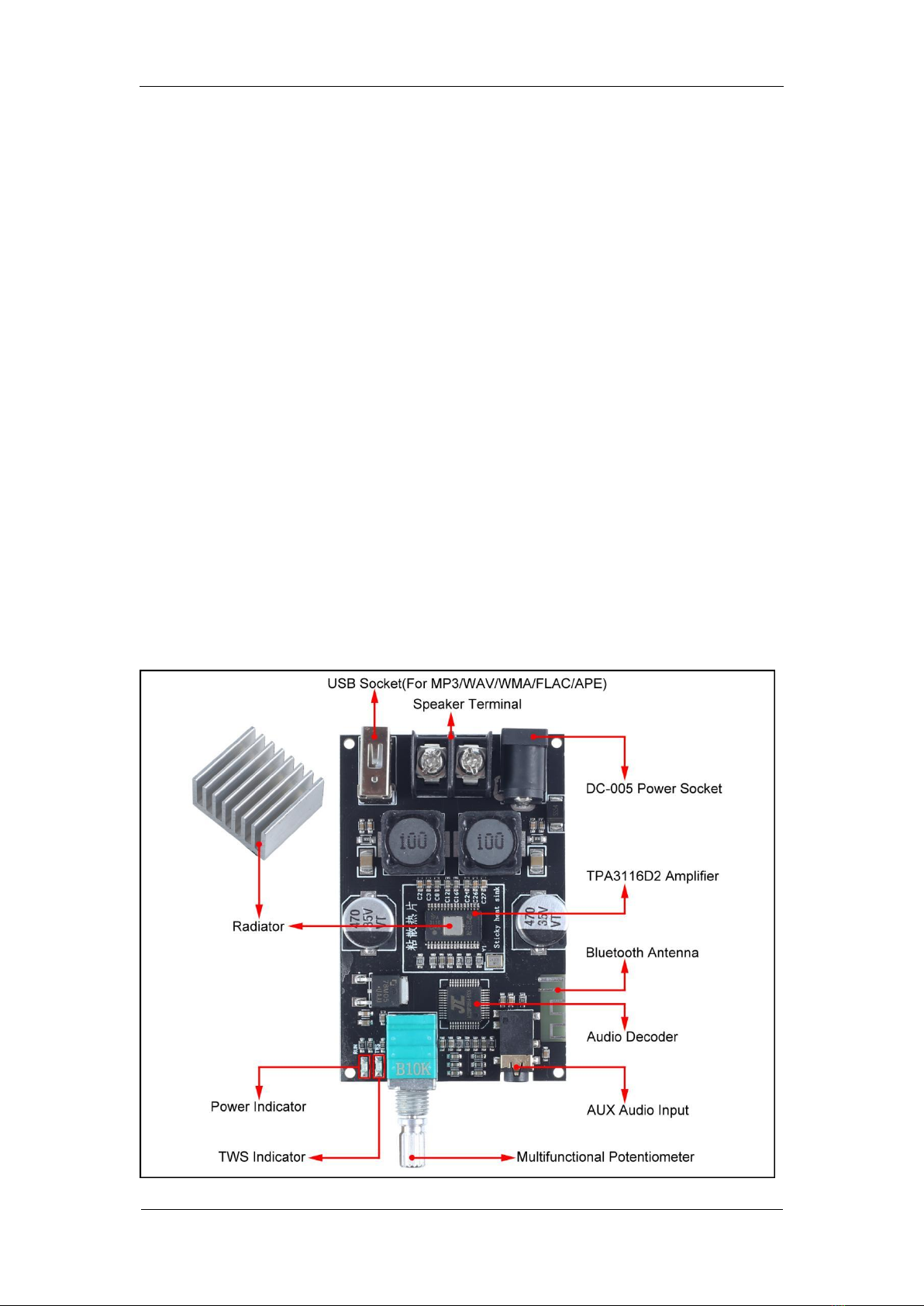

1
1.Description:
ZK-1001B is a DC 12V 24V 100W TWS Bluetooth Amplifier Audio Module, perfect for DIY wireless
Bluetooth speakers and transponders. This module can receive Bluetooth music, as well as AUX/USB
audio input.
It also features a unique TWS technology that allows you to combine two mono amplifiers into stereo
dual channels for wireless pairing connection. It also allows you to switch between mono and dual
channels according to your needs.
This Bluetooth amplifier module is ideal for those who want to add a surround sound experience to
their home theater, KTV, outdoor parties, and more. With its powerful 100W output and adjustable
volume control, you can customize the sound according to your preference. It is also easy to install and
use, allowing you to enjoy an immersive sound experience with minimal effort.
In addition, it also comes with a power switch, allowing you to turn off the power when not in use,
saving energy. With its unique TWS technology, adjustable volume.
2.Features:
1>.TWS Bluetooth Pairing: It is equipped with TWS technology that allowing you to combine two mono
amplifiers into stereo dual channels for wireless pairing connection. It also allows you to switch between
mono and dual channels according to your needs. Enter/exit TWS by press potentiometer three times.
2>.Bluetooth/AUX/U-disk Audio: It can not only receive music via Bluetooth, but also via AUX and
U-disk to fit different needs. It is capable of playing WAV, WMA, FLAC, APE, MP3 and APE music files.
3>.100W Amplifier: It features a built-in power amplifier circuit, allowing it to directly drive up to 100W
speakers. All that is needed is sufficient power supply and matching speakers to achieve an outstanding
music playback effect.
4>.Application: Perfect for home theaters, KTVs, outdoor parties, and more, this Bluetooth amplifier
will improve sound quality and provide a surround sound experience. It is easy to install and use, allowing
you to experience an immersive sound with minimal effort.
5>.Easy to use: It is equipped with an adjustable volume control, allowing users to customize the
sound according to their preference. Furthermore, it also provides functions such as switching to the next
music, playing/pausing music, and turning on/off the power.
3.Parameters:
1>.Product name:ZK-1001B 100W TWS Bluetooth Amplifier Audio Module
2>.Model:ZK-1001B
3>.Work Voltage:DC 7V-24V(12V or more recommended)
4>.Work Current:>4A
5>.Controller IC: TPA3116
6>.Channel:single track mono output
7>.Bluetooth:BLE 5.1
8>.Audio input type:Bluetooth/AUX/U-disk/USB sound card
9>.Output power:20W-100W
10>.Output impedance:3ohm-8ohm
11>.Communication distance:15meter(Max)
12>.Over temperature protection:Yes
13>.Short circuit protection:Yes
14>.Input reverse connection protection:Yes

ICStation ZK-1001B 100W TWS Bluetooth Amplifier Audio Module https://www.icstation.com/
2
15>.Work Temperature:-20℃~85℃
16>.Work Humidity:5%~95%RH
17>.Module Size(Installed):92x45x20mm
4.Use steps:
1>.Using the wiring diagram, select the correct speakers to connect to the black terminal.
2>.Connect the power supply from the DC-005 power socket and wait for the ‘ding dong’ prompt to
indicate the module is ready for pairing. Note: There is a DC-005 screw terminal power converter that
allows users to directly connect other wires.
3>.Activate Bluetooth on your phone.
4>.From the Bluetooth device list, select the ‘WuZhi Audio’ device.
5>.Once the device is selected, the module will prepare start playing music.
6>.Adjust the volume using the rotary potentiometer. Rotate the knob clockwise to increase the
volume.
7>.Press the potentiometer once to play/pause the music.
8>.Press the potentiometer twice to switch to the next song.
9>.Press the potentiometer three times to enter or exit TWS pairing mode. The red LED will keep
flashing. If pairing is not successful, the module will automatically exit TWS pairing mode.
9.1>.Two identical ZK-1001B must be prepared. Note: It is not recommended to pair TWS devices of
different models with each other.
9.2>.Press the potentiometer three times on either device to automatically pair the other ZK-1001B.
When the pairing is successful, a stereo speaker is created.
9.3>.The first ZK-1001B will be the left channel and the red LED indicator will remain on. The second
ZK-1001B will be the right channel and the red LED indicator will keep flashing.
9.4>.The devices will automatically pair upon powering on.
9.5>.Select any ZK-1001B and press the potentiometer three times to cancel TWS pairing if needed.
10>.Press and hold the potentiometer for more than 3 seconds to turn the work power ON or OFF.
5.Application:
1>.Modified/repair/replace speaker
2>.Amplifier equipment for training/activity site and so on
3>.Car Bluetooth device
4>.Music Festival Party
5>.Family entertainment and leisure
6>.Games and Cinema
7>.Home theater
8>.Security system
9>.KTV singing hall
10>.Home background music
6.Note:
1>.One ZK-1001B is mono and two ZK-1001B can be connected in stereo using TWS functionality.
2>.The heat sink and shell must be installed by the user.
3>.The power amplifier board should be placed as far away from the WIFI signal (router) as possible
to avoid signal interference.
4>.The power supply voltage should be DC 7V-24V with more than 4A current. The module will be
damaged if the input voltage is above 25V.
5>.It is recommended to use a working power supply of more than 12V.
6>.Avoid signal interference by not using excessively long wires.
7>.The audio input and power supply voltage/current must both be sufficient to ensure enough power
output.

ICStation ZK-1001B 100W TWS Bluetooth Amplifier Audio Module https://www.icstation.com/
3
8>.The higher the power supply voltage, the greater the output power.
9>.The smaller the impedance of the speaker, the greater the output power. It is recommended to use
4ohm speakers.
10>.Please read the user manual and product description carefully before use.
7.Frequently Asked Questions:
1>.How to choose a power supply adapter?
The power supply for the module is very important and must be used with caution. The ripple of the
selected power supply should be kept to a minimum as a large ripple will cause the background noise
of the power amplifier board to increase and a current sound will be produced.
A power adapter with a 5.5*2.1mm or 5.5*2.5mm plug is required, and it is recommended to use a
12V power supply with a current of more than 3A. The higher the voltage and current, the better the
output power. For power voltages lower than 12V, it is best to connect a 4ohm speaker. If an 8ohm
speaker is used, 24V voltage is recommended.
Input voltages higher than 25V may damage the module. Low voltage inputs will distort the sound
after amplification and low currents will not be able to drive the speaker properly or will pull the voltage
down, resulting in abnormal operation or poor sound quality. If a low powered adapter such as a 9V 2A
adapter is used, it is advised to adjust the volume to the maximum as this may cause distortion and
affect the sound quality.
2>.How to choose a speaker?
Commonly used speakers usually have an impedance of 3ohm to 8ohm and do not require
distinguishing between positive and negative polarity.
The module can also work properly with low powered speakers with a power range of 10W to 50W,
however, it must be connected to a low powered adapter such as one with a voltage lower than 12V to
avoid damaging the speaker.
There is no need to worry about the speaker burning out when connecting to speakers with a power
of 80W to 100W. The module can be connected to a 12V to 24V power supply, with the higher voltage
providing more output sound or power. The speaker's power must not exceed 100W as this will affect
the sound quality.
3>.How to choose Bluetooth or AUX audio input mode?
AUX/USB mode takes priority over Bluetooth mode. If you wish to use Bluetooth as your input audio
signal, you must first disconnect the AUX or USB. AUX and USB connections take precedence.
4>.Why is the volume working normally when volume small and there is turbidity after increase
volume?
If there is sound distortion, try changing the adapter power supply to one with a higher voltage and
current or turn down the volume.
5>.Why is the volume working normally when volume small and there is pause after increase
volume?
The input power is insufficient. Try using an adapter power supply with higher voltage and current.
The power supply has an intermittent power-off protection feature. Use a power adapter that
matches the requirements.
If the power of the power supply is too high, reduce the power of the input power.
If the power amplifier board is too hot, triggering the overheat protection, increase the size of the
radiator.
6>.What factors are related to the sound quality?
The sound quality is not just determined by the power amplifier module, but also by the power
supply, sound source and the entire sound system. Every component of the sound system affects the

ICStation ZK-1001B 100W TWS Bluetooth Amplifier Audio Module https://www.icstation.com/
4
sound quality, including the audio transmission line, audio power supply, tone circuit, power amplifier
circuit, speaker and surrounding environment.
The sound quality is at its best when the sound source, power supply, power amplifier module and
speaker are all well-matched.
8.Package:
1>.1pcs ZK-1001B 100W TWS Bluetooth Amplifier Audio Module
2>.2pcs Aluminium Alloy Shell
3>.1pcs 20*18*10mm Aluminum heat sink
4>.1pcs 6mm knob cap
5>.1pcs ‘+’ Screwdriver
6>.1pcs DC005 to 2P Screw Terminal
7>.1pcs Potentiometer metal gasket
8>.1pcs Potentiometer metal screw
9>.4pcs M2*14mm Copper column
10>.4pcs M2*4+3mm Copper column Screw
11>.8pcs M2*3mm screw
9.Aluminium Alloy Shell Installation Steps:
Step 1: Fix 4pcs M2*14mm Copper column on PCB mounting hole by 4pcs M2*4+3mm Copper
column Screw.

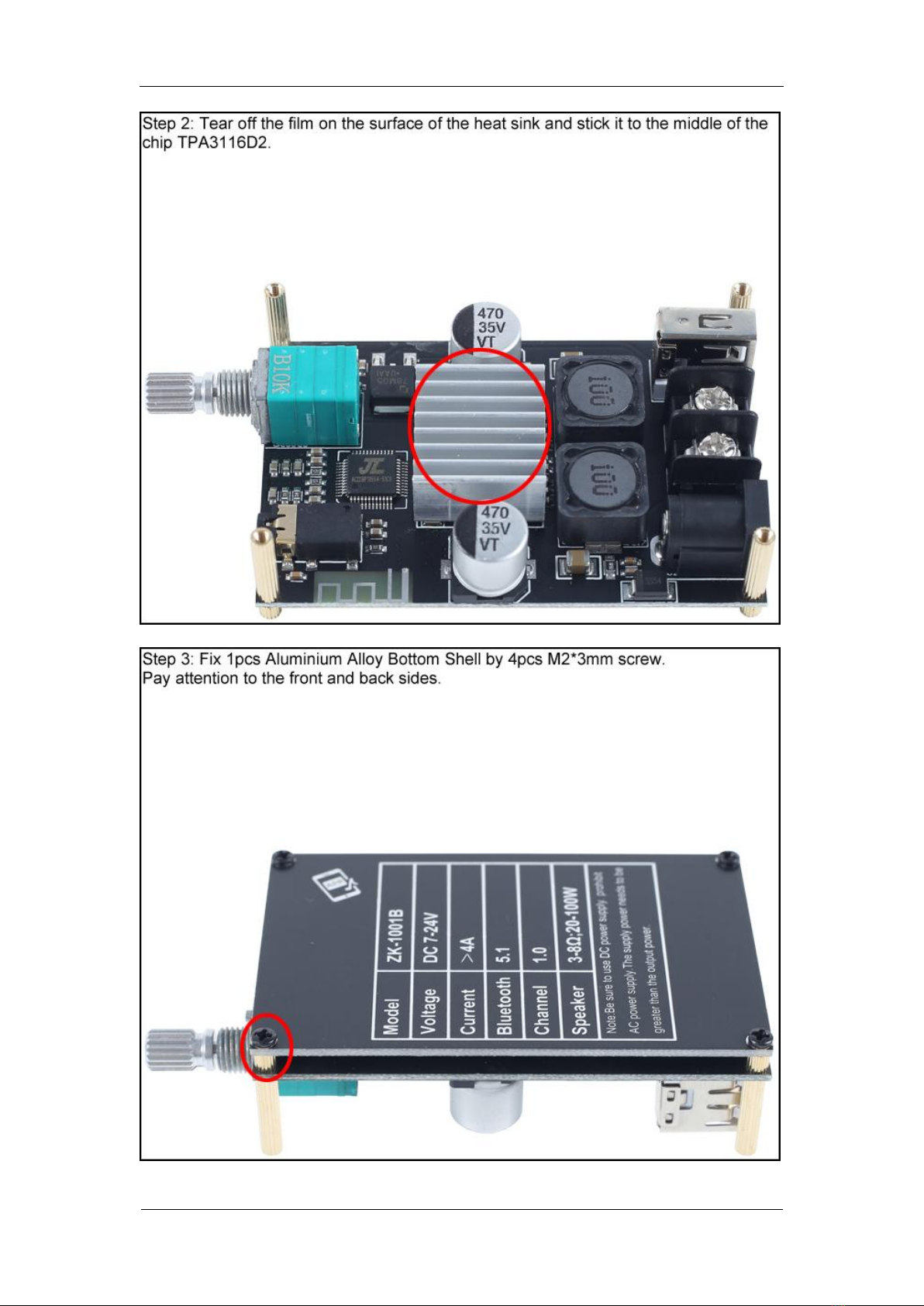

Step 2: Tear off the film on the surface of the heat sink and stick it to the middle of the chip
TPA3116D2.

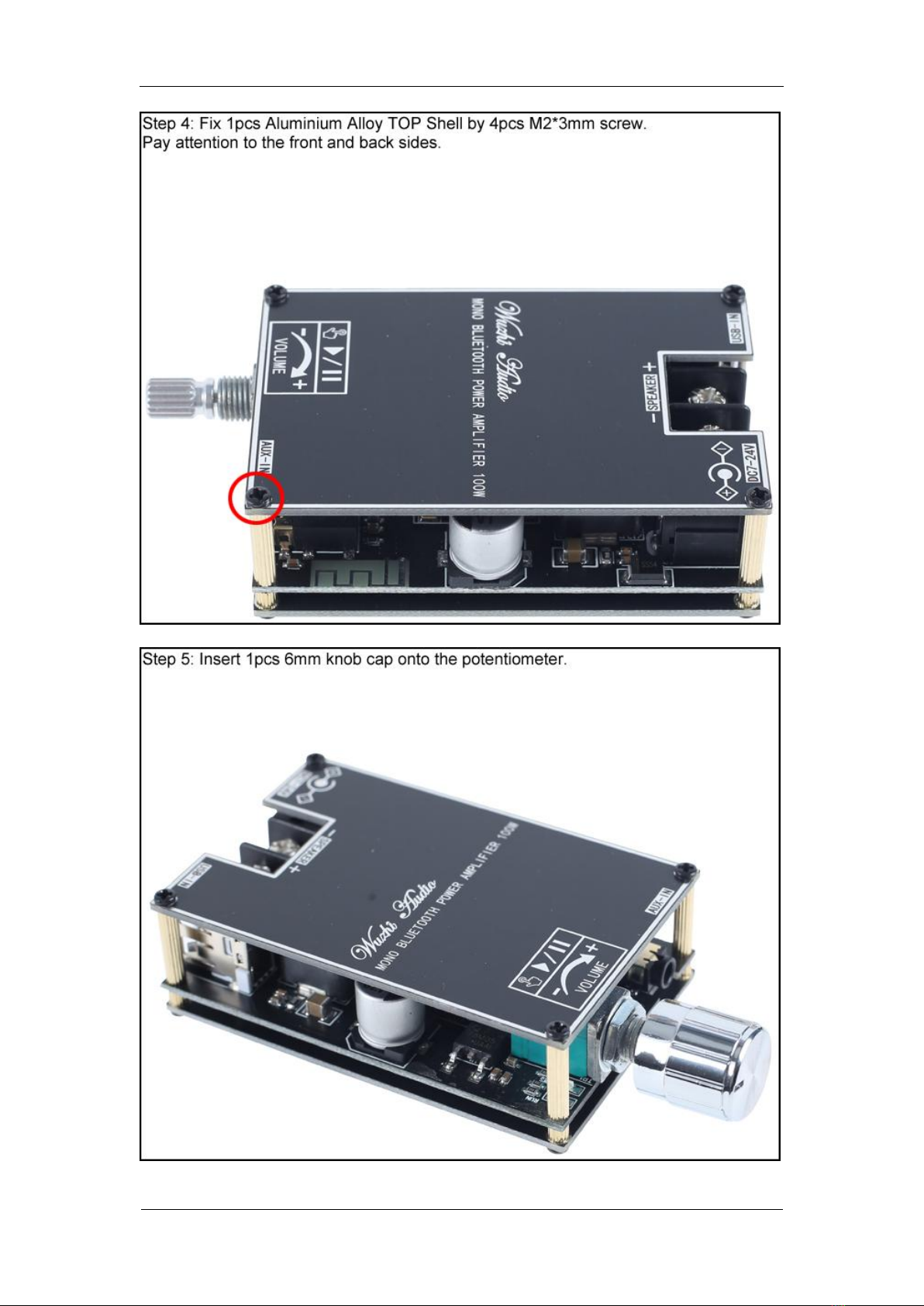

Step 3: Fix 1pcs Aluminium Alloy Bottom Shell by 4pcs M2*3mm screw. Pay attention to the front and
back sides.
Step 4: Fix 1pcs Aluminium Alloy TOP Shell by 4pcs M2*3mm screw. Pay attention to the front and
back sides.
Step 5: Insert 1pcs 6mm knob cap onto the potentiometer.
