iHome iBT44 User manual

•
I
instruction
manual
iBT44
Bluetooth
Wireless
Boombox
with
FM
Radio
and
USB
Charging

iBT44

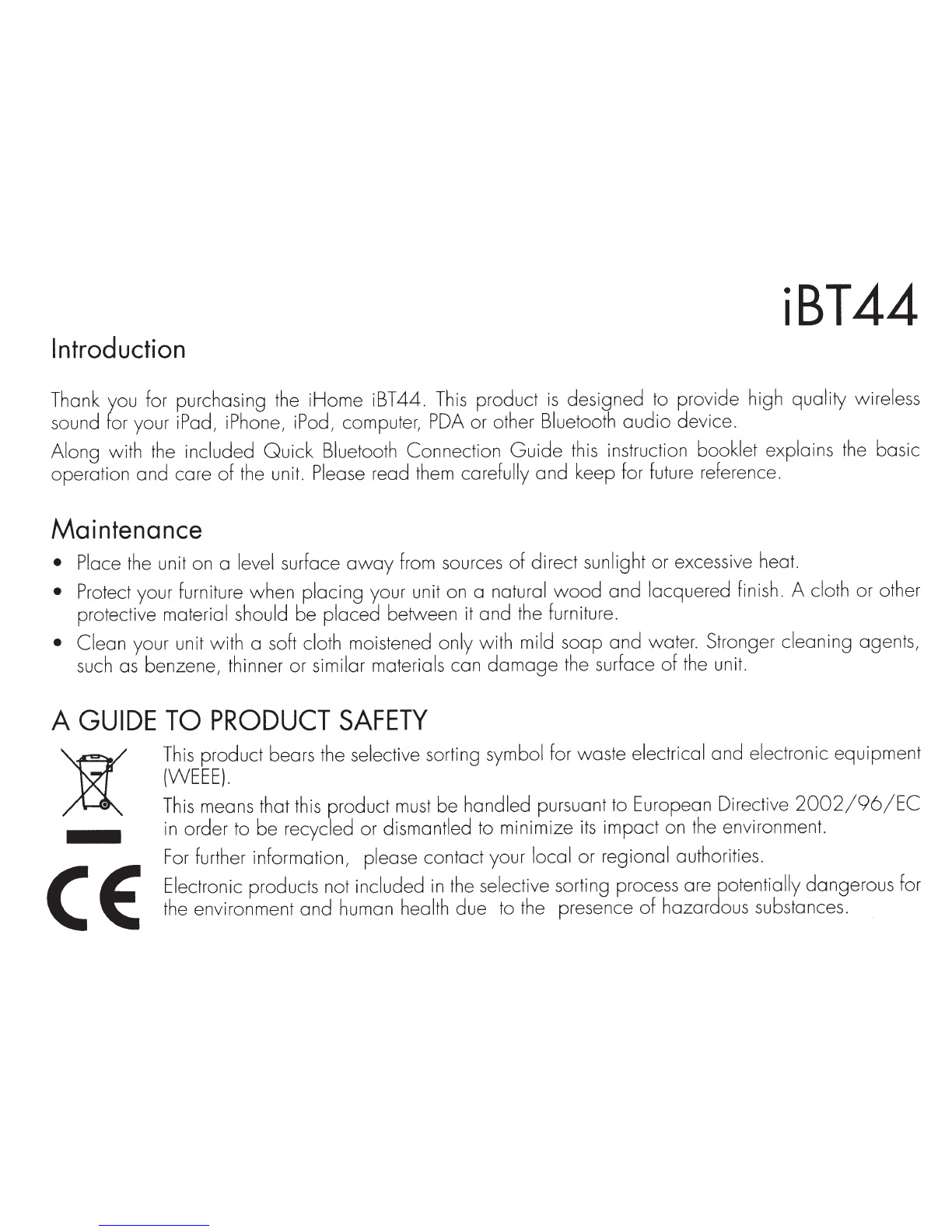

Introduction
Thank you for purchasing the
iHome
iBT
44.
This
product
is
designed to provide high quality wireless
sound tor your iPad, iPhone, iPod, computer,
PDA
or other Bluetooth
audio
device.
Along with
the
included

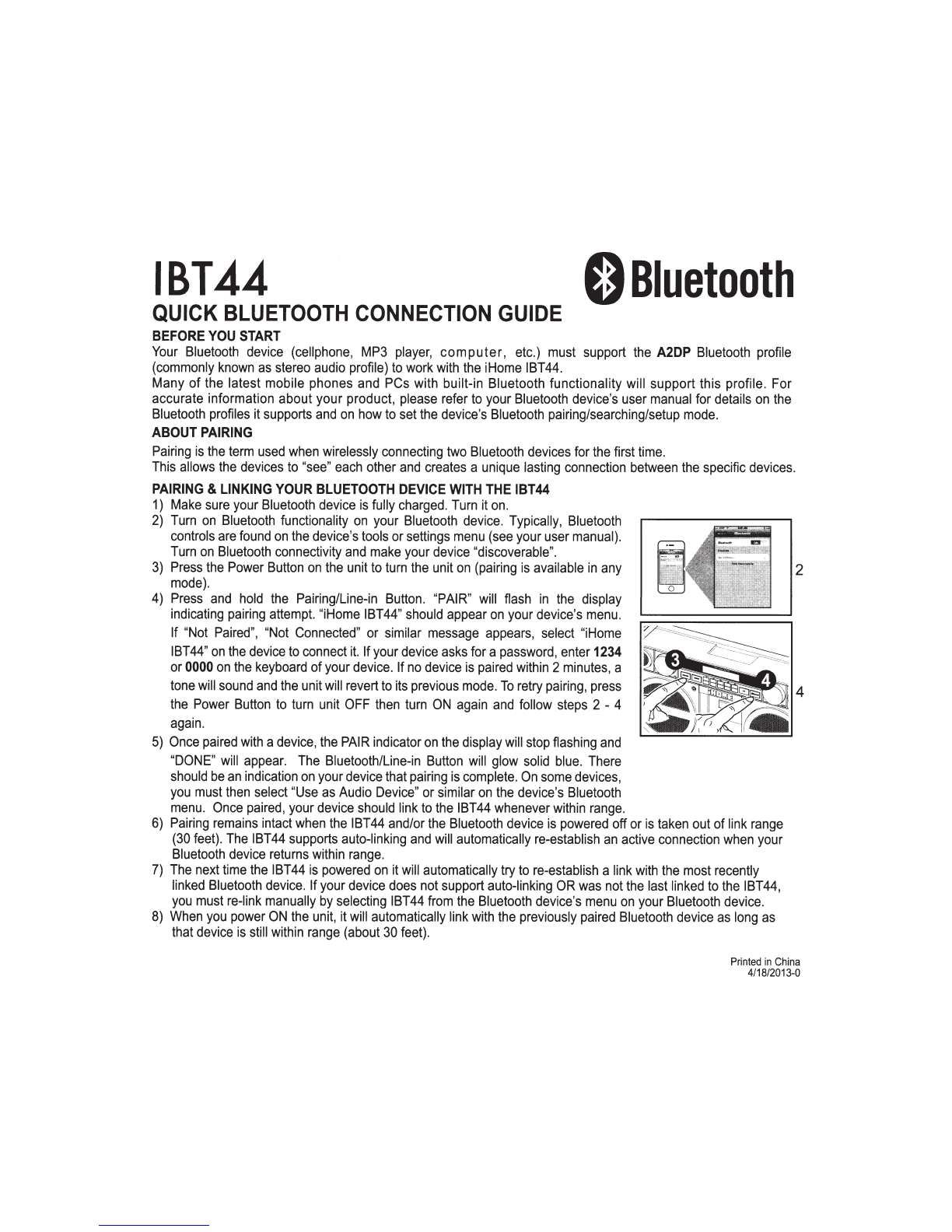

Quick
Bluetooth Connection
Guide
this
instruction booklet explains
the
basic
operation and care
of
the unit. Please read them carefully
and
keep for future reference.
Maintenance
• Place
the
unit on a level surface
away
from sources
of
direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural
wood
and lacquered finish. A cloth or other
protective material should be placed between
it
and the furniture.
• Clean your unit with a soft cloth moistened only with mild
soap
and
water. Stronger cleaning agents,
such
as benzene, thinner or similar materials can
damage
the surface
of
the unit.
A
GUIDE
TO
PRODUCT
SAFETY
-
CE
This
product bears the selective sorting symbol for waste electrical and electronic equipment
(WEEE).
This
means that
this
product
must
be handled pursuant to European Directive
2002/96/EC
in
order to be recycled or dismantled to minimize
its
impact on the environment.
For
further information, please contact your local or regional authorities.
Electronic products not included
in
the
selective sorting process are potentially dangerous for
the
environment
and
human health due to the presence
of
hazardous substances.

iBT44

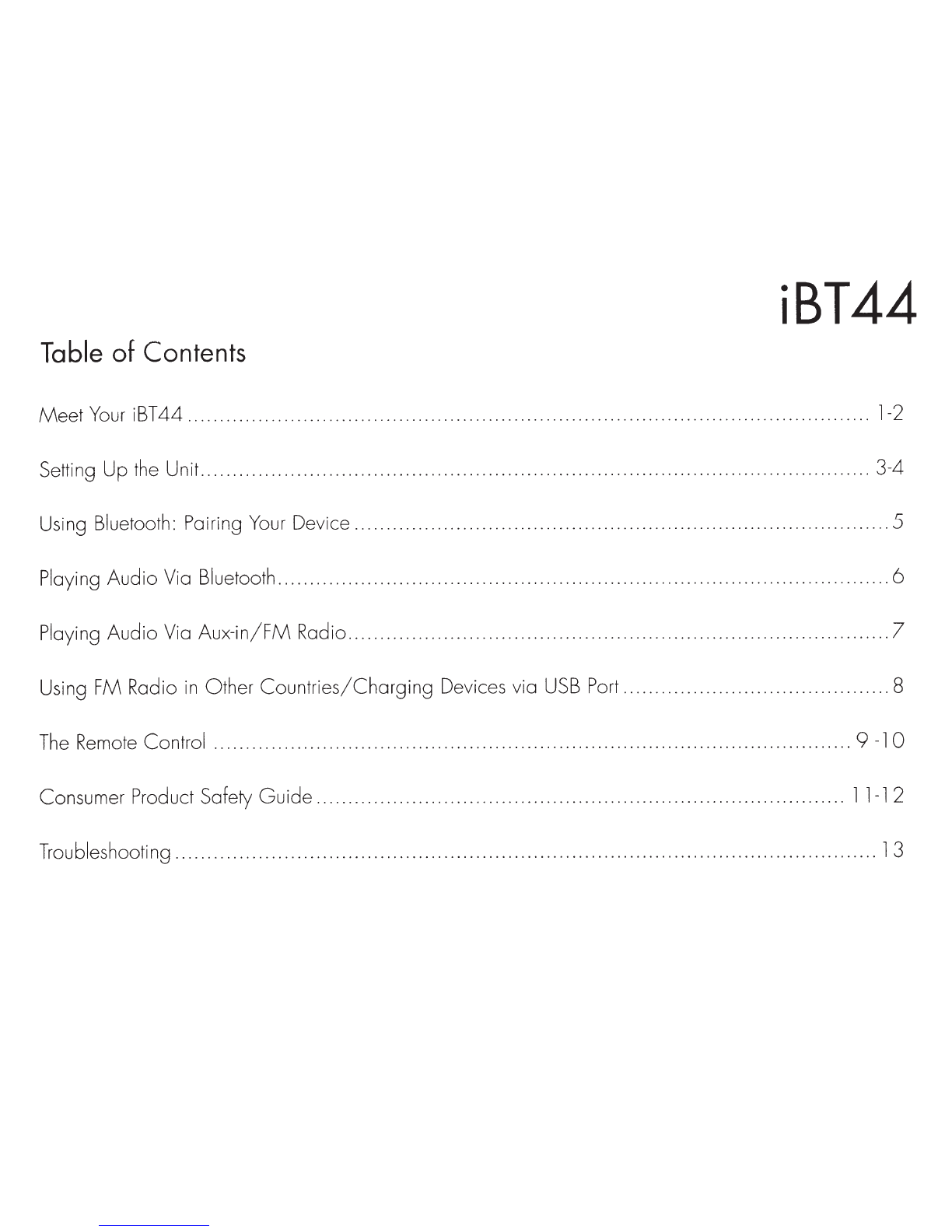

Table
of
Contents
Meet
Your
iBT
44
....................
..
..............................
..
.....................................................
l-2
Setting Up
the
Unit
......................................
........
......................................
..
............
....... 3-4
Using Bluetooth: Pairing
Your
Device
.....................
...
............................................................
5
Playing Audio Via Bluetooth.........
..
.............
..........
..
...................................
.........
................
6
Playing Audio Via
Aux-in/FM
Radio
................................................................
.
....................
7
Using FM Radio
in
Other Countries/Charging Devices via
USB
Port
..........................................
8
The
Remote
Control
....................................................................................................
9 -l 0
Consumer Product Safety
Guide
...................................................................................
l
1-l
2
Troubleshooting
..............................................................................................................
l 3

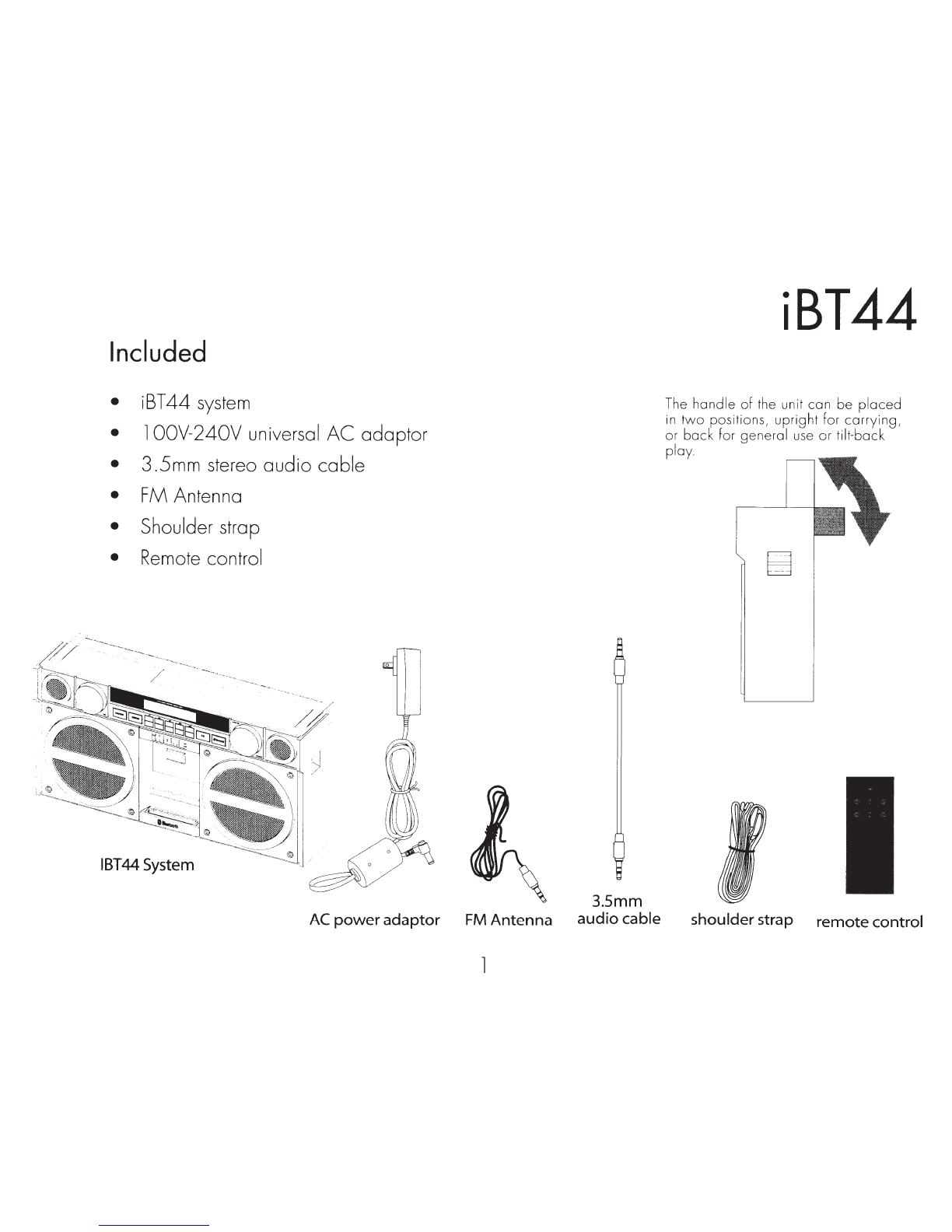

Included
• iBT 44 system
• l OOV-240V universal AC adaptor
• 3.5mm stereo audio cable
• FM Antenna
• Shoulder strap
• Remote control
3.5mm
AC power adaptor FM Antenna audio cable
l
iBT44
The handle of the unit con be placed
in two positions, upright for carrying,
or bock for general use or tilt-bock
ploy.
shoulder strap remote control

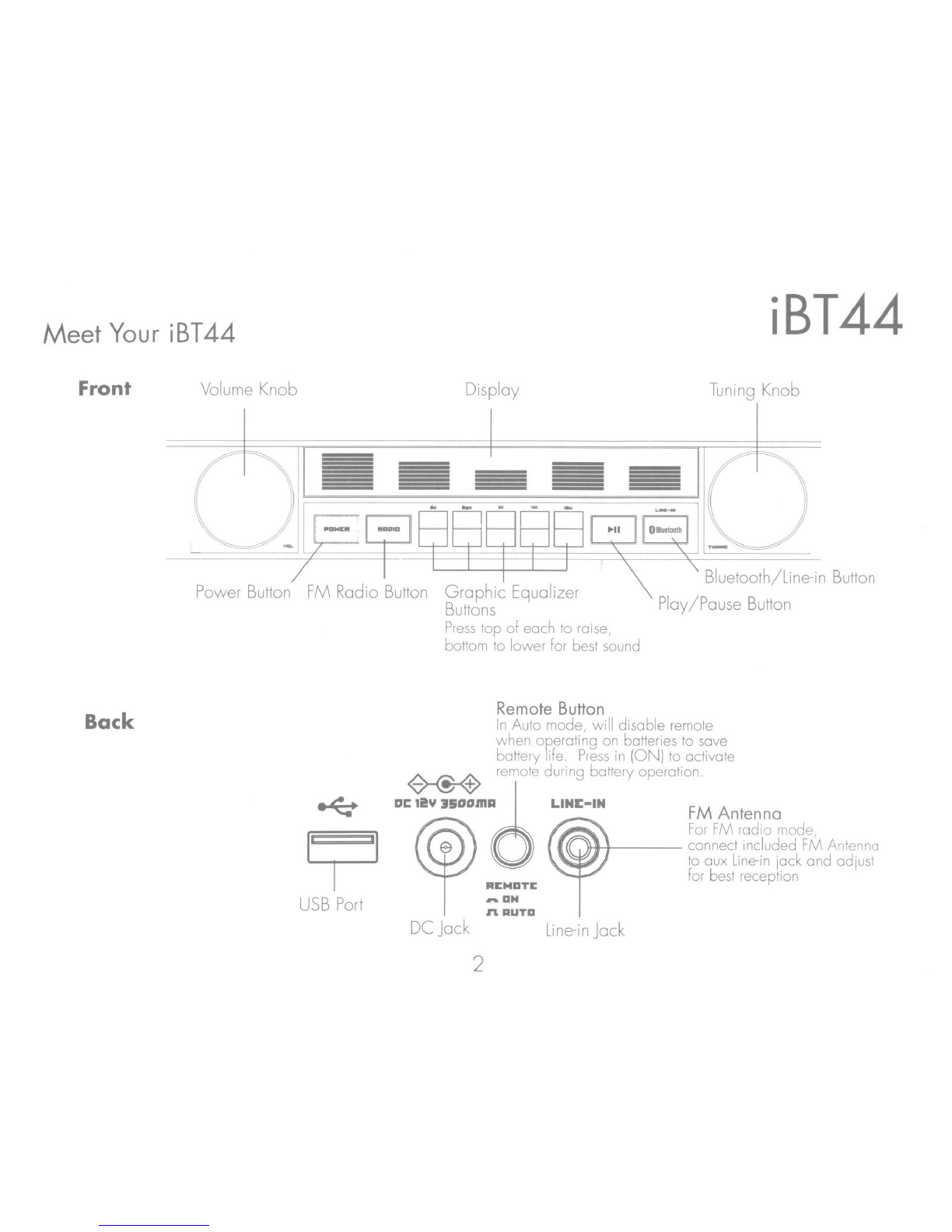

Meet Your iBT 44
iBT44
Front
Back
Volume Knob Display Tuning Knob
'L -• I •aa~ l
=- f - L/ I -
/
Power Button FM Radio Button Graphic Equalizer
Buttons
Bluetooth/Line-in Button
Play
/Pause Button
USB Port
Press top of each to raise,
bottom to lower for best sound
~
Remote Button
In Auto mode, will disable remote
when operating on batteries to save
battery life.
Press in (ON) to activate
remote during battery operation.
DC IIY JSOOmA LINE-IN
FM Antenna
DC jack
2
REMDTE
-aM
nauTa
For FM rad1o mode,
K+-t----- connect included FM Antenna
Line-in jack
to aux Line-in jack and adjust
for best reception

Setting Up the Unit
This unit can be operated using the included
AC adaptor or with 6 "D" (LR20) batteries for
portable
use (not included).
For AC operation, place unit on a stable
surface.
Plug the power adaptor into the DC
jack on back of the unit and the other end into
a
wall socket. The USB port can charge
devices
while connected to AC power
For battery operation, place unit upside down
to access the battery compartment. Press down
directly on arrow with thumb and slide the
battery compartment cover to release
it. If
replacing existing batteries, remove and
dispose
of properly. Insert 6 fresh "D" (LR20)
alkaline batteries with polarity (+ or-) as
shown. Replace battery comportment door.
Note: unit will not charge USB devices while
operating on batteries.
Using the iBT 44
0
3

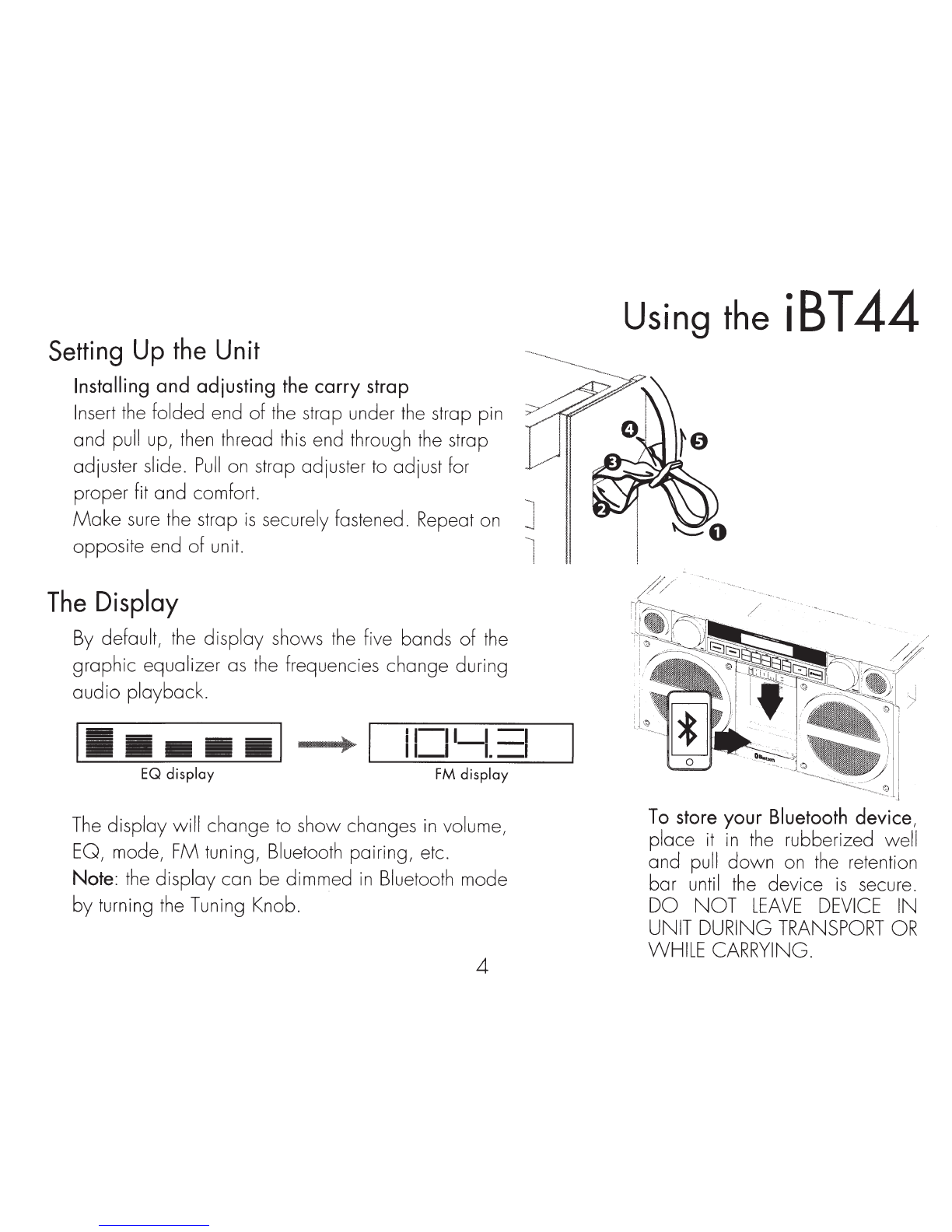

Setting
Up
the
Unit
Installing and adjusting
the
carry
strap
Insert the folded end
of
the strap under the strap pin
and
pull up, then thread this end through the strap
adjuster slide.
Pull
on strap adjuster to adjust for
proper fit
and
comfort.
Make
sure
the strap
is
securely fastened. Repeat on
opposite end
of
unit.
The
Display
By
default, the
display
shows the five bands
of
the
graphic
equalizer as the frequencies change during
audio
playback
.
EQ
display
FM
display
The display will
change
to
show
changes
in
volume,
EQ, mode,
FM
tuning, Bluetooth pairing, etc.
Note: the
display
can
be
dimmed
in
Bluetooth
mode
by
turning the Tuning Knob.
4
Using
the
iBT
44
/
0
J
To
store
your
Bluetooth
device,
place
it
in
the rubberized well
and pull
down
on the retention
bar until the device
is
secure.
DO
NOT
LEAVE
DEVICE
IN
UNIT DURING TRANSPORT OR
WHILE CARRYING.

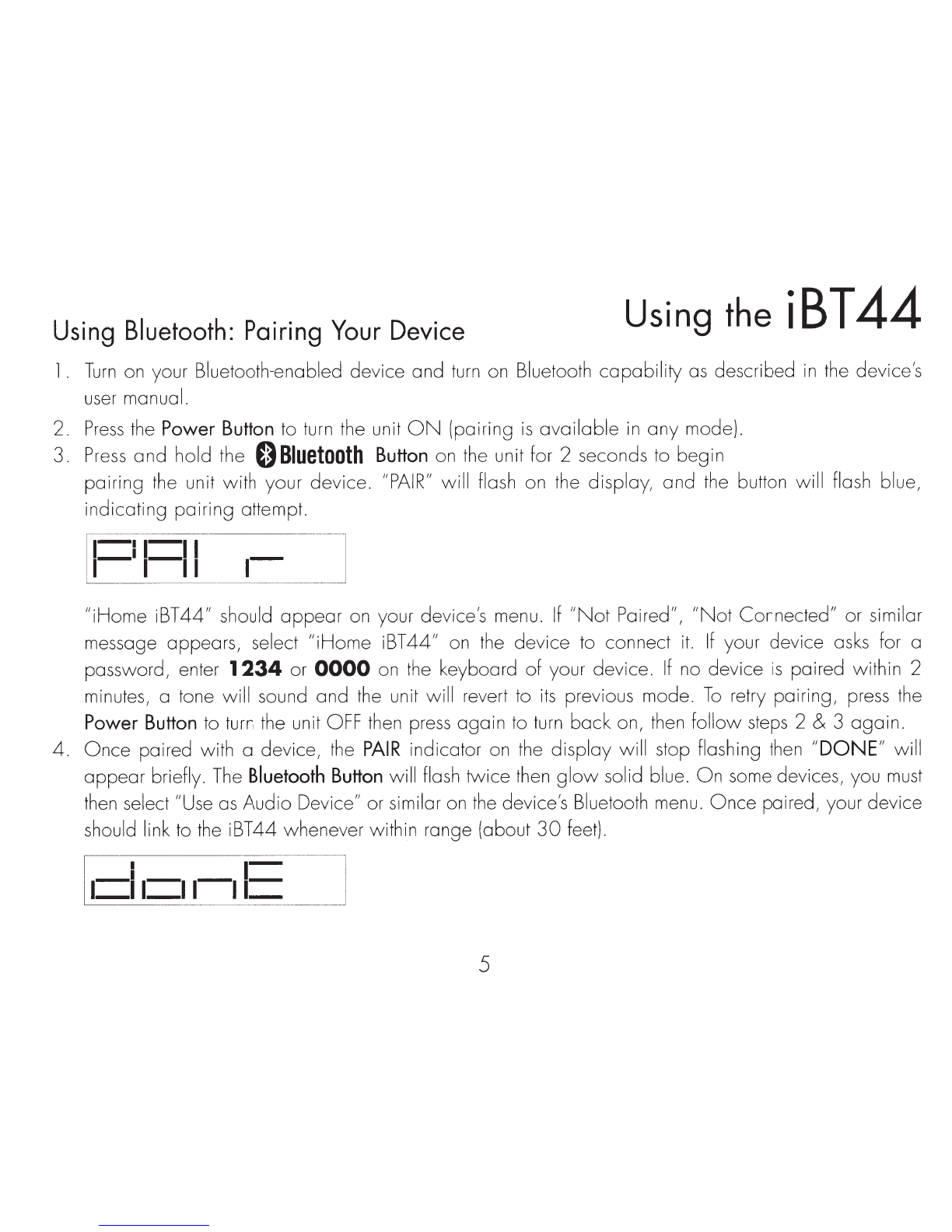

Using Bluetooth: Pairing Your Device
Using the iBT 44
1. Turn on your Bluetooth-enabled device and turn on Bluetooth capability as described in the device's
user manual.
2. Press the Power Button to turn the unit ON (pairing is available in any mode).
3.
Press and hold the 0 Bluetooth Button on the unit for 2 seconds to begin
pairing the unit with your device. "PAIR" will flash on the display, and the button will flash blue,
indicating
pairing attempt.
"iHome
iBT 44" should appear on your device's menu. If "Not Paired", "Not Connected" or similar
message appears, select
"iHome iBT 44" on the device to connect it. If your device asks for a
password, enter
1234 or 0000 on the keyboard of your device. If no device is paired within 2
minutes, a tone will sound
and the unit will revert to its previous mode. To retry pairing, press the
Power Button to turn the unit OFF then press again to turn back on, then follow steps 2 &3 again.
4. Once paired with a device, the PAIR indicator on the display will stop flashing then "DONE" will
appear briefly. The Bluetooth Button will flash twice then glow solid blue. On some devices, you must
then select "Use as Audio Device" or similar on the device's Bluetooth menu. Once paired, your device
should link
to the iBT44 whenever within range (about 30 feet).
I I 1-
11=11=11-11=
5

Using
the
iBT
44
Pairing
with
a
Different
Device
When
you
power
ON
the unit,
it
will automatically link with the previously paired Bluetooth
device
as
long as that
device
is
still within range (about
30
feet).
Playing
Audio
Via
Bluetooth
l .
Press
the
Power Button
to
turn
on the unit
in
the last active mode.
If
needed, press the 0
Bluetooth
Button
to enter Bluetooth mode. The blue light on the
Bluetooth Button
will flash and a tone
will
sound
as the unit searches for a previously paired device,
and
then
turn
solid blue once a previously paired
device
is
detected.
2.
Press
the...,.
..
Play Pause Button
on the unit to
play
audio
from your linked Bluetooth
device.
While
audio
is
playing,
press to pause play,
and
again
to resume play.
3. Use the controls on your
device
to navigate tracks, etc.
4.
Turn
the
Volume Knob
to control the system volume. Adjust
EQ
settings as desired.
NOTE
: The volume ranges from 0 -
40
.
While
the
dial
can still be turned when these limits are
reached,
doing
so has no effect.
5.
When
done
listening, press the
Power Button
to
turn
the unit off. Remember to
turn
off
your
audio
device, too.
TIP:
In
Bluetooth mode,
turn
the
Tuning Knob
to adjust the brightness on the display.
Note
that the tuning
knob can continue turning even when the brightest
or
dimmest (off) settings have been reached.
6

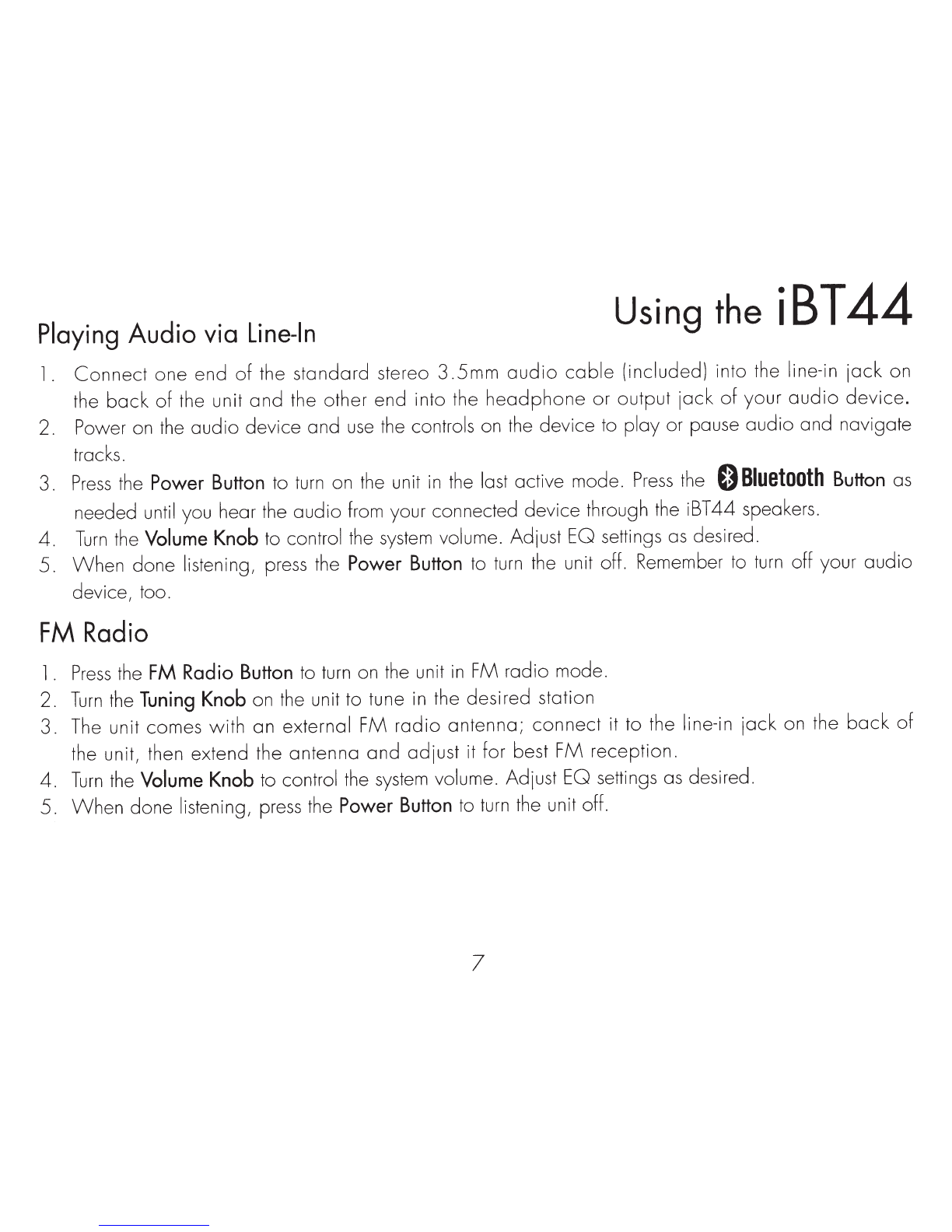

Playing
Audio
via
Line-In
Using
the
iBT
44
1.
Connect
one
end
of
the
standard
stereo 3
.5mm
audio
cable
(included) into the line-in
jack
on
the
back
of
the unit
and
the other end into the
headphone
or
output
jack
of
your
audio
device.
2. Power on the
audio
device
and
use
the controls on the
device
to
play
or pause
audio
and navigate
tracks.
3.
Press
the Power Button to
turn
on the unit
in
the last active mode.
Press
the 0
Bluetooth
Button
as
needed until you hear the
audio
from your connected device through the
iBT
44
speakers.
4.
Turn
the Volume Knob to control the
system
volume. Adjust
EQ
settings as desired.
5.
When
done
listening, press the Power
Button
to
turn
the unit off. Remember to
turn
off your
audio
device, too.
FM
Radio
1.
Press
the
FM
Radio Button to
turn
on the unit
in
FM radio mode.
2.
Turn
the Tuning Knob on the unit to tune
in
the
desired
station
3. The unit comes
with
an external
FM
radio
antenna;
connect
it to the line-in
jack
on the
back
of
the unit, then extend the
antenna
and
adjust
it for best
FM
reception.
4.
Turn
the Volume Knob to control the
system
volume. Adjust
EQ
settings as desired.
5.
When
done
listening, press the Power
Button
to
turn
the unit off.
7

Using
FM
Radio
in
Other
Countries
Using
the
iBT
44
Different areas
of
the
world
use
different
FM
frequency
steps
and
ranges. By default, this unit
is
set
to European
frequency
steps.
To
use
the
radio
outside Europe:
l .
Press
and hold the
FM
Radio
Button
for
5
seconds
until "Europe" appears
in
the display.
2.
Turn
the
Tuning
Knob
to select to
your
location:
Europe,
japan,
Australia,
China
or
USA.
3.
Press
the
FM
Radio
Button
to exit
frequency
setting
mode.
Charging
Devices
via
USB
Port
Make
sure
the unit
is
connected
to
AC
power. The
USB
port does not charge when operating on
battery power.
l . Connect the standard size end
of
a
USB
cable
(not included)
to
the
USB
Port
on back
of
the unit
and
connect the other end to the charging port on your device.
2.
Monitor
the charging on your device. Some devices
use
a proprietary charging method
and
will not
charge using the
USB
Port.
If
this
happens, you
must
charge your device using the charger that came
with
it.
~Bf,:;
~)
is
a registered
trademarks
of
SRS
Labs, Inc. TruBass
technology
is
incorporated
under
license from
SRS
Labs, Inc.
SRS
WOW
HD™,
which features TruBass®, significantly improves the playback quality of audio, delivering a dynamic
30
entertainment experience with deep, rich
bass
and high frequency clarity for crisp detail.
8

The Remote Control
Using the iBT 44
The unit comes with a magnetized remote control which fits into a slot on the top of the unit. The remote
comes with one
CR2032 battery already installed. Remove the battery tab to use the remote.
Power Button
• Turns unit ON or OFF.
Mode Button
• Cycle through modes:
Bluetooth,
FM radio and Line-in
Lower /Raise Volume
• Raises or lowers volume of the unit
Play/Pause Button
• Switches linked Bluetooth device
between Play
and Pause modes
Track Buttons
• Skip to next or previous track
• HOLD to scan reverse
or forward
within a track
9

The
Remote
Control (continued)
Using
the
iBT
44
When
the
range
of
the remote seems reduced
or
if it ceases to
work
properly, it's time to
replace
the battery.
l .
Press
point
of
a
pin
or
po
perclip firmly into the hole
by
the
battery
comportment
cover
on the reor
of
the remote
control to release the cover.
2.
Slide
battery
comportment
cover
off
(remove
old
battery
if
replacing)
.
3. Place
new
CR2032
in
battery
well
as
shown
(make
sure +
side
is
facing
up).
4.
Replace
battery
comportment
cover.
Battery compartment
c~over\
;;,
t"
\
:
"'G:li"'
WARNING:
Lithium batteries
con
explode
or
cause burns if disassembled, shorted,
recharged,
exposed
to water, fire,
or
high temperatures.
Do
not
place
loose batteries
in
a
pocket, purse,
or
other
container
containing
metal
objects,
mix
with
used
or
other
battery
types,
or
store
with
hazardous
or
combustible
materials. Store
in
cool,
dry,
ventilated
area.
Follow
applicable
lows
and
regulations
for
transport
and
disposal.
10

Consumer Product Safety Guide
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to ensure your personal
safety. However, improper
use con result in potential electrical shock or fire hazards. Please read all safety
and operating instructions carefully before installation and
use, and keep these instructions handy for future
reference.
Toke special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture- The unit should not be used near water. For example: near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or
in a wet basement.
2. Ventilation- The unit should be situated so that its location or position does not interfere with its proper
ventilation.
For example, it should not be situated on a bed, sofa, rug or similar surface that may block
ventilation openings. Also, it should not be placed
in a built-in installation, such as a bookcase or
cabinet, which may impede the
flow of air through the ventilation openings.
3. Heat- The unit should be situated away from heat sources such as radiators, heat registers, stoves or
other appliances (including amplifiers) that produce heat.
4. Power Sources- The unit should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
5. Power-Cable Protection -Power supply cables should be routed so that they ore not likely to be
walked on or pinched by items placed upon or against them. It is always best to hove a clear area
from where the
cable exits the unit to where it is plugged into on AC socket.
6. Cleaning- The unit should be cleaned only using a worm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry- Core should be token so that objects do not fall and liquids ore not spilled
into
any openings or vents located on the product.
l l

8.
Attachments-
Do not
use
attachments not recommended
by
the product manufacturer.
9.
Lightning
and
Power Surge Protection -
Unplug the unit from the
wall
socket and disconnect the
antenna or
cable
system
during a lightning storm or when
it
is
left unattended and unused for long
periods
of
time.
This
will prevent
damage
to the product due to lightning and power-line surges.
l 0.
Overloading-
Do not overload
wall
sockets, extension cords, or integral convenience receptacles
as
this
con result
in
a
risk
of
fire or electric shock.
l l .
Damage
Requiring
Service-
The unit should
be
serviced
by
qualified service personnel when:
A.
the
power
supply
cable
or plug has been
damaged.
B.
objects hove fallen into or liquid has been spilled into the enclosure.
C .the unit has been exposed to rain.
D.
the unit has been
dropped
or the enclosure
damaged.
E.
the unit exhibits a marked change
in
performance or does not operate normally.
l
2.
Periods of
Nonuse-
If
the unit
is
to be left unused for on extended period
of
time, such as a month
or longer, the
power
cable
should
be
unplugged from the unit to prevent
damage
or corrosion.
l
3.
Servicing -
The user should not attempt to service the unit beyond those methods described
in
the
user's
operating instructions. Service methods not covered
in
the operating instructions should be
referred to qualified service personnel.
Questions? Visit www.ihomeintl.com
12

Troubleshooting
Unit doesn't respond {no power)
• Make sure unit is connected to AC power OR has 6 fresh "D" (LR20) batteries.
• Check that all connections are correct and properly plugged in.
•
Make sure your device is properly paired with the iBT 44.
• Make sure the Remote Button on the back of unit is pressed in while operating on batteries to control
using
the remote.
Can't see the display
• The display may have been dimmed/turned off in Bluetooth mode. Turn the unit on and press the
Bluetooth Button to enter Bluetooth mode, indicated by the Bluetooth Button turning blue. Turn the
Tuning Knob to the right to increase display brightness.
Trouble pairing device/ computer with iBT 44
Bluetooth implementation varies depending on your device's hardware and operating system. Please see
our website for updates on pairing.
•
When you power ON the unit, it will automatically link with the last previously paired Bluetooth
device if
the device is still within range (about 30 feet).
•
Make sure your device is working properly. Check your device's manual for details on Bluetooth
pairing and linking.
Questions? Visit www.ihomeintl.com
iBT44EU 04182013-0(UK) Printed in China

IBT44
QUICK
BLUETOOTH
CONNECTION
GUIDE
C)Biuetooth
BEFORE
YOU
START
Your
Bluetooth
device
(cellphone,
MP3
player,
computer,
etc.)
must
support
the
A2DP
Bluetooth
profile
(commonly
known
as
stereo
audio
profile)
to
work
with
the
iHome
IBT44.
Many
of
the
latest mobile phones
and
PCs
with
built-in Bluetooth functionality will support this profile.
For
accurate information about your product,
please
refer
to
your
Bluetooth
device's
user
manual
for
details
on
the
Bluetooth
profiles
it
supports
and
on
how
to
set
the
device's
Bluetooth
pairing/searching/setup
mode.
ABOUT
PAIRING
Pairing
is
the
term
used
when
wirelessly
connecting
two
Bluetooth
devices
for
the
first
time.
This
allows
the
devices
to
"see"
each
other
and
creates
a
unique
lasting
connection
between
the
specific
devices.
PAIRING
&
LINKING
YOUR
BLUETOOTH
DEVICE
WITH
THE
IBT44
1)
Make
sure
your
Bluetooth
device
is
fully
charged.
Turn
it
on.
2)
Turn
on
Bluetooth
functionality
on
your
Bluetooth
device.
Typically,
Bluetooth
controls
are
found
on
the
device's
tools
or
settings
menu
(see
your
user
manual).
Turn
on
Bluetooth
connectivity
and
make
your
device
"discoverable".
3)
Press
the
Power
Button
on
the
unit
to
turn
the
unit
on
(pairing
is
available
in
any
mode).
4)
Press
and
hold
the
Pairing/Line-in
Button.
"PAIR"
will
flash
in
the
display
indicating
pairing
attempt.
"iHome
IBT44"
should
appear
on
your
device's
menu.
If
"Not
Paired",
"Not
Connected"
or
similar
message
appears,
select
"iHome
IBT44"
on
the
device
to
connect
it.
If
your
device
asks
for
a
password,
enter
1234
or
0000
on
the
keyboard
of
your
device.
If
no
device
is
paired
within
2
minutes,
a
tone
will
sound
and
the
unit
will
revert
to
its
previous
mode.
To
retry
pairing,
press
the
Power
Button
to
turn
unit
OFF
then
turn
ON
again
and
follow
steps
2 - 4
again.
5)
Once
paired
with
a
device,
the
PAIR
indicator
on
the
display
will
stop
flashing
and
"DONE"
will
appear.
The
Bluetooth/Line-in
Button
will
glow
solid
blue.
There
should
be
an
indication
on
your
device
that
pairing
is
complete.
On
some
devices,
you
must
then
select
"Use
as
Audio
Device"
or
similar
on
the
device's
Bluetooth
menu.
Once
paired,
your
device
should
link
to
the
IBT44
whenever
within
range.
6)
Pairing
remains
intact
when
the
IBT
44
and/or
the
Bluetooth
device
is
powered
off
or
is
taken
out
of
link
range
(30
feet).
The
IBT44
supports
auto-linking
and
will
automatically
re-establish
an
active
connection
when
your
Bluetooth
device
returns
within
range.
7)
The
next
time
the
IBT44
is
powered
on
it
will
automatically
try
to
re-establish
a
link
with
the
most
recently
linked
Bluetooth
device.
If
your
device
does
not
support
auto-linking
OR
was
not
the
last
linked
to
the
IBT44,
you
must
re-link
manually
by
selecting
IBT44
from
the
Bluetooth
device's
menu
on
your
Bluetooth
device.
8)
When
you
power
ON
the
unit,
it
will
automatically
link
with
the
previously
paired
Bluetooth
device
as
long
as
that
device
is
still
within
range
(about
30
feet).
2
Printed
in
China
4/18/2013-0
