Panasonic SCSP100 - COMPACT STEREO SYSTEM User manual

Operating Instructions
使用說明書
Compact Stereo System
小型立體音響組合
GN GS
Model No. SC-SP100
ArCnEn RQTX1011-3G
L0609CH3020
Panasonic Corporation
Web Site: http://panasonic.net
RQTX1011-3G_gb_cs.indd 1RQTX1011-3G_gb_cs.indd 1 2/2/10 3:23:57 PM2/2/10 3:23:57 PM

2
RQTX1011
2
ENGLISHESPAÑOLENGLISH
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future
reference.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK);THERE ARE NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS,TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile telephone.
For Australia and N.Z.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
For others
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
Product Identification Marking is located on the bottom of units.
THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND EASILY ACCESSIBLE.
iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.
iPhone is a trademark of Apple Inc.
“Made for iPod” means that an electronic accessory has been
designed to connect specifically to iPod and has been certified by
the developer to meet Apple performance standards.
“Works with iPhone” means that an electronic accessory has been
designed to connect specifically to iPhone and has been certified by
the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
RQTX1011-3G_gb_cs.indd 2RQTX1011-3G_gb_cs.indd 2 2/2/10 3:24:03 PM2/2/10 3:24:03 PM

3
RQTX1011 ENGLISH
3
ESPAÑOLENGLISH
Placement
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These conditions
can damage the cabinet and other components, thereby shortening the
unit’s service life.
Do not place heavy items on the unit.
Voltage
Voltage
Do not use high voltage power sources. This can overload the unit and
cause a fire.
Do not use a DC power source. Check the source carefully when setting
the unit up on a ship or other places where DC is used.
AC mains lead protection
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged.
Poor connection and lead damage can cause fire or electric shock. Do
not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains
lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable
gases which can ignite if sprayed into the unit.
Service
Service
Do not attempt to repair this unit by yourself. If sound is interrupted,
indicators fail to light, smoke appears, or any other problem that is not
covered in these instructions occurs, disconnect the AC mains lead
and contact your dealer or an authorised service centre. Electric shock
or damage to the unit can occur if the unit is repaired, disassembled or
reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if
it is not to be used for a long time.
Safety precautions
For Saudi Arabia and Kuwait
Before use
Remove the connector cover.

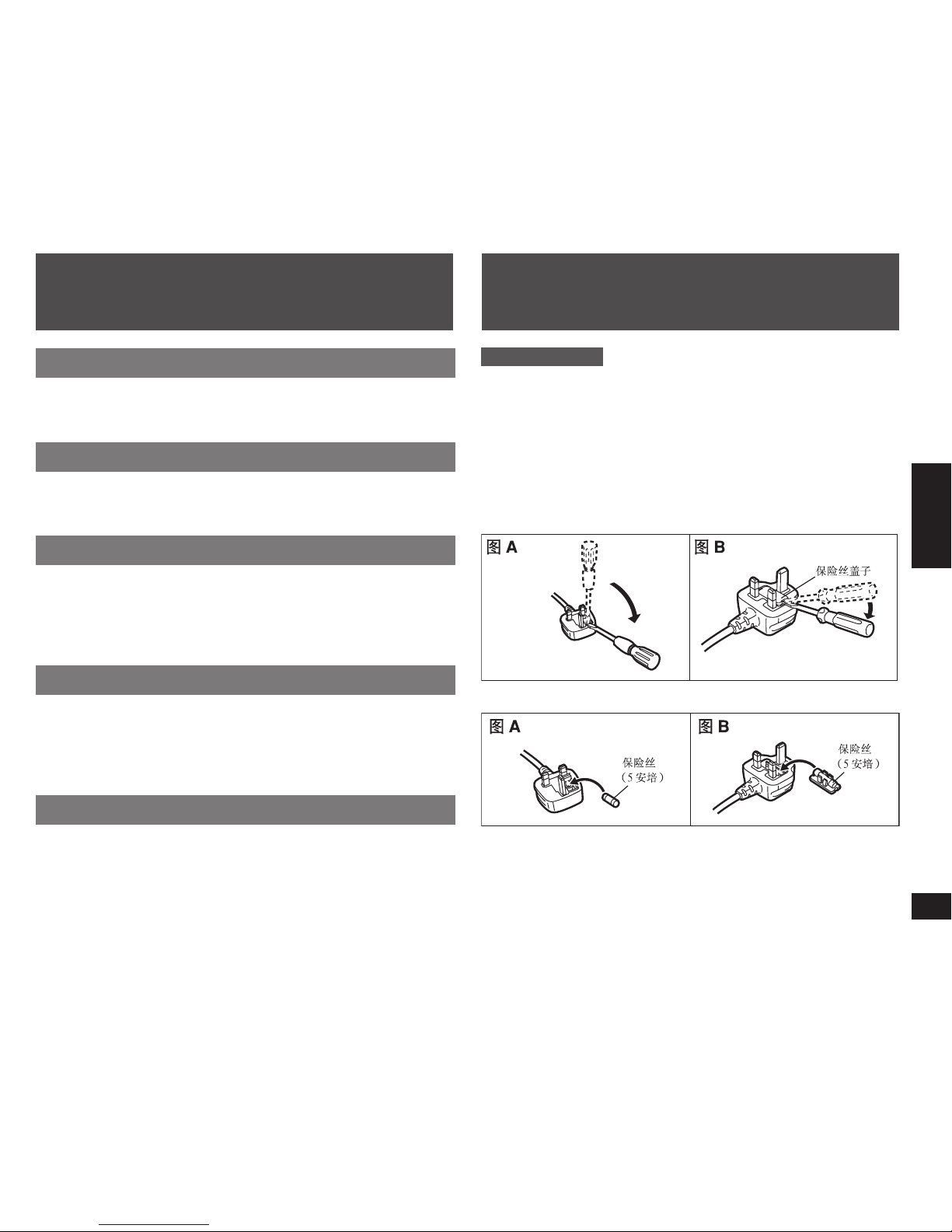

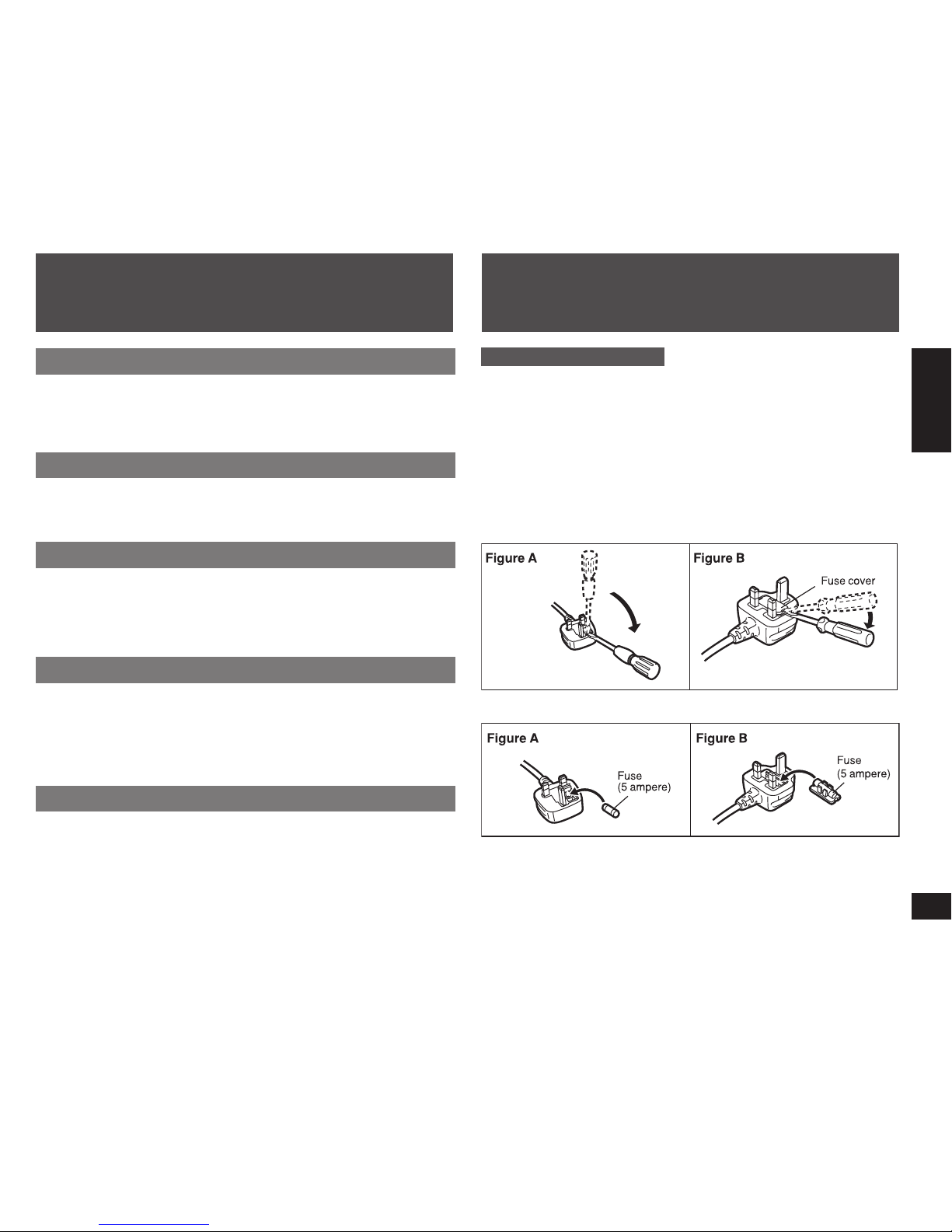

How to replace the fuse
The location of the fuse differs according to the type of AC mains plug
(figures A and B). Confirm the AC mains plug fitted and follow the
instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
2. Replace the fuse and close or attach the fuse cover.
Note on AC mains lead
RQTX1011-3G_gb_cs.indd 3RQTX1011-3G_gb_cs.indd 3 2/2/10 3:24:03 PM2/2/10 3:24:03 PM

4
RQTX1011
4
ENGLISHESPAÑOLENGLISH
1 Remote control
(RAKX1002)
2 Dock adaptors
M12
(for iPhone)
M15
(for iPhone 3G)
1 Lithium Button-Type
battery
(Battery is already installed in
the remote control.)
Warning
Keep the Button-Type
battery out of the reach of
children. Never put Button-
Type battery in mouth. If
swallowed call your doctor.

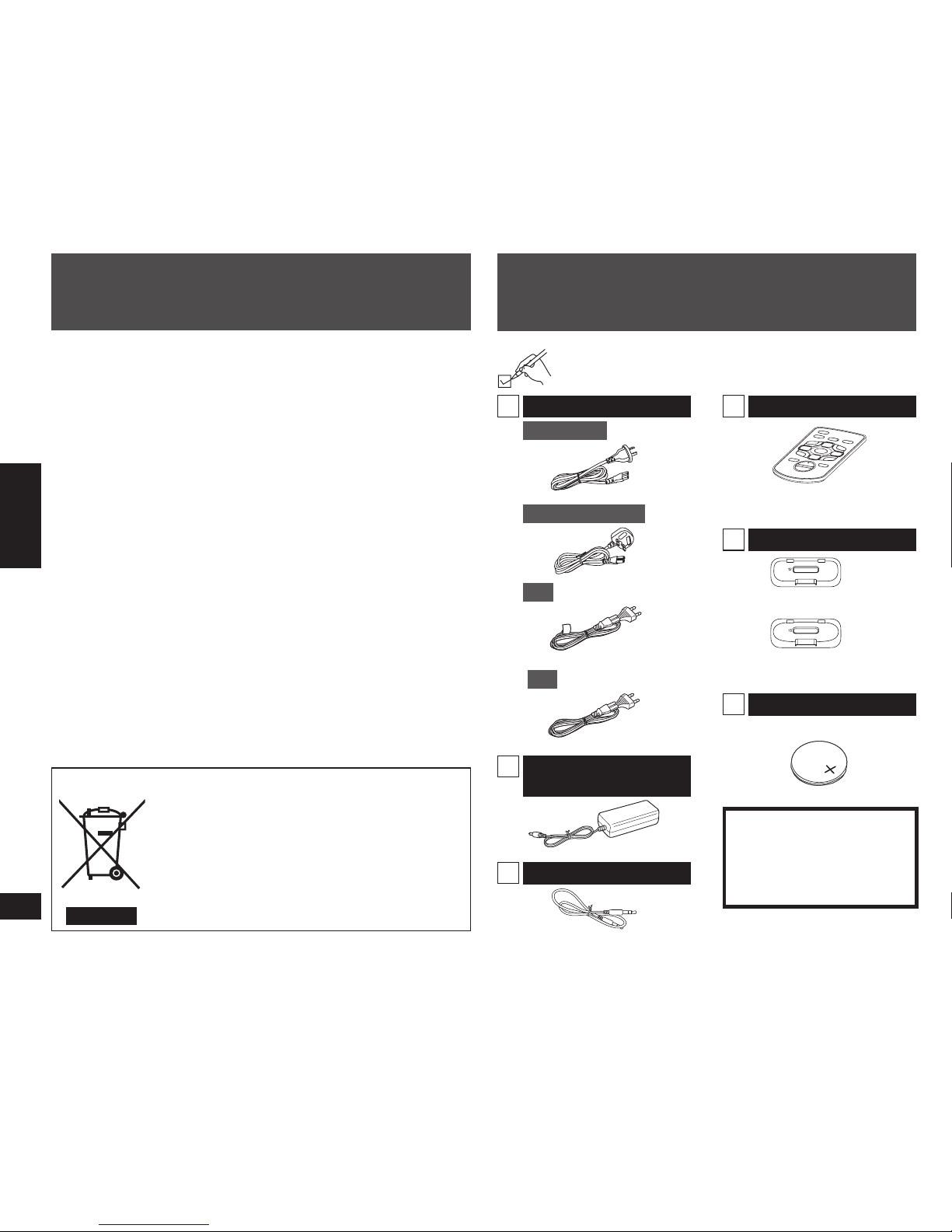

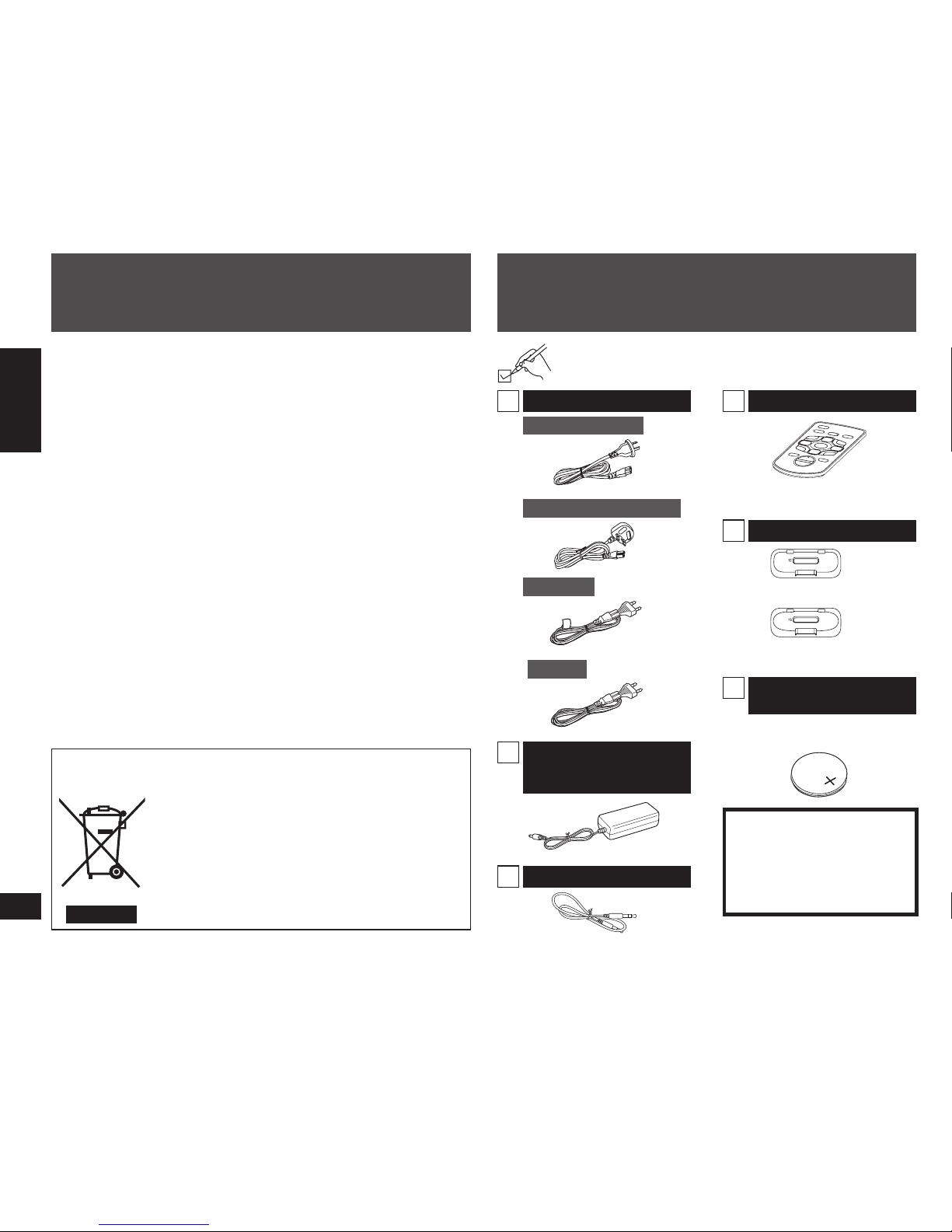

Supplied accessories
AC mains lead
For Australia and N.Z.
For Saudi Arabia and Kuwait
For Thailand
For others
1 AC adaptor
(switching power
supply)
1 Audio cable
Please check and identify the supplied accessories.
–If you see this symbol–
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.
Table of contents
Safety precautions .............................................. 3
Note on AC mains lead........................................ 3
Supplied accessories.......................................... 4
Preparing the remote control ............................. 5
Compatible iPod and iPhone.............................. 5
Charging the iPod or iPhone .............................. 5
Connecting the iPod or iPhone .......................... 6
Listening to the iPod or iPhone.......................... 7

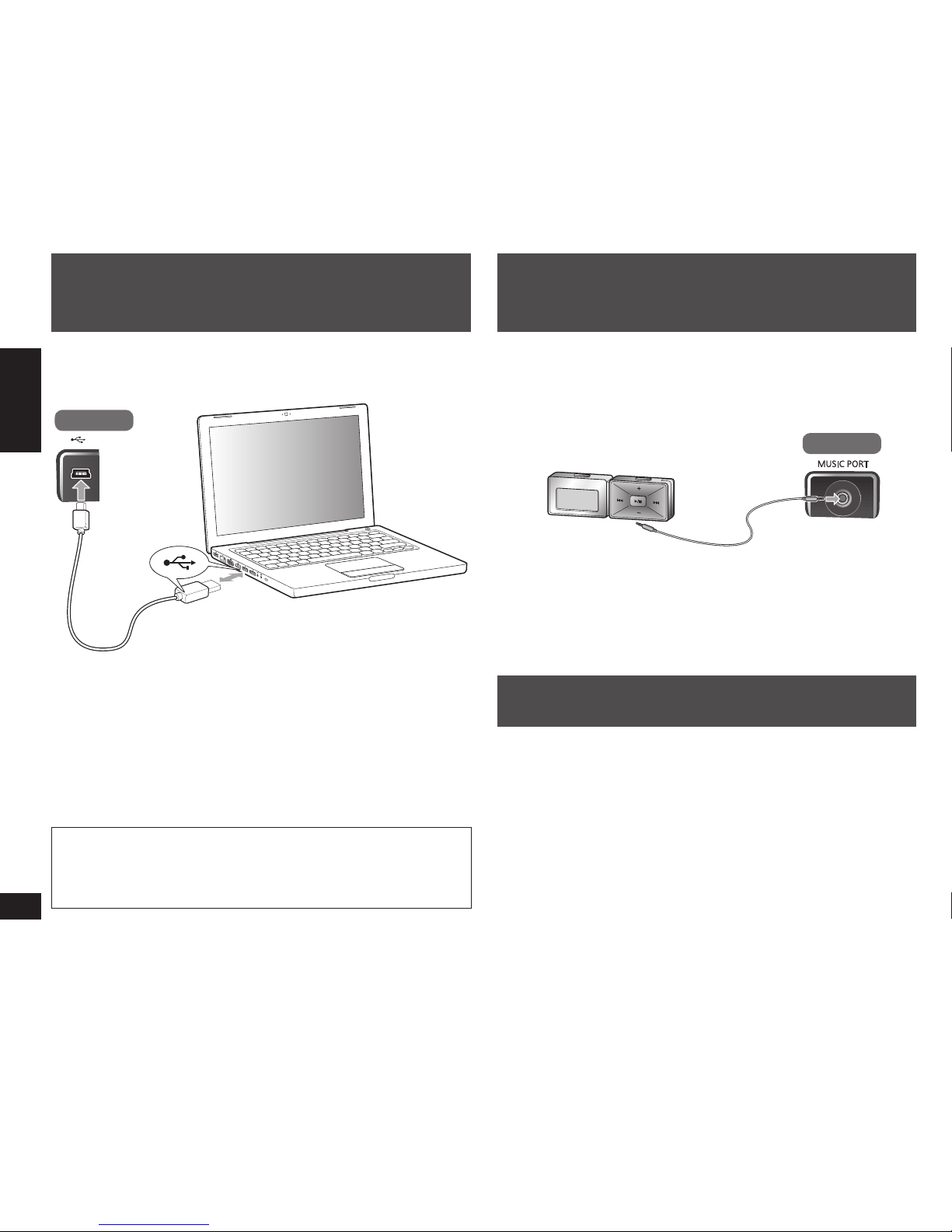

Connecting to the PC.......................................... 8
Using other equipment ....................................... 8
Avoid interfering with other Panasonic
equipment ........................................................ 8
Troubleshooting guide........................................ 9
Maintenance......................................................... 9
Specifications ...................................................... 9
RQTX1011-3G_gb_cs.indd 4RQTX1011-3G_gb_cs.indd 4 2/2/10 3:24:04 PM2/2/10 3:24:04 PM

5
RQTX1011 ENGLISH
5
ESPAÑOLENGLISH
Preparing the remote control
Before using the remote control for the first time, remove the insulation
sheet.
Replace the remote control battery when it stops operating, or when
the range seems reduced.
Rear view
Pull
CR2025
Lithium
Button-Type
battery
(CR2025)
1Insert an object and push down
to unlock the catch.
Aim at the remote control signal sensor (\page 7), avoiding
obstacles, at a maximum range of 7 m directly in front of the main unit.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed to direct
sunlight for a long period of time with doors and windows closed.
• Remove the battery if the remote control is not going to be used for a
long period of time. Store in a cool, dark place.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Warning
Risk of fire, explosion and burns. Do not recharge, disassemble,
heat above 60°C or incinerate.
Compatible iPod and iPhone
• iPhone 3G (8GB, 16GB)
• iPhone (4GB, 8GB, 16GB)
• iPod touch 2nd generation (8GB, 16GB, 32GB)
• iPod nano 4th generation (video) (8GB, 16GB)
• iPod classic (120GB)
• iPod touch 1st generation (8GB, 16GB, 32GB)
• iPod nano 3rd generation (video) (4GB, 8GB)
• iPod classic (80GB, 160GB)
• iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)
• iPod 5th generation (video) (60GB, 80GB)
• iPod 5th generation (video) (30GB)
• iPod nano 1st generation (1GB, 2GB, 4GB)
• iPod 4th generation (colour display) (40GB, 60GB)
• iPod 4th generation (colour display) (20GB, 30GB)
• iPod 4th generation (40GB)
• iPod 4th generation (20GB)
• iPod mini (4GB, 6GB)
Compatibility depends on the software version of your iPod or iPhone.
Charging the iPod or iPhone
• The iPod or iPhone charges automatically when power is supplied to
the main unit.
• Check iPod or iPhone to see if the battery is fully recharged.
• If you are not using the iPod or iPhone for an extended period of
time after recharging has completed, disconnect it from the main
unit, as the battery will be depleted naturally. (Once fully recharged,
additional recharging will not occur.)
RQTX1011-3G_gb_cs.indd 5RQTX1011-3G_gb_cs.indd 5 2/2/10 3:24:05 PM2/2/10 3:24:05 PM

6
RQTX1011
6
ENGLISHESPAÑOLENGLISH

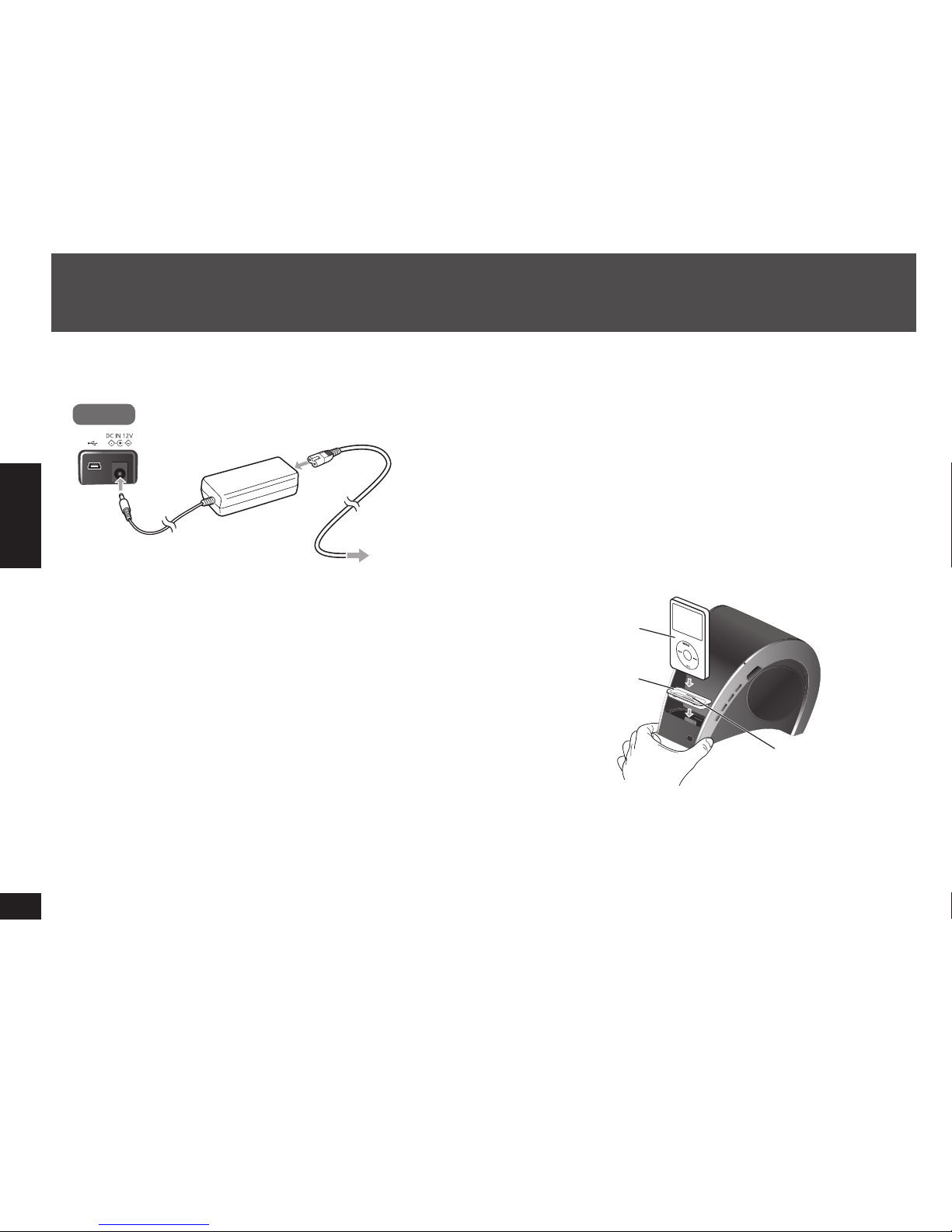

Connecting the iPod or iPhone
1Connect the AC power.
Rear view AC mains lead
(included)
To household
mains socket
AC adaptor
(switching power
supply) (included)
The AC adaptor (switching power supply) is in the standby condition
when the mains plug is connected. The primary circuit is always “live”
as long as the mains plug is connected to an electrical outlet.
Note:
• The included AC mains lead is for use with this unit only. Do not use it
with other equipment.
• Do not use an AC mains lead from other equipment.
• Do not use any other AC adaptors (switching power supplies) except
the supplied one.
2Insert the dock adaptor into the main unit.
iPod
Use the adaptor supplied with your iPod or refer to Apple Inc. for
the compatible dock adaptor (for details, refer to the instructions
supplied with the dock adaptors), which may need to be purchased
separately.
iPhone
Use an appropriate iPhone adaptor when playing an iPhone.
3Connect the iPod or iPhone to the main unit.
Hold the main unit when connecting or disconnecting the iPod or
iPhone.
iPod
(not included)
iPod dock adaptor
(not included)
When removing, insert your
fingernail or a flat object and
lift upwards.
RQTX1011-3G_gb_cs.indd 6RQTX1011-3G_gb_cs.indd 6 2/2/10 3:24:06 PM2/2/10 3:24:06 PM

7
RQTX1011 ENGLISH
7
ESPAÑOLENGLISH

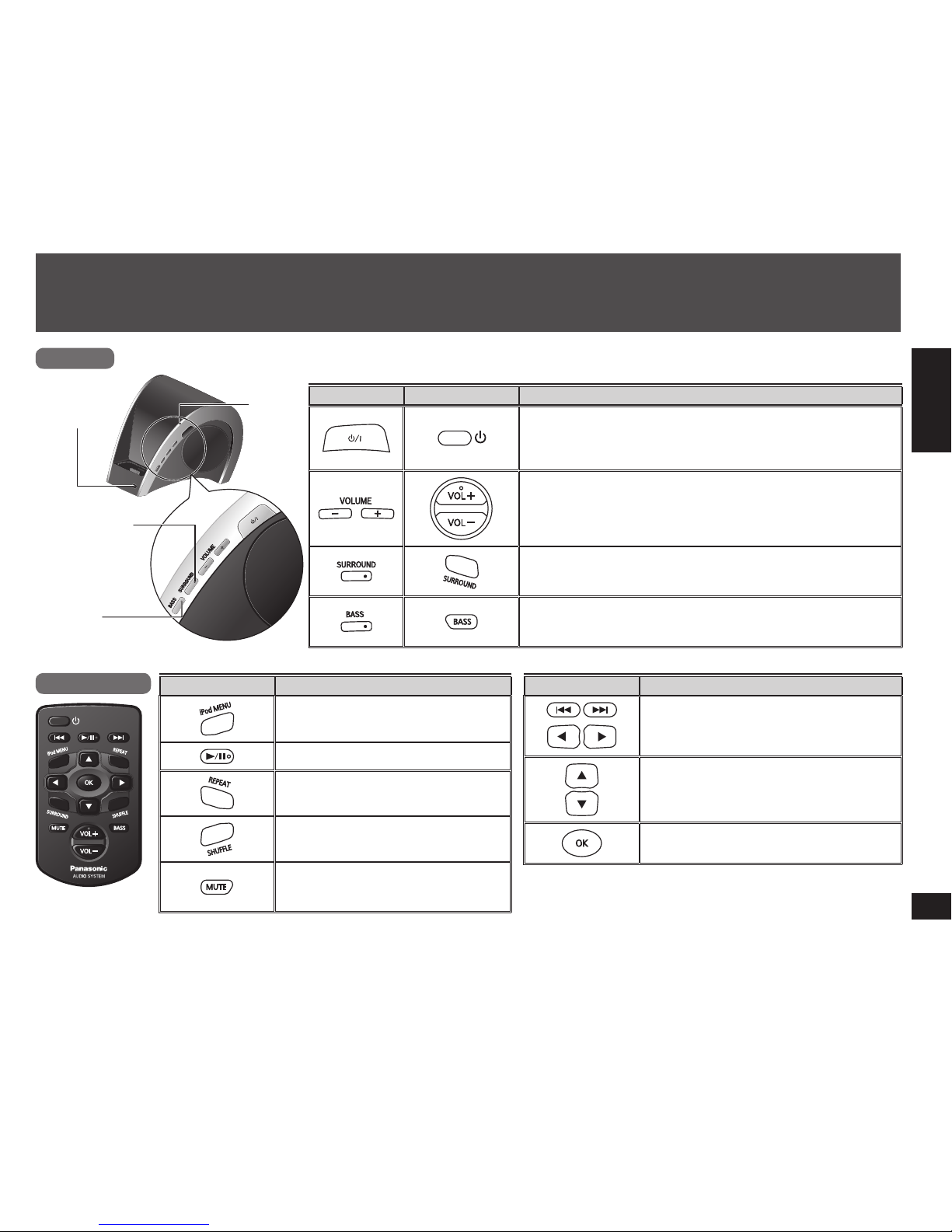

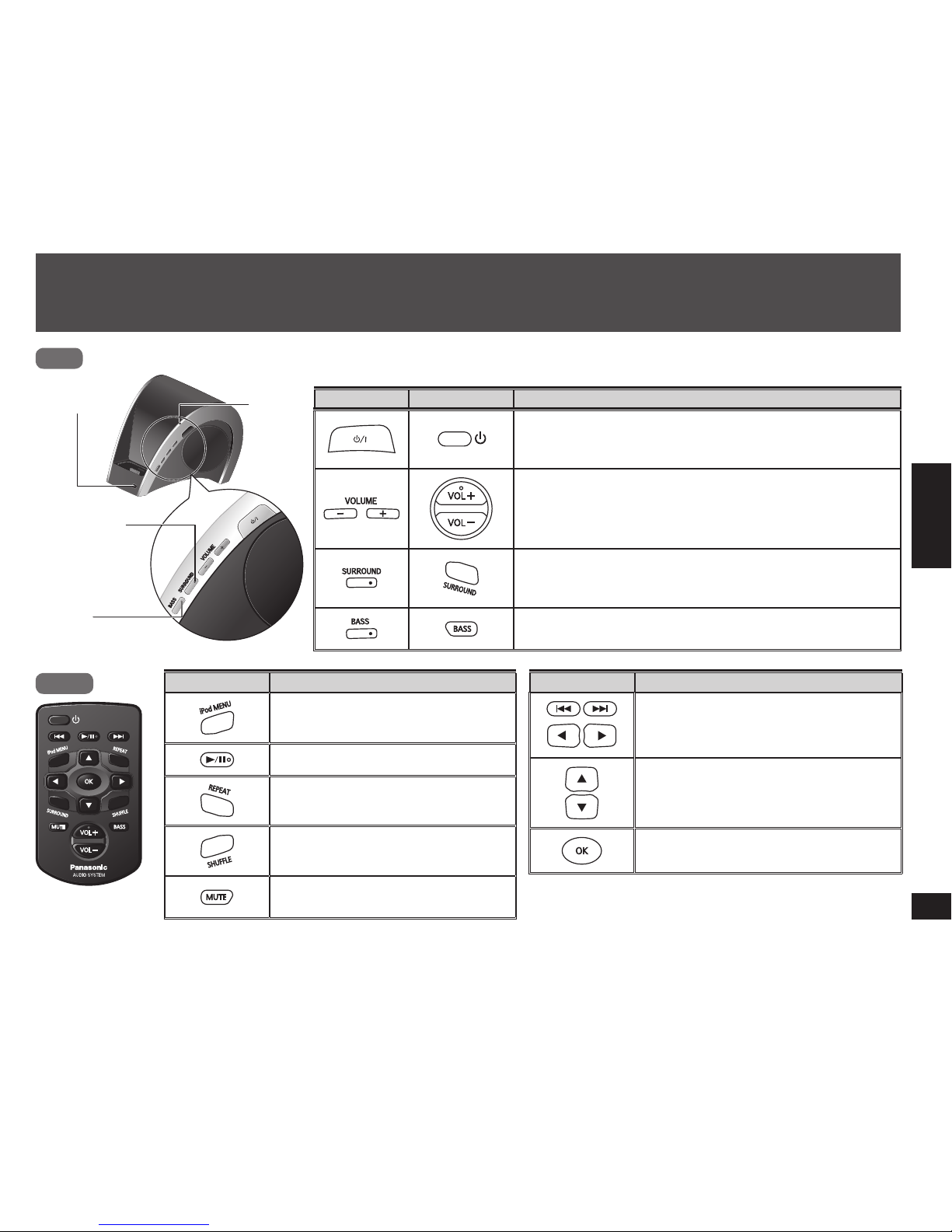

You can navigate the iPod or iPhone using the buttons described.
The power indicator blinks each time a button on the remote control is pressed.
Main unit Remote control Function
Turn the main unit’s power on or off.
• The power indicator lights up when the main unit is on.
• The operation switch does not separate entire unit from
mains even if in off position.
Adjust the speakers’ volume level.
Turn the surround effect on or off.
• The SURROUND indicator on the main unit button lights up
when the surround function is activated.
Turn the bass effect on or off.
• The BASS indicator on the main unit button lights up when
the bass function is activated.
Listening to the iPod or iPhone
Remote control Function
Access the menu screens.
Playback or pause the iPod or iPhone.
Select the repeat mode of iPod or
iPhone.
Select the shuffle mode of iPod or
iPhone.
Mute the sound from the speakers.
To cancel: Press the button again or
adjust the volume.
Remote control Function
Press to skip to the previous or next track.
Press and hold to backward or forward
search for the desired track.
Select an item on the menu screen.
Press and hold: Scrolls through the list.
Confirm the selected menu or playback.
Note:
For iPod or iPhone operation details, please refer to iPod or
iPhone User’s Manual.
Main unit
Remote control
Remote control
signal sensor
BASS
indicator
SURROUND
indicator
Power
indicator
RQTX1011-3G_gb_cs.indd 7RQTX1011-3G_gb_cs.indd 7 2/2/10 3:24:07 PM2/2/10 3:24:07 PM

8
RQTX1011
8
ENGLISHESPAÑOLENGLISH
Using other equipment
Preparation
• Ensure that the iPod or iPhone is not connected to the main unit.
• Ensure that the other equipment is completely set up and its volume
reduced before connecting to the main unit.
Audio cable (included)
Portable audio equipment
(not included)
Rear view
Connect the other equipment such as a portable audio equipment, etc.
to the MUSIC PORT using the supplied audio cable.
While the iPod or iPhone is connected to the main unit, you can
transfer data from the PC using the USB connectivity.
USB cable (not included)
Rear view
1Connect the USB cable to the USB port of the main unit
and PC.
Refer to iPod or iPhone User’s Manual on PC synchronisation.
2Before disconnecting the USB cable, make sure the
procedure of safe eject of hardware from the PC is
performed.
Recording and operating problems may occur on some computer
systems.
Please note that Panasonic and Panasonic dealers cannot be held
liable for any lost data or other direct or indirect damage except in
cases of intentional or gross negligence.
Connecting to the PC
Avoid interfering with other Panasonic equipment
You can operate this unit using a different mode.
The main unit and remote control must be set to the same mode.
1Press and hold [SURROUND] on the main unit and
[BASS] on the remote control for at least 3 seconds.
The power indicator flashes 3 times confirming the change.
2Press and hold [OK] and [BASS] on the remote control
for at least 2 seconds.
To return to the default mode, repeat the above steps. For step 2,
replace [BASS] with [MUTE].
RQTX1011-3G_gb_cs.indd 8RQTX1011-3G_gb_cs.indd 8 2/2/10 3:24:10 PM2/2/10 3:24:10 PM

9
RQTX1011 ENGLISH
9
ESPAÑOLENGLISH
Troubleshooting guide
Before requesting service, make the following checks. If you are in
doubt about some of the check points, or if the solutions indicated in
the table do not solve the problem, consult your dealer for instructions.
No power • Ensure the AC mains lead is connected
properly.
No sound • Adjust the volume.
• Check if mute function is enabled.
• Update your iPod or iPhone with the latest
software.
• The iPod or iPhone was incorrectly inserted
into the dock. Turn off the iPod or iPhone,
remove it from the dock connector. Reinsert
it and turn it on again.
Remote control is
not functioning
• Replace the battery.
• Ensure the iPod or iPhone is seated properly
into the unit.
Distorted sound • Reduce the volume.
• Set the “EQ” setting of the iPod to “Off” or
“Flat”.
iPod or iPhone
does not charge
• Check the connections. (\page 6)
Unable to use PC
synchronisation
• Turn the main unit on.
• Check PC and iPod or iPhone connections.
(\page 6, 8)
Specifications
AMPLIFIER SECTION
RMS output power stereo mode
Front Ch (both channels driven)
5 W per channel (6 Ω), 1 kHz, 10% THD
Subwoofer Ch 10 W per channel (6 Ω), 100 Hz, 10% THD
Total RMS stereo mode power 20 W
TERMINALS SECTION
Music port (rear)
Sensitivity 350 mV, 13.2 kΩ
Terminal Stereo, 3.5 mm jack
SPEAKER SECTION
Front speakers
Speaker unit(s) Impedance: 6 Ω
Full range 4 cm cone type
Input power (IEC) 5 W (Max)
Subwoofer
Speaker unit(s) Impedance: 6 Ω
Woofer 6.5 cm cone type
Passive radiator (x2) 6.5 cm
Input power (IEC) 10 W (Max)
GENERAL
Power supply DC 12 V (DC IN terminal)
Power consumption 15.6 W (unit only)
AC adaptor (switching power supply) AC 100 to 240 V, 50/60 Hz
Power consumption 36 W
Dimensions (WxHxD) 175 mm x 138.8 mm x 178.5 mm
Mass 0.85 kg
Operating temperature range 0°C to +40°C
Operating humidity range 20% to 80% RH (no condensation)
Power consumption in standby mode: 0.7 W (approximate)
Note:
1) Specifications are subject to change without notice.
Mass and dimensions are approximate.
2) Total harmonic distortion is measured by the digital spectrum
analyser.
Maintenance
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came
with the cloth carefully.
RQTX1011-3G_gb_cs.indd 9RQTX1011-3G_gb_cs.indd 9 2/2/10 3:24:10 PM2/2/10 3:24:10 PM

RQTX1011
10
ENGLISH中 文 中 文
2
親愛的用戶
感謝您購買本產品。為確保最佳性能和安全，請仔細閱讀下列說明。
連接、操作或調節本產品之前，請仔細閱讀下列說明。並請保管本手冊以備今後參考。
警告：
為減低火災、觸電或產品損壞的危險，
• 不要將此設備暴露在雨水、潮濕、滴水或濺水下以及不要將
盛滿液體的物體，例如花瓶等放置在此設備上。
• 只使用被推薦的附件。
• 不要拆除蓋子 (或後蓋)；裡面沒有用戶可維修的零件。任何
有關維修的問題請只咨詢合格人員。
注意！
• 為了確保良好的通風條件，請勿將本機安裝或置於書櫃、內
藏式機櫃或其它密閉的空間裡。勿讓窗簾或任何其它物體堵
塞通風孔，以免因過熱而造成觸電或火災危險。
• 切勿讓報紙、桌布、窗簾等物品堵塞住本機的通風孔。
• 切勿將諸如點燃的蠟燭等明火火源置於本機上。
• 廢棄處理電池時要盡量採取不破壞環境的方式。
本產品在使用過程中，可能會受到行動電話的無線電波干擾。如果
這種干擾明顯的話，請將本產品遠離行動電話使用。
澳洲及紐西蘭
本機供在溫和氣候地區使用。
其它
本機供在熱帶氣候地區使用。
產品識別標誌在本機的底部。
電源插座應安裝在設備附近並應易於觸及。
iPod 是苹果公司在美國和其他國家注冊的商標。
iPhone 是苹果公司的注冊商標。
“Made for iPod” 表示有關電子附件是特別設計以連接 iPod，並
已獲得開發者鑒定達到苹果的性能標準。
“Works with iPhone” 表示有關電子附件是特別設計以連
接 iPhone，並已獲得開發者鑒定達到苹果的性能標準。
苹果對此設備的操作或此設備是否遵守安全和法定標準不負任
何責任。
RQTX1011-3G_gb_cs.indd 10RQTX1011-3G_gb_cs.indd 10 2/2/10 3:24:11 PM2/2/10 3:24:11 PM
