Iiglo IIDE234W User manual

Instruction
Manual
IIDE234W
Side by Side
Refrigerator Freezer
1. IIDE234W

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 2
Table of Contents
Safety information.............................................................................................. 3
Children and vulnerable people safety...................................................................... 3
General safety ............................................................................................................... 3
Daily use...................................................................................................................... 5
Care and cleaning......................................................................................................... 5
Installation...................................................................................................................... 5
Service ............................................................................................................................ 6
Energy saving................................................................................................................. 6
Environment Protection................................................................................................ 6
Packaging materials..................................................................................................... 6
Disposal of the appliance............................................................................................ 7
Installation................................................................................................................. 8
Remove the doors ......................................................................................................... 8
Space requirement....................................................................................................... 10
Levelling the refrigerator.............................................................................................. 10
Positioning...................................................................................................................... 11
Location .......................................................................................................................... 11
Electrical connection.................................................................................................... 11
Daily use...................................................................................................................... 12
Using the Control Panel................................................................................................ 12
Display............................................................................................................................. 13
Door open alarm............................................................................................................ 14
Child safety lock............................................................................................................ 14
Daily use ......................................................................................................................... 14

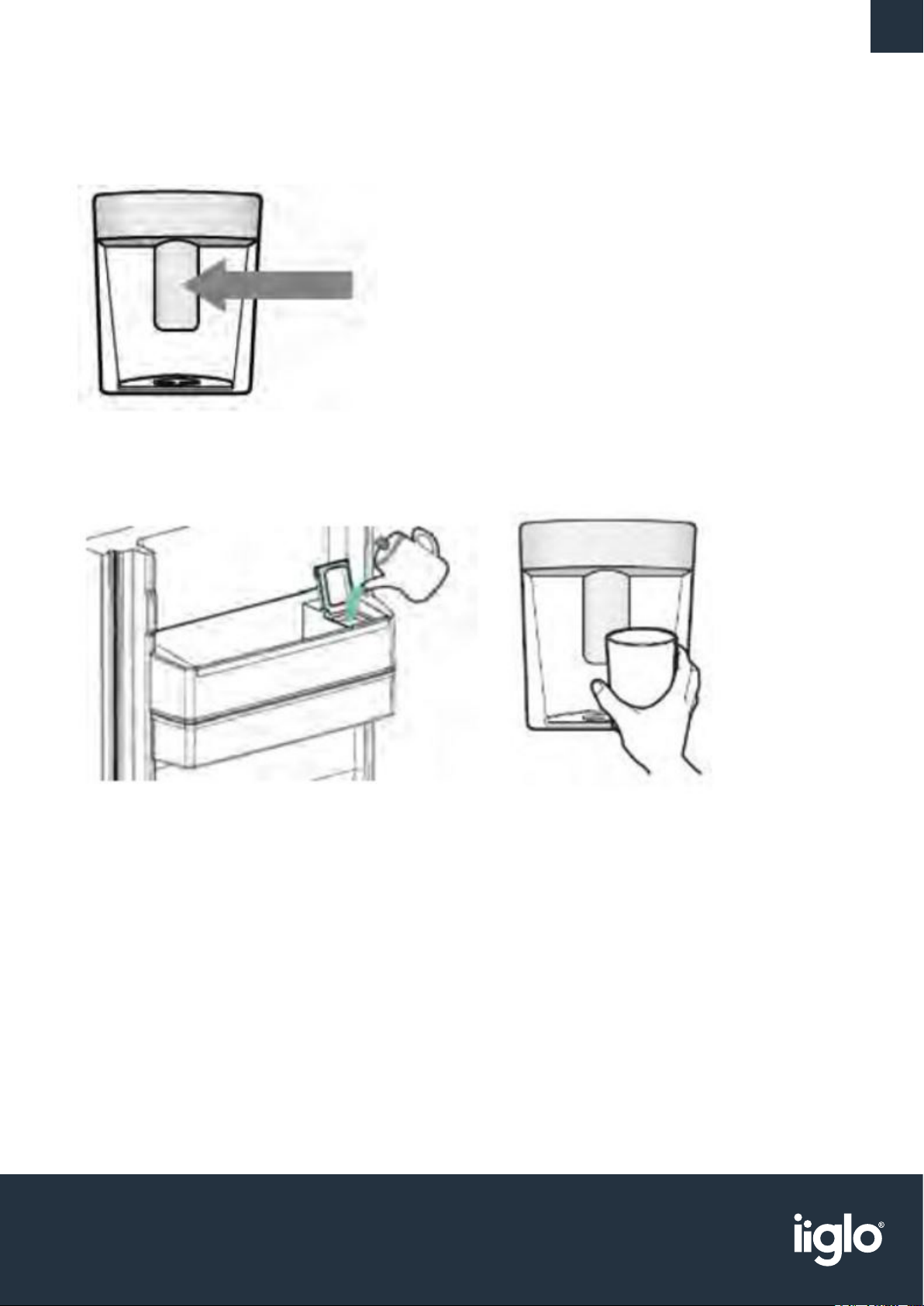

Filing the water tank with water ................................................................................. 15
Dispensing ..................................................................................................................... 15
First use....................................................................................................................... 16
Cleaning the interior..................................................................................................... 16
Daily use...................................................................................................................... 17
Freezing fresh food....................................................................................................... 17
Storing frozen food ....................................................................................................... 17
Thawing........................................................................................................................... 17
Ice-cube.......................................................................................................................... 17
Accessories Movable shelves ..................................................................................... 17
Positioning the door balconies ................................................................................... 17
Helpful hints and tips....................................................................................... 18
Hints for freezing........................................................................................................... 18
Hints for storage of frozen food.................................................................................. 18
Hints for refrigeration ................................................................................................... 18
Cleaning.......................................................................................................................... 19
Troubleshooting..................................................................................................... 20

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 3
Safety information
In the interest of your safety and to ensure the correct use, before installing and rst using the appliance, read this
user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important
to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save
these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it
through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user’s instructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
●This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
●Children aged from 3 to 8 years are allowed to load and unload this appliance.
●Children should be supervised to ensure that they do not play with the appliance.
●Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and
supervised.
●Keep all packaging well away from children. There is risk of suffocation.
●If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close
themselves into it.
●If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make that spring lack unusable before you discard the old appliance.
●This will prevent it from becoming a death trap for a child.
General safety
●WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
●WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
●WARNING! Do not damage the refrigerant circuit.
●WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances,
unless they are approved for this purpose by the manufacture.
●WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.1 )
●WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
●WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.
●Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
●The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a
high level of environmental compatibility, which is nevertheless ammable.
●During transportation and installation of the appliance, be certain that none of the components of the refrigerant
circuit become damaged.
- avoid open ames and sources of ignition

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 4
- thoroughly ventilate the room in which the appliance is situated
●It is dangerous to alter the specications or modify this product in any way. Any damage to the cord may cause a
short circuit, re and/or electric shock.
●This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, ofces and other working environments;
- farm houses and by clients in hotels, motels and other residential
●type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
●WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certied
service agent or qualied service personnel.
●WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance
supplied. This “special use lamp” is not usable for domestic lighting.1 )
●Power cord must not be lengthened.
●Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged
power plug may overheat and cause a re.
●Make sure that you can come to the mains plug of the appliance.
●Do not pull the mains cable.
●If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or re.
●You must not operate the appliance without the lamp.
●This appliance is heavy. Care should be taken when moving it.
●Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
●Avoid prolonged exposure of the appliance to direct sunlight.
1) If there is a light in the compartment.

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 5
Daily use
●Do not put hot items on the plastic parts in the appliance.
●Do not place food products directly against the rear wall.
●Frozen food must not be re-frozen once it has been thawed out.1 )
●Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions.1 )
●Appliance’s manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
●Do not place carbonated of zzy drinks in the freezer compartment as it creates pressure on the container, which
may cause it to explode, resulting in damage to the appliance.1 )
●Ice lollies can cause frost burns if consumed straight from the appliance.1 )
●To avoid contamination of food, please respect the following instructions
●Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the
appliance.
●Clean regularly surfaces that can come in contact with food and accessible drainage systems.
●Clean water tanks if they have not been used for 48h; ush the water system connected to a water supply if water
has not been drawn for 5 days.
●Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other
food.
●Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food,
storing or making ice-cream and making ice cubes.
●One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing
of fresh food.
●If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent
mount developing within the appliance.
Care and cleaning
●Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
●Do not clean the appliance with metal objects.
●Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.1 )
●Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is
blocked, water will collect in the bottom of the appliance.2 )
Installation
●Important! For electrical connection carefully follow the instructions given in specic paragraphs.
●Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In that case retain packing.
●It is advisable to wait at least four hours before connecting the appliance to allow the oil to ow back in the
compressor.
●Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufcient
ventilation follow the instructions relevant to installation.
●Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent possible burn.
●The appliance must not be located close to radiators or cookers.

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 6
●Make sure that the mains plug is accessible after the installation of the appliance.
Service
●Any electrical work required to do the servicing of the appliance should be carried out by a qualied electrician or
competent person.
●This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
Energy saving
●Don’t put hot food in the appliance;
●Don’t pack food close together as this prevents air circulating;
●Make sure food don’t touch the back of the compartment(s);
●If electricity goes off, don’t open the door(s);
●Don’t open the door(s) frequently;
●Don’t keep the door(s) open for too long time;
●Don’t set the thermostat on exceeding cold temperatures;
●Some accessaries, such as drawers, can be removed to get larger storage volume and lower energy consumption.
1) If there is a freezer compartment.
2) If there is a fresh-food storage compartment.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or
insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation
foam contains ammable gases: the appliance shall be disposed according to the appliance regulations to obtain
from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on
this appliance marked by the symbol , are recyclable.
The symbol on the product or on its packaging indicates that this product may not be treated as household
waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product, please contact your local council, your
household waste disposal service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 7
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which
is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It’s risk of re warning
symbol. There are ammable materials in refrigerant pipes and compressor. Please be far away re source during
using, service and disposal.
Note; Above picture is for reference only. Real appliance may be different.

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 8
Installation
Remove the doors
Tool required: Philips screwdriver, at bladed screwdriver.
●Ensure the units is unplugged and empty.
●To take the door off, it is necessary to tilt the unit backwards. You should reset the unit on something solid so that it
will not slip during the door removing process.
●All parts removed must be saved to do the reinstallation of the door.
●Do not lay the unit at as this may damage the coolant system.
●It’s better that 2 people handle the unit during assembly.
1. Unscrew hinge cover by Philips screwdriver.
2. Disconnect the harness.

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 9
3. Unscrew top hinge.
4. Lift the door and place it on a soft pad. Then remove another door as same process.
5 . Unscrew bottom hinges.
6. After the appliance is positioned, install the doors as reversed process.

Imported by iiglo, Østre Kullerød 4,
N-3241 Sandefjord, Norway
Made in China | www.iiglo.com
Instruksjonsmanual for: IIDE234W 10
Space requirement
●Select a location without direct exposure to sunlight.
●Select a location with enough space for the refrigerator doors to open easily.
●Select a location with lever (or nearly level) ooring.
●Allow sufcient space to install the refrigerator on a at surface.
●Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep
your energy bills lower.
Levelling the refrigerator
