Iiglo IICARSTART User manual

Car Jumpstarter
Powerbank 10500 mAh
PEAK CURRENT
650A
EMERGENCY
BACK-UP

Caution
Please read the user
manual carefully and
use the product
correctly. Please keep for
future reference.

General Information
This product is capable of starting most 12V gasoline engines up
to VB 6L engine (Diesel up to 3.0L). This includes 4 and 6 cylinder
engines and inlines. It can also be additional power pack for your
electronic devices. It has 1 car battery clamp socket (12V), 1 USB
output (5V/ 2.1A), 1 DC5.5 output (12V, 16V, 19V) and a flashlight.
With the LED display, you can read the status clearly and easily.
Technical Specifications
• Output voltage: 12V
• Peak capacity: 10500mAh/38.85Wh
• Dimensions: 204(L)x50(W)x50mm(H)
• Input charging ports: DC3.5mm 15V/1A
• Output ports: USB-5V/9V 2.1A
Auto jump starter- 12V
Electronic- 12/16/19V- 3.5A/3.5A/3.5A
• Charge mode: CC/CV 15V 1A
• Start Current: 350A(<2S)
• Peak Current: 650A
• Cycle life: 1000 cycles @ 80 depth of discharge
• Application temperature range: -20°C to +70°C
Cell performance may degrade at low temperature
• Charging times- Wall Charger: 4- 5 hours

Safety Information
Please read this entire manual before attempting to use the product.
Warning
1. Do not damage, drop or crush this item. Do not attempt to use it
or the battery charger if it has been dropped, punctured.
2. Do not charge this item in wet conditions (rain, snow, damp).
Do not use this product in explosive environments (dust,
gaseous flumes, or flammable materials).
3. Do not burn or incinerate this product. It may explode, causing
personal injury or damage. Toxic fumes and other potentially
harmful materials are created when the battery is burned.
4. Do not disassemble this product. It may result in risk of fire,
electric shock or exposure to battery chemicals.
5. Do not insert foreign objects into ANY input or output ports.
The item may short circuit. Any metal that comes in contact with
the jumper cable port may short circuit. Short circuiting this
product will damage the battery and may cause personal injury
or fire.
6. This is a Lithium ion battery. In the unlikely event that this
product leaks battery chemicals, do not allow contact with skin,
eyes or mouth as it may cause personal injury or burns. If skin
is exposed to battery chemicals, wash with soap and water and
rinse with vinegar. If your eyes come in contact with battery
chemicals, immediately rinse with water and then see a medical
professionals.
7. When recharging this item, make sure the area is well
ventilated. Please do not smoke or allow open flames near
a charging battery.
8. Never jump start a frozen battery.
9. Never reversely connect the red & black clamps when the
original car battery has been removed, or the car might be
compromised.
10. Please keep the product away from and out of reach of children.
11. Keep this unit in a cool dry location. Do not expose the product
to temperatures over 70°C or below -20°C.

Product Features
1. Flashlight
2. 15V/1A Input
3. LED display
4. 5V/9V 2.1A Output
5. Push button
6. 12/16/19V-3.5A/3.5A/3.5A Outlet
7. Power ON/OFF
8. Battery terminal socket for the car start
1. 8.
6.
3.
4.
5.
2. 7.

Package Contents
Function on Smart Battery Cable
1. Reverse polarity connection: Solid Red LED with fast 2 short beep.
2. Short-circuit protection: Solid Red LED with long beep (Beeping
as 3.3Hz Frequency).
3. Over-heat protection: Solid Red LED with long beep (Beeping as
2Hz Frequency).
4. Over-discharging protection: Solid Red LED with fast 2 short beep.
5. Green/Red LED flashing: Searching for status of connection.
6. Green LED: Correct connection after one beep
Packing box
Smart battery
cable
Jump starter
12v
car charger
8in1
laptop
adapter
CE Certificated
Home Charger

QUICK GUIDE
Jump starting vehicles
Before attempting to jump start your vehicle, please read your
vehicle owners manual to insure there are no specific steps needed.
DO NOT crank the engine for more than 4 continuous seconds while
the unit is connected to the battery. If the engine fails to crank or
start, there may be a problem other than a discharged battery.
1st step:
Make sure -30% power
2nd step:
Insert the battery clamp to jump starter
3rd step:
Connect red clamp with “+” of car battery,
black clamp with “-”
4th step:
Car Start up
5th step:
Remove the battery clamp from the
jump starter and car battery

QUICK GUIDE

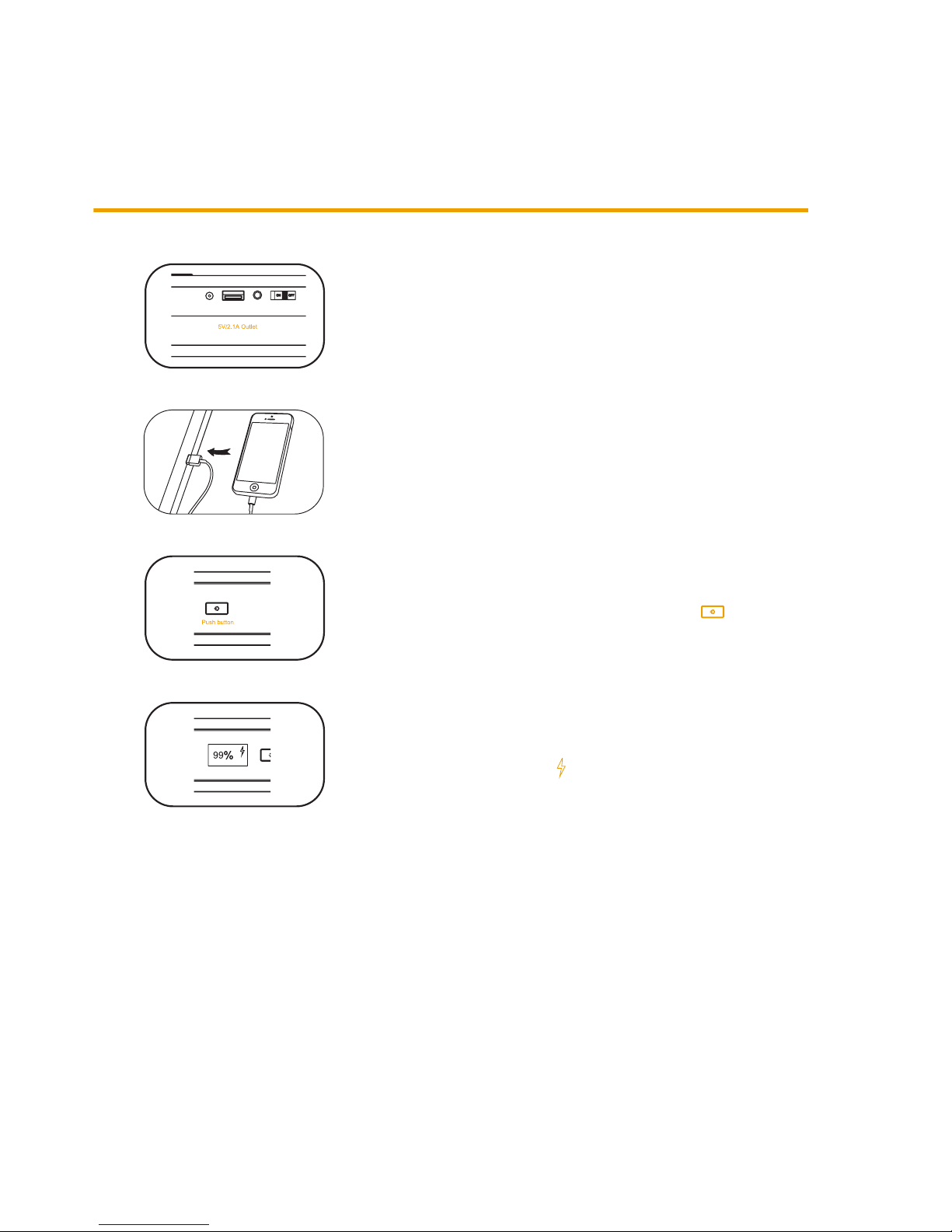

Charging electronic devices - Cell Phones/Tablets
1st step:
Insert the USB charging cable with
data transmission into 5V/9V 2.1A outlet
of the jump starter.
3rd step:
Switch to “ON”, afterwards short press
then your device is under charging.
2nd step:
Insert the other side of charging cable
into cell phone/tablet inlet.
4rd step:
If your phone support QC3.0 agreement, the
powerbank will display and charge quickly.
If not, your phone will be charged as usual.

QUICK GUIDE
Charging electronic devices - Laptops
1st step:
Choose the suitable connector to your laptop.
3rd step:
Insert the other end of the laptop charging
cable into your laptop.
2nd step:
Insert the laptop charging cable into laptop
outlet of the jump starter.
4rd step:
Switch to “ON”, afterwards short press
then your device is under charging.

QUICK GUIDE
For PSP
See the steps in “for Cell phones/Tablets”
For Digital Cameras/DVD
See the steps in “for Cell phones/Tablets”
Self-charging
1st step:
Choose the matched home adapter.
2nd step:
Insert into 15/1a input of the jump starter.
3rd step:
Plug into household 22oV/110V socket,
then it’s under charging when indication
light flickers.

Toxic & Harmful Substances
Composition and amount of toxic & harmful substances
in Car Jump Starter
Pb Hg Cd Cr(Vi) PBB PBDE
OOOOOO
O: indicating all homogeneous materials’ hazardous substances are
below the MCV limit specified in the Standard 2002/95/EC(RoHs)

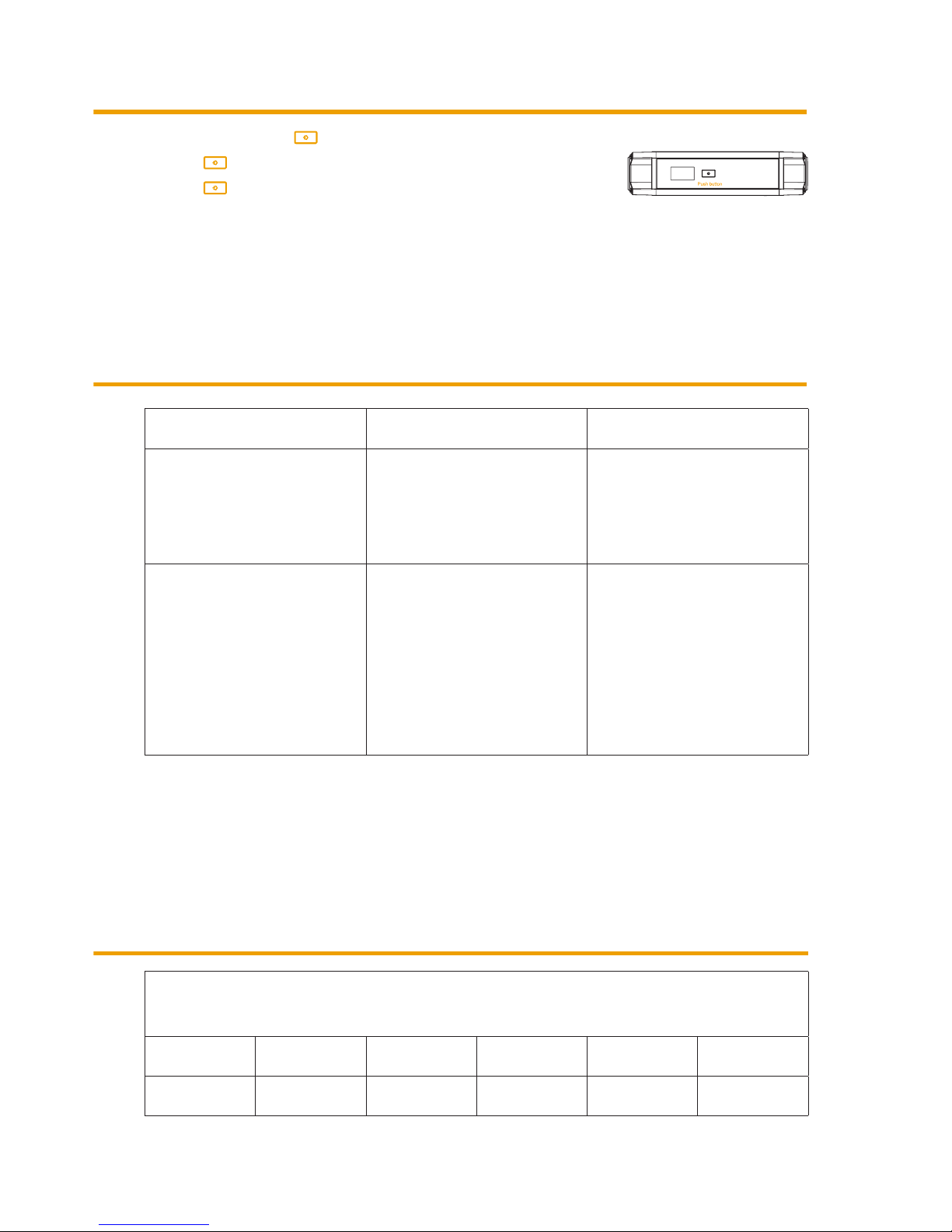

Trouble shooting
PROBLEM CAUSE SOLUTION
No response when
pressing the push
button
Low voltage
protection of jump
start is activated
Charge the unit with
home carger or car
charger to deacti-
vate the protection
Jump start shuts
down automatically
when charging
multiple electronics
devices at the same
time
Over current
protection of jump
start is activated
Charge the
electronic devices
separetely with
different USB
outlets, but please
keep th total output
current within 3.5A
Flashlight Operation
Press and hold for 3 seconds to start flashlight
Press again to shift to SOS, flashing
Press again to turn off the flashlight
