Ikco DONG FENG S30 2016 User manual

DONG FENG
DONG FENG H30 CROSS
DONG FENG S30
Oct. / 2016 Iran Khodro Co. All rights reserved.
9007051092731-00 e-code: 540701E018-00
Owner’s Manual
This Manual has been prepared for owner’s reference to vehicle’s
performance, safety, maintenance and everyday use guidelines.
Keeping the manual in your car is recommended for quick reference.
IRAN KHODRO Company (Public Joint Stock)
Gate No. 1, Iran Khodro Blvd,
KM.14 Karaj Makhsous Rd,
Shahid Lashgari Highway, Tehran, IRAN
Postal Code : 1389913657
Tel: [phone]
Fax: [phone]
SMS Centre: (+98)30003
E-mail: [email protected]
www.ikco.ir

OWNER’S MANUAL
DONG FENG (H30 CROSS - S30)
In The Name of God

2
DEAR BUYER
We're thankful for choosing Iran Khodro product and we congratulate you for this good selection. We hope this new vehicle
contributes in happy moments of your life.
This manual helps you enjoy driving. Therefore to have an easy access, it would be advisable to be kept in your glove compartment.
The manual is divided into some sections for your convenience, and deals with various aspects of driving or maintenance of the car.
Before driving: Includes seat adjustment, Safety belts, heating and ventilation control system and also every other thing you
needed to know in order to settle comfortably.
Driving Controls: explain functions of switches, equipment and precautions.
Maintenance: Includes information about the checks you should carry out regularly.
Note:
Please refer to maintenance and guaranty services manual to know about the vehicle maintenance, regulation &
condition of guaranty services and periodic services.
Technical emergencies: Help solve some of unavoidable small emergencies occurring occasionally like replacing lamps fuses or changing wheels.
Technical data: It includes some information about engine, dimensions, capacities and weights.
WARNING, CAUTION and NOTE have special meanings. These special meanings apply except when laws or regulations require
that the signal words be used with a different meaning. Pay special attention to the messages highlighted by these signal words:
In the meanwhile consumptive material must be provided through authenticated representatives of IKCO.
WARNING: Indicates a potential hazard that could result in death or injury.
CAUTION: Indicates a potential hazard that could result in vehicle damage.
NOTE: Indicates a serious damage to your vehicle in the case of not paying attention to the warning and caution signals.
Important Point: The specication of each vehicle will vary according to its type. Therefore some information of this manual may
not be true about your vehicle. For any more information, you can consult with IRAN KHODRO dealers.
Reminder: Information about other varieties of this product have been mentioned in this manual and denoted by asterisk (*).

3
INDEX
1
2
3
4
5
6
7
YOUR VEHICLE AT A GLANCE
DRIVING
VEHICLE EQUIPMENT
MAINTENANCE
OPERATIONAL RECOMMENDATIONS
TECHNICAL CHARACTERISTICS
INDEX

4
*If equipped
OVERVIEW
REMOTE CONTROLLER ........................................................................................................................................ 16
AIRBAG.................................................................................................................................................................... 35
CHILD SAFETY ....................................................................................................................................................... 53
INDICATOR LAMP AND WARNING LAMP .............................................................................................................. 64
STEERING WHEEL* ................................................................................................................................................ 79
ENGINE START ...................................................................................................................................................... 85
TRANSMISSION ....................................................................................................................................................... 90
ELECTRIC POWER STEERING.............................................................................................................................. 96
AUTOMATIC A/C* ................................................................................................................................................. 105
INTERIOR LIGHTING & TRUNK LIGHTING .......................................................................................................... 109
TRUNK ................................................................................................................................................................... 113
SUNROOF* ............................................................................................................................................................ 118
INTERIOR MAINTENANCE .................................................................................................................................. 125
BODY MAINTENANCE ........................................................................................................................................... 127
FUSE ..................................................................................................................................................................... 133
BATTERY .............................................................................................................................................................. 137
GENERAL TECHNICAL CHARACTERISTICS ....................................................................................................... 156
VEHICLE IDENTIFICATION ................................................................................................................................... 159

5
YOUR VEHICLE AT A GLANCE
Foreword
The pictures, data and relevant notes in the user’s manual conform to the denition of product upon preparation of the manual.
IKCO is continuously dedicated to improving the appearance, interior trims and technical specications of the vehicle. The pictures,
data and relevant notes in this manual are inapplicable as basis for order acceptance.
Applicable models of this manual:
Series Engine Transmission Announced model
China IV Emission Standard
Announced model
China V Emission Standard
S30
N6A 10FX3A PSA
MT DFM7160B1E
AT DFM7160B1D
MT DFM7160B1F DFM7160B1F5
MT DFM7160B1F1
DFM A16 MT DFM7150B1A2 DFM7150B1C
AMT DFM7150B1B DFM7150B1D
H30
N6A10FX3A PSA
MT DFM7160B2E
AT DFM7160B2D
MT DFM7160B2F DFM7160B2F5
DFM A16 MT DFM7150B2A2 DFM7150B2C
AMT DFM7150B2B DFM7150B2D
H30 CROSS
N6A10FX3A PSA
MT DFM7160B3C
AT DFM7160B3B
MT DFM7160B3F DFM7160B3F5
DFM A16 MT DFM7150B3A2 DFM7150B3C
AMT DFM7150B3B DFM7150B3D

6
YOUR VEHICLE AT A GLANCE
This manual is mainly prepared to introduce the models in above-mentioned series; therefore, some equipment and functions may
not be provided on your vehicle.
The “*” mark in this manual means that the provision of the marked equipment/function is dependent on your model.
The legends in this manual are for operation introduction only and the pictures for S30 sedan (equipped with DFM A16 engine,
automatic & manual transmission, automatic A/C and MP5 audio system etc.) shall prevail if common to three models.
Your Dongfeng car is installed with various advanced automotive electronic control units and can only be maintained and serviced
either by the Dongfeng Franchise Store; or IKCO authorised representatives;otherwise, your car may lose the technical and quality
guarantee.
IKCO Company reserves the right to modify the model, equipment or equipment function, without prior notice.
Iran Khodro Industrial Group

7
YOUR VEHICLE AT A GLANCE
Thanks for choosing this model.
Before driving on road, please read this user’s manual carefully.
This manual covers driving modes, important information on equipment, suggestions to be followed strictly as well as service/
maintenance and precautions, so as to ensure your personal safety and car reliability.
Comprehensively understanding your car may bring you more driving pleasure.
Due to the speci cations and options of your new car as well as different purchase time, some equipment/functions described
in this manual may not be provided or not be re ected in time on your new car.

8
YOUR VEHICLE AT A GLANCE
1. Please always read this manual
carefully and follow the operation modes
herein before and during your driving,
so as to make yourself familiar with
the vehicle operation and maintenance
and contribute to your driving safety; or
else, the vehicle will be used improperly
and we will not be responsible for the
resultant losses.
2. Please always have your vehicle
maintained regularly at either Dongfeng
Franchise Store or IKCO authorised
representatives as per the Warranty
Manual.
3. To accommodate to the drivers in
different shapes, make the following
adjustments to the driving position:
• Headrest height, fore-and-aft position,
backrest inclination, cushion height*;
• Position of steering wheel;
• Height of safety belt.
4. Safety belt is an important guarantee
for occupant’s safety. Children and
adults at different ages shall wear safety
belt or apply other security devices by
the method tting their body.
5. The airbag will be effective only when
the safety belt is wore.
6. Inspection before driving:
• Inspect the lamps for normal operation;
• Inspect the windshield and rearview
mirror for cleanliness, and the wiper for
normal operation;
• Inspect the position of rearview mirror;
• Inspect the tyre pressure and wear
condition. The tyre condition directly
inuences the dynamic performance,
economy and ride comfort of the vehicle,
especially the driving safety.
Therefore, please use and maintain the
tyre (including the spare wheel) properly
as per the relevant regulation. Inspect
the tyre pressure when the tyre is cold
(see Pages 153-155);
• Inspect the level of such uids as
engine oil, brake uid, power steering
uid and coolant (see Pages 123-127):
- Inspect the oil level 10 min after the
engine is stopped;
- Inspect the coolant level when the
engine is cold;
- Do bleeding before adding a great
quantity of coolant (when there is
no coolant in the expansion tank) or
changing coolant, as air, if any, in the
cooling system may result in local
overheating of engine;
• Inspect the battery condition (see Page
143).
7. Inspect all warning lamps before the
engine start (with ignition switch at M
position) (see Page 81).
8. Engine running:
• Do not run the engine in enclosed depot
to avoid poisoning by exhaust gas;
• Do not start the engine when the
battery is under charge, because the
engine electronic control unit and the
starter cannot operate normally at this
moment;
• It is not necessary to depress the
accelerator pedal when starting the
engine;
• After high-speed driving, run the engine
at an idle speed for 3-5 min, and then
turn off the ignition switch.
9. Fuel cut-off device (see Page 19).
10. Braking:
• When the engine is shut down, the
vacuum booster will not work and
the brake efciency will decrease
substantially due to the considerable
increase of brake pedal force; therefore,
Warning Notices

9
YOUR VEHICLE AT A GLANCE
it is strictly prohibited to coast the vehicle
when the engine is shut down;
• Before leaving the vehicle, apply the
parking brake and conrm that it works
reliably. For vehicle with automatic
transmission or automatic & manual
transmission, set the shift lever to P gear
at the same time (see Pages 87-92);
• In the course of emergency braking or
braking on a wet or slippery road, the
ABS can inhibit the wheel from locking,
contributing to the reliability of the driving
direction. However, prudent and safe
driving is still a must (see Pages 93-94).
11. If any red warning lamp (such as
for charging, braking, engine oil, water
temperature etc.) on the instrument
panel is on during driving, stop the
vehicle safely as soon as possible
and check it as per this manual. If it is
necessary, contact either Dongfeng
Franchise Store or IKCO authorised
representatives.
If any yellow warning lamp on the
instrument panel is on during driving,
check the vehicle as per this manual and
contact either Dongfeng Franchise Store
or IKCO authorised representatives
when necessary (see Pages 62-63).
12. Electrical accessories:
For any added electrical accessory,
the wiring operation shall be performed
either by Dongfeng Franchise Store or
IKCO authorised representatives as
per the connecting positions and wiring
method.
13. It is strictly forbidden to use leaded
gasoline to avoid damaging the three-
way catalytic converter installed on the
vehicle (see Pages 20-21).
14. Safety tips:
Follow the following critical driving rules
to contribute to the safety of yourself and
passengers throughout the driving!
• Strictly abide by the trafc rules to drive
the vehicle safely;
• Do not drive the vehicle after drunken
or drugged;
• Make sure to observe the speed limit
marks and do not overspeed;
• Make sure to apply the safety belt and
corresponding child restraints and let
the children take the rear seats.
15. Protect the dashboard against water
invasion, and pay special attention to
lm application on the front windshield,
wet umbrella and water cup, etc.;
otherwise, the instrument and electric
appliances may be damaged.
16. Do not retrot the vehicle, or else,
its performance, safety or durability may
be inuenced, and relevant rules and
regulations may be broken. Furthermore,
the damage or performance issues
resulting from such retrotting operation
is out of the scope of quality guarantee.

10
YOUR VEHICLE AT A GLANCE

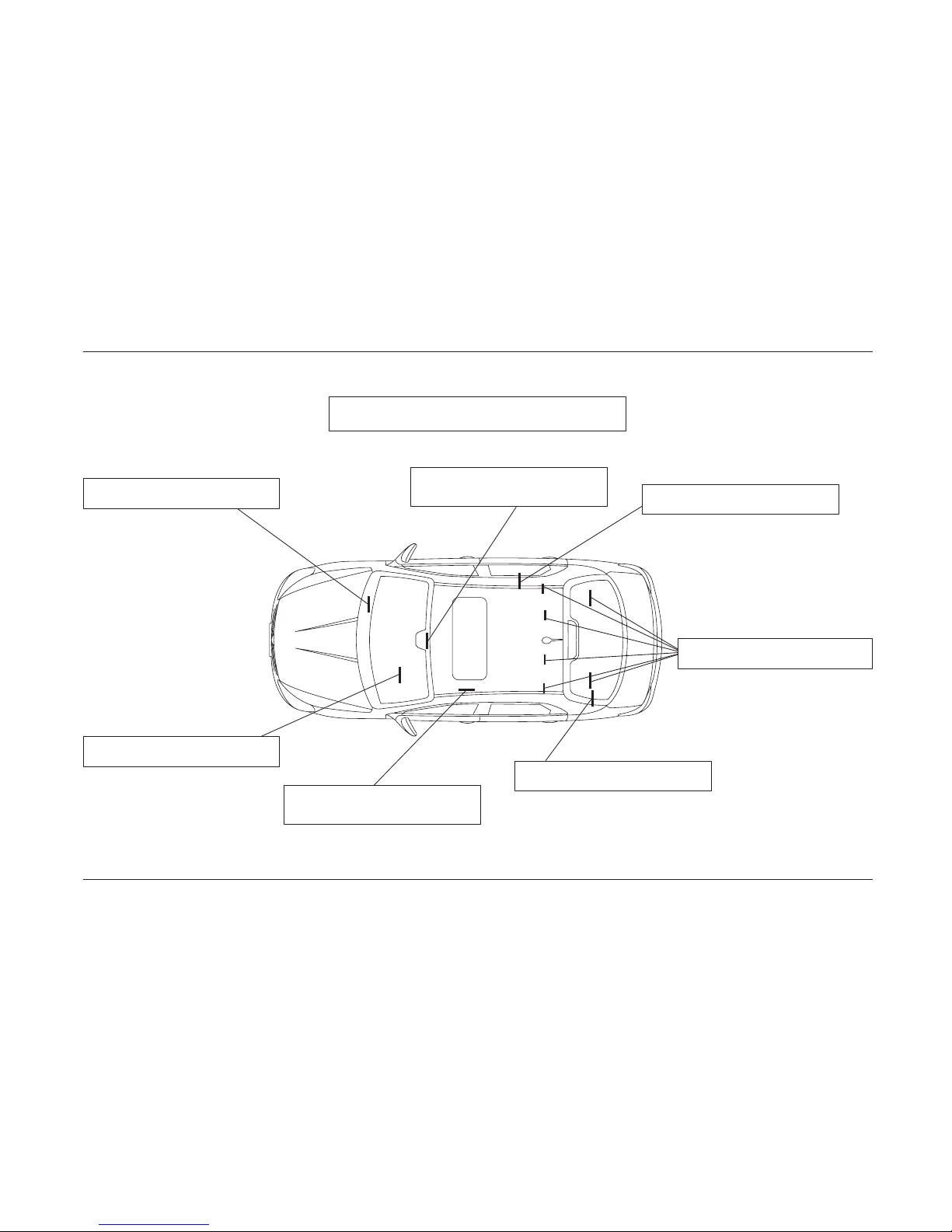

Illustrated Index – Exterior
Braking ............................................ 97
Tyre pressure ................................ 131
Wheel replacement ....................... 147
Lighting signal ..........................81-139
Headlamp adjustment ..................... 87
Bulb replacement .......................... 139
Exterior rearview mirror ... 86
Traction ............................. 62
Locking & unlocking the doors ........ 20
Remote controller, key .................... 16
Remote controller battery ................ 17
Anti-theft ignition switch .................. 19
Starting .......................................... 112
Bulb replacement .......................... 139
Trunk .............................. 113

11
YOUR VEHICLE AT A GLANCE
Illustrated Index – Exterior
Braking .......................................... 154
Tyre pressure ................................ 131
Wheel replacement ....................... 147
Lighting signal ..........................81-139
Headlamp adjustment ..................... 87
Bulb replacement .......................... 139
Locking & unlocking the doors ........ 20
Exterior rearview mirror ... 86
Traction ............................. 62
Remote controller, key .................... 16
Remote controller battery ................ 17
Anti-theft ignition switch .................. 19
Starting .......................................... 112
Bulb replacement .......................... 139
Trunk .............................. 113

12
YOUR VEHICLE AT A GLANCE
Cipher immobilizer indicator ............ 19
Hazard warning switch .................... 81
Steering wheel adjustment ............. 33
Cabin fuse box .............................. 133
Interior locking ................................. 20
Power window locking ..................... 58
Door window regulation .................. 58
Rearview mirror adjustment ............ 86
Light combination switch ................. 71
Combination instrument .................. 61
Parking brake lever ......................... 98
Cigar lighter ....................................111
Gear shift lever ................................ 60
Heating/ air conditioning ............... 105
Vehicle audio ..................................... ?
(see User’s Manual for DVD/MP5*)
Wiper combination switch ............... 83
Multi-function display ....................... 71
Illustrated Index – Driving Position
Clutch pedal* Brake pedal Accelerator pedal

13
YOUR VEHICLE AT A GLANCE
Front seat ........................................ 27
Safety belt ....................................... 41
Roof lamp ...................................... 109
Sun visor ....................................... 110
Rear shelf ...................................... 112
Glove box ...................................... 108
Illustrated Index – Interior
Airbag .............................................. 35
ISO FIX child safety seat anchorage 54
Rear seat ......................................... 30

14
YOUR VEHICLE AT A GLANCE
Illustrated Index – Basic Performance of Complete Vehicle
Adding brake uid ......................... 124
Battery ........................................... 137
Engine compartment fuse ............. 135
ABS ................................................. 98
Opening engine hood ...................... 22
Adding washer uid ......................... 83
Adding engine oil ........................... 122
Adding engine coolant .................... 63
Adding power steering uid .......... 122

15
YOUR VEHICLE AT A GLANCE
1
REMOTE CONTROLLER ........................................................16
KEY ..........................................................................................18
DOOR OPENING/CLOSING....................................................20
CHILD SAFETY LOCK AND TRUNK LID (LIFTGATE) ............21
ENGINE HOOD OPENING/CLOSING .....................................22
AIRBAG....................................................................................35
SAFETY BELT..........................................................................41
CHILD SAFETY........................................................................53
SAFETY BELT MAINTENANCE...............................................57
DOOR WINDOW REGULATION..............................................58
DASHBOARD...........................................................................59
COMBINATION INSTRUMENT................................................61
INDICATING INSTRUMENT ....................................................62
INDICATOR LAMP AND WARNING LAMP..............................64
COMBINATION DISPLAY.........................................................67
MULTI-FUNCTION DISPLAY (SEGMENT CODE)...................71
STEERING WHEEL*................................................................79
H30 CROSS ROOF RACK.......................................................80
LIGHT COMBINATION SWITCH AND HAZARD WARNING
LAMP........................................................................................81
WIPER COMBINATION SWITCH ............................................83
ENGINE START .......................................................................85
REARVIEW MIRROR...............................................................86
HEADLAMP ADJUSTMENT.....................................................87

16
1
REMOTE CONTROLLER
Remote controller
The remote controller is con gured in
the master control key handle.
The remote controller, with a
highfrequency transmitter, embraces the
following advantages:
- Accessible for a range more than 6m
around the vehicle.
Note: Have either Dongfeng
Franchise Store or IKCO authorised
representatives correct the fault, if any.
Note :
Ensure that all doors and the trunk lid are
properly closed when using the remote
controller for locking.
After the remote controller sends a locking
signal, the locking will fail if any one of doors
or the trunk lid is left open or virtually closed.
Continuous and repeated locking/unlocking
operations with remote controller will make
the central control system inoperative in short
time, which is normal because the motor is
being protected. However, please do not
operate like that.
Remote-controlled electric central
locking
Use the remote controller to unlock/lock
doors and the trunk lid with as locking
button and as unlocking button. The
operation is indicated by  ashing of turn
signal indicator lamp.
Unlocking: The turn signal lamp  ashes
for 3 times.
Locking: The turn signal lamp is on for
2 s, and the remote controller will be
inoperative when the ignition switch is in
ON position.
Automatic locking restoring: If no door
(incl. trunk lid) is opened 20 s after
unlocking by remote controller, all door
locks will be locked again automatically.
Searching function in parking lot
In parking lot or underground garage,
when all doors are locked, after the
locking button on the remote
controller is pressed down twice (with
an interval of 1-3s), the horn will sound
for 5 times and all turn signal lamps will
 ash for 15s approximately to facilitate
you  nd out your own vehicle quickly
by following those audible and visual
indications, which, however, can be
terminated by pressing down the locking
button again when the searching
function is activated.

17
1
REMOTE CONTROLLER
Battery run-out
When the remote controller fails to
operate normally at a distance shorter
than 6m, have the battery inspected
or replaced at either Dongfeng
Franchise Store or IKCO authorised
representatives.
Replacement of remote controller
battery
Open the remote controller box to
replace the battery.
Battery: 3V CR2032
Note: To protect the environment, do
not throw away the waste battery but
send it to the designated recovery place.
Activation/deactivation of automatic
locking during driving
The automatic locking function can be
activated or deactivated as follows:
- Turn the ignition switch to M position
when the vehicle is stopped.
- Press down the locking button on
the door at the driver’s side for 2s.
Afterwards, the dot-matrix multi-
function display will show the indicating
words and the symbol of “manual ”
or “automatic ”. Pressing and holding
the locking button will enable a
switch-over between activation and
deactivation of the function. The
segmentcode type multi-function
display will show the symbol of “manual
” or “automatic ” only, without the
indicating words.
Automatic locking during driving
After the vehicle is started and runs at a
speed more than 10km/h and all doors
(incl. trunk lid) are closed, the door locks
will be locked automatically, unless the
doors (incl. trunk lid) are not properly
closed.
This function can prevent other people
from pulling the door open and entering
into the vehicle when the vehicle stops
at the red traf c light or in other cases,
but will also inhibit the rescue by others
in accidents. Whether to activate this
function is up to the driver.

18
1
KEY
Before leaving the vehicle:
- Close all door windows and do not
leave valuable matters in the vehicle.
- Remove the ignition key, turn the
steering wheel to lock it and close all
doors.
Each vehicle is provided with two
keys. One is the electronic anti-theft
starting master control key with remote
controller, and the other is that without
remote controller.
Make the key prop out by pressing
down the button , and press down the
button before folding the key.
The key can be used to connect the
ignition switch as well as open and lock
the door and fuel tank cap individually.
Electric central locking
All doors and the trunk lid can be
unlocked or locked at the same time by
inserting the key into the lock hole at
driver’s side, but the turn signal lamp will
not be lighted in this case.
NOTE :
If the door (incl. trunk lid) is left open or not
properly closed, the electric central locking
cannot function. And in this case, only the
door at the driver’s side may be locked, with
other doors left unlocked.
NOTE :
When the battery runs out, only the door
at the driver’s side will be unlocked/locked,
with other doors inactive.

19
1
KEY
Electronic anti-theft starting key
The key with the electronic anti-theft
starting function has an anti-theft starting
response chip inside, and only your
key can start your vehicle. The key can
be used to connect the ignition switch
as well as lock/unlock the door and fuel
tank cap individually.
Insert the key into the steering wheel
lock; after the ignition switch is
connected, the key will be recognized
for the cipher against the electronic anti-
theft starting device.
The vehicle cannot be started if the key
fails to be recognized.
NOTE :
Do not change the circuit of electronic anti-
theft starting device in no case, or else, the
vehicle will fail to be started.
Cipher immobilizer indicator lamp
The electronic anti-theft starting device
can cut off the engine fuel supply;
when the ignition switch is turned off,
the cipher immobilizer indicator lamp
on the hazard warning switch will
ash constantly to indicate that the
immobilizer is activated.
NOTE :
If the cipher immobilizer indicator lamp
fails to light up under the above-mentioned
conditions, please consult with either
Dongfeng Franchise Store or IKCO
authorised representatives.
