DNS-33W
Tapeless Solution
DNS-33W

The Starting Point of Tapeless
The DNS-33W Editcam3 is the latest evolution in tapeless recording.
It combines superb camera technology with sophisticated new features.
Ikegami has continuously upgraded and expanded the state of nonlinear acquisition,
which it introduced to the broadcast market a decade ago.
The DNS-33W radically changes the way video will be captured, edited and distributed.

No Digitizing
In the Editcam system,
clips are recorded onto removable media called FieldPak.
Once a FieldPak is inserted into an adapter,
the clips are directly accessed by the Avid nonlinear editor.
It is this ability to edit on the same media that the camera records to
that frees the user from the time consuming process of digitizing.

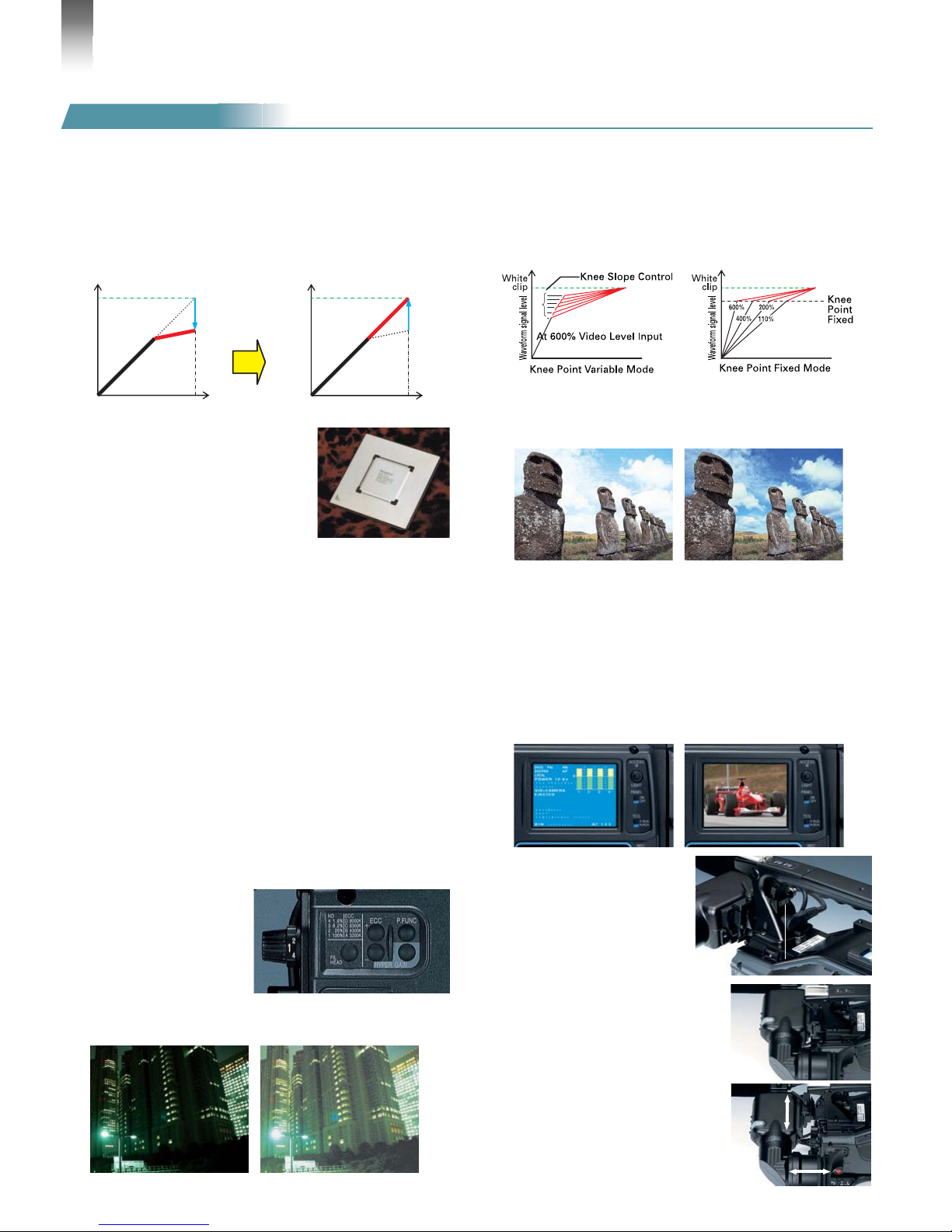

Recording

Normal Super Knee ON
Normal Gain UP
600%
600% PRE KNEE
OUT PUT OUT PUT
IN PUT IN PUT 600%
600%
KNEE EXPAND
KNEE EXPAND
■ 12-bit A/D Converter
Employing an advanced 12-bit A/D converter ensures improved
contrast in low light luminance portions of the image. Knee
expansion circuitry incorporated at the first stage of the digital
processing restores linearity in high luminance areas which is lost
in the in the pre-knee process. Through this technology, linear
signal processing at 600% is achieved in the digital processing,
resulting in improved signal characteristics, including knee and
flare.
■ Adaptive Auto Knee
In addition to the conventional auto knee circuit that varies the
slope of the knee according to the degree of over exposure, the
DNS-33W includes an adaptive auto knee that adapts both the
point and slope of the knee to give improved contrast in the
highlight area. The adaptive auto knee has five different pivot
points, selected by the menu, so that operator can optimize the
performance according to the application.
■ Super-Knee
This function retains color in high light areas where it typically
looses saturation in knee circuit. The Super Knee circuit uses the
600% dynamic range in digital to recover the color saturation.
■ 4ch Audio
4ch audio recording is available. Sampling frequency can be set at
44.1KHz or 48KHz. Audio input from front MIC, rear audio
inputs(2inputs) or Unislot(RF Receiver) can be assigned to each
channel.
■ Touch Control 3.5inch Color LCD
The 3.5 inch color LCD panel can display recording status
information, accesses menus pertaining to camcorder recording,
or display camera output / playback video. Display mode and
settings can be changed with touch panel operation.
■ Hyper Gain
Hyper-gain up to +48dB allows minimum illumination of just
0.03lux(F1.4 with 50% video level).
■ Digital Process
A newly developed digital processing ASIC
is employed, which handles almost all of
the signal processing. Designed at
0.18micron rule, the ASIC quantizes video
signals with up to 38 bits for internal
processing. Full digital processing after
pre-knee ensures stable and reliable
picture quality. Circuitry that has in previous generation DSP
cameras been analog, such as white balance and white shading,
is now digitized, to deliver the highest quality video with excellent
S/N in all modes of operation. The digital ENC circuit, which is built
into this chip, provides stable composite video from the camera
head.
■ D-Tap Connector
A D-Tap connector for powering a
light is located at the inside of the
front of the handle. This eliminates
the need to run a power cable to
the battery bracket. Light control
can be synchronized to REC
control of camera.
■ 1.5" Viewfinder with
slide mechanism
Equipped with a high performance
viewfinder of 600TVL horizontal
resolution, the viewfinder can be moved
back and forth / right and left by means
of an innovative sliding system. In
addition to conventional locations, the
viewfinder has a rear tally light on the
backside for easy taking confirmation at
various shooting angles.
■ S/N 66dB (Typical)
Excellent S/N 66dB(NTSC) / 64dB(PAL), which heretofore would
have been impossible, has been achieved thanks to newly
developed CCD signal processing, improvement of pre-amp,
digitization of remaining analog circuit and adoption of 12-bit A/D
conversion. Video signal noise has been reduced by 50% in
practical operation from our previous model.
■ AIT (Advanced Interline Transfer) CCDs
High performance 520K pixel(NTSC) 16:9/4:3 switchable AIT
CCDs offer very low smear level of -135dB with 100,000 times
lighting condition. This figure actually exceeds that of previous FIT
chips.
■ ECC (Electronic Color Compensation) Filter
Employs 4 position(3200K/4300K/6300K/8000K) ECC filter. It
provides higher sensitivity at high color temperature with similar
operation to current top end
broadcast cameras. A 4-position
Neutral Density Filter is
provided to accommodate the
full range of outdoor lighting
conditions. D-Tap Connector
Features
Camera Performance
Camera Performance

Normal DTL New Skin DTL ON
Normal DTL Vertical Slim DTL ON
Signal BSignal A
32GB (Flash Memory)
2007
160GB (Hard Disk)
16GB (Flash Memory)
2006
100GB (Hard Disk)
8GB (Flash Memory)
2005
40GB (Hard Disk)
FieldPak2 capacity
■ Clear VF DTL
Clear VF DTL emphasizes only the in-focus point, so easier
focusing is possible.
In addition to Diagonal DTL. Skin-tone DTL, boost frequency
control and H/V balance control, new features are employed.
These new features provide a more natural DTL effect and higher
resolution effect in the video from high light to low light portion.
■ New Skin DTL
The new Skin DTL eliminates not just the DTL edge, but also the
high frequency portion of skin tone for greater effect than
conventional skin DTL.
■ Wide Band DTL
By generating DTL at a wide band of boost frequencies, the
picture becomes sharper especially when the zoom is at wide
angle.
■ New Slim DTL
A more effective slim DTL function is available for thinner
horizontal DTL edge.
■ Vertical Slim DTL (5 Line DTL)
By making vertical edge from 5 lines, slim DTL effect can also be
achieved for the vertical edge.
Far
Near
B
A
Some DTL remains on the
out of focus image, so it is
difficult to distinguish the
difference between A and B.
No DTL is generated for the
out of focus image, then it
is easier to tell the difference
between A and B.
■ FieldPak2
The FieldPak 2 is the media Editcam technology records to. They
are currently available in 20GB, 40GB, 60GB and 80GB
capacities. A 40GB FieldPak will yield approximately 165 minutes
of recording DV25 compression with 4ch audio recording. Also
available are solid state RamPaks.
■ Various recording Function
<Retro-Loop>
This groundbreaking feature allows cameramen to capture events
after they have occurred. In Retroloop mode, the video is recorded
to a buffer of pre-deteremined length (from 5 seconds to over 8
minutes at DV25), but only saved when the cameraman presses
the record button.
<Time-lapse recording>
The incorporated interval program allows for the capturing frame
rates from one out of two, up to one frame in 24 hours. Time-lapse
recording applications include botanical studies, speeding up of
cloud movements and speeding up of construction jobs, to name a
few.
<Intelligent recording>
Editcam Intelligent recording ensures that audio and video are
recorded safely to an empty section of the hard drive, even if you
were reviewing previously recorded material at the time.
■ Portable Non-Linear Recorder [DNE-31]
The DNE-31 EditcamStation2 is a portable non-linear recorder,
which uses the same recording
media (FieldPak2) as the DNE-
33W. Playback and rough editing of
recorded clips in FieldPak2 are
available. Connected to a
conventional camera, captured
video can be digitally recorded
directly to a FieldPak2 for later use
by an Avid non-linear editor.
Flash Memory Hard Disk
8GB 16GB 32GB 40GB 100GB 160GB
DV25 36min 72min 144min 180min 450min 720min
JFIF3:1/DV50/MPEG50 18min 36min 72min 90min 225min 360min
■ Compression codec and recording time
Standard compressions include JFIF3:1/10:1/20:1 and DV25.
DV50 and MPEG50 are optionally available. (*Recording time
table shows typical recording time excluding audio data)
Various DTL function
Various DTL function Recording Feature
Recording Feature
No VF DTL
Conventional
VF DTL
With clear
VF DTL
Recording Time Table

Sophisticated Editcam3 technology
accelerates your creative
motivation. Low center of gravity
mechanical designation and new
large shoulder pad support
comfortable on the shoulder active
shooting.
Inserting the FieldPak2 into an SAT
adaptor provides easy mounting for
editing with an Avid NLE.
The FieldPak2 is manufactured with
shock absorbing insulation to
protect the internal drive. It gives
the recording media high reliability.

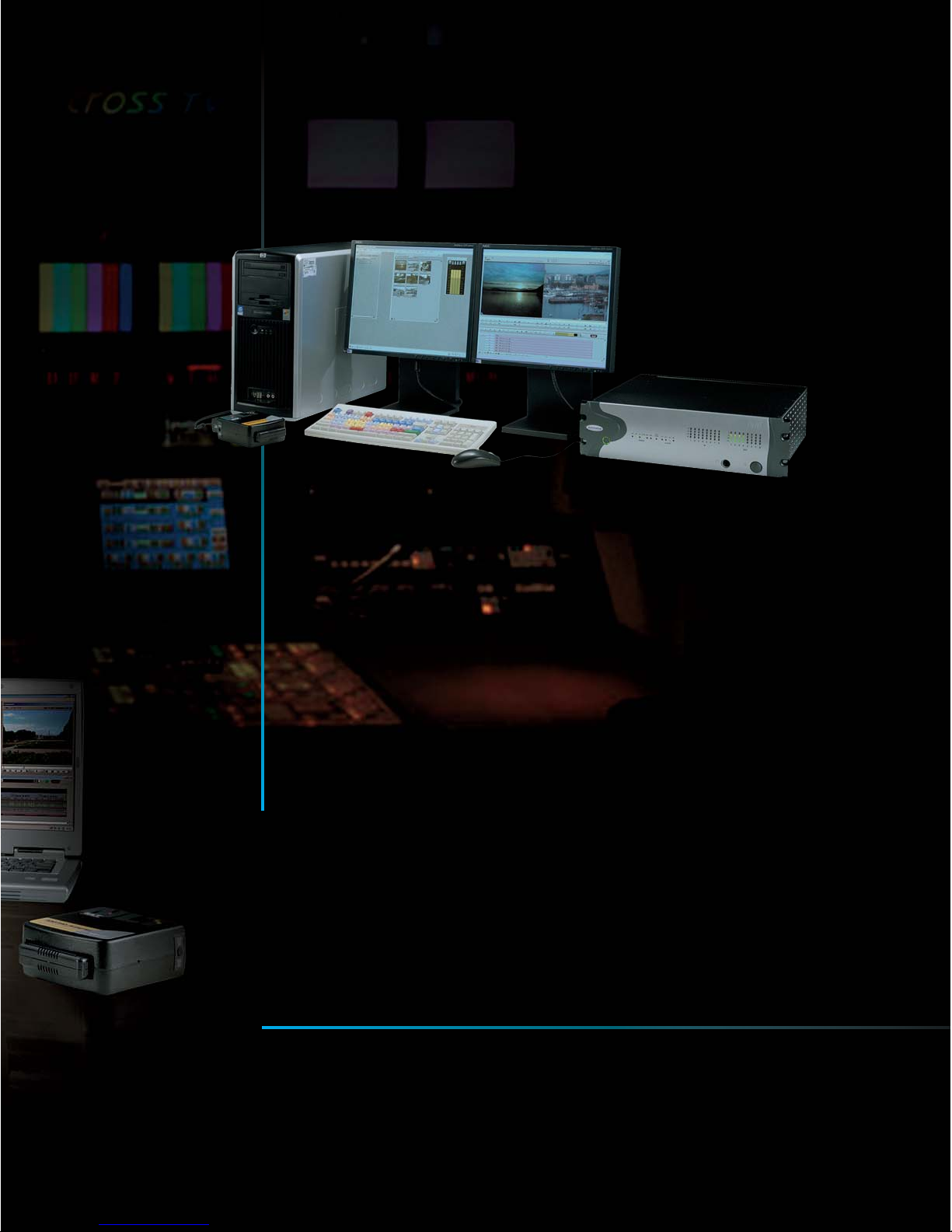

Beginning with Editcam’s nonlinear
acquisition, to nonlinear editing, to
broadcasting, and to archival, a total
tapeless solution based upon the
Ikegami Editcam is finally available.
This workflow is the next-generation
model that will become commonplace.
It is a workflow that eliminates tape and
digitizing, and it is a workflow that is
available today.
Editcam technology eliminates the time consuming
process of digitizing clips prior to editing. This
innovative workflow gives editors more time to focus on
the creative side of video creation.
(It is not necessary to consume time importing to NLE.
Innovative no digitizing workflow provides more time to
editors to concentrate on video creation.)
Avid NLE
SAT adaptor
Avid NLESAT adaptor
Avid NLE
SAT adaptor
FieldPak2
FieldPak2
DNS-33W Editcam3
Avid Unity
MediaNetwork
MediaArrayZX
(Nearchive)
Avid
PortServer
ON AIR
No Digitizing!
Shooting
Shooting
Eject
Eject
Editing
Editing
FieldPak2

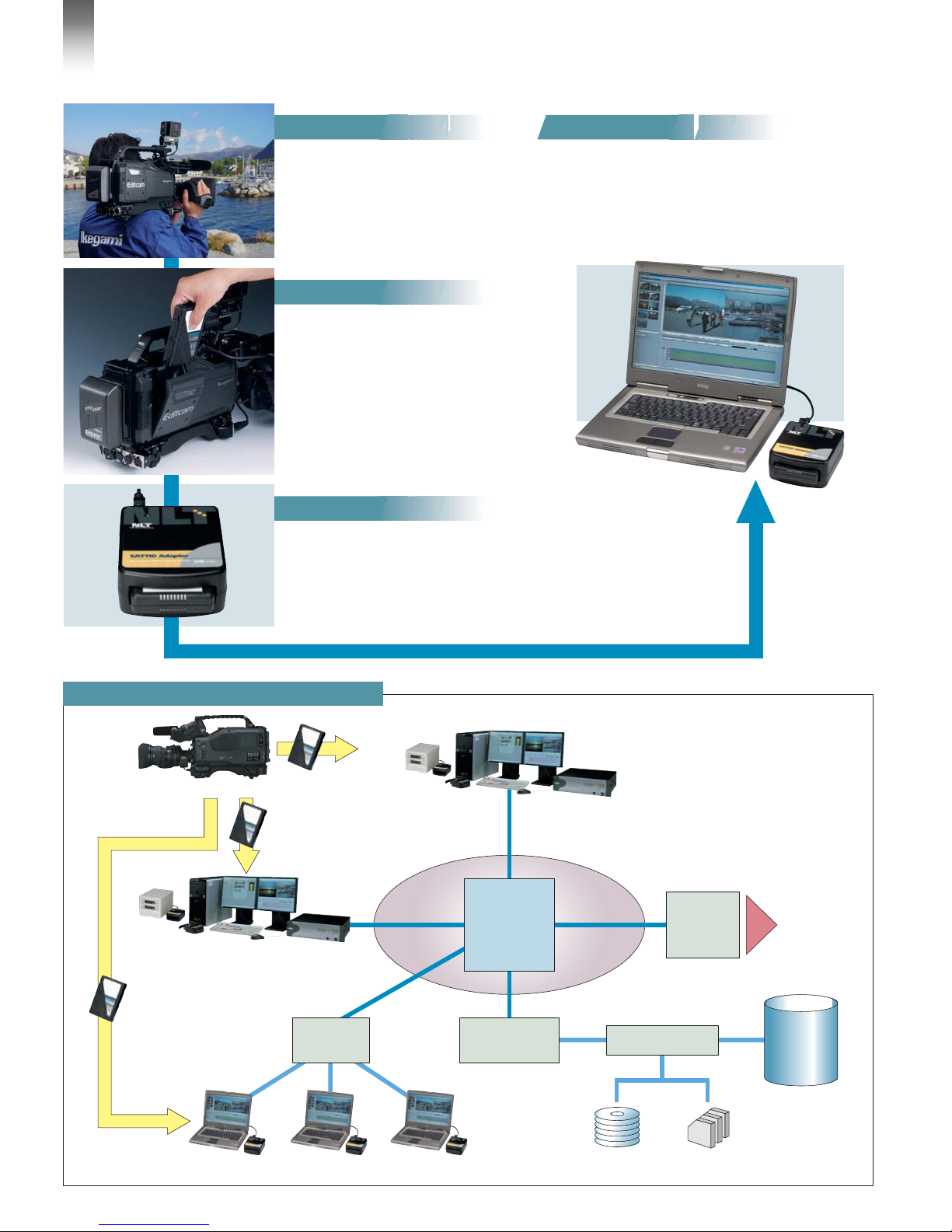

Tapeless Workflow
Mount
Mount
Ikegami's total tapeless solution
Production-based
Asset Management
Production-based
Asset Management
Short-term
Strage
On Air
Server
Archive Manager
Disk Strage Tape Library
Archive
Data Base

SAT adaptor
DNS-33W Avid NLE
Avid NLE
Avid NLE Network
FieldPak2
DNS-33W
DNS-33W
System Application
Server Ingesting System Application
Proxy Video Operation(Option)
Consolidation time is about 2 times faster than the original time at DV25 media.
Recorded Clips in FP2
Accessible consolidated clips Consolidated clips
Avid Unity MediaNetwork
(Up to 20TB)
Consolidate
Note: This product is protected by certain intellectual property
right of Microsoft Corporation. Use or distribution of such
technology outside of this product is prohibited without a license
from Microsoft or an authorized Microsoft subsidiary.
Using the optional Proxy board, Program
video files and Proxy video files are
simultaneously created in the FieldPak with
the same Time Code and Meta Data.
Since Proxy video is recorded in
WindowsMedia-9 format at any of 8 selectable
bit rates (from 150 Kbps to 3 Mbps), it is easily
viewed in the field with conventional Windows
PC, and can be transmitted to the TV station
or Editing facility via IP connection.
By USB Memory
By FieldPak
and SAT Adaptor
TV Station/Editing Room
IP Network
After ingesting to Unity server,
Avid clients can simultaneously
read these media.

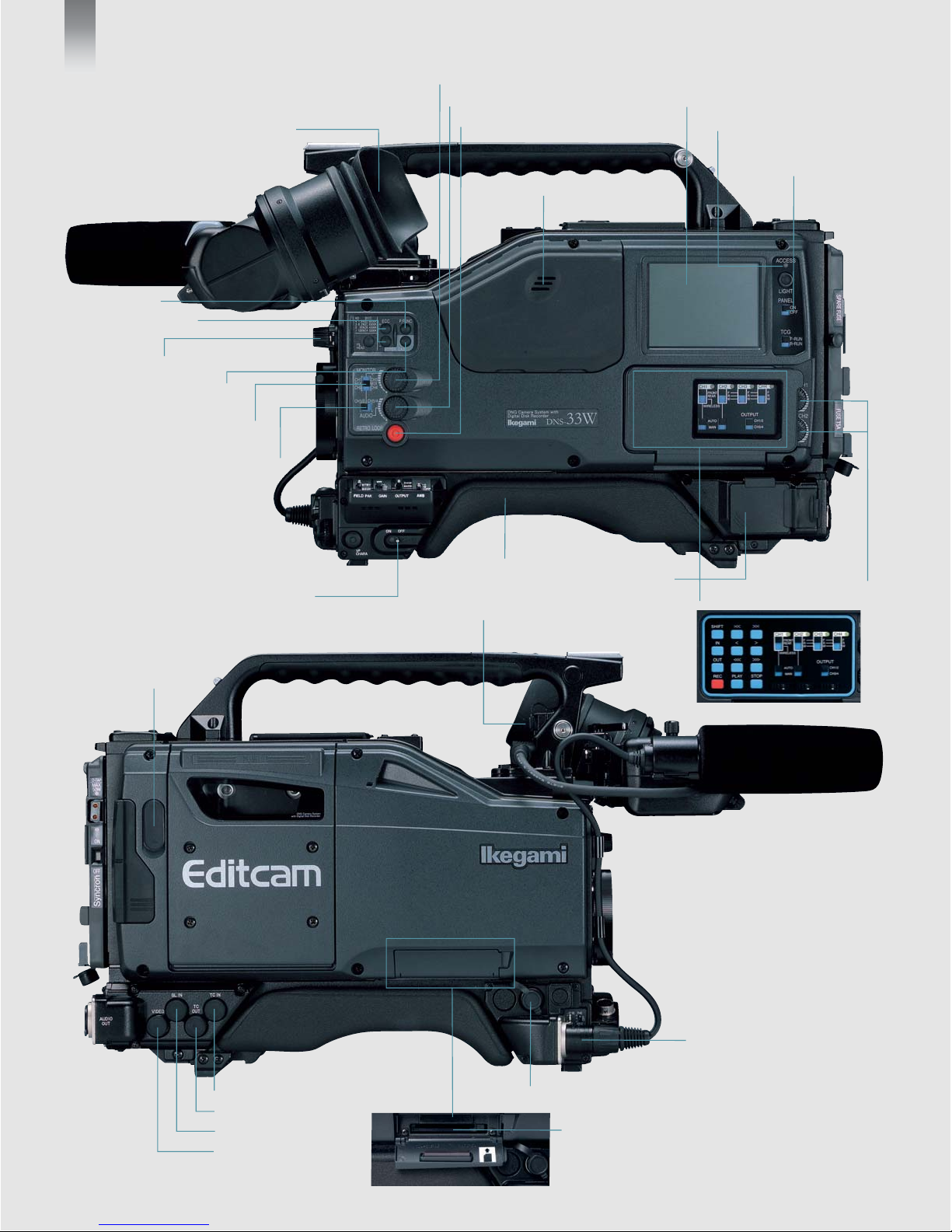

1.5" Viewfinder with Slide Mechanism ■
■ Monitor Level Volume
■ Audio Level Volume
■ Retro-Loop Switch
■ Loud Speaker
■ Touch Control Color LCD
■ FieldPak Access Lamp
■ LCD
Back Light
Switch
Audio Input
Level Volume ■
■ Control Switch Panel
■ Ergonomic Shoulder Pad
IEEE1394 Output Connector ■
Power Switch ■
Audio Output
Group Selection Switch ■
Audio Monitor
Output Selection Switch ■
ND Filter Knob ■
P.FUNC Switch ■
HYPER GAIN Switch ■
ECC Filter Button ■
■ Reset Button
(Inside of MIC Plug)
■ Maintenance Connector
■ Memory Card Slot
■ TC In Connector
■ TC Out Connector
■ GENLOCK In Connector
■ Video Out Connector
Emergency
Manual Eject ■
■ D-TAP Connector
User-Conscious Features

TA System Adaptor
SYA-206V
26pin VTR Adaptor
VTA-206V
■ Rotary Pulse Switch
■ Shutter/SUPER-V Switch
■ REC Button
Microphone
Connector ■
Lens Connector ■
■ Rear Tally Lamp
■ Rear Tally Switch
■ Audio Out Connector
■ Audio In ConnectorMON Out Connector ■
REMOTE
Connector ■
■ AWB/ABB Swicth
■ Earphone Receptacle
■ SET Button
■ Remote Controllers
■ Adaptors
■ Triax/Multi-core Transmission System
Remote Control Unit
RCP-50 (with C-RCP-30 Case)
Remote Control Unit
RM-11
Operation Control Panel
OCP-45
MA System Adaptor
MSA-206V
Triax Base Station
BS-45
Multi-core
Camera Control Unit
MA-400

■ Unislot
The DNS-33W employs a
newly designed Unislot on the
rear portion of the camera
housing for various plug-in
accessories.
■ IEEE1394 output
Optional IEEE1394 video/audio output(no input and no remote
control facility) is available. Regardless of the compression
employed in the recording process, IEEE1394 output is done by
DV codec.
■ Slot-in wireless mic receiver (Option)
A slot-in wireless microphone receiver can be inserted into the
Unislot without extra cable connection. The cableless design
improves ruggedness and reduces size of equipment on the
shoulder.
■ Multi-core cable extension
By attaching the MA system adaptor MSA-206V and MA camera
adaptor MCA-400 to the camera head, the DNS-33W can be used
with the MA-400 CCU for multi-core cable operation. Customers
gain increased versatility with camcorder which can also operate
as system camera.
■ Triax cable extension
By attaching the TA system adaptor SYA-206V and the TA camera
adaptor TA-45 to the camera head, the DNS-33W can be used
with the BS-45 Base Station for triax cable operation. Full remote
control and system interconnect over long cable distance is
provided in triax configuration.
System Application
MSA-206V
TA-V70
SYA-206V
BS-45
MCA-400
MA-400
Useful Accessory
Useful Accessory
EFP Application
EFP Application
(AZDEN) (SENNHEISER)

Accessories
DNE-31 Editcam Station2
VF5075W 5-inch Viewfinder
Tripod/Various models
Battery&Light/Various models
Wireless Microphone/Various models
Triax /Multi-core Transmission System
5-inch ViewfinderPortable Non-liner Disk Recorder
Non-liner Editor
FieldPak Adaptor Recording Media
Avid MediaComposer Adrenaline
Avid XpressPRO with Mojo
Avid XpressDV
SAT-110 USB2.0 Adaptor
SAT-200 SCSI Adaptor
FieldPak2-40G
(HDD Type)
RAMPak-8G
(Flash Memory Type)
TA-V70 Triax Camera Adaptor
/ SYA-206V System Adaptor
BS-45 Triax Base Station
/RCP-50 Control Panel
BS-45 Triax Base Station
/RM-45 Control Panel
Triax Cable
MCA-400 Multi-core Adaptor
/MSA-206V System Adaptor
MA-400
Multi-core Camera Control Unit
CJ-102 Joint Connector
MCC-10 (10m)
MCC-30 (30m)
MCC-50 (50m)
MCC-100 (100m)
VF5-6 5-inch Viewfinder
Multi-core Camera Cable

B3 Zoom Lens
B4 Zoom Lens
BS-45
Base Station
Avid Nonlinear System with SAT-200
Avid Nonlinear System with SAT-110
DNS-33W
Wireless Receiver
(Sennheiser, RAMSA, etc.)
Anton
Battery Bracket
IDX V-plate
Battery Bracket
FieldPak2
VTA-206V
VTR Adaptor
SYA-206V
System Adaptor
Avid Unity Media
Avid Unity Media
Network
Network
(SAN)
(SAN)
Avid Unity Media
Network
(SAN)
Archive System (DLT,etc.)
Portable VTR
TA-V70
TRIAX Adapter
Viewfinder
T-791 Tripod Mount Plate
RM-11/RCP-50
MSA-206V
MCA-400
Remote Control Panel
VF5-6
VF5075
VF2-2
VF15-32
(Standard accessory)
(Option)
MC-15 Microphone
IEEE 1394 output board
SDI output
DNE-31
Editcam Station2
MA-400
Camera Control Unit
System Adaptor
MA Adapter
Extended
Exposure Unit
B4 Mount
B3 Mount
Avid AirSPACE
(Video Server)
Play to
AIR
[Recording Portion]
[Overall]
[Camera Portion]
System Diagram
Specification
Compression Codec JFIF(3:1/10:1/20:1), DV25, DV50(*),
MPEG50(*) *Option
Recoriding Time 165 Minutes approx.
(DV25, 40GB FieldPak2)
Video PGM Output BNC 75ohm, 1Vp-p
Video MON Output BNC 75ohm, 1Vp-p
Number of Audio Input 4ch
Audio Sampling 16Bit, 48KHz/44.1KHz
Power Consumption 27W approx.
Ambient Temperature 0 to +40 degree C /
+32 to +104 degree F (Operation)
Dimensions W138✕H250✕D320mm /
W5.43✕H9.84✕D12.60inches
Camera Head Weight 4.3kg approx. / 9.74lb approx.
(Excluding Lens and VF)
Image Device 2/3" AIT 3CCD
Sensitivity F11 at 2000Lux
Mimimum Illumination 0.03Lux
(F1.4 Lens, 48dB Gain-up, 50% Video level)
Signal to Noise Ratio 66dB Typical
Horizontal Resolution 750TV Lines at center
Resistration Error 0.02% (Except lens distortion)
Smear Level -135dB under 100K times lighting condition
A/D Converion Bit Rate 12-Bit
Gain Selection -3, 0, +3, +6, +12, +18, +30, +36, +42,
+48dB
Optical Filter ND: 100%, 25%, 6.2%, 1.6%
ECC: 3200K, 4300K, 6300K, 8000K
Electric Shutter 1/60(OFF), 1/100, 1/120, 1/250, 1/500,
(Preset) 1/1000, 1/2000sec.
Variable Shutter 2H(1/7867sec) to 260H(1/60.5sec)
Product names and company names mentioned in this catalogue are trademarks
and/or registered trademarks of their respective companies.
IKEGAMI ELECTRONICS (U.S.A.), INC.
HEADQUARTERS
37 BROOK AVENUE, MAYWOOD, NJ 07607
Phone:[phone] Fax:[phone]
WEST COAST OFFICE
2631 MANHATTAN BEACH BLVD., REDONDO BEACH, CA 90278 Phone:[phone] Fax:[phone]
SOUTHWEST OFFICE
773 BEARDEN WAXAHACHIE, TX 75167 Phone:[phone] Fax:[phone]
MIDWEST OFFICE
747 CHURCH ROAD, UNIT C1, ELMHURST, IL 60126 Phone:[phone] Fax:[phone]
SOUTHEAST OFFICE
5200 N.W. 33RD AVENUE, SUITE 111 FORT LAUDERDALE, FL 33309 Phone:[phone] Fax:[phone]
H72C063-SI-F1 Printed in Japan
Design and specifications are subject to change without notice.
■
URL
http:
//
www. ikegami. com
Certified
JQA-EM3888
Certified
JQA-0773
ISO 9001 ISO 14001
