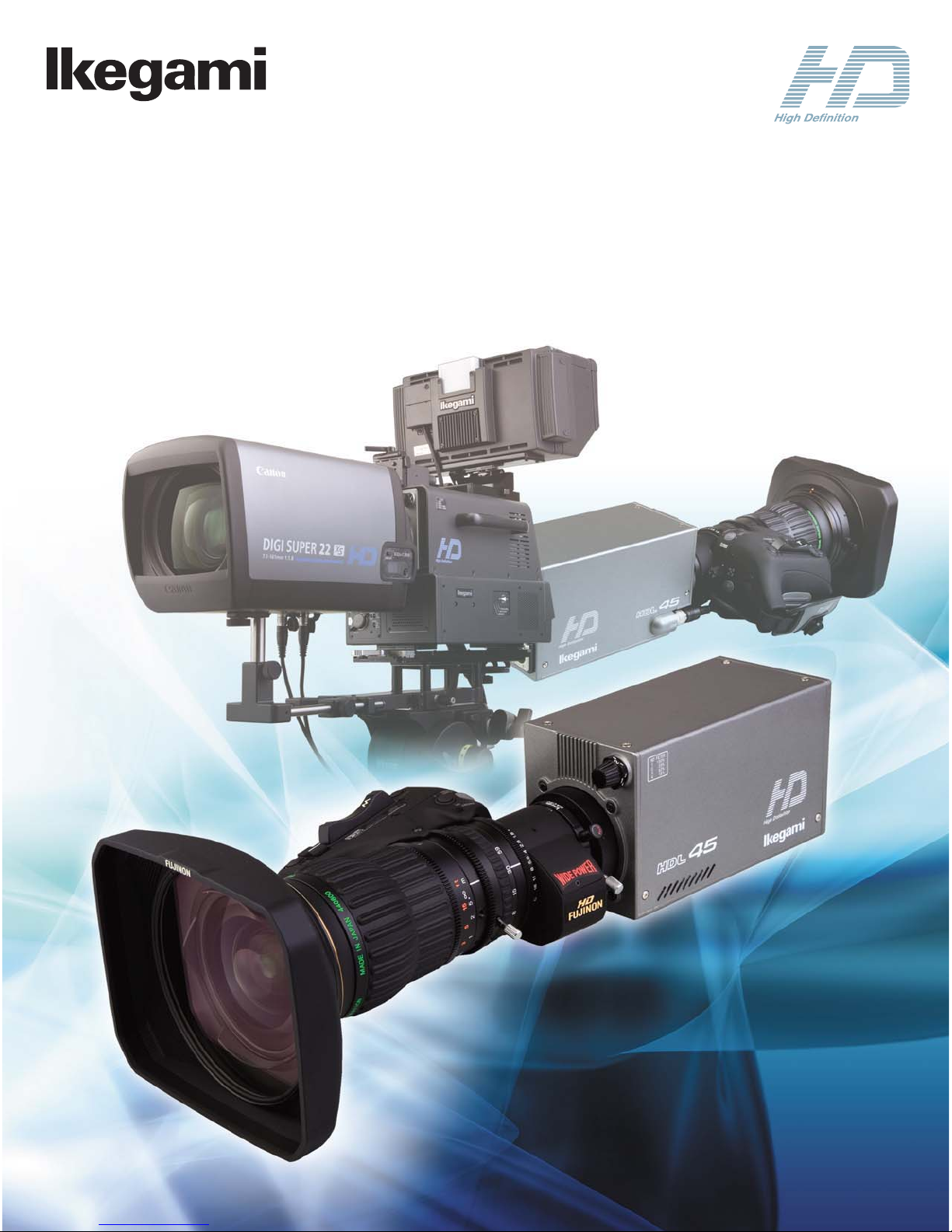

Ikegami HDL-45 User manual

HDL-45
Ikegami picture quality
in a very compact and affordable package

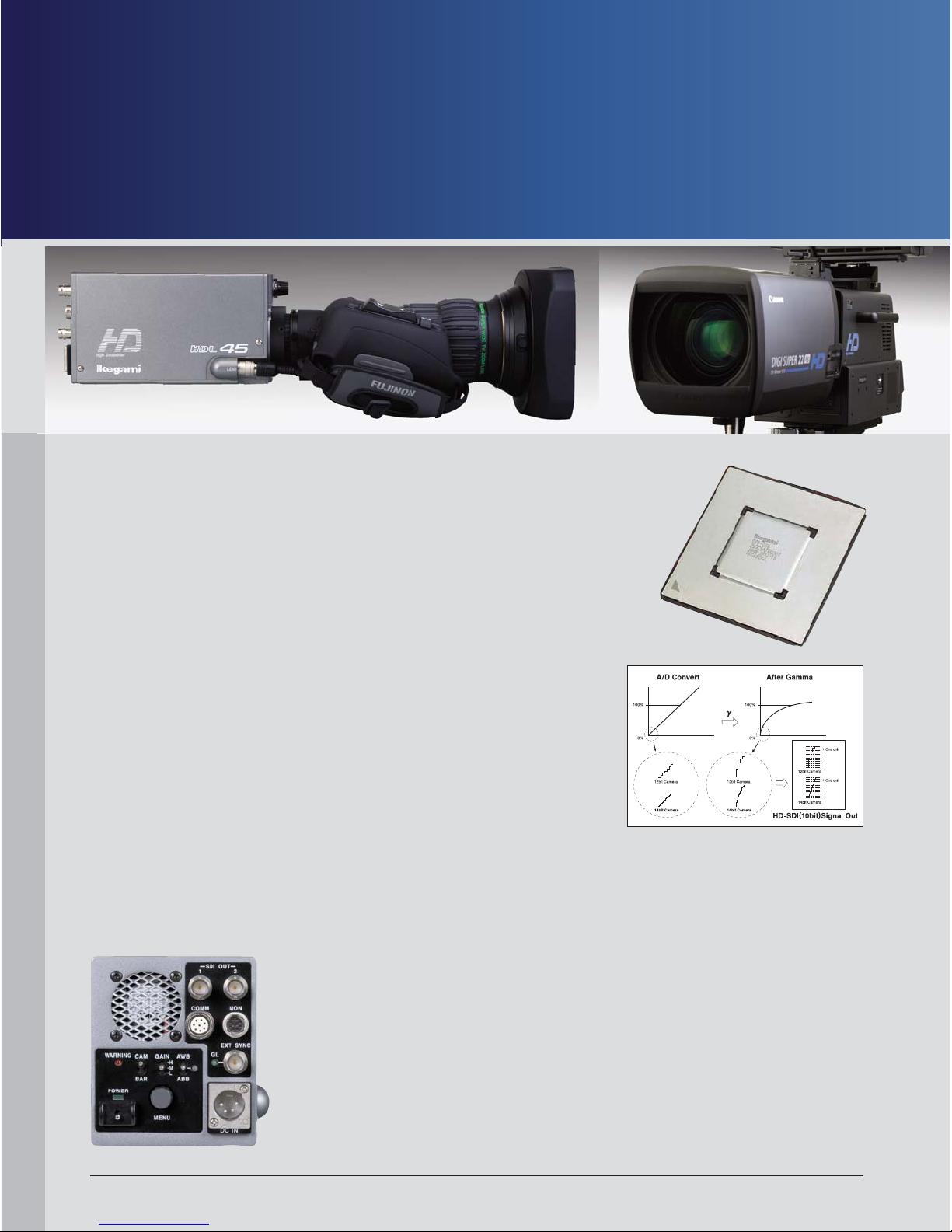

3CCD Multi-Purpose HDTV Camera

Native format Capability
It provides outstanding picture quality in native format using either 1080i CCDs or 720p CCDs.
Advanced full digital process ASIC
Incorporating an advanced full digital process IC, precision designed at 0.18um rule, the video
signals are digitized with 14-bit A/D conversion and up to 38-bit internal digital process circuits.
Digitizing white shading, gamma, and other correction processes in the camera head achieves
superb picture quality and high reliability.
Chip C4 DSP ASIC, originally developed for HDK-series cameras, incorporates advanced color
reproduction and detail enhancement features, including Skin DTL.
Lower noise when gain up
Employing a low-noise feed-back type amplifier circuit in Master gain up, as well as, providing noise cancel circuits in all video related
boards, eliminates noticeable noise and obtains a better signal-to-noise with high gain up.
Various External Sync support
In addition to HDTV Tri-Sync signal, SDTV BBS signal can be used as an external sync signal for genlock.
Extended system flexibility
FE-C140SE fiber extension system and MCB-40 multicore system are available as options, providing
extended system flexibility for a wide range of video production demands.
Full Remote Control
The HDL-45 has full remote control capability from the complete range of Ikegami remote control
panels. With matching pictures, the HDL-45 works with the same OCPs and control systems as
Ikegami's HDK studio cameras.
The latest 14-bit A/D conversion
14-bit A/D converters provide precise picture images from dark to highlight areas,
especially maximizing the color gradation for dark areas, achieving natural color
reproduction in black.
Compact and Light Weight Construction
Weighing less than 4 lbs., various applications are possible including traffic & weather
camera, overview camera on a pan & tilt head, under-water craft, airborne use,
surveillance, and POV (Point Of View) applications for accurate capture from lively
exciting angles in the field.
Built-in Servo Filter / ECC (Electronic Color Compensation) filter
The 4-position Optical Filter can be remotely controlled from a remote control panel.
Adopting ECC filter (3200k/5600k) gives proper white balance without reducing sensitivity, a benefit under high color temperature but
low light conditions such as dawn and dusk. The ND filter and ECC filter can be independently controlled.
The HDL-45 Multi-purpose Compact HDTV Camera provides superior
picture images with the latest 14-bit A/D converters,
and is suitable for various applications such as news flash camera,
weather camera, POV camera, and more........
*Except for EU Market
Rear Panel

FE-C140SE / FE-B100A Fiber Extension System
The fiber extension system transmits HD-SDI, genlock, control, intercom, and microphone audio up to
500m (or up to 2Km with an additional separate power supply) on SMPTE hybrid fiber cable.
The OCP-200 / MCP-200 is a new Network based
control panel system offered as an alternate to the
traditional Ikegami style control panels. The Arc-
net system allows any OCP-200 to control any
camera with assignment set at the OCP itself.
System wiring is simplified with control of up to 96
cameras via a single coax cable between CCU
locations and video control locations. The OCP-200
and MCP-200 include touch screen LCDs. The
depth-of-control of the OCP-200 can be selected
from basic to complete to fit the customers'
operating discipline. Conventional one by one
camera control connection is also available.
Advanced Network Control System
Large Viewfinder support

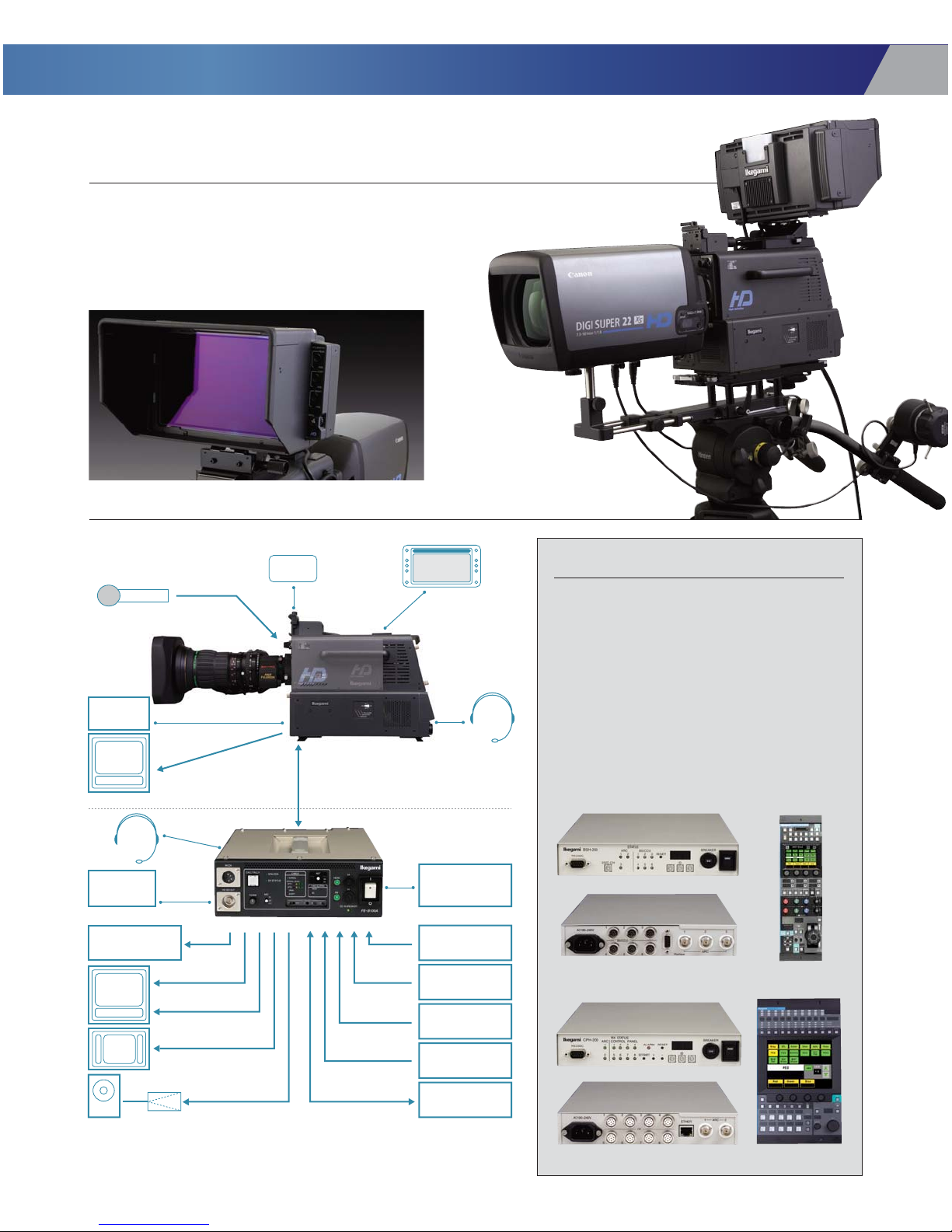

Fiber System Diagram
For manned operation, a large studio viewfinder such as 5" B/W CRT
VF or 9" color LCD VF can be mounted on the FE-C140SE adapter.
Note:
*1: RS-422/RS-232C serial data interface is provided for Prompter or Pan/Tilt system.
*2: External +12VDC power must be provided at the camera side for extending cable length more than 500m.
*3: When SD-RET is selected, there is no RET-SDI output at CA side.
*4 : Due to transmission of one RET channel over the camera cable, RET-1/RET-2 is switched at CA.
HDL-45
OCP-200
MCP-200
BSH-200
Front
Rear
CPH-200
Front
Rear
3CCD Multi-Purpose HDTV Camera
Intercom System
Reference Sync
HD SDI
Digital Swer.
PM
SP
WFM
OCP Operation
Prompter
HEADSET
HEADSET
FE-C140SE
FE-B100A
TALLY BOX (op)
MIC (op)
VF (op)
SD RET
Source (SD:VBS)
HD RET
Source (HD:SDI)
Program Audio
Source
with TALLY SYSTEM
INTERCOMAUDIO OUT (ANALOG)
HD-SDI OUT-3
HD-SDI OUT-2
RET VIDEO OUT (SD-VBS)
RS422 or RS232C
HD-SDI
OUT-1
RS422 or
RS232C
Fiber Cable Max.500m
(w/ Separate Power Max 2,000m)*2
TALLY OUT
(EMBEDDED AUDIO DEMUX)
PGM IN (INTERCOM)
REF IN
SD RET-1.2 IN*4
SD RET-1.2 IN*4
*1
*3
*1
Remote Control
Remote Control
Panel
Prompter
ESC / CB
HD TRI SYNC or SD BBS
(ANALOG)
PM

HDL-45 Camera Ratings&Performance
Scanning System
CCD Image Sensor
Optical System
Lens Mount
Sensitivity
S/N
Optical Filter
Ambient Operating Temperature
Operating Humidity
Power requirement
Power consumption
Weight
Dimensions
1080 lines 2:1 interlaced (59.94Hz) or 720 lines 1:1 non-interlaced (59.94Hz)
2/3-inch 2.3Mega pixel AIT 1080i CCD (HDL-45A)
2/3-inch 2.2Mega pixel IT 1080i CCD (HDL-45i)
2/3-inch 1Mega pixel IT 720p CCD (HDL-45P)
2/3-inch 3CCD, f/1.4 prism
2/3-inch Bayonet(B4) (Conforms to BTA S-1005B)
F11(HDL-45A),F8(HDL-45i),F10(HDL-45P) at 2000lx, white reflection rate 89.9%
56dB (HDL-45A), 54dB(HDL-45i), 56dB (HDL-45P)
ECC 3200K / 5600K select
-10℃+45℃(+14°F ~ +112°F)
30% ~ 90% (non-condensing)
+12VDC (+11 ~ +16VDC)
Approx. 19W
1.8kg (3.97 lbs)
W90 x H103 x D180mm (W3.54 x H4.06 x D7.09 inches)
12 34
ND 100% 25% 6.2% 1.6%
FE-C140SE Camera Adapter Ratings&Performance
Transmission
Video Trunk signal
Transmission Distance
Input Signals
Output signals
Ambient Operating Temperature
Weight
Dimensions
HD-SDI SMPTE292M 1.485Gbps, 1 channel
HD-SDI SMPTE292M or NTSC VBS, 1 channel
500m or 2000m with an additional separate power supply
Audio signal :-60 / -40 / -20 / 0dBm, 600Ωbalanced, 2 channel
Intercom signal :-60dBm, 1 channel
Camera control :Ikegami COMMAND, 1 channel (PRC05-8pin M)
Serial Interface :RS-232C/RS-422 (D-SUB 25-pin F)
RET signal (SDI) :HD-SDI SMPTE292M, 1 channel (75ΩBNC)
RET signal (Analog) :HD-Y ch: PS 1.0Vp-p or NTSC VBS: VS 1.0p-p, 1 channel (75ΩBNC)
Phase reference :Tri-Sync 0.6Vp-p (BNC)
Audio PGM :0dBm, 600Ωbalanced, 1 channel (XLR-3pin M)
Camera control :Ikegami COMMAND, 1 channel (PRC05-8pin M)
Serial Interface :RS-232C/RS-422 (D-SUB 25-pin F)
-10℃~ +45℃(+14°F ~ +112°F) [Humidity 30% ~ 90%, non-condensing]
Approx. 4.5kg (9.9 lbs), excluding HDL-45, VF.
W148 x H198 x D280mm (W5.83 x H7.8 x D11.02 inches)
FE-B100A Base Station
Input Signals
Output Signals
Weight
Dimensions
RET signal (HD) :HD-SDI SMPTE292M (75ΩBNC)
RET signal (SD) :NTSC VBS (75ΩBNC)
Phase reference :Tri-Sync 0.6Vp-p or BBS 0.3Vp-p, 2-channel (75ΩBNC) (HD/SD auto detection)
Intercom signal :-60dBm, 1 channel
Audio PGM :0dBm, 600Ωbalanced, 1 channel (XLR-3pin M)
Intercom signal :+10dBu max.
Camera control :Ikegami COMMAND, 1 channel (PRC05-8pin M)
Serial Interface :RS-232C/RS-422 (D-SUB 25-pin F)
Main Video :HD-SDI SMPTE292M 1.485Gbps, 4 channel (75ΩBNC)
Audio signal :+4dBm, 600Ωbalanced, 2 channel
Intercom signal :+10dBu max.
Serial Interface :RS-232C/RS-422 (D-SUB 25-pin F)
Approx. 4.4kg (9.7 lbs)
W214.6 x H77.5 x D351.5mm (W8.85 x H3.05 x D13.84 inches)
Design and specifications are subject to change without notice.
