iKlip Grip Pro User manual

Multifunction smartphone camera stand
USER MANUAL

Contents
2
Table of Contents
Contents 2
English 3
iKlip Grip Pro 3
Register your iKlip Grip Pro 3
Using iKlip Grip Pro as hand-held 4
Using iKlip Grip Pro as tripod 5
Using iKlip Grip Pro as selfie stick 7
Using the Bluetooth shutter 9
Compatible Devices 10
Specifications 11
Warranty 11
Support and more info 11

English
3
iKlip Grip Pro
Thank you for purchasing iKlip Grip Pro.

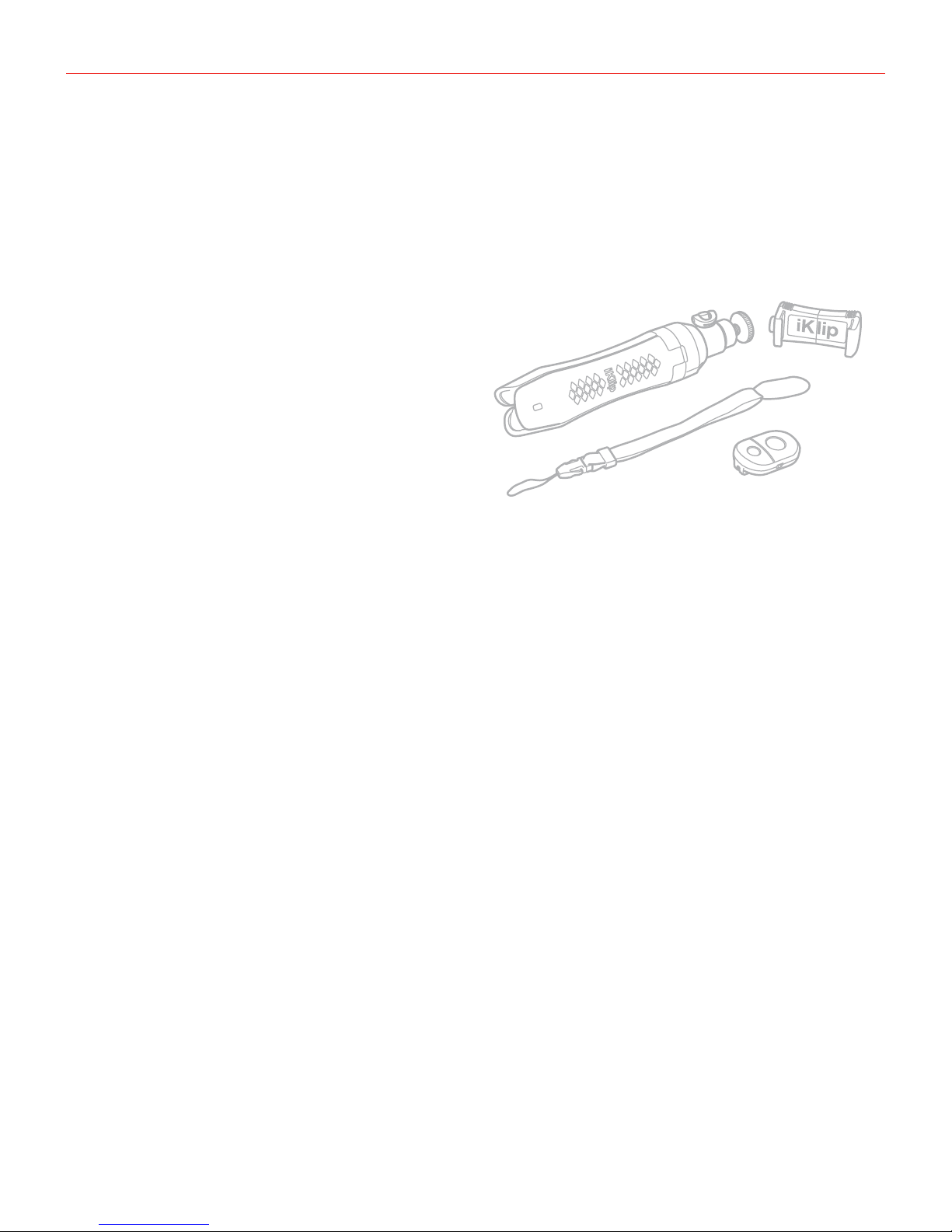

Your package contains:
• iKlip Grip Pro
• Wrist hand strap
• Device holder
• *Bluetooth shutter
• Quick Start Guide
• Registration Card
iKlip Grip Pro is the next generation of IK’s well known iKlip Grip. It provides a handheld grip, mini-tripod,
monopad, tripod adater and bluetooth shutter for any smartphone or phablet, in a conveniently portable
package.
iKlip Grip Pro features a smartphone holder with brackets that expand to securely hold devices with or without a
case with screen sizes ranging from 3.5” to 6”.
Designed for effortless stable video recording, iKlip Grip Pro’s holder is supported by a handle with three folding
legs that can be used as either a tabletop tripod or handheld grip. There is also custom designed removable
bluetooth shutter button conviently integrated on the handle, to easily take pictures and start/stop video.
With iKlip Grip Pro, videographers will always get a great angle thanks to its ball mount, which can be adjusted
up to 90°, and its detachable anodized aluminum telescoping pole, which can be locked into place to give up to
60cm of additional height.
iKlip Grip Pro’s handle can also be used as a camera tripod or as a tabletop micprhone stand or handheld mini
boom thanks to its standard 1/4” thread mount. Likewise, its smartphone holder can also be detached for use
with tripods and other stands.
Register your iKlip Grip Pro
By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will
be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also
keeps you informed of all the latest software updates and IK products.
Register at: www.ikmultimedia.com/registration
1x
1x
1x
1x

English
4

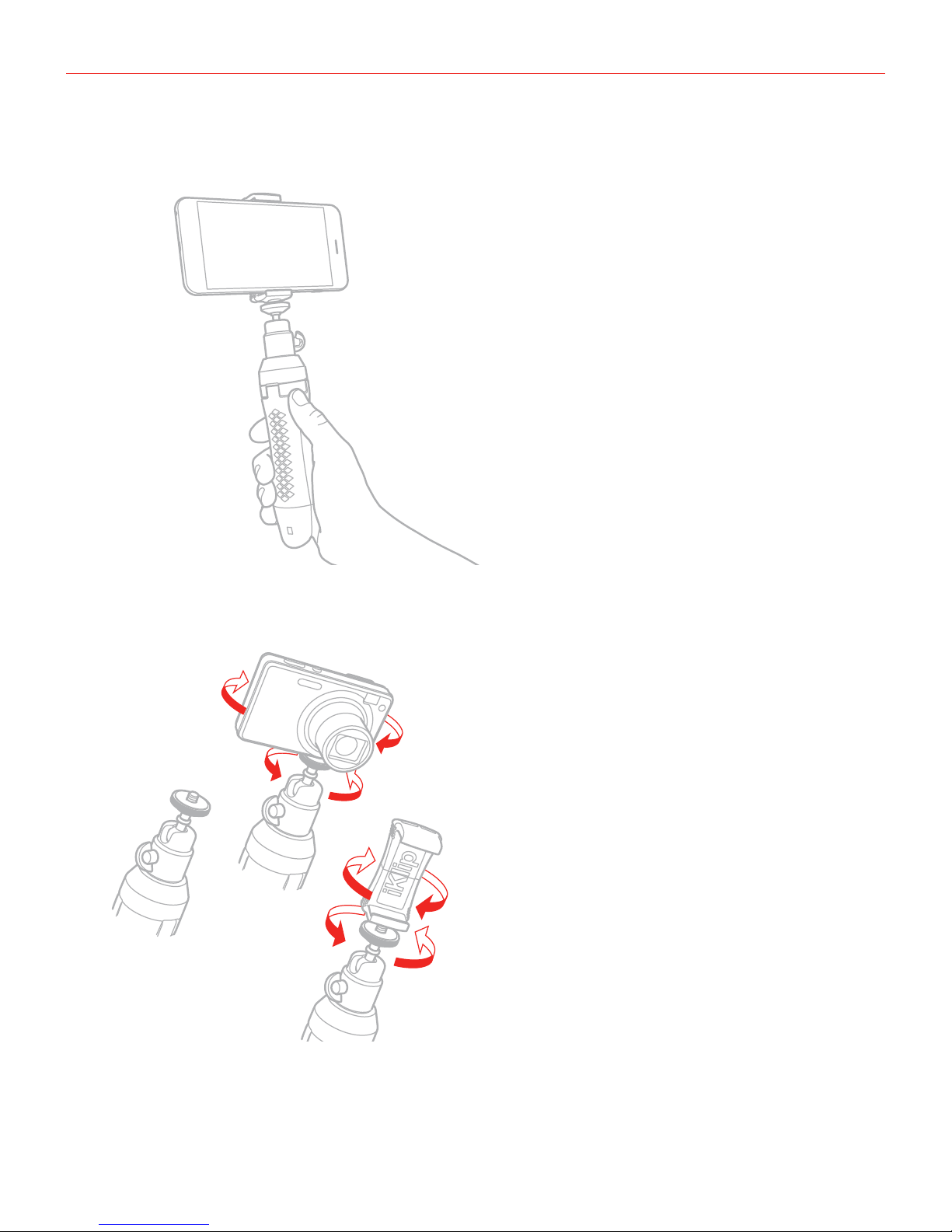

Using iKlip Grip Pro as hand-held
1. Mount the Xpand holder on the threaded ball at the top of the pole. Alternatively you can mount any camera
with standard 1/4”-20 femle thread.

English
5

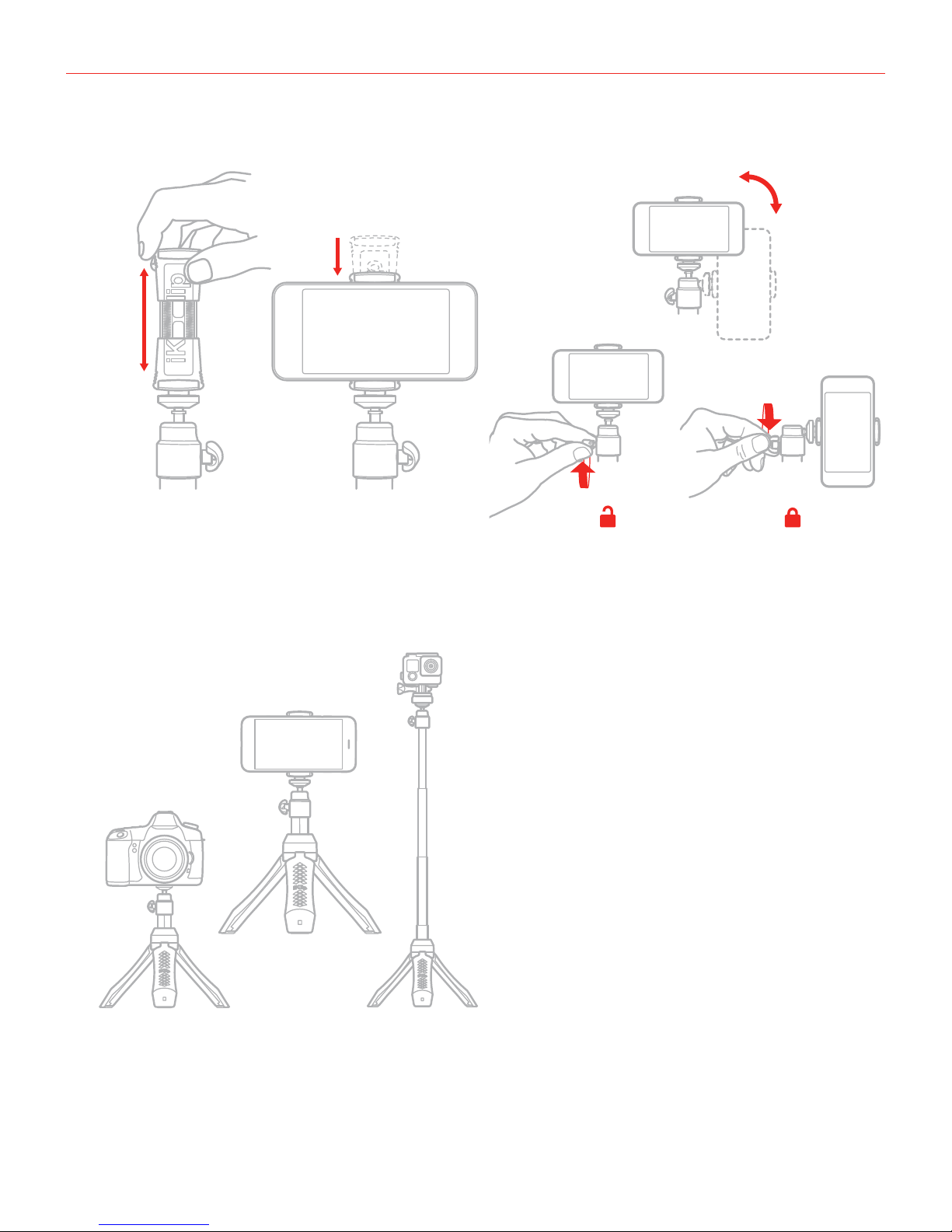

2. Fit your preferred smartphone and orientate it by operating the side key.
Using iKlip Grip Pro as tripod
WARNING: before to try to open iKlip Grip’s legs, you NEED to unlock the telescopic pole.
up to
3.58"/
91mm

English
6

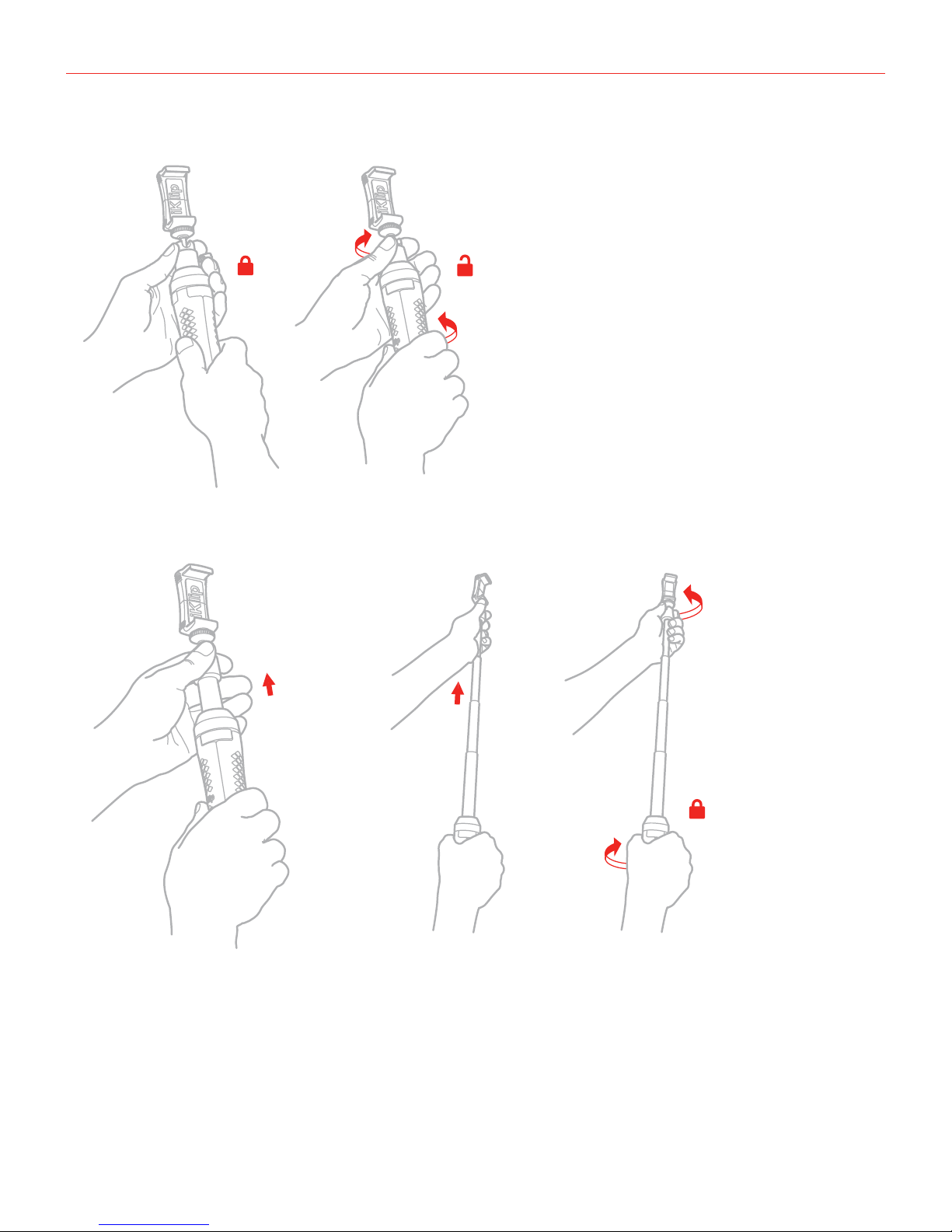

1. Unlock the telescopic pole by turning it counter-clockwise.
2. Extend the pole and open the legs.

English
7

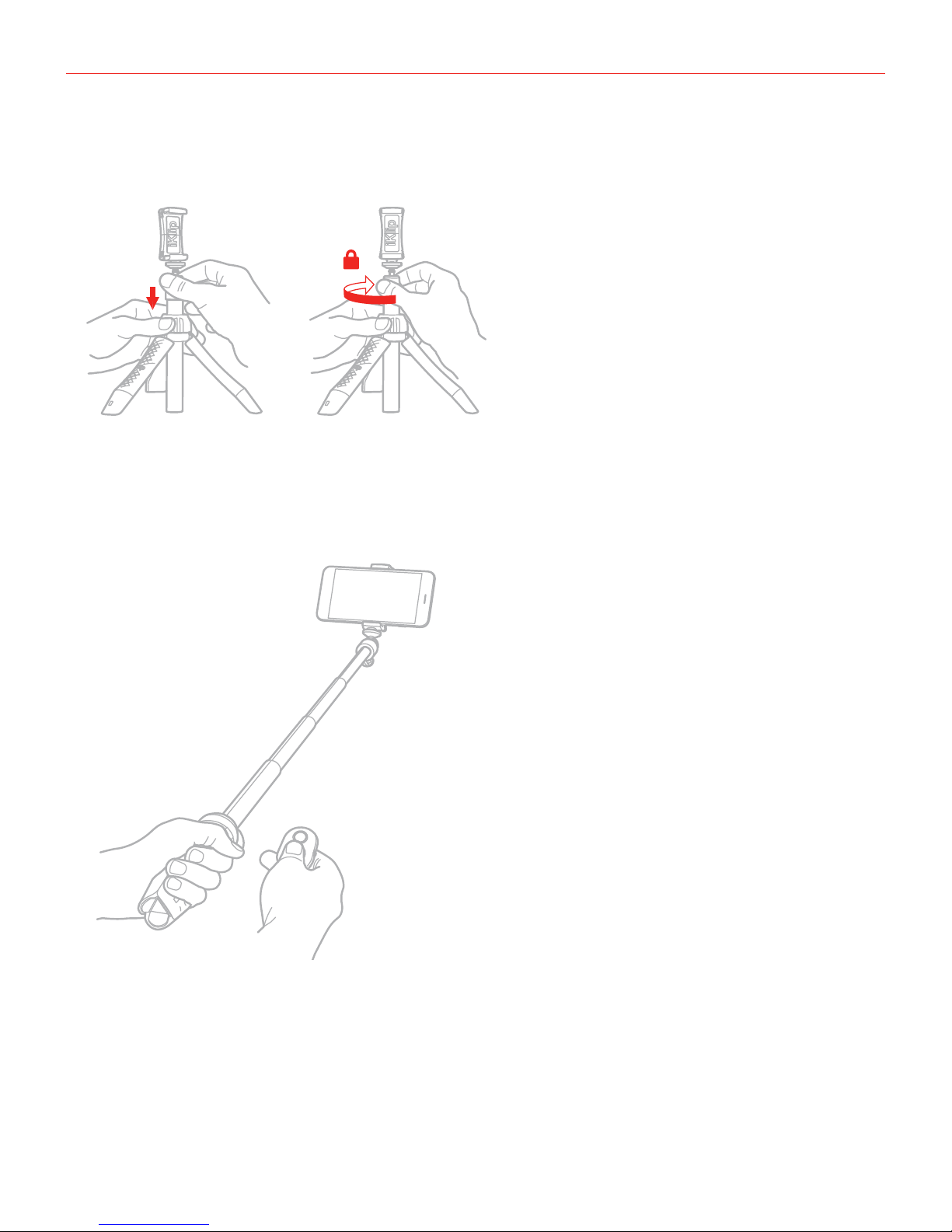

3. Place iKlip Grip Pro on a stable surface and place the pole at the heigth desired. The lock the pole by
rotating it clockwise.
Using iKlip Grip Pro as selfie stick

English
8
1. Unlock the telescopic pole by turning it counter-clockwise.
2. Extend the pole full lenght and lock it by turning clckwise.

English
9
Using the Bluetooth shutter
1. Turn on the shutter by switching the ON/OFF button on the side of the controller. The shutter controller will
enter into pairing mode and the LED indicator starts flashing quickly at the same time.
2. Activate the Bluetooth setting on your device and it should “look” for new Bluetooth devices.
3. Select the “Shutter” device from the list and you should be ready to start capturing video and photos using
your new shutter controller.
Shutter
ON
Click
Android
iPhone,
iPod touch,
iPad

English
10
4. You can fix the shutter on the body of iKlip Grip Pro thanks to its sledge.
Compatible Devices
Compatibility list Built-in camera app Camera360 app
iPhone 6 Plus/6/5s/5c/5, iPhone
4s/4, iPad 4/3/2, all iPad, iPod
touch 4th gen. Or newer
Samsung Galaxy S2/S3/S4+,
Note 1, Note 2, Note 3+, Tab 2,
Note 8, 10.1+, Moto X/Nexus
4,5,7+ / Xiaomi 1S,2S,3+
Sony Xperia S, HTC New One
and X+, Other Android phones NOT COMPATIBLE

11
Specifications
Pole length: 45cm
Maximum weight applicable: 1kg
Holds any smartphones with screens ranging in size from 3.5” to 6” with case on
Holding Bracket Width: 54mm (min) - 91mm (max) / 2.13” (min) - 3.58” (max)
Material: Thermoplastic
Warranty
Please visit:
www.ikmultimedia.com/warranty
for the complete warranty policy.
Support and more info
www.ikmultimedia.com/support
www.iklipgrippro.com

12
2017/06/07
Regulatory
Model: iKlip Grip Pro
Model Number: IK000084
Bluetooth Shutter Model Number: 084-104-1-01 (Contains part SFR1002)
U.S.A.
Contains Bluetooth shutter with FCC ID : 2ADMCSF2001
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid
the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC radiation exposure statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
theradiator&yourbody.EndusersmustfollowthespecicoperatinginstructionsforsatisfyingRF
exposure compliance. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
CANADA
Contains/Contient Bluetooth shutter with IC ID: 20638-SFR1002
IC statement/warning
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
To comply with Industry Canada RF radiation exposure limits for general population, the antenna(s)
used for this transmitter must be installed such that a minimum separation distance of 20cm is
maintained between the radiator (antenna) and all persons at all times and must not be co-located or
operating in conjunction with any other antenna or transmitter
Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid
the user’s authority to operate the equipment.
Avertissement IC
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Pour satisfaire les limites d’exposition aux radiations RF de l’Industry Canada, les antennes utilisées
pour cet émetteur doivent être installées de façon telle qu’au moins 20cm séparent l’émetteur
(antenne) de toute personne, et ne doivent être ni situées ni utilisées en conjonction avec n’importe
quelle autre antenne ou émetteur.
EUROPE
AUSTRALIA/NEW ZEALAND
BRAZIL
Modelo: Remote Shutter
04464-15-05139
TechnicalSpecications/Especicaçõestécnicas:
Operation Frequency / Frequência de operação: 2402-2480 MHz
Bluetooth Version / Versão do Bluetooth: V3.0
Modulation / Modulação: GFSK
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra
interferênciaprejudicial,mesmodeestaçõesdomesmotipo,enãopodecausarinterferênciaa
sistemas operando em caráter primário.
UNITED ARAB EMIRATES
TRA
REGISTERED N°: ER48399/16
DEALER N°: DA45962/15
TAIWAN
CCAJ17LP4980T1
SINGAPORE
Complies with
IDA Standards
DA00006A
JAPAN
204-520308
CHINA
CMIIT ID: 2015DP5291
KOREA
