iLive IVDSI400X User manual

Dishwasher / User Manual
EN
IVDSI400X

Thank you for choosing this product.
This User Manual contains important information on safety and instructions intended to
assist you in the operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Fire risk
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly

CONTENTS
1.SAFETY INSTRUCTIONS ................................................................................................ 1
1.1. General Safety Warnings ..............................................................................................1
1.2. Installation Warnings .....................................................................................................1
1.3. During Use.....................................................................................................................2
2.INSTALLATION ................................................................................................................. 6
2.1. Machine Positioning .....................................................................................................6
2.2. Water Connection .......................................................................................................... 6
2.3. Water Inlet Hose ............................................................................................................ 6
2.4. Drain Hose.....................................................................................................................6
2.5. Electrical Connection ....................................................................................................7
2.6. Fitting the Machine Undercounter .................................................................................7
3.TECHNICAL SPECIFICATIONS ....................................................................................... 8
3.1. General Appearance......................................................................................................8
3.2. Technical Specifications ................................................................................................9
4.BEFORE USING THE
APPLIANCE ...............................................................................10
4.1. Detergent Usege ......................................................................................................... 1
0
4.2. Filling the Detergent .................................................................................................... 10
4.3. Using Combined Detergents ....................................................................................... 10
4.4. Rinse-aid Usege ...........................................................................................................10
4.5. Filling the Rinse-aid and Setting ................................................................................ 10
5.LOADING YOUR DISHWASHER ................................................................................... 12
5.1. Recommendations.......................................................................................................12
5.2. Alternative Basket Loads .............................................................................................14
6.PROGRAMME TABLE .................................................................................................... 15
7.THE CONTROL PANEL .................................................................................................. 16
7.1. Changing a Programme ..............................................................................................17
7.2. Cancelling a Programme ............................................................................................. 17
7.3. Switching the Machine Off .......................................................................................... 17
8.CLEANING AND MAINTENANCE ................................................................................. 18
8.1. Cleaning the Machine and Filters ................................................................................ 18
8.2. Spray Arms .................................................................................................................. 18
9.TROUBLESHOOTING .................................................................................................... 19
10.PRACTICAL INFORMATION ........................................................................................ 21

EN - 1
1. SAFETY INSTRUCTIONS
1.1. General Safety Warnings
• Read these instructions carefully before using your
appliance and keep this manual for future reference.
Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed. Do
not operate the machine if it appears damaged or if
the packaging has been opened.
• Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
This appliance can be used by children aged from
8 years and above, and by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand hazards
involved. Children should not be allowed to play with
the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse
aids.
There may be some residue left in the machine
after washing. Keep children away from the machine
when it is open.

EN - 2
1.2. Installation Warnings
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone other
than an authorised agent may cause your warranty to
be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values on
the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine is
installed.
• After installation, run your machine unloaded for the
first time.
The machine must not be plugged in during
positioning.
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only
be replaced by a qualified electrician.
1.3. During Usege
• This machine is for domestic use only; do not use

EN - 3
• it for other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open door of
the dishwasher.
Only use detergents and rinse aids produced
specifically for dishwashers. Our company is not
responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any
chemical dissolving agents into the machine’s washing
section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable for
dishwashing, and take care not to overfill the baskets.
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices
ensure the machine stops if the door is opened.
The machine door should not be left open. It may
cause accidents.
Place knives and other sharp objects in the cutlery
basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to close
the door for one minute after it has opened. For
effective drying, keep the door open for 30 minutes
after a programme has ended. Do not stand in front of
the door after the auto-open signal sounds.
In the case of a malfunction, repair should only

EN - 4
be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable to
unplug the machine. Switch off the water tap.
Operation at a low voltage will cause a decline in
performance levels.
For safety, disconnect the plug once a program has
finished.
To avoid an electric shock, do not unplug the
machine with wet hands.
Pull the plug to disconnect the machine from the
mains, never pull on the cord.
RECYCLING
• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )
• The cardboard parts consist of recycled paper. They can be put into waste paper
containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different
materials.
PACKAGING AND THE ENVIRONMENT
• Packaging materials protect your machine from damage that may occur during
transportation. The packaging materials are environmentally friendly as they are
recyclable. The use of recycled material reduces raw material consumption and
therefore decreases waste production.

EN - 5
CE Declaration of Conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead, it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where the product was purchased.

EN - 6
2. INSTALLATION
2.1. Machine positioning
When positioning the machine, place it in
an area where dishes can be easily loaded
and unloaded. Do not put the machine in an
area where the ambient temperature falls
below 0°C.
Read all warnings located on the packaging
before removing the packaging and
positioning the machine.
Place the machine close to a water tap
and drain. Take into consideration that the
connections will not be altered once the
machine is in position.
Do not hold the machine by its door or
panel.
Leave an adequate distance around the
machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet hoses
are not squeezed or trapped and that the
machine does not stand on the electrical
cable while positioning.
Adjust the feet so the machine is level and
balanced. The machine should be placed
on flat ground otherwise it will be unstable
and the door of the machine will not close
properly.
2.2. Water connection
We recommend fitting a filter to your water
inlet supply in order to prevent damage to
your machine due to contamination (sand,
rust, etc.) from indoor plumbing. This will
also help prevent yellowing and deposit
formation after washing.
2.3. Water inlet hose
WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine’s hose.
WARNING: Run water through the new
hose before connecting.
WARNING: Connect the hose directly
to the water inlet tap. The pressure
supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If
the pressure exceeds 1 MPa, a pressure
relief valve must be fitted between the
connection.
WARNING: After the connections are
made, turn the tap on fully and check for
water leaks. Always turn off the water inlet
tap after a wash program has finished.
An Aquastop water spout is available
with some models. Do not damage it or
allow it to become kinked or twisted.
2.4. Drain Hose
Connect the water drain hose directly to
water drain hole or to the sink outlet spigot.
This connection should be minimum 50 cm
and maximum 110 cm from flor plane.
IMPORTANT: Items will not wash
properly if a drain hose longer than 4 m is
used.

EN - 7
2.5. Electrical connection
WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage
supply to your machine is 110 V, connect
a transformer of 110/220 V and 3000 W
between the electrical connection.
The earthed plug of the machine
must be connected to an earthed outlet
supplied by suitable voltage and current.
In the absence of earthing
installation, an authorised electrician
should carry out an earthing installation.
In the case of use without earthing
installed, we will not be responsible for
any loss of use that may occur.
The indoor fuse current value
should be 10-16 A.

EN - 8
3. TECHNICAL SPECIFICATIONS
12
3.1. General appearance

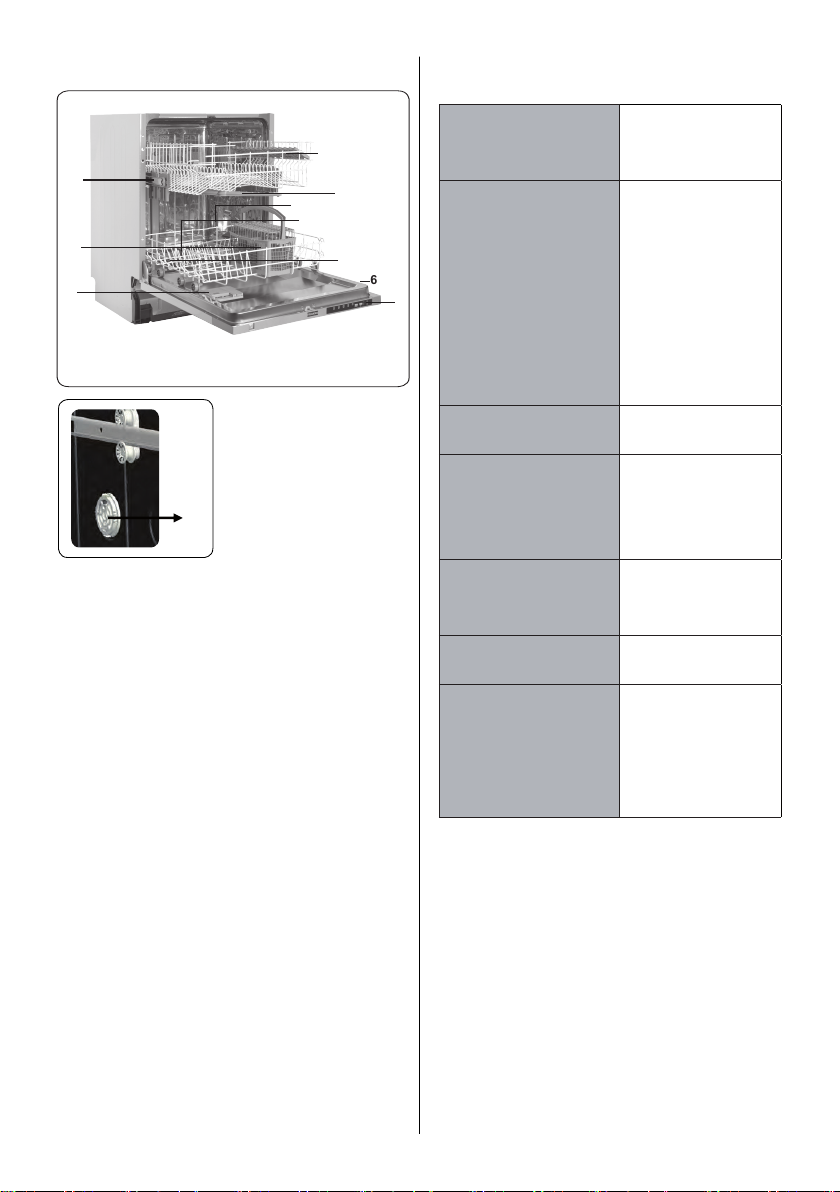

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Upper basket track latch
10. Upper Cutlery Basket
11. Super Active Drying Unit: This
system provides better drying
performance for your dishes.
3.2. Technical specifications
Capacity 15 place
settings
Dimensions
Height
Width
Depth
840(mm)
598(mm)
598(mm)
Net weight 42 kg
Operating
voltage /
frequency
220-240V
50 Hz,
Total current 10(A)
Total power 1900(W)
Water
supply
pressure
Maximum:
1 (Mpa)
Minimum:
0.03 (Mpa)
6
1
2
3
4
5
7
8
9
10

EN - 9
4.1. Detergent usage
Only use detergents specifically
designed for domestic dishwashers.
Add the recommended amount of
detergent for the selected
programme to ensure the best
performance.
Keep your detergents in cool, dry
places out of reach of children.
See the detergent manufacturer’s
instructions for a further information.
4.BEFORE USING THE
APPLIANCE
4.2. Filling the detergent

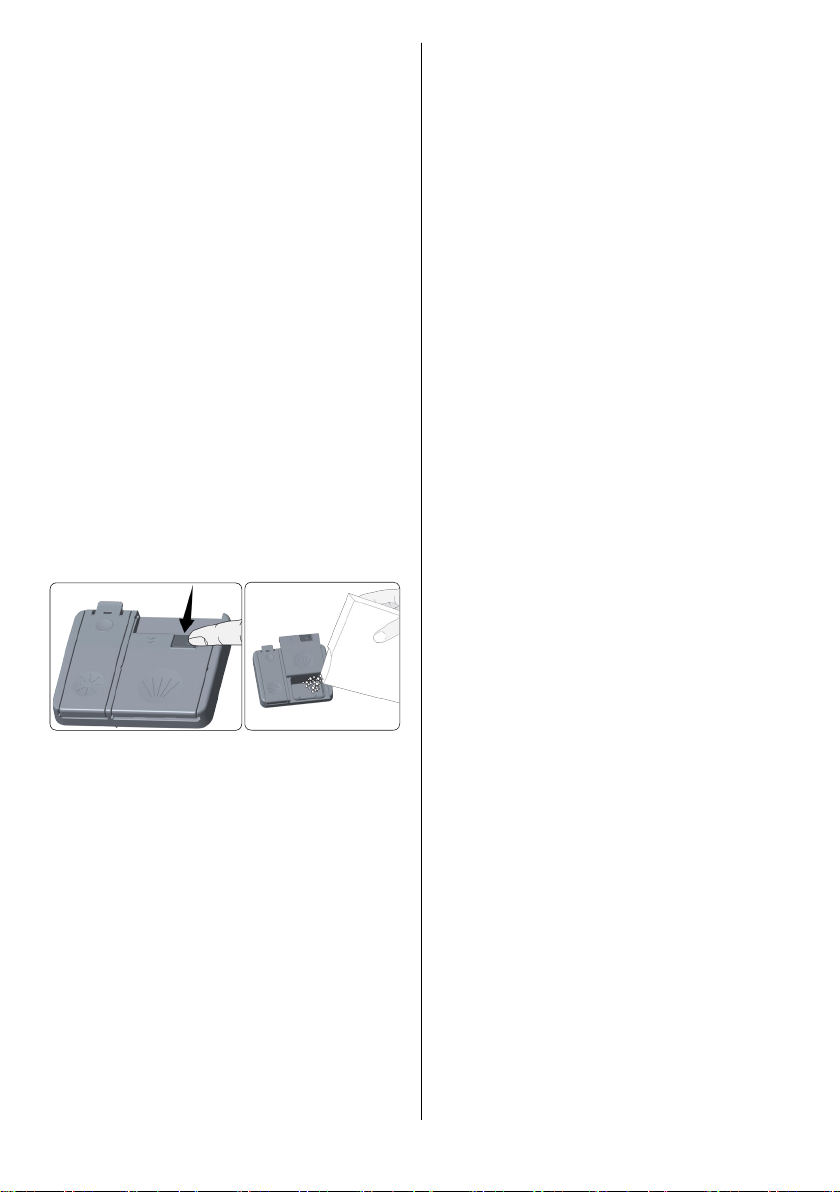

Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in
place. The dispenser should be refilled just
before the start of each programme. If the
dishes are heavily soiled, place additional
detergent in the pre-wash detergent
chamber.
DETERGENT
4.3. Using combined detergents
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only
the detergent but also rinse-aid
replacement substances and additional
components depending on the combination.
We recommend you do not use combined
detergents in short programmes.
Please use powder detergents in such
programmes.
If you encounter problems when using
combined detergents, please contact the
detergent manufacturer.
When you stop using combined detergents,
make sure that rinse aid settings are set to
correct level.
4.4 . Rinse-aid usage
Rinse-aid makes dishes sparkle and helps
them to dry without spotting. Rinse-aid is
required for stain-free utensils and clear
glasses. Use only rinse-aid for domestic
dishwashers.
4.5 . Filling the rinse-aid and setting

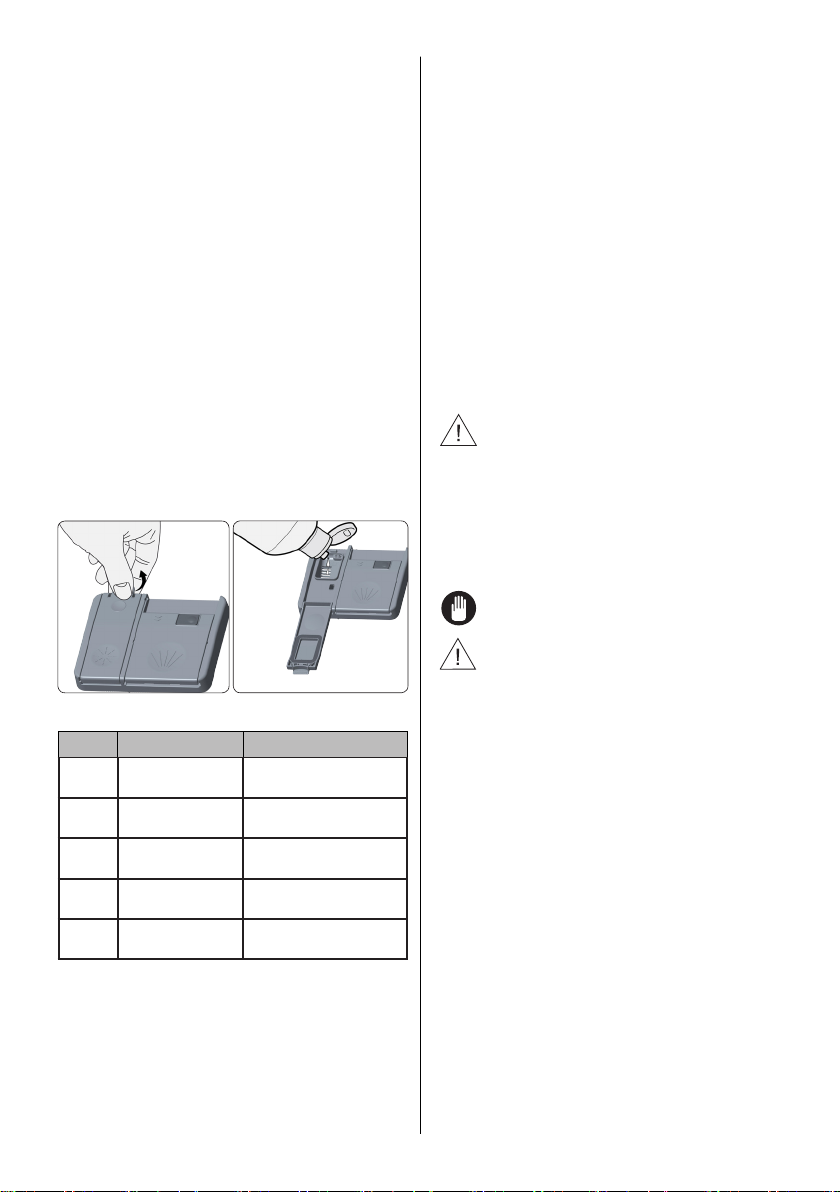

To fill the rinse aid compartment, open
the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX level
and then close the cap. Be careful not to
overfill the rinse aid compartment and wipe
up any spills.

EN - 10
In order to change the rinse aid level,
follow the below steps before turning on
the machine:
• Push the programme button and hold it
down.
• Turn on the machine.
• Hold down the programme button until
“rA” disappears from the display. Rinse
aid set follows water hardness set.
• The machine will display the current
setting.
• Set the level by pushing the programme
(+) and delay (-) buttons.
• Switch off the machine to save the
setting.
The factory setting is “4”.
If the dishes are not drying properly or are
spotted, increase the level. If blue stains
form on your dishes, decrease the level
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed
r1 is shown on the
display.
2 1 dose is
dispensed
r2 is shown on the
display.
3 2 doses are
dispensed
r3 is shown on the
display.
4 3 doses are
dispensed
r4 is shown on the
display.
5 4 doses are
dispensed
r5 is shown on the
display.
5. LOADING YOUR
DISHWASHER
For best results, follow these loading
guidelines.
We recommend that you place large items
(pots, pans, lids, plates and bowls) which
are heavily soiled in the lower basket.
The upper basket is designed for delicate
and lighter dishware such as glasses,
coffee and tea cups and saucers. Position
the dishes so that they will not get moved
by the spray of water.
Cutlery should be placed in the cutlery
basket. Items should be loaded individually
into the appropriate slots with their handles
downwards. Long utensils should be placed
horizontally on the baskets.
WARNING: Take care not to obstruct
the rotation of spray arms.
5.1. Recommendations
Remove any coarse residue on dishes
before placing the dishes in the machine.
Start the machine with full load.
Do not overload the drawers or place
dishes in the wrong basket.
WARNING: Always place sharp
utensils with the sharp point down and open
utensils with their openings down.

EN - 11
Height Adjustable Rack (peg type)
The height adjustable racks enable glasses
and cups to be placed on or under the
racks. The racks can be adjusted to 2
different heights. Cutlery and utensils can
also be placed on the racks horizontally.
1
2
Upper Basket
Height adjustment
Turn the Rail Stop Clips, at the ends of the
rails, to the sides to open them (as shown in
the image below), then pull out and remove
the basket. Change the position of the
wheels, then reinstall the basket to the rail,
making sure to close the Rail Stop Clips.
When the upper basket is in the higher
position, large items such as pans can be
placed on the lower basket.
Bottle Rack
The bottle rack can be used to wash large
open containers, such as bowls, pans, or
tupperware, as well as items that are tall,
such as jugs. The bottle rack can be pulled
out in the direction of the arrow, as shown
below.

EN - 12
3)3)Upper Basket Spoon Ra
The spoon rack has been designed for the
placement of long-stemmed utensils as
well as cutlery.
The spoon rack has 4different positions.
Set the spoon rack to position 1or 2
depending on the position of items in the
upper basket. Position 1 allows for the
placement of cutlery.
Set the rack to position 3or 4 if you do not
want to use the spoon rack.
12
34
a
A
BZ

EN - 13

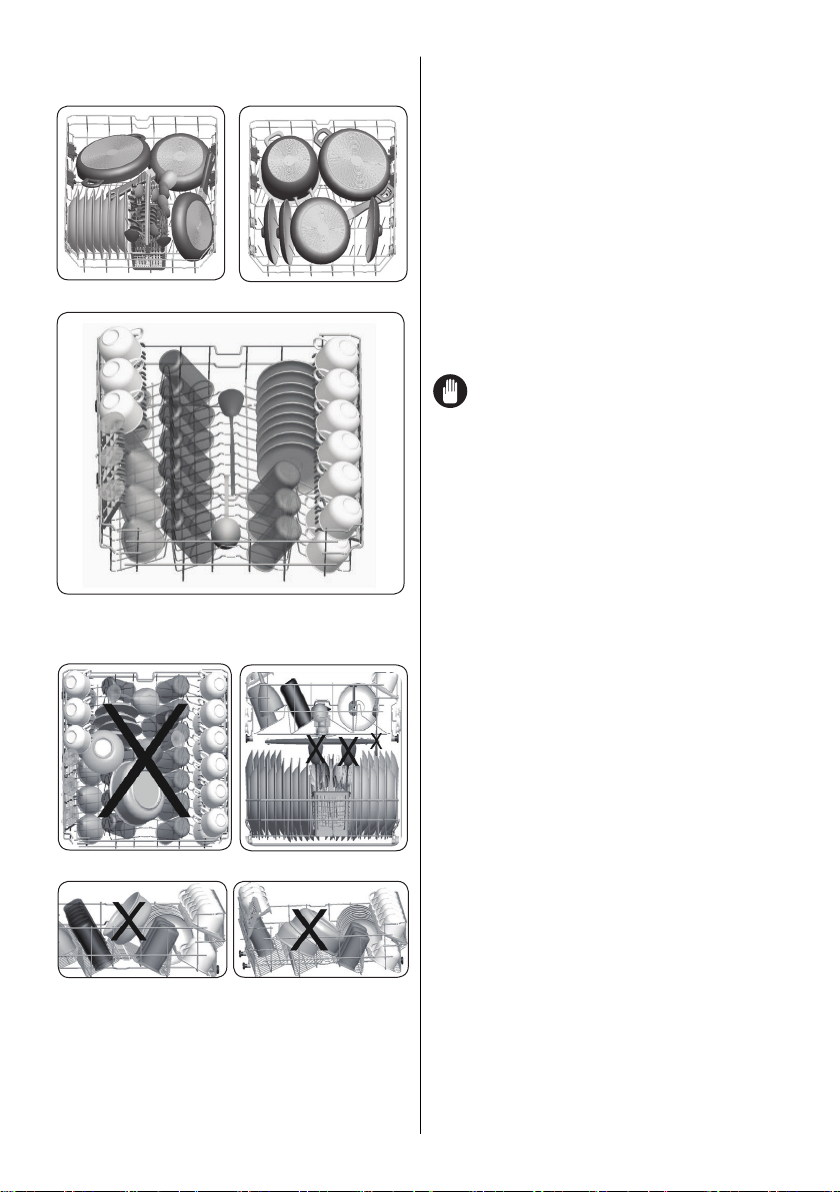

5.2. Alternative basket loads
Lower basket
Upper basket
Incorrect loads
Unsuitable items for dishwashing
• Cigarette ashes, candle leftovers,
polish, paint, chemical substances, iron-
alloy materials.
• Forks, spoons and knives with wooden,
bone, ivory or nacrecoated handles;
glued items, items soiled with abrasive,
acidic or base chemicals.
• Temperature-sensitive plastics, copper
or tincoated containers.
• Aluminium and silver objects.
• Some delicate glasses, ornamental
printed porcelains; some crystal items,
adhered cutlery, lead crystal glasses,
cutting boards, synthetic fibred items.
• Absorbent items such as sponges or
kitchen rugs.
IMPORTANT: In future, purchase
dishwasher-proof kitchenware.
Important Note for Test Laboratories
For detailed information required for tests
according to EN normatives and a softcopy
of the manual, please send the model name
and serial number to the following address:
[email protected]

EN - 14
6. PROGRAMME TABLE
Programme Duration
(min) Description
Mini 14’ 14 Fast programme intended for recently used dishes which are lightly soiled.
Suitable for 4 place settings.
Quick 30’ 30 Quick wash programme for lightly soiled dishes.
Eco 155 Standard programme for dishes which are used daily but are not heavily
soiled.
Dual Pro Wash 113 For both lightly soiled delicate glassware and heavily soiled crockery at the
same time.
Super 50’ 50 A faster programme for dishes which are used daily but are not heavily
soiled.
Hygiene 123 For heavily soiled dishes which require hygienic washing.
Auto Delicate 64-92 Automatic programme for delicate dishes which are not heavily soiled.
Auto Intensive 111-179 Automatic programme for heavily soiled dishes.
NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT
OF DISHES, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL
FUNCTIONS.
• Only use powder detergent in short programmes.
• Short programmes do not include a drying step.
• To assist drying, we recommend partially opening the door after the programme has
finished.

EN - 15
The display (14) will show the symbols
7. THE CONTROL PANEL
PPPPPPPP
3 4 5678
1 2
N
9
10
11 12 13 14
15
16
17
18
13.a 13.b 13.c 14.d

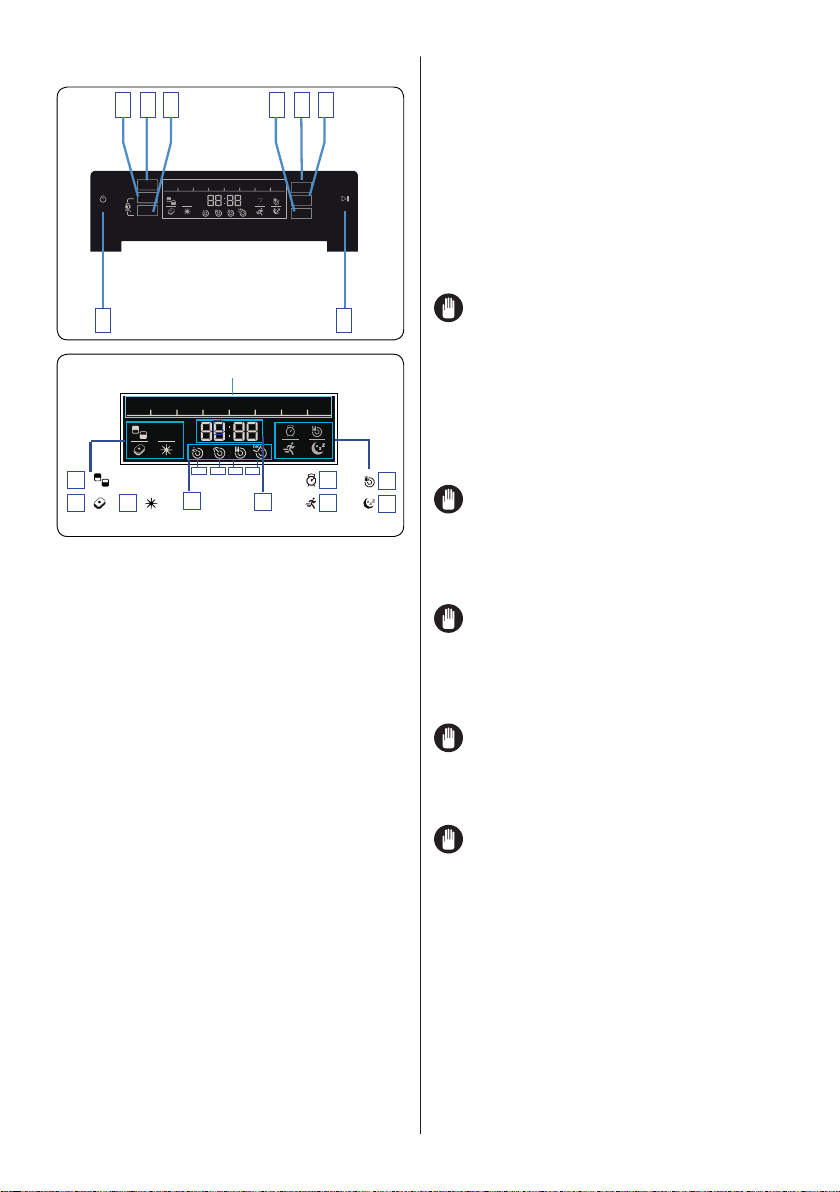

1. On/Off button
2. Start/Standby button
3. Half Load button
4. Programme button
5. Tablet Detergent button
6. Extra button
7. Delay button
8. Extra Drying button
9. Programme Display
10. Half Load symbol
11. Tablet Detergent symbol
12. Rinse Aid Lack Warning symbol
13. Program Status Display
a- Washing Phase symbol
b- Rinse Phase symbol
c- Drying Phase symbol
d- End symbol
14. Remaining Time/Delay Time/
Programme Time Display
15. Delay symbol
16. Extra Fast symbol
17. Extra Drying symbol
18. Silent Wash symbol
Starting the Machine and Selecting a
Programme
Press the Power On/Off button (1), the
display (9) will show the most recently
selected programme.
Select the programme most suitable for
your dishes using the Programme button
(4).
Additional functions (3, 5, 6, 7, 8).
NOTE: Press the Half Load button
(3) to select the area of the dishwasher
containing dishes to be washed. You can
select both baskets, the upper basket only,
or the lower basket only. Press the button
until the symbol corresponding to the
basket containing the dishes to be washed
illuminates. Dishes placed in other areas
will not be washed.
NOTE: Press the Tablet Detergent
button (5) when using a combined
detergent that contains rinse aid or other
extras. The Tablet Detergent Symbol (11)
will remain on as long as it is selected.
NOTE: Press the Extra Drying
button (8) to add extra drying steps to
a programme in order to obtain drier
dishes. The Extra Drying Indicator (17) will
illuminate.
NOTE: Press the Delay button (7)
before a programme starts to adjust the
delayed programme start time. The Delay
symbol (15) will illuminate.
NOTE: Press the Extra Fast/Silent
button (6) once to activate the Extra Fast
function. The Extra Fast symbol (16) will
illuminate and the duration of the selected
programme will decrease, providing more
economical water usage. Pressing the
button twice will activate the Extra Silent
function. The Extra Silent symbol (18) will
illuminate, providing a more sensitive and
silent washing operation.
Press the Start/Standby button (2) to start
the selected programme.

EN - 16
corresponding to the status of the
programme in operation. While the
Drying symbol is displayed, the machine
will remain silent for 45 to 50 minutes.

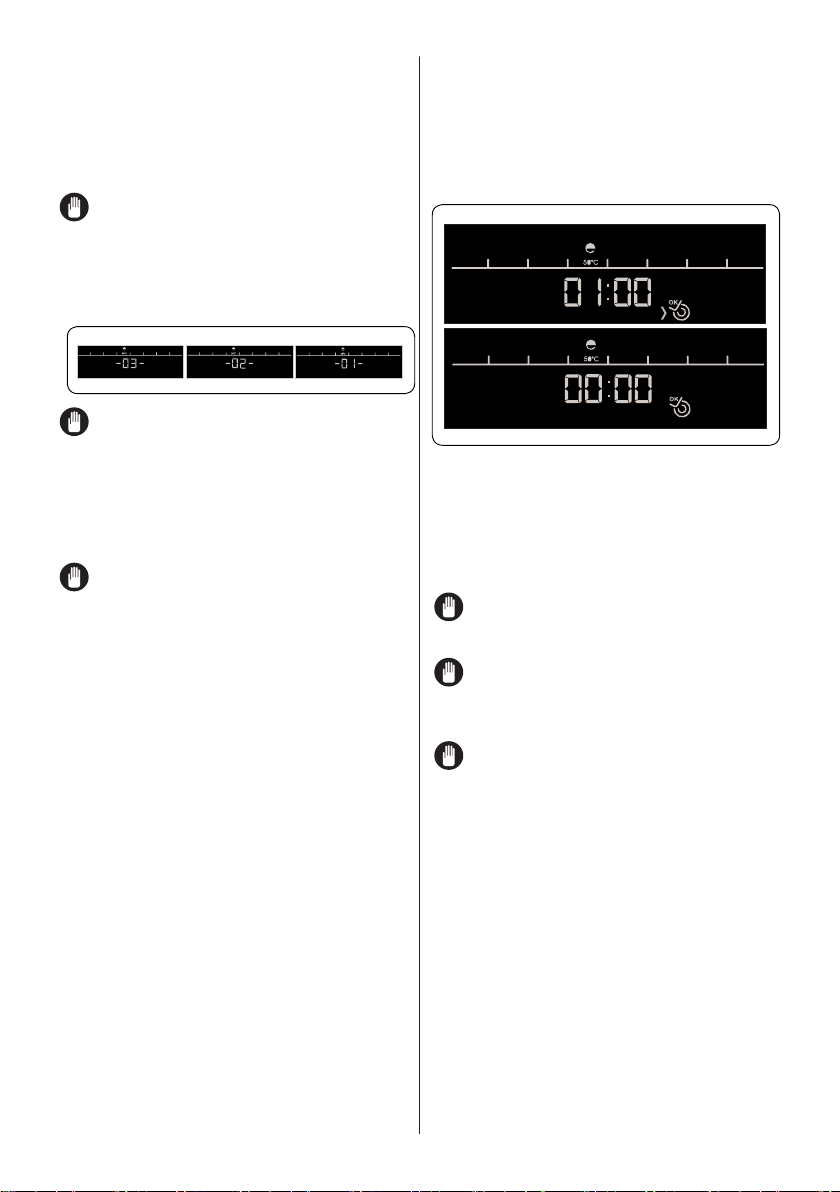

The Remaining Time Display shows
the programme durations and the time
remaining of the programme in operation.
NOTE: A programme may take a
different amount of time to complete
than initially stated on the display. This is
dependent on the ambient temperature, the
temperature of the mains water, and the
amount of dishes in the dishwasher.
-Press the Start/Standby button (2).
-Select a new programme using the
Programme button (4).
-Press the Start/Standby button to start the
selected programme.
-The new programme will resume the
course of the old programme.
7.2. Cancelling a Programme
Follow the steps below to cancel a
programme while in operation.
• Press and hold the Start/Standby button
(2) for 3 seconds.
• The display will count down from 3 to 1.
When it finishes, the time remaining for
cancellation will show on the display.
The water discharge process will start when
the remaining time finishes and the End
symbol will illuminate.
=
7.3. Switching Off the Machine
When the End symbol illuminates, switch
off your machine using the On/Off button.
Disconnect the plug and turn off the water
tap.
NOTE: Do not open the door before the
End symbol illuminates.
NOTE: Leave the door of your
machine slightly open at the end of a wash
programme to speed up drying.
NOTE: If the door of your machine
is opened or the power is cut during
operation, the programme will continue
when the door is closed or the power
returns.
NOTE: Simultaneously press the Half
Load (3) and Tablet Detergent (5) buttons
for 3 seconds to activate/deactivate the
Child Lock. When it is first activated, “CL”
will show on the Remaining Time display for
2 seconds. When it is deactivated, “CL” will
flash twice.
NOTE: When there is insufficient rinse
aid, the Rinse Aid Lack Warning symbol
(12) will illuminate to indicate the rinse aid
chamber needs filling.
7.
THE CONTROL PANEL
7.1. Changing a Programme
Follow the steps below to change
a programme while in operation.

EN - 17
8. CLEANING AND
MAINTENANCE
Cleaning your Dishwasher is important
to maintain the machine’s service life.
Oil and lime may build up in your
Dishwasher over time. If this occurs:
• Fill the detergent compartment
but do not load any dishes. Select
a programme which runs at high
temperature and run the Dishwasher
empty. If this does not clean your
Dishwasher sufficiently, use a
cleaning agent designed for use with
dishwashers.
•Wipe the door seals regularly
with a damp cloth to remove any
accumulated residue.
8.1. Cleaning machine and filters
Clean the filters and spray arms at least
once a week. If any food waste remains on
the coarse and fine filters, remove them and
clean them thoroughly with water.
a) Micro Filter b) Coarse Filter
c) Metal Filter
2
b
a
1
34
c

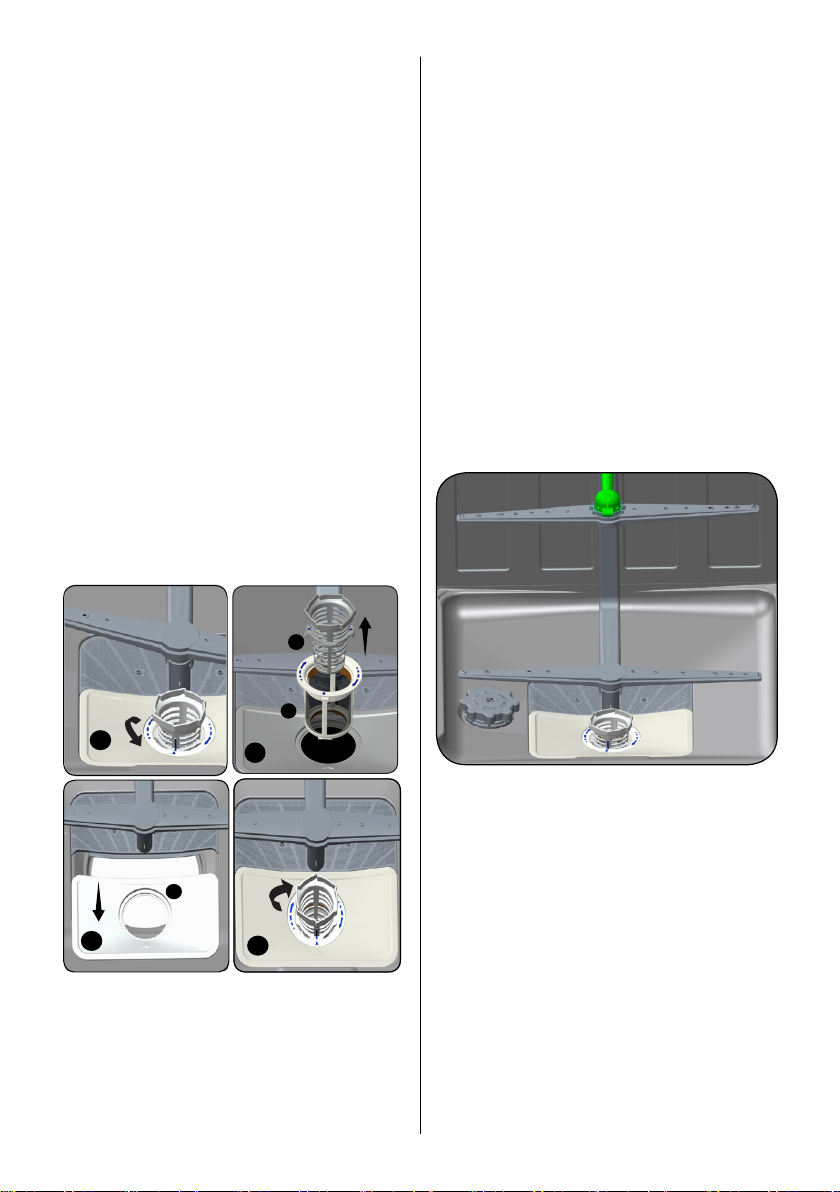

To remove and clean the filter combination,
turn it counter clockwise and remove it by
lifting it upwards (1).Pull the coarse filter out
of the micro filter (2).Then pull and remove
the metal filter (3).Rinse the filter with lots of
water until it is free of residue. Reassemble
the filters. Replace the filter insert, and
rotate it clockwise (4).
• Never use your Dishwasher without a
filter.
• Incorrect fitting of the filter will reduce
the washing effectiveness.
• Clean filters are necessary for proper
running of the machine.
8.2. Spray arms
Make sure that the spray holes are not
clogged and that no food waste is stuck
to the spray arms. If there is any clogging,
remove the spray arms and clean them
under water. To remove the upper spray
arm undo the nut holding it in position
by turning it clockwise and pulling it
downwards. Make sure that the nut is
properly tightened when refitting the upper
spray arm.
