Iluv I189 User manual

Instruction Manual

Model: i189

Stereo Speaker for Your iPod®

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

GETTING STARTED

Congratulations on your purchase of the iLuv i189 for your iPod. Uniquely designed to work with your iPod, this speaker with built-in, sliding universal dock

provides advanced audio performance to bring out the best in your music. Remember to keep this manual for future reference.

Enhance Your Enjoyment of Music on Your iPod with this Stereo Speaker

•Sleek design compliments iPod*.

•AUX stereo input jack for any MP3 player, CD player, computer & other music devices*

•AC powered with iPod battery recharge system

•Slide type universal dock and adapter plates to hold your iPod in securely

•Power ON/OFF button with LED indicator

•3D surround sound switch and LED indicator

•AC adapter supports speaker functions and iPod battery recharge

•Digital volume control

In the box

•iPod Docking Speaker

•100V-240V AC Adapter

•Docking adapters

•Instructional manual

•Warranty card

•Note: iPod Models including iPod Video 30GB/60GB/80GB, iPod nano 1st & 2nd Gen., iPod Photo, iPod Mini,

Any Audio Device with 3.5 mm output (iPod Shuffle 1st & 2nd Gen., MP3, CD, DVD players, Laptops, PDA, and more).

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

GETTING STARTED

Location of Controls

1. iPod dock (push to open)

4. Power button

2. Volume -/+ button

5. AUX In

3. 3D effect button

6. 12V DC In

Connecting the AC adapter

1. Insert the AC adapter cable into the DC jack in the rear of the unit.

2. Plug the AC adapter into the wall outlet as shown.

2 3 4

5 6

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

GETTING STARTED

Installing the Dock Adapter

To ensure that your iPod will fit properly into the built-in universal dock, we have included several detachable

dock adapters for your iPod with this product. Please check the bottom of dock adapters to see the compatibility

with your iPod.

1. Push in the drawer for the universal dock. It will slide open.

2. How to insert a dock adapter

a. Choose the dock adapter that corresponds with the iPod you would like to dock. Using the

correct dock adapter ensures the proper fit.

b. Gently push the dock adapter down into the universal dock.

c. Carefully place your iPod into the universal dock. Please note that iPod must not be in a case

or “Skin”.

3. How to remove the dock adapter

•Remove your iPod, then grasp the dock adapter and lift upwards carefully.

ATTENTION: To protect your iPod from dropping while iPod is in the dock, do not shake or move i189 around

aggressively.

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

OPERATIONAL INSTRUCTIONS

IMPORTANT:

1. To protect your iPod from dropping while it is in the dock, do not shake or move i189 aggressively.

2. Occasionally, files on your iPod can become corrupted. This may cause an erratic behavior with your iLuv products. Apple recommends visiting their

website www.apple.com to obtain instructions on resetting or restoring your iPod to factory settings.

3. It is important that the correct dock adapter is used for the appropriate fit of your iPod into the built-in universal dock. Ignoring these instructions can

cause severe damage to your iPod. Please refer to the section “Installing the Dock Adapter” to install the dock adapter properly before operating the

i189 with your iPod.

Listening to Your Favorite Songs on your iPod

1. Press the POWER button to turn on the unit. The LED indicator will turn on.

2. To listen to music, make sure that your iPod is playing and inserted into the built-in universal dock correctly. Music will begin to play if your iPod is in

play mode.

3. To play music when your iPod is already in the dock and in the standby mode, use the controls on your iPod to select songs and play music..

4. To pause music, use the Pause function on the Click Wheel of your iPod during the play mode. To resume playback, press it again.

5. To adjust the volume, use the VOLUME+ and VOLUME-buttons on the top of the unit.

6. To power the unit off, press the POWER button.

Charging Your iPod

While it is in the built-in universal dock, your iPod will be charged in both power on and power off modes until it reaches the FULL CHARGE mode. To

recharge your iPod, the AC adapter must be connected.

Listening to Other Audio Devices

You can still play music on the i189 from an MP3 player that is not an iPod by using the AUX-IN jack.

1. Use the Volume + and Volume –button to adjust the sound level. You may also need to adjust the device volume.

2. To power off the unit, press the POWER button on the i189.

3D surround sound

1. Press the 3D button to turn on the 3D surround sound while play music, the blue LED will light.

2. To turn off the 3D surround sound, press the 3D button again, the blue LED will go out.

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

MAINTENANCE & TROUBLESHOOTING GUIDE

Maintenance

•Place the unit on a level surface away from direct sunlight or excessive heat.

•Protect your furniture when placing the unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and

the furniture.

•Clean the unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine, thinner or similar materials can

damage the surface of the unit.

Troubleshooting

•The stereo speaker system (i189) does not turn on.

oThe AC adapter may not be connected properly. Check the connection.

oThe wall outlet may not function. Try another outlet.

•Your iPod does not fit into the built-in universal dock.

oThe installed dock adapter is not the correct one. Check whether a correct dock adapter is installed.

oThere might be some obstructions on the dock. Check whether there are any obstructions on the connector and on the dock. If everything is

secured, place your iPod back into the dock.

•It does not have sound output when your iPod is docked.

oYour iPod may not be properly docked. Take your iPod out of the dock, and remove any obstructions on the connector from the dock and on

your iPod. Place your iPod back into the dock.

oYour iPod is frozen or locked up. Check whether your iPod operates correctly before placing it back into the dock. Please refer to the owner’s

instruction manual of your iPod.

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

MAINTENANCE & TROUBLESHOOTING GUIDE

Troubleshooting –Continued

•Your iPod is not charged even though it is in the dock.

oYour iPod might not be properly docked. Take your iPod out of the dock, and remove any obstructions on the connector from the dock and on

your iPod. Place your iPod back into the dock.

oYour iPod is frozen or locked up. Check whether your iPod operates correctly before placing it back into the dock. Please refer to the owner’s

instruction manual of your iPod.

oYouriPod is only charged when the DC adapter is connected.

•When playing music, the sound gets distorted.

oThe volume level is set too high. Decrease the volume until the distortion has disappeared.

oThe source sound is distorted. If the original sound source (MP3) on your iPod is poor quality, the distortion and noises are easily noticed with

these speakers. Check your iPod separately.

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

USER SAFETY GUIDE

•TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

•THIS APPLIANCE SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING WATER AND THAT NO OBJECT FILLED WITH LIQUIDS SUCH AS

VASES SHALL BE PLACED ON APPARATUS.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

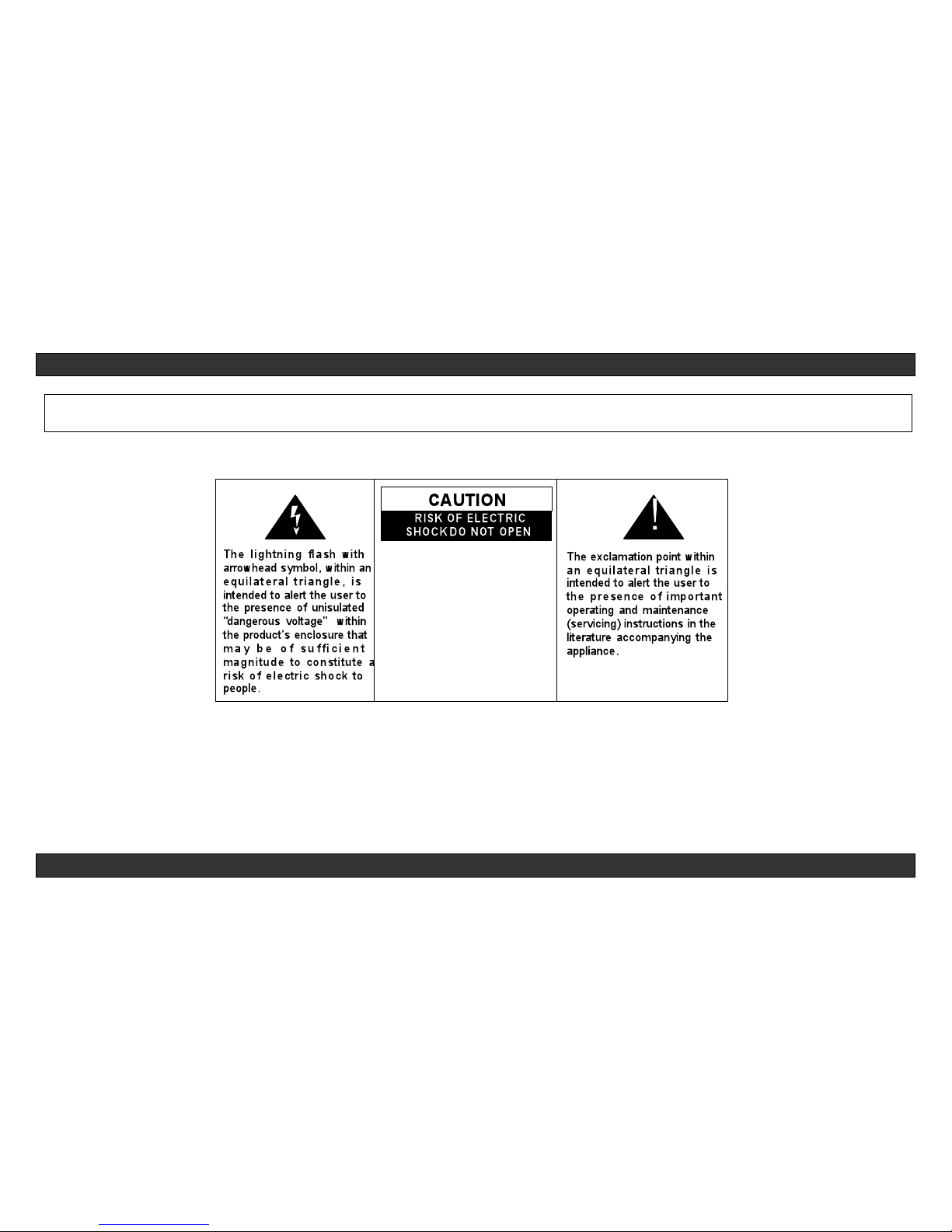

USER SAFETY GUIDE

WARNING

WARNING: TO REDUCE

THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE

COVER (OR BACK). NO

USER-SERVICABLE

PARTS INSIDE. REFER

SERVICING TO QUALIFIED

SERVICE PERSONNEL.

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

Important Safety Instructions-continued

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

15) Grounding or Polarization –This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other).

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.

If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Alternate Warnings –This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a

grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete

outlet. Do not defeat the safety purpose of the grounding-type plug.

USER SAFETY GUIDE

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

Important Safety Instructions-continued

16) Ventilation –Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from

overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or

other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the

manufacturer’s instructions have been adhered to.

17) The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CLEANING

Always disconnect unit from power supply before attempting to clean it. Use soft cloth moistened with soapy water, and wipe gently.

Do not use solvents or abrasive materials.

LASER SAFETY

This unit utilizes laser technology. Only a qualified professional should remove the cover or attempt to service this device, due to

possible eye injury.

CAUTION –CLASS 1 LASER PRODUCT

Use of controls adjustments and/or performance of procedure other than specified herein may result in hazardous radiation

exposure.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. CAUTION: HAZAROUS LASER

RADIATION WHEN OPEN AND INTERLOCK DEFEATED.

USER SAFETY GUIDE

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

Important Safety Instructions-continued

YOU CAN HELP TO PROTECT THE ENVIRONMENT!

Please remember to respect the local regulations: Hand in the non-working electrical equipment to an appropriate waste disposal

center.

FOR USED BATTERIES

Disposed of the used batteries properly. Please follow the local regulations for the battery disposal.

FCC NOTICE TO A USER IN USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

USER SAFETY GUIDE

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

Important Safety Instructions-continued

FCC RULES

This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Note: Do not make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

IMPORTANT NOTES ON HEARING

Your hearing is very important to you and to us, so please take care when operating this equipment. We strongly recommend you to follow the guideline

below in order to prevent possible damage or loss of hearing.

If you continuously listen to the loud sounds, your hearing will adapt to continuous loud sounds and will give you the impression that the volume has been

reduced. What seems normal to you may in fact be harmful. To guard against this BEFORE YOUR HEARING ADAPTS,set the volume at a low level and

slowly increase the volume level until you can hear comfortably and clearly without distortion. Damage to your hearing is accumulative and is irreversible.

Any ringing or discomfort in the ears indicates that the volume is too loud. Once you have established a comfortable listening level, DO NOT INCREASE

THE VOLUME LEVEL FURTHER.

In the use of headphones, please take more attention. Hearing experts say that listening to a loud music can damage your hearing, especially when listening

to music with headphones.

USER SAFETY GUIDE

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

Important Safety Instructions-continued

IC NOTICE TO A USER IN CANADA

Since digital circuitry may cause interference to other radio or television tuners nearby, switch this unit off when not in use or move it away from the affected

radio/television tuner.

Note: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference

Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television operation (which can be determined by turning the equipment off), the user is encouraged to try to correct

the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio / TV technician for help.

WARNING!

•The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

•Mains plug is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely

disconnected, the apparatus from supply mains, the mains plug of the apparatus shall be disconnected from the mains socket outlet completely.

USER SAFETY GUIDE

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

Important Safety Instructions-continued

ADDITIONAL IMPORTANT INSTRUCTIONS

•Place the apparatus with some distances from the nearby objects or walls for sufficient ventilations. The ventilation should not be impeded by covering

the ventilation openings with items such as newspapers, table-cloths, curtains, etc.

•No naked flame sources such as lighted candles should be placed on the apparatus.

•Dispose of used batteries properly. Follow the local regulation for the battery disposal.

•Use this apparatus in the moderate climates. It is recommended not to use this apparatus such in a lighting storm.

SPECIFICATIONS

iLuv Stereo Speaker for Your iPod V11M11_IM_EN_11262008

www.i-Luv.com

•Audio Output: 2 x 5W RMS

•S/N > 70dB

•Frequency Response: 20 Hz –20 kHz

•Power Supply: AC100V~240V 60/50Hz Adapter

* Specifications and features are subject to change without notice.

iLuv is a registered trademark of jWIN Electronics Corp. iPod is a trademarksof Apple, Inc. registered in the US and other countries All other logos and

brands are property of their respective owners. iPod not included in this package. Features and specifications are subject to change without prior notification.

may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp. by any means, electronic or mechanical,

including photocopying, recording or use of an information storage and retrieval system. Any unauthorized distribution or reproduction of this printed material
