ILVE REFRIGERATION
INSTALLATION AND
OPERATIONS MANUAL
MODELS ILREF256I/2, ILREF316I/2, ILFRZ217I/2
ILVE .COM . AU

2
Rev.13052022
Congratulations, you are now the proud owner of an ILVE cooking appliance. Thank you for purchasing ILVE and welcome to the
exciting world of cooking the ILVE way. This instruction manual has been specially created to inform you of the full range of features
your ILVE appliance has to offer and serves as an introduction to the wonderful benets of ILVE’s dynamic cooking systems.
We present detailed information on each of the advanced cooking systems built into ILVE appliances. Once you have read this section
you will be able to choose the most appropriate settings for your appliance when cooking different types of food. We ask you to read
the instructions in this booklet very carefully as this will allow you to get the best results from using your appliance.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
REGISTER YOUR WARRANTY ONLINE NOW AT WWW.EUROLINX.SUPPORT
Note: This user manual is prepared for more than one model. Some of the features
specied in this Manual may not be available on your appliance.
All our appliances are only for domestic use, not for commercial use.
Products marked with (*) are optional. TO REGISTER
YOUR WARRANTY
THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY. THE MANUFACTURER SHALL NOT IN ANY WAY BE
HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR
BY UNSUITABLE, WRONG OR ABSURD USE.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in
order to avoid a hazard.

3
Rev.13052022
CONTENTS
Warnings and Pre installation check 4
Pre Install checklist 6
Installation preparation 8
Installing your appliance into the cabinetry 9
Attaching the door panel 10
Mounting the door panel to the appliance 11
Before rst use 13
General fridge/freezer use ( ILREF256I/2) 14
General column fridge use (ILREF316I/2, ILFRZ217I/2)15
Storage 16
Control panel 17
Care and cleaning 18
Defrosting the appliance 20
Troubleshooting 22
Climate range 24
Warranty 25

4
Rev.13052022
WARNINGS AND PRE INSTALLATION CHECK
Please read the user instructions carefully before using the appliance for the rst time and before installing it. Failure to install
the appliance, or to have it installed, as per the user manual could invalidate the warranty. Any service calls relating to misuse
or incorrect installation could incur a service charge.
IMPORTANT:
The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.
Please note that we reserve the right to invalidate the guarantee supplied with this product following incorrect installation
or misuse of the appliance. This appliance is not designed to be used by people (including children) with reduced physical,
sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had supervision or instructions
on how to use the appliance by someone who is responsible for their safety. Under no circumstances should any external
covers be removed for servicing or maintenance except by suitably qualied personnel.
APPLIANCE INFORMATION:
Please enter the details on the appliance rating plate below for your reference, to assist Customer Care in the event of a fault
with your appliance and to register your appliance for warranty purposes.
EU DECLARATIONS OF CONFORMITY:
This appliance has been designed, constructed and marketed in-compliance with safety requirements of EU Directive
2014/35/EU(Low voltage) and requirements of EU Directive 2014/30/EU (EMC).
This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including
Electrical safety(LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food
conform to 1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC
DIRECTIVE 2012/19/EU
At the end of its working life, the product must not be disposed of as urban waste. The refrigeration system contains insulating
gases and refrigerants, which require specialised waste disposal. The valuable materials contained in this appliance can be
recycle. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Before disposing of an old appliance, remove the door seals etc. to reduce the risk of child entrapment. Disposing of a
household appliance separately avoids possible negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be recovered to obtain signicant savings in energy and
resources.As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out
wheeled dustbin.
IMPORTANT
• Never store inammable or explosive items and strong corrosive acids or alkalis in the appliance.
• This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage
only, not for storage of blood, medicine and biological products.
• To prevent risk of re, keep the appliance away from petrol or any other inammables.
• To prevent risk of electromagnetic interference or other accidents, do not place a microwave oven on top of the refrigerator
or use any electric appliance inside the freezer.
• Do not allow children to play with or near the appliance.
• The internal surface of freezer compartment is very cold when the appliance is running. Do not touch the surface especially
when hands are wet.
• Do not splash water onto the appliance. Keep it away from places of high humidity that may have adverse effect on the
electric insulation performance.
• This appliance is designed to be used in ambient temperatures between 18˚C and 43˚C. Use outside of this range may
cause the appliance to fail.
• This appliance should not be located in direct sunlight or next to any heat generating appliance such as a freestanding
cooker or built-in oven.
• To ensure an accidental switch off, connect this appliance to its own power point. Avoid plugging it in a shared power point
using an extension cord or double adaptors
• Ensure this appliance be properly grounded (earthed).

5
Rev.13052022
WARNING; RISK OF FIRE / FLAMMABLE MATERIALS
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to
avoid a hazard.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer. WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, ofces and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
Please according to local regulations regarding disposal of the appliance for its ammable refrigerant and blowing gas.
If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to
avoid a hazard
WARNING: To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions
ELECTRICAL INFORMATION
WARNING! THIS APPLIANCE MUST BE EARTHED.
HOW TO CONNECT AN ALTERNATIVE PLUG
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:.
• The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with letter (E) or by the
Earth symbol or coloured GREEN and YELLOW.
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter (N) or coloured BLACK.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter (L) or coloured RED.
If in doubt regarding the electrical connection of this appliance, consult a qualied electrician. Do not shorten the supply cable,
the appliance may require removing for servicing.
N.B. Ensure that the plug socket is situated in an easily accessible place after installation.

6
Rev.13052022
540
57
1770
28
540
1770
550 min
560-570
1780
min.30
airow
540
57
988
640
57
28
540
1770
550 min
560-570
1780
min.30
300
min. 30
300
560-570airow
ILREF316I/2
ILFRZ217I/2
ILREF256I/2
* Supplied power cord is located from the
bottom rear right and is 150cm long
EXPLODED VIEW OF REFRIGERATOR & CABINETRY

7
Rev.13052022
INSTALLATION KIT COMPONENTS LIST
NB: Ice Tray not included in the ILREF316
NB: Egg Tray and drain kit not included in the ILFRZ217

8
Rev.13052022
INSTALLATION PREPARATION
DOOR HINGE
The ILREF256I/2 is available with left or right hand hinge options, however, each model is still reversible
The ILREF316I/2 model are supplied in right hand hinge only but is reversible
The ILFRZ model are supplied in left hand hinge only but is reversible
To change the door hinge side, please follow the instructions on page 12
This appliance/s are designed to t into cabinetry with 18mm thickness
This appliance must never be installed close to its sources or cooking appliances. It should also not been stored in damp
locations. Seek the help of another individual, when installing this appliance. Is appliances may have sharp edges. You should
wear adequate protection equipment for the task and installation environment.
To ensure the appliance is level, you should use the height adjustable feet at the front of the appliance
The cooling system at the rear of the appliance must not touch the rear wall
The appliance must be installed with adequate ventilation. Insure that there is a clear rinse above the appliance to allow air to
escape and that there is space between the rear of the appliance and the wall
VENTILATION
The main consideration when installing this refrigerator unit into a tted kitchen is ventilation. The heat removed from the cooling
compartment needs to evaporate into the atmosphere. Incorrect ventilation can lead to premature compressor failure, excessive
power consumption, total system failure and may void the warranty provided with your appliance. What products intended to be
installed into a tall housing unit, the following requirements need to be met.
The open channel at the rear is clearly shown. For the correct operation of the appliance it is important that at the top of the
housing unit it is not blocked off. Channel depth of 50 mm is normal with most units. If ventilation hole is required in the plinth of
the unit, this allows air to be drawn over the compressor and heat exchange. Required airow can be achieved by removal of a
thin section of the plinth (recommended 600mm x 10mm minimum)
VENTILATION GRILL
It is recommended that you use the supplied grill vent.
The specications of this are approximately 175mm x 465mm x 20mm.
If you are using your own vent, it must equal the minimum size
opening of the supplied vent. If the furniture does not allow free air into
the room then a plinth vent, or other means of ventilation needs to be
provided to ensure a natural ow of air There should be space at the
rear of the cabinet to allow cool air to be drawn over the condenser.
Recommended: 500 x 35mm (recommended 600mm x 10mm).
Fig. 1 The open channel at the rear is clearly shown. For the correct
operation of the appliance it is important that the top of the housing
unit is not blocked off. A channel depth of 40-50mm is normal with
most units. A ventilation hole is required in the plinth of the unit; this
allows air to 15 be drawn over the compressor & heat exchange.
The required air ow can be achieved by removal of a thin section
of plinth (recommended 500mm x 50mm minimum).
As a rule, the more air that can get in and out, the better and more
efcient the operation of your product will be.
1

9
Rev.13052022
INSTALLING YOUR APPLIANCE INTO THE CABINETRY
PLACING THE REFRIGERATOR INTO THE CABINET
With the help of another individual, manoeuvre the appliance into the cabinet. Pull the power cord through a pre drilled hole at
the back of the cabinet or a the power point is inside the cabinet, plug in the refrigerator before installing it into the cabinet.
Ensure you do not kink or bend the power cord as damaging the cord could be a safety and re risk.
For safety reasons, only turn the main power on the appliance once the installation process is complete.
Lift and slide the appliance into the cabinet then adjust its position making sure that the top adjustment plate is meeting the
top of the cupboard. Ensure that the appliance is centred in the cabinet cavity checking the side panel and the door gasket is
attached to the front end of the cupboard sides.
Check that the lips of the spacers are lined up with the top lip of the cabinet.
There are two metal plates at the base of the appliance. Fit the supplied spacers as illustrated. Ensure that the step in from the
cabinet base edge to the appliance is the same on both sides.
Using a level, check that the appliance is aligned correctly and using a spanner, adjust the levelling feet as required.
Fix the appliance to the cabinet by screwing through the 2 screw holes in the top plate lip
Fasten the side surfaces of the hinge with screws. Fix one screw to the top hinge and one screw to the bottom
hinge. Then x all other screws to the remaining hinges.
Fasten the hinge side with screws putting one at the top hinge and one at the bottom hinge, check the alignment and then
fasten the remaining screws. Remove the 2 plastic spacers at the bottom and x the appliance to the cabinet base, and re-apply
the spacers (these are also used as covers for the bottom bracket).
Freezer base
Cabinet base
Floor
Freezer base
Cabinet base
Floor
Trim
TT
123 4 5

10
Rev.13052022

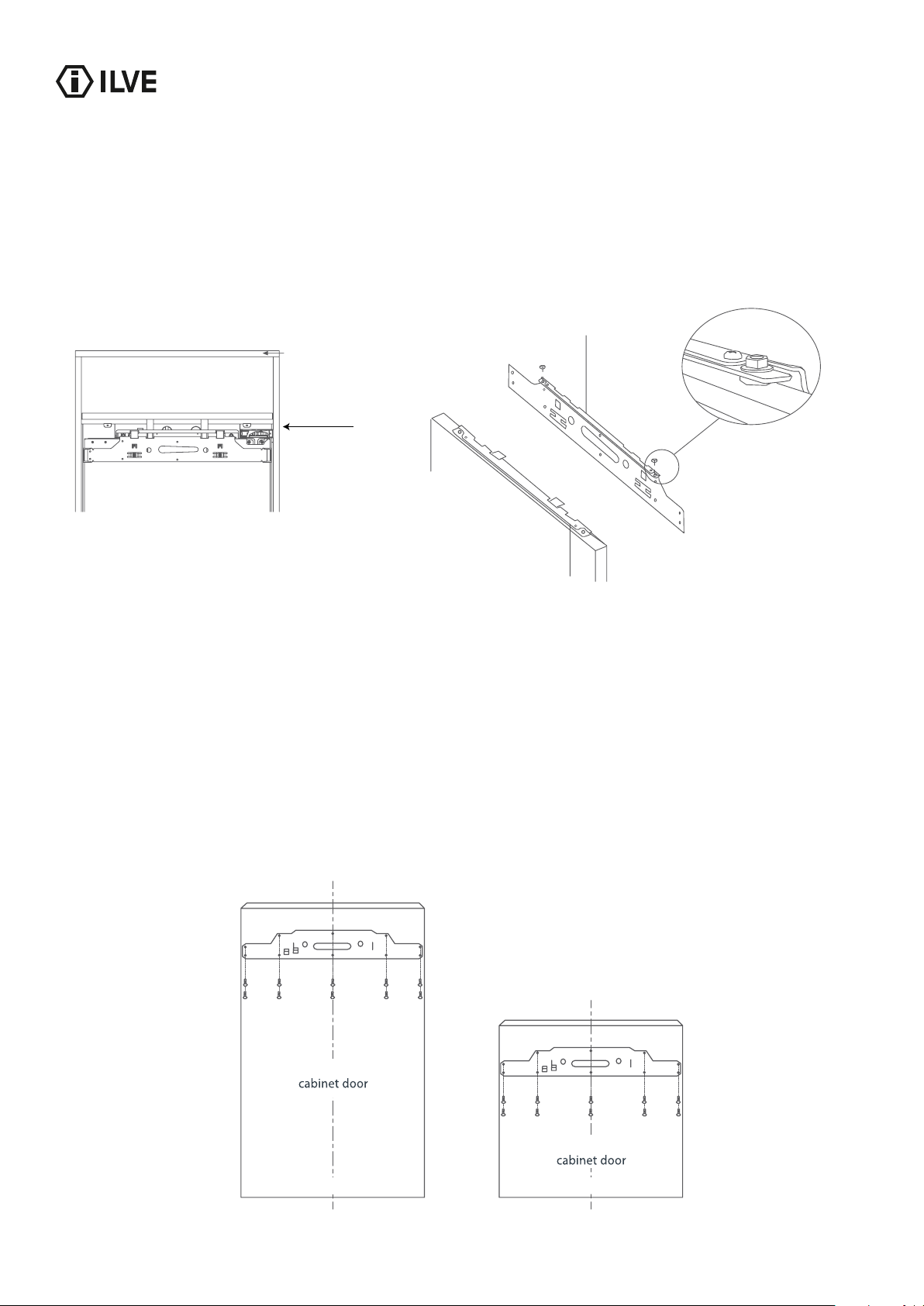

ATTACHING THE DOOR PANEL
Close the appliance door and measure from the top of the cabinet cavity to the bottom of the door bracket on both sides
ensuring that the distance is the same. You will need to know this measurement when pre-drilling the xing points in the
decor panel.
Remove the bracket by loosening the hexagonal screws located at the top of the door. Fig.2 Lift the bracket it upwards and it
should come free. Do the same for all doors. Be careful to not bend the bracket.
MOUNTING BRACKET TO THE CABINET DOOR/S
Place the each cabinet door (face down) onto a clean oor or large blanket so it does not get damaged.
Fix the panel bracket to the top of each cabinet door. Measure and adjust to ensure the centre line at the top bracket aligns with
the centre of the decor door. The alignment guides should latch onto the top of the cabinet door.
Using the measurements taken whilst the mounting bracket was xed to the door panel, mark the decor panel on each side and
draw a vertical guide line across the panel. This will show you where to place the base of the bracket. Fig. 4
Then, measure the centre point so you have a denite drill guide for the bracket screws. Use a ‘set square’ to draw these guides.
Once aligned, pre-drill the holes then place the bracket over the guides and screw wood screws to attach the decor bracket to
the cabinet door. Screw into any other xing holes (there should be 10). Fig. 4
Top of kitchen cabinet
Top of the appliance
Refrigerator door
Top attachment bracket
(disassembled status)
Top of kitchen cabinet
Top of the appliance
Refrigerator door
Top attachment bracket
(disassembled status)
Backside of
Upper cabinet doorLower cabinet door
Backside of
Centre line Centre line
Fig.3
Fig.2
Fig. 4

11
Rev.13052022
MOUNTING THE DOOR PANEL TO THE APPLIANCE
Ensure that there is a gap of 3–4 mm between the non-hinge side of the appliance and the vertical cabinet wall.
Mount the door panel onto the appliance door using the screw thread ad a xing guide.
Screw the bracket back onto to the appliance and use the hex nut to secure and level.
Locate the slider in the bracket and x the slider to the fascia door 20–22 mm from the edge of the fascia as shown in Fig. 5.
Ensuring that the slider is positioned sensually and horizontally within the bracket. Allow for some horizontal movement of the
cabinet door/s. Once you are happy with the alignment of each door, tighten securely by hand then use a spanner to x into
position.
Once you are happy with the alignment and have checked that the door closes and seals properly, x the remaining vertical
brackets provided to the appliance door and decor panel using wood screws
Fit all remaining covers to the appliance, concealing any screw holes and bracket bolts.
Fill the gap on the non-hinged side with the gasket/seal strip provided, as shown in Fig. 6.
Ensure the appliance door opens correctly, closes and seals properly.
Once complete, and you are happy with the t of the appliance in the cabinet, bend and snap the ’T’ parts of the white spaces at
the bottom of the appliance marked S as shown by the dotted outline in Fig. 7.
Leave the rest of the spacer cover in place over the metal plates
Install the ventilation grill at the kick panel void section at the appliance base cabinet. Fix the ventilation grill into the kick strip. Fig. 8.
Fixed screwFixed screw
Further xing
Depth adjustment
W
Cabinet door
W
Fig.18 Adjusting bottom of cabinet door
Fig.5
Fig. 7 Fig. 6
Fig. 8

12
Rev.13052022
IMPORTANT
After completing the installation, check that the appliance is secured within the cabinet unit and that the doors close and open
correctly. If there is no resistance from the door seals when opening the doors, then it is probable that the appliance and all decor
doors are not tted properly
REVERSING THE APPLIANCE DOOR - TO BE DONE BEFORE FITTING THE PANEL
We recommend you seek the help of another individual to support the doors whilst performing this operation. Always wear
adequate PPE (Personal Protective Equipment) for the task at hand. Prepare a surface with a soft, clean towel or similar where
you can place the door during these steps.
1. Carefully remove the cover cap for the top hinge and unscrew the screws xing the top hinge to the appliance, you should
support the door whilst doing this.
2. Carefully remove the door from the bottom hinge (by lifting) and place it somewhere safe. Note that there may be spacers
between the door and the hinge; note how many and their position.
3. Swap the previous top hinge to the opposite side at the bottom.
4. Place the door onto the new bottom hinge. Support it.
5. Ret the “new” top hinge and x securely to the appliance.
6. Fit the central cover caps and top hinge cover pieces in place to complete the process.
7. Unscrew all four slider brackets from the door and swap them over to the side furthest from the new hinge positions, before
the decor door is tted.
ENSURING THE DOOR SEALS CORRECTLY:
It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand
the seal and ll the gap between the door and the body of the appliance.Take care not to use the hair dryer too close to the
appliance, which could damage the seal. A distance of approximately 10cm should be adequate. When completed, allow the
seal and door to cool before touching them. Once done, the seal should remain in position.

13
Rev.13052022
BEFORE FIRST USE
You must allow the appliance to settle for at least twenty four (24) hours prior to switching the power on. It is recommended
that you clean the interior of the appliance prior to rst use, using a solution of bicarbonate of soda and warm water and then
thoroughly drying the interior. The freezer may have an odour to it at rst use. This will disappear as the appliance cools.
DURING USE
• Avoid overcrowding the fridge shelves, as this reduces airow.
• Avoid using shelf liners, as this reduces airow.
• Avoid loading large amounts or warm food at once
• Allow for good clearances in front of the air ducts within the cabinet for maximum cold air distribution.
• Your refrigerator is at its most efcient when it is 2/3 full.
• Do not leave the door open for any longer than is necessary
• Organise items in the refrigerator to reduce the time that the door is open when accessing items.
BEFORE PLACING FOOD IN THE FRESH FOOD OR FREEZER COMPARTMENTS
• Remove all packaging found inside the compartments eg tape, polystyrene etc.
• Clean the inside of the appliance with a mixture of warm water and a little liquid detergent to remove manufacturing and
transportation dust.
• The appliance may have an odour on its initial operation, but this will go when the refrigerator has cooled sufciently.
• Allow the refrigerator to run empty for 2 – 3 hours to allow each compartment to cool to the appropriate temperature.
PRACTICAL TIPS
Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber.
The coldest area is directly above the vegetable drawers. Use this area for all delicate and highly perishable food such as:
• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetables and other fresh food with a label stating it should be stored at a temperature of approximately 4°C
The warmest area is in the top section of the door. Use this area for storing butter and cheese.
To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the
products as shown on page 16. In addition this gure illustrates the layout of drawers, baskets and shelves, which allows the
most efcient use of energy.
Optimal temperature and storage conditions will extend product shelf life and optimise electricity consumption. Optimal storage
temperature range should be stated on the food packaging.
PLEASE NOTE:
The appliance will start on a factory set temperature setting and work continuously until it comes down to the optimum
temperature. If the appliance is switched off, you should allow ve minutes before switching it on again to prevent possible
damage to the compressor. Never store inammable or explosive items and strong corrosive acids or alkalis in the appliance.
The ILFRZ freezer cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface;
it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of some frosting
is not a malfunction of the freezer.
CRISPER DRAWER HUMIDITY ADJUSTMENT (ILREF256I/2)
The crisper drawer within this appliance features a humidity level adjustment slider. Vegetables and similar produce that are
subject to wilting (e.g. rocket, spinach leaves, herbs such as basil etc.) should be kept in the crisper drawer and the adjustment
slider kept closed (fully to the left -high). By keeping the adjustment slider closed, water vapour is held in the drawer and
subsequently greens are kept crisper and fresher for longer.
By contrast, fruits that are susceptible to rotting should be stored in the crisper drawer with the humidity adjustment slider fully
open (to the right -low). This will allow gases, emitted by certain produce and that accelerate the rotting process, to exit the
crisper drawer. The drawer is marked high and low with vegetable and fruit symbols to aid you.
FRESH ZONE (ILREF256I/2)
The Fresh Zone is a chiller box that keeps food stored at a temperature between -2°C and 3°C and the humidity at just the right
level. This will help meat, sh and dairy products stay fresher for longer and also keep any unwanted odours from the main fridge
compartment.

14
Rev.13052022
GENERAL FRIDGE/FREEZER USE ( ILREF256I/2)
• Never put liquids in the refrigerator uncovered.
• Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the
refrigerator.
• Nothing should rest against the rear wall of the refrigerator.
• Make sure food is clean and any extra water is wiped away before putting into the fridge.
• Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid
unpleasant odours.
• Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused
by the door being open for prolonged periods.
• Do not overll the fridge. his appliance has a forced air system allowing the cool air to circulate evenly inside the fridge so there
should be sufcient space between the foods to allow the cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
• Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat
contaminating other foodstuffs.
• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be
stored for more than three months after the purchase date.
• Store food in small packages (ideally less than 1kg). This reduces the freezing time and improves the quality of the food after
thawing.
• Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
• Label the food before freezing with information including type of food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage.
• Bottled or canned drinks should not be stored in the freezer compartments as they could explode.
• The maximum amount of fresh food that can be frozen within a 24 hour period is 2.5 kg .
• Do not attempt to freeze more than the maximum amount.
• To freeze fresh food more quickly, switch on the super freeze function a few hours prior to placing the food in the freezer.

15
Rev.13052022
GENERAL COLUMN FRIDGE USE (ILREF316I/2)
• Never put uncovered liquid in the refrigerator
• Never put hot food in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the
refrigerator.
• Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which
will be difcult to remove.
• Make sure food is clean and extra water is wiped away before putting into the fridge.
• Wrap or cover food before putting into the fridge. This will prevent loss of moisture, keep food fresh and avoid unpleasant owners.
• Sort foods prior to storing. Any food to be used soon should be stored at the front of the shelf to prevent deterioration caused
by the door being open for prolonged periods.
• Do not overll the fridge. It should be sufcient space between the foods to allow cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy
• Never store raw meat on shelves above cooked meats or other produce. This will help to prevent juices from raw meat
contaminating other food stuffs.
GENERAL COLUMN FREEZER USE (ILFRZ217I/2)
• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be
stored for more than three months after the purchase date.
• Store food in small packages (ideally less than 2.5kg). This reduces the freezing time and improves the quality of the food after
thawing.
• Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
• Label the food before freezing with information including type of food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen unless it has been completely cooked. Only defrost as much food as is required
to prevent wastage.
• Bottled or canned drinks should not be stored in the freezer compartment as they could explode.
• Check the rating plate to conrm the maximum amount of fresh food that can be frozen within a 24 hour period. Do not
attempt to freeze more than the maximum amount.
• The freezer is for short-mid term food storage. Although low temperatures can be maintained, extended periods of food
storage is not recommended.
• The bottom sections are the coldest parts of the freezer.
• The top two sections have raisable aps that stay open for ease of loading and unloading. The remaining 5sections are drawers.
• The 6th setting on the control panel, represented by the snowake on page 18, is a super freeze function. This should be used
when freezing large quantities of food all at once. Activate this function 2 or 3 hours before introducing the food and do not
leave it to run for more than necessary. Leaving it to run for longer will place unnecessary strain on the cooling system. The
function will automatically deactivate after approximately 24hours.

16
Rev.13052022
STORAGE
The fridge section is for short term food storage. Although low temperatures
can be maintained, extended periods of food storage is not recommended.
As the cold air circulates within the fridge, the temperature can vary between
the different sections. As such, foods should be stored in different sections
according to type. Section 7 is the coldest part of the fridge.
1. Butter, cheeses etc.
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. 75cl bottles
6. Yogurts, preserves etc
7. Fresh meat and sh
8. Fruit and vegetables
9. Fresh zone -3°C to 3°C
The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the
rear section and then pull it outwards. To replace, slide the shelf back into the slot, and then lower the rear section.
The wine rack is a fold-able rack that can be pulled down from under the glass shelf for use or folded back to the shelf to give
more storage in the fridge if not required. If storing wine (deigned for a standard size Bordeaux bottle) on the bottle rack, the
bottles should be placed with the bottle neck facing the rear wall of the appliance.
ILREF316I/2
The fridge is for short-term food storage. Although the temperatures can be maintained, extended periods of food storage is not
recommended.
As the cold air circulate within the fridge, the temperature can vary between the different sections. As such, foods should be
stored in different sections according to type. Sections six and seven are the coldest part of the fridge.
Here are some tips on the best storage positions for your items in the Column Fridge (ILREF316I/2).
1. Butter, cheeses
2. Food in jars or bottles
3. Drinks, example milk, juices, soft drinks
4. Cooked food
5. Yoghurt, preservatives etc
6. Ready meals
7. Fresh meat and sh
8. Fruit and vegetables
The fridge shelves can be moved according to the storage requirements
within the fridge section. To move the shelf, lift up the resection and then pull it
outwards. To replace, slide the shelf back into the slot, and then lower the rear
section. The wine racks can be deployed or withdrawn as desired.
1
2
3
4
5
6
7
8
9

17
Rev.13052022
CONTROL PANEL
ILREF256I/2 FRIDGE/FREEZER CONTROL PANEL
Fig. 3
A. FRESH ZONE TEMPERATURE ADJUSTMENT SENSOR
This button is used to adjust the temperature within the Fresh Zone. Press this button once to alter the display to show the
current temperature in the Fresh Zone, and then as many times as necessary until the desired temperature is selected. The
settings range from -3 to 3°C
NOTE: The Fresh Zone temperature adjustment sensor is replaced with a padlock symbol, holding down button ‘A’ for 3
seconds activates the lock function. A beep will be heard, the pad lock illuminates and all functions cannot be altered, a beep will
be heard and the padlock light will go out.
B. FAST COOLING FUNCTION
Pressing this button will cause the fridge to operate at 2°C and
automatically turns off after 2 and a half hours, during this time the button will be illuminated
C. HOLIDAY FUNCTION
Pressing this button activates the holiday function and the fridge
temperature will operate at 17°C and the freezer at -18°C. This is designed so that if you are going to be away for more than a
few days you can empty the fridge and save energy while away. It will continue to freeze your frozen food but the temperature in
the fridge will prevent odours or mould forming as it would if you turned the appliance off completely.
D. FRIDGE TEMPERATURE ADJUSTMENT
This button is used to adjust the temperature within the fridge. Press this button once to activate adjustment, and then as many
times as necessary until the desired level is selected
DISPLAY
This is where you can see the current temperature in the fridge (left) and freezer (right)
E. FREEZER TEMPERATURE ADJUSTMENT
This button is used to adjust the temperature within the freezer. Press this button once to activate adjustment, and then as many
times as necessary until the desired level is selected
F. SMART FUNCTION
This button automatically sets the fridge temperature to 5°C and the freezer temperature to -18°C
G. FAST FREEZING FUNCTION
Pressing this button automatically starts the freezer working at a temperature of -25°C. After 6 hours the function stops and the
temperature will revert back to its previous setting
H. ON/OFF BUTTON
Hold this button down for 3 seconds to switch the appliance on or off
HG F E
Display
D C BA

18
Rev.13052022
ILREF316I/2 COLUMN FRIDGE CONTROL PANEL
A. REFRIGERATOR TEMPERATURE ADJUSTMENT SENSOR
This button is used to adjust the temperature within the fridge. Press the sensor once to activate adjustment, and then as many
times as necessary until the desired level is selected. The settings range from 1 to 6 with 1 being the warmest and 6 the coldest.
B. REFRIGERATOR TEMPERATURE SETTING DISPLAY
Is display will eliminate the current temperature setting. I just in the temperature will cycle through this display. Please note you do
not use numbers 1 to 6 to change the temperature. Instead, use the refrigerator temperature adjustment sensor (A).
C. POWER BUTTON
Use this sensor to switch the appliance on or off (standby mode). The sensor will be lit when the appliance is off.
ILFRZ217I/2 COLUMN FREEZER CONTROL PANEL
A. FREEZER TEMPERATURE ADJUSTMENT SENSOR
This button is used to adjust the temperature within the freezer.Press this sensor once to activate adjustment, and then as many
times as necessary until the desired level is selected. The settings range from 1 to super freeze (snowake) with 1 being the
warmest and super freeze being the coldest. Please note: Where possible, avoid having the temperature setting on 5 or super
freeze (snowake) all of the time. This will help to alleviate strain on the compressor and system.
B. FREEZER TEMPERATURE SETTING DISPLAY
This display will illuminate the current temperature setting. Adjusting the temperature will cycle through this display.
Please note: You do not use numbers 1 to 5 or the snowake to change the temperature. Instead, use the freezer temperature
adjustment sensor (A).
C. POWER BUTTON
Use this sensor to switch the appliance on and off (standby mode).
ABC

19
Rev.13052022
CARE AND CLEANING
ILREF316I/2
Always disconnect the appliance from the power supply before any cleaning or maintenance. The fridge and freezer
sections should be cleaned using a solution of bicarbonate soda and lukewarm water. Do not use abrasive products
or detergents. After washing, rinse and dry thoroughly. Clean the shelves and balconies separately by hand with a mild
solution of washing up liquid and water. Do not put them in the dishwasher. If the appliance is not to be used for prolonged
periods of time, unplug and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew
and unpleasant odours.
ILREF256/2
The fridge and crisper sections should be cleaned using a solution of bicarbonate soda and lukewarm water.
Do not use abrasive products or detergent. After washing and dry thoroughly. Clean the shelves, drawers and balconies
separately by hand with a mild solution of washing up liquid and water. Do not put them in the dishwasher. It’s a drain hole
at the back of the fridge compartment should be clean periodic Lee to prevent the defrosted water from collecting inside the
fridge compartment. The crane plug can be used to clean the drain hole. If the appliance is not to be used for a prolonged
period of time, unplug the clean appliance. The doors should be left slightly ajar to prevent the formation of mould and
unpleasant odours.
ILFRZ217I/2
Always disconnect the appliance from the power supply before any cleaning or maintenance. The drawer sections should
be cleaned using a solution of bicarbonate soda and lukewarm water. Do not use abrasive products or detergents. After
washing, rinse and dry thoroughly. Clean the compartments separately by hand with a mild solution of washing up liquid and
water. Do not use abrasive cleaners or detergents. If the appliance is not to be used for prolonged periods of time, unplug
and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odours.

20
Rev.13052022
DEFROSTING THE APPLIANCE
DEFROSTING THE ILREF256/2 FRIDGE
The fridge is self defrosting. Any water created will run out of the fridge through the channel at the back of the fridge,
unless the drain hole is blocked. It is important to keep the channel clear at all times using the cleaning tool/drain plug
supplied. Defrosted water is collected in the evaporating tray at the back of the appliance and dissipated by evaporation.
PLEASE NOTE: If you are regularly nding pools of water in the fridge, we noticed that the compressor is always running,
then it is likely that the door is not ceiling properly. This could be due to a defective door seal or incorrectly or over heavy
decor door panel. For more information, see troubleshooting section in this manual.
DEFROSTING THE ILREF256/2 FREEZER
The freezer has a no frost system which is designed to prevent the heavy build up of ice. Under normal use, there should
be no need to regularly defrost the freezer system.
To help in times of service or cleaning, the appliance has a forced defrost mode which can be activated by pressing and
holding buttons E and H (see control panel page 17) for approximately 3 seconds. Once activated the freezer display
will ash to conrm. The cycle will automatically deactivate once the defrost sensor has reached 8°C, or has run for a
maximum of 50 minutes.
PLEASE NOTE: If you are regularly nding a heavy build up of ice, or pools of water, in the freezer section then it is likely
that the door is not sealing properly. This could be due to a defective door seal or an incorrectly tted, or overly heavy,
decor door. For more information see the troubleshooting section on ice on page 21 & 23.
DEFROSTING THE ILREF316I/2
The fridge is a forced air system so will not require any defrosting.
DEFROSTING THE ILFRZ217I/2 FREEZER
The freezer is self-defrosting. Any water created will run out through the channel at the back of the freezer, unless the drain
hole is blocked. The defrosted water is collected in the evaporating tray at the back of the appliance and dissipated by
evaporation (when the compressor gets hot).
PLEASE NOTE: If you are regularly nding pools of water in the freezer, frost build-ups, or you notice that the compressor
is always running, then it is likely that the door is not sealing properly. This could be due to a defective door seal or an
incorrectly tted, or overly heavy, decor door.
For more information see the troubleshooting section on ice on page 22.
CHANGING THE LIGHT
If the LED lights in fails in any way, it should be replaced by authorised service agents. In the event of light failure within
your fridge please contact customer care to arrange a service. Contact details are within the warranty information in this
manual
