Miele KFNS 37692 iDE User manual

Operating and Installation Instructions
Fridge-Freezer Combination
To prevent accidents and damage to the appliance, you must read all
instructions supplied before installing for using the appliance.
M.-Nr. 10 160 250en - US, CA

IMPORTANT SAFETY INSTRUCTIONS.................................5
Guide to the appliance ............................................10
Optional accessories ...............................................13
How to save energy ...............................................14
Turning the appliance on and off ....................................16
Operating the appliance ............................................17
Turning the appliance on............................................17
Turning the appliance off............................................18
Turning off the refrigerator section separately .........................18
Turning the refrigerator section back on again ........................19
Turning the appliance off when in Sabbath mode ......................19
Turning off for longer periods of time ..................................19
The right temperature .............................................20
. . . in the refrigerator section and in the PerfectFresh Pro zone .............20
Automatic cold air circulation (DynaCool) ............................20
...inthefreezer section ............................................20
Temperature display ...............................................21
Setting the temperature for the refrigerator and freezer ....................21
Adjusting the temperature in the PerfectFresh Pro zone....................23
SuperCool.......................................................24
The SuperCool function in the refrigerator...............................24
The SuperCool function in the freezer ..................................25
Temperature and door alarm .......................................27
Temperature alarm ................................................27
Door alarm .......................................................28
Making additional settings .........................................29
Safety lock 0.....................................................29
Temperature unit (Celsius or Fahrenheit) ...............................30
Acoustic signals )................................................32
Display brightness s...............................................33
Sabbath mode ¬..................................................34
Storing food in the refrigerator section ...............................36
Various cooling zones ..............................................36
Storing food in the PerfectFresh Pro zone ............................38
Dry compartment ,................................................39
Humidity, controlled compartment ,,./-............................39
Low humidity ,.................................................39
Contents

High humidity level ./-........................................39
Adjusting the interior fittings .......................................42
Adjusting the door shelf / bottle shelf ..................................42
Adjusting the bottle holder...........................................42
Adjustable shelf / Adjustable shelf with lighting ..........................42
Moving the shelf / Shelf with lighting ................................42
Adjusting the bottle rack ............................................43
PerfectFresh Pro
zone compartments ................................................43
Freezing and storing food..........................................45
Maximum freezing capacity..........................................45
What happens when you freeze fresh food? .............................45
Storing frozen food ................................................45
Before placing food in the freezer ..................................46
Placing food in the freezer ........................................46
Thawing frozen foods ..............................................47
Cooling drinks quickly ..............................................47
Using the cool pack................................................47
Making ice cubes .................................................48
Ice cube maker with integrated ice cube tray ............................48
Turning the ice cube maker On/Off ....................................49
Making a large amount of ice cubes ................................49
Changing the size of the ice cubes .................................50
Setting the water quantity ...........................................50
Turning the ice cube maker On/Off with the On/Off button ..................51
Automatic defrosting..............................................52
Cleaning and care ................................................53
Rinsing the ice cube maker ..........................................54
Cleaning the ice cube tray...........................................55
Setting the cleaning position ......................................56
Adjustable shelf / Adjustable shelf with lighting ........................57
Interior and accessories ............................................59
Door seal ........................................................60
Ventilation slits ....................................................60
Frequently asked questions ........................................61
Noises ..........................................................73
Contents

Lead free certificate ...............................................74
Service / Warranty ................................................75
Warranty ......................................................75
Information for dealers/showrooms..................................76
Demo mode r.....................................................76
Caring for the environment.........................................80
Plumbing........................................................81
Information regarding the water connection .............................81
Electrical connection..............................................84
Installation information ............................................86
Installation location ................................................86
Climate class ..................................................86
Ventilation .......................................................87
Ventilation grill ....................................................88
Before installation .................................................89
Installation dimensions ............................................90
Adjusting the door hinge ..........................................91
Changing the door hinging .........................................92
Installing the appliance ............................................96
Installing the custom door front ......................................103
Adjusting the position of the door..................................106
Contact details .................................................111
Contents

When using the appliance, follow
basic safety precautions, including
the following:
Read all instructions before
installation and use to prevent
accidents and machine damage.
This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
They contain important notes on
installation, safety, use and
maintenance. Miele cannot be held
liable for non-compliance with these
instructions.
Keep these instructions in a safe
place and pass them on to any
future owner.
Correct use
~This appliance is intended for use in
domestic households and similar
residential environments.
This appliance is not intended for
outdoor use.
~Use this appliance only under
normal household conditions for
cooling and storage of food, storage of
frozen foods, for freezing fresh foods
and for preparation of ice.
Any other usage is at the owner's risk
and could be dangerous.
~This appliance is not suitable for
storing and keeping cool medicines,
blood plasma, laboratory preparations
or other such materials or products.
Incorrect use of the appliance for such
purposes can cause deterioration of the
items stored. The appliance is not
suitable for use in areas where there is
a risk of explosion.
Miele will not be held liable for damage
resulting from incorrect or improper use
or operation.
~Persons who lack physical, sensory
or metal abilities, or experience with the
machine should not use it without
supervision or instruction by a
responsible person.
Safety with children
~Children should be supervised in
the vicinity of the appliance.
~Children ages eight and up may
only use the appliance oven without
supervision if they have been shown
how to use it in a safe manner, and if
they are able to recognize and
understand the potential risks of
improper use.
~Children must not clean or service
the appliance unless they are under
supervision.
~Children should be supervised when
they are near the appliance. This
appliance is not a toy! To avoid the risk
of injury, do not allow children to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
IMPORTANT SAFETY INSTRUCTIONS
5

~Ensure that any packing material is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Technical safety
~The coolant system is tested for
leaks.
~This appliance contains the coolant
isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however,
led to a slight increase in the noise level
of the appliance. In addition to the
noise of the compressor, you might be
able to hear the coolant flowing around
the system. This is unavoidable, and
does not have any adverse effect on
the performance of the appliance.
Care must be taken during the
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid open flames and anything that
creates a spark,
–disconnect the appliance from the
electrical power supply,
–air the room in which the appliance is
located for several minutes and
–contact Miele Technical Service.
~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~To avoid the risk of damage to the
appliance, make sure that the
connection data (fuse rating, frequency
and voltage) on the data plate
corresponds to the household supply.
Check that this is the case before
connecting the appliance. Consult a
qualified electrician if in any doubt.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~If the power cord is damaged, it
must be replaced by a Miele authorized
technician in order to protect the user
from harm.
~Do not connect the appliance to the
electrical supply with a power bar or
extension cord. These are a fire hazard
and do not guarantee the required
safety of the appliance.
IMPORTANT SAFETY INSTRUCTIONS
6

~Do not use the appliance in areas
where there may be moisture or
splashing water (e.g. garages, laundry
rooms, etc.).
Moisture can reach the electrical
components and cause a short circuit.
~This appliance is not to be used in
non-stationary locations, such as ships.
~Do not use a damaged appliance. It
could be dangerous. Check the
appliance for visible signs of damage.
~To ensure safe operation, use the
appliance only when it is installed.
~The appliance must be
disconnected from the electrical supply
during installation, maintenance and
repair work, and installation work on the
water connection. The appliance is only
completely isolated from the electrical
supply when:
– the respective fuse has been
removed,
–the circuit breaker has been
tripped,or
–the power cord has been unplugged.
Pull on the plug and not on the cord
when removing it from the outlet.
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician in
accordance with national and local
safety regulations and the provided
installation instructions. Contact Miele’s
Technical Service Department for
examination, repair or adjustment.
~The ice cube maker is not intended
to be used with a hot water supply line.
~Repairs and other work performed
by unauthorized persons could be
dangerous and may void the warranty.
~Defective components should only
be replaced by Miele original parts.
Only with these parts can the
manufacturer guarantee the safety of
the appliance.
Proper use
~The appliance is designed for use
within a certain climate range (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
will lead to the appliance turning off for
longer periods so that it cannot
maintain the required temperature.
~WARNING! Danger of damage from
overheating. May restirct operation.
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
~If you store fatty or greasy foods in
the appliance or the appliance door,
make sure that no oil or grease leaks
onto the plastic parts of the appliance.
This can cause the plastic to crack and
break.
~Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Electrical components could
cause flammable vapors to ignite.
Danger of fire and explosion.
IMPORTANT SAFETY INSTRUCTIONS
7

~Do not operate any electrical
equipment (e.g. an electric ice cream
maker) inside the appliance. Danger of
sparking and explosion!
~Do not store cans or bottles
containing carbonated drinks or liquids
which could freeze in the freezer
section. The cans or bottles could
explode.
Danger of injury and damage to the
appliance!
~When cooling drinks quickly in the
freezer section, make sure bottles are
not left in for more than one hour;
otherwise they could burst, causing
injury and damage!
~Never handle frozen food or the
metal parts of the appliance with wet
hands. Your hands may freeze to the
frozen food or to the metal. Danger of
frost burn!
~Do not take ice cubes out with your
bare hands and never place ice cubes
or popsicles in your mouth straight from
the freezer section.
The very low temperature of the frozen
ice or popsicles can cause frost burn to
the lips and tongue. Danger of injury!
~Do not refreeze partially or fully
defrosted food. Consume defrosted
food as soon as possible, as it will lose
its nutritional value and spoil if left for
too long. Defrosted food may only be
refrozen after it has been cooked.
~Use only genuine original Miele
parts. If parts or accessories from other
manufacturers are used, the warranty
may become invalid.
Cleaning and care
~Do not use any oil or grease on the
door seals.
They can cause the seals to deteriorate
over time.
~Never use a steam cleaner to clean
the appliance.
The steam can reach the electrical
components and cause a short circuit.
~Never use a pointed or sharp-edged
object to
–remove frost or ice,
– or to detach food items frozen to the
walls.
This will damage the evaporators,
causing damage to the appliance.
~Do not place electric heaters or
candles in the appliance to defrost it.
These can damage the plastic parts.
~Do not use defrosting sprays or
de-icers, as they could contain
substances which could damage the
plastic parts or which might cause the
build-up of gases and pose a danger to
health.
IMPORTANT SAFETY INSTRUCTIONS
8

~Rinse the ice cube maker and the
water pipes:
–before using for the first time,
–if the ice cube maker hasn't been
used for a long time,
–regularly if the ice cube maker is
constantly on (at least once a month)
to remove ice residues and prevent
the water pipes from becoming
blocked, and
–before turning off the ice cube maker
for a long period of time.
Transport
~Always transport the appliance in an
upright position and in its original
transport packaging to avoid damage
in transit.
~The appliance is very heavy and
must be transported by two people.
Danger of injury and damage!
Disposal of your old appliance
~There is a risk of suffocation.
Children playing can shut themselves in
and suffocate.
–Take the door(s) off.
–Remove the drawers.
–Leave the storage shelves in the
appliance so that children cannot
easily climb into the appliance.
~Danger of electric shock.
–Cut off the plug from the power cord
and discard.
–Cut off the power cord from the
discarded appliance. Dispose of
separately from the appliance.
~Ensure during and after disposal
that the appliance isn't stored in the
vicinity of gasoline or other flammable
vapors and liquids.
~When disposing of the appliance,
ensure that the refrigeration circuit is
not damaged to prevent uncontrolled
escape of the refrigerant it contains
(data on type plate) and oil.
~Take care not to damage any part of
the cooling system, for example by
– puncturing the coolant channels in
the evaporator,
– kinking any pipework,
– scratching the surface coating.
Caution: Spraying coolant can damage
the eyes.
SAVE THESE
INSTRUCTIONS AND
PASS THEM ON TO ANY
FUTURE USER
IMPORTANT SAFETY INSTRUCTIONS
9

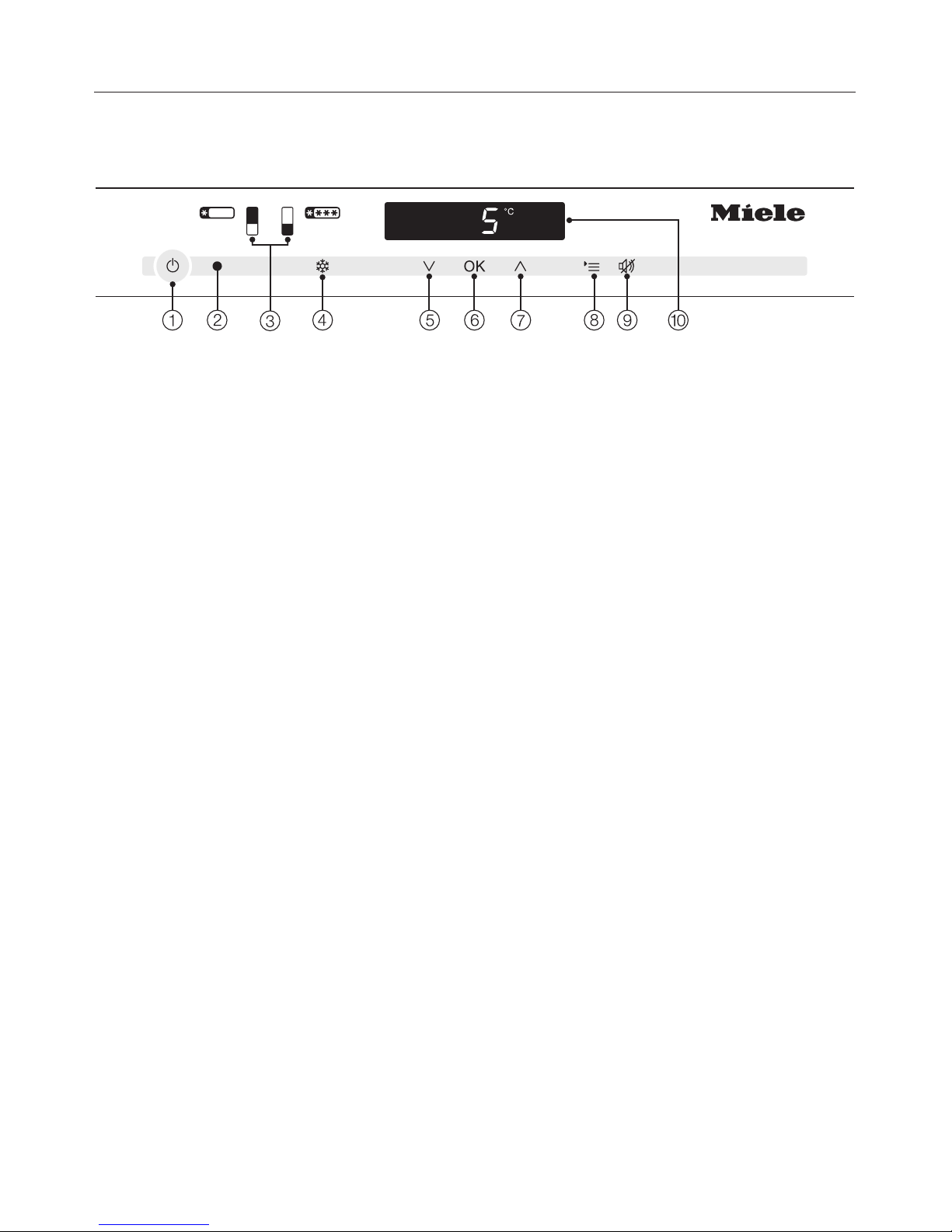

Control panel
aFor turning the entire appliance on
and off.
bOptical interface
(for Service use only)
cFor selecting the refrigerator or
freezer section
dOn/Off button for the
SuperCool functions
eFor setting the temperature
(Xfor colder), selection button in
settings mode
fFor confirming a selection (OK
button)
gFor setting the temperature
(Yfor warmer), selection button in
setting mode
hFor accessing or leaving
settings mode
iFor turning the temperature and door
alarms off
jDisplay with temperature and
symbols (symbols only visible in
settings mode, in the event of an
alarm/message; see table for
explanation of symbols)
Guide to the appliance
10

Explanation of symbols
Symbol Meaning Function
0Safety Lock Prevents the user from unintentionally
turning off the appliance, adjusting the
temperature, turning on the SuperCool
functions or entering settings.
®Ice Cube Maker Turning the ice cube maker on and off;
setting the water quantity;
rinsing the ice cube maker; setting the
cleaning position of the ice cube tray;
flashes when there is a fault with the ice
cube maker.
)Acoustic Signals Selection options for the keypad tone and
the door and temperature alarm tones
sDisplay Brightness
Settings
For adjusting the brightness of the display
uPerfectFresh Pro
Temperature
Adjusting the temperature in the
PerfectFresh Pro zone
¬Sabbath Mode For turning Sabbath mode on and off
tPower Supply Confirms that the appliance is connected to
the electricity supply when it is not turned
on; flashes when there is a power cut
;Alarm Illuminates when the door alarm is activated;
flashes in case of a temperature alarm,
power failure, and additional fault messages
rDemo Mode
(only visible when
Demo mode is active)
For turning off Demo mode
Guide to the appliance
11

aControl panel
bFan
cEgg tray / Door shelf
dShelf
eShelf with
lighting (FlexiLight)
fBottle shelf
gPerfectFresh Pro zone interior
lighting
hPerfectFresh Pro zone dry
compartment
iCondensate channel and drain hole
jMoisture level control in the
humidity-controlled compartment
kPerfectFresh Pro zone
humidity-controlled compartment
lIce cube drawer with
automatic ice cube maker
mFreezer drawers
Guide to the appliance
12

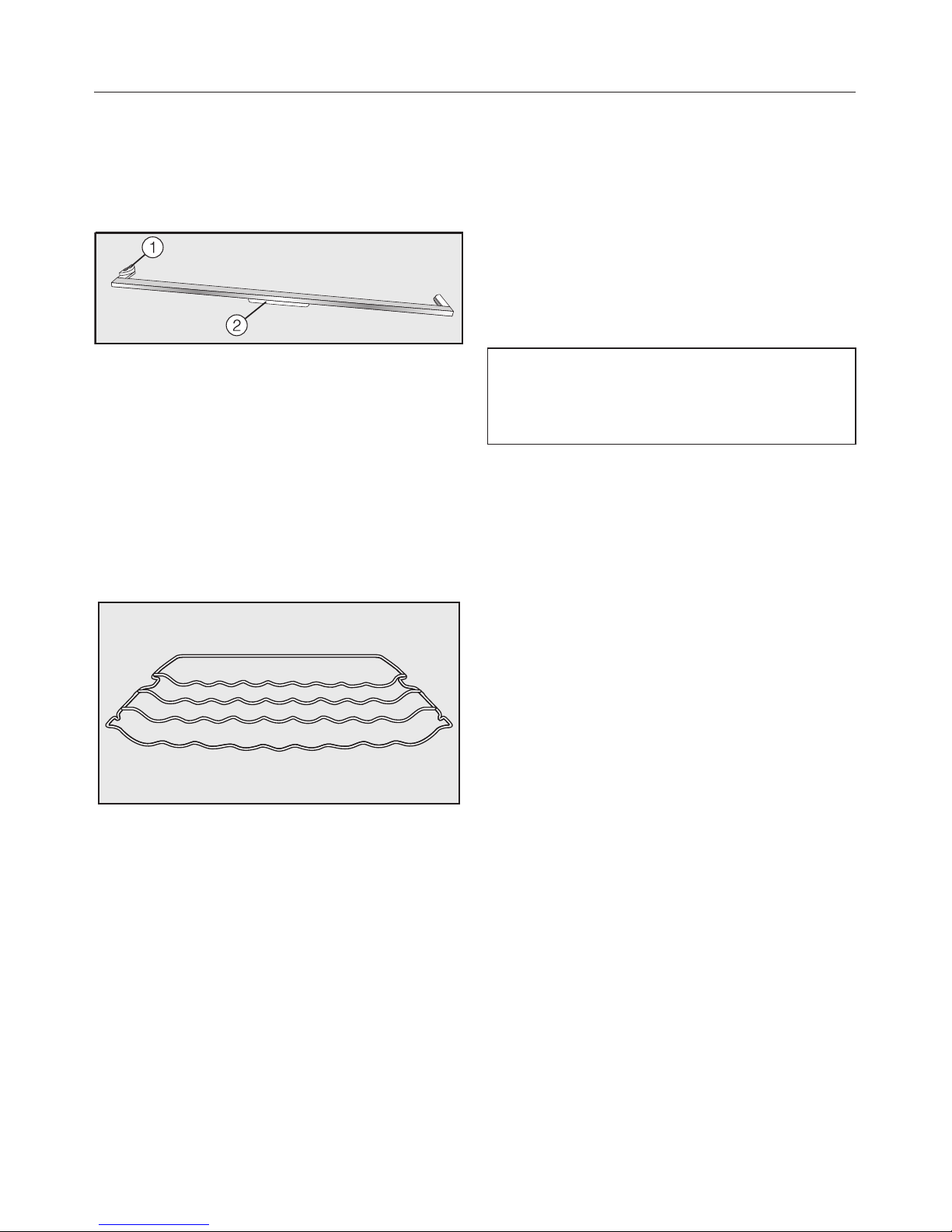

Optional accessories
Stainless steel trim with LED lighting
for shelf (FlexiLight)
LED lighting bis located on the
stainless steel trim, which is supplied
with electricity via metal discs
(contacts) a.
Refrigerator lighting can be customized
to your needs by changing the position
of the shelf.
Bottle rack
Bottles can be stored horizontally using
the bottle rack to save space.
The bottle rack can be placed at
different positions in the appliance.
Stainless steel maintenance
–Each application of the Miele
stainless steel conditioner forms a
water and dirt repellent protective
coating. It gently removes water
marks, fingerprints and other dirt for
a uniformly shiny surface.
Optional accessories are available
from Miele, your Miele dealer or
online.
Guide to the appliance
13

Normal
energy consumption
Increased
energy consumption
Installation /
Maintenance
In a well-ventilated room. In an enclosed,
poorly ventilated room.
Protected from direct
sunlight.
In direct sunlight.
Away from heat sources
(radiator, range/oven).
Near a heat source (radiator,
range/oven).
Where the room temperature
is ideal, i.e. around 68°F
(20°C).
Where the room temperature
is higher.
Do not block the ventilation
openings, and keep them
free of dust.
Where the ventilation
openings are blocked and
full of dust.
Temperature
setting
39 to 41°F (4 to 5°C) in the
refrigerator section
With a low temperature
setting: the colder the
temperature in the
refrigerator and freezer
zones, the higher the energy
consumption!
PerfectFresh Pro zone just
above 32°F (0°C)
0°F (-18°C) in the freezer
section
How to save energy
14

Normal
energy consumption
Increased
energy consumption
Use The drawers and shelves are
in the original arrangement.
Only open the doors when
necessary and for as short a
time as possible.
Store food in an organized
way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance works harder to
cool down and the
compressor runs for longer
periods.
When shopping, use a cooler
box or bag and place the food
in the appliance as soon as
possible.
Replace items removed from
the appliance as soon as
possible before they warm up.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
appliance.
The appliance works harder to
cool down and the
compressor runs for longer
periods.
Store food covered or
wrapped.
The evaporation or
condensation of liquids in the
refrigerator section lower the
cooling capacity.
Place frozen food in the
refrigerator to defrost.
Do not overfill the appliance in
order to allow the air to
circulate.
How to save energy
15

Before first use
Packaging material
^Remove all packaging material from
the inside of the appliance.
Protective film
The stainless steel trim and panels are
covered with a film to protect them
during transportation.
^Carefully remove the protective foil
from the stainless steel trim.
Cleaning and Care
It is essential to follow the relevant
instructions in "Cleaning and care."
^Immediately after pulling the film off,
wipe the stainless steel surfaces with
the Miele stainless steel conditioner
provided.
Important! Each application of the
Miele stainless steel conditioner
forms a durable protective film that is
stain and water resistant!
^Clean the inside of the appliance and
the accessories.
^Clean the ice cube maker:
After selecting the "Rinse ice cube
maker" setting, the ice cube maker
and the water pipes are rinsed
automatically with water.
Accessories
–Bottle holder
The fins of the bottle holder jut out into
the bottle shelf and make bottles more
secure when opening and closing the
appliance door.
^Attach the bottle holder centrally
along the rear edge of the bottle
shelf.
– Cool pack
Place the cool pack in the top freezer
drawer. The cool pack will be at its
most effective after it has been in the
freezer for approx. 24 hours.
Turning the appliance on and off
16

Operating the appliance
The appliance is operated with the use
of touch keys activated by a finger.
A tone will sound each time a button is
touched. You can deactivate this, if you
wish (see "Selecting additional settings
- Acoustic signals").

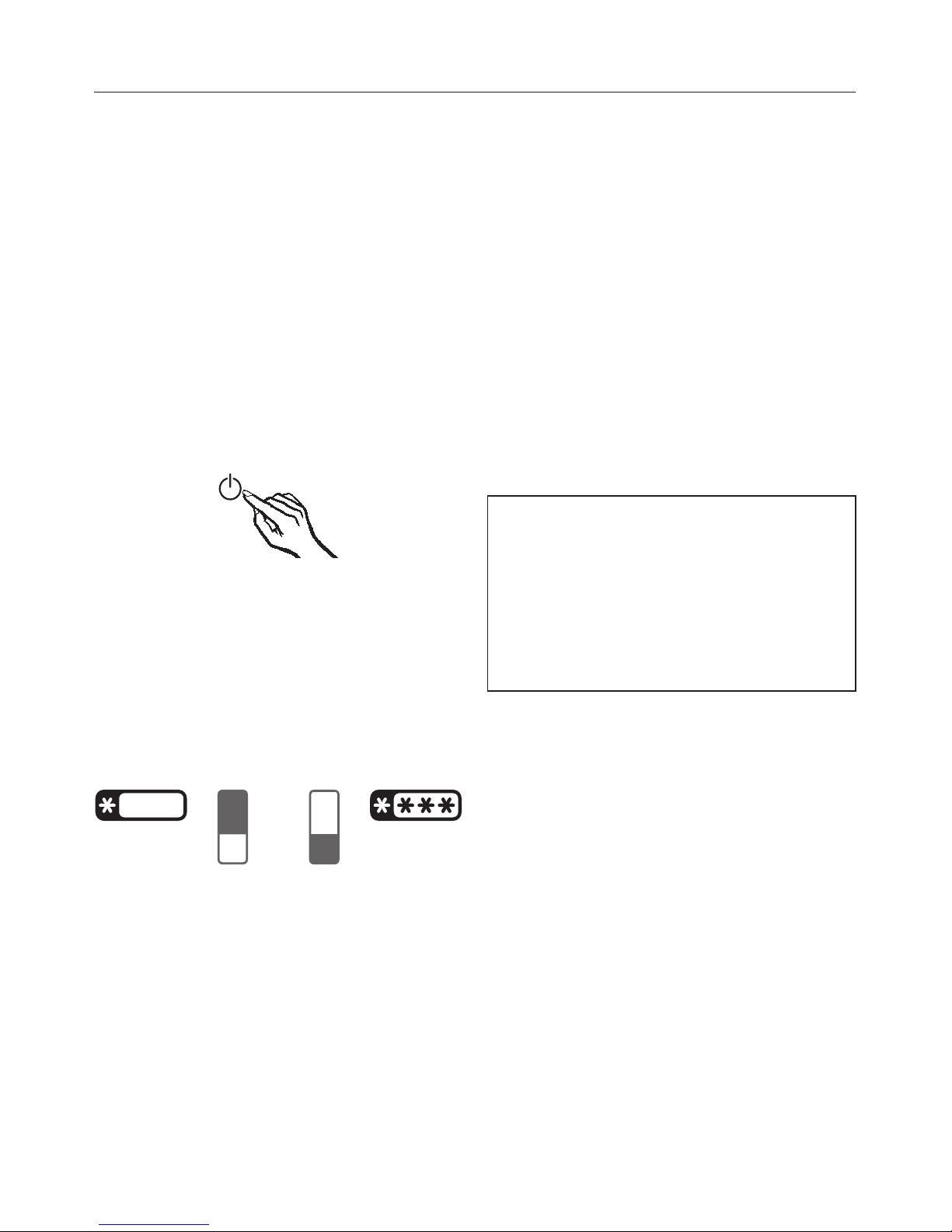

Turning the appliance on
The power supply symbol tappears
in the display when the appliance is
plugged in and turned on.
^Touch the On/Off button.
The power supply symbol t
disappears and the appliance starts to
cool.
The sensor buttons for cooling zones
that can be selected appear in the
control panel:
Refrigerator Freezer
The refrigerator section sensor button is
highlighted yellow and the current
temperature in this section appears in
the display.
When the refrigerator door is opened,
the interior lighting comes on and the
LED lighting on the adjustable shelves
becomes brighter until it reaches its
maximum brightness.
When the freezer section is turned on
for the first time, the sensor button for
this section and the alarm symbol ;
flash until the set temperature is
reached.
The button lights up constantly and the
alarm symbol ;goes out when the
temperature set for the freezer section
is reached.
To enable the temperature to get
sufficiently cold inside the?appliance,
allow the appliance to run for a few
hours before placing food in it.
Do not place food in the freezer
section until the temperature is cold
enough (at least 0°F / -18 °C).
Turning the appliance on and off
17

Individual settings can be set for each
cooling zone.
^Touch the sensor button for the zone
in which you want to adjust the
settings.
The selected sensor button appears
yellow.
The SuperCool function can be
selected or the temperature can be
adjusted for the refrigerator or freezer
section.
Please refer to the relevant section in
the manual for more information.
If another cooling zone is selected, the
settings for the previously selected
zone will remain as they were.
Turning the appliance off
^Touch the On/Off button.
If this does not work, the safety lock
is activated.
The temperature will go out and the
power supply symbol twill appear.
The interior lighting goes out and the
cooling is turned off.

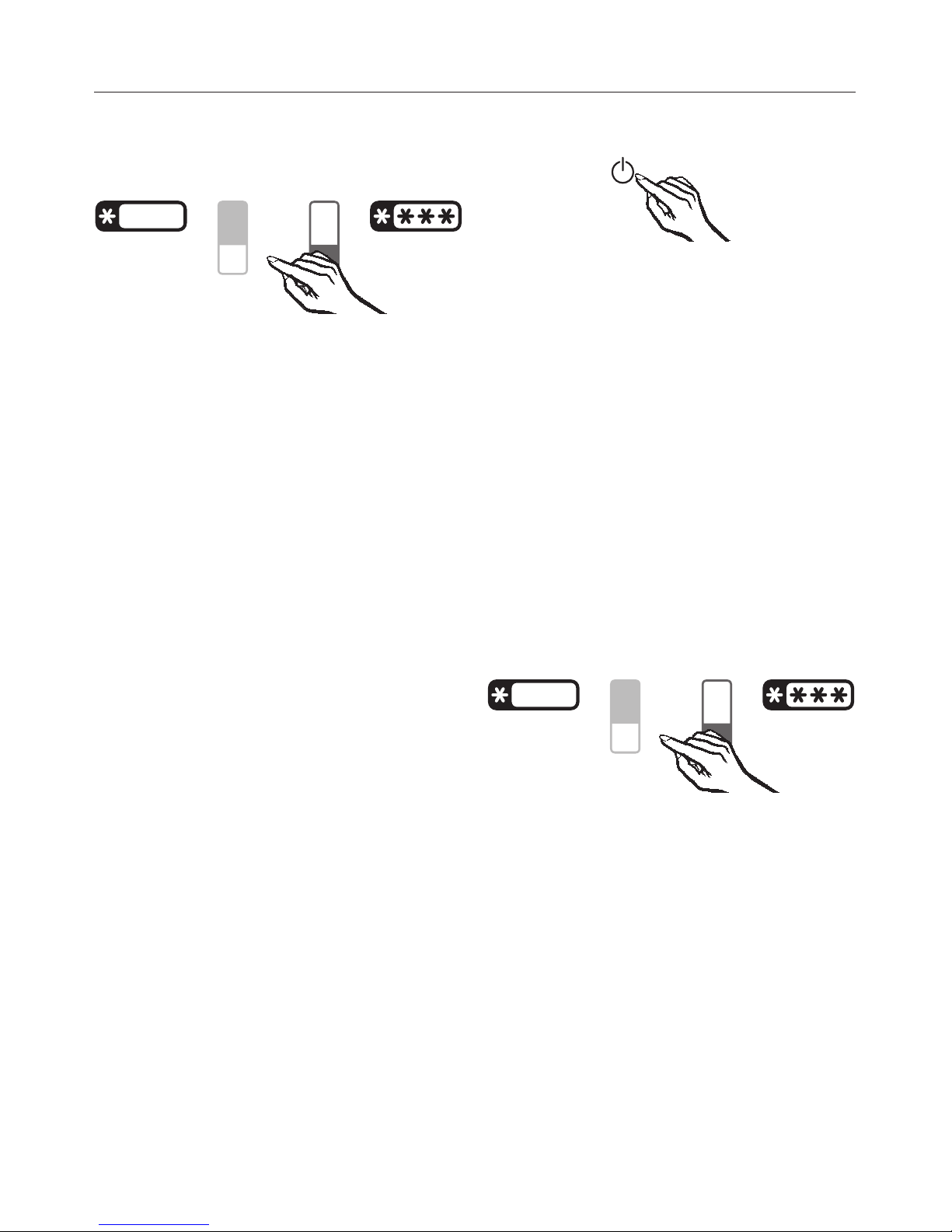

Turning off the refrigerator section
separately
The refrigerator section can be turned
off without having to turn off the freezer
section. This is useful, e.g. while on hol-
iday.
^Touch the sensor button for the
refrigerator section until it is no longer
illuminated.
Dashes will temporarily appear in the
display.
Turning the appliance on and off
18

Turning the refrigerator section back
on again
The refrigerator section can be turned
on separately.
^Touch the button for the refrigerator
section until it lights up yellow again.
The temperature display for the
refrigerator section lights up. The
refrigerator section starts to cool and
the interior lighting comes on when the
door is opened.
Turning the appliance off when in
Sabbath mode
You can turn the appliance off at any
time.
^Touch the On/Off button.
The temperature display goes out, and
the tsymbol (electrical connection)
appears.
The interior light goes out, and the
cooling is turned off.
When you turn the appliance back
on, the Sabbath mode is off.
Turning off for longer periods
of time
If the appliance is not needed for a
longer period of time:
^turn the appliance off,
^unplug the power cord or trip the
circuit breaker,
^empty the ice cube drawer.
^close the water shut-off valve,
If you are not using the appliance (or
refrigerator section if it has been turned
off separately) for an extended period
of time:
^clean the appliance/refrigerator
section, and
^leave the appliance doors/refrigerator
door slightly ajar to avoid the
build-up of odors.
If, during a long absence, the the
appliance/refrigerator section is
turned off but not cleaned out and
the doors are left shut, there is a
danger of mold and odors building
up inside the appliance.
Turning the appliance on and off
19

It is very important to set the correct
temperature for storing food in the
appliance. Bacteria will cause food
which is not stored at the correct
temperature to deteriorate rapidly.
The temperature in the appliance will
rise for the following reasons:
–if you open the door frequently or
keep it open too long,
–if you put too much food in it,
–if you put food in it that is too warm,
–if the room temperature is too high.
The appliance is designed for use
within a certain climate range (room
temperature range) and should not
be used outside this range.
. . . in the refrigerator section
and in the PerfectFresh Pro
zone
We recommend a temperature of 39°F
(4°C) in the refrigerator section.
The temperature in the PerfectFresh Pro
zone is controlled automatically, and is
maintained at 32° to 37°F (0 to 3°C).
Automatic cold air circulation
(DynaCool)
The fan automatically turns on when the
cooling system for the refrigerator
section turns on. It distributes the
temperature in the appliance to all
areas more evenly so that all the food
will be chilled to about the same
degree.
...inthefreezer section
To freeze fresh food and to store frozen
food for a long time, a temperature of
0°F (-18°C) is required. At this
temperature the growth of
micro-organisms is generally halted. As
soon as the temperature rises above
14°F (-10°C), the bacteria become
active in the food again so that it cannot
be kept as long. For this reason,
partially defrosted or fully defrosted
food must not be re-frozen. Food may
be re-frozen once it has been cooked,
as the high temperatures achieved
when cooking destroy most bacteria.
The right temperature
20
