iMettos QT-1 User manual

Model:QT-1/QT-2
Please read this instruction manual carefully before operating this equipment
Quartz Tube Toaster
Instruction Manual

1
Safety Tips
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of information
and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure the
safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations. The instruction manual forms
part of the product and should be kept near the device and easily accessible for anyone
carrying out the installation, servicing, maintenance or cleaning.
Please keep these instructions and give them to future owners of the device.
Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions in this
instruction manual.
Safety instructions
• The device is not intended for use by individuals (including children) with physical or
mental disabilities, insufficient experience, and/or insufficient knowledge unless such
persons are under the care of a person responsible for their safety or have received
instructions regarding appropriate use of the device.
• Children should be observed to ensure that they are not playing with the device.
• Never leave the device unattended when in use. • Only use the device indoors.
• The device is not adapted for use with an external timer or remote control.
• This device may only be operated in technically proper and safe condition.
• Prevent access of children to the package materials like plastic bags and foamed
polystyrene elements. Suffocation hazard!
Read this instruction manual before using and keep them
available at all times!

2
• Only a qualified technician and using original spare parts and accessories should carry
out repairs and maintenance of the device. Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the device or
personal injury, and further, the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
HOT SURFACE! Burn hazard!
Follow the safety instructions listed in order to avoid the hazard:
• The housing and the grill plates of the appliance become very hot. during operation. Do
not touch them with bare hands. Use always the operating handle in order to open the
device. Use appropriate kitchen utensils for laying and taking of food.
•Also after switching off, the device remains hot for some time. Before cleaning or moving it
to another place wait until the device cools down first.
• Never move this appliance during operation.
WARNING!
Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard:
• In order to avoid risk of fire and damage to the device, never place kitchen utensils, towels,
paper and the like on the grill plate during operation.
• Never operate the device near combustible, easily flammable materials (e.g. petrol, spirit,
alcohol etc.). They evaporate through heating and in case of contact with ignition sources
deflagrations can occur which can lead to serious personal injuries and property damages.
• When a fire arises disconnect it from the power supply before you initiate appropriate
measures for fire-fighting. Provide sufficient supply of fresh air.
Caution: Never extinguish the fire with water when the power plug is connected to the
socket. Electric shock hazard!

3
Warning:
Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or death. Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this appliance.
WARNING
!Any refitting and wrong installation, adjustment and maintenance can lead to property
loss and casualty. Please contact the supplier if you need to adjust or maintain it and all
these should be done by authorized professionals.
!Do not put any flammable liquid, gas or other objects around the product for your
safety sake.
! If the supply cord is damaged, it must be replaced at once by manufacturer or its
service agent or a similar qualified person in order to avoid hazard.
For your safety
Do not store gasoline or other flammable liquids in the vicinity of this or any other
appliance.
WARNING: FIRE HAZARD
The area where the appliance is installed must be kept clear of combustibles and
flammables. This includes mops, rags, grease, wrapping paper and electrical cords.
Warning
Electrical Grounding Instructions
This appliance is equipped with a three-prong (grounding) plug for your protection
against shock hazard and should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the grounding prong from this plug. For
the appliance whose power input is much larger exceeding a certain value, no plug is
used. But the appliance should be grounded safely.
Notice
This appliance is designed for use in non-combustible locations only. Install the
appliance on a firm, level, non-combustible surface.
For servicing, a clearance of 6 inches (15cm) from rear of the appliance to wall should
be kept.

4
TABLE OF CONTENT
1. Product structure and Accessories
1.1Product Structure
2. Product Parameter, Function, Purpose
2.1. Product Parameter and Function
2.2. Purpose
3. Precautions
3.1. Special Precautions
3.2. Power off after Using
4. Procedures of Operation
5. Installation
5.1. Precautions before Installation
5.2. Power Installation
6. Daily Check and Trouble Shooting
7. Circuit Diagram
8. Solid Diagram and Name of Spare Parts
9. Transportation and Storage
10. Cleaning and Maintenance
11. Waste disposal
12. WARRANTY

5
1 Product Structure and Accessories
1.1 Product Structure
QT-2 Structure Illustration
QT-1 Structure Illustration

6
2 Product Parameter, Function and Purpose
2.1. Product Parameter and Function
Model
QT-2A & QT-2
QT‐1A & QT-1
Dimension
Width
440mm
440mm
Depth
300mm
300mm
Height
400mm
290mm
Power Supply
220~240V 50/60Hz
220~240V 50/60Hz
Power
3kW
1.7kW
Stand
Rubber Stand
Rubber Stand
Weight
9.8kg
7.4kg
2.2. Purpose
This equipment can be used in supermarket, western restaurant, and family and bar,
etc.
3 Precautions
3.1. Special Precautions
Warning
! Do not shake and lean the product while using it. Do not try to dismantle or refit or
serious accident may occur. Turn off the power after using. When operating scraps
receiving tray, user should use heat insulation glove to touch handle.
! Do not open the chamber of this product. This product contains high voltage circuit,
electric shot may occur for any disassembly. Do not spray water direct on the product
while cleaning. Water can conduct electricity and it will lead to electric shock for
creepage. Do not flap or put any heavy things on the product. Any deviant operation will
damage the machine and cause danger.
3.2. Turn off the Power after Using
When not using this product, turn the timer at reverse direction to the off position and
the switch to off position. Then disconnect the plug and cut off the power.
4 Procedures of Operation
4.1. Put the oven on a level fixed table and adjust timer and heating selector to off position.
4.2. Put food on the shelf for toasting.
4.3. Plug the power cable to the specific electrical outlet of AC 230V. Set the timer to the

7
certain time and adjust heating selector to choice upper fire heating, lower fire heating
or both fire heating.
5 Production Installation
5.1. Precaution before Installation
5.1The position for installation should be level and fixed.
5.2Do not put flammable object near the position for installation.
5.3The temperature of environment should be under 45℃.
5.4The relative humidity of environment should be less than 80%.
5.5Check if all the accessories are ready.
5.6Check whether the appearance is damaged.
5.2. Power installation
Warning
! Do not use other power beyond the one indicated.
! Do not use the air switch and creepage switch that do not meet the standard of safety.
! Circuit installation and maintenance must be done by authorized professionals.
(1) Air switch, creepage switch, fuse and power outlet must be installed near the product.
(2) This product must be grounded.
(3) The plug and outlet should be well connected without getting loose.
6 Daily check and trouble shooting
Trouble
Check
Heating
If power is well connected?
If there is power supply for the network?
If heating tube is broken?
The above content is just for reference. If any trouble occurs, stop using this product and
inform the professionals for checking at once!

8
7 Circuit Diagram
QT-2A & QT-2 Circuit Diagram
QT-1A &
QT-1 Circuit
Diagram
8 Solid Diagram and Name of Spare Parts
QT-2 Solid Diagram
12
1
8
5
2
4
10
9
11
17
18
13
19
14 15 16
5
0
10
15
67
3

9
QT-1 Solid Diagram
5
9
10
11
8
15 5
10
0
17
18
19
14
13
LN
E
12
16
2
4
1
3
67
15
Spare’s Name List
QT-2
NO
Name of Spares
1
Rubber Stand
2
Bottom Plate
3
Ceramic Amphenol Connector
4
Installation Plate for bottom plate
5
Scraps Receiving Plate
6
Switch
7
Timer
8
Shell
9
Protecting shelf for heating tube (A)
10
Roasting shelf
11
Protecting shelf for heating tube (B)
12
Insulated Ceramic
13
Sheath of power cable
14
Power cable
15
Installation Plate for Electric Heating Tube
16
Quartz heating tube
17
Top plate
18
Installation Plate for top plate
19
Top and side board

10
QT-1A
NO
Foot
1
Foot
2
Bottom board
3
Ceramic terminal
4
Crumb tray
5
Switch
6
Timer
7
Body
8
Safeguard for heating elements
9
Grid
10
Safeguard for heating elements
11
Insulation ceramic
12
Power cord jacket
13
Power cord
14
Side insulation board
15
Heating elements
16
Upper board
17
Top insulation board
18
Top and side boards
9 Transportation and Storage
During transportation, the machine should be careful handled and prevent from shaking.
The packaged machine should not be stored in the open air. It should be put in a ventilated
warehouse without corrosive gas. It should not be put upside down. If it needs to be stored
in open air temporary, measurement against raining in needed.
10 Cleaning and Maintenance
1. Cut off all the power when cleaning and maintaining the equipment in case of accident.

11
1. After finishing working, use wet towel with non-corrosive cleanser to clean the surface of
oven, chamber and the surface of power cable. Please use dry towel to clean the
control switch and timer. Do not use water to clean the machine directly in case of
damaging electric function.
11 Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with the
national regulations. It is advisable to contact a company which is specialized in waste
disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for use before
disposal. For that purpose disconnect device from mains supply and remove mains
connection cable from the device.
CAUTION!
For the disposal of the device please consider and act according to the national and local
rules and regulations.
12 WARRANTY
iMettos warrants to the original purchaser of every new product, under normal and proper
use and maintenance service as specified by iMettos and upon proper installation and
start-up in accordance with the instruction packet supplied with each unit. iMettos’
obligation under this warranty is limited to a period of two (2) year from the date of original
installation.

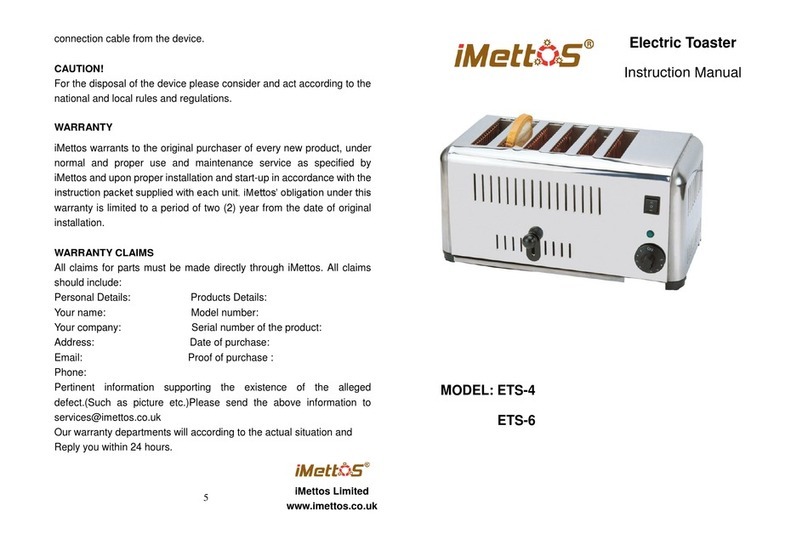

WARRANTY CLAIMS
All claims for parts must be made directly through iMettos.All claims should include:
Personal Details: Products Details:
Your name: Model number:
Your company: Serial number of the product:
Address: Date of purchase:
Email: Proof of purchase :
Phone:
Pertinent information supporting the existence of the alleged defect.(Such as picture etc.)
Please send the above information to [email protected]
Our warranty departments will according to the actual situation and reply you within
24hours.

12
iMettos Limited
www.imettos.co.uk
