A.J.Antunes VCT-250 User manual

Rapid toasteR VCt-250
1
P/N 1010837 Rev. L 03/07
McDonald’s
RAPID TOASTER
MODEL VCT-250
Manufacturing Numbers 9210606, 607, 608, 611, 613, 615, 616, 624 & 626
0/7%2
4%-0
$/7.
4%-0
50 4%-0
3#!,%
#
&
CAUTION
Place this manual in the Toaster section
of your Equipment Manual.
Manufactured exclusively for
McDONALD’S®
BY
A.J. ANTUNES & CO.
180 KEHOE BLVD.
CAROL STREAM, ILLINOIS 60188, U.S.A.
PHONE: [phone]
TOLL FREE: 1-877-392-7854
FAX: [phone]
www.ajantunes.com
TABLE OF CONTENTS
This manual is for the exclusive use of licensees and employees of McDonald’s Systems, Inc.. © McDonald’s Corporation All Rights
Reserved
LIMITED WARRANTY
The Antunes Food Service Equipment Division of A.J. Antunes & Co. provides the following limited warranty to the original purchaser of all McDonald’s Equipment.
All components are warranted against defects in the material and workmanship for a period of two (2) years from date of original installation, not to exceed 30 months
from date of shipment from our factory.
If any part becomes defective during the first two (2) years after the original installation date, Antunes Food Service will pay negotiated straight time labor costs to an
Authorized Service Agent to replace the part, plus travel expenses up to 50 miles/80 km, 1 hour each way (100 miles/160 km, 2 hours round trip).
Antunes Food Service reserves the right to make changes in design or add improvements on any products. The right is always reserved to modify Equipment
because of factors beyond our control and government regulation. Changes to Equipment do not constitute a warranty charge.
This warranty is exclusive and is in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular pur-
pose, each of which is expressly disclaimed. The remedies described above are exclusive, and in no event shall A.J. Antunes & Co. or any of its Divisions be liable
for special consequential or incidental damages for the breach or delay in the performance of this warranty.
WARRANTY EXCLUSIONS
• The cost of Installation.
• Equipment that has been damaged due to shipment. Purchaser should
make damage claim directly upon carrier.
• Alteration, misuse, abuse.
• Improper storage or handling.
• Improper maintenance.
• Failure to follow proper Installation instructions, including electrical connec-
tion.
• Improper or unauthorized repairs.
• Scheduled Maintenance procedures as outlined in your MRC Card.
• Consumables such as Grill Covers (Release Sheets), gaskets, Conveyor Belt
Wraps, O-Rings, and light bulbs.
• Overtime or Holiday charges.
• Mileage over 50 miles/80 km (100 miles/160 km round-trip), or travel time
over two (2) hours.
• Fright, foreign, excise, municipal or other sales or use taxes.
• Consequential damages such as loss of profit, loss of time, the cost of repair-
ing or replacing other property which is damaged, or any other incidental
damage of any kind.
Owner Information .....................................................2
General......................................................................2
Warranty Information .................................................2
Specifications .............................................................2
Model Specifications..................................................2
Electrical Cord & Plug Configurations .......................2
Dimensions................................................................3
Weights......................................................................3
Important Safety Information ....................................4
Installation...................................................................5
Unpacking..................................................................5
Assembling the Unit ..................................................5
Location .....................................................................5

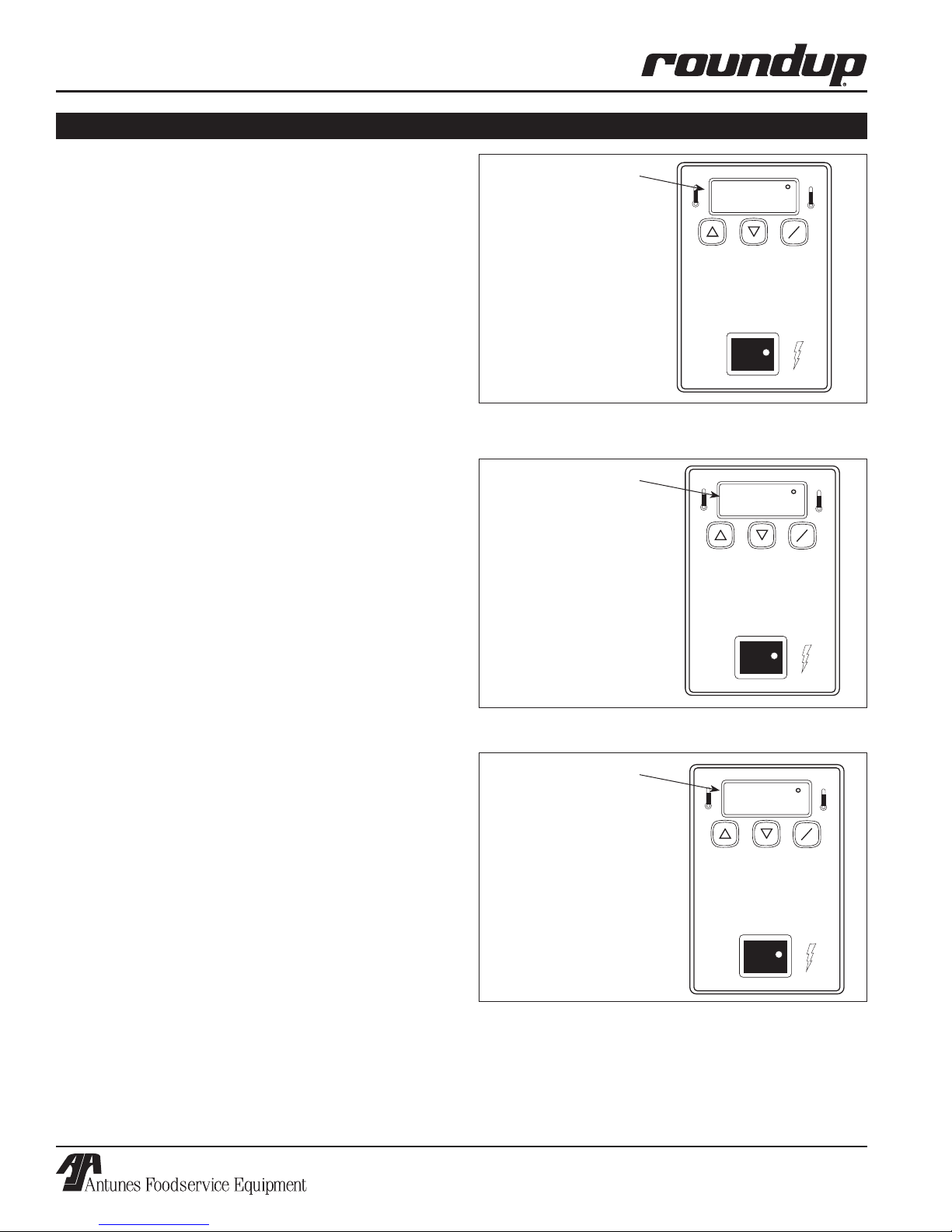

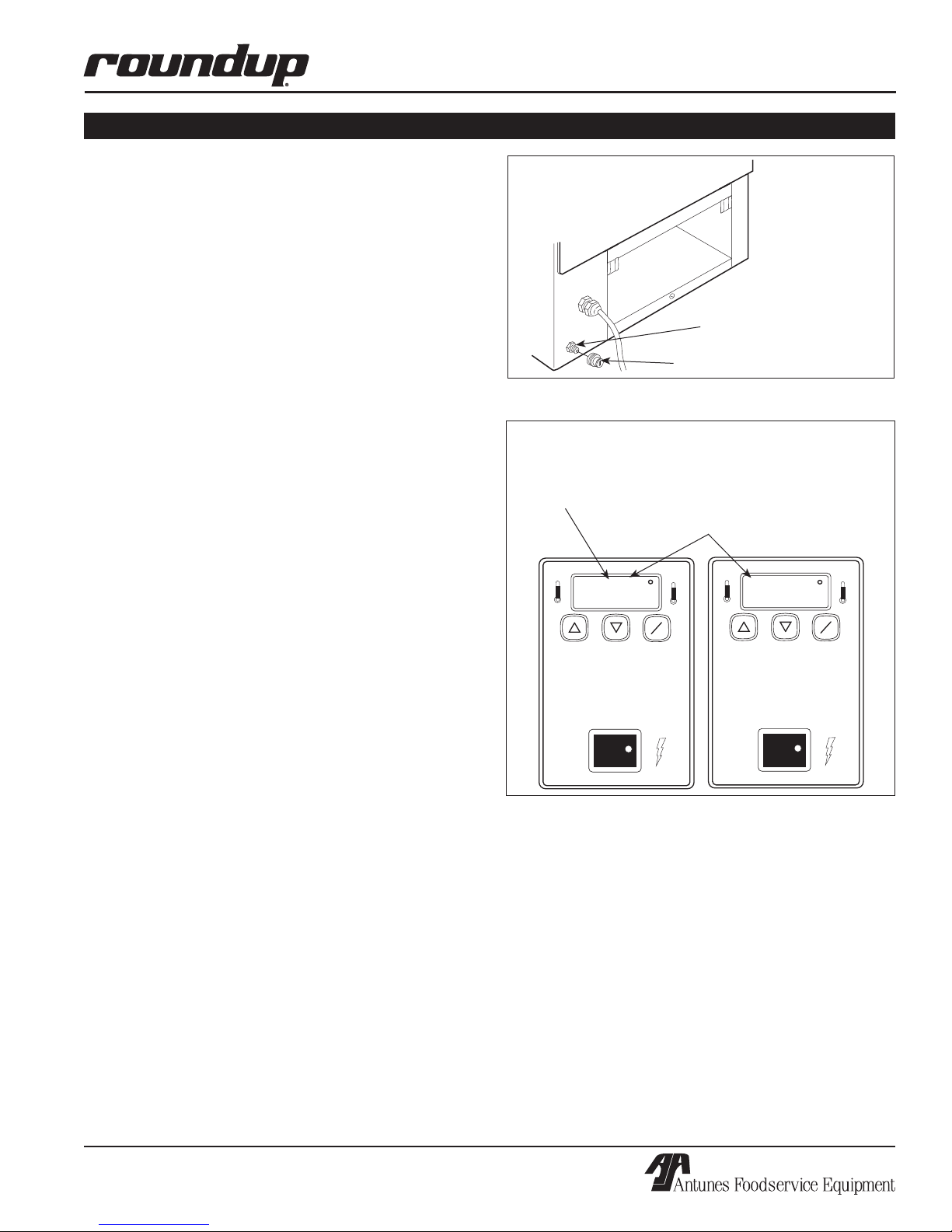

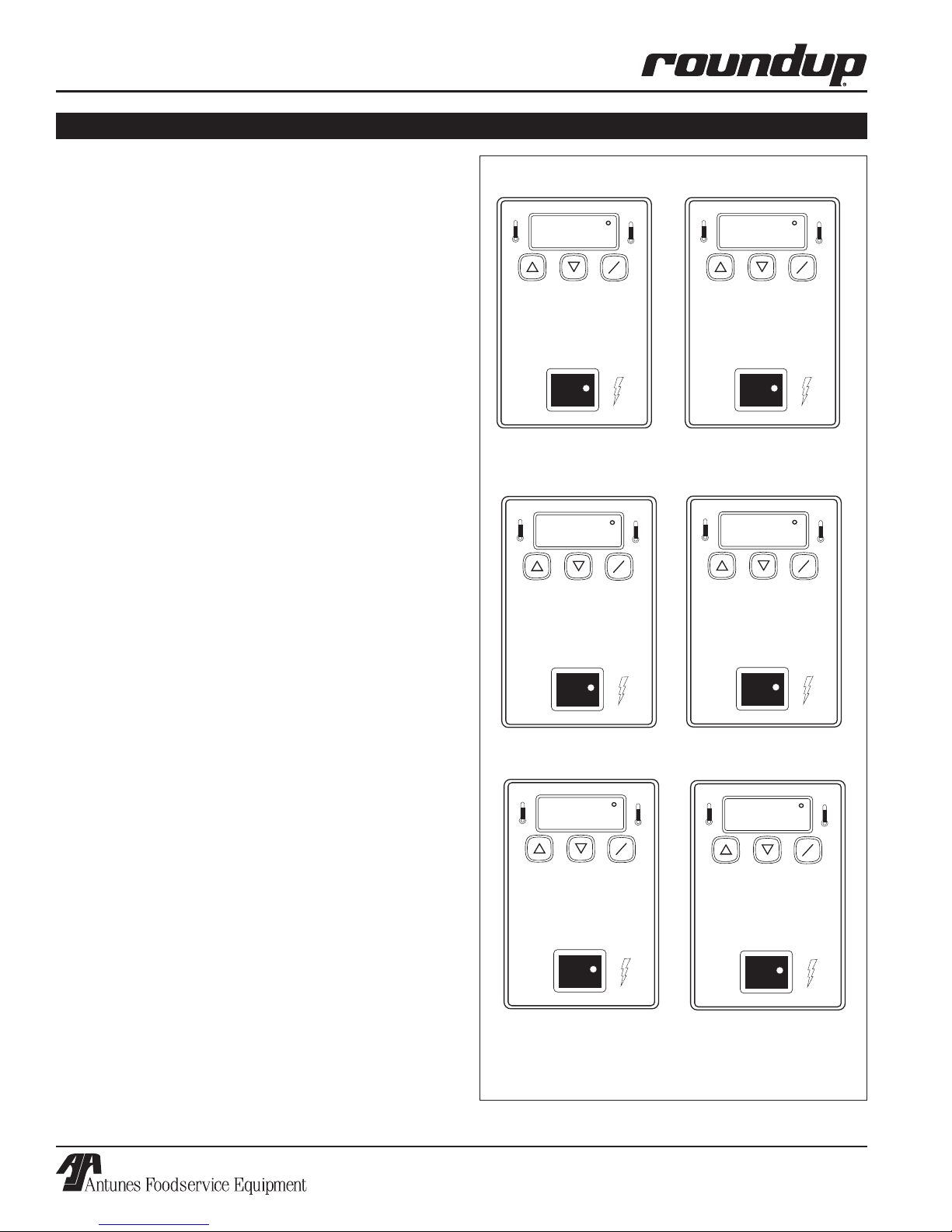

Operation.....................................................................6
Operating Instructions ...............................................6
Toaster Operation......................................................7
Safety Features .........................................................8
Maintenance..............................................................10
Daily cleaning ..........................................................10
Measure the Conveyor Belt Chains for Stretch ......12

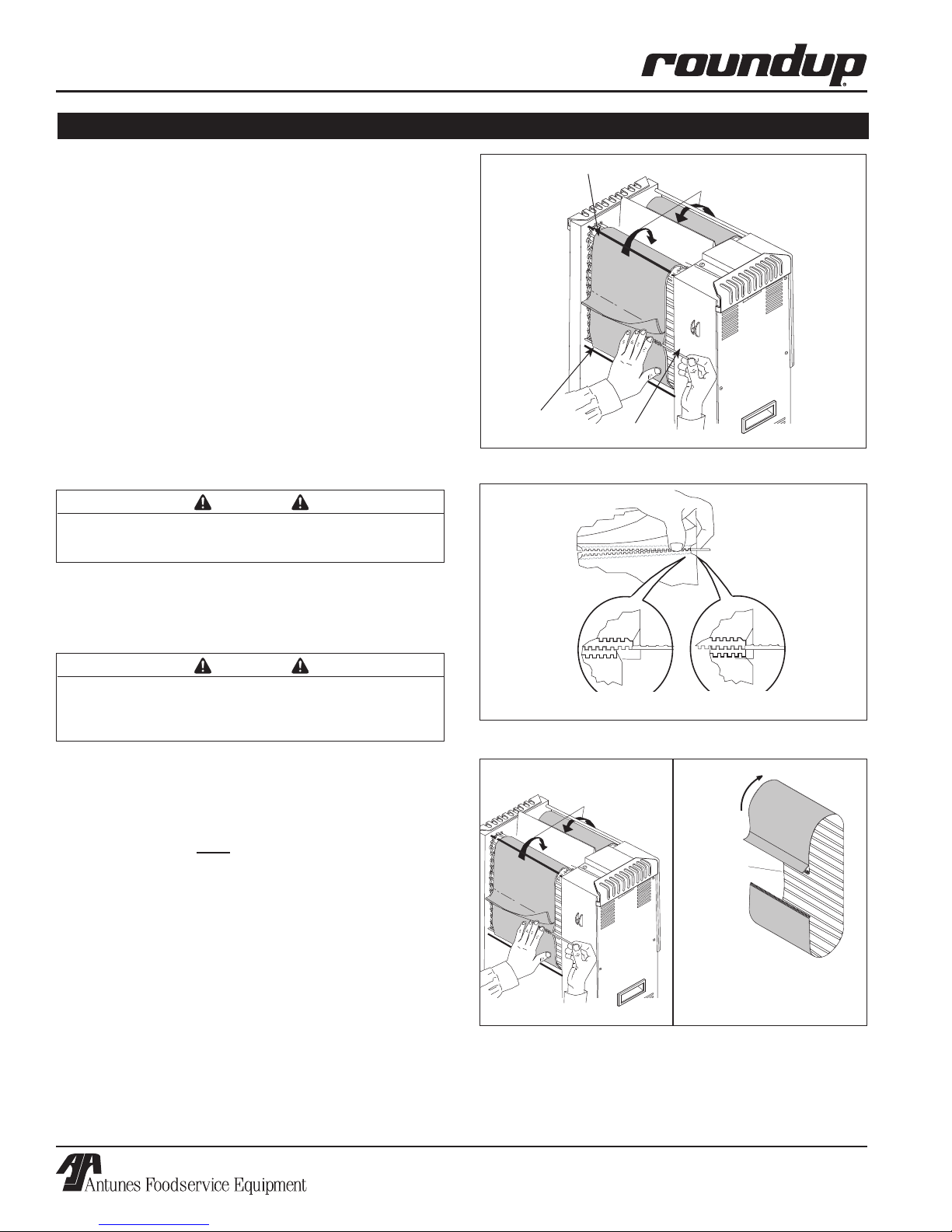

Replacing Belt Wraps .............................................13
Checking the Temperature of the Bun Landing Area14
Adjusting, Measuring and/or Replacing Roller
Tensioner Assemblies..............................................14
Troubleshooting .......................................................15

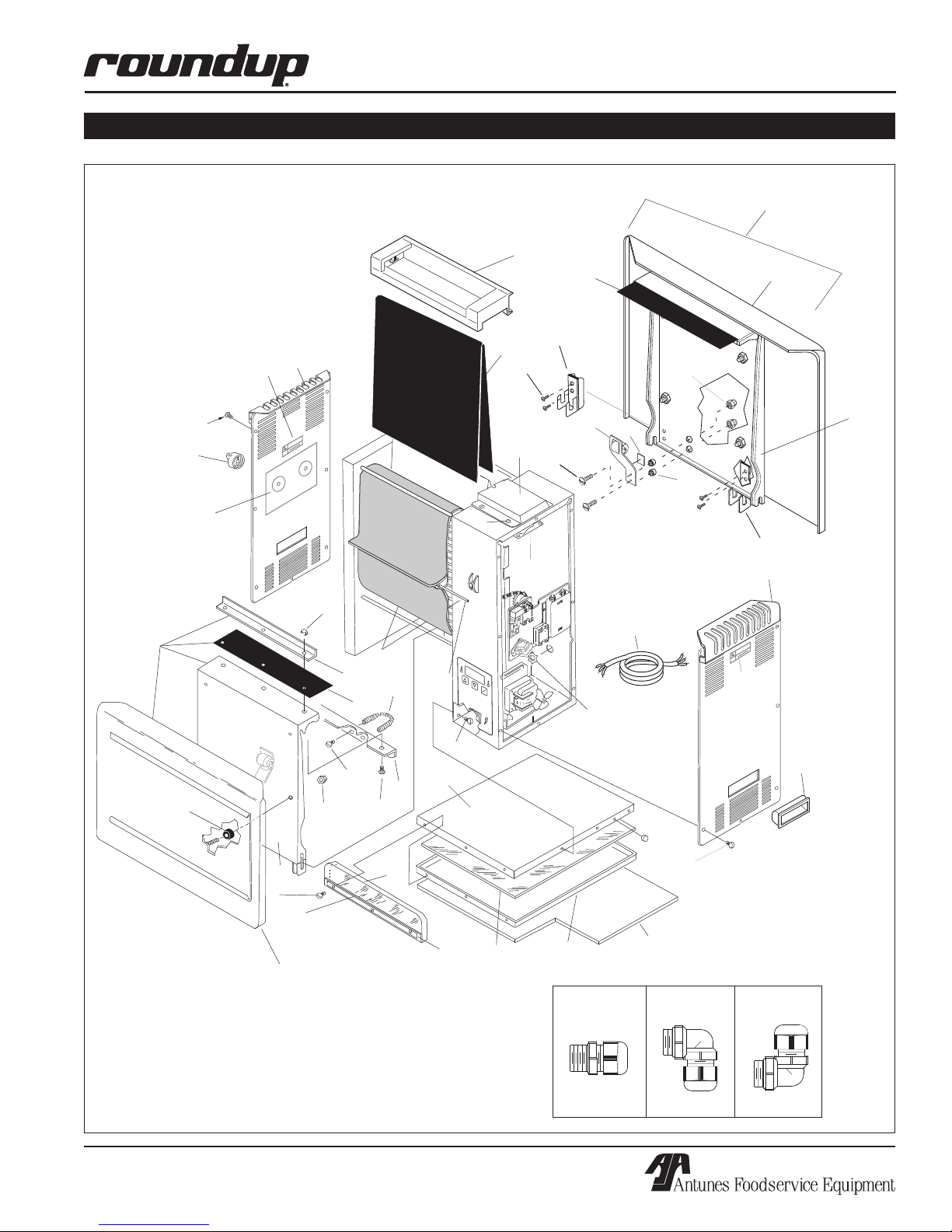

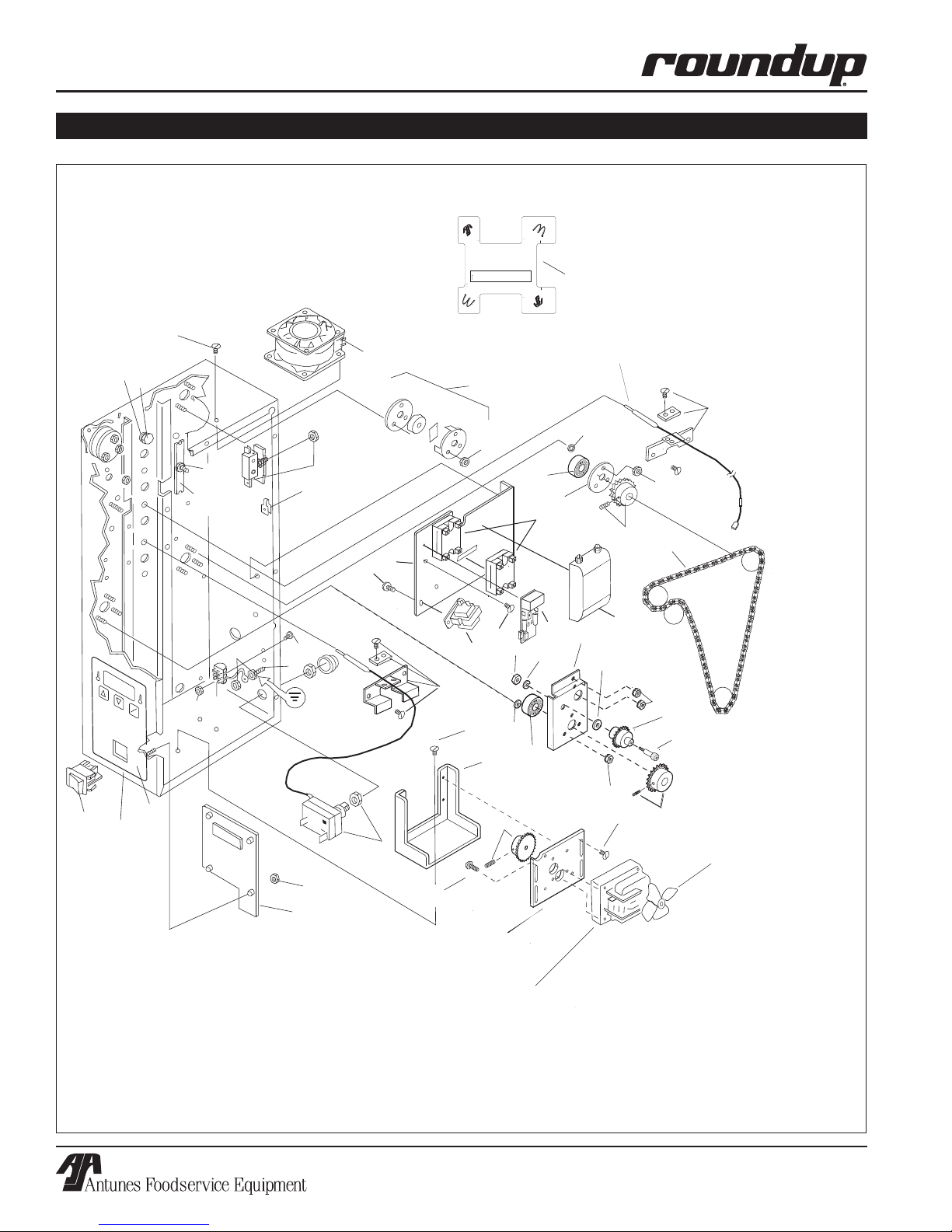

Replacement Parts ..................................................18
Wiring Diagrams.......................................................23
Service/Technical Assistance .................................24
A
S
D
L
I
S
T
E
CM
O
I
N
N
I
T
A
T
Testing & Certification
ITS
geprufte
Sicherheit

Rapid toasteR VCt-250
2P/N 1010837 Rev. L 03/07
McDonald’s
The Rapid Toaster is manufactured from the finest materi-
als available and is assembled to Roundup’s strict quality
standards. This unit has been tested at the factory to
ensure dependable trouble-free operation.
Warranty Information
Please read the full text of the Limited Warranty in this
manual. If the unit arrives damaged, contact the carrier
immediately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and are not
covered under warranty.
General
This manual is produced for the Rapid Toaster.
The Rapid Toaster is designed for contact toasting of
buns. This design allows the operator to place buns on
both sides of the heated Platen at the same time. Buns
are placed into the Bun Feeder on the top of the toaster
and are toasted to a uniform golden brown. The finished
buns then emerge at the base of the toaster.
This manual provides the safety, installation and operating
procedures for the Rapid Toaster. We recommend that this
manual be read prior to installing and operating the unit.
OWNER INFORMATION
If you experience any problems with the installation or
operation of your unit, contact your Authorized Service
Agency.
Fill in the information below and have it handy when
calling your Authorized Service Agency for assistance.
The serial number is on the specification plate located
on the rear of the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
Refer to the service agency directory packaged with
your manual and fill in the information below:
Authorized Service Agency
Name:
Phone No.:
Address:
Use only genuine Roundup replacement parts in this
unit. Use of replacement parts other than those sup-
plied by the manufacturer will void the warranty. Your
Authorized Service Agency has been factory trained
and has a complete supply of parts for this toaster.
You may also contact the factory at 1-877-392-7854
(North America only), or 630-784-1000 if you have trou-
ble locating your local Authorized Service Agency.
To locate your nearest International Authorized Service
Agency: log onto the McDonald’s web site: www.
mcdonalds.com and follow the on screen directions.
SERVICE/TECHNICAL ASSISTANCE

Rapid toasteR VCt-250
3
P/N 1010837 Rev. L 03/07
McDonald’s
Letter
Code*
Description Configuration
H Harmonized Cord
(H)C** CEE 7/7, 16 Amp.,
250 VAC
(Assembly Only).
(H)B** Marechal Pin &
Sleeve 32 Amp.,
220-250 VAC
(Australia)
(H)I** IEC-309, 16 Amp.,
250 VAC., Pin &
Sleeve (Assembly
Only).
(H)M Marechal Pin &
Sleeve 32 Amp.,
220-250 VAC.
(New Zealand)
(H)I IEC-309
230 VAC
Non-Molded Plug
(China Only)
(H)I IEC 309-Plug, 32
Amp., 230 VAC
Three pin.
SPECIFICATIONS
Model Specifications
Electrical Cord & Plug Configurations
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
* Used in Model Designation
** Indicates that the plug comes supplied with a Harmonized Cord.
IMPORTANT! Keep these instructions for future reference. If the unit changes ownership,
be sure this manual accompanies the equipment.
Model Number Mfg. Number Voltage Wattage Amperage HZ Toasting Time
VCT-250HC 9210606 220-240 3058-3640 13.9-15.1 50 Approx. 10 seconds
VCT-250HI 9210608 & 615 220-240 3058-3640 13.9-15.1 50 Approx. 17 seconds
VCT-250HI (Germany) 9210616 220-240 3058-3640 13.9-15.1 50 Approx. 13 seconds
VCT-250 HC/HB/HM 9210607, 624, &
626
220-240 3058-3640 13.9-15.1 50 Approx. 17 seconds
VCT-250HI (China Only) 9210611 220-240 3058-3640 13.9-15.1 50 Approx. 17 seconds
VCT-250HI (Malaysia only) 9210613 220-240 3058-3640 13.9-15.1 50 Approx. 17 seconds
1
2
3
N
20
2
3
5
4
6
3
8
N
1
1
2
7
21
22
24
23
19
9
10
11
12
13
14
15
16
17
18

Rapid toasteR VCt-250
4P/N 1010837 Rev. L 03/07
McDonald’s
20-1/2"
23-1/2"
20-1/4" 15-3/8"
(597 mm)
(391 mm)
22-1/8"
(562 mm)
11-3/8"
(289 mm)(521 mm)
(514 mm)
1/4"
(6 mm)

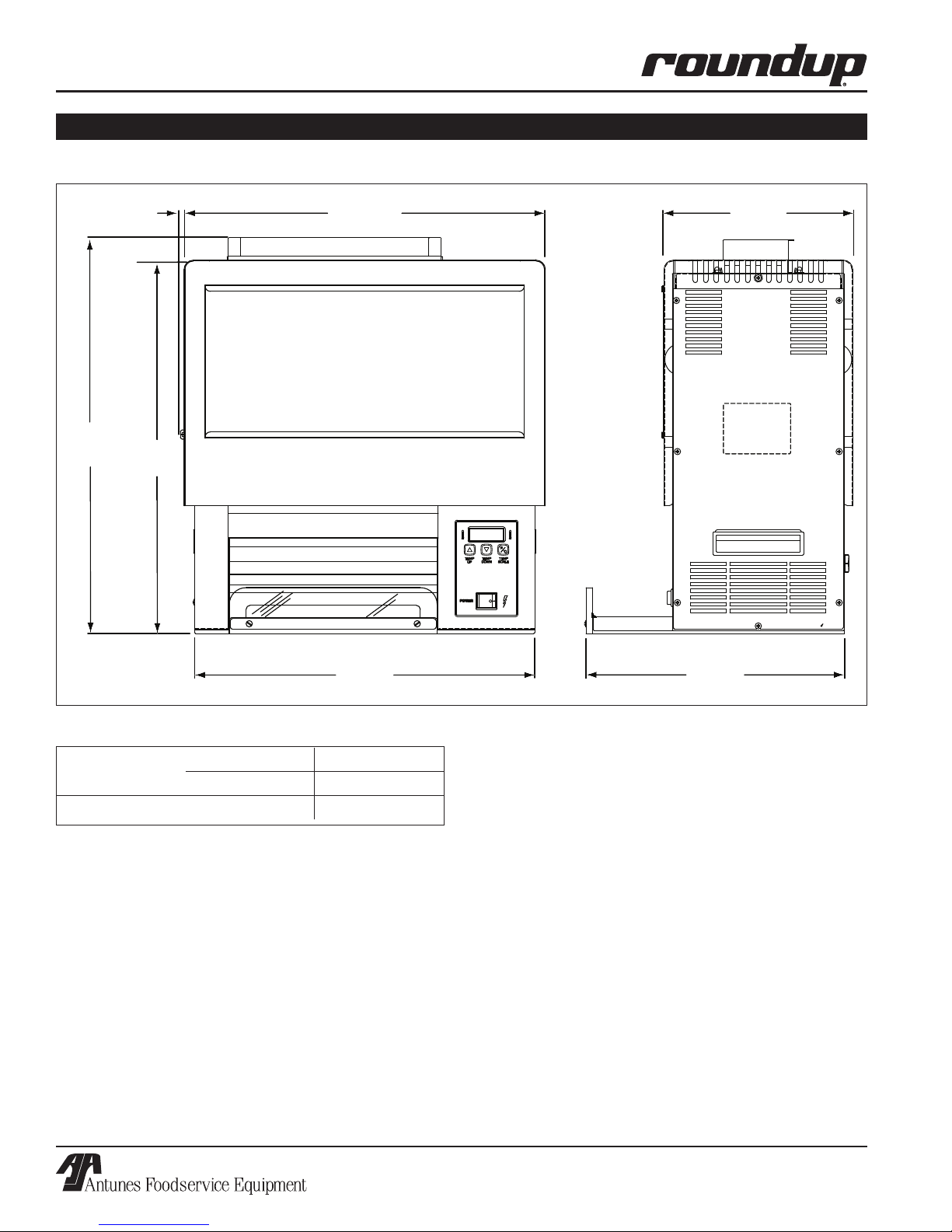

Dimensions
SPECIFICATIONS (continued)
Weights
Lbs Kgs
Net 95 43.1
Shipping 105 47.6

Rapid toasteR VCt-250
5
P/N 1010837 Rev. L 03/07
McDonald’s
Throughout this manual, you will find the following safety words and symbols that signify important safety
issues with regards to operating or maintaining the equipment.
WARNING
GENERAL WARNING. Indicates information
important to the proper operation of the equip-
ment. Failure to observe may result in damage
to the equipment and/or severe bodily injury or
death.
WARNING
ELECTRICAL WARNING. Indicates information
relating to possible shock hazard. Failure to
observe may result in damage to the equipment
and/or severe bodily injury or death.
CAUTION
GENERAL CAUTION. Indicates information impor-
tant to the proper operation of the equipment.
Failure to observe may result in damage to the
equipment.
WARNING
HOT SURFACE WARNING. Indicates information
important to the handling of equipment and parts.
Failure to observe caution could result in personal
injury.
IMPORTANT SAFETY INFORMATION
In addition to the warnings and cautions in this manual,
use the following guidelines for safe operation of the
unit.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with
a properly grounded cord connector. Do not
attempt to defeat the grounded connector.
• Install or locate the equipment only for its intend-
ed use as described in this manual. Do not use
corrosive chemicals in this equipment.
• Do not operate this equipment if it has a dam-
aged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
• This equipment should be serviced by qualified
personnel only. Contact the nearest Authorized
Service Agency for adjustment or repair.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
The following warnings and cautions appear throughout
this manual and should be carefully observed.
• Turn the unit off, disconnect the power source,
and allow unit to cool down before performing any
service or maintenance on the unit.
• The procedures in this chapter may include
the use of chemical products. These chemical
products will be highlighted with bold face let-
ters followed by the abbreviated HCS (Hazard
Communication Standard). See Hazard
Communication Standard manual for the appro-
priated Material Safety Data Sheets (MSDS).
• The equipment should be grounded according to
local electrical codes to prevent the possibility of
electrical shock. It requires a grounded recep-
tacle with separate electrical lines, protected by
fuses or circuit breaker of the proper rating.
• Bread may burn. Therefore toasters must not be
used near or below curtains or other combustible
walls and materials. Failure to maintain safe
operating distances may cause discoloration or
combustion.

Rapid toasteR VCt-250
6P/N 1010837 Rev. L 03/07
McDonald’s
Location
When placing the toaster into service, pay attention to
the following guidelines.
• Make sure power to the unit is off and the toaster
is at room temperature.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
Connect the unit to the power supply. Refer to the
specification plate for the proper voltage.
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• The toaster should be grounded according to
local electrical codes to prevent the possibil-
ity of electrical shock. It requires a grounded
receptacle with separate electrical lines, pro-
tected by fuses or circuit breaker of the proper
rating.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
CAUTION
Bread may burn. Therefore toasters must not be
used near or below curtains or other combustible
walls and materials. Failure to maintain safe oper-
ating distances may cause discoloration or com-
bustion.
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
Unpacking
1. Remove unit and all packing materials from
shipping carton.
2. Open the accessory box. It should contain
the following:
• Bun Chute (Figure 1)
• Bun Feeder (Figure 1)
• Plastic bag containing the
Release Sheets (not shown)
3. Remove all packing materials and protective
coverings from the unit and parts.
NOTE: If any parts are missing or damaged, con-
tact A.J. Antunes Technical Service IMMEDIATELY
at 1-877-392-7854 (North America only), or 630-784-
1000.
INSTALLATION
Figure 1. Installing Bun Chute
POWER
TEMP
DOWN
TEMP
UP TEMP
SCALE
°C
°F
CAUTION
Bun Chute
Bun Chute
Bun Feeder
Hook Bun Chute over
rear Conveyor Cover
Rod
Assembling the Unit
1. Install the Bun Chute (Figure 1).
2. Install the Bun Feeder. The Bun Feeder clips fit
over the tip of the Platen and retain the Release
Sheet (Figures 1 & 9).
NOTE: Check the Release Sheet to make sure it
is not caught in the conveyor. Additional Release
Sheets can be obtained through your Authorized
Service Agency.

Rapid toasteR VCt-250
7
P/N 1010837 Rev. L 03/07
McDonald’s
2. Turn the Rocker Switch (Power On/OFF) to
ON (Figure 3). Allow 30 minutes warm-up time
before proceeding.
NOTE: The Temperature Display (Figure 4) will flash
“LO” until preset operating temperature is reached.
When the toaster approaches the preset tempera-
ture, “USE” will appear in the Temperature Display
and the unit is ready to toast buns.
The toaster is tested and shipped with the heaters set
at a preset recommended temperature. If “USE” does
not appear in the window after warm-up period, see
Temperature Adjustments below for recommended tem-
perature settings and to adjust temperature settings.
3. Drop buns into toaster (Figure 3). Cut sides of
heel and crown must face each other (heel/club
in front, crown in back).
4. Toasted product will drop into the bun landing
area (Figure 3).
5. Test at least 4 buns before putting toaster
into service.
6. Turn the Rocker Switch (Power On/Off) to OFF
when finished toasting.
Operating Instructions
1. Set the Bun Thickness Adjustment Controls
(Figure 2a and 2b) according to the following
table:
OPERATION
0/7%2
4%-0
$/7.
4%-0
50 4%-0
3#!,%
#
&







#2/7.
"
"
%
$
#
!&
(%%,#,5"
4()#+.%33 4()#+.%33 !vMM
"vMM
#vMM
$vMM
%vMM
&vMM
vMM
vMM
vMM
vMM
vMM
vMM
CAUTION
Figure 3. Rapid Toaster
Bun Thickness
Adjustment
Controls
Heel/Club
Crown
Bun Landing
Area
Rocker Switch
(Power ON/OFF
Switch) Temperature Controls &
Temperature Display
(See Figure 2)
3
2
1
6
4
CROWN
E
C
AF
HEEL/CLUB
THICKNESS THICKNESS A = 3/8” (09.5mm)
B = 7/16” (11.1mm)
C = 1/2” (12.7mm)
D = 9/16” (14.3mm)
E = 5/8” (15.9mm)
F = 11/16” (17.4mm)
1 = 9/16” (14.3mm)
2 = 5/8” (15.9mm)
3 = 11/16” (17.4mm)
4 = 3/4” (19.1mm)
5 = 13/16” (20.6mm)
6 = 7/8” (22.2mm)
3
B
B
D
5
Figure 2a. Bun Thickness Adjustment Controls for
Mfg. No.: 9210606 and 9210616
NOTE: Background color of this label is GRAY.
5
3
2
1
6
4
CROWN
D
E
B
C
AF
HEEL/CLUB
THICKNESS THICKNESS A = 3/8” (09.5mm)
B = 7/16” (11.1mm)
C = 1/2” (12.7mm)
D = 9/16” (14.3mm)
E = 5/8” (15.9mm)
F = 11/16” (17.4mm)
1 = 9/16” (14.3mm)
2 = 5/8” (15.9mm)
3 = 11/16” (17.4mm)
4 = 3/4” (19.1mm)
5 = 13/16” (20.6mm)
6 = 7/8” (22.2mm)
5
D
Figure 2b. Bun Thickness Adjustment Controls for
Mfg. No.: 9210607, 608, 613, 624, & 626
NOTE: Background color of this label is YELLOW.
For Mfg. No.: Set the Crown
Control to:
And set the Heel/
Club Control to:
9210606 3 B
9210616 4 E
9210607 5 D
9210608 5 D
9210613 5 D
9210615 5 D
9210624 5 D
9210626 5 D
Table 1. Bun Thickness Adjustment Control
Settings

Rapid toasteR VCt-250
8P/N 1010837 Rev. L 03/07
McDonald’s
Toaster Operation
The Rapid Toaster uses a Platen Heater and two
Auxiliary Heaters. The Platen Heater consists of a
heating coil built into the platen to toast the cut side of
the bun. The two Auxiliary Heaters assist in providing
additional heat to the buns. The first Auxiliary Heater
is located within the Conveyor Belt Chain in the front
of the toaster. The second Auxiliary Heater is located
within the Conveyor Belt Chain at the rear of the unit.
TEMPERATURE CONTROL
NOTE: Setpoint Temperature refers to the desired
temperature setting.
Pressing the TEMP UP key displays the current
platen temperature, provided it is over 420° F (216° C).
Pressing the TEMP DOWN key displays the
current auxiliary heaters temperature, provided it is
over 250° F (121° C).
Pressing and holding TEMP SCALE key for 3-5
seconds switches the temperature display between
Fahrenheit (°F) and Celsius (°C).
RECOMMENDED TEMPERATURES
Recommended temperature setting for the Platen
Heater is 560° F (293° C) MFG# 9210606, 607, 608,
613, 615, 624, & 626.
Recommended temperature setting for the Platen
Heater is 585° F (307° C) MFG# 9210616.
Recommended temperature setting for the Auxiliary
Heaters is 400° F (204° C) MFG# 9210606, 607, 608,
613, 615, 616, 624, & 626.
NOTE: Units are tested and shipped with heaters
set to the above recommended temperatures.
PLATEN SETPOINT TEMPERATURE ADJUSTMENT
1. Turn the Rocker Switch (Power On/Off) to ON
and wait for the Temperature Display to finish the
power up sequence (Figure 4).
2. Press and hold both TEMP UP and TEMP DOWN
keys until the display flashes the platen setpoint
temperature, then release.
3. Press the TEMP UP or the TEMP DOWN key
to raise or lower the setpoint temperature.
The setpoint temperature will adjust 1° every
0.1 seconds.
4. Release the key when the desired setpoint is
displayed.
NOTE: Maximum adjustable setpoint temperature
for the platen is 600°F (315°C).
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
sp-p 560
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
400
sp-a
Figure 4. Temperature Power Up Sequence
3. SP-A (Setpoint Auxiliary)
is displayed
1. SP-P (Setpoint Platen)
is displayed
“Heat On” LED will blink on/off during warm-up and when either
platen or auxiliary heaters are calling for heat.
2. Current Platen Temperature
setting is shown
4. Current Auxiliary Temperature
setting is shown
5. “LO” is displayed until
platen temperature rises
above 520°F (271°C)
6. “USE” is displayed when
Platen Setpoint Temperature*
is reached
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
lo
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
use
* Platen setpoint temperature must be between
520°F (271°C) and 590°F (310°) for “USE” to be displayed.
OPERATION (continued)

Rapid toasteR VCt-250
9
P/N 1010837 Rev. L 03/07
McDonald’s
NOTE: If no change is made within 5 seconds, the
display will revert back to the previous setpoint.
AUXILIARY HEATER TEMPERATURE ADJUSTMENT
1. Turn the unit ON and wait for temperature display
to finish the power up sequence (Figure 4, num-
bers 3 & 4).
2. Press and hold both TEMP UP and TEMP SCALE
keys until the display flashes the auxiliary setpoint
temperature, then release (Figure 4, number 3)
3. Press the TEMP UP or TEMP DOWN key to raise
or lower the setpoint temperature. The setpoint
temperature will adjust 1° every 0.5 seconds.
4. Release the key when the desired setpoint is
displayed.
NOTE: Maximum adjustable setpoint temperature
for the Auxiliary Heater is 400° F (204° C).
NOTE: If no change is made within 5 seconds, the
display will revert back to the previous setpoint.
Safety Features
HI-LIMIT RESET BUTTON
A hi-limit control will turn off electrical power to the con-
trol circuits if the unit overheats. To reset this hi-limit
control, allow sufficient time (10-15 minutes) for the unit
to cool down, then depress the reset button located on
the rear of the unit (Figure 5).
If the unit requires continuous resetting, contact your
Authorized Service Agency.
FAULT MESSAGES
• If the Platen Thermocouple is disconnected or
“open”, the display will flash “HI.” The Platen
Thermocouple must be reattached or replaced.
• If the Platen Heater temperature exceeds 620°F
(327°C) the display will flash “HI” and the heating
circuit will turn off (Figure 6). After the toaster has
cooled down, the unit must be turned off, then back
on to restart. If this condition repeats, contact your
Authorized Service Agency.
• If the Auxiliary Heating temperature exceeds 420°
F (215°C) the display will alternately flash “HI” and
“USE” (Figure 6). After the toaster has cooled
down, the unit must be turned off, then back on
to restart. If this condition repeats, contact your
Authorized Service Agency.
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
USE
HI
Figure 6. “HI” Fault Message
“HI” is displayed if the Platen
temperature exceeds 620°F
(327°C) or if the Platen
Thermocouple is disconnected
or “open”.
“HI” and “USE” will alternately
flash if the Auxiliary Heaters
temperature exceeds 420°
F (215°C) or if the Auxiliary
Thermocouple is disconnected
or open.
Hi-Limit Reset
Protective Screw Cap
Figure 5. Hi-Limit Reset
OPERATION (continued)

Rapid toasteR VCt-250
10 P/N 1010837 Rev. L 03/07
McDonald’s
Figure 7. “CHEC” Fault Message
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
chec
“CHEC” will flash when
control compartment
ambient temperature is exces-
sive: 140°F (60°C) to 180°F
(82°C). All heaters will shut off.
Figure 8. “PO” Fault Message
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
po
“PO” will flash when
incoming power drops below
175 Volts. Toaster shuts down.
OPERATION (continued)
FAULT MESSAGES (continued)
• The temperature controller has an ambient
temperature sensor that will disable the heating
circuits if the control compartment ambient
temperature becomes excessive: 140°F (60°C)
to 180°F (82°C).
When this occurs, the temperature display will flash
“CHEC” (Figure 7). To restart the unit, ambient
must drop to 140°F (60°C) and the unit must be
turned off, then back on. If this condition repeats,
contact your Authorized Service Agency.
• If incoming power drops below 175 Volts, the heat-
ing circuits are disabled and the display will read
“PO” (Figure 8). To reset, the voltage must be
over 190 Volts, then the unit must be turned off
and back on. If this condition repeats, contact your
Authorized Service Agency.
• The “PH” fault message (Figure 9) is displayed if
the Conveyor Interlock Safety Switches (Figure 11)
are not properly engaged . When a PH fault exists,
reposition both the front and rear Conveyor Covers
so that they fully engage the Conveyor Safety
Interlock Switches. The unit should return to normal
operation when the Conveyor Covers are posi-
tioned correctly.
If the “PH” Fault does not clear, contact your
Authorized Service Agency for service.
Figure 9. “PH” Fault Message
TEMP
UP
TEMP
DOWN TEMP
SCALE
°F
°C
POWER
QI
“PH” will flash when
the Conveyor Safety Interlock
Switches are not properly
engaged.

Rapid toasteR VCt-250
11
P/N 1010837 Rev. L 03/07
McDonald’s
Daily cleaning
NOTE: Also refer to TS 019B-1 Card (P/N 1010847).
1. Turn the Rocker Switch (power ON/OFF) to OFF,
unplug the toaster and allow it to cool down.
2. Put on Heat Resistant Gloves and remove the Bun
Feeder and Bun Chute (Figure 10). Wash them at
the sink and allow to air dry.
3. Remove the Release Sheet (Figure 9) and lay
it on a clean, flat, dry surface. Spray McD©
All-Purpose Super Concentrate (HCS) on a
clean, dry towel. Wipe the towel firmly across the
Release Sheet lengthwise over its entire surface.
Immediately, repeat this procedure with a clean,
dry towel dampened with KAYQUAT™ Sanitizer
(HCS) solution and allow the Release Sheet to air
dry. Turn the Release Sheet over and repeat this
cleaning procedure on its other side.
4. Open the Front (Heel/Club side) Conveyor Cover,
spray McD© All-Purpose Super Concentrate
(HCS) on a clean, dry towel and wipe the sur-
face of the Belt Wrap firmly from side to side
and then top to bottom. Immediately, repeat the
procedure with a clean, dry towel dampened with
KAYQUAT™ Sanitizer (HCS) solution. Close the
Conveyor Cover and repeat this procedure on the
second, rear (Crown side) Belt Wrap.
NOTE: Do not remove Belt Wrap from unit.
5. Plug in the power cord and turn the unit ON,
count ten (10) seconds for MFG# 9210606, count
thirteen (13) seconds for MFG# 9210616. For
MFG# 9210607, 608, 613, 615, 624, & 626 count
seventeen (17) seconds. Then, turn the unit OFF
and unplug the power cord. Repeat Step 4 again
on both Belt Wraps, Heat Dampers and the sur-
face of the Inner Conveyor Covers.
NOTE: Make sure both Conveyor Safety Interlock
Switches are activated when the covers are
installed (Figure 10) or conveyors will not rotate.
6. Plug the power cord in and turn on the unit, fold
the Release Sheet in half and place it over the
Platen. Allow it to be drawn into place and posi-
tioned properly.
MAINTENANCE
WARNING
Turn the unit off, disconnect the power source
and allow the unit to cool down before performing
any service or maintenance on the unit.
POWER
TEMP
DOWN
TEMP
UP TEMP
SCALE
°C
°F
CAUTION
Figure 10. Removing/Installing Release Sheet
Bun Feeder
Platen
Bun Feeder Clip
Release Sheet
Bun Chute
NOTE: Check the release sheet to make sure it is
not caught in the conveyor.
7. Turn the unit OFF and re-install the Bun Feeder
and Bun Chute.
8. Wipe the entire exterior surface to the toaster with
a clean, dry towel, dampened with KAYQUAT™
Sanitizer (HCS) and allow it to air dry.
9. Verify that the Bun Thickness Compression
Controls are set properly. Refer to Table 1.

Rapid toasteR VCt-250
12 P/N 1010837 Rev. L 03/07
McDonald’s
Figure 11. Replacing Belt Wraps
CAUTION
POWER
TEMP
DOWN
TEMP
UP TEMP
SCALE
˚C
˚F
Bun Feeder
Front (Heel) Conveyor Cover
Rear (Crown)
Conveyor Cover
Bun Chute Safety
Interlock
Switch
(1 each side)
MAINTENANCE (continued)
Monthly: Bun Temperature Test
NOTE: The minimum temperature allowed is 150°
F (65.6º C). If this temperature is not achieved con-
tact your Authorized Service Agency.
Tools Required: Pyrometer/Needle probe attachment,
four 8 oz. coffee cups stacked together, plus one lid
or four 12 oz coffee cups plus one lid.
1. Turn the Rocker Switch (power On/Off) to ON and
allow the unit to preheat for 30 minutes.
2. Toast 3 regular buns (to be used with the 8oz.
cup stack) or 4 regular buns (to be used with the
12 oz. cup stack).
3. Immediately stuff the buns into the stacked cups
and tightly apply the lid. Wait for 10 minutes.
4. Insert the needle probe attachment of the
pyrometer through the lid several times.
Note the maximum temperature.
Monthly: Replace Release Sheet.
Every Three Months: Replace Belt Wraps,
Clean and Measure Conveyor Belt Chains,
Check Roller Tensioners, and Check
Temperature of Bun Landing Area.
Remove the Belt Wraps & Release Sheet.
1. Turn the unit OFF, unplug the toaster, and allow it
to cool down.
2. Remove the Bun Feeder, Bun Chute, and change
the Bun Thickness Compression Controls to
“F & 6” (Figure 2a and 2b).
3. Remove and discard the black Release Sheet.
4. Open the Front (Heel/Club) Conveyor Cover and
rotate the Belt Wrap so its flap is in the middle
(top to bottom) of the conveyor. Pull the hinge
pin out of the Belt Wrap and then remove and
discard this Belt Wrap. Repeat this process on
the Rear (Crown) side.
Clean the Conveyor Belt Chains
1. Spray McD© All-Purpose Super Concentrate
(HCS) on a clean, dry, towel and wipe the sur-
face of the Rear (Crown) Conveyor Belt Chain
links firmly from side to side and top to bottom.
Immediately repeat this procedure with a clean,
dry, towel dampened with KAYQUAT™ Sanitizer
(HCS) solution and repeat this procedure on the
Front (Heel/Club) Conveyor Belt chain.
2. Close the Conveyor Cover(s), plug in the power
cord, turn on the unit, count to ten (10) seconds
for MFG# 9210606, count thirteen (13) seconds
for MFG# 9210616. For MFG# 9210607, 608,
613, 615, 624, & 626 count to seventeen (17)
seconds. Next, turn the unit OFF and unplug the
power cord.
NOTE: Refer to Figure 2 in the Operation section of
this Manual.
3. Open the Conveyor Cover(s) and repeat Step 1
to clean the other half of both the Front (Heel/
Club) and Rear (Crown) Conveyor Belt Chains.

Rapid toasteR VCt-250
13
P/N 1010837 Rev. L 03/07
McDonald’s

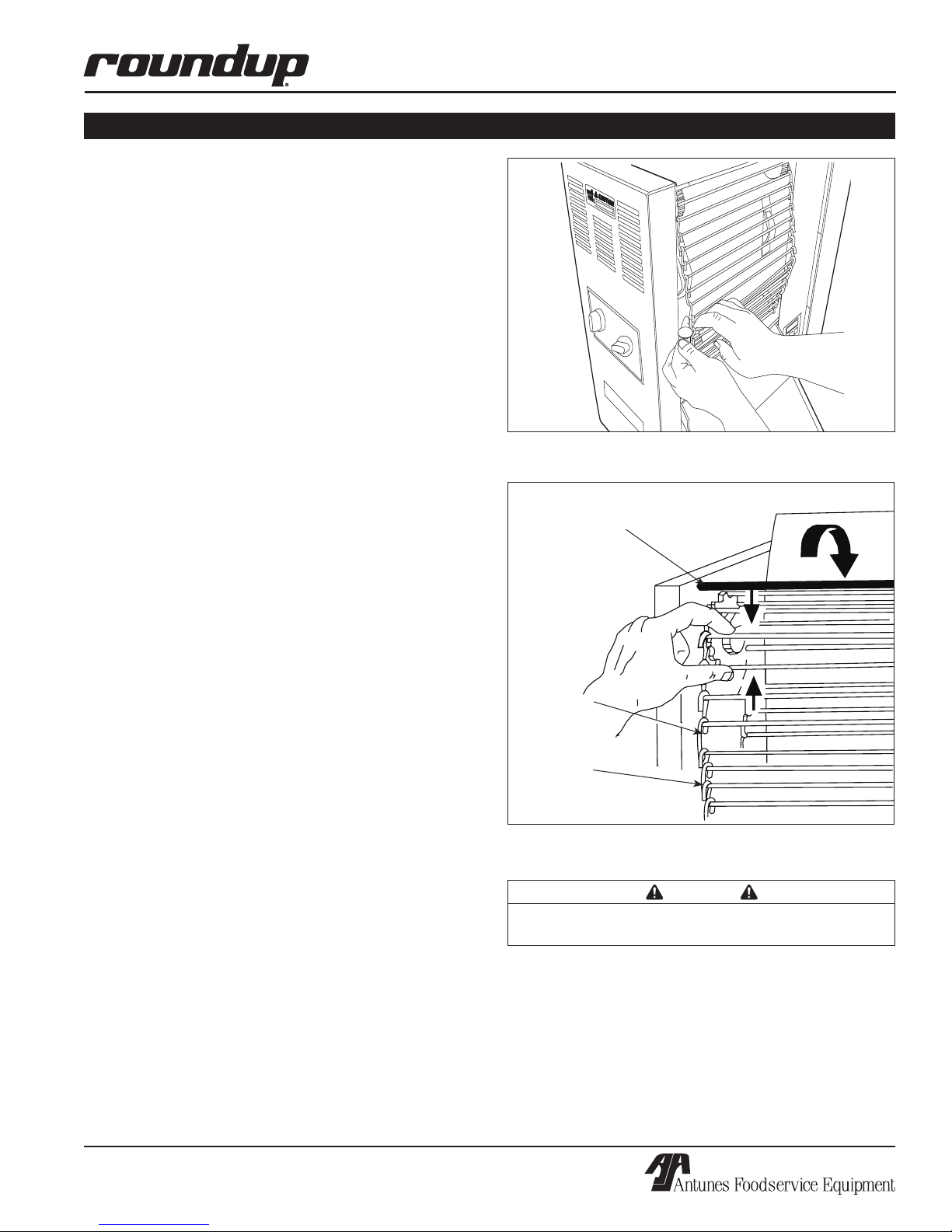

Figure 12. Measuring Conveyor Chain
MAINTENANCE (continued)
Measure the Conveyor Belt Chains for
Stretch
After a period of time, the Conveyor Belt Chain links
wear and the conveyor will stretch. This may cause
the conveyor to jam as it rotates on the sprockets or
possibly skip on the sprockets. This is easily remedied
by removing one or more links from each side of the
conveyor.
NOTE: This periodic adjustment not covered
under warranty. It is a user responsibility.
1. Remove the front and rear Conveyor Covers and
set the Bun Thickness Compression Controls to
“6 & F”.
2. Facing the heel/club side (front), locate the
approximate center point of the Conveyor Belt
Chain.
3. Pull the Conveyor Belt Chain away from the edge
of the toaster.
4. Stand a U.S. Quarter coin (15/16” (2.5 cm)
horizontally between the chain and the frame
(Figure 12).
NOTE: The coin should fit securely between the
chain and the frame.
5. If the gap is significantly wider than the coin (one
and a half times as large) a small link will have to
be removed from the Conveyor Belt Chain.
6. Disconnect the Conveyor Belt Chain by squeez-
ing any two links together and unhooking both
ends of one link (Figure 13).
NOTE: Needle nose pliers may be required.
7. To shorten a stretched Conveyor Belt Chain,
remove one 1/2” link from the Conveyor Belt
chain.
8. Reconnect by hooking both ends of the Conveyor
Belt Chain back together and measure again
accordingly.
NOTE: If the chain is too short/tight to be reas-
sembled, remove an additional 1/2” link and install
a 3/4” link. This will shorten the belt 1/4” overall.
9. Reassemble the Conveyor Belt Chain and repeat
the measurement.
Figure 13. Removing Conveyor Chain Link
Rotation
Upper Yellow Support Rod
Large Link
P/N 0800121
Small Link
P/N 0800204
CAUTION
Loose or over tightened conveyor chains can
damage the toaster.
NOTE: If you CANNOT stand the coin between the
belt and frame you have taken out the wrong sized
link or have taken out too many links and damage
may occur to the toaster.
10. Repeat steps 3 through 7 for the crown (rear) side
of the toaster using a U.S. Dime coin (11/16”, 1.8
cm).

Rapid toasteR VCt-250
14 P/N 1010837 Rev. L 03/07
McDonald’s
Replacing Belt Wraps
NOTE: Follow Steps 1-3, page 12 if necessary.
1. Locate the Hinge Flap on the Belt Wrap, if the
Hinge Flap is not visible; plug in the power
cord and turn the unit on, press down on both
Conveyor Safety Interlock Switches (Figure 10)
and wait until the flap is exposed and centered.
Turn the unit off and unplug the power cord, lift
flap, remove the Hinge Pin, and carefully remove
the Belt Wrap from the unit (Figure 14). Discard
this belt. Repeat this process for the rear (Crown)
side.
2. Install the new Belt Wraps with the Hinge Flap
hanging down and the wavy lines facing out, as
shown in Figure 16.
NOTE: The Belt Wraps must be installed inside the
yellow Support Rods. The flap, should be installed
facing the outside of the toaster and should be in
the down position (Figures 14 & 16).
3. Close the front and rear Conveyor Covers by lift-
ing the covers and gently pushing upward and
into the toaster until the covers latch onto the yel-
low Support Rods.
NOTE: Make sure both Conveyor Safety Interlock
Switches are activated when the covers are
installed (Figure 11) or the conveyors will not
rotate.
CAUTION
Be sure the Belt Wrap is positioned INSIDE the
upper and lower yellow Support Rods or damage
to the Belt Wraps will occur.
MAINTENANCE (continued)
Figure 14. Replacing Belt Wrap
INCORRECT CORRECT
Figure 15. Aligning Belt Wrap Teeth
Belt Wrap Pin
Belt Rotation
Upper Yellow Support Rod
Lower Yellow Support
Rod
Figure 16. Correct Belt Wrap Installation
Direction of Travel
Horizontal Rib
Installed to the INSIDE
Belt Wrap
Rotation
CAUTION
Be sure Belt Wrap ends are aligned as shown in
Figure 15 or damage to the Belt Wrap will occur.

Rapid toasteR VCt-250
15
P/N 1010837 Rev. L 03/07
McDonald’s
Rear Conveyor Cover Assy.
Spacer
Acorn Nut
Screw
Tensioner Assy.
Teflon Tape
Figure 19. Replacing Roller Tensioner Assembly.

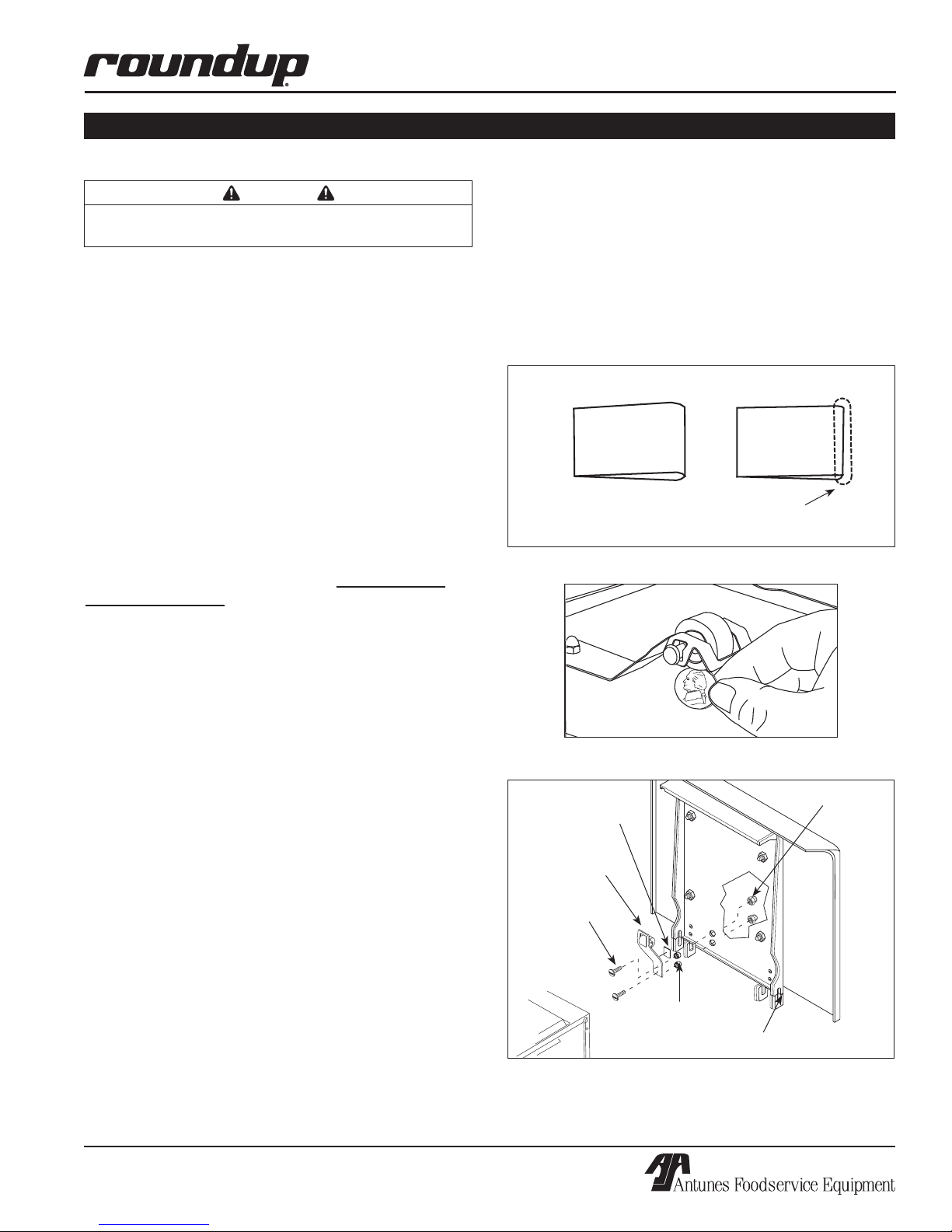

MAINTENANCE (continued)
Install New Release Sheet (monthly)
1.Fold a new Release Sheet in half, creasing the
fold only with your fingers (Figure 17), and place
it over the Platen. Allow the conveyor to draw it
into place and verify that it is positioned properly
(Figure 9).
NOTE: Use only your fingers to crease the fold.
DO NOT use any metal, wood, or plastic devices
as they will damage the Release Sheet. Additional
Release Sheets can be obtained through your
Authorized Service Agency.
2. Re-install the Bun Feeder and Bun Chute and
allow the toaster 30 minutes to warm up.
Figure 17. Folding Release Sheet
Lay sheet on a flat surface
Fold over so ends meet Press lightly with finger to
form crease
CAUTION
Failure to use Release Sheets will result in damage to
the unit and loss of warranty coverage.
Adjusting, Measuring and/or Replacing
Roller Tensioner Assemblies
NOTE: Measure the Roller Tensioners. They should
be 13/16” (2.1 cm), or the height of a U.S. Nickel
coin from the bottom of the roller to the inner
Conveyor Cover (Figure 18) and adjust or replace
them accordingly. If the tensioners have been
damaged, they should be replaced:
1. Remove screws from acorn nuts (Figure 19) and
remove the old Roller Tensioner assembly.
Checking the Temperature of the Bun
Landing Area
IMPORTANT: If the toaster is equipped with a Bun
Buffer Landing Zone (BBLZ), you MUST remove
the BBLZ BEFORE performing the temperature
measurement in Step 1 below. This temperature
measurement is intended to be taken WITHOUT the
BBLZ attached to the toaster.
1. Take the temperature of the Bun Landing Area at
its center directly in front of the Bun Chute with
a Pyrometer/Surface Temperature (grill) Probe.
The minimum acceptable temperature is 130° F
(54° C). If the temperature is less, contact your
Authorized Service Agency or the Technical
Service Department of A.J. Antunes & Co. at 877-
392-7854 (for the U.S. & Canada only) or 630-
784-1000.
2. If a Bun Buffer Landing Zone was removed from
the toaster in Step 1, re-attach it after completing
Step 1.
Figure 18. Measuring Roller Tensioner
2. Replace Roller Tensioner assembly and reas-
semble.
3. Make sure the spacers are placed inside the
tensioner arm. The spacers are smaller than the
holes to allow the tensioner to pivot freely.
4. Set the Bun Thickness Compression Controls
according to Table 1. Plug in the power cord and
turn unit on.
NOTE: Refer to Table 1 as well as Figures 2a and 2b
in the Operation section of this manual.

Rapid toasteR VCt-250
16 P/N 1010837 Rev. L 03/07
McDonald’s
TROUBLESHOOTING
WARNING
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment
should be performed by qualified service personnel. The unit should be unplugged when servicing, except when
electrical tests are required. Use extreme care during electrical circuit tests. Live circuits will be exposed.
Problem Possible Cause Corrective Action
No Display
No light on Power Switch
Unit not plugged in. Connect toaster to proper receptacle.
Hi-Limit tripped. Reset Hi-Limit.
Circit Breaker tripped Reset Circuit Breaker.
Power Cord and/or plug are damaged. Contact your maintenance person or
Authorized Service Agency.
Inoperable Rocker Switch (power On/Off).
Temperature display flashes
“PH”
Conveyor Covers are not fully engaging the
Conveyor Safety Interlock Switches
Reposition the Conveyor Covers so that they
fully engage the Conveyor Safety Interlock
Switches.
Loose wiring between the phase control and
A/C isolator boards.
Contact your maintenance person or
Authorized Service Agency.
Temperature display flashes
“PO”
Voltatge to the unit is below 190 volts. Restart the unit. If the display shows “PO”
again, check the power cord and plug recep-
tacle for damage.
Reset Circuit Breaker located at store’s
power panel.
Contact your maintenance person or
Authorized Service Agency.
Temperature display reads “LO” Platen temperature is below 420° F (216° C). Allow thirty minutes for warmup and recheck
display.
Contact your maintenance person or
Authorized Service Agency.
Temperature display flashes “HI”
at cold start.
Platen Thermocouple is disconnected or
open.
Re-attach or replace Platen Thermocouple.
Inoperable Control Board. Contact your maintenance person or
Authorized Service Agency.
Temperature display flashes “HI”
and “LO” at cold startup.
Auxiliary Thermocouple is disconnected or
open.
After preheat time, display flash-
es “HI” and “USE.”
Temperature display flashes”HI”
and “USE” after unit has been
preheated (Never flashed HI &
LO at cold startup).
Auxiliary circuit overheating due to auxiliary
solid state relay shorted closed.
Display reads “CHEC.” Ambient temperature in control compartment
too high.
Turn toaster off and allow control compart-
ment to cool down to 140 F (60 C) and
restart toaster. Be sure cooling fan is operat-
ing and nothing is blocking the flow of cool-
ing air to the bottom of the toaster.
Axial cooling fan is inoperable.
Belt wrap stop turning, but con-
veyor chain continues to turn.
Underside of Belt and Conveyor Chain have
excessive buildup.
Clean Belt Wrap and Conveyor Belt Chain as
per current MRC Card (TS 019B-1).
Belt Wraps are tearing in the
center.
Missing or Bent Roller Tensioners. Replace or adjust the bent Roller Tensioner
- measured to 13/16” (2.1 cm) or the height
of a U.S. Nickel coin from the bottom of the
roller to the inner cover.

Rapid toasteR VCt-250
17
P/N 1010837 Rev. L 03/07
McDonald’s
Problem Possible Cause Corrective Action
Conveyor Belt Chain does
not turn or skips on lower
sprockets.
Compression Knobs set incorrectly. Set Bun Thickness Compression Controls according to
the Operation section of this manual.
Interlock Switches not activating. Verify the covers are installed correctly. Repair or
replace damaged conveyor inner cover.
Switches are inoperable. Contact your maintenance
person or Authorized Service Agency.
Conveyor Chain is stretched. Refer to the Maintenance Section of this manual.
Roller Tensioner bent or missing. Adjust the bent Roller Tensioner - measured to 13/16”
(2.1 cm) or the height of a U.S. Nickel coin from the
bottom of the roller to the inner cover. Note: Damaged
Roller Tensioners should be replaced.
Motor Drive Chain has detached or is
dry.
Have a qualified maintenance person or your
Authorized Service Agency reinstall and/or lubricate the
chain.
Motor does not operate. Have a qualified maintenance person or your
Authorized Service Agency inspect all electrical con-
nections and, if necessary, replace the motor.
Belt Wrap does not fit, is dif-
ficult to install, or is not long
enough.
Belt Wrap is installed improperly. Re-install the Belt Wrap according to the Maintenance
Section of this manual.
Belt Wrap is damaged. Replace Belt Wrap.
The only item that operates
is the cooling fan (conveyor
and heat inoperable).
Hi-Limit Control is tripped open. Reset Hi-Limit Control according to the Maintenance
section of this manual. Note: If Hi-Limit trips again,
contact your Authorized Service Agency for ser-
vice.
Platen is hot but Conveyor
Belt Chains do not move.
Conveyor Cover assemblies not
installed.
Install Conveyor Cover assemblies.
Conveyor Belt Chains installed incor-
rectly.
Contact your Authorized Service Agency.
One or both Conveyor Interlock
Switches not activated by Conveyor
covers.
Install Conveyor Cover assembly correctly (Figure 10).
Buns are not toasting prop-
erly.
Compression Knobs set incorrectly. Set Bun Thickness Compression Controls according to
the Operation section of this manual.
Toaster temperature not set properly. Set the toaster temperature according to the Operation
section of this manual.
Release Sheet is dirty or worn. Follow the cleaning and replacement procedure on the
current MRC Card (TS 019B-1).
Belt Wrap is dirty or worn.
Bun temperature below 150° F (65.6°
C).
Perform the Bun Temperature Test as described in the
Maintenance section of this manual.
Replace worn Teflon dampers and/or missing springs.
Contact your Authorized Service Agency for parts and
service, if necessary.
Buns cut improperly. Contact your bun supplier.
Unit makes high pitched
squeal or whining noise.
Drive motor. Contact your maintenance person or Authorized
Service Agency.
Teflon bearings. Replace Teflon bearings.
Ball bearings. Replace ball bearings.
TROUBLESHOOTING (continued)

Rapid toasteR VCt-250
18 P/N 1010837 Rev. L 03/07
McDonald’s
TROUBLESHOOTING (continued)
Problem Possible Cause Corrective Action
Product is over-toast-
ed or Platen Heat is
to high or drop time
is too slow.
Temperature set too high. Set the Platen temperature according to the
Operation section of this manual.
Compression Knobs set incorrectly. Set Bun Thickness Compression Controls accord-
ing to the Operation section of this manual.
Belt Wraps worn and not pulling buns across
Platen in the required time.
Clean or replace Belt Wrap.
Belt Wrap not tacky.
Buns sticking on Release Sheet. Clean or replace Release Sheet.
Belt Wrap installed incorrectly. Re-install Belt Wrap according to the Maintenance
section of this manual.
Defective Drive Chain or loose sprocket. Contact your maintenance person or Authorized
Service Agency.
Defective Drive Motor or wrong RPM Drive Motor.
Defective temperature display control
Product is under
toasted or Platen
heat is too low or
drop time is too fast.
Temperature set too low. Set the Platen temperature according to the
Operation section of this manual.
Compression Knobs set incorrectly. Set bun adjustment controls according to the
Operations section of this manual.
Platen Thermocouple is defective. Contact your maintenance person or Authorized
Service Agency.
Defective Control Board.
Buns are not toasting
properly.
Compression Knobs set incorrectly. Set Bun Thickness Compression Controls accord-
ing to the Operation section of this manual.
Toaster temperature not set properly. Set the toaster temperature according to the
Operation section of this manual.
Release Sheet is dirty or worn. Clean or replace Belt Wraps and/or Release Sheet.
Belt Wrap is dirty or worn.
Bun temperature below 150° F (65.6° C). Perform the Bun Temperature Test in the
Maintenance section of this manual.
Replace worn Teflon dampers and/or missing
springs.
Contact your Authorized Service Agency for parts
and service, if necessary.
Buns cut improperly. Contact your bun supplier.
Crown and/or heel
must be forced into
toaste (Buns stick-
ing and burning)
Bun Feeder improperly installed. Remove and reposition Bun Feeder.
Belt Wrap not tacky or is worn. Clean or replace Belt Wrap.
Crown and/or heel improperly inserted into toaster. Insert buns into toaster according to the Operation
section of this manual.
Belt Wrap slipping over Conveyor Belt Chains. Clean Conveyor Belt Chains and Belt Wraps
according to the Maintenance section of this
manual.
Compression Knobs set incorrectly. Set Bun Thickness Compression Controls accord-
ing to the Operation section of this manual.
Improper cleaning of the Release Sheet and/or
Belt Wrap.
Follow the cleaning and/or replacement instruc-
tions on the current MRC Card (TS-019)
Roller Tensioner out of position. Adjust or replace Roller Tensioner according to
the Maintenance section of this manual. Note:
Replace damaged Roller Tensioners.

Rapid toasteR VCt-250
19
P/N 1010837 Rev. L 03/07
McDonald’s
REPLACEMENT PARTS
POWER
TEMP
DOWN
TEMP
UP TEMP
SCALE
°C
°F
CAUTION
CAUTION Don not touch hot surfaces
CAUTION
40
A
T
39
38
L
4
76
75
80
T
I
S
73
72
U
71
74
52
53 54 57
T
51
11
M
B
70
32
14
(see pg. 21
for Plug information)
79
43
34
62
T
L
FF
90
68
74
5
CAUTION
83
48
T
33
75 69
91
HH
91
50a - (9210608)
pointing DOWN
50a - (9210615)
pointing UP
50 - (all units
except Mfg. Nos.
9210608 & 615)
P/N 0400315 P/N 0400354 P/N 0400354
NOTE: Hardware List for items A-Z and BB-EE is on page 22.

Rapid toasteR VCt-250
20 P/N 1010837 Rev. L 03/07
McDonald’s
REPLACEMENT PARTS (continued)
28 37
D
15
49
27
C
55
26
T
25
T
87
F
X
21
23
F
24
CC
BB
DD
H
16
16
84
21
F
31
EE
F
67
H
22
23
21
27
21
F
20
63
G
65
B
30
66
P
K
F
29
J
44
NO
47
78
41
T
McDONALD'S BUN GUIDE
Instructions:
Place bun (untoasted) on a flat surface
Place the appropriate cut-out section of the Bun Guide over the bun
Use the markings on the Bun Guide to determine if the bun falls within
the specific range
QUARTER POUNDER
HEIGHT
15/8" to 1 7/8"
4.1cm to 4.7 cm
( )
DIA.
()
33/4" to 4"
9.5cm to 10.2 cm
MIN.
HEIGHT
MIN.
HEIGHT
HEIGHT
11/2" to 1 3/4"
3.8cm to 4.4 cm
( )
DIA.
()
33/4" to 3 7/8"
9.5cm to 10.2 cm
REGULARS
MIN.
HEIGHT
HEIGHT
21/4" to 2 1/2"
5.7cm to 6.4 cm
( )
DIA.
()
33/4" to 3 7/8"
9.5cm to 9.8 cm
BIG MAC
HEIGHT
5/8"
1.6cm
( )
SLICE
3 3/4" (9.5 CM)
3 7/8" (9.8 CM)
4" (10.2 CM)
DIA.
A.J. Antunes & Co.
Your Total Toaster Supplier
1-800-253-2991
Muffin Toaster
Model MT-12 Rapid Toaster
Model VCT-100
85
92
93
Auxilary
platenasdfasdf
NOTE: Hardware List for items A-Z and BB-EE is on page 22.
