Impact Acoustics 40430 User manual

Remote Control Repeater
Model: 40430
Operation Manual
Ver.1.0

Operation Manual
Remote Control Repeater
Model: 40430
Thank you for purchasing Remote Control Repeater. We recommend that you read this
manual thoroughly and retain for future reference.
Function:
The Remote Control Repeater is a system that repeats the signal of your audio/video device
remote control. You can have your audio/video equipment in a closed closet and use this system
to connect to the equipment, so you may be able to use your remote control(s) outside of the
closed space. This system has three parts. The IR Receiver can be mounted in a central
location and it receives the IR signal from your remote controls. The IR Emitters connect to your
audio/video device to receive the signal. The IR Distribution Block is the central point that
receives the IR signal from the IR Receiver and outputs it to the emitter.

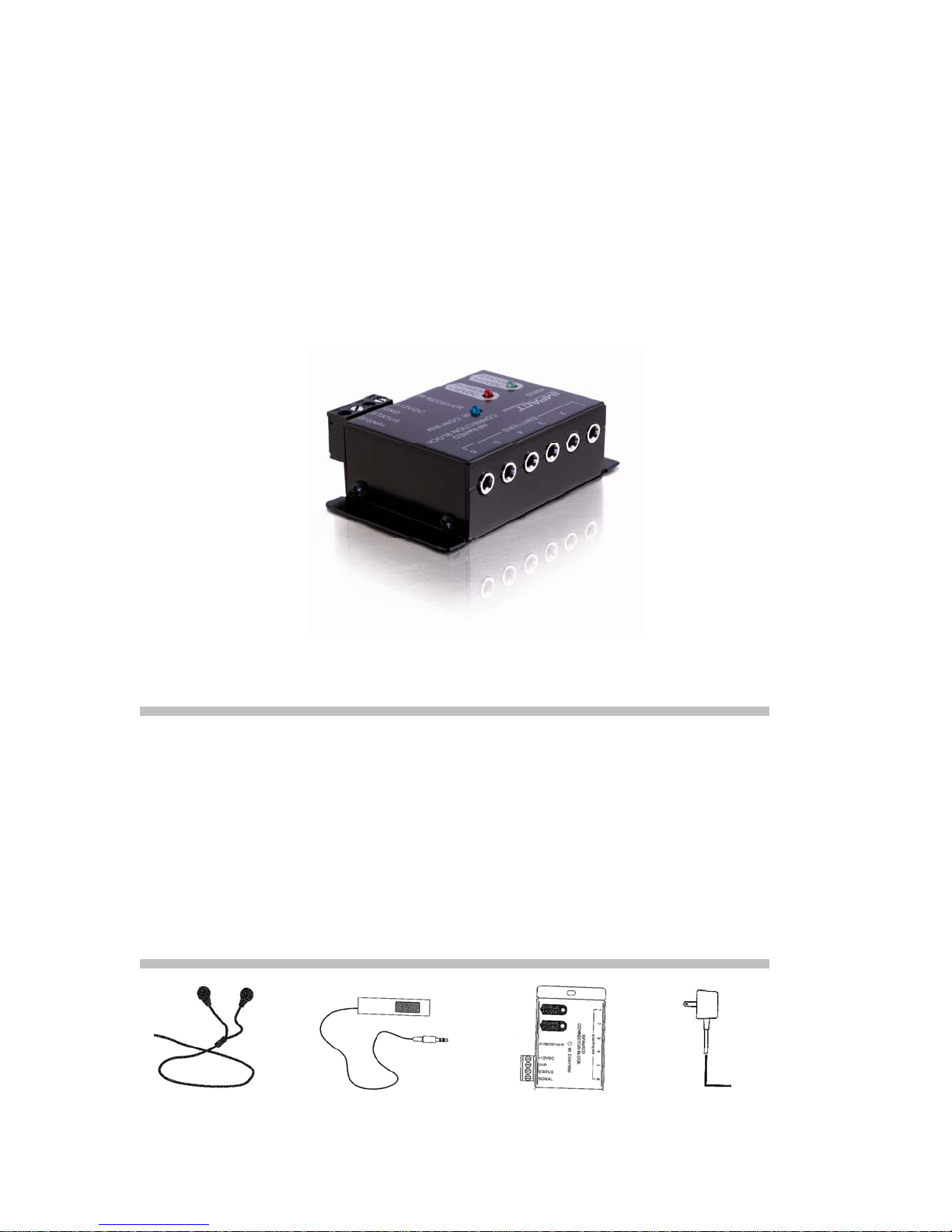

Package Contents:
ii
AC Adapter (1)IR Distribution Block
IR Emitter
(2)
Operation Manual (1)
IR Receiver (1)

Table of Contents
Function...…………………………………………………………………………..ii
Package Contents………………………………………………………………....ii
Features…………………………………………………………………………….1
Connecting the Remote Control Repeater...….…………………………………1
Specifications…………………………………………………………………….....4
Replaceable Parts...........................................................................................4
Warranty/Important Safety Information…………………………………………..5
iii

Features:
•CFL friendly
This unit can be installed in an area with compact fluorescent lighting, and will work in
most lighting environments
•IR LED
Blue IR LED confirms the signal is being transmitted
•Wide Band IR
Wide Band IR receives infrared signal from many types of remotes
•Compact size
With the small size of the connecting block, you can mount it near audio equipment with
nearly no visibility
Connecting the Remote Control Repeater
Note: Careful consideration must be used when placing the IR Receiver near a Plasma Display.
Plasma Displays emit IR frequencies during use and may cause interference.
1. Take the Mini Stick IR Receiver and connect it to the IR Receiver input on the IR Connecting
Block.
2. Connect the emitters (up to six) to the emitter jacks labeled 1-6 on the IR Connecting Block.
3. Place the emitters on the source equipment.
4. Connect the 12VDC Power Supply to the Power jack on the IR Connecting Block and plug the
Power Supply in the wall outlet. The LED will illuminate with a red light letting you know power is
connected. If you are using a switched power outlet on a stereo receiver, connect the 12VDC
Power Supply to the Status jack on the IR Connecting Block. This will illuminate with a green
light indicating power.
Note: When an IR signal is received, the IR confirmation blue LED will flash.
1

Diagram of connections:
Connecting the IR Receiver
Connecting the Dual Emitters
Connecting the AC Adapter via wall outlet Connecting the AC Adapter via stereo receiver
2

Examples of mounting the IR Emitter
Note: Make sure that the mounting surface is clean and dry before mounting the IR Emitter
Standard Installation:
Attach the IR Emitter
directly on your device’s IR
sensor window
Attach the IR Emitter
above or below of the IR
window
Attach the IR Emitter to the
inside of a cabinet door, with
the round shape side facing
the IR window
Note: The last two methods of mounting the IR Emitters are less reliable when activated
compared to the first standard installation example
3

Specifications
Receive Frequency Range 34 kHz to 40 kHz
Transmit Frequencies 38 kHz
Range 55ft. ( 16.8m) to 80ft. (24.4m)
Power 12VDC, 31mA max.
Dimensions (IR Receiver)
(IR Connecting Block) 54 (L) x 14 (W) x 13 (H) mm 82 (L) x 27 (W) x 60 (H) mm
Cord Length (IR Receiver)
(IR Emitters) 9ft. 9ft.
Connector Type 1/8” (3.5mm) mini plug
Weight (IR Receiver)
(IR Connecting Block) 0.05 lbs. 0.24 lbs.
Replaceable Parts
98025 AC/DC Adapter
40431 IR Receiver
40432 Single IR Emitter
40433 Double IR Emitter
In the event of a lost or damage part,
the following replaceable accessories
are available. Please call
877-AV-EXPERT for order information.
4

Impact Acoustics™ One Year Warranty
At Impact Acoustics, we want you to be totally confident in your purchase. That is why we offer a
one year warranty on this device. If you experience problems due to workmanship or material
defect for the duration of this warranty, we will repair or replace this device. To request a Return
Merchandise Authorization (RMA) number, contact customer service at 877-AV-EXPERT or
www.impactacoustics.com.
Important Safety Information
!Do not plug the unit in any outlet that does not have enough current to allow the switch to
function. Refer to the specifications in this manual for power level of the unit.
! Liquid:
If this unit or its corresponding power adapter has had liquid spilled on or in it, do not attempt to
use the unit.
Do not attempt to use this product in an outdoor environment as elements such as rain, snow,
hail, etc. can damage the product.
! In case of a storm, it is recommended that you unplug this device from the outlet.
! Avoid placing this product next to objects that produce heat such as portable heaters, space
heaters, or heating ducts.
!THERE ARE NO USER SERVICEABLE PARTS
Do not attempt to open this product and expose the internal circuitry. If you feel that the
product is defective, unplug the unit and refer to the warranty information section of this
manual.
Impact Acoustics™
3555 Kettering Blvd.
Moraine, OH 45439
Tech Support: 877-AV-EXPERT
www.impactacoustics.com
