Inalto DWI62CS User manual

MODEL CODE/S
DWI62CS
60cm
Integrated
Dishwasher
—
USER MANUAL INALTO.COM.AU
A HIGHER LEVEL OF COOKING

Compartment A:Compartment A:
For each wash cycle.
Compartment B:B:
For programs with pre-wash only.
(Follow the user instructions)
Mechanical indicator C.Mechanical indicator C.
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a program
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,as
the dishes and utensils are still hot and more susceptible to break.
They could also dry better.Unload the appliance, starting from the lower basket.
Changing the program
Add forgotten dishes in the
dishwasher.
Scrape off any large food particles. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
When the working cycle is finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation.
If the appliance is switched
off during a wash cycle.
Open the doorcarefully.
Hot steam mayescape
when the dooris opened!
WARNING!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance
Quick Operation GuideQuick Operation Guide
For detailed operating method read the corresponding content on the instruction manual.
Open the door, press the On/Off button to switch on the appliance.
T urn on the water tap. Close the door. The machine will start working after about 10 seconds.
Press the Program Button until the selected program lights up.
( See the section entitled Operation instruction )
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door.Press the program button more than 3s to cancel the running program.Then press the
program button again to choose the program which you like.
3. Close the door. Restart the dishwasher.
AA
CC
BB

KEEP THESE INSTRUCTIONS
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
1.IMPORTANT SAFETY INFORMATION
READ ALL OF THE INSTRUCTIONS BEFORE USING
1.IMPORTANT SAFETY INFORMATION
READ ALL OF THE INSTRUCTIONS BEFORE USING
11
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
WARNING!
WARNING! PROPER USE
Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not s
o m
arked, c
heck th
e m anufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2) Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
When using yourdishwasher, youshould
prevent plastic itemsfrom coming intocontact
with the heating element.(This instruction is only
applicable to machineswith a visualheating
element.)
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that thedetergent comparment isempty
after completion of the wash cycle.
The appliance is to be connected to the water
mains using newhose sets andthat old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children )with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
When using your dishwasher, follow the precautions listed below:
WARNING!WARNING!
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

22
Dishwasher FeaturesDishwasher FeaturesDishwasher FeaturesDishwasher Features
Back View
Front view
2.Operation Instruction2.Operation Instruction
Control PanelControl Panel
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT
1.On/off Button:
To turn on/off the power supply.
2.Rinse Aid indicator:
Indicates when the dispenser needs to be refilled.
3.Cycle Finish indicator:
To show when the washing program is finished.
4.Delay time orerror codes indicator:
5. Program indicator:
To indicates which program has been selected:
::
6.Program icons.
7.Program Button :To press the button to select a
wash Program.
8.Delay Button : To press the button to delay.
9.Extra dry Button: Press the button to select the
Extra dry function. Meanwhile, the white indicator
light be brighten.The and can not select
the Extra dry function at the same time.
::Indicates has been selected.
::Indicates has been selected.
::Indicates has been selected.
::Indicates has been selected.
::Indicates has been selected.
::Indicates has been selected.
::Indicates has been selected.
::Indicates has been selected.
123456879
1
2
3
4
5
6
7
89
12
10
11
Lower basket
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Topspray arm
1Inner pipe
5
6
7
8
9
11
10
3
2
4
Adjuster
12

33
3.Prior to using for the first time3.Prior to using for the first time
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Fill in detergent
A. Rinse Aid DispenserA. Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse AidDispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming during the next wash.

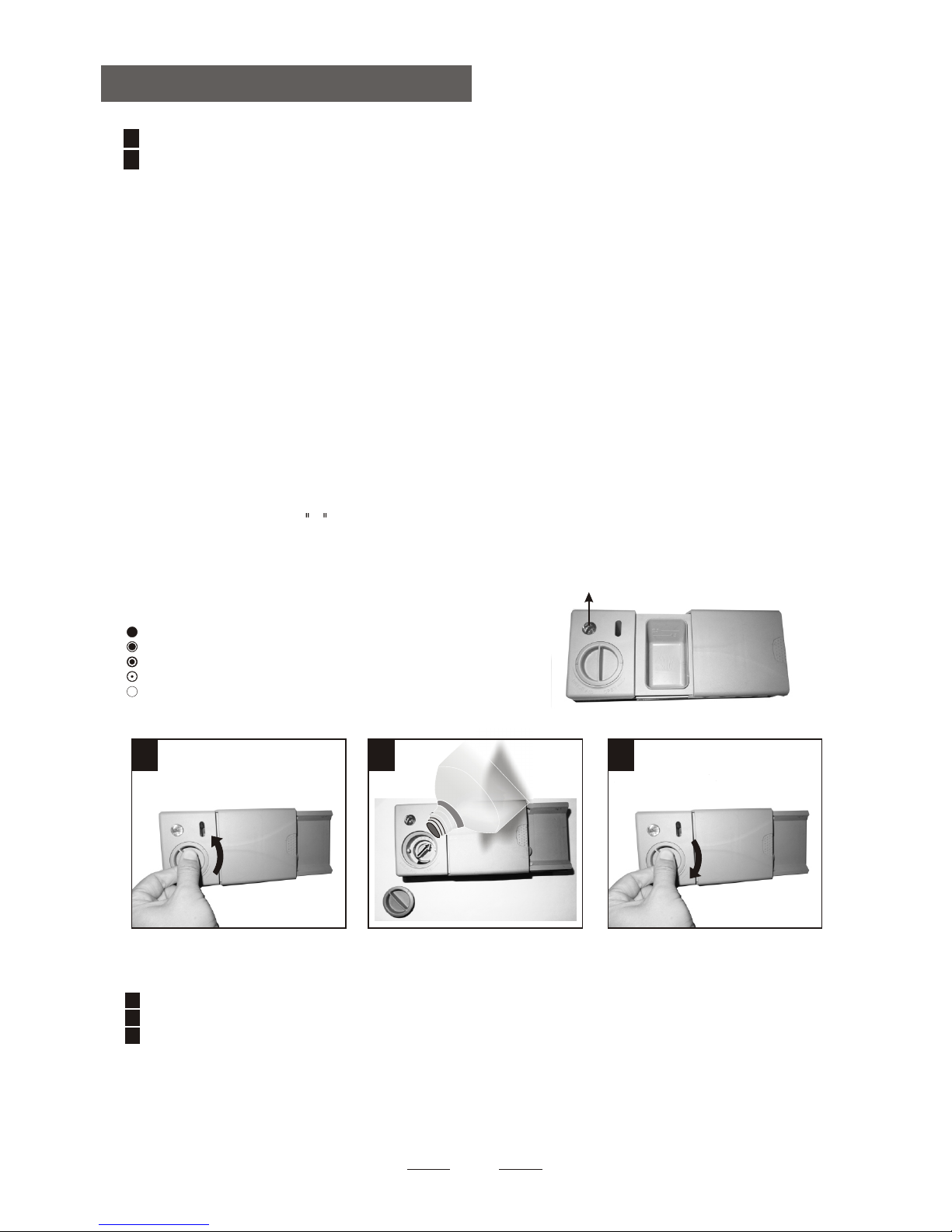

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 ful l
1 / 2 ful l
1 / 4 full - Should refill to eliminate spotting
Empty
When to Refill the Rinse Aid Dispenser
Unless the rinse-aidwarning light onthe control panel is on, you can always estimate the amount from the color
of the opticallevel indicator "C"located next to the cap. When the rinse-aid container is full, the indicator
will be fullydark. The size of thedark dot decreases as the rinse-aid diminishes. You should never let
the rinse aidlevel be lessthan 1/4 full.
112233
C (Rinse-Aid indicator)C

44
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Adjust lever
(Rinse)
Adjust lever
(Rinse)
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
NOTE:NOTE:
NOTE:NOTE:
Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for this purpose.
B. DetergentB. Detergent
Detergents
There are 3sorts of detergents
1.With phosphate and with chlorine
2.With phosphate andwithout chlorine
3.Without phosphate and without chlorine
MAXMAX
Based on theirchemical composition, detergents can be split in two basictypes:
The use of normal washing programs incombination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes ofthe concentrated detergent. For this reason
normal wash programs in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using intensive programs.
Detergent tablets ofdifferent brands dissolve at different speeds. For this reason some
detergent tablets cannotdissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the completeremoval of detergent residuals.
The dispenser mustbe refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Conventional, alkaline detergents with caustic components
Low alkaline concentrated detergents with natural enzymes
Normally new pulveriseddetergent is without phosphate. Thus the water softener function of
phosphate is notgiven. If detergents without phosphate are used in the case of hardwater
often white spotsappear on dishes and glasses. In this case please add more detergentto reach
better results. Detergentswithout chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.

55
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
WARNING!WARNING!
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
NOTE:NOTE:
Amount of Detergent to Use
1122
Detergent tablet
Detergent powder
Fill the detergentdispenser with detergent.
The marking indicates the dosing levels , as
illustrated on theright:
The place of main wash cycle detergent placed.
The place of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose inthe pre-wash detergent chamber. This detergent willtake effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single programme on the last page.
Please aware, thataccording to thelevel soiling and the specific hardness of water differences are possible.
Please observe themanufacturer's recommendations onthe detergent packaging.
NOTE:NOTE:
AA
BB
Close the Detergent compartment
compartment.
Press down the lid (1) until it clicks
shut (2).
If you are using detergent in tablet form,
read the manufacturer
recommendations on the packaging in
order to
determine where the tablets should be
placed inside the dishwasher (e.g. in
cutlery basket, detergent compartment,
etc.).
Make sure that the lid on the detergent
compartment is closed, even if you are
using tablets.
If your dishes are only moderately dirty,
you may be able to use less detergent
than recommended.

4.Loading the Dishwasher Baskets4.Loading the Dishwasher Baskets
Suitability of use in the dishwasherSuitability of use in the dishwasher
Cutlery with wooden, horn china or
mother-of-pearl handles.
Plastic items thatare not heatresistant.
Older cutlery with glued parts that are not
temperature resistant.
Bonded cutlery itemsor dishes.
Pewter or cooperitems.
Crystal glass.
Steel items subject to rusting.
Wooden platters.
Items made from synthetic fibres.
Some types ofglasses can become
dull after alarge number ofwashes.
Silver and aluminumparts have a
tendency to discolour during washing.
Glazed patterns may fade if machine
washed frequently.
Not suitable for use Limited suitability
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not be touched.
Load large itemswhich are mostdifficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in theupper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow itemssuch as cups,glasses, pans etc.With the opening facing downwards so that
water cannot collect in the container or a deep base.
RecommendationRecommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a program with as low temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
(For the best performance of the dishwasher,follow these loadingguidelines.
Features and appearanceof baskets and cutlery baskets may vary from your model.)
Scrape off any large food particles. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects inthe dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items,or ones with recesses, should be loaded aslant so that water canrun off.
3.All utensils are stacked securely and can not tip over.
4.All utensilsare placed in the way that the sprayarms can rotate freely duringwashing.
NOTE:NOTE:
Very smallitems should not be washed in the dishwasher as they could easilyfall out ofthe basket.
Attention before or after loading the Dishwasher BasketsAttention before or after loading the Dishwasher Baskets
Toprevent water dripping from the upper basket intothe lower basket,we recommend thatyou
empty the lowerbasket first andthen the upper basket.
Removing the DishesRemoving the Dishes
66

77
The upper basketis designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans(as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shownin the figure below. It is preferable to
place serving dishesand lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be remindedthat:
The Bottom Basket features folding spikes sothat larger ormore pots andpans can be loaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in thepicture right.
Folding back the cup shelves
For better stacking of pots and pans,
the spikes can be folded down as
show in thepicture right.
Cutlery should be placed into the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in
the basket makingsure that:
For a top quality cleaning, place the silverware in
the basket makingsure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.Silverware is placed with the male face up.
Long utensils in the middle.Long utensils in the middle.
IN

NOTE:NOTE:
5.Starting a washing program5.Starting a washing program
Wash Cycle TableWash Cycle Table
NOTE:NOTE:
Means: need to fill rinse aid into the Rinse-Aid Dispenser.
( )
88
* : This program is the test cycle. The information for comparability test
in accordance with , as follows:
Capacity: 14 settings
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Open the door slightly 50mm to assist in drying of the dishes after every wash
Turning On the ApplianceTurning On the Appliance
Starting a cyclewash
Draw out thelower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in thedetergent (see the section entitled Detergent and Rinse Aid ).
Insert the pluginto the socket.The power supply is 220-240 VAC /50 HZ, the specification
of the socketis 10A 250VAC. Make sure thatthe water supplyis turned on to full pressure.
Press the On/Off button toswitch on the machine.
Press the programbutton , thewash program will be changed as follows direction:
*ECO Glass 90min Rapid Soak Auto Intensive Heavy *ECO
If a program is selected, the response lightwill light on.Then close the door, the
dishwasher begins tostart. If you want toimprove the drying you can pressthe Extra Drying
button to select extra drying function before the dishwasher begins to start.(Rapid exclusion)
1
2
3
4
5
efficiency,
Rinse
Aid
Rinse
Aid
////
//
Detergent
pre/main
Detergent
pre/main
Cycle Selection
Information
Cycle Selection
Information
ProgramProgram Running
time(min)
Running
time(min) Water
(L)
Water
(L)
Energy
(Kwh)
Energy
(Kwh)
Description
of Cycle
Description
of Cycle
Prewash 45
Autowash(45 55oC) 5/27.5 120~190 0.9-1.3 11~15
Rinse Or all in 1
Rinse 65
Drying
Prewash 50
Wash 60
Rinse 5/27.5 17.5
1.50
170
Or all in 1
Rinse
Rinse 65
Drying
Prewash(45 )
Wash 55 5/27.5 160 1.3 13.5
Rinse Or all in 1
Rinse 65
Drying
Prewash
Wash 45 5/27.5 0.7
170 12
Rinse 48 Or all in 1
Drying
Prewash
Wash 42 5/27.5 125 0.8 13
Rinse Or all in 1
Rinse 60
Dry
Wash 65
25
Rinse 90 1.2 11. 5
Or all in 1
Rinse 65
Drying
Wash 40 25 30 0.6 11.5
Rinse
Rinse 45
Prewash / 8 0.02 4
Auto sensing wash, lightly,
normally or heavily soiled
crockery, with or with out
dried-on food
Auto
ECO
(*AS/NZS 2007.1)
This is standard programme, it is
suitable to clean normally soiled
tableware and it is the most efficient
programme in terms of its combined
energy and water consumption for
that type of tableware.
Glass
For lightly soiled crockery
and glass.
Intensive
For heaviest soiled crockery,
and normally soiled pots pans
dishes etc with dried on soiling.
Heavy
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
A shorter wash for lightly
soiled loads and quick
wash.
Rapid
For lightly soiled loads that
do not need excellent drying
efficiency.
90 min
To rinse dishes that you plan
to wash later that day.
Soak

When the workingcycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop.Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasherby pressing theON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes aresensitive to knocks. The dishes should therefore be allowed to cooldown around 15minutes
before removing from the appliance.
Open the dishwasher'sdoor, leave it ajar and wait a few minutes before removingthe dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lowerbasket first andthen the upperone. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Change the ProgramChange the Program
Forgot to Add a DishForgot to Add a Dish
If you open the door during a wash cycle , the machine will pause. The indicator will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
NOTE:NOTE:
At the End of the Wash CycleAt the End of the Wash Cycle
Premise:
A cyclethat is underwaycan only be modified if it has only been running for ashort time. Otherwise,the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled(see the sectionentitled " Loadingthe
Detergent " ).
2 Open thedoor ,press theProgram button more than 3 seconds , the machine will bein standby state,
then you canchange the programto the desired cycle setting (see the section entitled " Starting a
wash cycle ).
1
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5The dishwasher will run after 10 seconds.
Wash the arms in soapy and warm waterand use asoft brush to
clean the jets. Replace them after rinsing them thoroughly.
NOTE:NOTE:
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
WARNING!WARNING! It is dangerous to open the door when washing, because the hot water may scald you.
9

The filter preventslarger remnants of food or other objects from getting inside the pum.
The residues may block the filter, in this case they must be removed.
The filter system consists ofa coarse filter, a flat (Main filter)
and a microfilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Larger items, suchas pieces of bones or glass, that could block
the drain aretrapped in the coarse filter. To remove the items
caught by thisfilter, gently squeeze the tap on the top of this
filter and liftit out.
This filter holds soil and food residues in the sump area and
prevents it from being redeposit on the dishes during wash cycle.
Main filter 1
Coarse filter2
Fine filter 3
2
3
1
Filter assembly
The filter efficiently removes food particles from the wash water, allowing itto be recycledduring the cycle.
For best performanceand results, thefilter must be cleaned regularly. For this reason, it is a good ideato
remove the largerfood particles trapped in the filter after each wash cycle by rinsing the semicircular filterand
cup under runningwater. To remove the filter device, pull the cup handle in the upward direction.
WARNING!WARNING!
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
nn
nn
Step 1 Turn the filter in anti-clockwisedirection.
Step 2 Lift the filterassy up.
6.Maintenance and Cleaning6.Maintenance and Cleaning
Filtering SystemFiltering System
NOTE:NOTE:
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1010
1
2
OpenOpen

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect AgainstFreezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain thewater from the inlet pipe and water valve. (Use a panto gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove thefilter at the bottom of the tub and use a sponge to soak up waterin the sump.
please take frostprotection measures onthe dishwasher inwinter. Every time after washing cycles,
please operate as follows
Caring for the DishwasherCaring for the Dishwasher
Cleaning the Filter
Cleaning The Door
Toclean the coarse filter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
on the lastpage and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
WARNING!WARNING!
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
WARNING!WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
nn
nn
Cleaning the Spray Arms
NOTE:NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessaryto clean thespray arms regularlyfor hard
water chemicals willclog the sprayarm jets and bearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeany food remnantsand
clean the filters under running water.
Notes:
The entire filter assembly should be cleaned once a week.
NOTE:NOTE:
To remove the lower spray arm, pull out the spray arm upward.
Toremove the upperspray arm, hold the nut,rotate the arm
clockwise to removeit.
Wash the arms in soapy and warm water and use asoft brush to
clean the jets. Replace them after rinsing them thoroughly.
1111
OpenOpen

It is recommend that you run awash cycle withthe
dishwasher empty andthen remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightlyopen. This will help thedoor
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of thefactors that causeodours to formin the
dishwasher is foodthat remains trappedin the seals.
Periodic cleaning witha damp spongewill prevent this
from occurring.
Before cleaning orperforming maintenance, always
remove the plugfrom the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
Toremove spots orstains from the surface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
How to Keep Your Dishwasher in Shape
After every wash,turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash When not in Use for a LongTime
12
The installation of the pipes
and electrical equipments
should be done by professionals.
Warning
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death or
electrical shock.
Attention:
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side ofthe cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.
Installation preparation
Note: please checkthe accompanying installation accessories(hook for aesthetic panel,screw)
7.Installation instruction7.Installation instruction

Please carefully read the installation instruction.
Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should bemade before moving the dishwasher to the installation place.
Choose a placenear the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher isinstalled at the corner of the cabinet, there should be some space
(illustrated in figure2) when the door is opened.
2
1
Minimum space when
the door is opened
Figure2

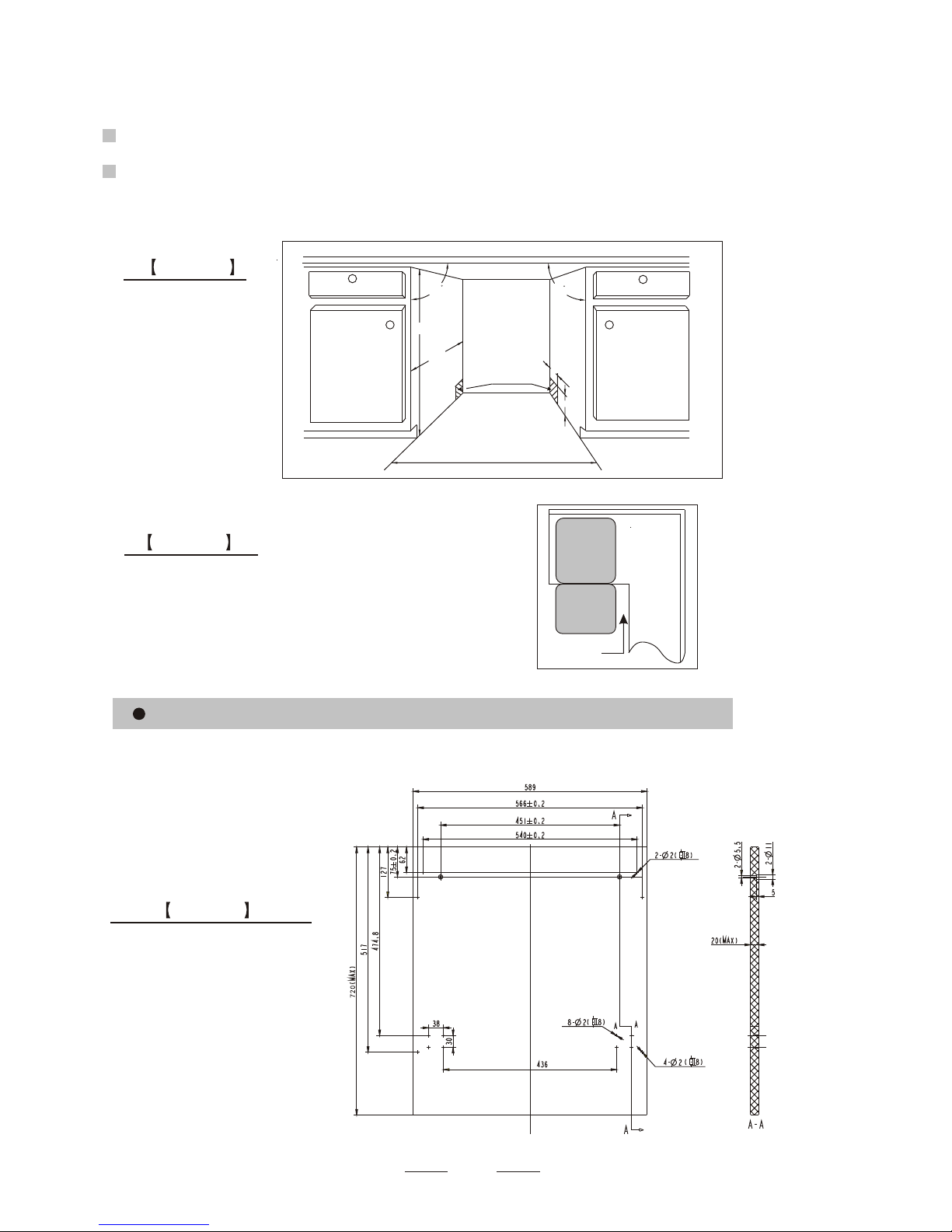

Cabinet dimensions
Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1The aesthetic wooden panel could be processed according to the Figure 3.
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
Figure3
Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 90
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)
13

Installation of aesthetic panel
Figure4a

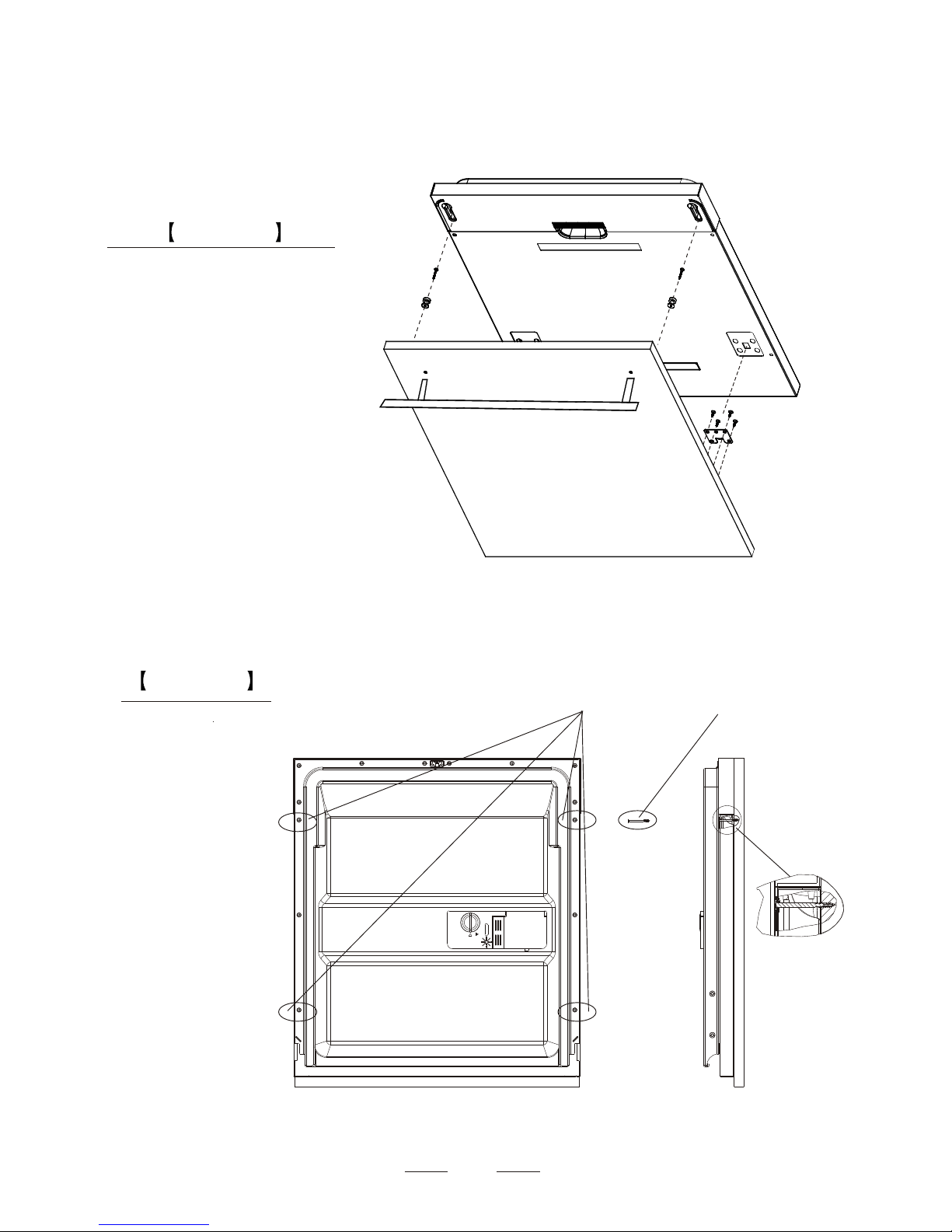

2 Install thehook on the aesthetic wooden panel and put the hook into theslot of theouter door of
dishwasher(see figure 4a).After positioning of the panel , fix the panel onto theouter door by
screws and bolts(See figure 4b) .
Installation of aesthetic
wooden panel
Figure4b
1. take away the four
short screws
2. pin upthe four long
screws
Take away the four short screwsTake away the four short screws Pin up the four long screwsPin up the four long screws
14

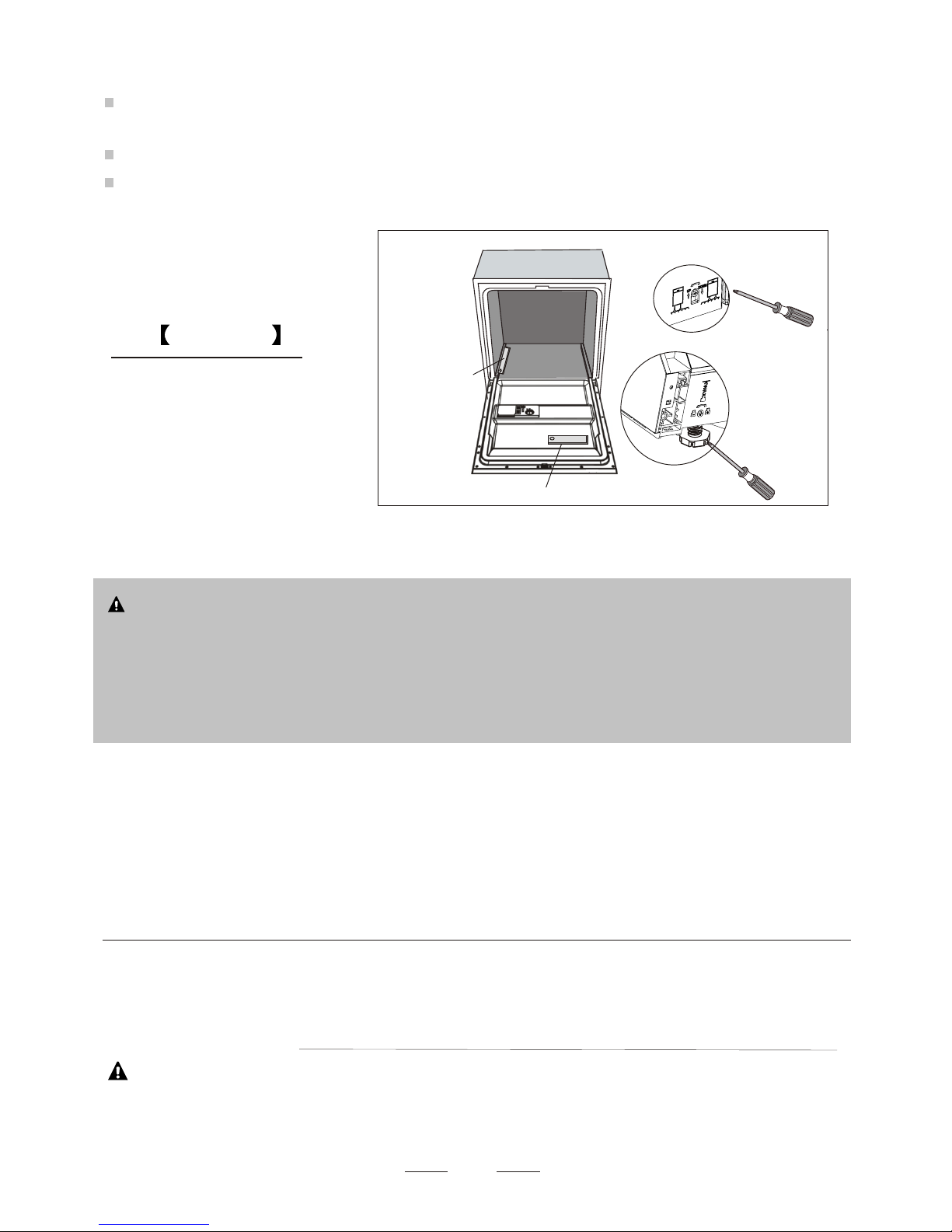

Tension adjustment
of the door spring
Figure5
Tension adjustment of the door spring
Connection of drain hoses
The door springs are set at the factory to the proper tension for the outer door.
If aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable
(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position yet rises
to a close with the slight lift of a
finger.
15
Insert the drainhose into adrain pipe witha minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending orcrimping it. The top ofthe hose must be less than 1000mm.
MAX 1000mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
40mm
B
PLEASE FIX THE DRAIN HOSE EITHER WAY OF A, BPLEASE FIX THE DRAIN HOSE EITHER WAY OF A, B

16
44
Furniture doorFurniture door
11
Dishwasher installation steps
1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer
to the template for positioning of the brackets.
2Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to
tighten the left and right door springs. Failure to do this could cause damage to your dishwasher
(Illustration 2).
3 Connect the inlet hose to the cold water supply .
4 Connect the drain hose. Refer to diagram.(Figure 6)
5Connect the power cord.
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation
strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning
the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust
the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).

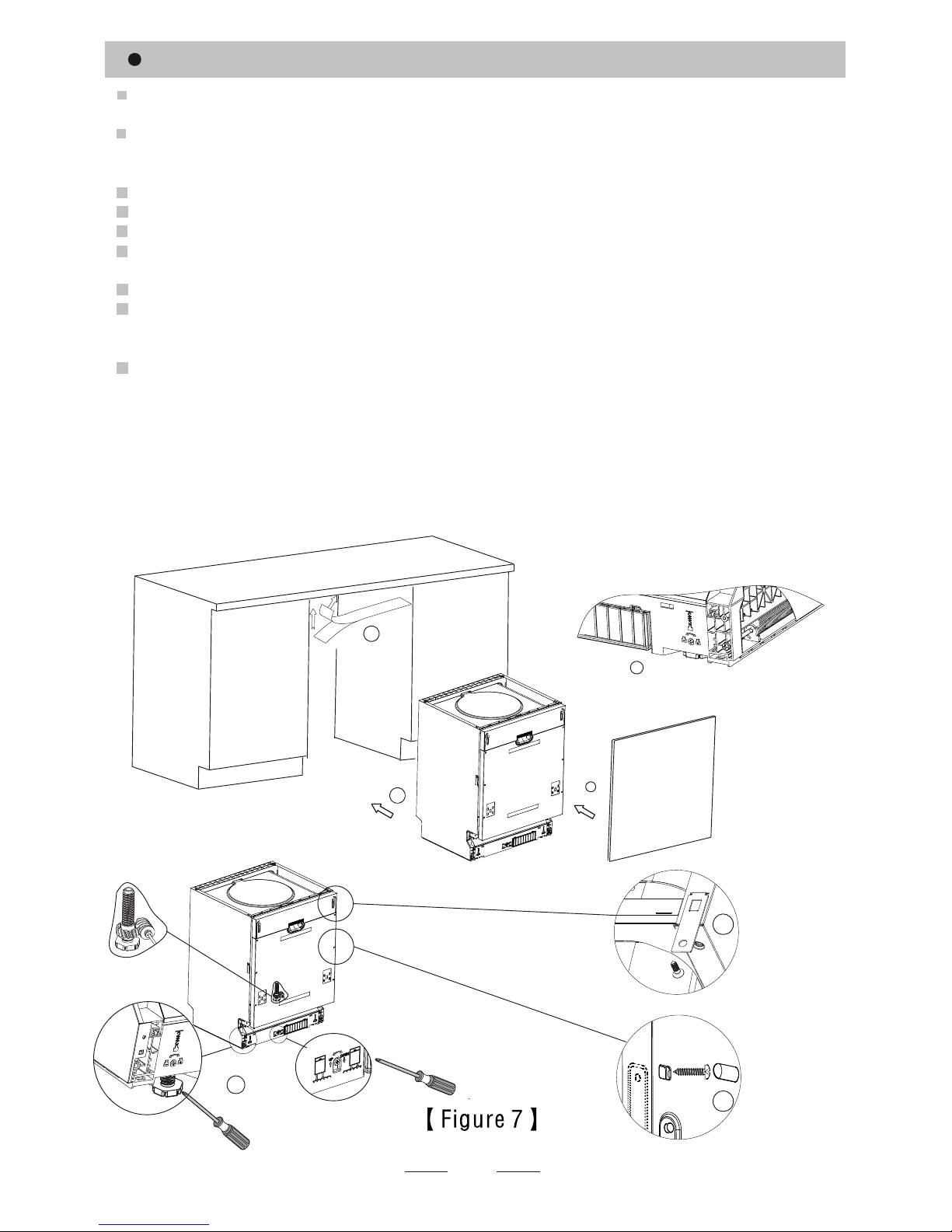

9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface:Put the installation hook into the slot of the side plane and secure it to the
work surface with the wood screws (Illustration 6).
B. Marble or granite work top:Fix the side with Screw. (Illustration 7).
Condensation stripCondensation strip
2
2
5
5
B
3
3
6
6
7
7
A
A

Dishwasher must be level for proper dish rack operation and wash performance.
1Place a spirit level on door and rack track inside the tub as shown to check that the
dishwasher is level.
2 level the dishwasher by adjusting the three levelling legs individually.
3When level the dishwasher, please pay attention not to let the dishwasher tip over.
Illustration of feet adjustment
Figure 8
About Electricity Connecting
NOTE:
The maximum adjustment
height of the feet is 50 mm.
Electrical Requirements
Electrical Connection
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Insure proper ground
exists before use
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
WARNING!WARNING!
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection
from the power cord.
17
Check level side toside
Spirit level
Check level Front toBack
AA
