SERVICE MANUAL
STEAM OVEN.
Evolution 2005
SERVICE MANUAL
STEAM OVEN.
Evolution 2005

2
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
CONTENTS OF THE MANUAL: NOTE FOR THE ENGINEER
This manual is a supporting document for technical personnel. It contains a description of the
various product types, the general operating principle, and indications concerning assistance.
Technical personnel should anyway consult the specific model on
(www.servicenet.indesitcompany.com) to access data and updates of electrical diagrams, technical bulle-
tins, and spare parts.

3
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
CONTENTS
1. OUTLINES 4
1.1 Overview 4
1.2 Control panel 4
2. INSTALLATION 5-6
2.1 Build-in 5
2.2 Electrical connection 6
2.3 Technical features 6
3. UTILIZATION 7
3.1 Time adjustment 7
3.2 Functions 7
3.3 Child safety lock 7
3.4 Demountable pipe union
4. FUNCTIONING 8
5. ANALISYS OF THE COOKING PROGRAMMES 9
6. AIR FLOW 10
7. COMPONENTS 11-12
8. OPERATION DIAGRAM 13
9. TEST PROGRAM 14-15
9.1 Important instructions 14
9.2 Preliminary steps 14
9.3 Run of the test program 14

4
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
G
ENERALS
1. OUTLINES:
1.1. OVERVIEW:
1.2. CONTROL PANEL:
DISPLAY
CONTROL
PANEL
WATER SUPPLY
TUBE
STEAM
GENERATOR
TANK
UNION PIPE
The order and the number of buttons depend on the product type.
1. Steam cooking control
2. Defrosting button
3. Start/Stop button
4. Time /program duration display
5. Steam cooking symbol
6. Cooking time symbol
7. Cooking end symbol
8. Temperature display
9. Time adjustment buttons
10. Selection button
11. Self-contained signal clock icon
12. Water circuit problem signal
13. Defrosting symbol
14. Cooking period/Delay timer display
15. Control panel lock
The appliance is equipped with a single electronic board which manages the control and the commutation
of the power elements.

5
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
I
NSTALLATION
2. INSTALLATION:
2.1. BUILT-IN:
The oven has a high-performance air flow system which gives remarkable results as long as the following
points are applied:
- The oven may be fitted either underneath a work top or in a suitable sized column unit.
- Cut a hole measuring 50 mm x 50 mm in the back wall for the electric cable to cross through (see
diagram below).
- Centre the oven in the unit and make that it is at least 2 mm from any other unit beside it.
- The cabinet must be made of heat-resistance material
- The oven must be disconnected from the power supply while it is being installed in the unit
- For greater stability, fix the oven in the unit with 2 screws in the holes on the side uprights.
380
560
50 386,5
20
595
405
544
378
550

6
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
I
NSTALLATION
2.2. ELECTRICAL CONNECTION:
The electrical connection must be accomplished by an electrician-installer. He must make sure
that the oven has been joined up according to assembly instructions and local regulations. Being
the oven live, the electronics activates interrupting the lighting for any seconds. In case of connection
to a power socket, it must be accessible after the installation of the oven. The manufacturer does
not incur any responsibility in case of a wrong or non-existent earth. The oven is delivered with its
own 3-ways supply cable (cable: H05V2V2F-T90). It must be joined upon the network 220-240 V~
/ 50 Hz / single-phase with an earth plate (rule CEI60083). This earth plate must be easily acces-
sible after the installation of the appliance. Pay attention to the colour of the wires: wall-sockets are
usually joined up according to the scheme below. The section of the conductors must be at least
1,5 mmand the installation must be shielded by a 16A-fuse.
Blue Black, brown or red
Green andYellow
EARTH
NEUTRAL
LIVE
EARTH
LIVE (L)
NEUTRAL (N)
2.3. TECHNICAL FEATURES:
STEAM OVEN
OPERATING VOLTAGE
TOTAL POWER
ENERGY CONSUMPTION
RISE AND MAINTAINANCE AT
100°C FOR 1 HOUR
INSIDE DIMENSIONS OF OVEN
WIDTH
HEIGHT
DEPTH
220-240 ~ 50Hz
1,77 kWh
0,71 kW
38,5 cm
18,2 cm
33,5 cm
23,5 litres
EFFECTIVE VOLUME

7
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
U
SING
3. UTILIZATION:
3.1. TIME ADJUSTMENT:
THE FIRST TIME THE OVEN IS TURNED ON
· The display flashes
· Use the + and - buttons to adjust the time.
· Press Set button to confirm.
TIME ADJUSTMENT
· Press on the + and - buttons simultaneously for some seconds until the display starts flashing.
· Adjust the time using the + and - button.
· Press Set button to confirm.
3.2. FUNCTIONS:
· Standard steam cooking: Temperature 100°C
· Defrosting : Temperature 60°C
· Self-contained signal clock: accessible by the ‘SET’ button.
3.3. CHILD SAFETY LOCK
To block the controls
• Press Start/Stop button up to hear a brief sound-»beep», then a long-lasting «beep»
• Press and hold the button up to the end of the sound-»beep» stops and the symbol of a key appears on the display.
To unlock the controls
• Press Start/Stop button up to hear a long-lasting sound-»beep»
• Press and hold the button up to the end of the sound-»beep» stops and the symbol of a key appears on the display.
The control panel can be locked. This can only be activated when you are not using timed or delayed cooking
features.
3.4. DEMOUNTABLE PIPE UNION:
The pipe union is placed above the opening and it
is demountable.
It allows an easy maintenance. Dismantle this union
pipe by pulling it upwards.
Wipe and replace it using the three notches provided
for this purpose.

8
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
O
PERATION
4. FUNCTIONING:
The water contained in a removable tank is brought by a solenoid valve on a heat generator where it is
transformed into steam.
The steam obtained is maintained in the oven cavity by closing a valve at the beginning of a cooking
program.
This valve is bored in order to avoid the pressurization of the cavity.
This cooking principle is different to a pressure-cooker where the obtained pressure is higher than the
atmospheric one.
Initially the oven will be saturated with steam and the temperature will be close to 100°C.
In order to avoid condensation, an heating cover which covers the top will be supplied during all cooking
time.
A tangential fan allows the constant cooling of the oven and the extraction of the steam when the flap opens
three minutes before the end of the cycle.
A safety thermostat (210°C) protects the oven against overheating.
Two sensors placed in the cavity and in the generator allow the temperature control.
VALVE
SENSOR
POWER BOARD
DOOR
SWITCH
STEAM
GENERATOR
SENSOR
SECURITY
THERMOSTAT
SECURITY
THERMOSTAT
HEATING COVER TANGENTIAL
FAN
TANK

9
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
O
PERATION
5. ANALISYS OF THE COOKING PROGRAMMES:
Cooking is divided into 5 steps.
Rise in the temperature and steam generation (Step 1)
Immediately after starting, the valve, the tangential fan, the heater, the heating cover and the thermal
activator are supplied.
The steam generation is important in order to quickly obtain saturation in the cavity.The valve is supplied by
step of 15 to 30 sec as soon as the generator temperature exceeds 130°C. The heating cover is supplied to
avoid condensation and the tangential fan runs in order to prevent an abnormal overheating of the oven and
the electronics. When the cavity reaches the temperature selected the generator stops heating.
Upholding of the steam level (Step 2)
The heat generator is regulated by the sensor. The thermal activator, the heating cover and the tangential
fan are still supplied.
Steam emptying and temperature decreasing (Step 3)
Three minutes before the end, the thermal activator and the solenoid valve are not supplied any more.
The valve opens, the tangential air flow involves the steam out of the cavity.
The heating cover is always supplied.
Keeping warm (Step 4)
This step takes place only if the door remains closed after the end of cooking. This phase permits to keep
food warm.
The tangential and the heating cover are always supplied.The maximum duration is 1 hour and it is interrupted
as soon as the door is open.
Cavity drying (Step 5)
This step starts as soon as the door is open or after 1 hour or during the phase 3 or the phase 4 and
continues during 3 minutes.
The tangential and the heating cover are supplied.The air flow goes on involving the steam out of the cavity.
The duration is 3 min.
CYCLE PROGRESS
Cooking duration = Step 1+2+3
STEP 1
STEAM
GENERATION
STEP 2
STEAM MAINTANANCE
STEP 3
STEAM DRAINING
STEP 4
KEEPING WARM
STEP 5
DRYING

10
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
O
PERATION
6. AIR FLOW:
During the cooking:
- The tangential fan cools the electronics of the oven
- The tangential fan conveys air to the back of the oven (1)
- Then the air is conveyed to the electronic board in order to cool it (2).
At the end of the cooking:
- The presence of steam in the cavity is important
- Three minutes before the end of the cooking the valve opens
- The air flow produced by the tangential fan is sent toward the wall (3) above the valve.
- The steam is driven out of the cavity through the louver placed in the front part of the oven between the
control panel and the knob (4)

11
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
C
OMPONENTS
7. DIFFERENT COMPONENTS:
DESIGNATION
Water tank
Solenoid valve
Door switch
Heat generator
(upside view)
Heating cover
CHARACTERISTICSFUNCTION
The tank must be
- Full of water before each
cooking.
- Emptied after each cookingIn
case of too hard water, it’s better
to use no calcareous water.
The use of demineralised water
is misadvised.
During all cooking, the heating
cover is supplied in order to avoid
any risk of condensation. It covers
the top of the cavity. Its
temperature is close to 100°C. It
is protected by a thermal fuse.
The generator transforms water
into steam. It is made to receive
back the condensations at the
time of cooking.
Two security thermostats (KX1
and KX2), located underneath the
generator, protect against
overheating (T°C: 210°C).
This switch operates as soon as
the door is open/closed.
The solenoid valve supplies the
generator with water
-Capacity: 1 litre
- 220-240 ~
- 35 
- 160 W
- Thermal fuse : 120°C
- 220-240 ~
- 1600 W
- 35 
Door open= Switch is off
Door closed =Switch is on
- 220-240 ~
- 2L/min
- 3,7 

12
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
C
OMPONENTS
Double thermostat
Thermal activator
Tangential fan
Cavity and generator sensors
The double thermostat protects
the oven against overheating.
The sensors measure
. The heat generator temperature
. The cavity temperature
They are recognized automatically by the
microprocessor.There is no possibility of error
in wiring.
The tangential fan allows the
constant ventilation of the oven
during all the cycle and the ex-
traction of the steam during the
last three minutes of the cycle.
It maintains the valve closed
during cooking and opens it at
phase 3 (see at page 10).
- 220-240 ~
- Automatic reset NF
- Opening T°C : 210°C
N.T.C
- 55Ka 20°C
- 4,7Ka 90°C
- 220-240 ~
- 5 W
- 1 
Supplied: valve closed
- 220-240 ~
- 10 W
- 500 
DESIGNATION CHARACTERISTICSFUNCTION

13
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
W
IRING DIAGRAMS
8. OPERATION DIAGRAM:
WHITE
WHITE
BLUE WHITE
YELLOW
BLACK
GREY
RED
TANGENTIAL FAN
HEATING
COVER
THERMOSTAT
THERMOSTAT
THERMOSTAT
CAVITY
SENSORA
GENERATOR
SENSOR
GENERATOR
SOLENOID VALVE
THERMAL
ACTIVATOR
THERMOSTAT

14
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
A
SSISTANCE

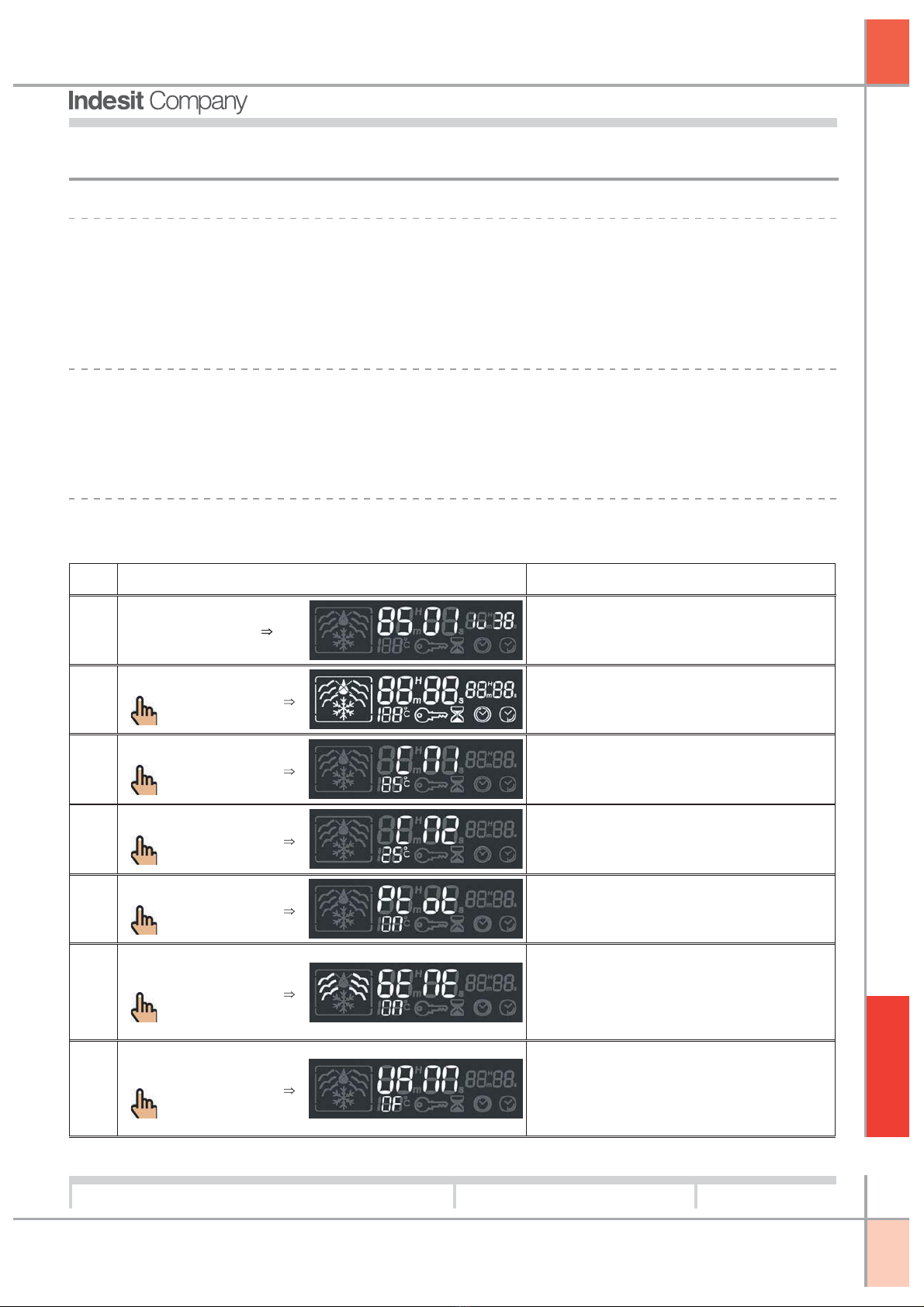

9. TEST PROGRAM:
1
2
+
+
3
+
+
4
+
+
5
+
+
6
+
+
7
+
+
9.1. IMPORTANT INSTRUCTIONS:
- Connect (if possible) an ammeter to oven power supply.
- Entirely execute the test program.
- Record discrepancies noticed as the test program is running
- Next, check and replace if necessary the incriminated component(s).
- Perform right-operation check by executing the test program again.
9.2 PRELIMINARY STEPS
- Fill in the tank and put it in the right position
- Disconnect for 10 seconds minimum and connect again
- The time before entering the test must not exceed 1 minute
- Press successively each key from left to right and maintain the right key during 3 seconds.
9.3 RUN OF THE TEST PROGRAM
An action on the keys other than + and - or 3 min without action allows to quit the test program.
STEP REMARKSRUN AND DISPLAY
Start of the P.A.D.
Press once the
The test begins by indicative information on board
programming.
NO: Do again the preliminary steps
CONTINUE THE TEST
The valve has normally supplied the heating element
in water. If it s not finished, the display is ‘VALVE ON”
Valve OFF: Open the door and check the water.
Take care: This opening is necessary to continue.
CONTINUE THE TEST
The steam icon is flashing
Heating element is supplied
I = 0: check the security thermostat, .the wiring and
the generator resistor. Lastly, change the power board
CONTINUE THE TEST
All power elements are supplied
CONTINUE THE TEST
NTC2 temperature in °C
Unusual value: check the probe ’55Kat 20°C, 4,7k
at 90°C’
CONTINUE THE TEST
NTC1 temperature in °C
Unusual value: check the probe ’55Kat 20°C,
4,7kat 90°C’
CONTINUE THE TEST
All segments are lit.
NO: Display board out of order.
CONTINUE THE TEST
Press once the
Press once the
Press once the
Press once the
Press once the

15
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
G B
A
SSISTANCE
8
+
9
+
+
10
+
+
End of the test
Tangential fan and heating cover are supplied. Open
the door to check the temperature of the cavity top.
The top must become very hot
NO: Check the wiring and the heating cover.
The ohm-value must be around: 372
CONTINUE THE TEST
‘Ver on’ is displayed and the thermal activator is
supplied. : The valve is closing slowly
NO: Check the supply of the activator and its resistance
(1k)
CONTINUE THE TEST
(After having opened and
closed again the door)
Press once the +
Press once the
Press once the
STEP REMARKSRUN AND DISPLAY

G B
Indesit Company
viale Aristide Merloni, 47
60044 Fabriano - Italy
tel. [phone] - telex 560196 - fax [phone] - www.indesitcompany.com
Service Manual
Evolution - 2005
Edition
2005.03.39
Language
English
