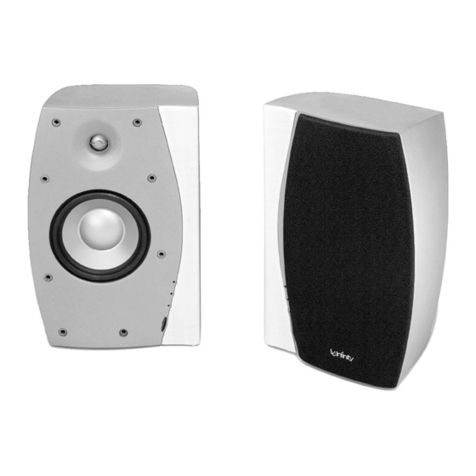

Infinity INTERMEZZO 2.6 User manual

Infinity

Infinity INTERMEZZO 2.6 User manual

Infinity Prelude MTS Center User manual

Infinity

Infinity Prelude MTS Center User manual

Infinity Kappa Series 32.9cf User manual

Infinity

Infinity Kappa Series 32.9cf User manual

Infinity Total Solutions TSS-3IN1 User manual

Infinity

Infinity Total Solutions TSS-3IN1 User manual

Infinity CS 60 User manual

Infinity

Infinity CS 60 User manual

Infinity Total Solutions TSS-800 User manual

Infinity

Infinity Total Solutions TSS-800 User manual

Infinity Overture 2 User manual

Infinity

Infinity Overture 2 User manual

Infinity Cascade 5 User manual

Infinity

Infinity Cascade 5 User manual

Infinity Kappa Series 32.9cf User manual

Infinity

Infinity Kappa Series 32.9cf User manual

Infinity QPS1 User manual

Infinity

Infinity QPS1 User manual

Infinity CS 60R User manual

Infinity

Infinity CS 60R User manual

Infinity HPS-1.5 User manual

Infinity

Infinity HPS-1.5 User manual

Infinity 6432cfp Service manual

Infinity

Infinity 6432cfp Service manual

Infinity Sigma User manual

Infinity

Infinity Sigma User manual

Infinity IRS Sigma User manual

Infinity

Infinity IRS Sigma User manual

Infinity KAPPA 6.1 User manual

Infinity

Infinity KAPPA 6.1 User manual

Infinity Total Solutions TSS-1200 User manual

Infinity

Infinity Total Solutions TSS-1200 User manual

Infinity Kappa Perfect 10.1 User manual

Infinity

Infinity Kappa Perfect 10.1 User manual

Infinity Classia C255ES User manual

Infinity

Infinity Classia C255ES User manual

Infinity Reference 1021t User manual

Infinity

Infinity Reference 1021t User manual

Infinity Primus P252 Assembly instructions

Infinity

Infinity Primus P252 Assembly instructions

Infinity 6432CF Service manual

Infinity

Infinity 6432CF Service manual

Infinity ERS 110DT User manual

Infinity

Infinity ERS 110DT User manual

Infinity SM-165 User manual

Infinity

Infinity SM-165 User manual

Popular Speakers manuals by other brands

Electro-Voice LR4S engineering data

Electro-Voice

Electro-Voice LR4S engineering data

Definitive Technology Sound Cylinder user guide

Definitive Technology

Definitive Technology Sound Cylinder user guide

AudioSource LS545 user manual

AudioSource

AudioSource LS545 user manual

Paso C402-T Instructions for use

Paso

Paso C402-T Instructions for use

Altec Lansing 416-8C LF SPEAKER manual

Altec Lansing

Altec Lansing 416-8C LF SPEAKER manual

Kenwood KFC-1072 Servise manual

Kenwood

Kenwood KFC-1072 Servise manual

Peavey ProSys 112 user guide

Peavey

Peavey ProSys 112 user guide

JBL Control Contractor 60 Series installation instructions

JBL

JBL Control Contractor 60 Series installation instructions

Aura STORM-8 owner's manual

Aura

Aura STORM-8 owner's manual

Oontz ANGLE 3 PLUS quick start guide

Oontz

Oontz ANGLE 3 PLUS quick start guide

Electro-Voice LR4A engineering data

Electro-Voice

Electro-Voice LR4A engineering data

Rave RK-650-ICA-B owner's manual

Rave

Rave RK-650-ICA-B owner's manual

Flux Reference Series installation manual

Flux

Flux Reference Series installation manual

Lanzar AQAWBS64BK installation manual

Lanzar

Lanzar AQAWBS64BK installation manual

DAPAudio DCS-6230 manual

DAPAudio

DAPAudio DCS-6230 manual

Aluratek ABS03F quick start guide

Aluratek

Aluratek ABS03F quick start guide

Kenwood KES-5A instruction manual

Kenwood

Kenwood KES-5A instruction manual

Sonance ORIGINAL SERIES instruction manual

Sonance

Sonance ORIGINAL SERIES instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance 8Ω
• Max Amp Power 150 watts*
• Frequency Response 55Hz – 20kHz (±3dB)
50Hz – 40kHz (–6dB)
• Sensitivity 90dB (2.83V @ 1 meter)
• Crossover Frequency 2.4kHz; 12dB/Octave
SYSTEM COMPONENTS:
• Cabinet Beta C250
(Not for Sale)
• Grille Black (for BLK) 352009-003
Gray (for BE & CH) 352009-004
• Low-Frequency Transducer Dual 5" (127mm) CMMD,
™
magnetically shielded
351503-001
DC Resistance 10.1 ohms ±10%
• High-Frequency Transducer 1" (25mm) CMMD,
™
magnetically shielded
351572-001
DC Resistance 3.5 ohms ±10%
• Crossover Network 351680-001
AURAL SWEEP TEST SPECIFICATIONS:
• System Aural Sweep Test 6.0V Input 50Hz to 20kHz
• L.F. Aural Sweep Test 5.0V Input 50Hz to 3kHz
• H.F. Aural Sweep Test 2.83V Input 2kHz to 20kHz
PHYSICAL SPECIFICATIONS:
• Dimensions 6-11/16" x 17" x 8-3/8"
(H x W x D) (170mm x 430mm x 212mm)
• Weight 16 lb (7.3kg) Each
WARRANTY:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We do not
recommend sustained operation at these maximum power levels.
Beta C250
Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797
6/04
16 18
5
14
15
15
17
Legend on Page 2
BLK
RED
–
+
CROSSOVER
NETWORK
351680-001
HIGH-FREQUENCY
TRANSDUCER
351572-001
GRN/BLK
GRN
YEL
YEL/BLK
–
+
GRN/BLK
GRN
–
+
+
–
LOW-FREQUENCY
TRANSDUCERS (2)
351503-001
INPUT
L2
0.16mH
H.F.
L.F.1
L.F.2
C1
8uf
100V
L1
2.2mH
.205
.110
+
–
.250
.205
10" GRN
.250
10" GRN
.205
10" GRN/BLK
12" GRN/BLK
10" YEL
10" YEL/BLK
C2
2.7uf
50V
R1
1.3Ω
10W
PACKAGING Beta C250 WIRING DIAGRAM
Beta C250 SCHEMATIC
Technical Manual
Beta C250
710311
8
122
4
111
13
6
9
5
Beta C250 Cabinet – Not for Sale
Beta C250
EXPLODED VIEW
Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797
6/04
ITEM
NO. DESCRIPTION QTY. PART NO.
1. Woofer, BT130JWS 2 351503-001
2. Tweeter 1 351572-001
3. Crossover Network 1 351680-001
4. Faceplate, Black (for BK) 1 351672-001
Faceplate, Gray (for BE & CH) 1 351672-002
5. Assy, Grille, Black (for BK) 1 352009-003
Assy, Grille, Gray (for BE & CH) 1 352009-004
6. Gasket, Faceplate 1 351943-001
7. Terminal Cup w/Binding Posts 1 338567-001
8. Cup, Grille (Black for BK) 4 333249-001
Cup, Grille (Gray for BE & CH) 4 333249-003
9. Screw (faceplate) 8 903802-016
PB, HXS, #8 x 1” BLK
BLACK ONLY #8 x 1” 10HD 5/32 DR 8 72216
ITEM
NO. DESCRIPTION QTY. PART NO.
10. Screw (terminal cup) 4 61867
PB, OVHDPH, #6 x .75”
11. Screw (woofer/network) 12 63563
#8 x .75”, PB, PPH, BLK
12. Screw (tweeter mounting) 2 905401-006
MS, PPH, H/L, 6-19 x .375”
13. Logo, Gold/Silver Infinity 1 351617-001
14. Carton-BetaC250BK 1 352133-001
Carton-BetaC250BE 1 352133-002
Carton-BetaC250CH 1 352133-003
15. End Pad, Sides 2 352134-001
16. Foot, Bump-on, 3M SJ5744 (set) 1 330104-001
17. Owner’s Manual 1 352036-001
18. 5-Year Warranty Card, Infinity 1 335841-003
Technical Manual
Beta C250
