Ingersoll-Rand 8200-Series User manual

8200-Series
Desk Console
Installation Instructions for Single Locks
SILENCE
1
2
3
4
5
6
7
8
1
2
3
4
SILENCE
*82000*
82000

2

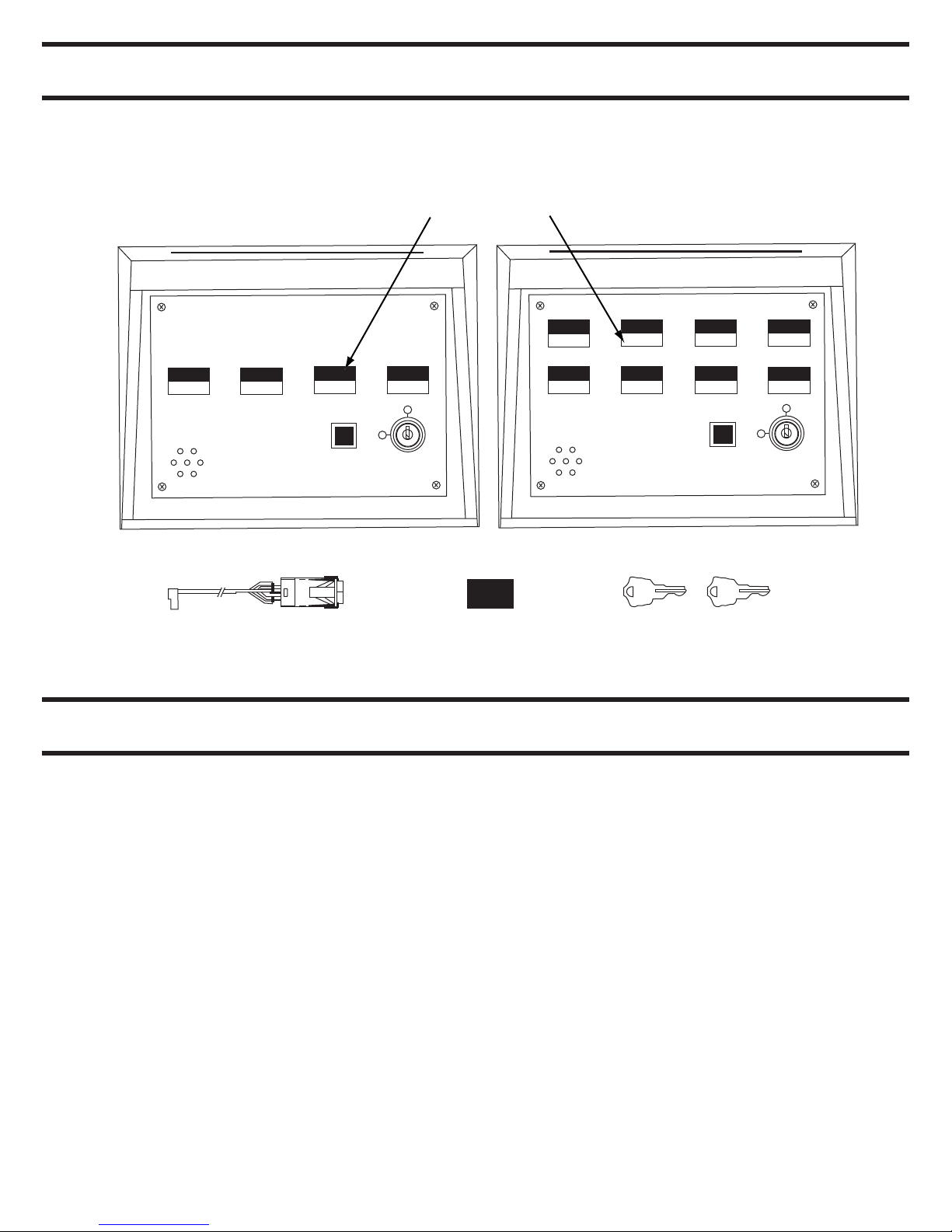

LIST OF PARTS
• Pushbuttons/Hole Plugs
• Maintained or Momentary Pushbutton Assembly*
• Hole Plug*
• Keyswitch Keys (2)
123
SILENCE
4567
SILENCE
8
1234
* Each console will have installed any combination of these in the switch/hole plug position
SPECIFICATIONS/FUNCTION
Power • 24 VDC ± 15%
• 50 milliamp internal console excluding lamps
• For UL applications, the power source shall be a
UL294 listed class 2 (power limited) power supply
Pushbutton (Momentary or Maintained) • 1 Amp, 24 VDC
Lamps (Green or Red) • 0.04 Amps @ 24 VDC (#85 lamp)
Terminal Blocks • Maximum of 14 Ga wire, 18-22 recommended
• Rated torque/screw size 0.50 Nm/M³
Alarm Output • 0.5 Amp @ 24 VDC common to all zones, protected
by automatically resetable breaker
Keyswitch • Off (CCW) – Powers NC (FS) outputs and removes
power from NO (FSE) outputs by breaking pushbutton
common. Powering NC contacts can be field modified
to eliminate this feature - see User Selectable Options
• ON (CW) – Powers pushbutton common and allows
the pushbuttons to have full control over the zone
Reset Button • Momentary pushbutton that resets the internal
latching horn and the Alarm Output that has been
triggered by voltage on the RED terminal
Temperature Range • 32°F – 120°F
Pushbuttons/Hole Plugs
Maintained or Momentary
Pushbutton Assemby*
Hole Plug* Keyswitch Keys (2)

3

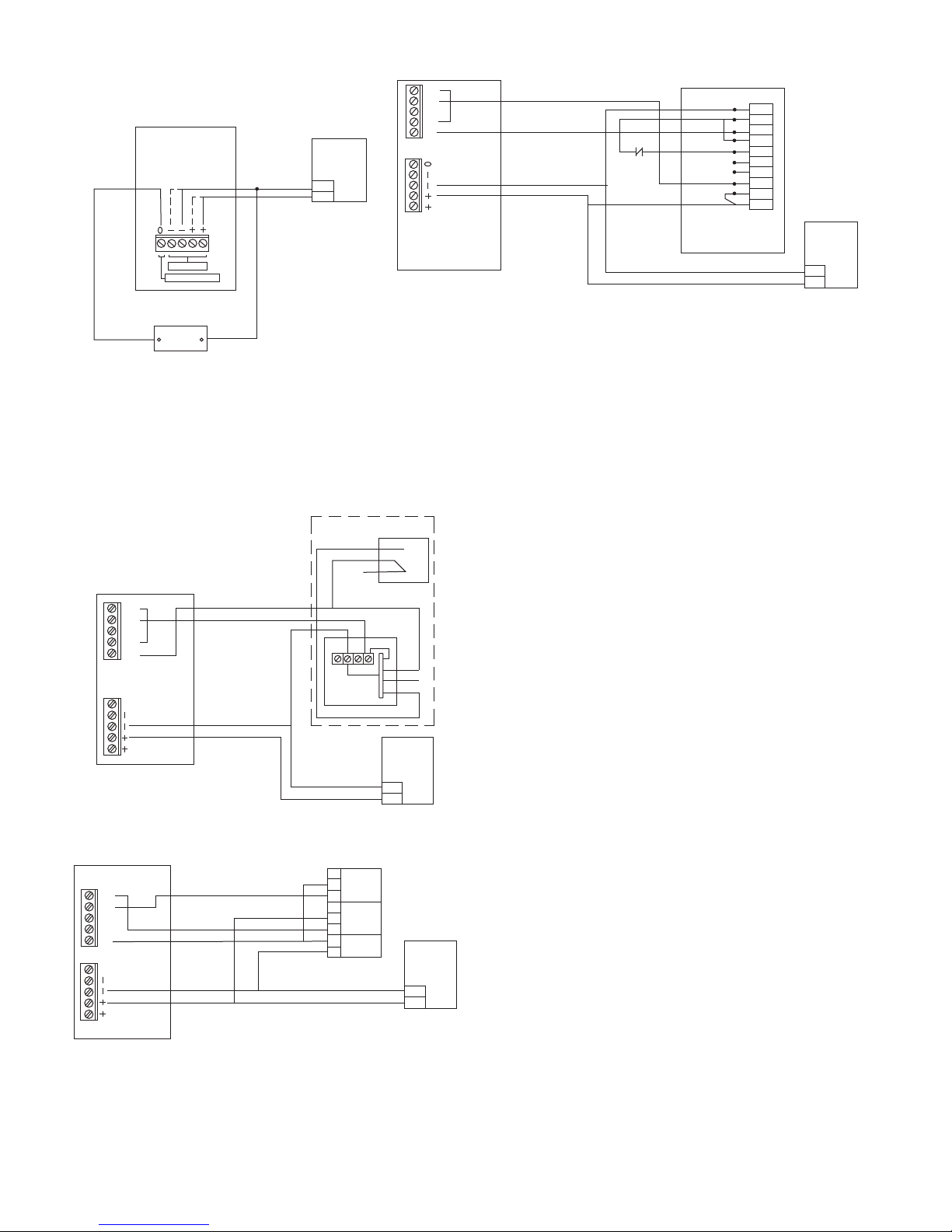

Wiring Examples
HORN
GRN
RED
GND
CX
BLK
WHT
GRN
ORN
GRA
VIO
BRN
BLU
RED +24
YEL
SC
3
DPS
FA
NO
CM-
CM+
C
C
NO
NC
TB 9
TB(1-8)
24 VDC
POWER
SUPPLY
FIRE
ALARM
DESK CONSOLE CHEXIT
(LIGHT, SOUNDER ETC.)
MAX. LOAD 1/2A @24VDC
TYPICAL WIRING FOR
EXTERNAL ALARM OUTPUT
24VDC
POWER
SUPPLY
GND
+24
GND
+24
681
PWR INPUT
ALARM OUTPUT
• When pushbutton is depressed, the CHEXIT device is disarmed and the GREEN light is on.
• When pushbutton is released, the CHEXIT is armed and the pushbutton light is off.
• If the pushbar is depressed while the CHEXIT is armed, the RED light will come on and the alarm will sound.
Typical L1910 Wiring
RED
BLK
BLU
VIO
GRN
HORN
L1910
YEL
RED
BLU
GRN
RED
C
NO
NC
TB(1-3)
TB 9
DESK CONSOLE
L1910. DPS
24VDC
POWER
SUPPLY
DOOR
POS. SWITCH
SHOWN WITH
DOOR CLOSED
0
GND
+24
• When pushbutton is depressed, the L1910 horn is
disarmed (passage through door allowed) and GREEN
light in pushbutton will come on.
• When pushbutton is released, the L1910 horn is armed
(passage through door will sound alarm) and RED light
in pushbutton will come on.
Typical Magnetic Lock with DPS & HFS Option Wiring
DESK CONSOLE
MAGNETIC
LOCK
24VDC
POWER
SUPPLY
DOOR
POSITION
SWITCH
HOLD
FORCE
SENSOR
MAGNETIC
LOCK
0
GRN
RED
C
NO
NC
GND
+24
NO
C
C
NC
NC
NC
V+
V-
TB(1-8)
TB 9
• When pushbutton is depressed, the magnetic lock is
unlocked and the GREEN light will come on.
• When the pushbutton is released, the magnetic lock is
locked and the pushbutton light is off.
• If the door is forced open while the magnetic lock is
locked, the RED light will come on and the alarm will
sound.
TYPICAL EXTERNAL
HORN WIRING
TYPICAL CHEXIT WIRING

4

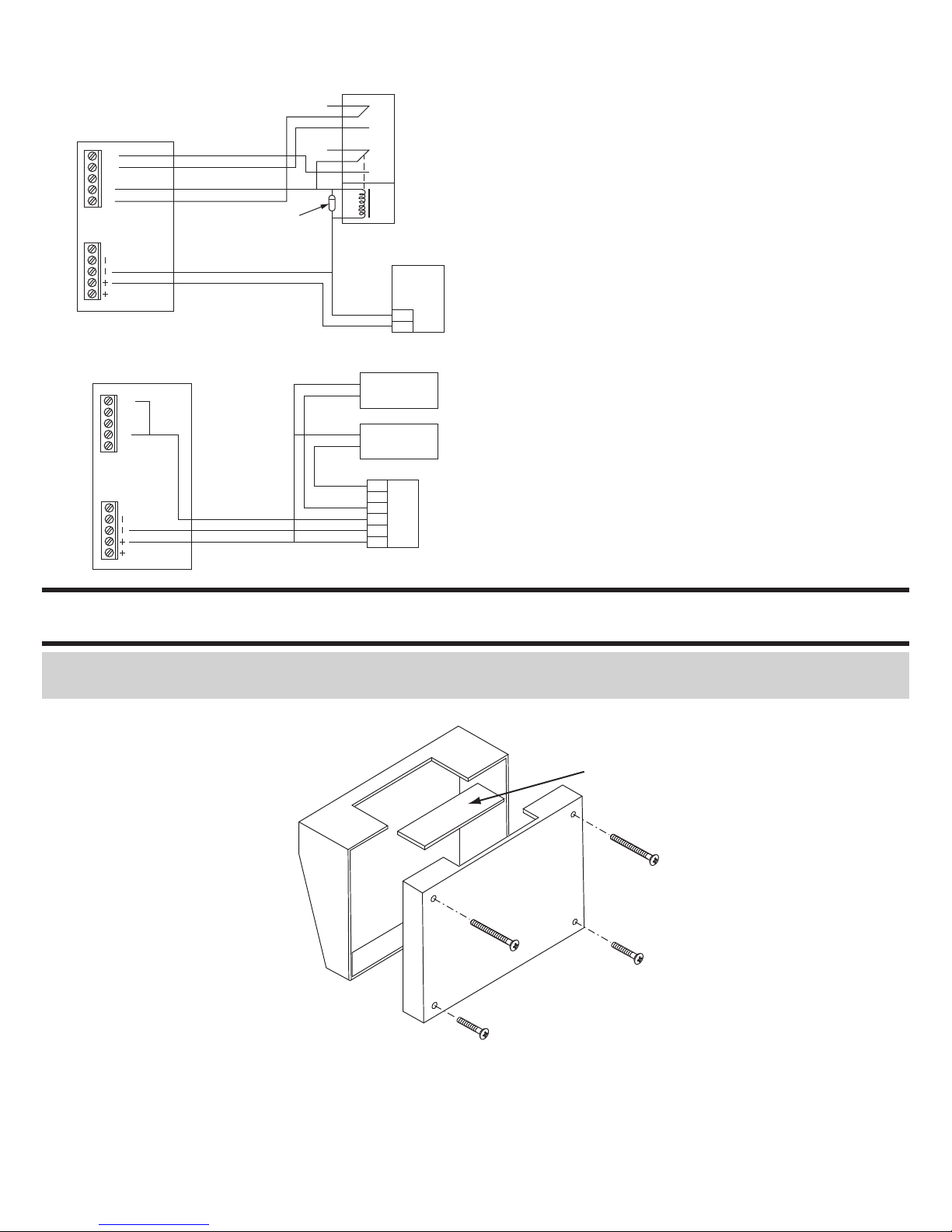

Typical 6000 Series Electric Strike Wiring
GRN
RED
C
NO
NC
TB(1-8)
TB 9
DOOR SHOWN CLOSED
AND LOCKED
NOTE:
IN4001 OR IN4004
DIODE ACROSS
SOLENOID.
LATCHBOLT
DEADBOLT
SWITCH
SOLENOID
SWITCH
LOCK
SOLENOID
ELECT STRIKE
W/DS OPTION (FSE)
DESK CONSOLE
24VDC
POWER
SUPPLY
YEL
RED
0
BLU
VIO
WHT
GRA
GND
+24
• When pushbutton is depressed, the electric strike is
unlocked and the GREEN light is on.
• When pushbutton is released, the strike is locked and
the pushbutton light is off.
• If the door is forced open while the strike is locked, the
RED light will come on and the alarm will sound.
Typical EL Device Wiring
DESK CONSOLE
24VDC
POWER
SUPPLY
EL DEVICE
EL DEVICE
GRN
RED
C
NO
NC
0
GND
+24
TB(1-8)
TB 9
• When pushbutton is depressed, the EL devices are
unlocked and the GREEN light in the pushbutton will
come on.
• When pushbutton is released, the EL devices are
locked and the pushbutton light is off.
• Refer to PS914 x 900-2RS PCB instructions for
proper wiring instructions for the EL device.
INSTALLATION/WIRING

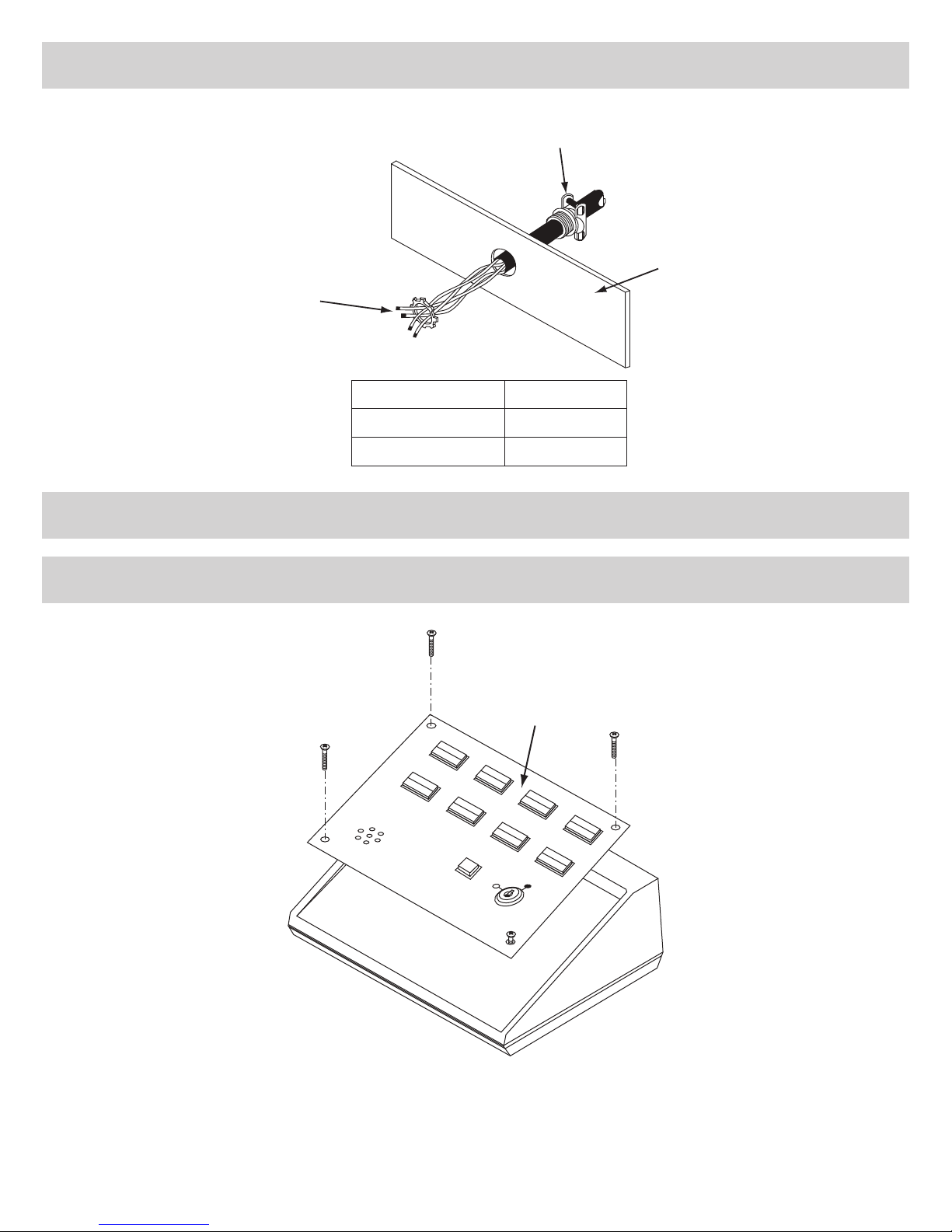

1 REMOVE ALL FOUR (4) SCREWS
I/O Panel

5

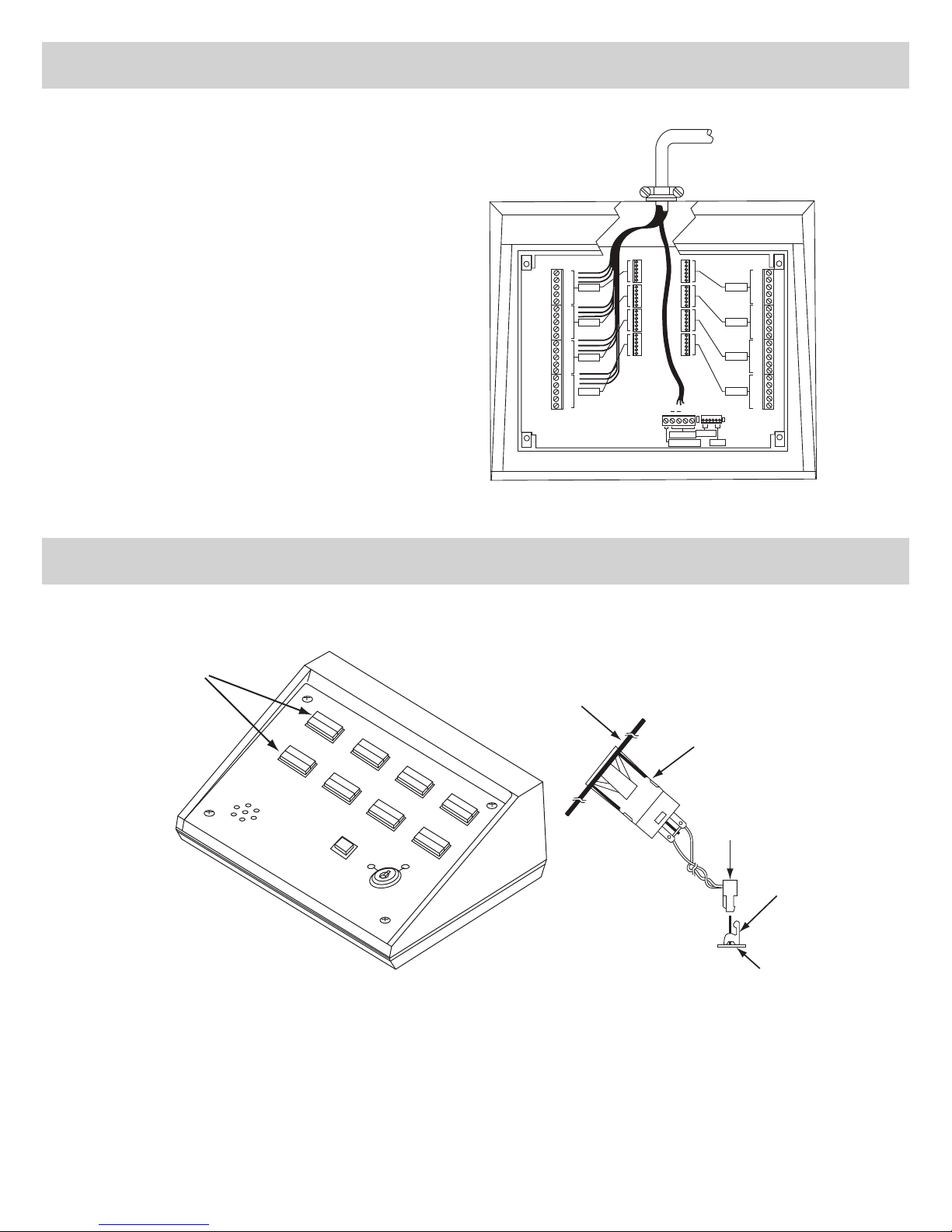

2 REMOVE I/O PANEL AND DRILL HOLE FOR WIRE USED
If required, use a strain relief or cable connector for wires.
Conduit Size Drill Size
Z\x”M\,”
C\v”1Z\,”
3 REASSEMBLE BOX
4 REMOVE ALL FOUR (4) FACEPLATE SCREWS
1
2
3
4
5
6
7
8
SILENCE
I/O Panel
Faceplate
Cable Connector
To Internal
Wiring
