A Note to You ........................ 3
Dishwasher Safety ................ 4
Parts and Features ................ 5
Starting Your Dishwasher ..7
Loading Your Dishwasher ....9
Using the Dispensers .......... 12
Setting the Controls ............ 14
Selecting a wash cycle ...... 14
Canceling a cycle .............. 15
Using the Plate
Warmer cycle .................... 15
Selecting cycle options ...... 15
Using delay wash .............. 16
Changing a cycle setting....16
Adding an item
during a cycle .................... 16
Washing Special Items ........ 17
Connecting a Portable
Dishwasher .......................... 18
Caring for Your
Dishwasher .......................... 21
Saving Energy ...................... 24
Solving Common
Dishwashing Problems ........25
Troubleshooting .................. 28
Requesting Assistance
or Service .............................. 29
Warranty ................................ 32
8057397
O O
D 0
00 0
00
MODEL SERIES 220, 250
O

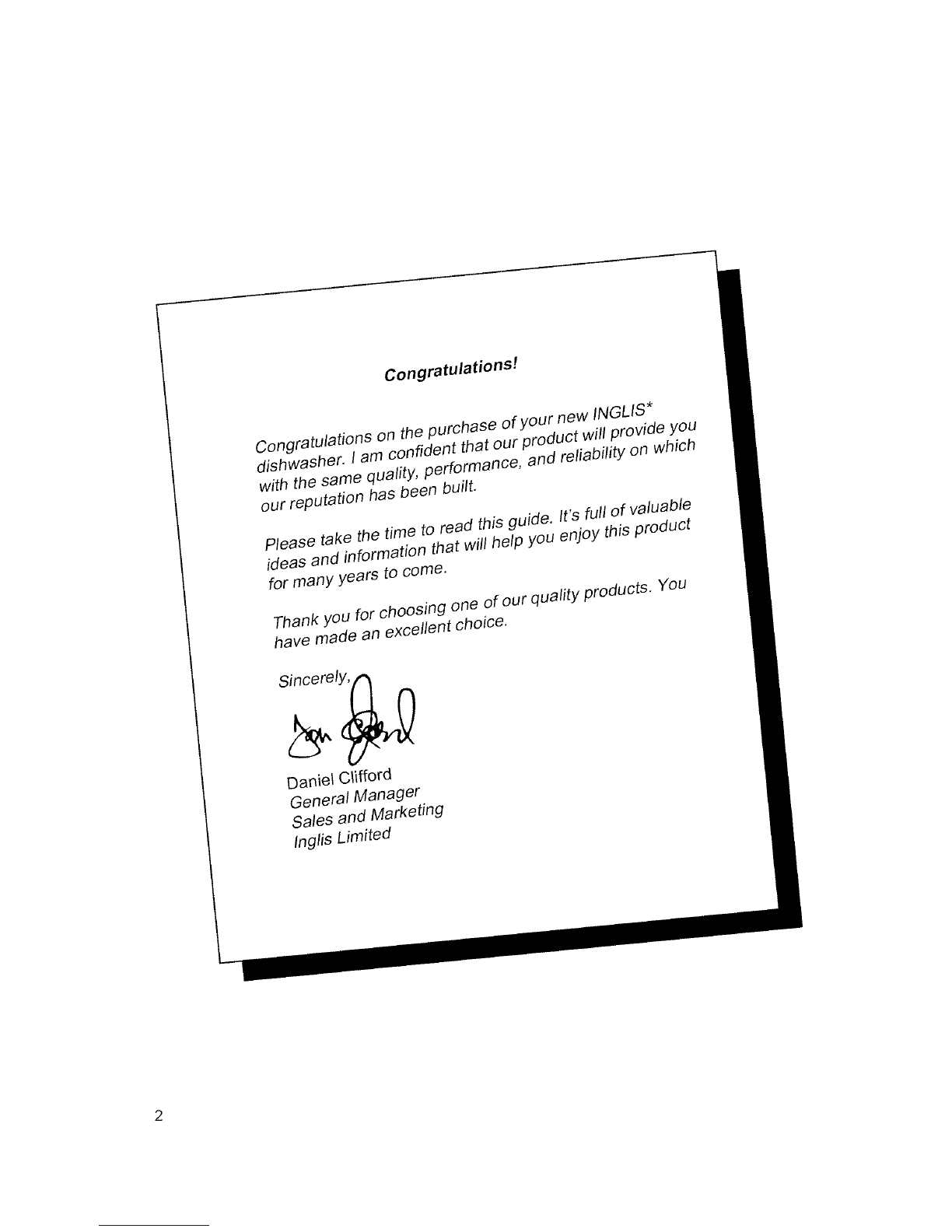

Congratulations!
Congratulations on the purchase of your new INGLfS*
dishwasher. I am confident that our product will provide you
with the same quality, performance, and reliability on which
our reputation has been built,
Please take the time to read this guide. It's full of valuable
ideas and information that will help you enjoy this product
for many years to come,
Thank you for choosing one of our quality products, You
have made an excellent choice.
Daniel Clifford
General Manager
Safes and Marketing
Inglis Limited

A Note to You
....iii_!i__i;_i_i_i:i;;_iiiii_i_;_i_::;;i_ii_i!:_i;:_i_i_i;_ ii:i::i:,_ii_ii_,iiii_i;i_;;_!!!iiiii!iii!:ii_iii_,i_z_,iii!'_iii_ili_iiiiiiiiiiiii:iii!!iilP_¸¸_i!:_:i_ii:i',_iii_i_!ii,_iil_i_,,_:_
To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It contains valuable information about how to operate and maintain your appliance properly
and safely. Please read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance.
This card helps us notify you about any new information on your appliance.
Whenever you call to request service for
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number label (see diagram on
the "Parts and Features" section for location
of label).
Please also record the purchase date of
your appliance and your dealer's name,
address, and telephone number.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Telephone
Keep this book and the sales slip together in a safe place for future reference.
Help us help you
Please:
- Have your dishwasher installed by a
qualified installer.
- Install where dishwasher is protected from
the elements.
° Install and level dishwasher on a floor that
will hold the weight, and in an area suit-
able for its size and use.
° Properly connect dishwasher to electricity,
water, and drain.t
, Remove all shipping plugs from hoses
and connectors (such as the cap on the
drain outlet) before installing.t
° Remove all hang tags and temporary
labels.
- Make sure dishwasher is not used by
anyone unable to operate it properly.
° Properly maintain dishwasher. See the
"Caring for Your Dishwasher" section.
¢ See Installation Instructions for complete
information.

shwasher Safety
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word "DANGER" or "WARNING." These words mean:
You will be killed or seriously injured
if you don't follow instructions.
You can be killed or seriously injured
if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING -When using the *Do not operate the dishwasher unless
dishwasher, follow basic precautions,
including the following:
. Read all instructions before using the
dishwasher.
. Use the dishwasher only for its
intended function.
. Use only detergents or rinse agents
recommended for use in a dishwasher
and keep them out of the reach of
children.
. When loading items to be washed:
1) Locate sharp items so that they
are not likely to damage the door
seal; and
2) Load sharp knives with the handles
up to reduce the risk of cut-type
injuries.
. Do not wash plastic items unless they
are marked "dishwasher safe" or the
equivalent. For plastic items not so
marked, check the manufacturer's
recommendations.
. Do not touch the heating element
during or immediately after use.
all enclosure panels are properly in
place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the
door or dish racks of the dishwasher.
• To reduce the risk of injury, do not
allow children to play in or on the
dishwasher.
• Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLO-
SIVE. If the hot water system has not
been used for such a period, before
using the dishwasher turn on all hot
water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas.
As the gas is flammable, do not smoke
or use an open flame during this time.
• Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
- SAVE THESE INSTRUCTIONS =

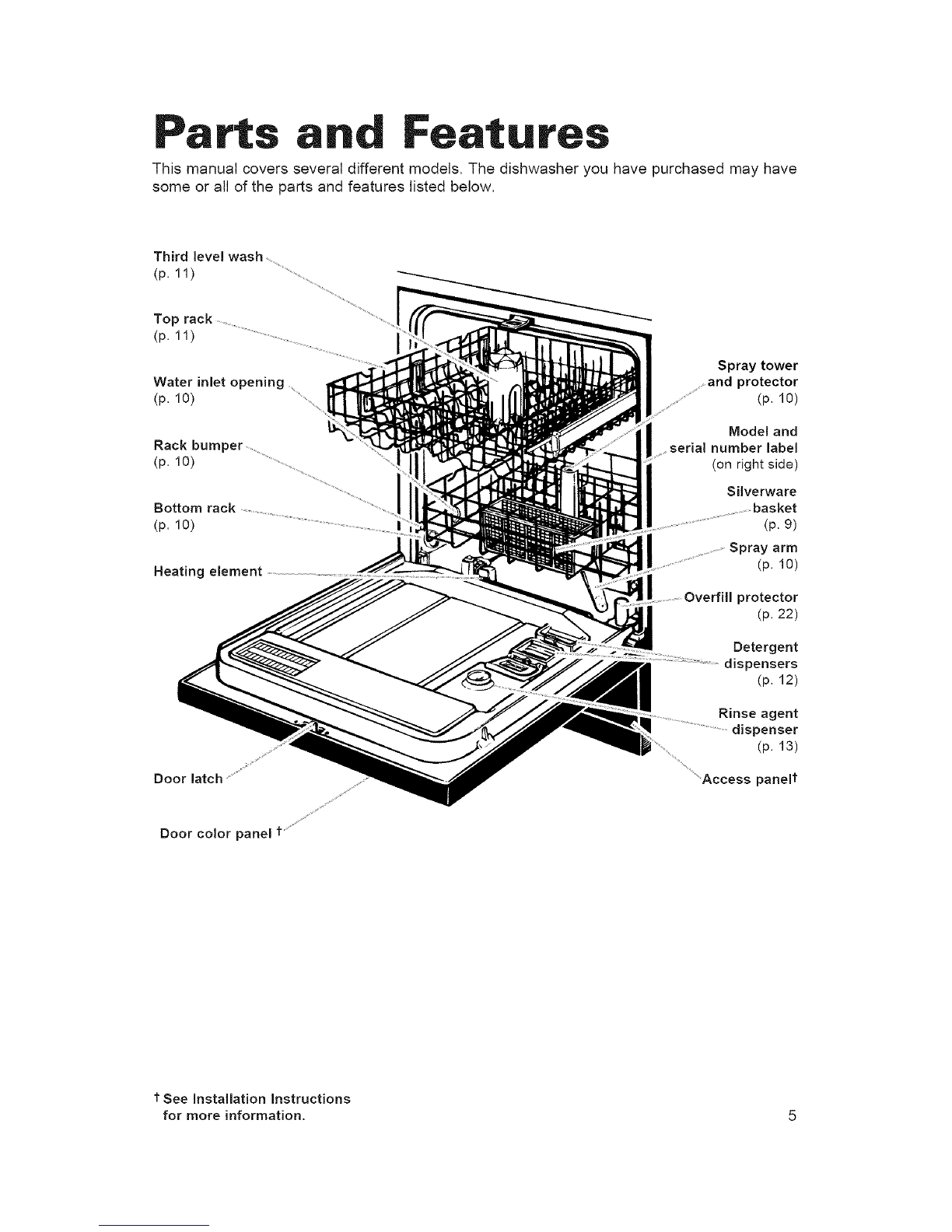

aaFeatures
This manual covers several different models. The dishwasher you have purchased may have
some or all of the parts and features listed below,
Third level wash
(p. 11)
Top rack
(p. 11)
Spray tower
Water inlet opening and protector
(p. 10) ............................ ...... (p. 10)
Model and
Rack bumper ..... serial number label
(p. 10) (on right side)
Silverware
Bottom rack .....basket
(p. 10) (p. 9)
Spray arm
Heating element (p. 10)
Door latch .......
protector
(p. 22)
Detergent
dispensers
(p. 12)
Rinse agent
dispenser
(p. 13)
..........Access panelt
Door color panel I .............
t See Installation Instructions
for more information, 5

Series 220 model
Cycle selector Option selector
buttons buttons Cycle control knob
Series 250 model
Cycle selector Option selector
buttons buttons Cycle control knob

Starting Your
Tip Over Hazard
Do not use dishwasher until
completely installed.
Do not push down on open door.
Doing so can result in serious injury
or cuts.
shwasher
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground
connector in terminal box.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
GROUNDING iNSTRUCTiONS
• For a grounded, cord connected
dishwasher:
The dishwasher must be grounded. In
the event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. The dish-
washer is equipped with a cord having
an equipment-grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet that is
installed and grounded in accordance
with all local codes and ordinances.
WARNING -Improper connection of
the equipment-grounding conductor can
result in a risk of electric shock.
Check with a qualified electrician or
service representative if you are in
doubt whether the dishwasher is
properly grounded. Do not modify the
plug provided with the dishwasher; if it
will not fit the outlet, have a proper
outlet installed by a qualified electrician.
" For a permanently connected
dishwasher:
The dishwasher must be connected to
a grounded metal, permanent wiring
system, or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the dishwasher.
- SAVE THESE iNSTRUCTiONS -

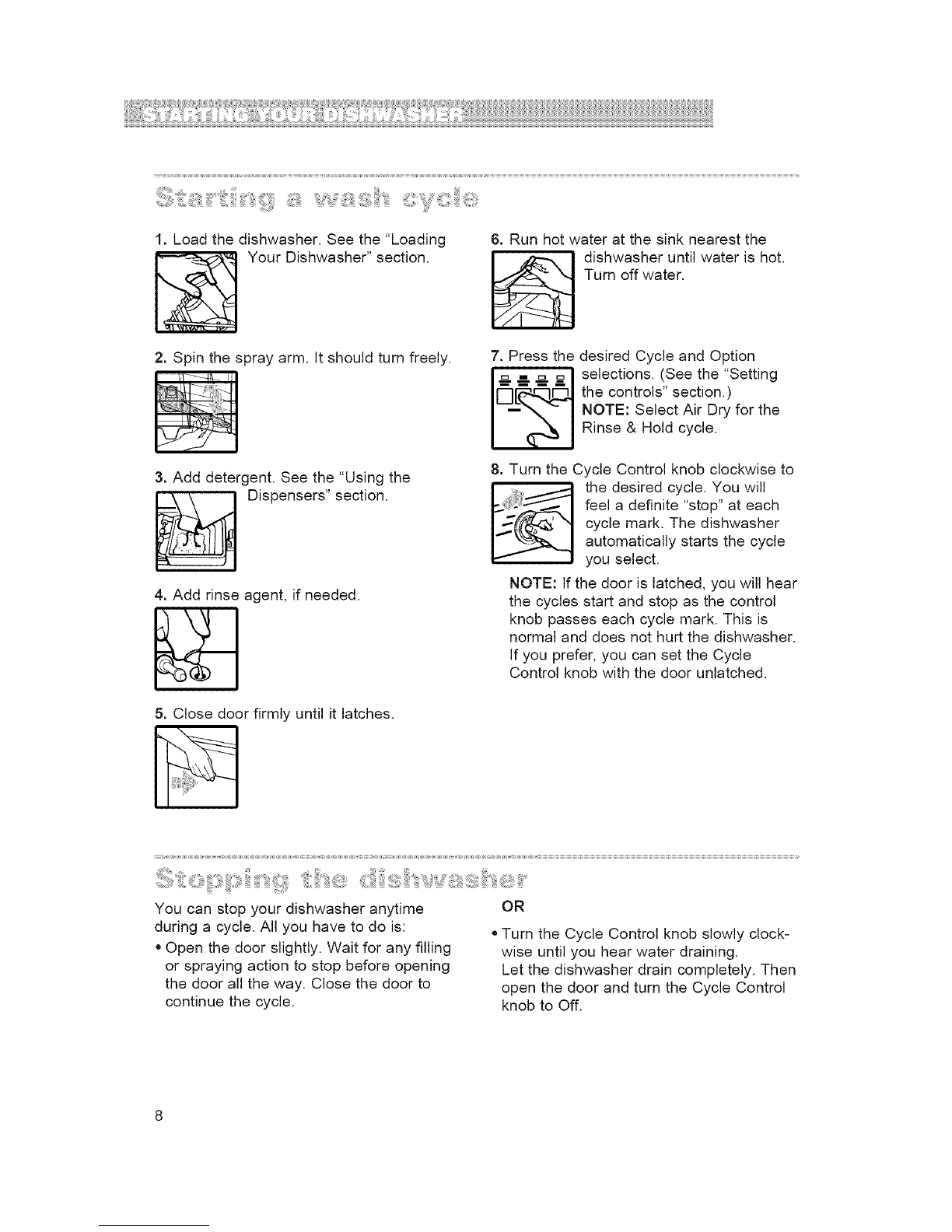

1. Load the dishwasher. See the "Loading
Your Dishwasher" section. 6. Run hot water at the sink nearest the
_ dishwasher until water is hot.
Turn off water.
2. Spin the spray arm. It should turn freely.
3. Add detergent. See the "Using the
Dispensers" section.
4. Add rinse agent, if needed.
7. Press the desired Cycle and Option
_ elections. (See the "Setting
the controls" section,)
NOTE: Select Air Dry for the
Rinse & Hold cycle,
8. Turn the Cycle Control knob clockwise to
_, the desired cycle. You will
feel a definite "stop" at each
cycle mark. The dishwasher
automatically starts the cycle
you select.
NOTE: If the door is latched, you will hear
the cycles start and stop as the control
knob passes each cycle mark. This is
normal and does not hurt the dishwasher.
If you prefer, you can set the Cycle
Control knob with the door unlatched.
5. Close door firmly until it latches.
You can stop your dishwasher anytime
during a cycle. All you have to do is:
,, Open the door slightly. Wait for any filling
or spraying action to stop before opening
the door all the way. Close the door to
continue the cycle.
OR
• Turn the Cycle Control knob slowly clock-
wise until you hear water draining.
Let the dishwasher drain completely. Then
open the door and turn the Cycle Control
knob to Off.

Loadin Your ishwasher
iiiil '¸ 'iiiiiiii i i "iiii !!'ii
• To save water and energy, do not rinse
dishes before putting them into the
dishwasher.
,, Remove large pieces of food, bones, and
other hard items.
,, Foods like eggs, rice, pasta, and cooked
cereals may be hard to remove if left to dry
over a period of time. Run a Rinse & Hold
cycle to keep dishes moist if you do not
plan to wash them soon.
• Load dishes so soiled surfaces face the
rotating spray arm.
• Load dishes so they are not stacked or
overlapping. It is important for the water
spray to reach all soiled surfaces for best
washing. For best drying, water must be
able to drain from all surfaces.
Loading for quiet operation
•Secure lightweight load items in the racks.
,, Pot lids and handles, pizza pans, cookie
sheets, etc., should not touch interior
walls, interfere with the spray arm's
rotation, or cover the spray tower.
,, Load dishes so they do not touch
one another.
NOTE: For built-in models, keep sink drain
plugs inserted during dishwasher operation
to prevent noise transfer through drains.
*Load the silverware basket while it is in Style 1
the dishwasher or take the basket out for
loading on a counter or table.
Style 2
• Mix items in each section of the basket
with some pointing up and some down
to avoid nesting. Spray cannot reach
nested items.
iMPORTANT: Always load sharp items
(knives, skewers, forks, etc.) pointing down.
,, Put small items (baby bottle caps, jar lids,
etc.) in any section.
• You can also remove the basket for easy
unloading. Always unload or remove the
basket before unloading the racks to avoid
spilling water on the silverware.

i! iiiiiiiil!!!!!iiiiii!!!! iiiliiiilii:iii!iiii iii:iiii!ii!!!ili!iili!iiii!!!!iiiiiiii!!ii!!iii!!ii:i:i:i!!!!i!i
i!i_,_i_i__ii!__iii_iiii_,__!!ii_1:iii_'__ii!!_,i!i:ii__iiii_i_i:11ilo __:_i__"_i_ii!!__i_iiiiii_!i__,_ill
Load items with cooked-on or dried-on food
in the bottom rack, with soiled surfaces
facing inward to the spray.
Mixed load
•Load plates, soup bowls, etc., between
prongs and facing inward to the spray.
,, Make sure pot handles and other items do
not stop rotation of the spray arm. Spray
arm must move freely.
,, Load items so they do not block or cover
the spray tower.
° Load heavily soiled cookware face down
in rack.
,, Do not stack or overlap dishes. Water
spray must reach all soiled surfaces for
best results.
Utensil load
" Load cookie sheets, cake pans, and other
large items at sides and back. Loading
such items in front may keep water spray
from reaching detergent dispenser and
silverware basket.
NOTES:
° Do not load glasses, cups, or plastic items
in the bottom rack.
" Do not load items between the bottom rack
and the dishwasher tub. This can block the
water inlet opening.
* If you have removed the bottom rack for
unloading or cleaning, replace it with
bumpers in front.
Mixed load
S
Do not cover spray tower
Utensil load
Bumpers must face dishwasher door
10

i_,,_o _i_i_ii!iit__i_:{iiiii_ _i_i:i!i_'__i_i!!ii_,i11_:i_i{ii_:ii_,_i__'_'_!!__:_:_i_

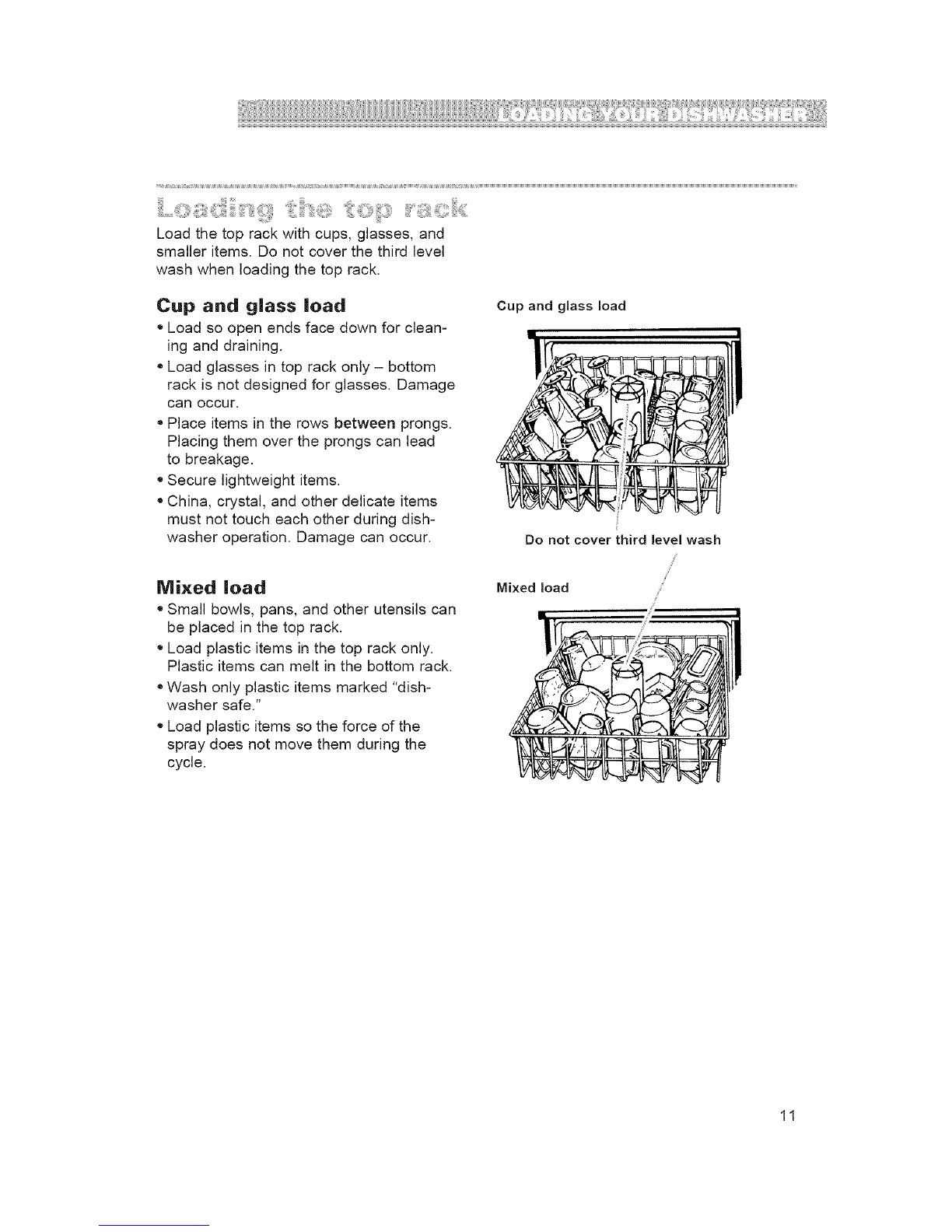

Load the top rack with cups, glasses, and
smaller items. Do not cover the third level
wash when loading the top rack.
Cup and glass load
" Load so open ends face down for clean-
ing and draining.
• Load glasses in top rack only - bottom
rack is not designed for glasses. Damage
can occur.
• Place items in the rows between prongs.
Placing them over the prongs can lead
to breakage.
,,Secure lightweight items.
• China, crystal, and other delicate items
must not touch each other during dish-
washer operation. Damage can occur.
Cup and glass load
Do not cover third level wash
_J_
Mixed load
"Small bowls, pans, and other utensils can
be placed in the top rack.
" Load plastic items in the top rack only.
Plastic items can melt in the bottom rack.
• Wash only plastic items marked "dish-
washer safe."
,,Load plastic items so the force of the
spray does not move them during the
cycle.
Mixed load
11

m
|ml
ispensers
Use automatic dishwashing detergent
only. Other detergents are too mild and
much too sudsy.
• Add detergent just before starting cycle.
• Store detergent tightly closed in a cool, dry
place. Fresh automatic dishwasher
detergent results in better cleaning.
Filling the detergent dispenser
The detergent dispenser has one section
with a cover and one without. Push cover
down firmly until it latches. Detergent in the
open section falls into the dishwasher when
closing the door. The covered section opens
automatically for the main wash.
NOTE: It is normal for the cover to open
partially when dispensing detergent.
Cover Cover Latch
i!
Use only covered Use both sections for:
section for: - Normal Wash
- Light Wash - Pots -N- Pans
How much detergent to use
• The amount of detergent to use depends
on the hardness of your water and the type
of detergent. If you use too little, dishes
won't be clean. If you use too much in soft
water, glassware will etch.
,, Different brands of dishwasher detergent
have different amounts of phosphorus for
softening water. If you have hard water
and use low phosphorous content deter-
gent (6.0% or less), you may need to use
more detergent or use a detergent with a
higher phosphorous content (8.7%).
• Find out your water's hardness by asking
your local water department, water soft-
ener company, or county extension agent.
WATER TYPE WHERE TO FILL
Hard Top of
8+ grains per gallon 3rd step
136+ parts per million (3 tbs)
Medium Top of
5-7 grains per gallon 2nd step
85-119 parts per million (2 tbs)
Soft Top of
0-4 grains per gallon 1st step
0-68 parts per million (1 tbs)
Fill amounts shown are for standard
powdered detergent. Amounts may vary if
you use liquid or concentrated powdered
detergent. Follow manufacturer's directions
when using liquid dishwasher detergent or
concentrated powdered detergent.
12

iii,Js __'i_i_iii_i:iii__:i___iii'__i_i_i'__!!__i!i__i__!ii__iiii_,_i_I:1c__slii::_,_i!i__ s_ili_ii....

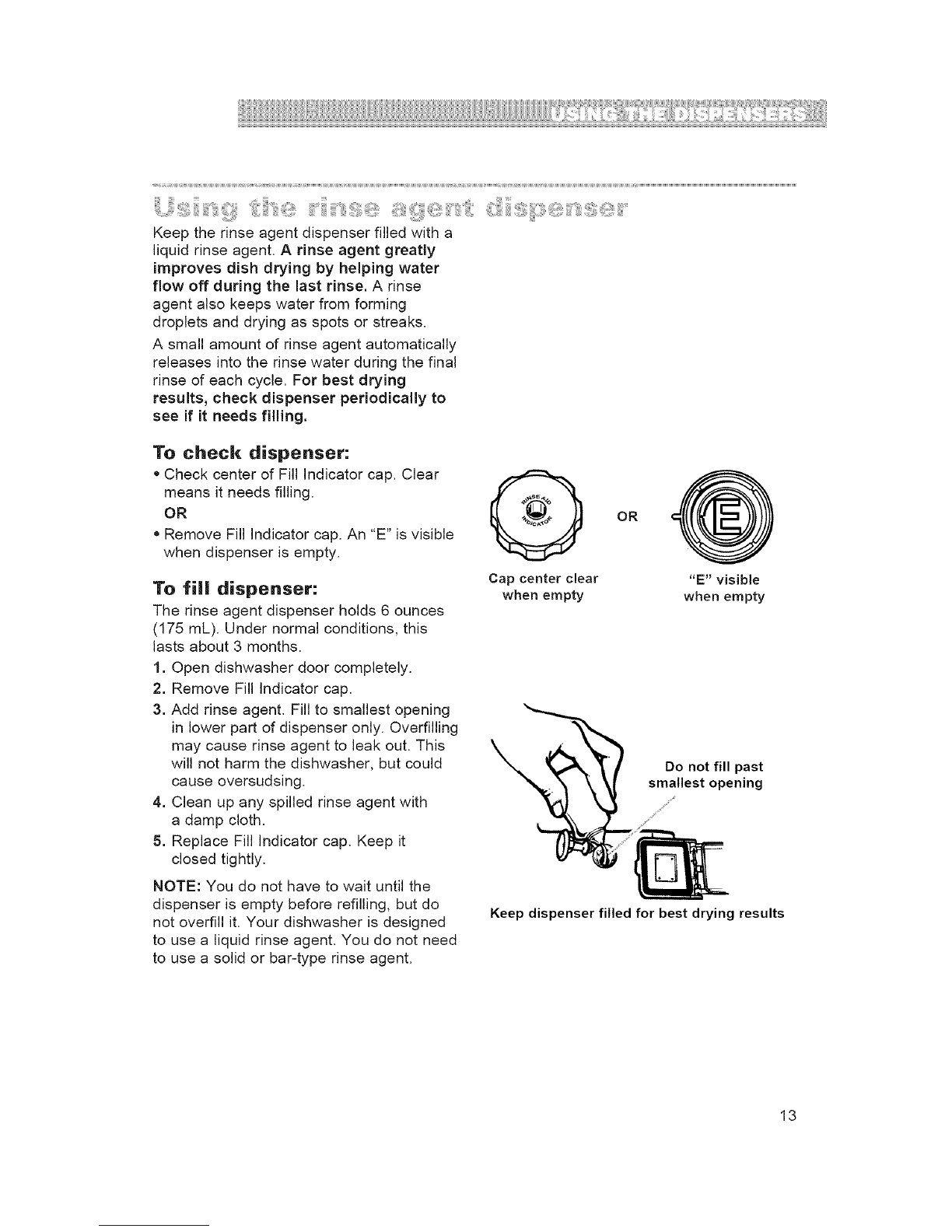

Keep the rinse agent dispenser filled with a
liquid rinse agent. A rinse agent greatly
improves dish drying by helping water
flow off during the last rinse. A rinse
agent also keeps water from forming
droplets and drying as spots or streaks.
A small amount of rinse agent automatically
releases into the rinse water during the final
rinse of each cycle. For best drying
results, check dispenser periodically to
see if it needs filling.
To check dispenser:
•Check center of Fill Indicator cap. Clear
means it needs filling.
OR
• Remove Fill Indicator cap. An "E" is visible
when dispenser is empty.
To fill dispenser:
The rinse agent dispenser holds 6 ounces
(175 mL). Under normal conditions, this
lasts about 3 months.
1. Open dishwasher door completely.
2. Remove Fill Indicator cap.
3. Add rinse agent. Fill to smallest opening
in lower part of dispenser only. Overfilling
may cause rinse agent to leak out. This
will not harm the dishwasher, but could
cause oversudsing.
4. Clean up any spilled rinse agent with
a damp cloth.
5. Replace Fill Indicator cap. Keep it
closed tightly.
NOTE: You do not have to wait until the
dispenser is empty before refilling, but do
not overfill it. Your dishwasher is designed
to use a liquid rinse agent. You do not need
to use a solid or bar-type rinse agent.
Cap center clear
when empty
OR @
"E" visible
when empty
Do not fill past
smallest opening
f
Keep dispenser filled for best drying results
13

:in the ontro
Press a cycle button, then turn the Cycle For model series 250:
Control knob to desired cycle. Light Wash and Rinse & Hold share the
For model series 220: same cycle button.
Normal Wash, Light Wash, and Rinse & NOTE: Your model may have all or some of
Hold all share the same cycle button, the cycles shown.
CYCLE
A "o" shows what each cycle includes CYCLE
MAiN FINAL TiME
WASH RIN8E RINSE WA8H RIN8E RINSE DRY (Minutes)
POTS-N-PANS Double
heated
washes for • • ®o® ® ® 98t
maximum
cleaning of cooked-on or
baked-on foods.
NORMAL WASH Double
wash for ® ® ® ® ® ® 90t
normal,
everyday
soiled loads. (The Energy
Guide label is based on this
cycle.)
Single wash
for prerinsed
or lightly
soiled loads.
For rinsing a
few items to
be washed
one or more
RINSE & HOLD
gil
days later,
•Do not use detergent,
•Use Air Dry option.
® 85t
20
t Cycle time includes dry time.
14

C iii;;!ii iii iiiiiii!!i
You can cancel a cycle at any time.
1. Turn the Cycle Control knob slowly
clockwise until you hear water draining.
Let the dishwasher drain completely.
2. Open the door.
3. Turn the Cycle Control knob to Off.
Use the Plate Warmer cycle to warm serving
dishes or dinner plates. Allow ONLY 8
minutes for this cycle and use Heat Dry.
1. Turn the Cycle Control knob to Plate
Warmer.
2. Select the Heat Dry option.
To shut off manually, open the door or turn
the Cycle Control knob to Off.
You can select a drying option after the
dishwasher starts as long as the Cycle
Control knob has not reached Dry.
Heat Dry optio_
If the Heat Dry option is selected, air in the
dishwasher is heated during the "dry" part
of the cycle. For best results, use a liquid
rinse agent. OR
Series 220 Series 250
model model
Air Dry option
When Air Dry is selected, the air in the
dishwasher is not heated during the "dry"
portion of a cycle. Using Air Dry helps save
energy, but dishes take longer to dry and
some spotting can occur. Some items (such
as plastics) may need towel drying. For best
drying, use a liquid rinse agent.
NOTE: You must choose either Air Dry or
Heat Dry for each wash cycle. Select Air
Dry when using the Rinse & Hold cycle.
Series 220 Series 250
model model
15

i! !ill!i!iiii!iiiiiiiii:!i!!i!i!iiiil

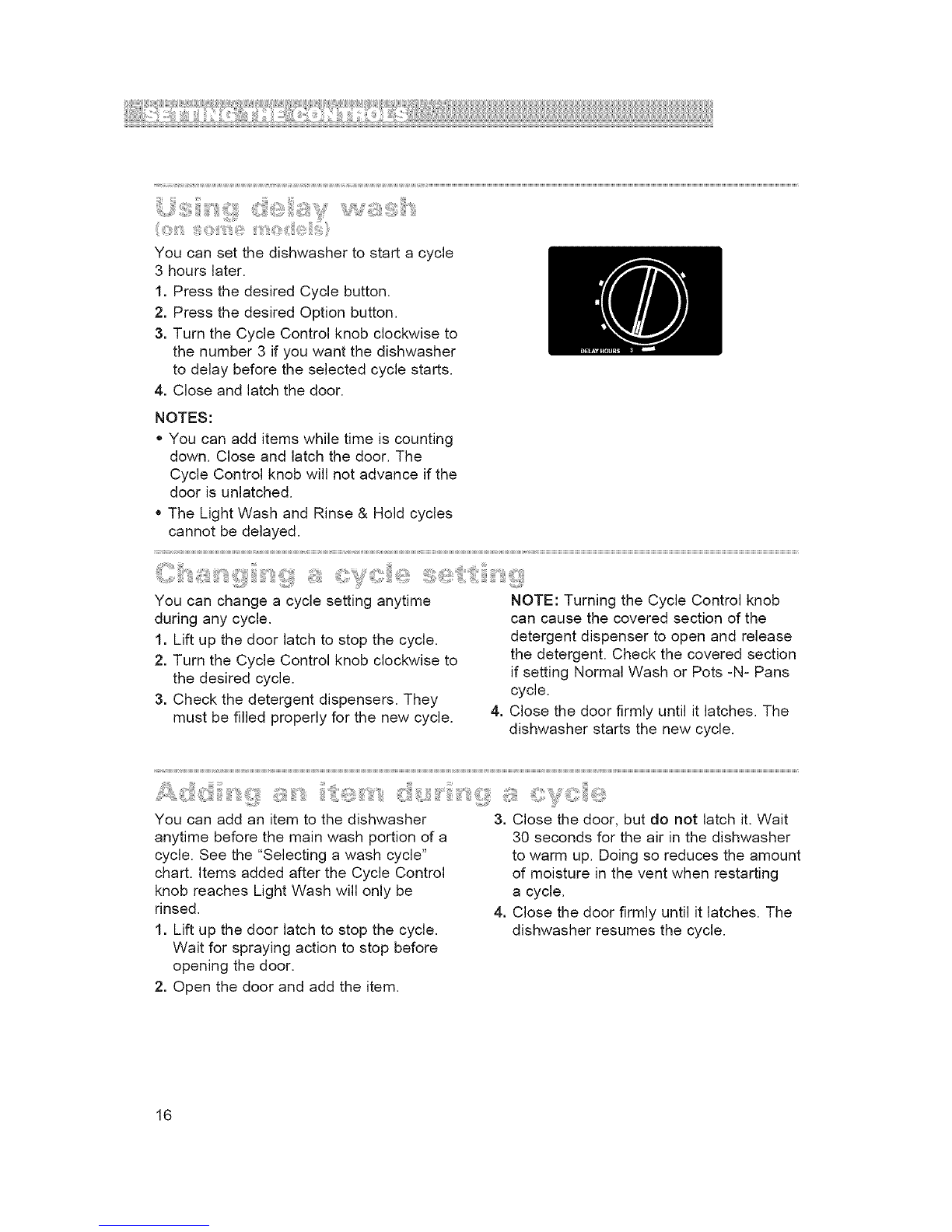

You can set the dishwasher to start a cycle
3 hours later.
1. Press the desired Cycle button,
2. Press the desired Option button,
3. Turn the Cycle Control knob clockwise to
the number 3 if you want the dishwasher
to delay before the selected cycle starts,
4. Close and latch the door,
NOTES:
,, You can add items while time is counting
down, Close and latch the door, The
Cycle Control knob will not advance if the
door is unlatched,
,, The Light Wash and Rinse & Hold cycles
cannot be delayed.
You can change a cycle setting anytime
during any cycle.
1. Lift up the door latch to stop the cycle.
2. Turn the Cycle Control knob clockwise to
the desired cycle.
3. Check the detergent dispensers. They
must be filled properly for the new cycle. .
NOTE: Turning the Cycle Control knob
can cause the covered section of the
detergent dispenser to open and release
the detergent, Check the covered section
if setting Normal Wash or Pots -N- Pans
cycle.
Close the door firmly until it latches, The
dishwasher starts the new cycle,
You can add an item to the dishwasher 3. Close the door, but do not latch it. Wait
anytime before the main wash portion of a 30 seconds for the air in the dishwasher
cycle. See the "Selecting a wash cycle"
chart. Items added after the Cycle Control
knob reaches Light Wash will only be
rinsed,
1. Lift up the door latch to stop the cycle,
Wait for spraying action to stop before
opening the door,
2. Open the door and add the item,
to warm up. Doing so reduces the amount
of moisture in the vent when restarting
a cycle.
4. Close the door firmly until it latches. The
dishwasher resumes the cycle.
16

a8 pecia| ,hmS
MATERIAL DISHWASHER SAFE? EXCEPTIONS/SPECIAL INFORMATION
Aluminum Yes High water temperature and detergents can pit
finish of anodized aluminum.
Bottles No Wash bottles and cans by hand. Labels attached
and Cans with glue can loosen in your dishwasher. Loose
labels and glue can clog spray arm or the pump
and will reduce washing performance.
Cast iron No Seasoning will be removed and iron will rust.
China/ Yes Always check manufacturer's recommendations
Stoneware before washing. Antique, hand-painted, or over-
the-glaze patterns may fade. Gold leaf can dis-
color or fade.
Crystal Yes Always check manufacturer's recommendations
before washing. Some types of leaded crystal
can etch with repeated washings.
Gold No Gold-colored flatware will discolor.
Glass Yes Milk glass will yellow with repeated dishwasher
washing.
Hollow- No Handles of some knives are attached to the
Handle blade with adhesives which may loosen if
Knives washed in the dishwasher.
Pewter No High water temperatures and detergent can dis-
color or pit finish.
Disposable No Cannot withstand high water temperatures
Plastics and detergents.
Plastics Yes Always check manufacturer's recommendations
before washing. Plastics vary in their capacity to
withstand high water temperatures and deter-
gents. Load plastics in top rack only.
Stainless Yes Run the Rinse & Hold cycle if not washing imme-
Steel diately. Prolonged contact with food containing
salt, vinegar, milk products, or fruit juice can
damage finish.
Sterling Sil- Yes Run the Rinse & Hold cycle if not washing imme-
vet or Silver diately. Prolonged contact with food containing
Plate salt, acid, or sulfide (eggs, mayonnaise, and sea-
food) can damage finish.
Tin No Can rust.
Wooden No Always check manufacturer's recommendations
Ware before washing. Untreated wood can warp,
crack, or lose its finish.
17

Colllne
shwasher
iiii!i!!iiliiili,_i_i!ii!'!_:_¸_it::iii_111:_iii!''_¸iiiiii,_i:_,,_'_'_:i_i_!! ,_i:i_,,O,_iiiii;__i_iiiii_i;__iiiiii!__ii:iiil;_111:iiiiiiiiO,_iii_iii_
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock
A power supply of 120 volts, 60Hz AC, 15 or
20 amps, is required. For your personal
safety, this appliance must be grounded. This
appliance is equipped with a power supply I1_
cord having a 3-prong grounding plug. To
minimize possible shock hazard it must be
plugged into a mating 3-prong grounding
type wall receptacle, grounded in accordance
with the National Electrical Code and local
codes and ordinances. If a mating wall
receptacle is not available, it is the responsi-
bility and obligation of the customer to have
a properly grounded 3-prong wall receptacle
installed by a qualified electrician.
NOTES:
• A special adapter must be installed on the
faucet before the dishwasher can be
connected. Complete instructions and the
adapter are packed with your dishwasher.
• When moving your dishwasher make sure
the door is latched. Hold the dishwasher X
at the top front corners.
aPortable
3=prong grounding
type wall receptacle oo ersupp,y
grounding plug
18

C ,,,_i_:_,_ iil_'__iii__ii_i111ii_i'_ii_!!!ii_111_ _ _ii_iii_!!_!__ w _ii!!__S_i__i!ii__'_'
1. Run water at faucet until it is hot. Turn
water off.
2. Pull hoses out of their storage compart-
ment on the back of the dishwasher.
NOTE: Make sure the hoses are not
kinked or twisted. Kinked hoses reduce
washing performance.
3. Pull down on the locking collar while _-------'- -_
lifting the hose connector onto the faucet _""--- _ Locking collar
adapter. '.........
4. When the connector snaps into place,
release the locking collar.
5. Turn the hot water on slowly until it is
all the way on.
6. Plug in power supply cord.
7. See the "Starting Your Dishwasher" sec-
tion for instructions on how to start
the dishwasher. Hose connector
_C
You can draw water from the faucet while
the dishwasher is connected. Do not draw
water while the dishwasher is filling or while
water is being pumped out. (This helps
prevent a low fill when dishwasher is filling
or mixing drain water with fresh water.)
* Press the red button on the hose connec-
tor to draw water from faucet. (The faucet
is set on hot. Adjust faucet for the water
temperature you want.)
NOTE: Turn hot water back on after you
draw water from faucet. Turn off cold water.
19

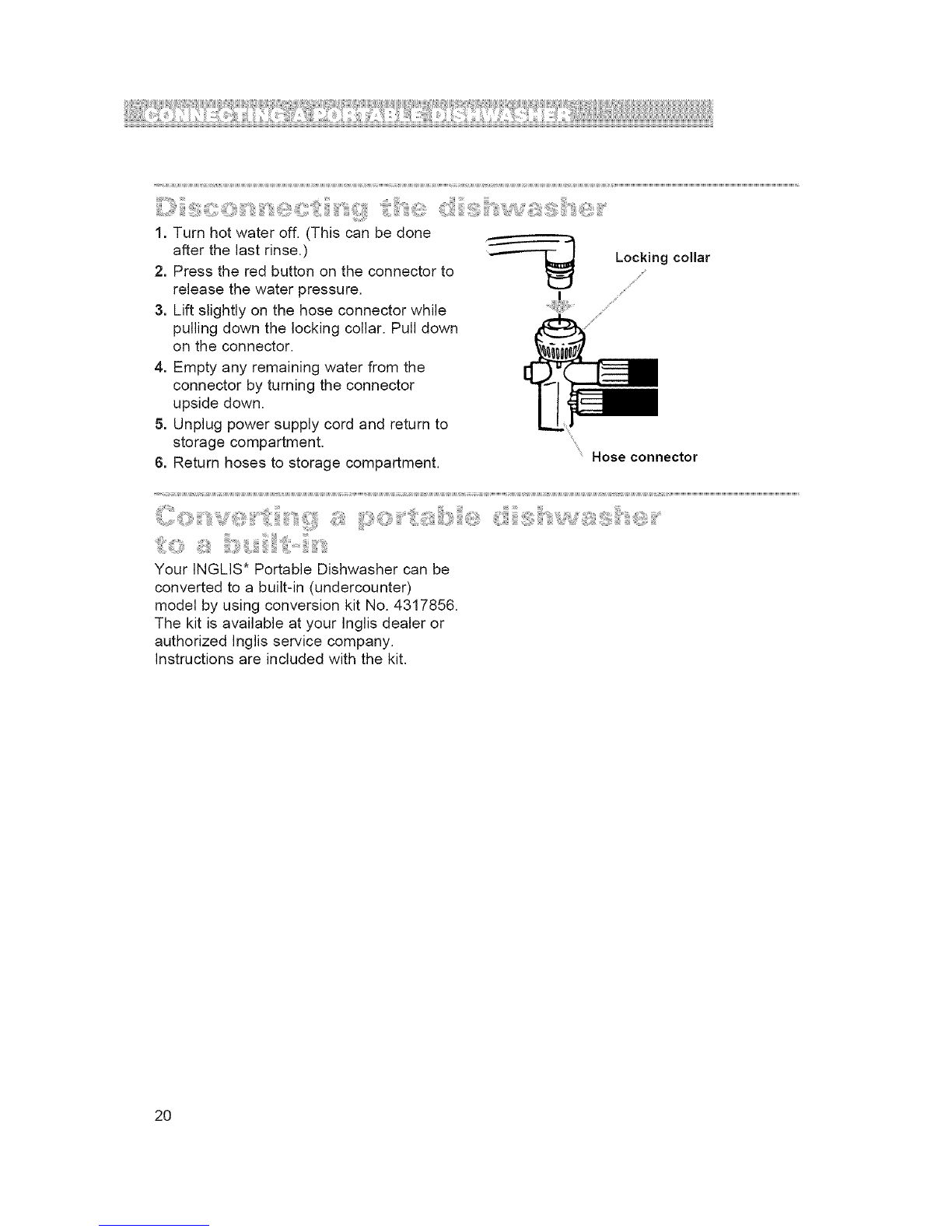

1. Turn hot water off. (This can be done
after the last rinse.)
2. Press the red button on the connector to
release the water pressure,
3. Lift slightly on the hose connector while
pulling down the locking collar, Pull down
on the connector,
4. Empty any remaining water from the
connector by turning the connector
upside down,
5. Unplug power supply cord and return to
storage compartment,
6. Return hoses to storage compartment.
Locking collar
Hose connector
: !)i:
Your INGUS _ Portable Dishwasher can be
converted to a built-in (undercounter)
model by using conversion kit No, 4317856,
The kit is available at your Inglis dealer or
authorized Inglis service company,
Instructions are included with the kit,
20
