Inova HS-PA212204 User manual

USERMANUAL
HS-PA212204
PROFESSIONALSPEAKER
PLEASE READTHISUSERMANUALCAREFULLYBEFORESYSTEMCOMMECT

IMPORTANTSAFETYMEASURES
Beforeusingthismachine, pleasereadall thesafety andoperatinginstructions.
meanwhile, pleaseobserve all theindicationsaboutsafeoperating.Thesesafety andoperating
instructionsshould bekeptincondition ofconsultation.
1.Protection ofelectricpowersupply line:Beawarethattheelectricpowersupply lineisnot
Tramped, pressedby heavy objects.Pay specialattentiontotheplugofpowersupply lineand outlet
onthemachine.DONOTlengthentheelectricshock.DONOTpull ordragorthepowersupply line
2.Ventilation:Thissetmustbeputin ventilatedplace.DONOTputdisk onitorclothtocoveritthe
distanceaway from thewall should notbeless than10centimeters.DONOTputthissetonthebed.
3.CasingDismantling:DOnotdismantlethecasingifonetouchestheinnercomponents, hewill
probably getseriouselectricshock.
4.Unusualsmell:Whenyoudiscoverunusualsmell and smoke, cutpowersuppliesimmediately and
pullsouttheplusfrom theoutletonthewall Contactthesell shopornearestrepairingcenter
Attention:ThissatappliestoAC 120V-240W50Hz-60Hz powersupply.Usestandardpower
Supply.Pleasebesureforthecorrectpowersupply beforeuseit
1-1PRODUCTFEATURES
1.Highoutputpower;
2.WithKaraokefunction;
3.Thetrebleisclear, naturaland bass ispowerful;
4.CompatibletoDVD/VCD/CD/TAPE/VIDEO/MP4/AUX
2-1FRONTPANELFUNCTIONINSTRUCTION
01.EQCONTROLPANEL.
02.MIC1:CONNECT WITH 1/2 WIREMICROPHONE.
03.MIC2:CONNECT WITH 1/2 WIREMICROPHONE.
04.GUITAR:CONNECTWITH THEGUITAR.
05.G.VOLUME:ADJUSTTHE "GUITAR"VOLUME.
06.MICPRIORITY:PRESS THISBUTTONTOENTERMICPRIORITY.
07.AUX/USB/MM PLAYER:AUX/USB/MMPLAYER
08.MICVOLUME:ADJUSTTHE “MIC"VOLUME.
09.ECHO:ADJUSTTHE "MUSIC"ECHO.
10.TREBLE:ADJUSTTHE "MUSIC"TREBLE.
11.BASS:ADJUSTTHE “MUSIC"BASS.

12.VOLUME:ADJUSTTHE "MUSIC"VOLUME.
01.LED DISPLAY
02.MEMORY1CARD:PUTMEMORYCARD INTOTHE SLOT.
03.MEMORY2CARD:PUTMEMORYCARD INTOTHE SLOT.
04.MODE/DEL:PRESS THISBUTTONTOSELECT MEMORYCARD/FM/LINE/
BLUETOOTH
05.REPEAT:REPEAT
06.REC:RECORD
07.EQ:EQUALIZER
08.PREV/CH- FORMP3MODE, PREVIOUS SONGWITH SHORTPRESS.
FORFMMODE,PREVIOUS CHANNELWITH SHORTPRESS.
09.PLAY/SCAN:(FMSTATE;SHORT-CYCLEACCORDINGTOTHE
SELECTED TABLE, AUTOMATICSEARCH PLATFORM,AUTOMATIC
SAVETABLE, PLAYRECORDINGFILEWITH LONGPRESS)
10.NEXT/CH+:FORMP3MODE, NEXTSONGWITH SHORTPRESS.
FORFMMODE, NEXTCHANNELWITH SHORTPRESS.
01.THE DVD DISCSLOT
02.LED DISPLAY
03.OPEN/CLOSEBUTTON
04.GAMESTICK1
05.PLAY/PAUSEBUTTON
06.GAMESTICKINPUT2
07.PREVIOUS SONG
08.NEXTSONG
09.POWERSWITCH
10.USB SOCKET
1.SCREEN ROTATION
2.THE SIMULATIONMENU
3.THE POWERSWITCH
4.THE SIMULATION-

5.THE SIMULATION+

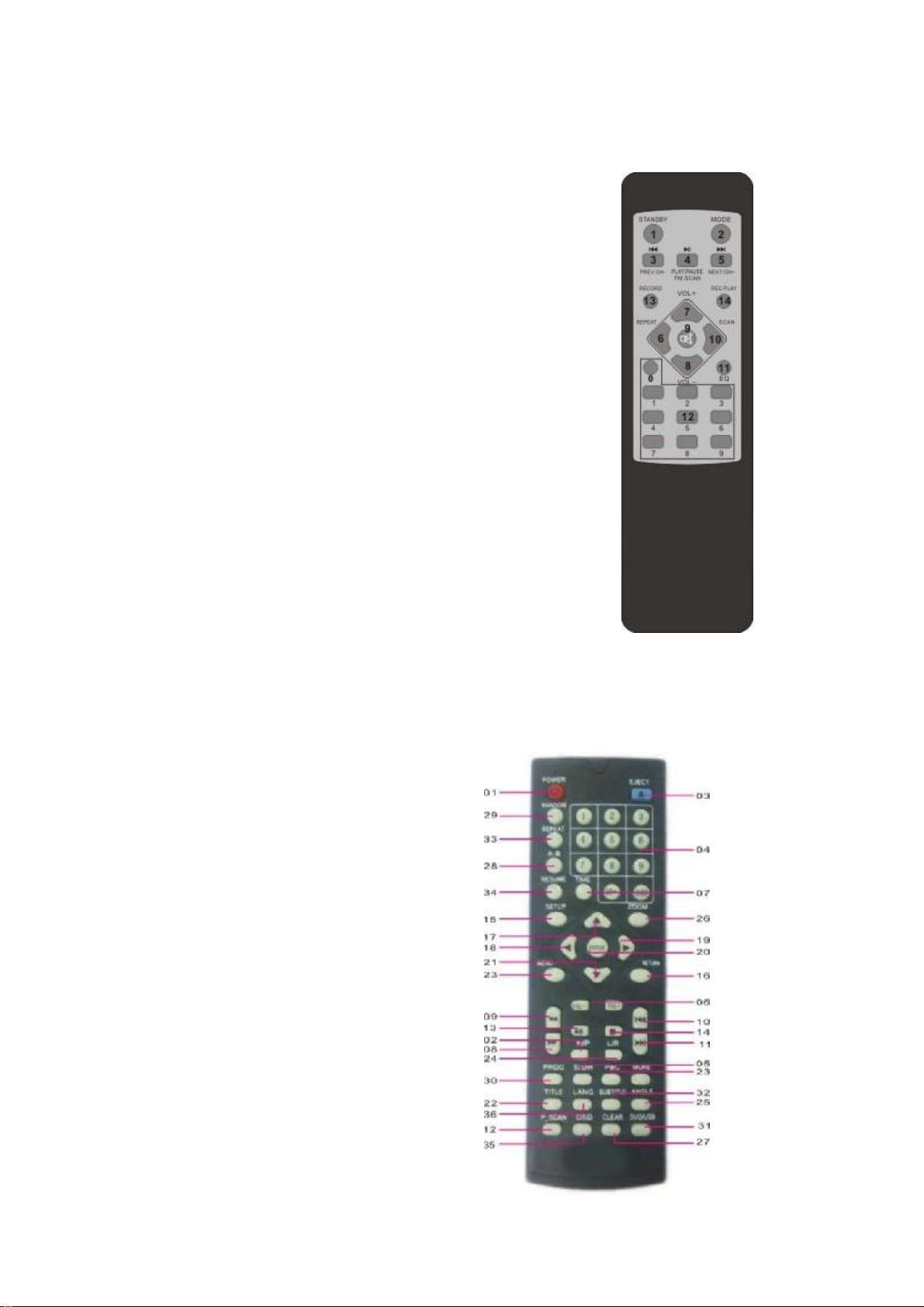

REMOTECONTROL
01.STANDBYSTATE
02.MODECONVERSION(MEDIAPLAYER/AUX/FM/BLUETOOTH)
03.(FASTREWIND)FORVIDEOMODE, PREVIOUS SONGWITH
SHORTPRESS.FORFMMODE,MANUALSEARCH CHANNEL
04.PLAY/PAUSEINVIDEOMODE.FORFMMODE, TOTHE NEXT
CHANNELWITH SHORTPRESS.FORFMMODE, AUTOMATIC
SEARCH CHANNELWITH ONEPRESS.THE CHANNELWILL
AUTOMATICSAVED INTHE SYSTEM
05.(FASTFORWARD)FORVIDEOMODE, NEXTSONGWITH
SHORTPRESS.FORFMMODEMANUALSEARCH CHANNEL
FORWARDWHICH HASSIGNALWITH LONGPRESS
06.REPEATED ASONGINVIDEOMODE, CANCELRECORDINGFILE
WITH LONGPRESS
07.VOL+VOLUMEINCREASE
08.VOL-VOLUMEREDUCE
09.MUTE
10.FORVIDEOMODETHE SONGREAD-AHEAD 10 SECONDSGOTO
NEXTSONGWITH LONGPRESS
11.FORVIDEOMODE, CHANGEEQADJUSTMENT WITH SHORTPRESS
12.0-9DIRECTLYSELECT THECHANNELWHICH HASSAVED INTHE
SYSTEMALREADY
13.(RECOR)RECORDING
14.(REPLAY)REPLAY
01.POWER
02.PAL/NTSC
03.OPEN/CLOSE
04.1-10, 10 +:THE NUMBERCHOOSINGKEY
05.SHOW
06.VOLUME
07.TIMESETUP
08.FORWARD
09.REWIND
10.PREVIOUS
11.NEXT
12.P_SCAN
13.PLAY/PAUSE
14.STOP
15.SETUP
16.RETURN
17.THE UPDIRECTIONINDVD MODEBUTTON
18.THE LEFTDIRECTIONINDVD MODEBUTTON
19.THE RIGHT DIRECTIONINDVD MODEBUTTON
20.ENTER
21.THE DOWNDIRECTIONINDVD MODEBUTTON

22.DISPLAYTITLESCREENINGDVD MODENCD 20DISC
23.PBC:THE DOWNDIRECTIONINDVD MODEBUTTON
24.LEFT/RIGHT SOUND CHANNEL
25.ANGLE
26.ZOOM
27.CLEAR
28.REPEATTHE PROGRAMA-B
29.RANDOM
30.PROG
31.USB/DVD
32.SUBTITLE
33.REPEAT
34.RESUME
35.OSD
36.LANGUAGE
BluetoothUseInstruction:
TheBluetoothsignlighttwinkles.Bluetoothconnectsuccessfully whenspeaker'DI'sound
Setonmobilephone.ConnecttoBluetoothdata, searchequipmentandmatchproperly
TheproperconnectBluetoothlightskeepon, and musicwork onspeakernormally
Recordfunction
Speakercanrecordthesound ofmusicfrom microphone.FMradio, orAUXsound sources.
And save therecordfilein memory card.
Operation asbelow:
1.Putthememory cardonspeaker
2.ConnectwithmicrophonetospeakerorturnFMradiotoplay, orconnectAUXand play
3.Press “Record buttontorecord, afterrecordfinish. Press “Record again tosave thefile
4.Press Replay toplay therecordfile
3-1 USEINSTRUCTION
1.Connectthesignalcablesaccordingtothebackpanelconnection instruction
2.TosurethecorrecttheVoltages.insertelectronicsourcecable, turnonthepowerswitchbutton
3.Adjustfunction keystoyoursatisfiedbestsound effect
4-1 PRODUCTEQUIPMENTLIST
1.Speaker
2.Powercable
3.VIDEOremotecontrol
4.Usermanual
5.AV cable
5-1BACK PANELCONNECTIONDIAGRAM
01.DC12V INPUT

02.VIDEO/AUDIO OUTPUT
03.FULL OF ELECTRICITY
04.CHARGINGINDICATOR
05.FMANTENNA
06.LINE INPUT
07.LIGHT POWER:LIGHT ON/OFF
08.POWERSWITCH:AC DCSWITCH
09.110V/240V :ADJUSTTHE VOLTAGE110V OR240V
10.AC~110/240/50~60HZ:CONNECT TOAC POWER, PLEASEBESURECONNECT
TO110V/240V 50-60HZ.OUTERRANGEPOWERMAYCAUSEACCIDENT.
