Insignia NS-FWM45W3 User manual

Before using your new product, please read these instructions to prevent any damage.
USER GUIDE

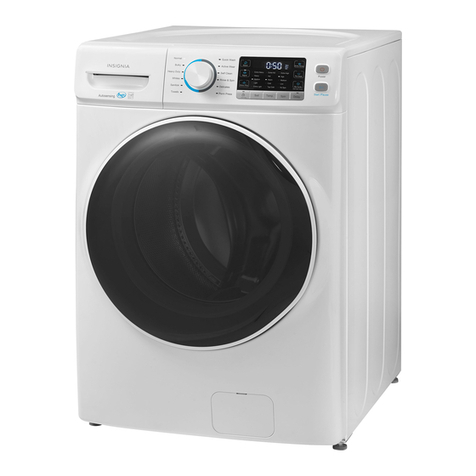

4.5 Cu. Ft. High Efficiency
Front-Load Washer
NS-FWM45W3

www.insigniaproducts.com
2
Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Main components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unpacking your washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Choosing a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Washer dimensions and installation measurements . . . . . . . . . . . . . . . . .12
Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Water requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Drainage requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Installing your washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Tools you need. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Step 1: Selecting a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Step 2: Connecting the water hoses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Step 3: Connecting the drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Step 4: Leveling your washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Step 5: Powering your washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Step 6: Running a test cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Preparing a load of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Sorting wash loads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Washing tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Washing a load of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Step 1: Selecting a detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Step 2: Turning on your washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Step 3: Loading your washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Step 4: Adding detergent and additives to the compartments . . . . . . .27
Step 5: Selecting the appropriate cycle and options for the load . . . . .28
Step 6: (Optional) Setting a delayed end time . . . . . . . . . . . . . . . . . . . . . . .28
Step 7: Starting your washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Setting the child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Washer options and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Wash cycles and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Water temp.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Spin speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Washer cycles and settings chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Maintaining your washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Cleaning the exterior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Cleaning the interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Cleaning the dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Cleaning the pump filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

3
NS-FWM45W3
www.insigniaproducts.com
SAFETY & PRECAUTIONS
Cleaning the door gasket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Storing your washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Understanding error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This User Guide contains important information on the installation, use, and care of
your appliance. Please read this guide carefully before installation and operation
of this machine to prevent injury and property damage.
The Warnings and Important Safety Instructions in this guide do not cover all
possible conditions and situations that may occur. It is your responsibility to use
common sense, caution, and care when installing, maintaining, and operating
your washer.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: This indicates that hazards or unsafe practices may
cause serious personal injury or death.
CAUTION:This indicates that hazards or unsafe practices may
cause minor personal injury or property damage.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying your
washing machine.
WARNING:
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.

SAFETY & PRECAUTIONS
4www.insigniaproducts.com
Basic precautions
WARNING: To reduce the risk of fire, electric shock, or injury to persons when
using your appliance, follow basic precautions, including the following:
1Read all instructions before using the appliance.
2Do not wash articles that have been previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning solvents, or other flammable or
explosive substances, as they give off vapors that could ignite or explode.
3Do not add gasoline, dry-cleaning solvents, or other flammable or explosive
substances to the wash water. These substances give off vapors that could
ignite or explode.
4Under certain conditions, hydrogen gas may be produced in a hot-water
system that has not been used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been used for such a period, before
using a washing machine, turn on all hot-water faucets and let the water flow
from each for several minutes. This will release any accumulated hydrogen
gas. As the gas is flammable, DO NOT smoke or use an open flame during this
time.
5Do not allow children to play on or in the appliance. Close supervision of
children is necessary when the appliance is used near children. Before your
washer is removed from service or discarded, remove the door or lid. Failure to
follow these instructions may result in death or injury to persons.
6Do not reach into the appliance if the tub is moving.
7Do not install or store this appliance where it will be exposed to the weather.
8Do not tamper with controls.
9Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in the user-maintenance instructions or in
published user-repair instructions that you understand and have the skills to
carry out.
10 Keep the area around your appliance clean and dry to reduce the possibility of
slipping.
11 Do not operate this appliance if it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts including a damaged cord or
plug.
12 Unplug the appliance or turn off the circuit breaker before servicing. Pressing
the Power button DOES NOT disconnect power.
13 See Electrical requirements on page 14 for grounding instructions. This
appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with appliance.
14 If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualified persons in order to avoid a hazard.
15 This appliance is for indoor use only.
WARNING

5
NS-FWM45W3
www.insigniaproducts.com
SAFETY & PRECAUTIONS
16 Always unplug the washing machine from the power supply before
attempting any service. Disconnect the power cord by grasping the plug, not
the cord.
17 To reduce the risk of fire, clothes, cleaning rags, mop heads and the like which
have traces of any flammable substance, such as vegetable oil, cooking oil,
petroleum based oils or distillates, waxes, fats, etc. must not be placed in the
washing machine. These items may contain flammable substances which,
even after washing, may smoke or catch fire.
18 The glass door may be very hot during the operation. Keep kids and pets far
away from the machine during operation.
19 This machine is not intended for use by persons (including kids) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
machine by a person responsible for their safety.
20 Do not machine wash fiberglass materials (such as curtains and window
coverings that use fiberglass materials.) Small particles may remain in the
washing machine and stick to fabrics in subsequent wash loads causing skin
irritation.
21 Make sure that the water inside the drum has been drained before opening
the door. Please do not open the door if there is any water visible.
22 Do not try to repair the machine by yourself. The machine may be damaged or
more troublesome repair work may be needed and even dangerous operation
may take place if it is repaired by any inexperienced or unqualified person.
Grounding
• This appliance must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by providing a
path of least resistance for the electric current. This appliance is equipped with
a cord that has an equipment grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
•WARNING: Improper connection of the equipment grounding conductor can
result in electric shock. Connect to an individual branch circuit. Check with a
qualified electrician or serviceman if you are in doubt as to whether your
washer is properly grounded.
• DO NOT modify the plug provided with the appliance if it will not fit the outlet.
Please have a proper outlet installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
Installation warnings and precautions
1Plug the power cord into an AC 120 V/60 Hz wall socket rated at 16 amps or
higher. Use the socket for this washer only. Do not use an extension cord.
• Sharing a wall socket with another appliance, using a power strip, or
extending the power cord may result in electric shock or fire.
• Do not use an electric transformer. It may result in electric shock or fire.
Note: Environmental Protection
• If you plan to dispose of this machine, please comply with the local waste disposal
regulations. Cut off the power cord so that it will not be put into reuse.
• Remove the door so that kids and animals will not be trapped in the machine.
• Do not use excessive detergents.

SAFETY & PRECAUTIONS
6www.insigniaproducts.com
• Make sure that the power voltage, frequency, and current match the
product's specifications. Failing to do so may result in electric shock or fire.
2Remove all foreign substances such as dust or water from the power plug
terminals and contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in electric shock or fire.
3Plug the power plug into the wall socket in the right direction so that the cord
runs towards the floor.
• If you plug the power plug into the socket in the opposite direction, the
electric wires within the cable may be damaged and this may result in
electric shock or fire.
4Do not pull or excessively bend the power cord. Do not twist or tie the power
cord.
5Do not hook the power cord over a metal object, place a heavy object on the
power cord, insert the power cord between objects, or push the power cord
into the space behind the appliance, because this may result in electric shock
or fire.
6Do not pull the power cord when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failing to do so may result in electric shock or fire.
7Do not install on carpet. Install your washer on a level and solid floor that can
support its weight. Failure to do so may result in abnormal vibrations, noise, or
problems with the product.
8Your washer is heavy. Two or more people may be needed to install and move
the appliance. Failure to do so may result in bodily or other injuries.
9Store and install your washer where it will not be exposed to temperatures
below freezing or exposed to outdoor weather conditions. Failure to do so
may result in serious leak damage.
10 Failure to closely follow these instructions may result in an abnormal vibrating
and out-of-balance condition that could result in physical injury, property
damage, and/or appliance damage.
Features
Package contents
Make sure that the following items came with your washer:
User GuideHose screen washers (2) Drain hose guide (1) Nylon tie (1)

7
NS-FWM45W3
www.insigniaproducts.com
SAFETY & PRECAUTIONS
You’ll also need (not provided):
Main components
Front
Back
Water hose (2)
Control panel
Detergent dispenser
drawer
Door
Filter door
Water supply inlets
Drain hose

SAFETY & PRECAUTIONS
8www.insigniaproducts.com
Control panel
#ITEM DESCRIPTION
1Cycle selector Turn to select a cycle. For more information, see Washer options
and settings on page 30.
2Steam button Press to add steam to the Normal, Bulky, Heavy Duty, Whites,
Sanitize, or Towels cycles.
3Remain-
Delay indicator
Lights to indicate that Delay has been selected. The display
shows the delay countdown.
4Child Lock
indicator
Lights to indicate that the Child Lock has been selected.
5Digital display
• The initial display is the total wash time for the selected
cycle.
• While your washer is running, the display shows the cycle
process and options currently running and time remaining
in the cycle.
Note: The time shown is an estimate based on normal operating conditions.
External factors (such as the load size, incoming water temperature, and water
pressure) can affect actual time.
• If you set a Delay Time for the end of the cycle, the display
shows the time when the cycle will end.
• The display shows an error code if your washer experiences a
problem.
6Extra Rinse
button
Press to add an extra rinse to the selected cycle.

9
NS-FWM45W3
www.insigniaproducts.com
SAFETY & PRECAUTIONS
7Pre Soak button
Press to add a pre-soak to the selected cycle.
This option begins with a brief tumble and then proceeds to
soak the clothes with water and detergent for a specified period
of time. Once complete, the cycle will begin automatically.
The Pre Soak time will add an additional 20-30 minutes to the
overall wash time.
8My Cycle
button
• Press and hold for three seconds to save the currently
selected wash cycle, soil level, spin speed, and wash temp.
• Press to use your pre-programmed cycle.
9Power
button
Press to turn your washer on or off, or to “wake up” the display.
Note: Pressing the power button does not disconnect your washer from the
power supply.
10 Signal button Press to turn the beep signal on or off. A single beep indicates a
valid option selected. A double beep indicates an invalid option.
11 Water Plus
button
Press to increase the water level in the main wash in the Bulky,
Heavy Duty, Whites, Sanitize, Towels, Delicates, Active Wear, and
Perm Press cycles.
12 Child Lock
button
• Press and hold for three seconds to lock the controls so that
a child can’t accidentally start your washer by touching the
controls.
• Press and hold for three seconds to unlock the controls.
Note: The Power button still works even when the child lock is turned on.
13 Soil button
Press to cycle through the soil level of the clothes you are
washing. Options include Extra Light>Light>Medium>
Heavy>Extra Heavy. Decreases or increases the wash time. See
Soil level on page 31.
14 Door lock
indicator
Lights to indicate that the door of your washer is locked.
15 Temp. button
Press to select the water temperature. You can select Tap
Cold>Cold>Warm>Hot>Extra Hot. For more information, see
Water temp. on page 31.
16 Spin button
Press to cycle through the available spin speeds of the final
cycle. Options include No Spin>Low>Medium>High>Extra
High. Higher spin speeds are not available on certain cycles,
such as Delicates. See Spin speed on page 31.
17 Delay button Press to set a delayed end time. See Step 6: (Optional) Setting a
delayed end time on page 28.
18 Start/Pause
button
• Press to start or pause the cycle.
• Press to start the delay countdown after setting a delayed
end time.
#ITEM DESCRIPTION

SAFETY & PRECAUTIONS
10 www.insigniaproducts.com
Unpacking your washer
1Cut and remove the top and bottom packaging straps.
2While it is in the carton, carefully lay your washer on its side. DO NOT lay your
washer on its front or back.
3Turn down the bottom flaps and remove all of the base packaging, including
the cardboard, Styrofoam base, and Styrofoam tub support (inserted in the
center of the base).
4Carefully return your washer to an upright position and remove the carton.
5Carefully move your washer to within 4 ft. (122 cm) of the final location.
6Remove the four transport bolts, plastic spacers (including rubber grommets),
and power cord retainers from the back of your washer.
WARNING: Recycle or destroy the carton and plastic bags after your washer is
unpacked. Make materials inaccessible to children. Children might use them for play.
Cartons covered with rugs, bedspreads, or plastic sheets can become airtight
chambers causing suffocation.
Notes: Check for damage to your washer and make sure that you received all parts. If
your washer is damaged or parts are missing, contact Insignia Customer Support.
CAUTION: Your washer is heavy. You may need help to unpack and move it.
Note: If you are installing your washer on a pedestal, proceed to the installation
instructions that came with the pedestal.
CAUTIONS:
• Failure to remove the four transport bolts can cause your washer to become
severely unbalanced and cause damage.
• Any damage from failure to remove the transport bolts is not covered by the
warranty.
• If you must transport your washer at a later date, reinstall the shipping support
hardware to prevent shipping damage. Keep the hardware in the plastic bag
provided.

11
NS-FWM45W3
www.insigniaproducts.com
SAFETY & PRECAUTIONS
Choosing a location
Selecting the correct location for your washer improves performance and
minimizes noise and possible washer “walk.” Your washer can be installed under a
custom counter or in a basement, laundry room, closet, or recessed area. See
Drainage requirements on page 16. You should also consider a companion
appliance’s (dryer) location requirements.
For best performance, you need:
• A grounded electrical outlet located within 6 ft. (1.8 m) of where the power
cord is attached to the back of your washer. See Electrical requirements on
page 14.
• Hot and cold water faucets located within 42 in. (107 cm) of the hot and cold
water fill valves, and water pressure between 10 and 120 psi (68.9 and
827.4 kPa). Your water department can advise you of your water pressure.
• The faucet must be 3/4 in. (1.9 cm) garden hose-type so that the inlet hoses
can be connected.
• A level floor with a maximum slope of 1/2 in. per foot (1.27 cm per 30 cm)
under the entire washer. Don’t install your washer on soft floor surfaces, such
as carpets or surfaces with foam backing.
Make sure that the location is:
• Away from direct sunlight where the temperature is above 104° F (40° C). The
ambient temperature should never be below 32° F (0° C) for proper washer
operation.
• Away from the heat sources such as coal or gas. Heat sources can raise the
water temperature, which may cause safety risks.
• Not in an area where it will be exposed to water/weather.
WARNINGS:
• Don’t install your washer in areas where water may freeze because your washer
always retains some water in its water valve, pump, and hose areas. Frozen water
can damage the belts, pump, hoses, and other components.
• Don't install your washer in an area exposed to dripping water or outside weather
conditions. The ambient temperature should never be below 60° F (15.5° C) for
proper washer operation.
• Never install on a platform or weakly supported structure.
• Don’t install your washer in an area where it will come in contact with curtains or
drapes.
• Don’t install your washer on carpet. The floor MUST be a hard surface with a
maximum slope of 1/2 in. per foot (1.27 cm per 30 cm).
• To make sure your washer does not vibrate or move, you may have to reinforce the
floor. If the floor is in poor condition, use a 3/4 in. impregnated plywood sheet,
solidly attached to the existing floor covering.
• This washer must be properly installed and located in accordance with the
installation instructions before it is used. Make sure that the cold water hose is
connected to the “C” valve.
• Properly ground your washer to conform with all governing codes and ordinances.
Follow details in the installation instructions.

INSTALLATION INSTRUCTIONS
12 www.insigniaproducts.com
Washer dimensions and installation measurements
Note: Height with pedestal = 52 5/8 in. (133.6 cm). Height stacked = 84 in.
(213.36 cm)
27 in. (68.6 cm)
39 13/16 in. (101.09 cm)
3913/16in.(101.09cm)
34 1/4 in. (86.9 cm)

13
NS-FWM45W3
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Installing under a counter
Installing in an alcove or closet
If you install your washer in an alcove or closet, with a dryer or without, the front of
the closet must have two unobstructed air openings for a combined minimum
total area of 120 sq. in. (774 sq. cm) with a minimum clearance of 3 in. (7.6 cm) at
the top and bottom. A slatted door with equivalent clearance space is acceptable.
39 13/16 in. (101.09 cm)
27 in. (68.6 cm)
0 in. (0 cm) 0 in. (0 cm)
0 in. (0 cm)
60 sq. in. (387 cm²)
60 sq. in. (387 cm²)
3 in. (7.6 cm)
3 in. (7.6 cm)

INSTALLATION INSTRUCTIONS
14 www.insigniaproducts.com
Minimum clearances between your washer and adjacent walls or other surfaces
are:
•Either side: 0 in. (0 cm)
•Rear: 3 in. (7.6 cm)
•Front: 2 in. (5.1 cm)
•Top: 0 in. (0 cm)
Electrical requirements
Electrical grounding is required for your washer.
• You must ground your washer. In the event of a malfunction or breakdown,
grounding reduces the risk of electric shock by providing a path of least
resistance for the electric current.
• A 120V, 60Hz, AC-only, single-phase, 16 amp, time-delay fuse or circuit breaker
electrical supply is required. We recommend that you use a time-delay fuse or
provide a circuit serving only your washer.
WARNING:
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS on page 3 before operating your washer.
WARNINGS:
• Connect to a grounded three-prong outlet with an individual 16 amp, single-phase
branch circuit protected by a 16 amp circuit breaker or time-delay fuse.
• Connect to an individual branch circuit.
• Do not remove the ground prong.
• Do not use an adapter.
Failure to follow these instructions can result in electrical shock, fire, or death.
27 in. (68.6 cm)
0 in. (0 cm) 0 in. (0 cm) 2 in. (5.1 cm)
34 1/4 in. (86.9 cm)
0 in. (0 cm)
3 in. (7.6 cm)

15
NS-FWM45W3
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
• Your washer is equipped with a power cord that has a three-prong grounding
plug. To minimize possible shock hazard, the cord must be plugged into a
matching three-prong, grounding type outlet, grounded in accordance with
local codes and ordinances. If a three-prong outlet is not available, contact a
qualified electrician to install one. Do not use an adapter.
• If codes permit and you use a separate ground wire, we recommended that a
qualified electrician determine that the ground path is adequate.
• Check with a qualified electrician if you are not sure that your washer is
correctly grounded.
• Do not have a fuse in the neutral or ground circuit.
• Certain internal parts are intentionally not grounded and may present a risk of
electric shock only during servicing. When servicing, do not contact the
following parts while the appliance is energized: electrical valve, drain pump,
heater, or motor.
• DO NOT cut off or alter the grounding prong on the power supply cord. In
situations where a two slot receptacle is present, it is the owner’s responsibility
to have a licensed electrician replace it with a properly grounded
grounding-type receptacle.
Water requirements
To fill your washer in the correct amount of time, the water pressure must be
between 10 and 120 psi (68.9 and 827.4 kPa).
If the water pressure is less than 10 psi (68.9 kPa):
• The water valve may fail or may not shut off completely.
• The time it takes to fill your washer may be longer than the time your washer
controls allow. Your washer turns off and reports an error. A time-limit is built
into the controls to prevent flooding in your home if a hose becomes loose.
• To avoid the possibility of water damage:
• Make sure that the water faucets are easily accessible.
• Turn off the faucets when you aren’t using them.
• Periodically check to make sure that water isn’t leaking from the water hose
fittings.
WARNINGS:
• You’re responsible for providing adequate electrical services for your washer.
• Never connect the ground wire to plastic plumbing lines, gas lines, or hot water
pipes.
Three-prong receptacle
Receptacle box cover
Three-prong plug
Grounding lead
Grounding adapter Receptacle box cover
Screw
Receptacle
Using a three-prong plug and outlet Using a grounding adapter

INSTALLATION INSTRUCTIONS
16 www.insigniaproducts.com
Drainage requirements
• The drain must be capable of eliminating 16.98 gallons (64.3 l) per minute.
• The standpipe must be:
• Minimum diameter: 1 1/4 in. (3.18 cm)
• Minimum height: 24 in. (61 cm)
• Maximum height: 47 1/4 in. (120 cm)
• The drain hose must be routed through the hose holder to the standpipe.
• The standpipe must be large enough to accept the outside diameter of the
drain hose.

17
NS-FWM45W3
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Installing your washer
Tools you need
Step 1: Selecting a location
Before you install your washer, make sure that the location:
• Is a hard, level surface without carpeting or soft flooring that can obstruct
ventilation.
• Is away from direct sunlight, water, and weather.
• Has adequate ventilation.
• Isn’t exposed to freezing temperatures (32° F or 0° C).
• The temperature is above 60° F or 15.5° C
• Is away from heat sources such as oil or gas.
• Has enough space so that your washer doesn’t rest on its power cord.
See Features on page 6.
Step 2: Connecting the water hoses
1Before connecting the hoses, make sure that there is a rubber washer in both
of the hoses.
2Install the screen washers (included) by inserting them into the free ends of
the inlet hoses with the protruded side facing the faucet.
Note: The illustrations in this section may not accurately show your actual washing
machine, but are only intended to convey a general instruction or concept.
CAUTIONS:
• Use new water supply hoses. Using old hoses can result in leakage or overflow
that can damage your property.
• Replace hoses every five years.
• Don’t connect multiple water supply hoses together to increase the length of the
hose. Hoses connected this way can leak and cause electrical shock. If a hose is too
short, replace the hose with a longer, high-pressure hose.
• Run some water from the cold faucet to flush the water lines and remove particles
that might clog up the inlet hose.
• Do not cross-thread or over-tighten these connections.
• Do not apply tape or sealant to the faucets or water supply intakes. This can
damage the fittings.
• Make sure that the water supply hoses aren’t twisted or bent. A bent or twisted
hose can leak and cause an electric shock because of water leakage.
Channel-lock pliers Carpenter’s level Adjustable wrench or 1/2"
(12.7 mm) socket with ratchet
Adjustable wrench or
9/16" (14.3 mm) open-end
wrench

INSTALLATION INSTRUCTIONS
18 www.insigniaproducts.com
3Connect the inlet hose ends to the hot and cold water faucets tightly by hand,
then tighten another 2/3 turn with pliers or a wrench.
4Place the unconnected end of the hoses into a bucket, then turn on the
faucets connected to the water supply hoses for 10 or 15 seconds to remove
any foreign substances. Turn off the faucets.
5Connect the water hoses to the water intake connections on the back of your
washer. The water supply hose connected to the hot water faucet must be
connected to the hot water (H) supply intake, and the supply hose connected
to the cold faucet must be connected to the cold (C) water supply intake. Turn
the water on and check for leaks.
Water supply hose
Water supply hose

19
NS-FWM45W3
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Step 3: Connecting the drain hose
Connect the drain hose in one of the following ways.
In a wall standpipe
1Attach the drain hose guide to the end of the drain pipe.
2Place the drain hose into the wall standpipe (no more than seven inches). You
can use a nylon tie (included) to bundle the hoses and the drain pipe together.
In a floor standpipe
1Attach the drain hose guide to the end of the drain pipe.
CAUTION: Make sure that the connection between the drain hose and the wash
basin, standpipe, or laundry tub is not airtight.
CAUTION: Placing the drain hose too far down the drain pipe can cause a siphoning
action. No more than 7 inch (17.78 cm) of hose should be in the drain pipe. There
must be an air gap around the drain hose. Too snug a fit can also cause a siphoning
action.
Note: The wall standpipe drain requires a minimum diameter standpipe of 1 1/4 in.
(3.18 cm).
CAUTION: Placing the drain hose too far down the drain pipe can cause a siphoning
action. No more than 7 inch (17.78 cm) of hose should be in the drain pipe. There
must be an air gap around the drain hose. Too snug a fit can also cause a siphoning
action.
Note: For a floor standpipe, the capacity must be at least 17 gal. (64 L) per minute.
The top of the standpipe must be between 24 in. (61 cm) and 47 1/4 in. (120 cm) from
the bottom of your washer.
Drain hose
Nylon tie
Wall standpipe

INSTALLATION INSTRUCTIONS
20 www.insigniaproducts.com
2Place the drain hose into the floor standpipe. You can use a nylon tie
(included) to attach the drain hose to the standpipe.
47 1/4 in. (120 cm) max.
24 in. (61 cm) min.
Floor standpipe
