Haier HLT364XXQ - Genesis Washer User manual

User Manual-
Model #
HLT364XXQ
Clothes Washer
Top Load

1
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in this use and
care guide.
3. Use only detergents or softeners recommended for use in a clothes washer
and keep them out of the reach of children.
4. This washer must be properly installed in accordance with the installation
instructions before it is used.
5. Never unplug your washer by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
6. If the supply cord is damaged, it must be replaced by the manufacturer or
an authorised service agent in order to avoid a hazard.
7. Unplug your washer before cleaning or before making any repairs.
8. If your old washer is not being used, we recommend that you remove the
door. This will reduce the possibility of danger to children.
9. Do not operate your washer in the presence of explosive fumes.
10. Do not use the washer to wash clothes soaked, spotted or washed in
gasoline, dry cleaning solvents or any other explosive or flammable
substances that could ignite and explode.
11. Clothes or rags used to clean flammable or explosive materials should not
be washed in the washer until all traces of this material have been removed,
to avoid an accident.
12. Do not add or mix any flammable or explosive substances with the wash.
13. Do not try to remove clothes while the tub or the agitator is moving. Let it
come to a complete stop first.
14. Washer loading door must be closed when agitator and tub is spinning .
15. Do not operate your washer when parts are missing or parts are broken.
16. Do not use the washer for commercial clothes washing.
17. Do not operate washer unless all enclosure panels are properly in place.
18. Do not tamper with controls.
19. To reduce risk of injury do not allow children to play in or on the washer .
20. The washer must be connected to a proper electrical outlet with the correct
electrical supply.
Warning - To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS

2
21.Proper grounding must be ensured to reduce the risk of shock and fire.
DO NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not
have a three-prong electric receptacle outlet in the wall, have a certified
electrician install the proper receptacle. The wall receptacle MUST be
properly grounded.
22. Hydrogen gas may be produced if the water heater has not been used in
more than 2 weeks. This could be explosive and can explode under
certain circumstances. If this is the case, before using the washer turn on
all the hot faucets and let the hot water run for a few minutes. This will let
the trapped hydrogen escape. During this process do not turn on an
electric appliance, smoke, light a match/lighter or use a flame to avoid
an accident, as hydrogen gas is flammable and can explode.
SAVE THESE INSTRUCTIONS
For Future Use
DANGER
Risk of child entrapment. Before you throw away your old
washer, take off the door so that children may
not easily get trapped inside.
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your washer.
Remember to record the model and
serial number. They are on a label in
back of the washer.
Model number
Serial number
Date of purchase
Stable your receipt to your manual. You will need it to obtain
warranty service.

Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS
OPERATING INSTRUCTIONS
Care and Cleaning Guide
Troubleshooting
INSTALLATION INSTRUCTIONS
Electrical Connections
Parts and Features
Operations
Normal Operating Sounds
Lint Filter
Cleaning and Maintenance
Moving and Vacationing
Storage of Your Washer
Grounding Instructions
Power Interruptions
Tools and Materials Required
Unpacking Your Washer
Levelling Your Washer
Steps for Installation
1
4
4
5
8
9
10
10
11
11
14
14
15
15
16
18
18
18
12
PAGE
3

Water
Level
Spin
Speed
Wash
Speed
Signal
Delay
Delay Time Estimated Time
Extra
Rinse
Tem p
Cycles
Off
Start
Pause
Hot/Cold
Warm/Cold
Cool/Cold
Warm/Warm
Function
Pre-wash
Wash
Rinse
Spin Light
Extra Wash
Heavy
Medium
Soil
Level
Quick wash
Delicate/ Casual
Wrinkle Control
Whites
Heavy Duty
Normal
Hand Wash
Colors
Cold
Cold
/
Cold
Wash/Rinse
4
OPERATING INSTRUCTIONS
Parts and Features
Control Panel
1. Top lid
2. Control panel
5. Leveling legs
3. Control panel seat
6. Inner cover
4. Cabinet
7. Door switch
8. Bleach injection inlet15. Pulsator
9. Front door 16. Drain hose joint
12. Balance ring 19. Hot water inlet valve
10. Filter, Filter cover 17. Power cord
13. Inner tub 20. Back cover
11. Outer tub cover 18. Cold water inlet valve
14. Stick
1
2
3
4
5
67
9
8
10
11
12
13
14
15
16
17
19
20
18

5

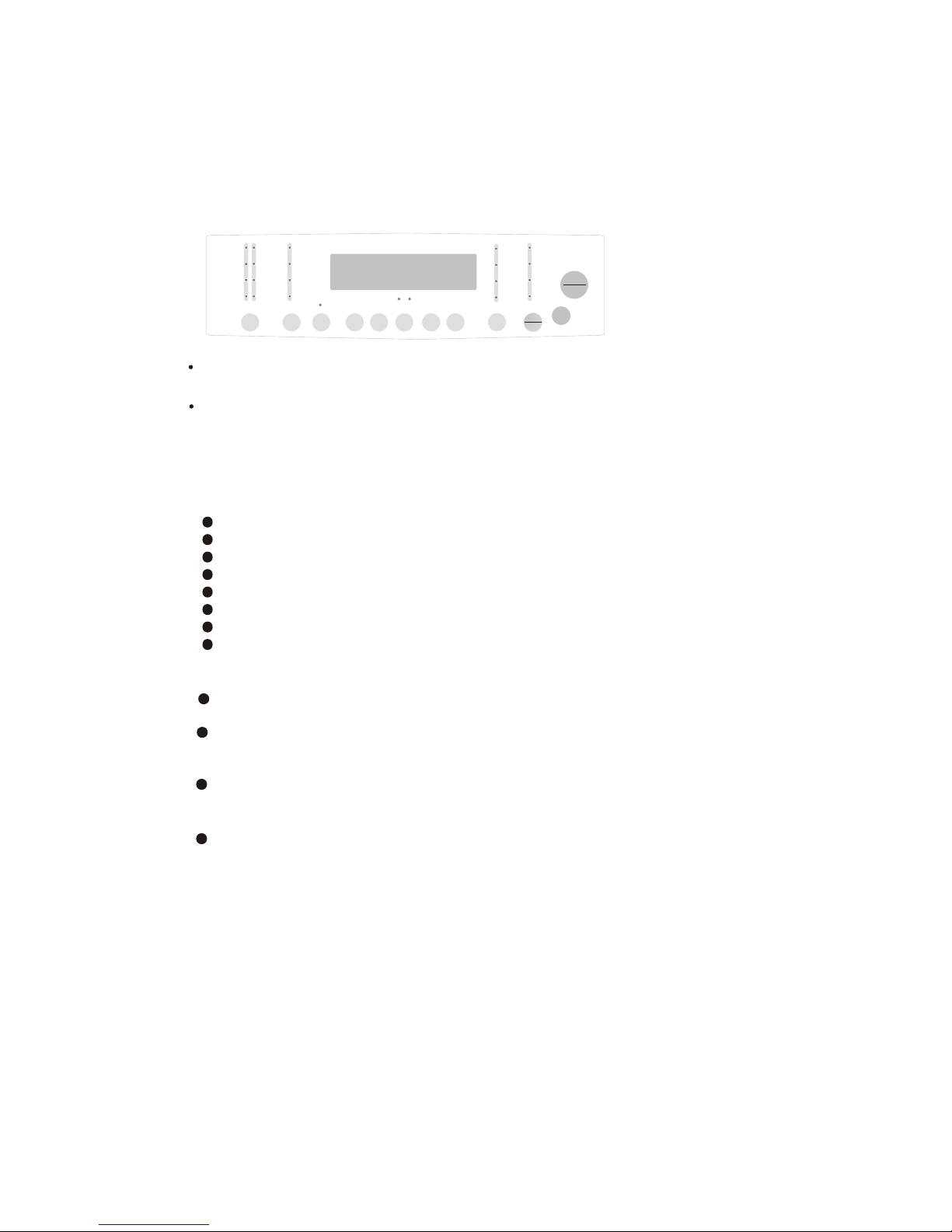

Operations
Normal-For regular washing . Such as cotton, flax.
Heavy-For washing bigger, thicker and heavier dirty laundries.
White-For washing cotton fabrics.
Color-for washing color fabrics.
Quick- For quick washing of light dirty laundries.
Delicate- For washing of delicate fabrics.
Hand wash-To have hand wash effect on clothes.
Wrinkle Control-For washing wrinkle fabrics.
-
Cycles
Process Select
Extra Rinse
Wash Speed/Spin Speed
Water
Level
Spin
Speed
Wash
Speed
Signal
Delay
Delay Time Estimated Time
Extra
Rinse
Tem p
Cycles
Off
Start
Pause
Hot/Cold
Warm/Cold
Cool/Cold
Warm/Warm
Function
Pre-wash
Wash
Rinse
Spin Light
Extra Wash
Heavy
Medium
Soil
Level
Quick wash
Delicate/ Casual
Wrinkle Control
Whites
Heavy Duty
Normal
Hand Wash
Colors
Cold
Cold
/
Cold
Wash/Rinse
Delay Start
When not activated the display shows cycle remaining time
through the wash process.
When not activated the display shows cycle remaining time
through the wash process.
When Delay Start is selected the indicator light will display a
minimum delay of 2 hours. Push button once for every additional
1hour delay for up to 24 hours.
This is to select washing process.
Soak will not work in the cycles: Hand Wash, Quick Wash,
Delicate Casual and Wrinkle Control.
Water level indicator will shut off if only Spin is selected.
Once a program is selected, press this button to have 2nd
rinse. The washer will add a 2nd rinse.
For selecting the speed of washing or spinning .

6
Water levels may be set at the beginning of the wash or at
pause.
During Soak, Wash or Rinse press this button to manually
replenish water. Release to stop. Function automatically is
inactive when water reaches the overflow protection level.
Indicates remaining hours during delay process.
Indicates fault codes or conditions that are not normal.
Water level
Cycle Signal
Delay Start and Estimated Time Indicator
Indicates remaining minutes when cycle is in progress.
Once washer is powered and selections are chosen, push this
button once to start the wash.
While unit is working, push this button once to pause it.
If unit is in Pause mode, push this button once to resume
operation.
Start/Pause
Push the Power On/Off button to switch the machine on or
off.
Power On/Off
To select inlet water temperature for wash and rinse.
Temperature Wash/Rinse
Select clothes soil level.
Wash cycle increases 2 minutes for every soil level increased
Soil Level
Signal volume can be adjusted softer, louder or off.

7
Load each item loosely.
Separate the white and coloured clothes. Separate heavy clothes from
light clothes.
Carefully check all pockets and cuffs for small items.
They can easily slide into the tub and may damage the tub.
Pre-treat all stains and heavily soiled areas for best results.
Do not overload your washer.
When loading wet items, keep water level high enough so items
can float easily in the water.
..
Close the door properly after loading the clothes. If you keep the lid
up, the agitation will not start.
Loading the Washer:
Proper Use of Detergent:
It is good washing practice to add the detergent to the water
before you add the clothes so that the detergent can work
effectively on your clothes.
Note:
You can use less or more detergent depending on the size of the load,
water type in your living area, whether the water is soft or hard and
whether the clothes are heavily soiled or lightly soiled.

Bleach Dispenser:
The bleach dispenser is located on the front corner under the loading door.
Pour in the recommended amount of bleach into the dispenser
during the first wash fill.
Note:
Use only liquid bleach in dispenser.
Warning:
Be careful not to spill undiluted bleach on the washer cabinet or on
your clothes. As it is a strong chemical, it may damage some of your
clothes or the finish of the washer if not properly diluted.
Use the manufacturer's chart, on the product container for the
recommended use of liquid or powder bleach.
The following sounds are normally heard during the operation
of the washer:
Tumbling sounds: This is normal as the heavy wet clothes in the
washer are continuously being lossed around.
Air rushing noise: This happens when the washer tub spins at
very high spinning speed.
Wash and Rinse cycles going on and off will also make clicking
sounds.
Normal Operating Sounds
8
Softener inlet
Softener inlet
Softener inlet
SOFTENER
SOFTENER

9
3.Install the lint filter.
The lint filter must be used during washing.
It must be cleaned after each wash.
Section I enlarging
Push
Inner cover
Inner cover shaft
Outer tub cover
Outer tub cover shaft groove
Lint Filter
Install the inner cover
1.Open the top lid of the washing machine.
2.Put the inner cover component on the outer tub cover, lining up
the inner cover shaft to the installation hole of the corresponding
outer tub cover shaft groove.
3.Firstly insert the inner cover shaft of one side into the
corresponding outer tub cover shaft groove, then push the other
inner cover shaft into the corresponding outer tub cover shaft
groove. Please install in the designated position to guarantee
there is no abnormal sound in opening and closing of the inner
cover, and the operation shall be smooth. Do not remove the
inner cover component after washing.
Install
Install
Take off
Take off
1.Take off the lint filter.
2.Clean out the lint in the filter.

10
Cleaning and Maintenance
Use only damp or sudsy cloth for cleaning control panel.
To avoid any kind of damage to cabinet finish, wipe washer
cabinet as needed. If you spill liquid/powdered softener bleach
or detergent on the cabinet, wipe cabinet immediately because
it can damage the finish.
Do not use any abrasive, harsh chemicals, ammonia, chlorine
bleach, concentrated detergent, solvents or metal scouring
pads. Some of these chemicals may dissolve, damage or
discolor your washer.
Remove pins or other sharp objects from clothes to prevent
scratching of interior parts.
Leave lid open after you are done washing to allow inside of
washer to dry and prevent bad odors.
Warning: Always unplug your washer to avoid electric shock
before cleaning. Ignoring this warning may result in
injury. Before using cleaning products, always read
and follow manufacturer warnings to avoid personal
Injury or product damage.
CARE AND CLEANING GUIDE

11
Turn off the water supply faucets and disconnect the hoses. Drain water from all
of the hoses. This will prevent damage due to water leakage if the hoses
accidentally get ruptured or they become loose.
Disconnect the electrical plug.
Dry the inner wash tub. If you are moving the washer, disconnect the drain hose.
Turn the levelling legs clockwise all the way in.
Move and store your washer in an upright position only .
To prevent mould or mildew, leave the lid open so moisture inside the
machine can evaporate.
Moving & Vacationing
The washer must be stored at room temperature.
If you have received a washer when the outside temperature is below freezing
do not operate until the washer has warmed to room temperature.
,
Do not install or operate your washer where the room temperature is below freezing.
Storage of Your Washer

12
Check if the unit is plugged in. The plug may have come loose.
Check if the electrical wall receptacle is of proper voltage.
Check if the circuit breaker needs to be reset or if the fuse
needs to be replaced.
Check if the washer is overloaded: the load may need to be
re-balanced and clothes may need to be redistributed.
Check if the lid is open. You may have to close the lid properly .
The washer pauses in some cycles. This is normal in some
cycles, which has a short soak period. You will not hear the
washer in operation for a short period of time. When
the soak time is over, it will start automatically.
Not enough water coming out: Water faucet may need to be turned
on fully. Water hoses may be tangled or wrinkled up. Straighten up
the hoses. Check the water level selection, it may need to be readjusted.
Water temperature is incorrect: Check your water heater temperature.
Hot water needs to be at a temperature of at least 120 F -140 F
(49 C-60 C). Check to make sure the inlet hoses are properly
connected.(e.g.hot to hot & cold to cold)
Water leaks: This is due to not properly installing the drain hose or the fill
hoses. Your home drain may be clogged or may not have constant
water pressure. You may need to tighten hoses, check the
plumbing or call a plumber.
The water will not drain: This is due to not installing your drain hose
properly. You may need to connect the drain hose properly. Check the
position of the drain hose. In order to drain the water properly, make sure
that the top of the drain outlet is less than 4 ft.(1.2m) above the floor.
Troubleshooting
The washer does not operate:
Problems with water:

Washer load may need to be re-balanced, as the load may be uneven.
Coins, loose change, buttons or other heavy objects could make
noise(read Operating Guide-Normal Operating Sounds).
Squealing sound: Due to overloaded wash tub.
Vibration Noise: Due to not leveling washer properly on the floor and
uneven distribution of clothes in the tub.
Note:
Reason
Trouble Codes
E0 Top lid not closed during delay start sequence
E1 Blockage of drain hose
E2 Top lid not closed during wash operation
E4
E7
F2
The water inlet time exceeds the preset time
(30minutes)
13
The communication is bad
The protection ofwater overflow
Washer may need to be reinstalled. (Check washer installation
section)
Washer is making noise:
Problems with clothes:
Have soap residue: detergent may not be dissolving in water.
Check water temperature or you need to add detergent as wash
tub is being filled with water.
Spots or stains on your clothes: this is due to incorrect use of fabric
softener. You may need to read proper instructions on the container
and follow proper directions when using the softener.
Clothes are grayed or yellowed: this is due to not pouring enough
detergent for large loads. You may have to add more detergent to the
load.
Clothes are ripped & have holes/excessive wear & tear: this is due to
sharp objects such as pins and belt buckles left in pockets. You will
need to remove small loose sharp objects. Fasten belts, zippers,
metal snaps etc. Check if you are using undiluted bleach. Never add
undiluted bleach to wash.
Clothes are too wrinkled: this is due to improper sorting, overloading
and washing in too hot water repeatedly. Avoid overloading and resort
your load. Do not mix heavy clothes such as work clothes with light
clothes such as blouses, light shirts and delicate items. You may need
to wash in warm or cold water.

14
Pliers
Wrench
Tape Measure
Gloves
Level
INSTALLATION INSTRUCTIONS
Tools and Materials Required
You will need to have the following tools to help
you in the installation of your washer:
123
45
Quantity
Accessories Supplied
1.Hot & Cold inlet hoses
2.Drain Hose Hook
3.Pipe Hoop
4.Inner Tub Cover
5.Outer Drain Hose
2
1
1
1
1

15
Unpacking Your Washer
.
Remove all packing materials. This Includes the foam base and all
adhesive tape holding the washer accessories inside and outside

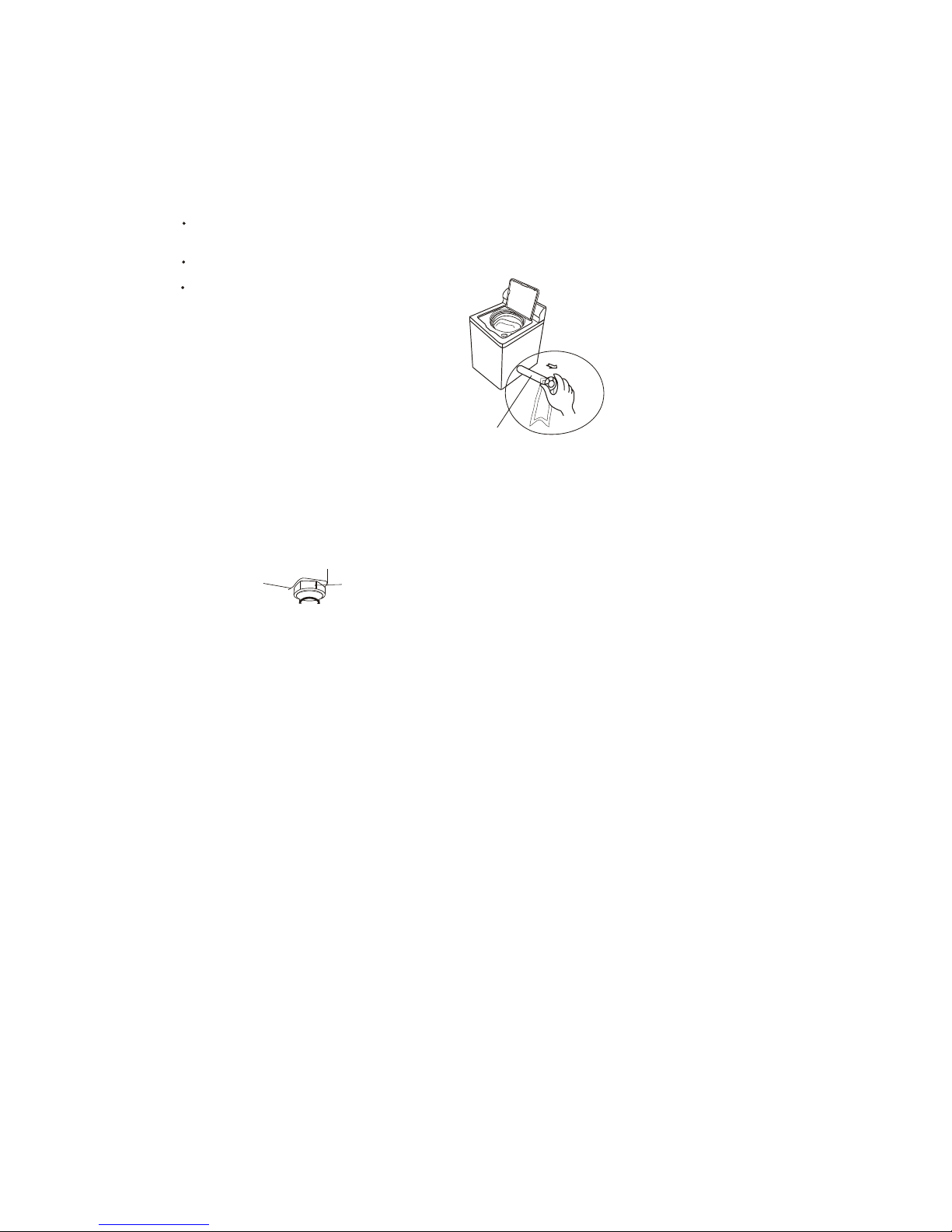

Leveling Your Washer
Your washer has 4 leveling legs; which are located on the
bottom corners. After properly placing your washer in its final
position, you canlevel your washer.
Leveling legs can be adjusted by turning them counter clockwise
to raise your washer or turning them clockwise to lower your
washer.
High Low
Adjustable foot
Shipping bar
Pull out
Warning: Leveling of washer is very important to prevent
vibration during spin.
Open the top lid to remove the styrofoam drum brace. Pull to remove.
Before using this washing machine,
please remove this shipping bar by
pulling handle and dispose it
properly, otherwise the washing
machine will be damaged.

16
Steps for Installation
Select a away suitable location for the washer on a hard even surface
from direct sunlight or heat source e.g. radiators, base board heaters,
cooking appliances etc.Any floor unevenness should be corrected with
the leveling legs located on the bottom corners of the washer.The
washer must be placed at room temperature.You must not place washer
where the temperature is at below freezing.
Read through these instructions carefully before installation.
Installing Your Washer:

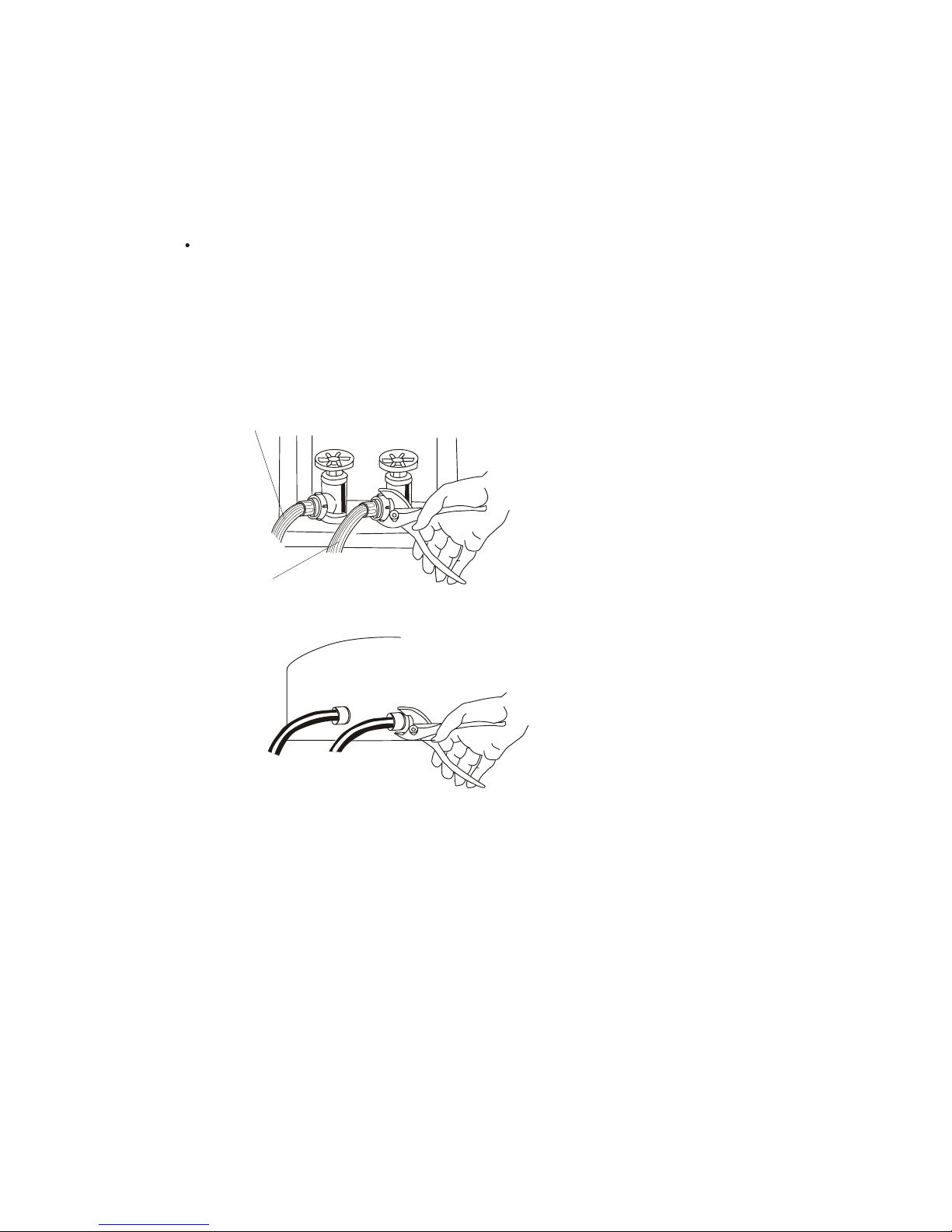

1. Connect the hot and cold water inlet hoses to the hot and cold water
faucet.
Note: You may have to use pliers to tighten the coupling. Do not over tighten
because you may cause damage to the valve.
You should use the new hose-sets supplied with the washer. Old
hose-sets should not be reused.
Hot water inlethose
Cold water inlethose
2. Connect the other end to the corresponding washer inlet located at the
back of machine.
C
H

Caution:If, after completing these steps, you are unsure that unit is
properly installed, contact a qualified installer.To ensure that
your washer is properly installed, it is recommended that it
be installed by a certified installer.
3. Install the drain hose hook to the outer drain hose tube. Using the
drain hose clamp, attach the drain hose to the unit as shown below.
4.Plug the washer into a regular 120Volt/60Hz,10Amps outlet.
Note :Carefully inspect all around the machine and at the back for any
leaks, and tighten any loose connections.
17

Electrical Connections
Grounding Instructions
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with a
cord having a grounding wire with a grounded plug. The plug must be
inserted into an outlet that is properly installed and grounded.
Improper use of the plug can result in a risk of electric shock.
Consult a qualified electrician or service person if the grounding
instructions are not completely understood or if doubt exists as
to whether the appliance is properly grounded.
Wiring Requirements:
The washer must be plugged into at least 10AMP 120VOLT
60 HZ GROUNDED OUTLET.
Note: Where a standard two-prong
outlet is encountered,
it is the personal responsibility
and obligation of the
consumer to have it replaced
with a properly grounded
three-prong outlet.
Extension Cords:
We do not recommend that you use an extension cord.
Power Interruptions
Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored re-plug power cord to AC
outlet. If outage is for a prolonged period, clean washer before using it
again.
18
