Inteq Car multimedia system User manual

OWNER' SMANUAL
Car Multimedia System
lnteq
1-DIN DVD Multimedia receiver'Nith Touch Screen Display 'Nith DVDIAMIFM Receiver

TABLE OF CONTENTS
FEATURES ................................................................................................ 4
FRONT PANEL
........................................................................................... 5
BASE PANEL
.............................................................................................. 6
REMOTE CONTROL
.................................................................................... 7
MAIN MENU
............................................................................................... 11
RADIO MODE ............................................................................................ 13
DVD MODE
................................................................................................ 14
SD CARD MODE.
....................................................................................... 17
USBMODE ................................................................................................ 20
PHOTO MODE ........................................................................................... 21
BLUETOOTH MODE. ................................................................................... 22
IPOD MODE ............................................................................................... 28
TVMODE ..................................................................................................... 32
NAVI MODE
............................................................................................... 34
AVIN MODE .............................................................................................. 34
DIM MODE
................................................................................................ 36
SETTINGS MODE.
...................................................................................... 37
SAFETY INSTRUCTIONS
............................................................................. 41
INCLUDED PARTS .................................................................................. 42
UNIT INSTALLATION AND REMOVAL ............................................................ 43
WIRE CONNECTION ................................................................................... 47
WIRING DIAGRAM .................................................................................... 49
SPECIFICATIONS ....................................................................................... 50
TROUBLESHOOTING
.................................................................................. 51
DISC NOTES .............................................................................................. 54
3

FEATURES
• Digital LCD Touch Screen Accepts KS-1 Desktop Media Player
• 800x480 High Definition Screen Resolution
•
Motorized Angle Adjustment & Last Angle Memory
• Theft Deterrent Detachable Panel
• Playback
from DVDR/RW &CDR/RW, of MP3, MP4, DivX, &AVI
• Complete Integration
of iPod byTouch Screen Control (IC-3 cable sold separetly)
• Blue Tooth V2.1 &A2DP
for Wireless MP3 Playback
• 32GB USB2.0 &
SO Readers for MP3, FLAC, MP4, DivX, &AVI
• Front Panel 3.5mm
AUX A/V Input
• Accepts GPS Navigation Module NAVIBOX-2, Powered by Navteq
• Accepts
ATSC Digital TV Tuner DTV-3
• Accepts Axxess
ASWC OEM Steering Wheel Control Interface
• 4-Channel 2V Pre-Amp
RCA Audio Outputs
• Variable 2VSubwoofer Output w/ Low-Pass Crossover
•
A/V Outputs for Multiple Component Integration
• Rear
View Camera Input w/ Trigger
• 52x4
MOSFEET Powered Speaker Level Outputs
• 18FM/12AM Station Memory
• Selectable Region FM/AM FrequencyStepping
• Custom &Preset
EQ Settings
•
12/24 Hour Clock
•
NTSC/PAL Auto Selection
• Built-in AnalogTV Tuner (select models)
KS-1 Desktop Media Player Kick-Stand (sold separetly)
• Combine
with Detachable Faceplate to Use as Desktop Multimedia Player
Bluetooth Features
•
Work with Most Bluetooth Enabled Phones
• Noise & Echo Cancellation
• Contact List Transferred
for Easy Access Dialing
• Caller
ID Shows Name and Number from Contacts List
• Recent Calls & Talk Time
Logs
• A2DP for Wireless MP3 Playback
4

FrontPanel
1. MIC
Microphone forusewith Bluetooth hands free calling.
2. Power/SRC
Press totum the unit ON, holding the button will turn offthe unit.
V\lhen the unitis on, press to switch between different sources.
3. VOUMENU
Press the button to displayvolume adjustment.
Holding the button will enter
main menu.
4. MUlE/NAVI
Press to mute/ unmute sound.
Holding the button will enter
NAVI mode.
5. EjectJP.Angle
Press to open I close the monitorto ejectthe disc
Holding the button will enterangle adjustment
mode, press itagain to adjusttheangle
of the front panel as following:
Angle 1
-. Angle 2 -. Angle 3-. Angle4
~~~~
&.REL
Press to release the detachable panel.
s

7. SD CARD SLOT
The unitwill
be switched to the SD CARD Source automatically when an SO CARD Is
connected.
8. Remote Sensor
Receives remote infrared receiver signals.
9.AVINJack
Connect an external AN device to thisjacktowatchllisten tothe device through your car
audiolvidao system.
10. USB
The unitwill be switched to USB Source automatically when a USB is connected.
BASE PANEL
[
,--' II
all · -,
~
1
lilli3
,.---'
~
[~
0
~ -
~ JJlo
11. RESET
Remove the face plate to gain access to the RESRT button.
Press and hold this button fer3 sec to switch back toall the original factory settings.
Keep in mind this will erase all yourpreset radio stations and any EQ settings you may
have made and saved.
6

Remote Control
(!)
II
2 3 A
f1
f' , .. -:~.l~
::;:o:_,
4 5 6
NAV :
11
7 8 9 0 m
~
m:!
• m
fj
flil
...
..
~~
m
m
1'
~4m
~
aw
II
.. , • I ~
fi!
I
ml
I
~
...
...
l<il4
... 1
I
~
gj
"'" lm
~
":
SU B·T
TITLE
" l'T
~
fFT
:XC•I\' lQQ\1 ol
m A-B
,("'
-OISP m
~
ml
1. POWER/SOURCE 10. VOLUME- 20. LEFT
2. OPENI CLOSEI
11. PLAYI PAUSE 21. EQ/LOUD
P.ANGLEI EJECT 12. STOP
22.AUDIO/#
3. NAVI/ SYSTEM 13. PREVIOUS 23. FASTFORWARD
4. NUMBER PAD 14.
NEXT 24. REWIND
5. UP 15. TITLE 25. SUB-T/RDM
6. VOLUME+
16.ASTIPBC 26. MENUr
7. OK/BAND 17. DISP/ST 27. RPT/A-8
8. RIGHT 18.
ZOOM/ CALL 28. SLOW/END CALL
9. DOWN 19. MUTE
NOTE:
This is a universalremote; some functions would be depending on optional equipments.
1. [POWER/SOURCE]
Press totum the unit ON, holding the button will tum offthe unit.
Wlen the unit is on, press to switch between different sources.
2. [OPEN/CLOSEIP.ANGLEIEJECl]
Press to open I close the monitorto ejectthe disc
Holding button for3 secwill enterangle adjustment
mode, press itagain to adjustthe
angle of the frontpanel as following:
ANGLE1-ANGLE2-ANGLE3-ANGLE4
7

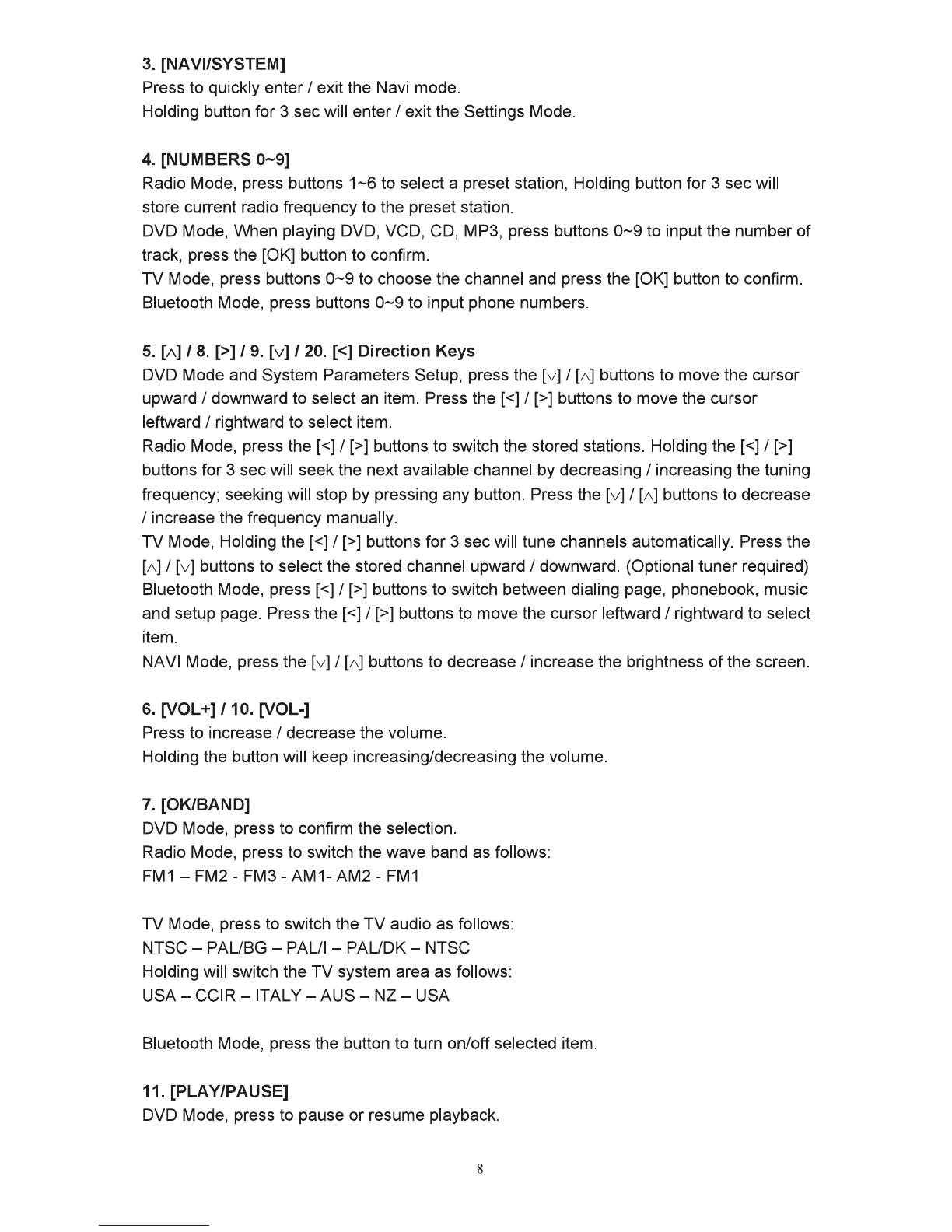

3. [NAVIISYSTEM]
Press to quickly enterI exitthe Navi mode.
Holding button for 3
sec will enterI exit the Settings Mode.
4. [NUMBERS
0-9]
Radio Mode, press buttons 1-6 to select a presetstation, Holding button for 3 sec will
store current radio frequency to the preset station.
DVD Mode, When playing DVD, VCD, CD, MP3, press buttons
0-9 to input the number of
track, press the [OK] button to confirm.
TV Mode, press buttons 0-9 to choose the channel and press the [OK] button to confirm.
Bluetooth Mode, press buttons
0-9 to input phone numbers.
5. [/\] I 8. [>]19. [v] I 20. [<] Direction Keys
DVD Mode and System Parameters Setup, press the [v] I [/\] buttons to move the cursor
upward I downward to select an item. Press
the[<] I[>] buttons to move the cursor
leftward I rightward to select item.
Radio Mode, press
the[<] I[>] buttons to switch the stored stations. Holding the[<] I[>]
buttons for 3 secwill seekthe next available channel by decreasing I increasing the tuning
frequency; seeking will stop by pressing any button. Press the [v] I[/\] buttons to decrease
I increase the frequency manually.
TV Mode, Holding the[<] I[>] buttons for 3 sec will tune channels automatically. Press the
[/\]I [v] buttons to select the stored channel upward I downward. (Optional tuner required)
Bluetooth Mode,
press[<] I[>] buttons to switch between dialing page, phonebook, music
and setup page. Press
the[<] I[>] buttons to move the cursor leftward I rightward to select
item.
NAVI Mode, press the [v] I
["] buttons to decreaseI increase the brightness of the screen.
6. [VOL+] 110. [VOL-]
Press to increase I decrease the volume.
Holding the button will keep increasing/decreasing the volume.
7. [OK/BAND]
DVD Mode, press to confirm the selection.
Radio Mode, press to switch the
wave band as follows:
FM1- FM2- FM3- AM1- AM2- FM1
TV Mode, press to switch the TV audio as follows:
NTSC- PAUBG- PAUl - PAUDK- NTSC
Holding will switch the
TV system area as follows:
USA- CCIR- ITALY- AUS- NZ- USA
Bluetooth Mode, press the button
to turn on/offselected item.
11.
[PLA YIPAUSE]
DVD Mode, press
to pause or resume playback.
8

12. [STOP]
DVD Mode, when in DVDNCD/CD playback, press the button once to stop playback,
press the [Play/Pause] button agian
to resume playback. Press the button twice to reset
playback, press the [Play/Pause] button to startthe playback from the beginning of disc.
MP3 disc playback, press the button to stopthe playback, press the [Play/Pause] button to
start the playbackfrom the beginning oftrack.
13. [PREVIOUS]
/14. [NEXT]
DVD Mode, press to go to the pervious I nextchapter, track or song.
15. [TITLE]
DVD Mode, press to enter the title menu when playing DVD disc.
Bluetooth Mode, press
to enter the next page of phone numberlist in phonebook.
16. [AST/PBC]
DVD Mode, press to switch the PBC function on I offwhen playing VCD disc.
Radio Mode, press to review stored stations; holding the button for3 secwill automatically
program the 6 strongest stations available into the presets in the eachwave band.
TV Mode, automatically seekthe stations available.
17. [DISP/ST]
Main menu, press to setthe background by default picture
DVD Mode, press to display current playback information.
Bluetooth Mode, press
to return to the previous page.
18. [ZOOM/CALL]
DVD Mode, press to zoom the picture displaywhen playing DVD, VCD disc. Each press
changes speed from
2x to 3x to 4x to 3x to 2x then back to normal play.
Bluetooth Mode, press
to call a number or to receive a cell phone call.
19. [MUTE]
Press
to switch mute sound; press it again to resume to the previous volume level.
21. [LOUD/EQ]
Press
to adjustthe EQ setting as following:
USER- POP- CLASSIC- ROCK- JAZZ- USER
Holding for 3
sec will switch the "LOUD" function ON I OFF.
22. [AUDIO]
DVD Mode, press to change dialogue languagewhen playing DVD disc; Press to select
different audio channels when playing VCD, CD disc.
Bluetooth Mode, press
to input the symbol#.
9

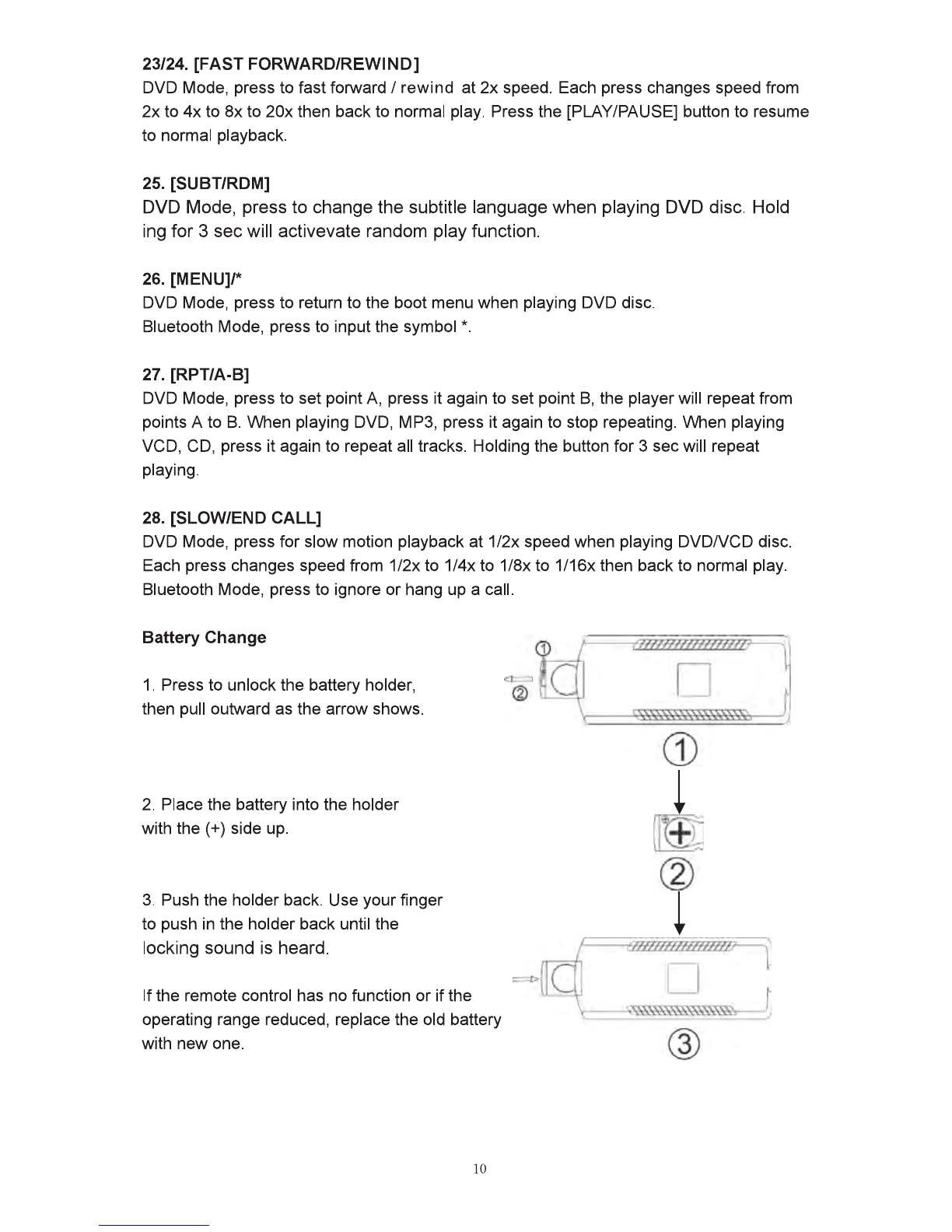

23124. [FASTFORWARD/REWIND]
DVD Mode, press tofast fofward I rewind at 2x speed. Each press changes speed from
2x to 4x to 8x to 20x then back to normal play. Press the [PLAY/PAUSE) button to resume
to normal playback.
25. [SUBTJRDM)
DVD Mode, press to change 1he subtitle language when playing DVD disc. Hold
ingfor3 secwill activevate random play function.
28. J.MENU]I*
DVD Mode, press to retum to the boot menu when playing DVD disc.
Bluetooth Mode, press to input the symbol •.
27. (RPTIA·B]
DVD Mode, press tosetpoint A, press it again to setpoint B, 1he playerwill repeat from
pointsA 1D B. VIlhan playing DVD, MPS, press it again to step repeating. IM'Ien playing
VCD, CD, press it again 1D repeat all tracks. Holding the button for 3 see will repeat
playing.
28. (SLOW/ENDCALL]
DVD Mod&, press forslow motion playback at 112x speed when playing DVDNCD disc.
Each press changes speed from 1fbc: to 1/4x to 118x to 1/18x then back: to normal play.
Bluetooth Mode, press to ignore or hang up a call.
Battery Change
1. Preasto unlock the battery holder,
then pull outward as the arrovv shews.
2. Place1he batteryinto the holder
with the(+) side up.
CD
( ~
~
3. Push the holder back. Uae your finger I
to push In the holder back unHI the -t
;;;~;;,':::.:,:~ ~
@
with new one.
10

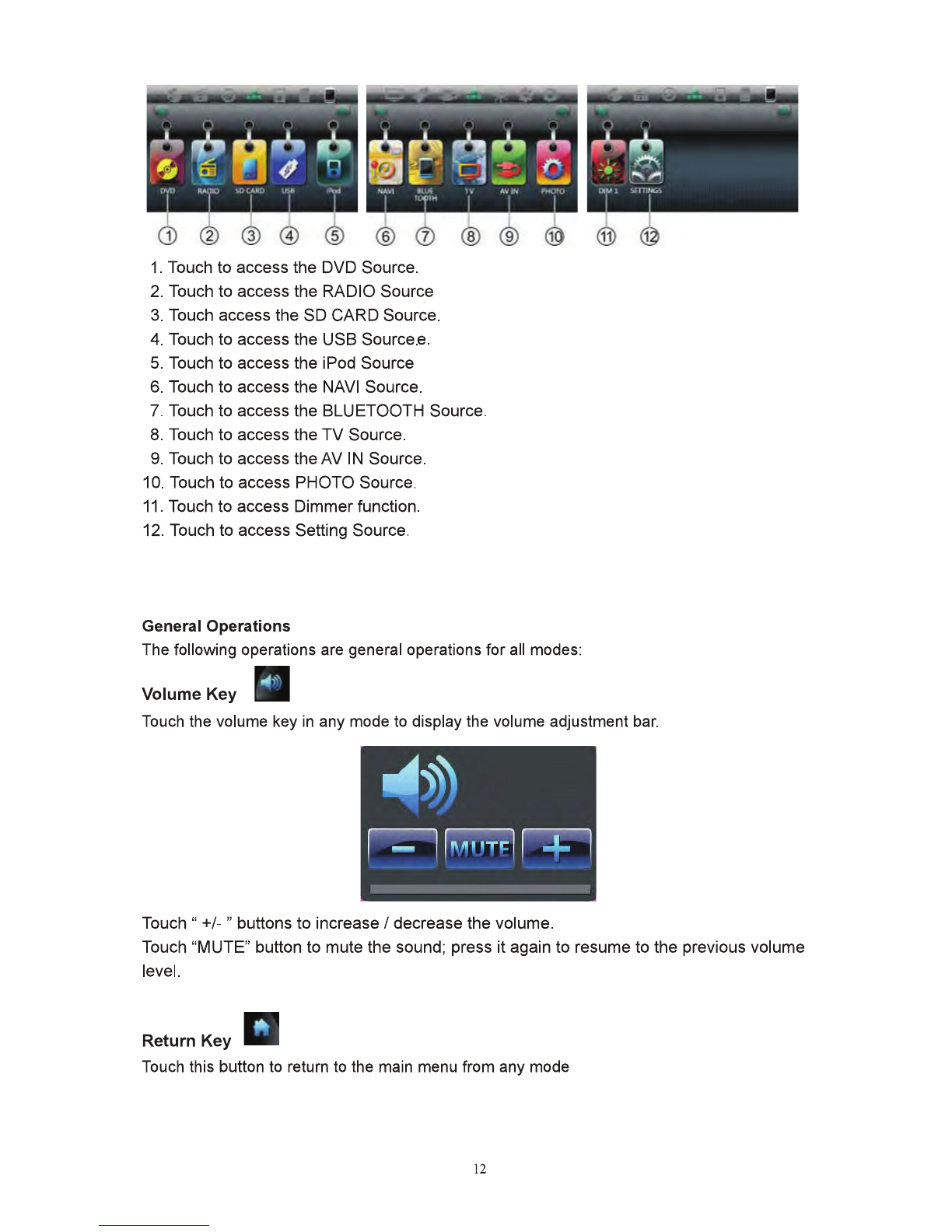

Main Menu
1. Touch the PAGE TURNING key to tum to the next page of Sources.
2. Drag the Mode buttons Up/Down
User can choose to activate the mode butt:cns on the touch screen by dragging the
buttons up/dovm tothe main screen. The blue color button means this mode is not active,
a gray button means this mode is active and located on the main screen.
3. Touch the LEFI'IRIGHT direction key totum tothe next/previous mode buttons.
11

1. Touch to access the DVD Source.
2. Touch to access the RADIO Source
3. Touch access the SO CARD Source.
4. Touch to access the USB Sources.
5. Touch to access the iPod Source
6. Touch to access the NAVI Source.
7. Touch to access the BLUETOOTH Source.
8. Touch to access the TVSource.
9. Touch to access theAV IN Source.
10. Touch to access PHOTO Source.
11. Touch to access Dimmer function.
12. Touch to access Setting Source.
General Operations
The following operations are general operations for all modes:
Volume Key
Touch 1he volume key in any mode to display the volume adjustment bar.
Touch " +/- " buttons to increaseI decrease the volume.
Touch "MUTE" button to mutethe sound; press itagain to resume tothe previous volume
level.
Return Key
Touch this button to return to the main menu from any mode
12

Radio Mode
1. Band
1buchto swttch the FMIAM wave band as follows:
FM1 • FM2 • FM3-AM1·AM2• FM1
2.Auto S1a.Uon TUne
Touch to scan through alltuned ~ sta11ons and play them for 5 seconds each. Touch any
button to stop scanning.
Holding the button to automatically program the 6 strongest statiOns available intothe presetsinthe
each wave band, atotal of30 stations can be stored. Touch any button to stopthetuning.
3. Local
Touch tosetthe localtuning on/off. When you are using the local seardllng funcUon, you can only
receive the radio staiJon wtth strong enough signals.
4. Tune Frequency- Down /6. Tune Frequency -up
Touch to tunethe radio to alower1higher ft'equeney by onestep. Holding the button allows
continuoustuningdown/up.
t.ST
Turns sten~o receptiOn on/off
7.8EEK-/8.8EEK+
Touch toseektothe next strong station ata lowerI higher frequency. Touch any button tostop
seeking.
t. Current playingstation information dilplay
10. Preset Stations
Touch to select apreset station, holdingthe button to store C4Jrrent radiofrequencytothe preset
station.
13

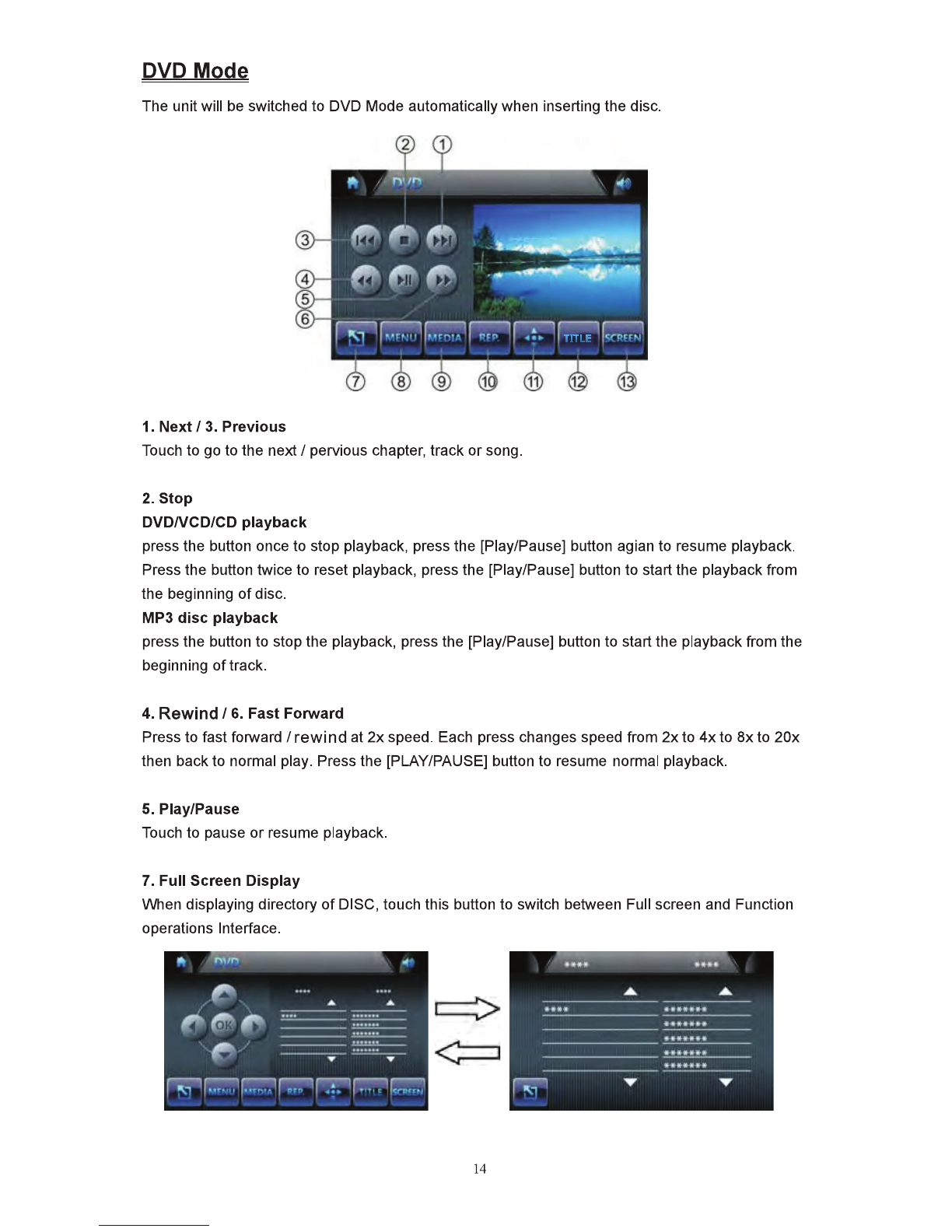

DYDMgda
The unit w111 be switched to D'VD Mode automaticallywhen Inserting the disc.
1. Next/3. Previous
Touch to go to the nextI pel'llious chapter, track or song.
2.8top
DVDNCD/CD playback
pressthe buUon onceto stop playback, press the [Play/Pause) buUon aglan to resume playbaclt.
Pressthe button twiCe to reset playf:lack, pressthe )Play/Pause) buttonto startthe playbackfrom
the
beginning of disc.
MP3 disc playback
pressthe buUon to stopthe playf:lack, pressthe (Play/Pause) buttonto startthe playbackfromthe
beginning oftraclt.
4. Rewind /6. FastFarward
Press
to fast forward I rewlndat 2x speed. Each press changes speed from 2x to 4x to 8xto 20x
then
back to normal play. Pressthe (PLAY/PAUSE) buttonto resume nonnal playback.
6. Play/Pause
Touch to pause or resume playf:lack.
7. Full Screen DiSplay
lll.lhen displaying directory of DISC, touchthis buUon to swttch between Full sa11en and FundJon
operations Interface.
~
~ -
14

12. TITLE
Touch to go to the title menu of disc when playing a DVD.

1S. ac .... n setup
lbucb "SCREEN" button to accsae thesaeen setup.
{1) Contrast
lbucb (.lEFT] I (.RIGiiT) buttons toadjustthe CONTRAST parameters (Range: .0 to 9), default Is 0.
{2)'nNT
Toucb (.lEFT] I (.RIGiiT) buttons to adjustthe'nNT parameters (Range: -91o 9) ,default Is 0.
{3) BRIG
Toucb (.lEFT] I (RIGHT] buttons to adjll&t the BRIGHTNESS parameters (Range: -9to 9) ,default iS
0.
{4)COLOR
lbucb
(\JP] I [00\I\IN) to adjiJSt the COLOR parameters (Range: -9to 9), defaultIs 0.
16

SDCARDModa
The unitwill switch to SD CARD Mode autcmalically when an SD Card is connected.
1. Browse
Displays a~rrent file location.
2. Folder list display a.rea
Touch "UP/DOWN" 8ITOW'S to move through the pages and selecta folder.
3. File listdisplay area
Touch "UP/DOWN" arrows to move through the pages and selectafile.
4. Return button
Touch to retum to the main directory.
5. Pa.rant directory bufton
Touch to retum tothe parent directory.
17

Aydjo Playback lrdtrfact
1. MENU
Touch "MENU"button to displaythe audio playback list Touch the UPIDOWN &I'I'OW8 inthe
listarea 1o search feratrackllile.
2. Keyboard
Touch to display the keyboard.
Touch the number keys 0-9 to select a track. touch theOK button to play 1he track.
Touch the C button to clearthe number.
3. Repeat
Touch to repeat rotating as follows:
REPEAT ONE- REPEAT AU.- REPEATOFF.
18

4. Rewind/5. FastForward
Touch tofast rewind I fastforward at 1x speed .Eachtouchchanges speed from 2x to 4x
to 8xto20xthen backtonormal play. Touch the "PLAYIPOUsE•button to resume normal
playback.
I. STOP
During playback, touch thebutton to stopthe playing the C4.1rrent 1rack.
7. Retum
Touch to retum to the tilelist, then switch to other folder.
8.NexU10.P~ous
Touch to playthe next/previous song.
9. Random
Touch to play songs randomly "RANDOM" 'Nill bedisplayed. Touching again 'Nill cancel
random playback.
11. PAUSE/PLAY
Touch to pause or resume playback.
VIdeoPlaybackInterface
Full screen
display switch
\ll.tnm playing \ltdeo flies, touchthe video displayareato swHch to fUll screen display, touch again
switch tothefl.lndlon operation Interface.
All otheroperations arethe same aa Audiooperations.
PicturePlaybackInterface
1. Previous
Touch toopen the previous picture.
19

2. Next
Touch to open the next picture.
3. ZOOM IN /4. ZOOM OUT
Touch to zoom in the picture display as following:
ZOOM X 2-ZOOM X 3- ZOOM X 4-ZOOM X 5 ..
Touch to zoom out the pictre display as following:
ZOOM X 5-ZOOM X 4-ZOOM X 3-ZOOM X 2-ZOOM OFF.
5. Rotate clockwise /6. Rotate counterclockwise
Touch to make picture rotate colockwise I counterclockwise 90 degree ata time.
7. PAUSE/PLAY
Touch to pause or resume playback.
8. Return
Touch to return to the SD CARD main interface.
USB Mode
Under the USB mode, all operations are same as SD CARD operations.
20
