Inteq Car multimedia system User manual

OWNER' SMANUAL
Car Multimedia System
lnteq
1-DIN DVD Multimedia receiver'Nith Touch Screen Display wth DVDIAMIFM Receiver

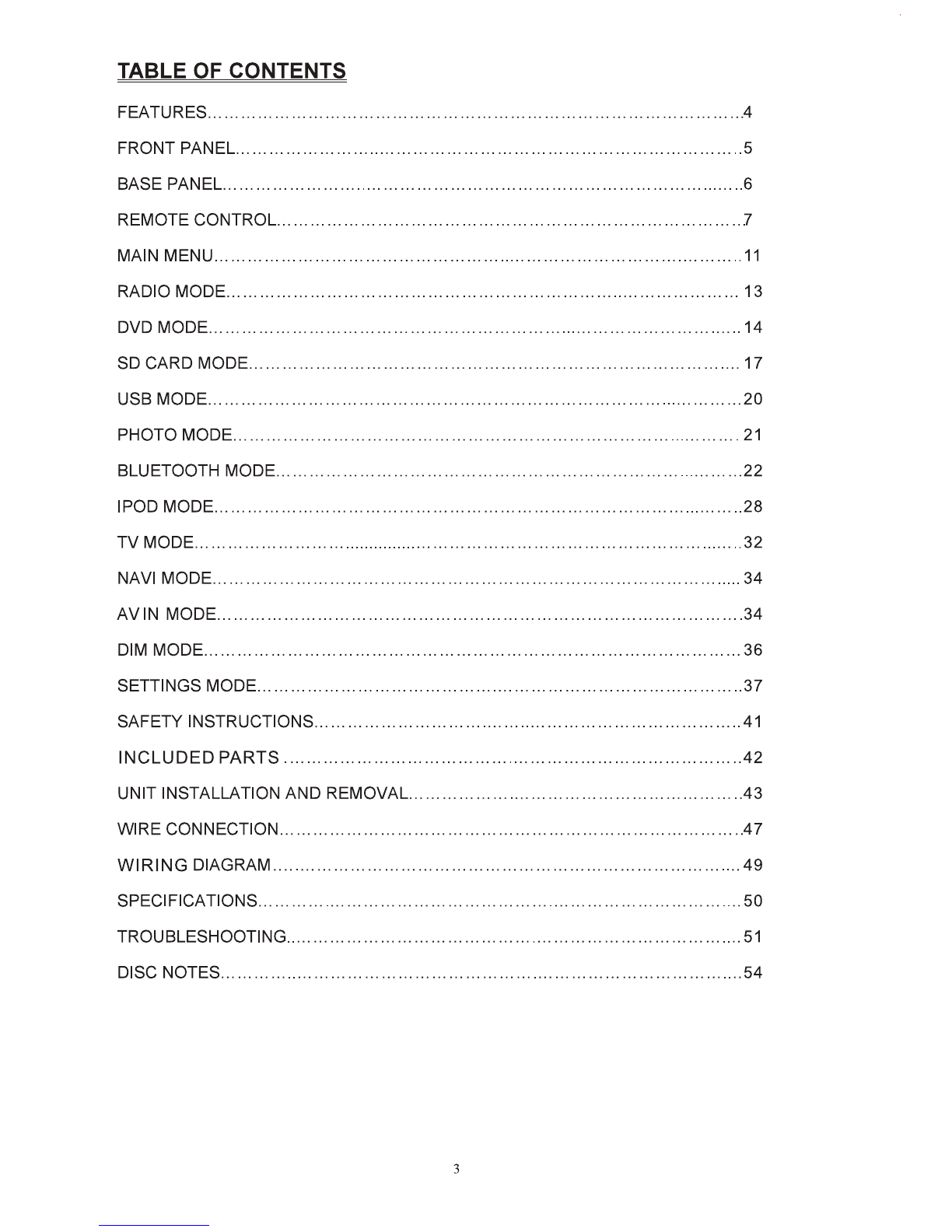

TABLE OF CONTENTS
FEATURES ................................................................................................ 4
FRONT PANEL
........................................................................................... 5
BASE PANEL
.............................................................................................. 6
REMOTE
CONTROL .................................................................................. 7
MAIN MENU
............................................................................................... 11
RADIO MODE ............................................................................................ 13
DVD MODE
................................................................................................ 14
SD CARD MODE.
....................................................................................... 17
USBMODE ................................................................................................ 20
PHOTO MODE
........................................................................................... 21
BLUETOOTH MODE .................................................................................... 22
IPOD MODE
............................................................................................... 28
TVMODE ..................................................................................................... 32
NAVI MODE
............................................................................................... 34
AVIN MODE .............................................................................................. 34
DIM MODE
................................................................................................ 36
SETTINGS MODE.
...................................................................................... 37
SAFETY INSTRUCTIONS
............................................................................. 41
INCLUDED PARTS .................................................................................. 42
UNIT INSTALLATION AND REMOVAL ........................................................... 43
WIRE CONNECTION ................................................................................... 47
WIRING DIAGRAM .................................................................................... 49
SPECIFICATIONS ....................................................................................... 50
TROUBLESHOOTING
.................................................................................. 51
DISC NOTES .............................................................................................. 54
3

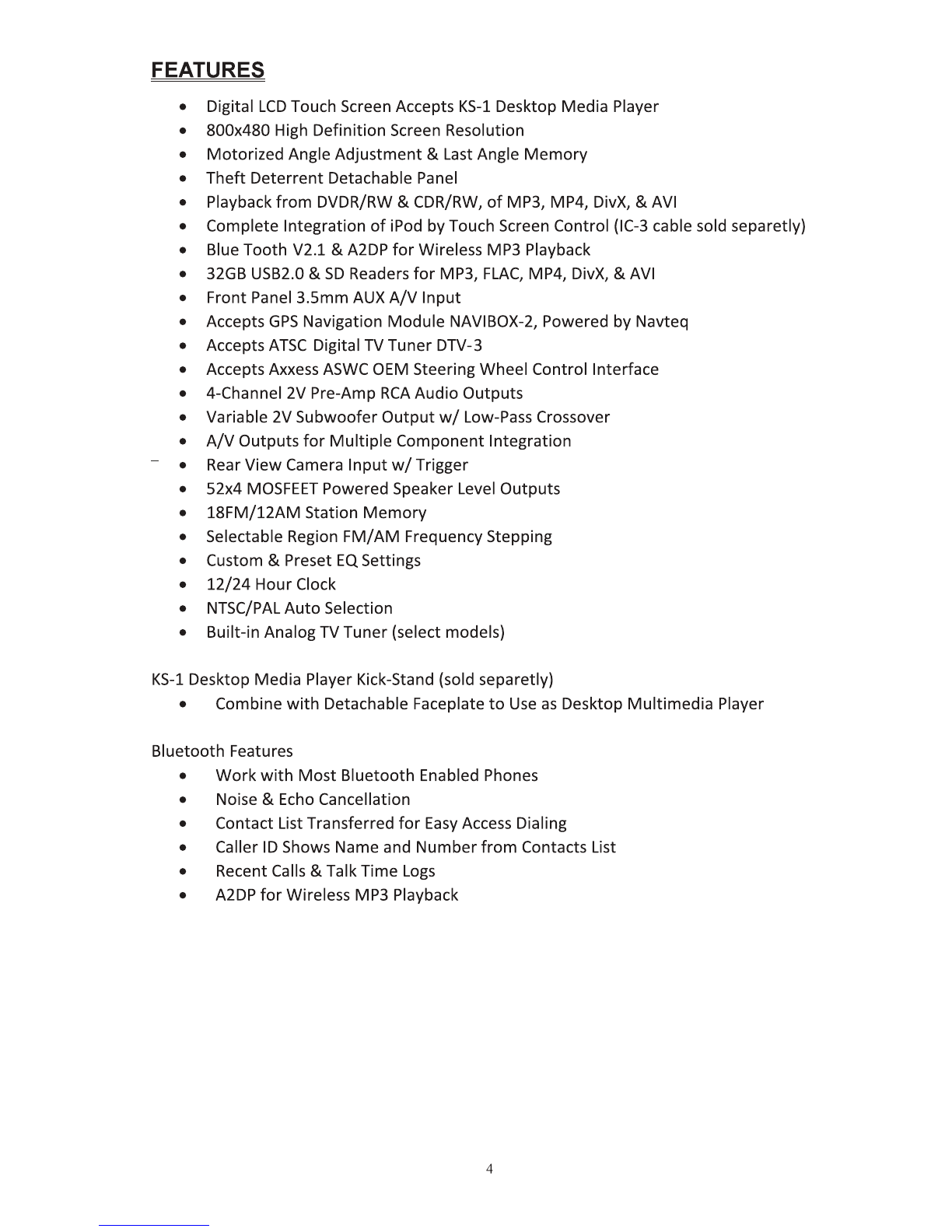

FEATURES
• Digital LCD Touch Screen Accepts KS-1 Desktop Media Player
• 800x480 High Definition Screen Resolution
•
Motorized Angle Adjustment & Last Angle Memory
• Theft Deterrent Detachable Panel
• Playback
from DVDR/RW &CDR/RW, of MP3, MP4, DivX, & AVI
• Complete Integration of iPod by Touch Screen Control (IC-3 cable sold separetly)
• Blue
Tooth V2.1 &A2DP for Wireless MP3 Playback
• 32GB USB2.0 &
SO Readers for MP3, FLAC, MP4, DivX, &AVI
• Front Panel 3.5mm AUX
A/V Input
• Accepts GPS Navigation Module NAVIBOX-2, Powered by Navteq
• Accepts
ATSC Digital TV Tuner DTV-3
• Accepts Axxess
ASWC OEM Steering Wheel Control Interface
• 4-Channel 2V Pre-Amp
RCA Audio Outputs
• Variable 2V Subwoofer Output w/ Low-Pass Crossover
•
A/V Outputs for Multiple Component Integration
• Rear
View Camera Input w/ Trigger
• 52x4
MOSFEET Powered Speaker Level Outputs
•
18FM/12AM Station Memory
• Selectable Region FM/AM Frequency Stepping
• Custom & Preset
EQ Settings
•
12/24 Hour Clock
• NTSC/PAL
Auto Selection
• Built-in Analog TV
Tuner (select models)
KS-1 Desktop Media Player Kick-Stand (sold separetly)
• Combine
with Detachable Faceplate to Use as Desktop Multimedia Player
Bluetooth Features
•
Work with Most Bluetooth Enabled Phones
• Noise & Echo Cancellation
• Contact List Transferred
for Easy Access Dialing
• Caller ID Shows Name and
Number from Contacts List
• Recent Calls & TalkTime
Logs
• A2DP for Wireless MP3 Playback
4

Front Panel
1
1.
MIC
Microphone for
use
with Bluetooth hands free calling.
2. Power/SRC
Presstotumthe unit
ON
, holdingthebutton will tum offtheunit.
W'len the unitison, press to switch between differentsources.
3.
VOUMENU
Press the button
to
display volume adjustment.
Holding the buttonwill entermain
menu.
4.
MUTEINAVI
Press to mute/ unmute
sound.
Holding the button will enter
NAVI
mode.
5. EjectJP.Angle
Press to
open
I close the monitorto ejectthe disc
..
.
~
--@
Holding the button will enterangle adjustment
mode,
press itagain to adjust the angle
of
thefrontpanel
as
following:
Angle 1
---.
Angle 2
---.
Angle
3---.
Angle4
6.REL
Press to release the detachable
panel.
5

7. SO CARD SLOT
The unitwill
be switched to the SD CARD Source automatically when an SD CARD Is
connected.
8. RemoteSensor
Receives remote infrared receiver signals.
9.AVINJack
Connect an external AN device to this jack to watch/listen to the device through your car
audio/video system.
10. USB
The unitwill be switched to USB Source automatically when a USB is connected.
BASE PANEL
( r-'lle
all · -,
1
lilli3
( ]
(
11 0 p JJlo
11. RESET
Remove the face plate togain access to the RESRT buttcn.
Press and hold
1his buttcn for3 secto switch back to all theoriginal factory settings.
Keep in
mind this will erase all yourpresetradio stations and any EQ seUings you may
have made and saved.
6

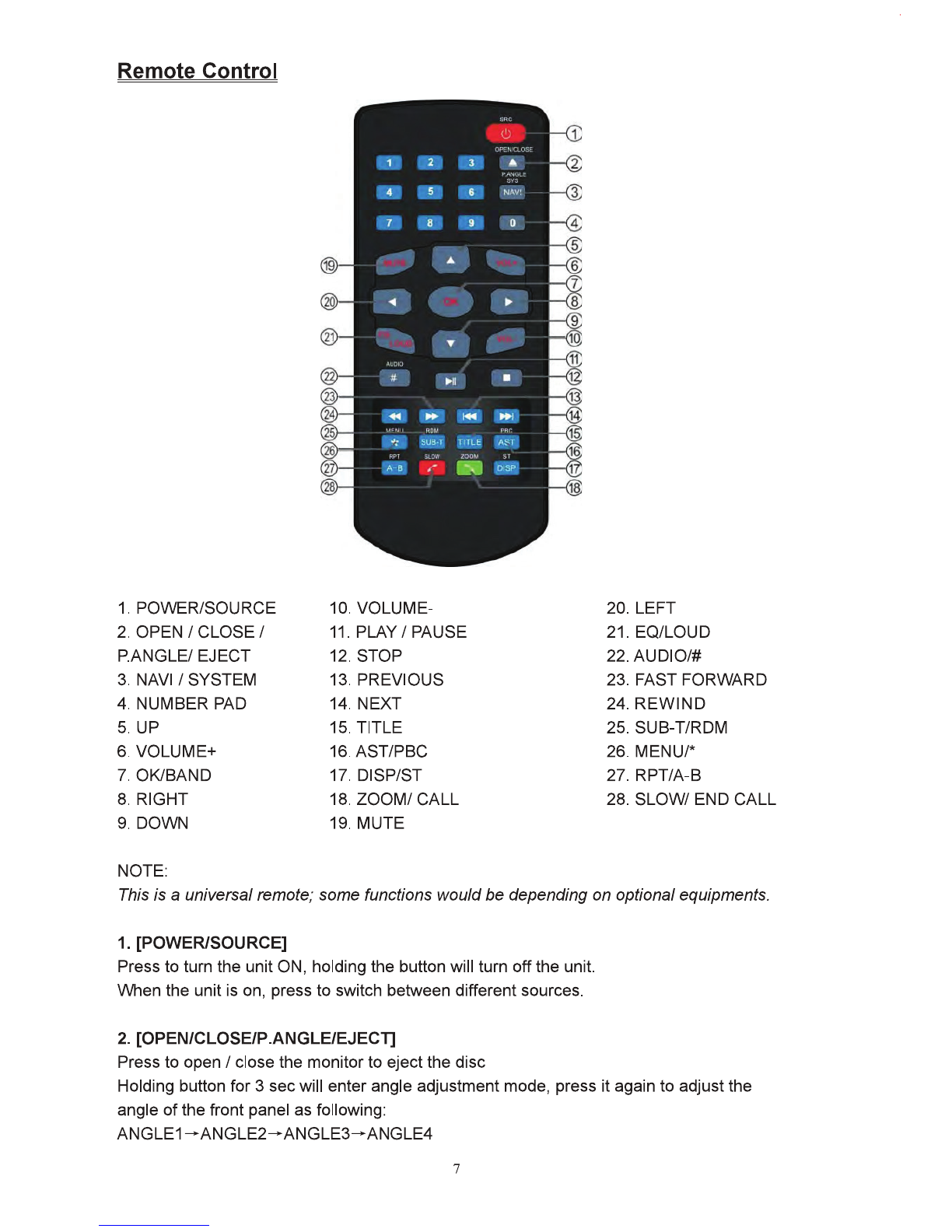

Remote Control
(!)
II
2 3 A
f1
f' , .. -:~.l~
::;:o:_,
4 5 6 NAV:
11
7 8 9 0 m
~
m!
4 m
6
flil
...
..
~~
m
m "
~4m
~
aw
II
.. , • I ~
til I
ml
m
.....
...
~
11+ 1 I m
gj
"'"
I
~
Kl!
":
SU B·T
TITLE
"H
~
fFT
:XC•I\' lQQ\1 ol
m A· B
/"'
-OI
SP
m
~
ml
1. POVVERISOURCE 10. VOLUME- 20. LEFT
2.
OPEN I CLOSEI 11. PLAYI PAUSE 21. EQ/LOUD
P.ANGLEI EJECT 12.
STOP 22.AUDIO/#
3. NAVI/ SYSTEM 13. PREVIOUS 23. FASTFORWARD
4. NUMBER PAD 14.
NEXT 24. REWIND
5. UP 15. TITLE 25. SUB-T/RDM
6. VOLUME+
16.AST/PBC 26. MENUr
7. OK/BAND 17. DISP/ST 27. RPT/A-8
8. RIGHT 18.
ZOOM/ CALL 28. SLOW/ END CALL
9. DOWN 19. MUTE
NOTE:
This is a universalremote; somefunctions would be depending on optionalequipments.
1. [POWER/SOURCE]
Press to tum the unitON, holding the button will tum offthe unit.
When the unit is on, press to switch between differentsources.
2. [OPEN/CLOSEIP.ANGLEIEJECl]
Press to openI close the monitor to ejectthe disc
Holding button for3secwill enter angle adjustment mode, press it again to adjustthe
angle of the front panel as following:
ANGLE1-ANGLE2-ANGLE3-ANGLE4
7

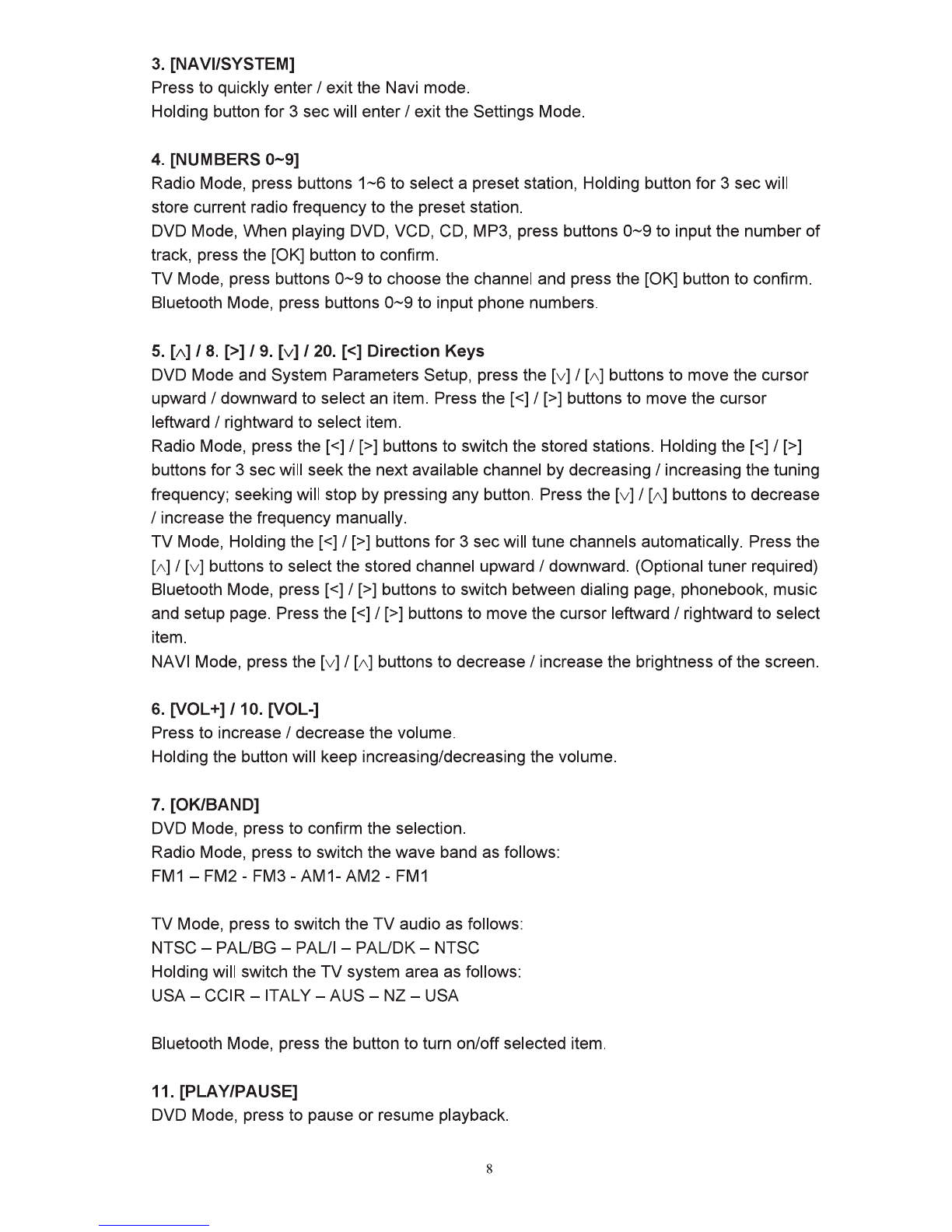

3. [NA VI/SYSTEM]
Press to quickly enterI exit the Navi mode.
Holding button for 3 secwill enterI exitthe Settings Mode.
4. [NUMBERS 0-9]
Radio Mode, press buttons 1-6 to select a preset station, Holding button for3 secwill
store current radio frequency to the presetstation.
DVD Mode, When playing DVD, VCD, CD, MP3, press buttons
0-9 to inputthe number of
track, press the [OK] button to confirm.
TV Mode, press buttons 0-9 to choose the channel and press the [OK] button to confirm.
Bluetooth Mode, press buttons
0-9 to input phone numbers.
5.
[A] I 8. [>]I 9. [v] /20. [<] Direction Keys
DVD Mode and System Parameters Setup, press the [v] I [A] buttons to move the cursor
upward I downward
to select an item. Press the[<] I[>] buttons to move the cursor
leftward I rightward to select item.
Radio Mode, press
the[<] I[>] buttons to switch the stored stations. Holding the[<] I[>]
buttons for3 sec will seekthe next available channel by decreasing I increasing the tuning
frequency; seekingwill stop by pressing any button. Press the [v] I
[A] buttons to decrease
I increase the frequency manually.
TV Mode, Holding the[<] I[>] buttons for3 secwill tune channels automatically. Press the
[A] I [v] buttons to selectthe stored channel upward I downward. (Optional tuner required)
Bluetooth Mode,
press[<] I[>] buttons to switch between dialing page, phonebook, music
and setup page. Press
the[<] I[>] buttons to move the cursor leftward I rightward to select
item.
NAVI Mode, press the [v] I
[A] buttons to decrease I increase the brightness of the screen.
6. [VOL+] /10. [VOL-]
Press to increase I decrease the volume.
Holding the button will keep increasing/decreasing the volume.
7. [OK/BAND]
DVD Mode, press to confirm the selection.
Radio Mode, press to switch the wave band as follows:
FM1-FM2-FM3-AM1-AM2-FM1
TV Mode, press to switch the TV audio as follows:
NTSC -
PAUBG -PAUl - PAUDK- NTSC
Holding will switch the
TV system area as follows:
USA- CCIR -ITALY- AUS- NZ- USA
Bluetooth Mode, press the button to turn on/off selected item.
11. [PLAY/PAUSE]
DVD Mode, press to pause or resume playback.
8

12. [STOP]
DVD Mode, when in DVDNCD/CD playback, press the button once to stop playback,
press the [Play/Pause] button agian to resume playback. Press the button twice to reset
playback, press the [Play/Pause] button
to startthe playback from the beginning of disc.
MP3 discplayback, press the button to stop the playback, press the [Play/Pause] button
to
startthe playback from the beginning of track.
13. [PREVIOUS]
/14. [NEXT]
DVD Mode, press to go to the pervious I next chapter, track
or song.
15. [TITLE]
DVD Mode, press to enterthe title menu when playing DVD disc.
Bluetooth Mode, press to enterthe next page of phone number list in phonebook.
16. [AST/PBC]
DVD Mode, press to switch the PBC function on I
off when playing VCD disc.
Radio Mode, press to review stored stations; holding the button for 3 secwill automatically
program the 6 strongeststations available into the presets in the each wave band.
TV Mode, automatically seekthe stations available.
17. [DISP/ST]
Main menu, press to set the background by default picture
DVD Mode, press to display current playback information.
Bluetooth Mode, press to return to the previous page.
18. [ZOOM/CALL]
DVD Mode, press to zoom the picture display when playing DVD, VCD disc. Each press
changes speed from
2x to 3x to 4x to 3x to 2x then back to normal play.
Bluetooth Mode, press to call a number
or to receive a cell phone call.
19. [MUTE]
Press to switch mute sound; press
it again to resume to the previous volume level.
21. [LOUD/EQ]
Press to adjust the EQ setting as following:
USER
-POP- CLASSIC- ROCK- JAZZ- USER
Holding for3 secwill switch the "LOUD" function ON I OFF.
22. [AUDIO]
DVD Mode, press to change dialogue language when playing DVD disc; Press to select
different audio channels when playing VCD,
CD disc.
Bluetooth Mode, press to inputthe symbol#.
9

23124.(FASTFORWARD/REWIND]
DVD Mode, press to fast forward I rewind at2x speed. Each press changes speed from
2x to4xto 8x to 20xthen backtononnal play. Press the [PLAY/PAUSE] button to resume
to normal playt:Jack.
25. [SUBTIRDM]
DVD Mode, press to changethe subtitle languagewhen playing DVD disc. Hold
ingfor3
sec will activevate random playfunction.
26. [MENU]I"
DVD Mode, press to retum to the boot menu when playing DVD disc.
Bluetooth Mode, press to inputthe symbol*.
ZT. f.RPT/A·BJ
DVD Mode, press to setpointA, press it again to setpoint B, the playerwill repeat from
points Ato B. When playing DVD, MP3, press it again to stop repeating. VIlhan playing
VCD, CD, press it again to repeat all1racks. Holding the button fer3 sec will repeat
playing.
28. [SLOWIEND CALLJ
DVD Mode, press for slOW' motion playback at 112x speed when playing DVDNCD disc.
Each press changes speed from 112x to 1/4x to 118x to 1/16xthen back to nonnal play.
Bluetooth Mode, press to ignore or hang up a call.
BatteryChange
1. Press to unlock the batteryholder,
then pull outward as the arrow shows.
2. Place the battery into theholder
with the (+)side up.
CD
I ~
~
3. Push theholder back. Use your!Inger I
to push In theholderback until the •
::::·:: •• Nncticnor•~ ~i'l · 7m~O.zit:llwm~ - 22wwzll:
~~~~
operating range reduced, replace the old battery ·
@
with new one.
10

Main Menu
1. Touch the PAGE TURNING key to tum to the next page of Sources.
2. Drag the Mode buflons UpJDown
User can choose to activate the mode buttons on 1he touch seteen by dragging the
buttons up/down to 1he main saeen. The blue color button means this mod& isnot active,
a gray button means this mode is active and located on the main screen.
3. Touch 1he LEFriRIGHT direction key to 11Jm to 1he next/previous mode buttons.
11

CD ® ® ®
1. Touch to access 1he DVD Source.
2. Touch to access the RADIO Source
3. Touch access the SD CARD Source.
4. Touch toaccess the USB Sources.
5. Touch to access the iPod Source
6. Touch to access the NAVI Source.
7. Touch toaccess the BLUETOOTH Source.
8. Touch to access theTV Source.
9. Touch to access the AV IN Source.
10. Touch to access PHOTO Source.
11. Touch to access Dimmerfunction.
12. Touch to access Setting Source.
General Operations
The folloYJing operations are general operations for all modes:
Volume Key
Touch the volume key in any mode to display the volume adjustment bar.
Touch " +/-" buttons to increase I decrease the volume.
Touch "MUTE" button to mute the sound; press itagain to resume to the previous volume
level.
Return Key
Touch this button to return to the main menu from any mode
12

Radio Mode
1.Band
Tbuch to swttch the FMIAM wave band as folows:
FM1 • FM2• FM3 •AM1· AM2 • FM1
2. Auto S1atlon rune
Touch to scan through all tuned prese1s stations and playthemfor5 seconds each. Touch any
button
to stopscannllg.
Holding the button to automatiCally programthe6 strongeststationsavailableintothe presetsinthe
each
wave band, atotal of30 stations can be stored. Touch anybutton to stop thetuning.
3.Local
Toucb to setthe localtuning on/off. Wlen you are usingthe local searching funcdon, you can only
receive the
radio stdon wtth strong enough signals.
4.. Tune Frequency- Down II. Tune Frequency -Up
Touch to tune the radio to a loWer 1highertrequency by one step. Hold!~ the button allows
continuoustuning
down/up.
6.ST
Turns stereo reception on/off
7. SEEK-II. SEEK+
Touch to seektothe nextstrong station at a lowerI higherfrequency. Touch any buttonto stop
seeking.
t. Current pla~ng stationinformation dilplay
10. PresetStldions
Touch to selecta presetstation, hokliniJ the buttonto store current radio frequency to the preset
station.
13

DVDMqdt
The unit will be swttdled to DVD Mode automaticallywhen lnsertfng thedisc.
1. Next 1 a. Previoutt
Touch to go tothe next/ pervious chapter, 1rack or song.
2.8top
DVDNCDICD playback
pressthe button once to stop playback, pressthe (Play/Pause( button aglan to resume playback.
Press 1he button twice to reset playback. press IJle (Play/Pause] button to startthe playback from
the beginning of disc.
MP3 disc playback
pressthe button to stopthe playback, pressthe (Play/Pause] button to startthe playback from the
beginning of track.
4. Rewind /8. FastForward
Press to fast forward I rewind at 2x speed. Each press changes speed from 2x to 4x to 8xto 20x
then back to nonnal play. Press IJle (PLAY/PAUSE] button to resume normal playback..
5. Play/Pause
Touch to pause or resume playback.
7. FullScreen Display
VIlhan displaying directory of DISC, touch this button to switch between Full screen and Function
operations Interface.
14

12. TITLE
Touch to go to the title menu of disc when playing a DVD.

f3. Sc:rHn setup
Touch "SCREEN' button to accsee the screen setup.
(1} Contrast
Touch (LEFT) I (RIGHT) buttons to adJust the CONTRAST parameters (Range: ·9 to 9), default Is 0.
(2}TINT
Touch (LEFT) /(.RIGHT) buttons to ad)Jst theTINT parameters (Range: -9 to 9} ,default Is 0.
(3)BRIG
Touch (LEFT]I (RIGHT) buttons to adjustthe BRIGHTNESS parameters (Range: ·9to 9) ,default iS
0.
(4}COL.OR
Touch (UP] I (DO\M\1( to adJust the COLOR parameters (Range: -9 to 9), default Is 0.
16

SDCARDMode
The unitwill switch to SD CARDMode automatically when an SD Card isccnnected.
B ~
•
en r11o n 0000
· · ~ · 1 ~ ·
lOUOQfF
0 fii F
6 ........... po:"'
~
r
•........... ®
6 6 ........... :o ~
•
6 ···········
r--;
r
1. BI"'W'M
Displays a~rrent tilelocation.
2. Folder list display area
Touch "UPJDOWN" arrows tc move through the pages and select afolder.
3. File listdisplay area
Touch "UPJDOWN" arrows to move through the pages and select afile.
4. Return button
Touch tc retum tcthe main directory.
5. Parent directory button
Touch to retum tcthe parent directory.
17

Aydjo ptaybacltlnterfact
1.MENU
Touch "MENU"bullon todisplaythe audio playbacklist. Touch the UP/00'\AIN arrows in !tie
listarea to search fora track/file.
2.Keyboard
Touch to displaythe keyboard.
Touch the number keys 0.9toselect a track, touch the OK button to play the track.
Touch the C button to dear 1he number.
3. Repeat
Touch to repeatrotating as follows:
REPEAT ONE- REPEAT ALL- REPEATOFF.
18

4. Rewind/5.Fast Forward
Touch to fast rewindI fastfotward at 1x speed .Each touch changes speed from 2x to 4x
to 8x to 20xlhen badttcnormal play. Touch the "PLAYJPOUSE"button to resume normal
playback.
6.STOP
During playtlack, touch 1he button to stop the playing the a~rrent track.
7.Retum
Touch to retum to the f!le list, then awttch tc other folder.
a.NexU10.Pnnnous
Touch tcplay the next/previous song.
I. Random
Touch toplaysongs randomly "RANDOMw will be displayed. Touching again willcancel
random playtlack.
11. PAUSEJPLAY
Touch to pause or resume playback.
VIdeo Playbacklntelface
Full •creen display awltch
Wlen playing video ~las, touchthe video display area to swttch to fullsaeen display, touch again
switch to the fUnction operation lnter1ace.
All o1her operalfons are the same as Audio operalfons.
PicturePlaybackInterface
1. Previous
Touch toopen the previous picture.
19

2. Next
Touch to open the next picture.
3. ZOOM IN /4. ZOOM OUT
Touch to zoom in the picture display as following:
ZOOM X 2-ZOOM X 3- ZOOM X 4-ZOOM X 5 ..
Touch to zoom out the pictre display as following:
ZOOM X 5-ZOOM X 4-ZOOM X 3-ZOOM X 2-ZOOM OFF.
5. Rotate clockwiseI 6. Rotate counterclockwise
Touch to make picture rotate colockwise I counterclockwise 90 degree ata time.
7. PAUSE/PLAY
Touch to pause orresume playback.
8. Return
Touch to return to the SD CARD main interface.
USB Mode
Under the USB mode, all operations are same as SD CARD operations.
20
