Features of your vehicle

D300800AHM

How vehicle audio works

AM and FM radio signals are broadcast

from transmitter towers located around

your city. They are intercepted by the

radio antenna on your vehicle. This signal

is then received by the radio and sent to

your vehicle speakers.

When a strong radio signal has reached

your vehicle, the precise engineering of

your audio system ensures the best pos-

sible quality reproduction. However, in

some cases the signal coming to your

vehicle may not be strong and clear. This

can be due to factors such as the dis-

tance from the radio station, closeness of

other strong radio stations or the pres-

ence of buildings, bridges or other large

obstructions in the area.

AM broadcasts can be received at

greater distances than FM broadcasts.

This is because AM radio waves are

transmitted at low frequencies. These

long, low frequency radio waves can fol-

low the curvature of the earth rather than

travelling straight out into the atmos-

phere. In addition, they curve around

obstructions so that they can provide bet-

ter signal coverage.

¢¢¢

JBM002

AM radio reception

¢¢¢

JBM001

FM radio reception

Features of your vehicle

FM broadcasts are transmitted at high

frequencies and do not bend to follow the

earth's surface. Because of this, FM

broadcasts generally begin to fade at

short distances from the station. Also,

FM signals are easily affected by build-

ings, mountains, or other obstructions.

These can result in certain listening con-

ditions which might lead you to believe a

problem exists with your radio. The fol-

lowing conditions are normal and do not

indicate radio trouble:

• Fading - As your vehicle moves away

from the radio station, the signal will

weaken and sound will begin to fade.

When this occurs, we suggest that you

select another stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the trans-

mitter and your radio can disturb the

signal causing static or fluttering nois-

es to occur. Reducing the treble level

may lessen this effect until the distur-

bance clears.

• Station Swapping - As a FM signal

weakens, another more powerful sig-

nal near the same frequency may

begin to play. This is because your

radio is designed to lock onto the clear-

est signal. If this occurs, select another

station with a stronger signal.

• Multi-Path Cancellation - Radio signals

being received from several directions

can cause distortion or fluttering. This

can be caused by a direct and reflect-

ed signal from the same station, or by

signals from two stations with close

frequencies. If this occurs, select

another station until the condition has

passed.

JBM005

¢¢¢

JBM004JBM003

FM radio station

Features of your vehicle

Satellite radio reception

You may experience difficulties in receiv-

ing XM™ satellite radio signals in the fol-

lowing situations.

• If you are driving in a tunnel or a cov-

ered parking area.

• If you are driving beneath the top level

of a multi-level freeway.

• If you drive under a bridge.

• If you are driving next to a tall vehicle

(such as a truck or a bus) that blocks

the signal.

• If you are driving in a valley where the

surrounding hills or peaks block the

signal from the satellite.

• If you are driving on a mountain road

where is the signal blocked by moun-

tains.

• If you are driving in an area with tall

trees that block the signal (30 ft. /10m

or more), for example on an road that

goes through a dense forest.

• The signal can become weak in some

areas that are not covered by the XM™

repeater network.

NOTE:

There may be other unforeseen cir-

cumstances leading to reception prob-

lems with the XM™ satellite radio sig-

nal.

SATELLITE2

SATELLITE1

Features of your vehicle

Using a cellular phone or a two-way

radio

When a cellular phone is used inside the

vehicle, noise may be produced from the

audio equipment. This does not mean

that something is wrong with the audio

equipment. In such a case, use the cellu-

lar phone at a place as far as possible

from the audio equipment.

Care of disc

• If the temperature inside the car is too

high, open the car windows for ventilation

before using your car audio.

• It is illegal to copy and use MP3/WMA

files without permission. Use CDs that

are created only by lawful means.

• Do not apply volatile agents such as

benzene and thinner, normal cleaners

and magnetic sprays made for ana-

logue disc onto CDs.

• To prevent the disc surface from get-

ting damaged. Hold and carry CDs by

the edges or the edges of the center

hole only.

• Clean the disc surface with a piece of

soft cloth before playback (wipe it from

the center to the outside edge).

• Do not damage the disc surface or

attach pieces of sticky tape or paper

onto it.

• Make sure on undesirable matter other

than CDs are inserted into the CD

player (Do not insert more than one

CD at a time).

• Keep CDs in their cases after use to

protect them from scratches or dirt.

• Depending on the type of CD-R/CD-

RW CDs, certain CDs may not operate

normally according to manufacturing

companies or making and recording

methods. In such circumstances, if you

still continue to use those CDs, they

may cause the malfunction of your car

audio system.

✽✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do not

comply with the international audio CD

standards (Red Book), may not play on

your car audio. Please note that if you

try to play copy protected CDs and the

CD player does not perform correctly

the CDs maybe defective, not the CD

player.

CAUTION

When using a communication sys-

tem such a cellular phone or a radio

set inside the vehicle, a separate

external antenna must be fitted.

When a cellular phone or a radio set

is used with an internal antenna

alone, it may interfere with the vehi-

cle's electrical system and adverse-

ly affect safe operation of the vehi-

cle.

WARNING

Do not use a cellular phone while

driving. Stop at a safe location to

use a cellular phone.

Features of your vehicle

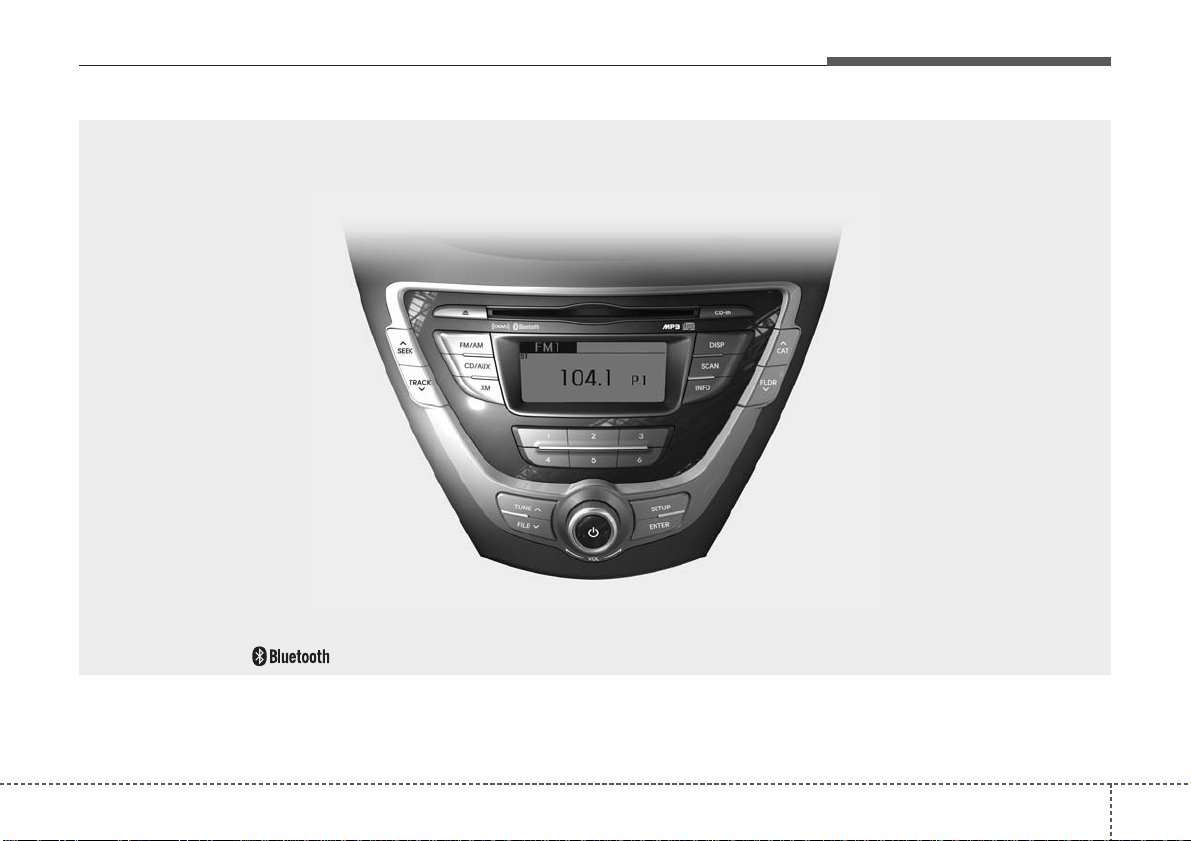

■■CD Player : PA710MD

MD_USA_RADIO

❋There will be no logo if the Bluetooth®feature is not supported.

Features of your vehicle

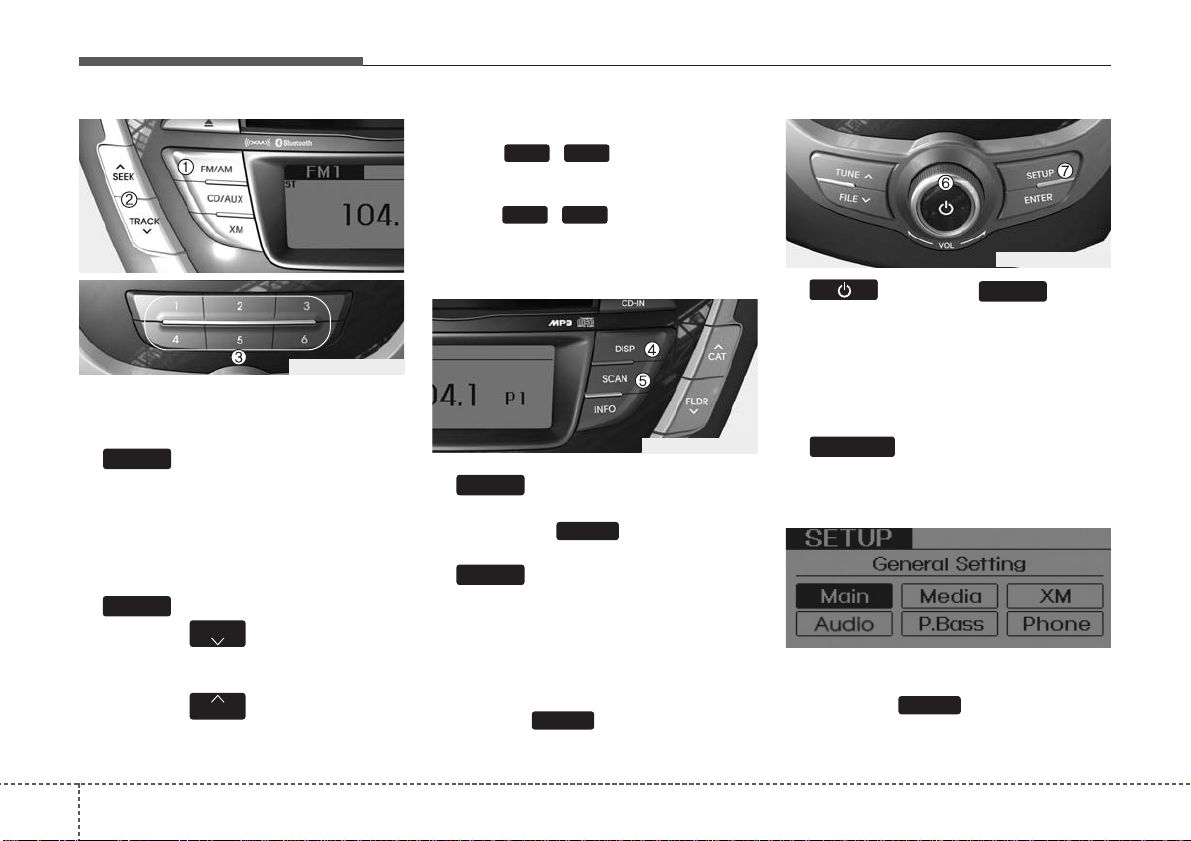

Using RADIO, SETUP, VOLUME

and AUDIO CONTROL

1. Button

The FM/AM button toggles between FM

and AM. Listed below are the paths as

the system switches from FM to AM and

back to FM.

• FM/AM : FM1➟FM2➟AM➟FM1...

2. Button

• When the is pressed, it will

automatically tune to the next lower

station.

• When the is pressed, it will

automatically tune to the next higher

station.

3. PRESET Buttons

• Press ~ buttons less than

0.8 seconds to play the station saved

in each button.

• Press ~ buttons more than

0.8 seconds or longer to save the cur-

rent station to the respective button

with a beep.

4. Button

Turn the LCD Display & Backlight

ON/OFF when button press.

5. Button

• When the button is pressed, it auto-

matically scans the radio stations

upwards.

• The SCAN feature steps through each

station, starting from the initial station,

for 5 seconds.

• Press the button again to stop

the scan feature and to listen to the

currently selected channel.

6. Button & Knob

• Turns the audio system on/off when

the ignition switch is on ACC or ON.

• If the knob is turned clockwise/counter-

clockwise, the volume will increase

/decrease.

7. Button

Press this button to enter SETUP mode,

If no action is taken for 8 seconds, it will

return to previous mode.

In “SETUP” mode, rotate the VOLUME

knob to move the cursor between items,

and push the button to select.

ENTER

SETUP

VOL

SCAN

DISP

SEEK

TRACK

SEEK

FM/AM

MD_USA_RADIO

Features of your vehicle

• MAIN

Select this item to enter the Scroll and

SDVC setup.

SCROLL

Select whether long file names are scrolled

continuously (On) or just once (Off).

SDVC

(Speed Dependent Volume Control)

Select this item to turn the SDVC feature

On or Off. If it is turned ON, volume level

is adjusted automatically according to

the vehicle speed.

• MEDIA

Select default display of MP3 play infor-

mation. “Folder/File” or “Artist/Title” can

be selected.

• XM

Select default display of XM mode.

“Cat./Ch.” or “Artist/Title” can be selected.

• PHONE

Select this item to enter BLUETOOTH

setup mode. Refer to “BLUETOOTH

PHONE OPERATION” section for

detailed information.

• P.BASS (PowerBass)

This function creates virtual sound

effects and allows adjustments to the

Bass level.

Off ➟Low ➟Mid ➟High ➟ Off...

❈ AM Mode is not supported.

• AUDIO

Select the item to change the BASS,

MIDDLE, TREBLE, FADER and BAL-

ANCE tune mode. Press the

button to select each mode and rotate

the Volume knob clockwise or counter-

clockwise.

BASS Control

To increase the BASS, rotate the knob

clockwise, while to decrease the BASS,

rotate the knob counterclockwise.

MIDDLE Control

To increase the MIDDLE, rotate the knob

clockwise, while to decrease the MID-

DLE, rotate the knob counterclockwise.

ENTER

Features of your vehicle

TREBLE Control

To increase the TREBLE, rotate the knob

clockwise, while to decrease the TRE-

BLE, rotate the knob counterclockwise.

FADER Control

Turn the control knob clockwise to empha-

size rear speaker sound (front speaker

sound will be attenuated). When the con-

trol knob is turned counterclockwise, front

speaker sound will be emphasized (rear

speaker sound will be attenuated).

BALANCE Control

Rotate the knob clockwise to emphasize

right speaker sound (left speaker sound

will be attenuated). When the control

knob is turned counter clockwise, left

speaker sound will be emphasized (right

speaker sound will be attenuated).

Features of your vehicle

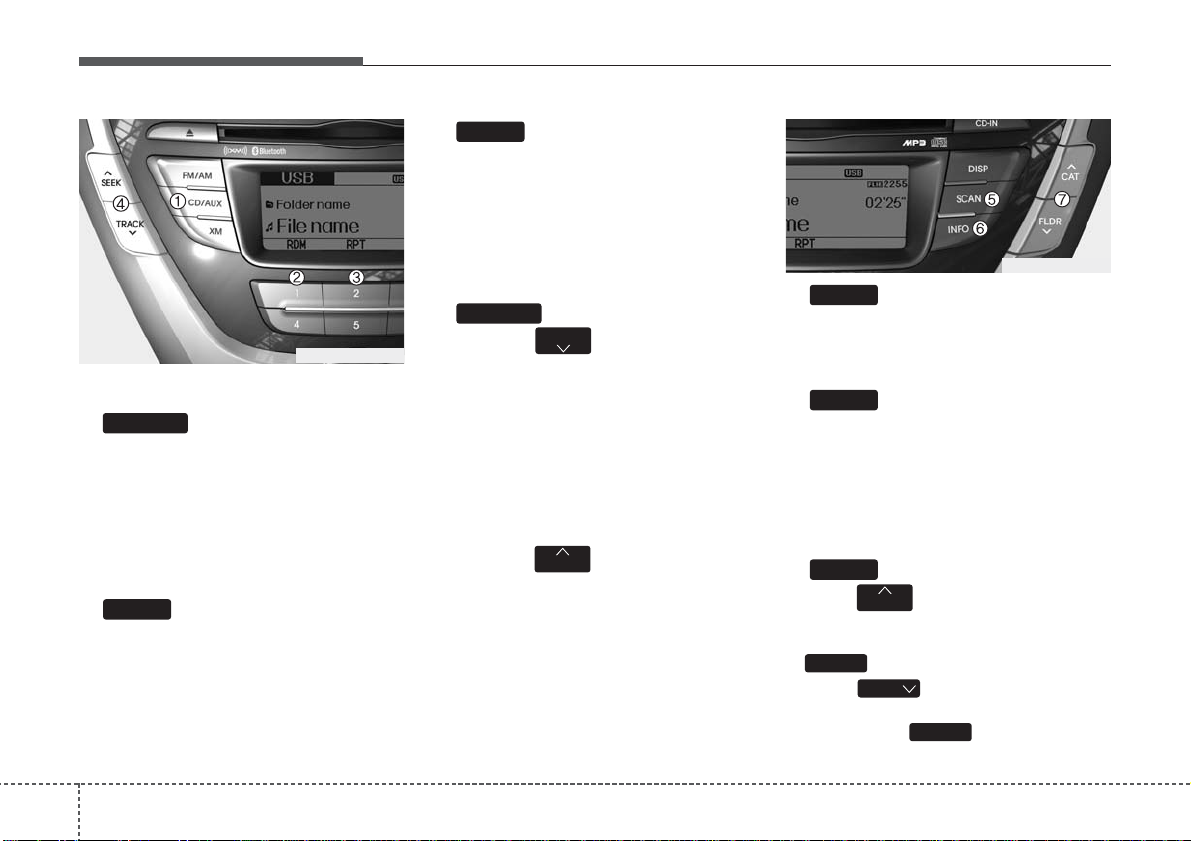

Using CD Player

1. Button (CD)

If the CD is loaded, turns to CD mode. If

no CD, it displays “No Media” for 3 sec-

onds and returns to the previous mode.

2. Button (RANDOM)

Press this button for less than 0.8 sec-

onds to activate ‘RDM’ mode and more

than 0.8 seconds to activate ‘ALL RDM’

mode.

• RDM : Only files/tracks in a folder/disc

are played back in a random sequence.

• ALL RDM (MP3/WMA Only) : All files in

a disc are played back in the random

sequence.

3. Button (REPEAT)

Press this button for less than 0.8 seconds

to activate 'RPT' mode and more than 0.8

seconds to activate 'FLD RPT' mode.

• RPT : Only a track (file) is repeatedly

played back.

• FLD RPT (MP3/WMA Only) : Only files

in a folder are repeatedly played back.

4. Button

• Press button for less than 0.8

seconds to play from the beginning of

current song.

• Press button for less than

0.8 seconds and press again within

1 second to play the previous song.

• Press button for 0.8 seconds or

longer to initiate reverse direction high

speed sound search of current song.

• Press button for less than 0.8

seconds to play the next song.

• Press button for 0.8 seconds or

longer to initiate forward direction high

speed sound search of current song.

5. CD Eject Button

• Press button to eject the CD.

This button works regardless of ignition

switch status.

6. CD Slot

Insert a CD label side up and gently push

in while ignition switch is on ACC or ON.

The audio automatically switches to CD

mode and begins to play the CD.

If the audio was turned off, audio power

will automatically turned on as the CD is

inserted.

• This audio only recognizes 12cm-size, CD-

DA (Audio CD) or ISO data-CD (MP3 CD).

• If UDF data-CD or non-CD (e.g. DVD) is

inserted, "Reading Error" message will

be displayed and the disc will be ejected.

SEEK

TRACK

CD/AUX

CAUTION

Do not insert a CD if CD indicator is

lit.

MD_USA_CD

Features of your vehicle

104

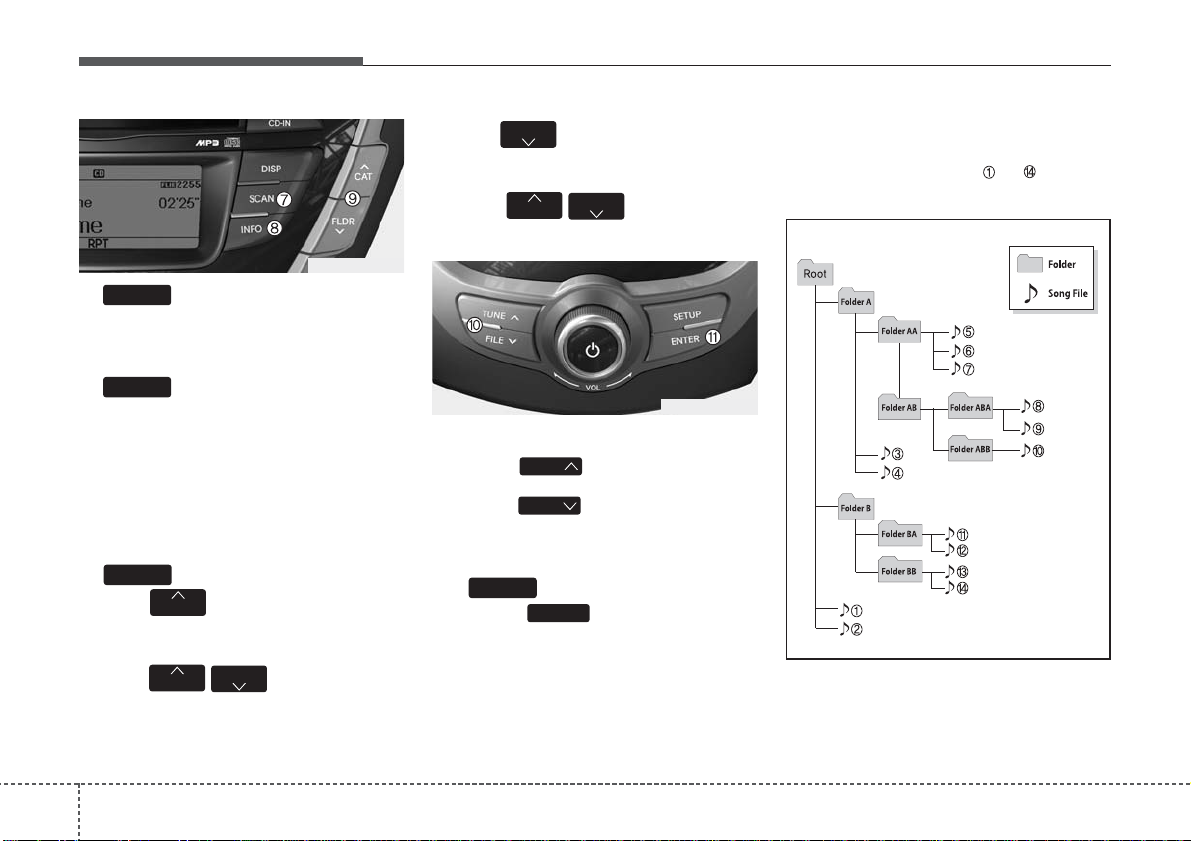

7. Button

Play each song in the CD for 10 seconds. To

cancel SCAN Play, press this button again.

8. Button

Displays the information of the current song.

• Audio CD : Disc Title/Artist, Track Title

/Artist, Total Track.

• MP3 CD : File Name, Title, Artist,

Album, Folder, Total Files (Not dis-

played if the information is unavailable

on the CD or file.)

9. Button (FOLDER)

• Press button to move to child

folder of the current folder and display

the first song in the folder.

Press / buttons to move

to the folder displayed. It will play the

first song in the folder.

• Press button to move to parent

folder of the current folder and display

the first song in the folder.

Press /buttons to move

to the folder displayed.

10.

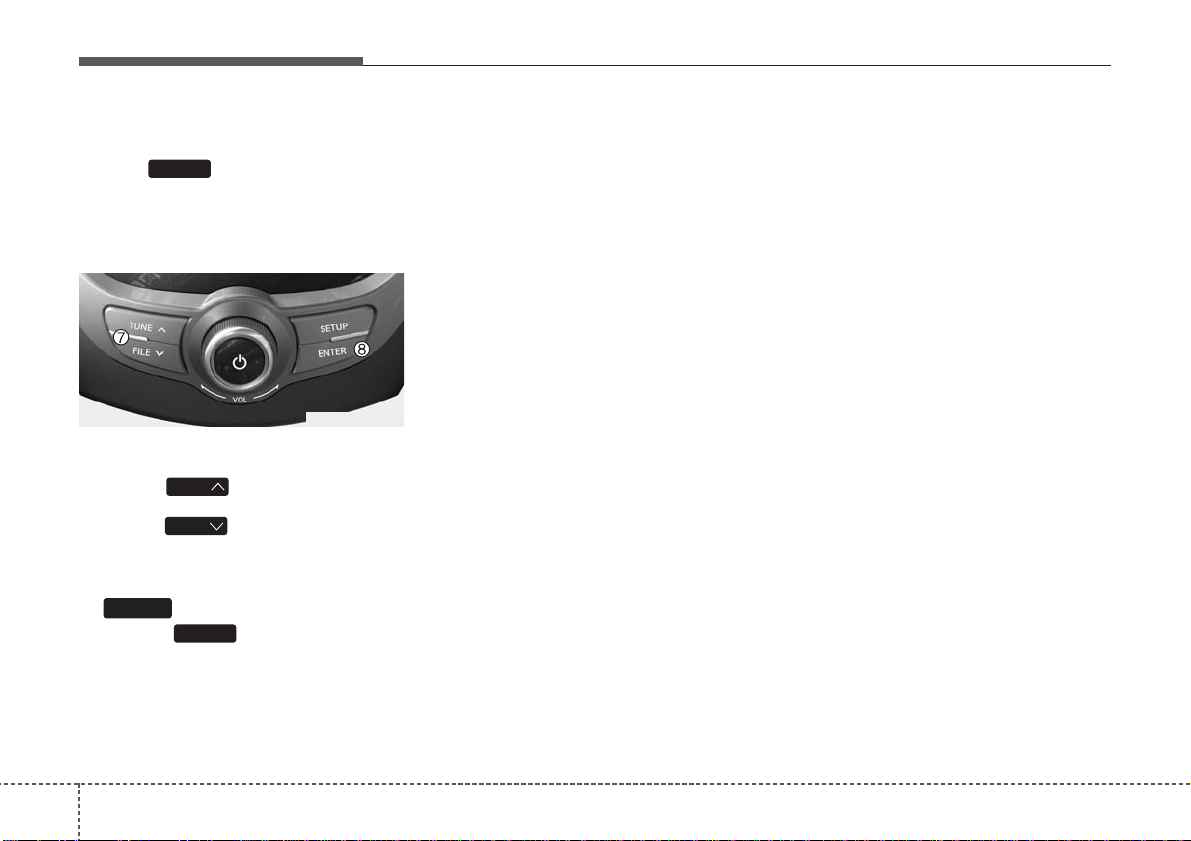

Search Button

Press the button to display the

songs next to the currently played song.

press the button to display the

songs before to the currently played

song.

11. Button

Press the button to play the

setlect song.

NOTE:

Order of playing files (folders) :

1. Song playing order : to sequen-

tially.

ENTER

FILE

TUNE

FLDR

CAT

FLDR

CAT

FLDR

INFO

SCAN

MD_USA_CD

411

Features of your vehicle

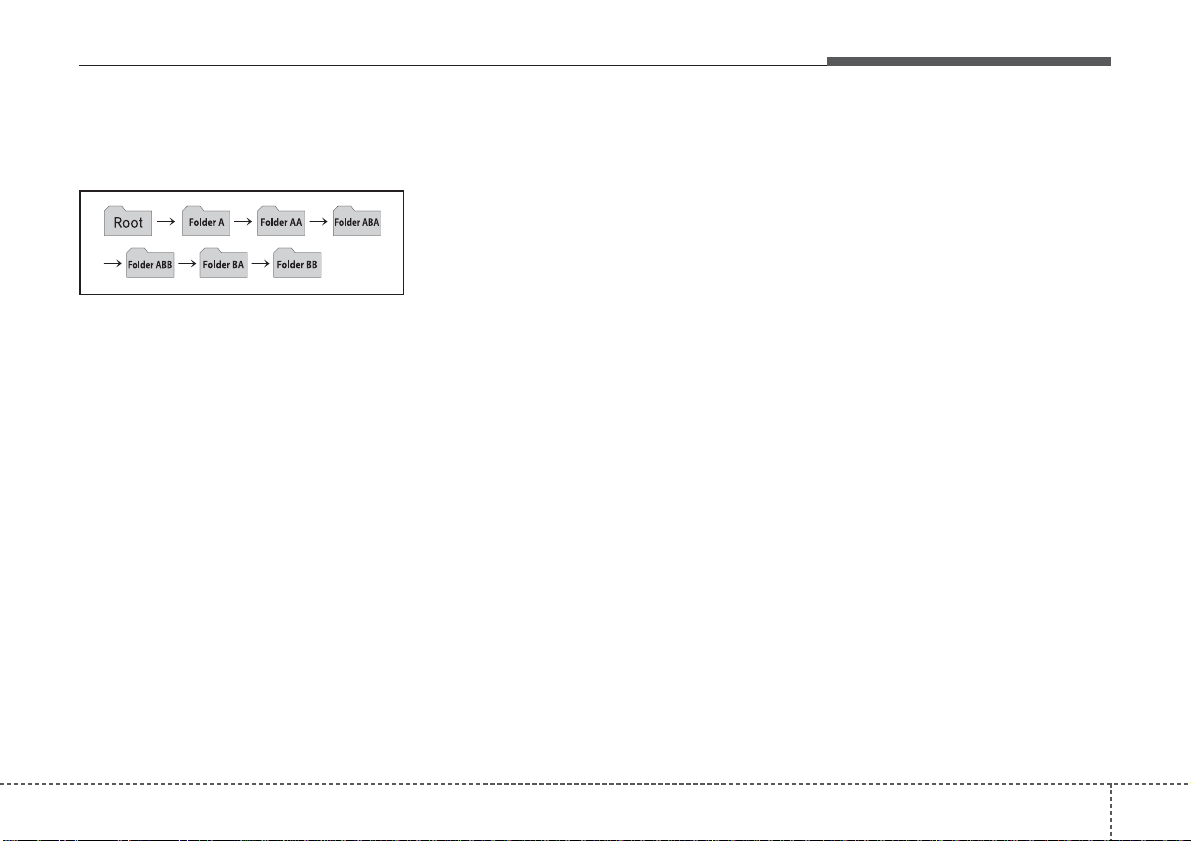

2. Folder playing order :

❋If no song file is contained in the

folder, that folder is not displayed.

Features of your vehicle

124

CAUTION IN USING

USB DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the vehi-

cle. Connect the device after

starting up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• It may not play inauthentic MP3 or

WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps~320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps~320Kbps.

• Take precautions for static electrici-

ty when connecting or disconnect-

ing the external USB device.

(Continued)

• An encrypted MP3 PLAYER is not

recognizable.

• Depending on the condition of

the external USB device, the con-

nected external USB device can

be unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or 2048BYTE,

then the device will not be recog-

nized.

• Use only a USB device formatted

to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in contact

with the human body or other

objects.

• If you repeatedly connect or dis-

connect the USB device in a short

period of time, it may break the

device.

• You may hear a strange noise

when connecting or disconnect-

ing a USB device.

(Continued)

• If you disconnect the external USB

device during playback in USB

mode, the external USB device can

be damaged or may malfunction.

Therefore, disconnect the external

USB device when the audio is

turned off or in another mode. (e.g,

Radio, XM or CD)

• Depending on the type and capac-

ity of the external USB device or

the type of the files stored in the

device, there is a difference in the

time taken for recognition of the

device.

• Do not use the USB device for pur-

poses other than playing music

files.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble.

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia termi-

nal of the vehicle.

(Continued)

413

Features of your vehicle

(Continued)

• If the USB device is divided by

logical drives, only the music files

on the highest-priority drive are

recognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Some non-standard USB devices

(METAL COVER TYPE USB) can be

unrecognizable.

• Some USB flash memory readers

(such as CF, SD, microSD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGEMENT)

are not recognizable.

• The data in the USB memory may

be lost while using this audio.

Always back up important data on

a personal storage device.

(Continued)

• Please avoid using USB memory

products which can be used as

key chains or cellular phone

accessories as they could cause

damage to the USB jack. Please

make certain only to use plug type

connector products as shown

below.

Features of your vehicle

144

Using USB device

1. Button (USB or AUX)

If the auxiliary device is connected, it

switches to AUX or USB mode to play the

sound from the auxiliary player. If there is

no auxiliary device, then the message

“No Media” will become displayed on the

LCD for 3 seconds and returns to previ-

ous mode.

2. Button (RANDOM)

• Press this button for less than 0.8 seconds

to play songs randomly in current folder.

• Press this button for 0.8 seconds or

longer to play songs randomly in entire

USB device.

• To cancel RANDOM play, press this

button again.

3. Button (REPEAT)

• Press this button for less than 0.8 sec-

onds to repeat current song.

• Press this button for 0.8 seconds or longer

to repeat all songs in current folder.

• To cancel REPEAT, press this button

again.

4. Button

• Press the button for less than

0.8 seconds to play from the beginning

of the current song.

Press the button for less than 0.8 sec

onds and press it again within 1 sec-

ond to move to and play the previous

song.

Press the button for 0.8 seconds or

longer to play the song in reverse

direction in fast speed.

• Press the button for less than

0.8 seconds to move to the next song.

Press the button for 0.8 seconds or

longer to play the song in forward

direction in fast speed.

5. Button

Plays each song in the USB device for 10

seconds. To cancel SCAN Play, press

this button again.

6. Button

Displays the information of the file cur-

rently played in the order of FILE NAME

➟ TITLE ➟ ARTIST ➟ ALBUM ➟ FOLDER

➟ TOTAL FILE ➟NORMAL DISPLAY ➟

FILE NAME… (Displays no information if

the file has no song information.)

7. Button (CATEGORY)

• Press button to move to child

folder of the current folder and display

the first song in the folder. Press

button.

• Press button to move to par-

ent folder display the first song in the

folder. Press button.

ENTER

FILE

ENTER

CAT

INFO

SCAN

SEEK

TRACK

CD/AUX

MD_USA_USB

415

Features of your vehicle

Search Button

Press the button to display the

songs next to the currently played song.

press the button to display the

songs before to the currently played

song.

9. Button

Press the button to play the

setlect song.

ENTER

FILE

TUNE

MD_USA_USB

Features of your vehicle

164

✽✽NOTICE FOR USING THE

iPod®DEVICE

• Some iPod models might not sup-

port the communication protocol

and the files will not be played.

Supported iPod models:

- iPod Mini

- iPod 4th(Photo) ~ 6th(Classic)

generation

- iPod Nano 1st~4th generation

- iPod Touch 1st~2nd generation

• The order of search or playback of

songs in the iPod can be different

from the order searched in the

audio system.

• If the iPod disabled due to its own

malfunction, reset the iPod. (Reset:

Refer to iPod manual)

• An iPod may not operate normally

on low battery.

• Some iPod devices, such as the

iPhone, can be connected through the

Bluetooth®interface. The device

must have audio Bluetooth®capabili-

ty (such as for stereo headphone

Bluetooth®). The device can play, but

it will not be controlled by the audio

system.

(Continued)

• When the iPod cable is connected,

the system can be switched to AUX

mode even without iPod device

and may cause noise. Disconnect

the iPod cable when you are not

using the iPod device.

• When not using iPod with car

audio, detach the iPod cable from

iPod. Otherwise, iPod may remain

in accessory mode, and may not

work properly.

CAUTION IN USING THE

iPod®DEVICE

• The Hyundai iPod Power Cable is

needed in order to operate iPod

with the audio buttons on the

audio system. The USB cable pro-

vided by Apple may cause mal-

function and should not be used

for Hyundai vehicles.

❋

The Hyundai iPod Power Cable

may be purchased through your

Hyundai Dealership.

• When connecting iPod with the

iPod Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod and audio may be interrupted.

• When adjusting the sound effects of

the iPod and the audio system, the

sound effects of both devices will

overlap and might reduce or distort

the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod when adjust-

ing the audio system’s volume,

and turn off the equalizer of the

audio system when using the

equalizer of an iPod.

(Continued)

417

Features of your vehicle

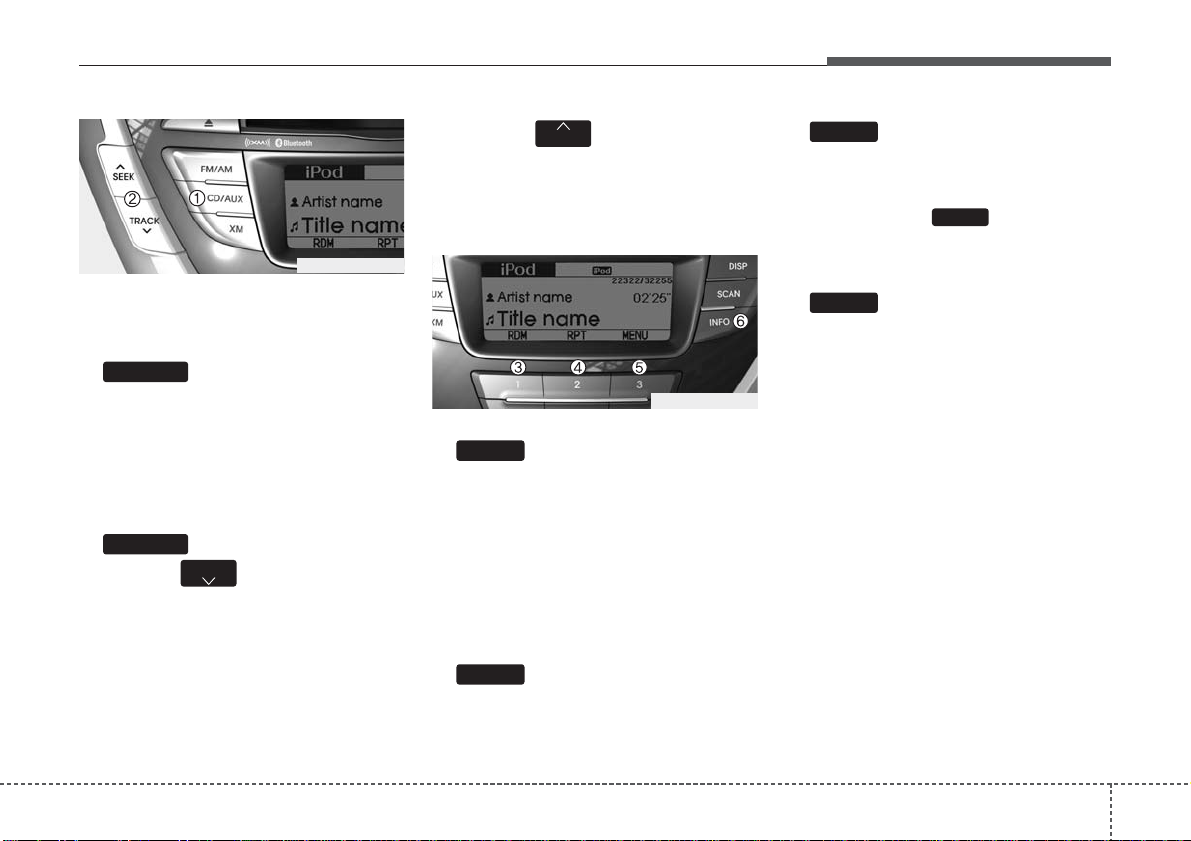

Using iPod®

❋iPod®is a trademark of Apple Inc.

1. Button (iPod)

If iPod is connected, it switches to the

iPod mode from the previous mode to

play the song files stored in the iPod.

If there is no iPod connected, then it dis-

plays the message "No Media" for 3 sec-

onds and returns to the previous mode.

2. Button

• Press the button for less than

0.8 seconds to play from the beginning

of the song currently played.

Press the button for less than 0.8 sec-

onds and press it again within 1 second

to move to and play the previous track.

Press the button for 0.8 seconds or

longer to play the song in reverse

direction in fast speed.

• Press the button for less than

0.8 seconds to move to the next track.

Press the button for 0.8 seconds or

longer to play the song in forward direc-

tion in fast speed.

3. Button (RANDOM)

• Press this button for less than 0.8 sec-

onds to shuffle order of all songs in

current category. (Song Random)

• Press this button for 0.8 seconds or

longer to shuffle order of albums in cur-

rent category. (Album Random)

• To cancel RANDOM Play, press this

button again.

4. Button (REPEAT)

Repeats the song currently played.

5. Button (CATEGORY)

Moves to the upper category from cur-

rently played category of the iPod.

To move to (play) the category (song)

displayed, MENU .

You will be able to search through the

lower category of the selected category.

6. Button

Displays the information of the file cur-

rently played in the order of

TITLE ➟ARTIST ➟ALBUM ➟NORMAL

DISPLAY ➟TITLE... (Displays no informa-

tion if the file has no song information.)

INFO

SEEK

TRACK

CD/AUX

MD_USA_iPod

Features of your vehicle

184

Search Button

Press the button to display the

songs next to the currently played song.

press the button to display the

songs before to the currently played

song.

8. Button

Press the button to play the

setlect song.

ENTER

FILE

TUNE

MD_USA_iPod

419

Features of your vehicle

Using XM satellite Radio

Your vehicle is equipped with 3 months

complimentary period of XM Satellite

Radio. XM provides access to over 130

channels of music, information, and

entertainment programming.

1. Button

Turns to XM Satellite Radio Mode. XM

mode toggles in order to XM1➟XM2➟

XM3➟XM1... when the button is pressed

each time.

2. Button

• Push button for less than 0.8

second to select previous channel.

• Push button for 0.8 second or

longer to continuously move to previ-

ous channel.

• Push button for less than 0.8

second to select next channel.

• Push button for 0.8 second or

longer to continuously move to next channel.

• Radio ID : Seek or Tune to XM channel

0 to display the Radio ID.

3. PRESET Buttons

Push ~ buttons less than

0.8 second to play the channel saved in

each button. Push Preset button for 0.8

second or longer to save current channel

to the respective button with a beep.

4. Button

Press to hear a brief sampling of all

channel. To cancel the scan mode, press

the button once again.

5. Button

Displays the information of the current

channel in the order of Artist/Song title➟

Category/Channel name➟Current Play

Channel➟Artist/Song title➟Category/

Channel name... when the button is

pressed each time. The complete text

information is not displayed, rotate the

tune button to see the next page.

6. Button (CATEGORY)

• Press , buttons to enter

the Category List Mode.

The display will indicate the category

items, highlight the category that the

current channel belongs to.

FLDR

CAT

INFO

SCAN

SEEK

TRACK

SEEK

MD_USA_XM

Features of your vehicle

204

• In the Category List Mode, press these

buttons to navigate category list.

• Press button to select the low-

est channel in highlighted category.

• If channel is selected by selecting cat-

egory "CATEGORY" Icon is displayed

at the top of the screen.

Search Button

Press the button to display the

songs next to the currently played song.

press the button to display the

songs before to the currently played

song.

8. Button

Press the button to play the

setlect song.

ENTER

FILE

TUNE

ENTER

MD_USA_XM

This manual suits for next models

Table of contents

Hyundai PA710MDLSB User manual

Popular Car Video System manuals by other brands
