International comfort products PGN4 Series User manual

Printed in U.S.A.
462 01 2001 01 01--28--08
PACKAGED GAS/ELECTRIC UNIT
Installation Instructions
PGN4 Series
International Comfort Products, LLC
Lewisburg, TN. 37091
TABLE OF CONTENTS
Page
SAFE INSTALLATION REQUIREMENTS 2........
INTRODUCTION 3.............................
RECEIVING AND INSTALLATION 3...............
Check Equipment 3...........................
Provide Unit Support 3........................
Field Fabricate Ductwork 3....................
Dimensions 4 -- 5.............................
Provide Clearances 6.........................
Rig and Place Unit 6 -- 7.......................
Connect Condensate Drain 7..................
Install Flue Hood 7 -- 8........................
Install Gas Piping 8...........................
Install Duct Connections 9 -- 10................
Install Electrical Connections 10 -- 13...........
PRE--START--UP 14............................
START--UP 14..................................
Check for Refrigerant Leaks 14.................
Start--Up Heating & Make Adjustments 14 -- 15..
Gas Input 15...............................
Measure Gas Flow 16.......................
Airflow and Temperature Rise 17..............
LED Monitor 17.............................
Sequence of Operation 17...................
Start--Up Cooling & Make Adjustments 18.......
R--410A Charge 18 -- 19.....................
Airflow 20..................................
Sequence of Operation 20...................
Page
MAINTENANCE 21.............................
Air Filter 21..................................
Indoor Blower and Motor 21....................
Flue Gas Passageways 22....................
Induced Draft (Combustion Air) Blower 22.......
Limit Switch 22...............................
Burner Ignition 22............................
Main Burners 22..............................
Outdoor & Indoor Coil, Condensate Drain Pan 22.
Outdoor Fan 23 -- 24.........................
Electrical Controls and Wiring 24...............
Refrigeration Circuit 24........................
Gas Input 24.................................
Evaporator Airflow 24.........................
R--410A Items 24 -- 25........................
AIRFLOW CHART 26 -- 29......................
COOLING TROUBLESHOOTING GUIDE 30.......
HEATING TROUBLESHOOTING GUIDE 31.......
LED ERROR CODES GUIDE 32..................
R--410A QUICK REFERENCE GUIDE 33..........
CHECKLIST FORM 34..........................

2
SAFE INSTALLATION REQUIREMENTS
FIGURE 1 PACKAGED GAS / ELECTRIC UNIT
Installation and servicing of this equipment can be
hazardous due to mechanical and electrical components.
Only trained and qualified personnel should install, repair,
or service this equipment.
Untrained personnel can perform basic maintenance
functions such as cleaning and replacing air filters. All other
operations must be performed by trained service
personnel. When working on this equipment, observe
precautions in the literature, on tags, and on labels attached
to or shipped with the unit and other safety precautions that
may apply.
Follow all safety codes. Installation must be in compliance
with local and national building codes. Wear safety glasses,
protective clothing, and work gloves. Have fire extinguisher
available. Read these instructions thoroughly and follow all
warnings or cautions included in literature and attached to
the unit.
CUT HAZARD
CAUTION
!
Failure to follow this caution may result in personal
injury.
Sheet metal parts may have sharp edges or burrs. Use
care and wear appropriate protective clothing and
gloves when handling parts.
Recognize safety information. This is the safety--alert
symbol . When you see this symbol in instructions or
manuals, be alert to the potential for personal injury.
Understand the signal words DANGER,WARNING,
CAUTION, and NOTE. These words are used with the
safety--alert symbol. DANGER identifies the most serious
hazards which will result in serious injury or death.
WARNING signifies a hazard which could result in serious
injury or death. CAUTION is used to identify unsafe
practices which may result in minor personal injury or
product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation,
reliability, or operation.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing or servicing system, always turn off
main power to system. There may be more than one
disconnect switch. Turn off accessory heater power
switch if applicable. TAG DISCONNECT SWITCH
WITH LOCKOUT TAG.
!WARNING
FIRE, EXPLOSION, ELECTRICAL SHOCK AND
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury or unit damage.
A qualified installer or agency must use only
factory--authorized kits or accessories when
modifying this product.
WARNING
!
INTRODUCTION
The packaged unit is a fully self--contained, combination
Category I gas heating/electric cooling unit designed for
outdoor installation (see Figures 3 and 4 for unit
dimensions). All unit sizes have return and discharge
openings for both horizontal and downflow configurations,
and are factory shipped with all downflow duct openings
covered.
Units may be installed either on a rooftop or at ground level.
Models with a “1” in the twelfth position of the model number
are dedicated Low NOx units designed for California
installations. The emissions of these models do not exceed
40 nanograms of nitrogen oxide emissions per joule of heat
output as shipped from the factory, and must be installed in
California Air Quality Management Districts or any other
regions in North America where a Low NOx rule exists.
!

3
RECEIVING AND INSTALLATION
STEP 1 — Check Equipment
Identify Unit
The unit model number and serial number are stamped on
the unit information plate. Check this information against
shipping papers.
Inspect Shipment
Inspect for shipping damage while unit is still on shipping
pallet. If unit appears to be damaged or is torn loose from
its anchorage, have it examined by transportation
inspectors before removal. Forward claim papers directly to
transportation company. Manufacturer is not responsible
for any damage incurred in transit. Check all items against
shipping list. Immediately notify the nearest equipment
distribution office if any item is missing. To prevent loss or
damage, leave all parts in original packages until
installation.
STEP 2 — Provide Unit Support
For hurricane tie downs, contact distributor for details and
PE (Professional Engineering) Certificate, if required.
Roof Curb
Install accessory roof curb in accordance with instructions
shipped with curb. Install insulation, cant strips, roofing, and
flashing. Ductwork must be attached to curb.
NOTE: The gasketing of the unit to the roof curb is critical
for a water tight seal. Install gasketing material supplied with
the roof curb. Improperly applied gasketing also can result
in air leaks and poor unit performance.
Curb should be level to within ¼” (6mm) This is necessary
for unit drain to function properly. Refer to accessory roof
curb installation instructions for additional information as
required.
Slab Mount
Place the unit on a solid, level concrete pad that is a
minimum of 4” (102mm) thick with 2” (51mm) above grade
(see Figure 2). The slab should extend approximately 2”
beyond the casing on all 4 sides of the unit. Do not secure
the unit to the slab except when required by local codes.
OPTIONAL
RETURN
AIR
OPENING
OPTIONAL
SUPPLY
AIR
OPENING
EVAP. COIL COND. COIL
2"

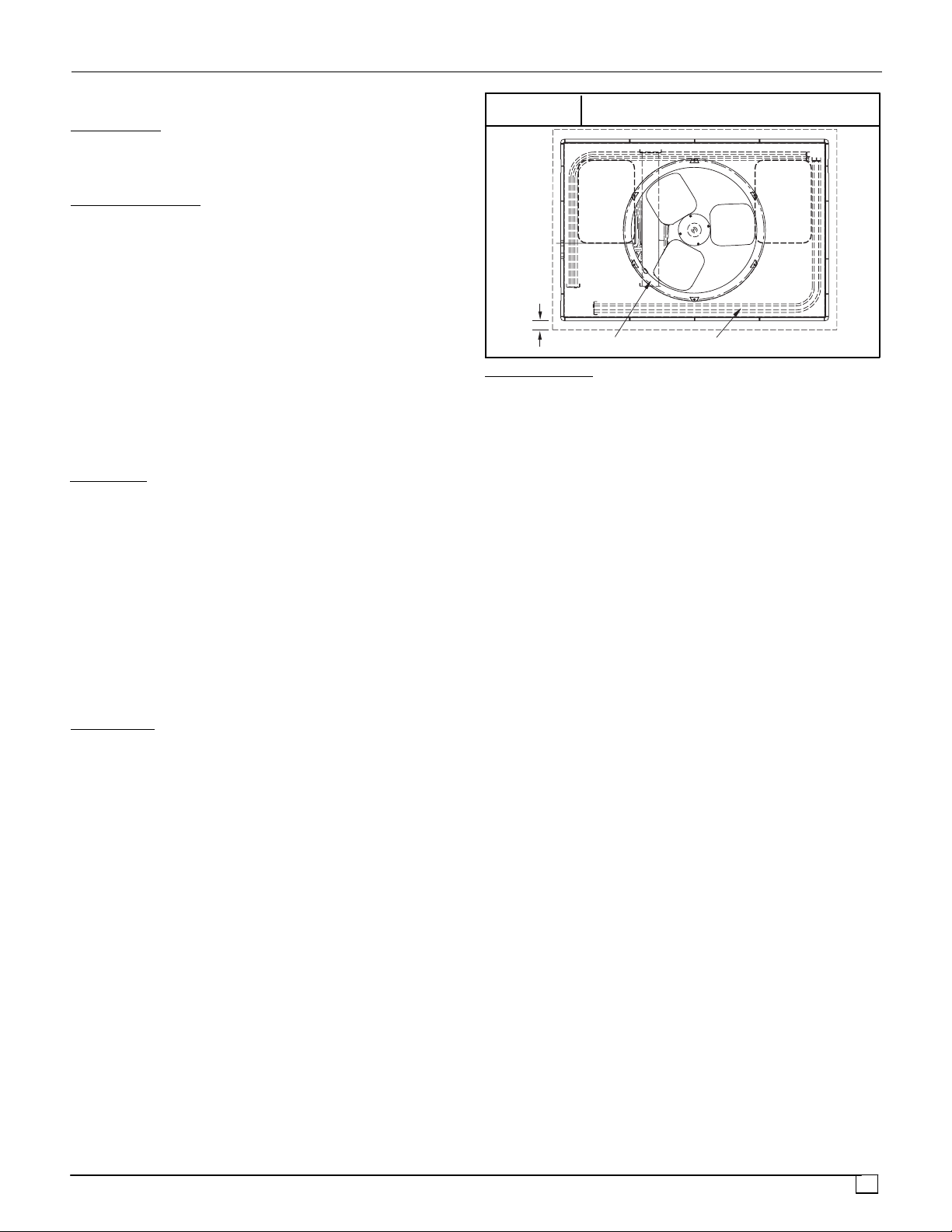

FIGURE 2 Slab Mounting Details
Ground Mount
The unit may be installed either on a slab or placed
directly on the ground, if local codes permit. Place the
unit on level ground prepared with gravel for condensate
discharge.
STEP 3 — Field Fabricate Ductwork
Secure all ducts to roof curb and building structure on
vertical discharge units. Do not connect ductwork to unit.
For horizontal applications, unit is provided with flanges on
the horizontal openings. All ductwork should be secured to
the flanges. Insulate and weatherproof all external
ductwork, joints, and roof openings with counter flashing
and mastic in accordance with applicable codes.
Ducts passing through an unconditioned space must be
insulated and covered with a vapor barrier.
If a plenum return is used on a vertical unit, the return should
be ducted through the roof deck to comply with applicable
fire codes.
A minimum clearance is not required around ductwork.
Cabinet return--air static shall not exceed --.25 inches water
column.

4

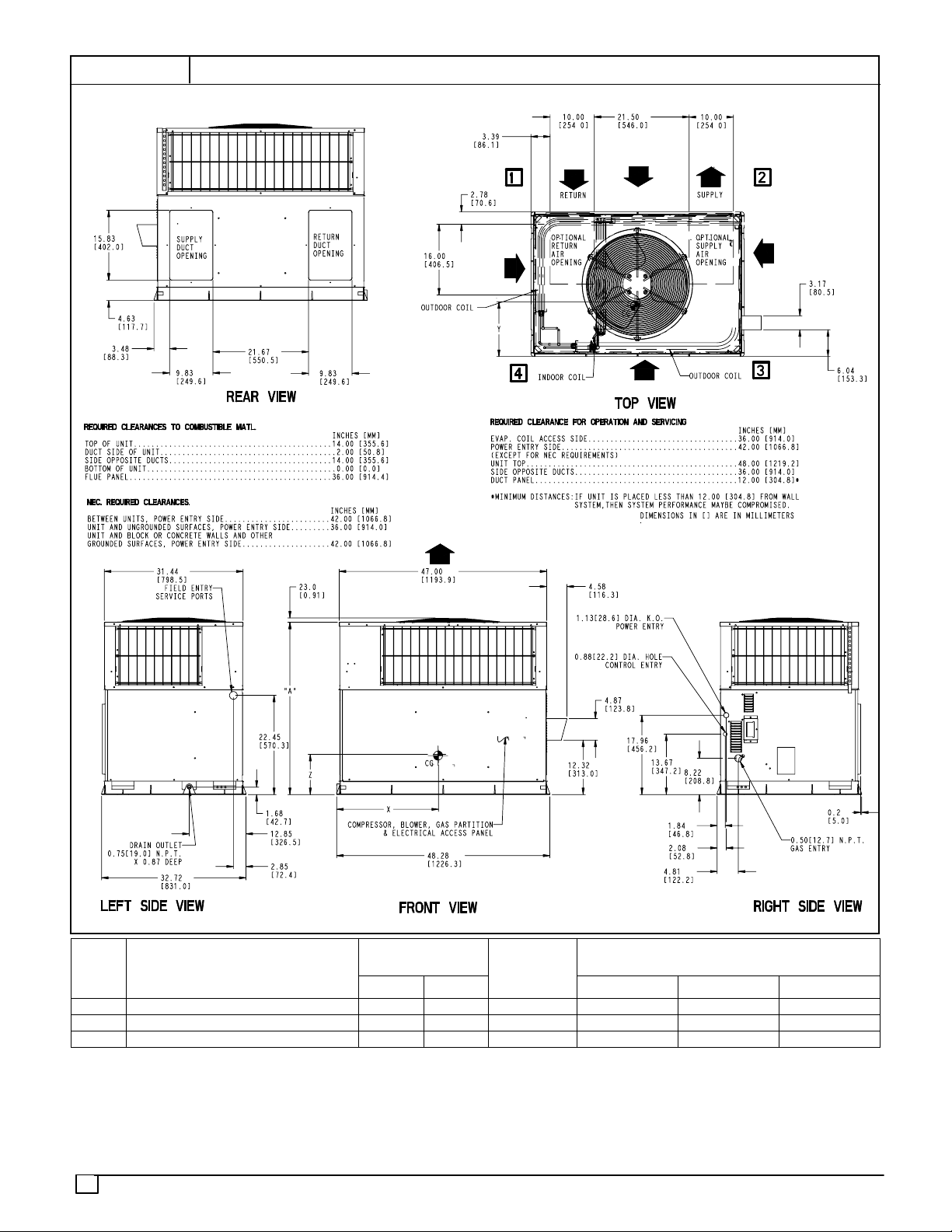

FIGURE 3 MODEL SIZE 24--36 DIMENSIONS
Model
Size
ELECTRICAL
CHARACTERISTICS
UNIT WEIGHT
UNIT
HEIGHT
IN. [MM]
“A”
CENTER OF GRAVITY
IN. [MM]
lb kg X Y Z
24 208/230--1--60, 208/230--3--60 307 139.3 37 [940] 23.6 [599.4] 15.8 [401.3] 15.7 [398.8]
30 208/230--1--60, 208/230--3--60 319 144.7 37 [940] 23.6 [599.4] 15.8 [401.3] 15.7 [398.8]
36 208/230--1--60, 208/230--3--60 353 160.1 43 [1093] 25.0 [635] 15.9 [403.9] 16.0 [406.4]

5

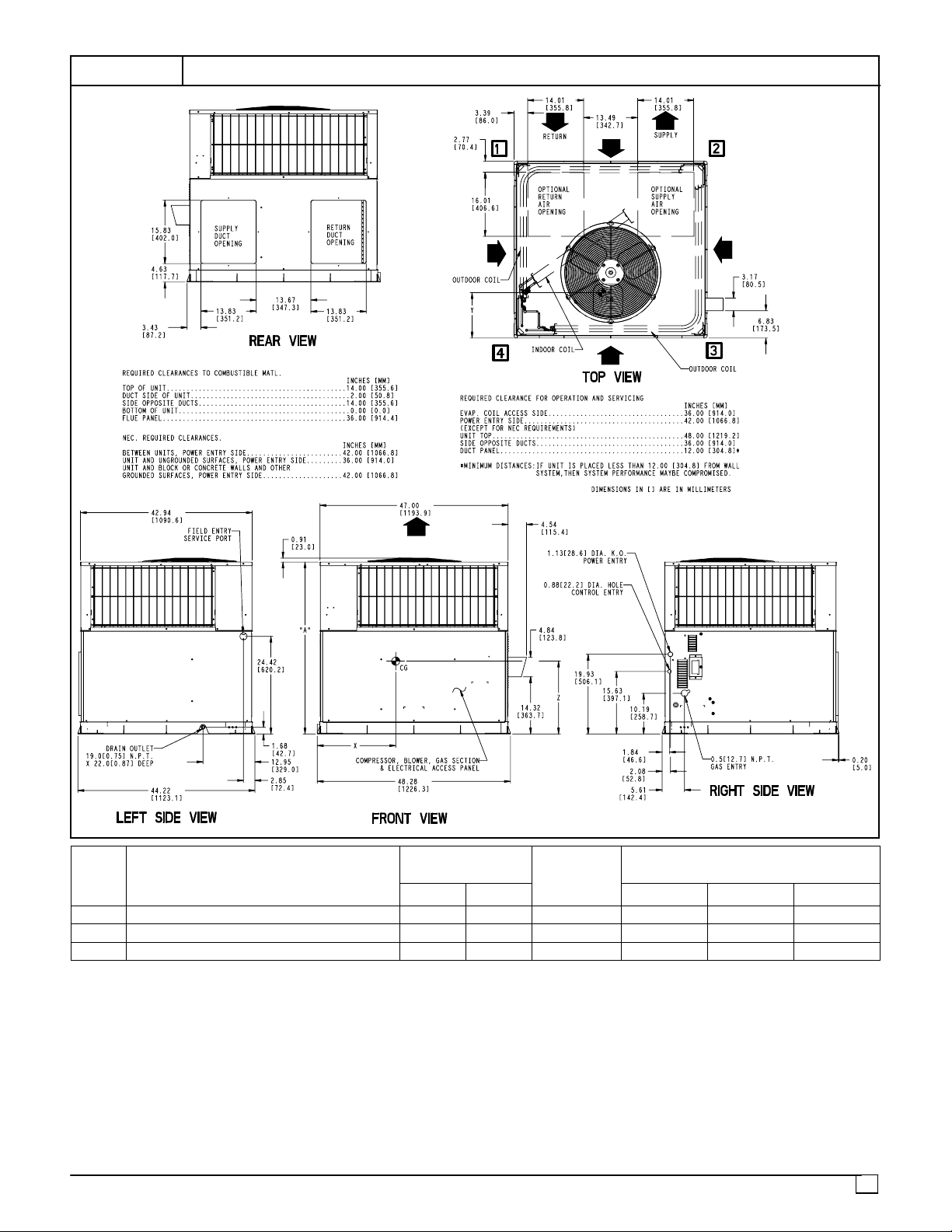

FIGURE 4 MODEL SIZE 42--60 DIMENSIONS
Model
Size
ELECTRICAL
CHARACTERISTICS
UNIT WEIGHT
UNIT
HEIGHT
IN. [MM]
“A”
CENTER OF GRAVITY
IN. [MM]
lb kg X Y Z
42 208/230--1--60, 208/230--3--60 435 197.3 46.98 [1193] 25.5 [647.7] 21.0 [533] 17.6 [447]
48 208/230--1--60, 208/230--3--60 453 205.5 46.98 [1193] 25.7 [652.8] 21.8 [553.7] 18.0 [457.2]
60 208/230--1--60, 208/230--3--60 481 218.2 50.98 [1295] 25.8 [655.3] 22.0 [558.8] 20.0 [508.0]

6
STEP 4 — Provide Clearances
The required minimum operating and service clearances
are shown in Figures 3 and 4. Adequate combustion,
ventilation and condenser air must be provided in
accordance with section 9.3, Air for Combustion and
Ventilation, of the National Fuel Gas Code ANSI (American
National Standards Institute) Z223.1 or applicable
provisions of local building code. In Canada, follow sections
8.2, 8.3, or 8.4 of Can/CGA (Canadian Gas Association)
B149 Installation Codes or applicable provisions of local
building code.
NOTE: Do not restrict outdoor airflow. An air restriction at
either the outdoor--air inlet or the fan discharge may be
detrimental to compressor life.
The condenser fan pulls air through the condenser coil and
discharges it through the top grille. Be sure that the fan
discharge does not recirculate to the condenser coil. Do not
locate the unit in either a corner or under an overhead
obstruction. The minimum clearance under a partial
overhang (such as a normal house overhang) is 48” (1.2m).
above the unit top. The maximum horizontal extension of a
partial overhang must not exceed 48” (1.2m).
Do not place the unit where water, ice, or snow from an
overhang or roof will damage or flood the unit. Do not install
the unit on carpeting or other combustible materials.
Slab--mounted units should be at least 4” (102mm) above
the highest expected water and runoff levels. Do not use
unit if it has been under water.
STEP 5 — Rig and Place Unit
Rigging and handling of this equipment can be hazardous
for many reasons due to the installation location (roofs,
elevated structures, etc.).
Only trained, qualified crane operators and ground support
staff should handle and install this equipment.
When working with this equipment, observe precautions in
the literature, on tags, stickers, and labels attached to the
equipment, and any other safety precautions that might
apply.
Training for operators of the lifting equipment should
include, but not be limited to, the following:
1. Application of the lifter to the load, and adjustment of
the lifts to adapt to various sizes or kinds of loads.
2. Instruction in any special operation or precaution.
3. Condition of the load as it relates to operation of the
lifting kit, such as balance, temperature, etc.
Follow all applicable safety codes. Wear safety shoes and
work gloves.
Inspection
The lifting/rigging bracket is engineered and designed to be
installed only on Small Packaged Products. This bracket is
to be used to rig/lift a Small Packaged Product onto roofs or
other elevated structures.
Prior to initial use, and at monthly intervals, all rigging
brackets and straps should be visually inspected for any
damage, evidence of wear, structural deformation, or
cracks. Particular attention should be paid to excessive
wear at hoist hooking points and load support areas.
Brackets or straps showing any kind of wear in these areas
must not be used and should be discarded.
UNIT FALLING HAZARD
Failure to follow this warning could result in personal
injury or death.
Never stand beneath rigged units or lift over people.
!WARNING
PROPERTY DAMAGE HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
Rigging brackets are for one time use only. When
removing a unit at the end of its useful life, use a new set
of brackets.
!WARNING
Use of Rigging Bracket
NOTE: Rigging brackets are factory installed on 3--phase
units only. Single--Phase units require accessory kit
NPLIFTBK003A10.
Field Installation of Rigging Bracket (if not already installed)
1. Remove unit from shipping carton. Leave top shipping
skid on the unit for use as a spreader bar to prevent the
rigging straps from damaging the unit. If the skid is not
available, use a spreader bar of sufficient length to
protect the unit from damage.
2. Remove 4 screws in unit corner posts.
3. Attach each of the 4 metal rigging brackets under the
panel rain lip (see Figure 5). Use the screws removed in
step 2 above to secure the brackets to the unit.
PROPERTY DAMAGE HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
Rigging bracket MUST be under the rain lip to provide
adequate lifting.
!WARNING
PROPERTY DAMAGE HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
Do not strip screws when re--securing the unit. If a screw
is stripped, replace the stripped one with a larger diameter
screw (included). When straps are taut, the clevis should
be a minimum of 36” (914mm) above the unit top cover.
!WARNING
Rigging/Lifting of Unit
1. Bend top of brackets down approximately 30 degrees
from the corner posts.
2. Attach straps of equal length to the rigging brackets at
opposite ends of the unit. Be sure straps are rated to
hold the weight of the unit (see Figure 5).
3. Attach a clevis of sufficient strength in the middle of the
straps. Adjust the clevis location to ensure unit is lifted
level with the ground.

7
4. After unit is securely in place detach rigging straps.
Remove corner posts screws, and rigging brackets
then reinstall screws.
After the unit is placed on the roof curb or mounting pad,
remove the top crating.

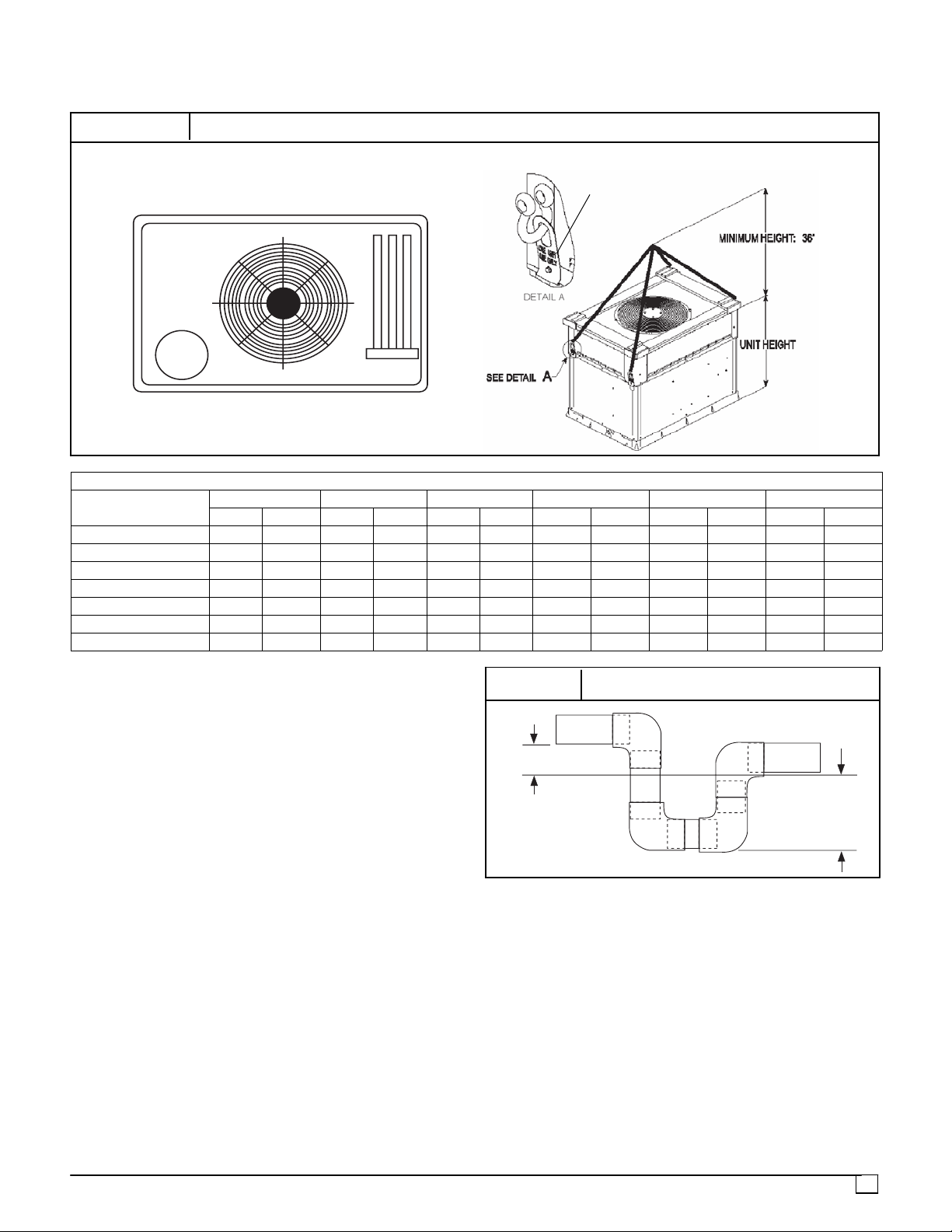

FIGURE 5 Unit Corner Weight (lbs) and Rigging
x
y
12
3
4
Rigging Brackets are factory installed on
3---phase units only. Single---phase units require
accessory kit NPLIFTBK003A10
CORNER WEIGHTS
Model Size: 24 30 36 42 48 60
lbs kg lbs kg lbs kg lbs kg lbs kg lbs kg
Unit Only Weight 307 139.3 319 144.7 353 160.1 435 197.3 453 205.5 481 218.2
Corner Weight 1 62 28.1 65 29.5 19 22.2 62.8 28.5 67.3 30.5 68.7 31.2
Corner Weight 2 87 39.5 90 40.8 106.5 48.3 166.7 75.6 171.2 77.7 184 83.5
Corner Weight 3 82 37.2 85 38.6 71.5 32.4 89.9 40.8 94.4 42.8 94.9 43.0
Corner Weight 4 76 34.5 79 35.8 126 57.2 115.6 52.4 120.1 54.5 133.4 60.5
Rigging Weight 326 147.9 338 153.3 372 168.7 457 207.3 475 215.5 503 228.2
Shipping Weight 361 163.7 373 169.2 407 184.6 497 225.4 515 233.6 543 246.3
STEP 6 — Connect Condensate Drain
NOTE: When installing condensate drain connection be
sure to comply with local codes and restrictions.
The unit disposes of condensate water through a w”NPT
fitting which exits through the base on the evaporator coil
access side. See Figures 3 & 4 for location.
Condensate water can be drained directly onto the roof in
rooftop installations (where permitted) or onto a gravel
apron in ground level installations. Install a field--supplied 2”
(51mm) condensate trap at the end of condensate
connection to ensure proper drainage. Make sure that the
outlet of the trap is at least 1” (25mm) lower than the
drain--pan condensate connection to prevent the pan from
overflowing (see Figure 6). Prime the trap with water. When
using a gravel apron, make sure it slopes away from the
unit.
Connect a drain tube using a minimum of w” PVC or w”
copper pipe (all field--supplied) at the outlet end of the 2”
(51mm) trap. Do not undersize the tube. Pitch the drain tube
downward at a slope of at least 1” (25mm). for every 10 feet
(3.0m) of horizontal run. Be sure to check the drain tube for
leaks.
FIGURE 6 Condensate Trap
TRAP
OUTLET
2" min.
1" min.
STEP 7 — Install Flue Hood
The flue assembly is secured and shipped in the return air
duct. Remove duct cover to locate the assembly (see
Figure 8).
NOTE: Dedicated low NOx models MUST be installed in
California Air Quality Management Districts where a Low
NOx rule exists. These models meet the California
maximum oxides of nitrogen (NOx) emissions
requirements of 40 nanograms per joule or less as shipped
from the factory.
NOTE: Low NOx requirements apply only to natural gas
installations.

8
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury or death.
The venting system is designed to ensure proper
venting. The flue hood assembly must be installed as
indicted in this section of the unit installation instructions.
!WARNING
Install the flue hood as follows:
1. This installation must conform with local building codes
and with the National Fuel Gas Code (NFGC), ANSI
Z223.1 (in Canada, CAN/CGA B149.1, and B149.2) or
NFPA (National Fire Protection Association) latest
revision. Refer to Provincial and local plumbing or
wastewater codes and other applicable local codes.
2. Remove flue hood from shipping location (inside the
return section of the blower compartment--see Figure
8). Remove the return duct cover to locate the flue
hood. Place flue hood assembly over flue panel. Orient
screw holes in flue hood with holes in the flue panel.
3. Secure flue hood to flue panel by fastening one screw
on the right side and one screw on the left side of the
hood.
STEP 8 — Install Gas Piping
The gas supply pipe enters the unit through the access hole
provided. The gas connection to the unit is made to the 2”
FPT gas inlet on the gas valve.
FIRE OR EXPLOSION HAZARD
Failure to follow this warning could result in personal
injury, death and/or property damage.
--Connect gas pipe to unit using a backup wrench to avoid
damaging gas controls.
--Never purge a gas line into a combustion chamber.
Never test for gas leaks with an open flame. Use a
commercially available soap solution made specifically for
the detection of leaks to check all connections.
--Use proper length of pipe to avoid stress on gas control
manifold.
--If a flexible connector is required or allowed by authority
having jurisdiction, black iron pipe shall be installed at
furnace gas valve and extend a minimum of 2” (51mm)
outside furnace casing.
--If codes allow a flexible connector, always use a new
connector. do not use a connector which has previously
serviced another gas appliance.
!WARNING
Install a gas supply line that runs to the heating section.
Refer to Table 1 and the NFGC for gas pipe sizing. Do not
use cast--iron pipe. It is recommended that a black iron pipe
is used. Check the local utility for recommendations
concerning existing lines. Size gas supply piping for 0.5
inches water column maximum pressure drop. Never use
pipe smaller than the 2”FPT gas inlet on the unit gas valve.
For natural gas applications, the gas pressure at unit gas
connection must not be less than 4.0 inches water column
or greater than 13 inches water column while the unit is
operating. For Propane applications, the gas pressure must
not be less than 11.0 inches water column or greater than
13 inches water column at the unit connection.
A8” NPT plugged tapping, accessible for test gauge
connection, must be installed immediately upstream of the
gas supply connection to the gas valve.
When installing the gas supply line, observe local codes
pertaining to gas pipe installations. Refer to the NFGC ANSI
Z223.1--2005 NFPA latest edition (in Canada, CAN/CGA
B149.1).
NOTE:In the state of Massachusetts:
1. Gas supply connections MUST be performed by a
licensed plumber or gas fitter.
2. When flexible connectors are used, the maximum
length shall not exceed 36 inches (915 mm).
3. When lever handle type manual equipment shutoff
valves are used, they shall be T--handle valves.
4. The use of copper tubing for gas piping is NOT
approved by the state of Massachusetts.
In the absence of local building codes, adhere to the
following pertinent recommendations:
1. Avoid low spots in long runs of pipe. Grade all pipe 4”
(6mm) for every 15 feet (4.6m) of length to prevent
traps. Grade all horizontal runs downward to risers. Use
risers to connect to heating section and to meter.
2. Protect all segments of piping system against physical
and thermal damage. Support all piping with
appropriate straps, hangers, etc. Use a minimum of one
hanger every 6 feet (1.8m). For pipe sizes larger than
2”, follow recommendations of national codes.
3. Apply joint compound (pipe dope) sparingly and only to
male threads of joint when making pipe connections.
Use only pipe dope that is resistant to action of liquefied
petroleum gases as specified by local and/or national
codes. Never use Teflon tape.
4. Install sediment trap in riser leading to heating section
(see Figure 7). This drip leg functions as a trap for dirt
and condensate.
5. Install an accessible, external, manual main shutoff
valve in gas supply pipe within 6 feet (1.8m) of heating
section.
6. Install ground--joint union close to heating section
between unit manual shutoff and external manual main
shut--off valve.
7. Pressure test all gas piping in accordance with local
and national plumbing and gas codes before
connecting piping to unit.
8. Check for gas leaks at the field--installed and
factory--installed gas lines after all piping connections
have been completed. Use soap--and--water solution
(or method specified by local codes and/or regulations).

9

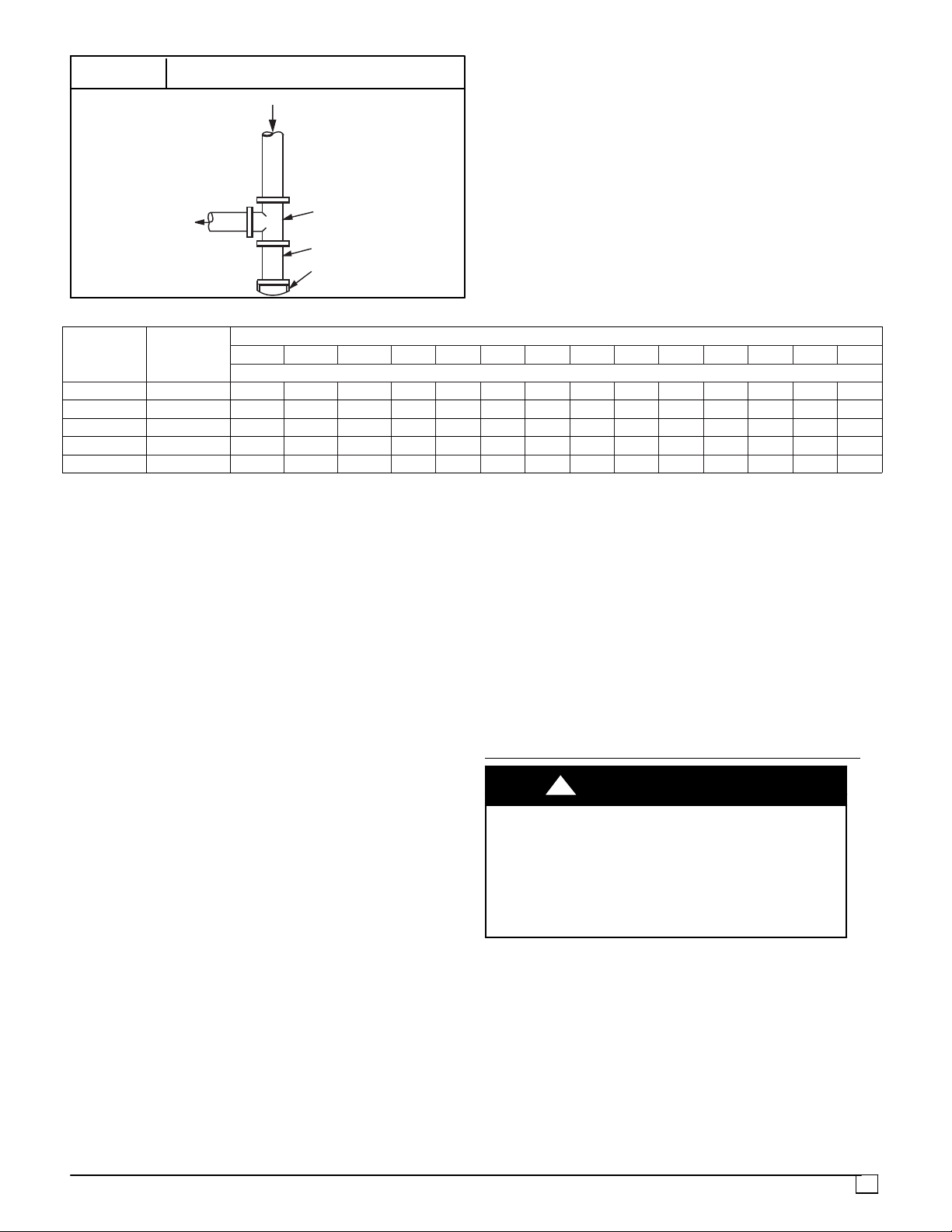

FIGURE 7 Sediment Trap
OUT
TEE
NIPPLE
CAP
IN
NOTE: Pressure test the gas supply system after the gas
supply piping is connected to the gas valve. The supply
piping must be disconnected from the gas valve during the
testing of the piping systems when test pressure is in
excess of 0.5 psig. Pressure test the gas supply piping
system at pressures equal to or less than 0.5 psig. The unit
heating section must be isolated from the gas piping system
by closing the external main manual shutoff valve and
slightly opening the ground--joint union.
Table 1 -- PIPING SIZES
NOMINAL
IRON PIPE
SIZE (inch)
INTERNAL
DIAMETER
(inch)
LENGTH OF PIPE (feet)†
10 20 30 40 50 60 70 80 90 100 125 150 175 200
Gas Capacity (ft3of gas per hour)
2.622 175 120 97 82 73 66 61 57 53 50 44 40 -- --
w.824 360 250 200 170 151 138 125 118 110 103 93 84 77 72
11.049 680 465 375 320 285 260 240 220 205 195 175 160 145 135
141.380 1400 950 770 600 580 530 490 460 430 400 360 325 300 280
121.610 2100 1460 1180 990 900 810 750 690 650 620 550 500 460 430
* Capacity of pipe in ft3of gas per hour for gas pressure of 0.5 psig or less. Pressure drop of 0.5 inches water column (based on a
0.60 specific gravity gas). Refer to Table, National Fire Protection Association NFPA 54.
{This length includes an ordinary number of fittings.
STEP 9 — Install Duct Connections
The unit has duct flanges on the supply and return--air
openings on the side and bottom of the unit. For downflow
applications, the ductwork connects to the roof curb (see
Figure 3 and 4 for connection sizes and locations).
NOTE: The design and installation of the duct system must
be in accordance with the standards of the NFPA for
installation of nonresidence--type air conditioning and
ventilating systems, NFPA 90A or residence--type, NFPA
90B; and/or local codes and ordinances.
Adhere to the following criteria when selecting, sizing, and
installing the duct system:
1. Units are shipped for horizontal duct installation (by
removing duct covers).
2. Select and size ductwork, supply--air registers, and
return--air grilles according to American Society of
Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE) recommendations.
3. Use flexible transition between rigid ductwork and unit
to prevent transmission of vibration. The transition may
be screwed or bolted to duct flanges. Use suitable
gaskets to ensure weather--tight and airtight seal.
4. All units must have field--supplied filters or accessory
filter rack installed in the return--air side of the unit.
When using a separate return air plenum and grille,
refer to Table 2 for recommended filters sizes.
When using the accessory filter rack, refer to filter rack
instructions for required filter size(s) and quantity.
5. Size all ductwork for maximum required airflow (either
heating or cooling) for unit being installed. Avoid abrupt
duct size increases or decreases or performance may
be affected.
6. Adequately insulate and weatherproof all ductwork
located outdoors. Insulate ducts passing through
unconditioned space, and use vapor barrier in
accordance with latest issue of Sheet Metal and Air
Conditioning Contractors National Association
(SMACNA) and Air Conditioning Contractors of
America (ACCA) minimum installation standards for
heating and air conditioning systems. Secure all ducts
to building structure.
7. Flash, weatherproof, and vibration isolate all openings
in building structure in accordance with local codes and
good building practices.
Configuring Unit for Downflow (Vertical Discharge)
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing or servicing system, always turn off
main power to system. There may be more than one
disconnect switch. Turn off power supply to the unit and
install lockout tag.
!WARNING
1. Open all electrical disconnects before starting any
service work.
2. Remove horizontal (metal) duct covers to access
vertical (downflow) discharge duct knockouts in unit
base.
3. Use a screwdriver and hammer to remove the panels in
the bottom of the unit base (see Figure 9).
4. If unit ductwork is to be attached to vertical opening
flanges on the unit base (jackstand applications only),
do so at this time.

10
5. It is recommended that the base insulation around the
perimeter of the vertical return--air opening be secured
to the base with aluminum tape. Applicable local codes
may require aluminum tape to prevent exposed
fiberglass.
6. Cover both horizontal duct openings with the provided
duct covers. Ensure opening is air and water tight.
7. After completing unit conversion, perform all safety
checks and power up unit.
PROPERTY DAMAGE HAZARD
Failure to follow this caution may result in property
damage.
Collect ALL screws that were removed. Do not leave
screws on rooftop as permanent damage to the roof
may occur.
CAUTION
!

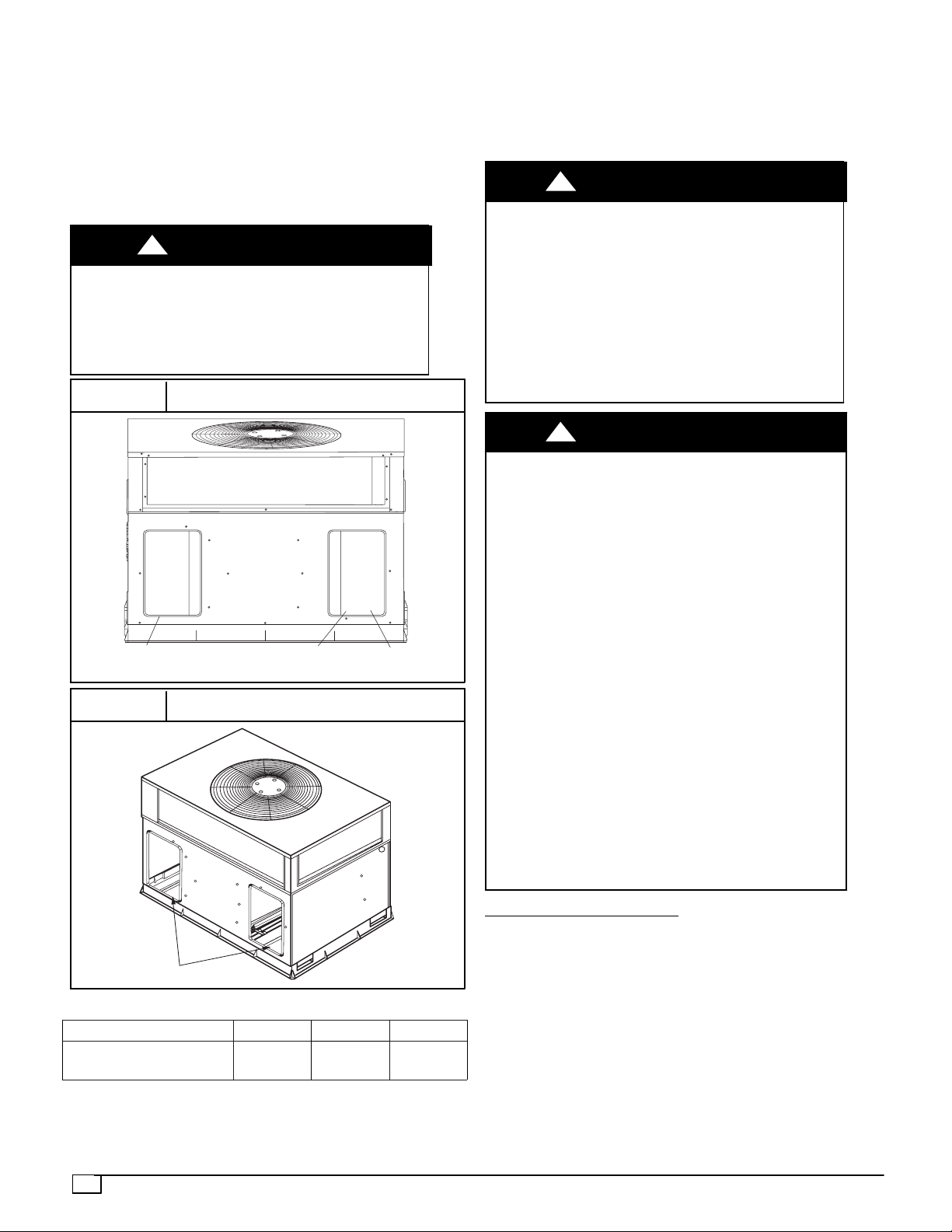

FIGURE 8 Supply and Return Duct Opening
SUPPLY
DUCT
OPENING
RETURN
DUCT
OPENING
VENT HOOD
SHIPPING
LOCATION
FIGURE 9 Vertical Duct Cover Removed
DUCT COVERS REMOVED
Table 2—Filter Data, Throw--away Type
MODEL SIZE: 242,30 36, 42 48, 60
RETURN--AIR
FILTER1(inches) 20x24x1 24x30x1 24x36x1
1. Required filter sizes shown are based on the larger of the
ARI (Air Conditioning and Refrigeration Institute) rated
cooling airflow or the heating airflow velocity of 300 feet
per minute for throwaway type or 450 feet per minute for
high--capacity type. Air filter pressure drop for
non--standard filters must not exceed 0.08 inches water
column.
2. PGN424040 (2 ton cooling, 40,000 BTU/h heat) may use
20x20x1 filter.
STEP 10 — Install Electrical Connections
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
The unit cabinet must have an uninterrupted, unbroken
electrical ground. This ground may consist of an
electrical wire connected to the unit ground screw in the
control compartment, or conduit approved for electrical
ground when installed in accordance with NEC,
ANSI/NFPA American National Standards
Institute/National Fire Protection Association (latest
edition) (in Canada, Canadian Electrical Code CSA
C22.1) and local electrical codes.
!WARNING
UNIT COMPONENT DAMAGE HAZARD
Failure to follow this caution may result in damage to the
unit being installed.
1. Make all electrical connections in accordance with
NEC ANSI/NFPA (latest edition) and local electrical
codes governing such wiring. In Canada, all
electrical connections must be in accordance with
CSA standard C22.1 Canadian Electrical Code Part
1 and applicable local codes. Refer to unit wiring
diagram.
2. Use only copper conductor for connections between
field--supplied electrical disconnect switch and unit.
DO NOT USE ALUMINUM WIRE.
3. Be sure that high--voltage power to unit is within
operating voltage range indicated on unit rating
plate. On 3--phase units, ensure phases are
balanced within 2 percent. Consult local power
company for correction of improper voltage and/or
phase imbalance.
4. Insulate low--voltage wires for highest voltage
contained within conduit when low--voltage control
wires are in same conduit as high--voltage wires.
5. Do not damage internal components when drilling
through any panel to mount electrical hardware,
conduit, etc.
!CAUTION
High Voltage Connections
When routing power leads into unit, use only copper wire
between disconnect and unit. The high voltage leads
should be in a conduit until they enter the duct panel;
conduit termination at the duct panel must be watertight.
The unit must have a separate electrical service with a
field--supplied, waterproof disconnect switch mounted at, or
within sight from, the unit. Refer to the unit rating plate, NEC
and local codes for maximum fuse/circuit breaker size and
minimum circuit amps (ampacity) for wire sizing.
The field--supplied disconnect switch box may be mounted
on the unit over the high--voltage inlet hole when the
standard power and low--voltage entry points are used (see
Figures 3 and 4 for acceptable location).

11
See unit wiring label (Figure 11) and Figure 10 for reference
when making high voltage connections. Proceed as follows
to complete the high--voltage connections to the unit.
Single--phase units:
1. Run the high--voltage (L1, L2) and ground lead into the
control box.
2. Connect ground lead to chassis ground connection.
3. Locate the black and yellow wires connected to the line
side of the contactor.
4. Connect field L1 to black wire on connection 11 of the
compressor contactor.
5. Connect field wire L2 to yellow wire on connection 23 of
the compressor contactor.
Three--phase units:
1. Run the high--voltage (L1, L2, L3) and ground lead into
the control box.
2. Connect ground lead to chassis ground connection.
3. Locate the black and yellow wires connected to the line
side of the contactor.
4. Connect field L1 to black wire on connection 11 of the
compressor contactor.
5. Connect field wire L2 to yellow wire on connection 13
of the compressor contactor.
6. Connect field wire L3 to blue wire from compressor.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before making any wiring changes, make sure the gas
supply is switched off first. Then switch off the power
supply to the unit and install lockout tag.
!WARNING
Special Procedures For 208 Volt Operation
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing or servicing system, always turn off
main power to system. with disconnect switch open,
move black wire from transformer (x”) terminal marked
230 to terminal marked 208. This re--taps transformer to
primary voltage of 208 VAC.
!WARNING
Control Voltage Connections
Do not use any type of power--stealing thermostat. Unit
control problems may result.
Use no. 18 American Wire Gage (AWG) color--coded,
insulated (35_C minimum) wires to make the control
voltage connections between the thermostat and the unit.
If the thermostat is located more than 100 feet from the unit
(as measured along the control voltage wires), use no. 16
AWG color--coded, insulated (35_C minimum) wires.
Standard Connection
Remove knockout hole located in the flue panel adjacent to
the control access panel (see Figures 3 and 4). Remove the
rubber grommet from the installer’s packet (included with
unit) and install grommet in the knockout opening. Provide
a drip loop before running wire through panel.

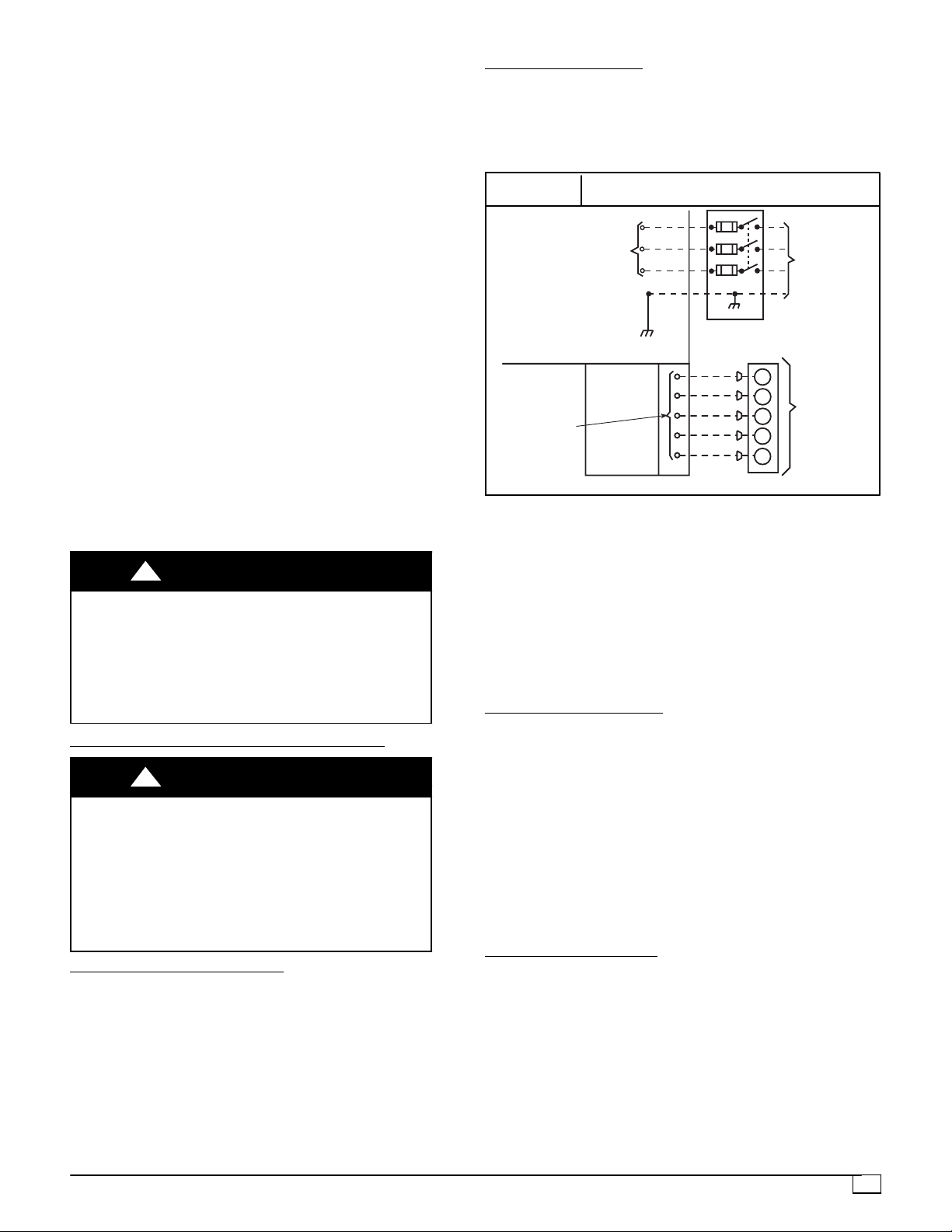

FIGURE 10 High and Control Voltage Connections
POWER
SUPPLY
FIELD-SUPPLIED
FUSED DISCONNECT
HIGH VOLTAGE
POWER LEADS
(SEE UNIT WIRING
LABEL)
GR
CONTROL BOX
SPLICE BOX
LOW-VOLTAGE
POWER LEADS
(SEE UNIT
WIRING LABEL)
W
Y
G
R
C
WHT(W1)
YEL(Y)
GRN(G)
RED(R)
BRN(C)
THERMOSTA
T
(TYPICAL)
Run the low--voltage leads from the thermostat, through the
inlet hole, and into unit low--voltage splice box.
Locate five 18--gage wires leaving control box. These
low--voltage connection leads can be identified by the
colors red, green, yellow, brown, and white (see Figure 10).
Ensure the leads are long enough to be routed into the
low--voltage splice box (located below right side of control
box). Route leads through hole in bottom of control box and
make low--voltage connections (see Figure 10). Secure all
cut wires so that they do not interfere with operation of unit.
Heat Anticipator Setting
The room thermostat heat anticipator must be properly
adjusted to ensure proper heating performance. Set the
heat anticipator, using an ammeter between the W and R
terminals to determine the exact required setting.
NOTE: For thermostat selection purposes, use 0.18 amp
for the approximate anticipator setting. Failure to make a
proper heat anticipator adjustment will result in improper
operation, discomfort to the occupants of the conditioned
space, and inefficient energy utilization; however, the
required setting may be changed slightly to provide a
greater degree of comfort for a particular installation.
Transformer Protection
The transformer is of the energy--limiting type. It is set to
withstand a 30 second. overload or shorted secondary
condition. If an overload or short is present, correct
overload condition and check for blown fuse on gas control
board. Replace fuse as required with correct size.

12

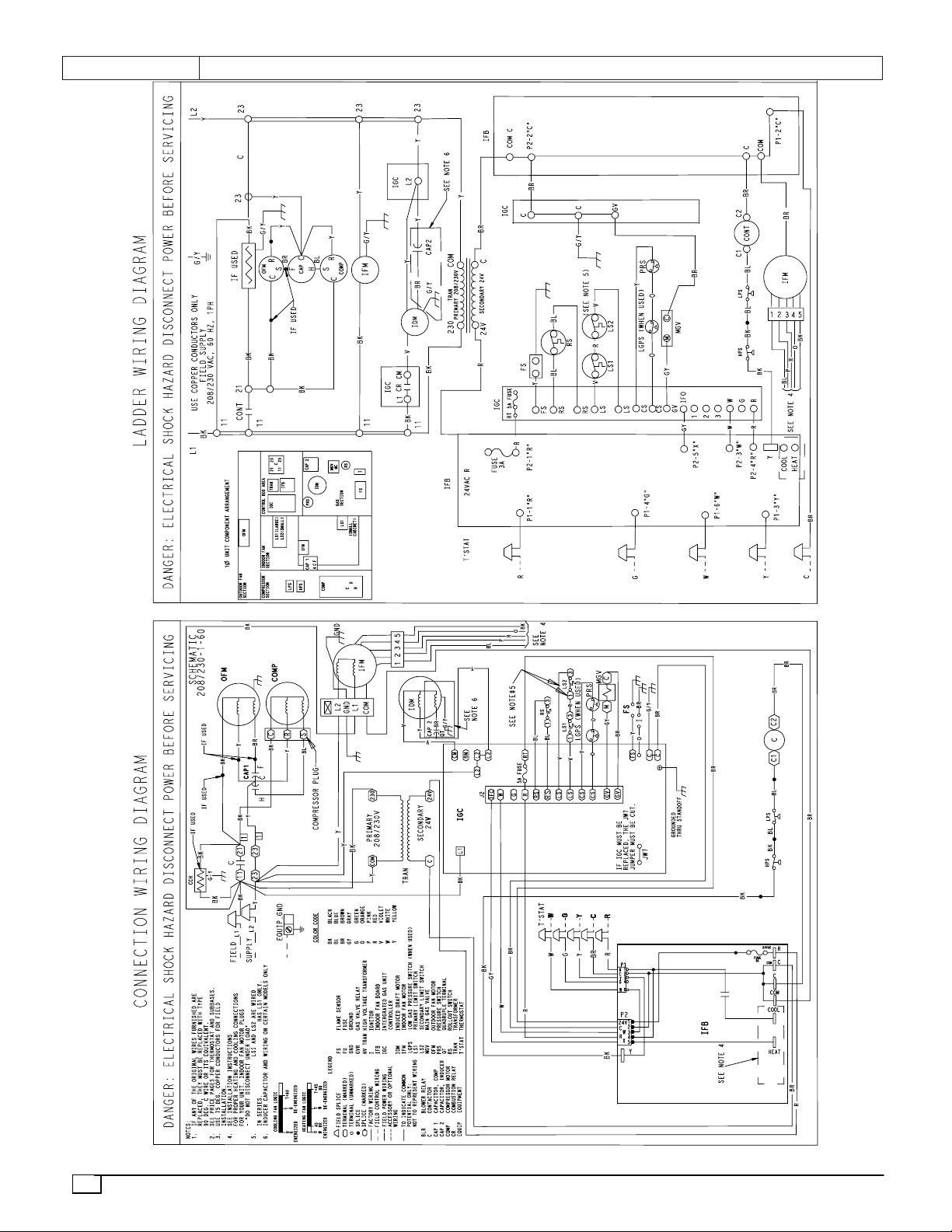

FIGURE 11 208/230 -- 1 -- 60 WIRING DIAGRAM
ON MODEL SIZES 24 -- 36,
MODEL SIZES 42 -- 60

13

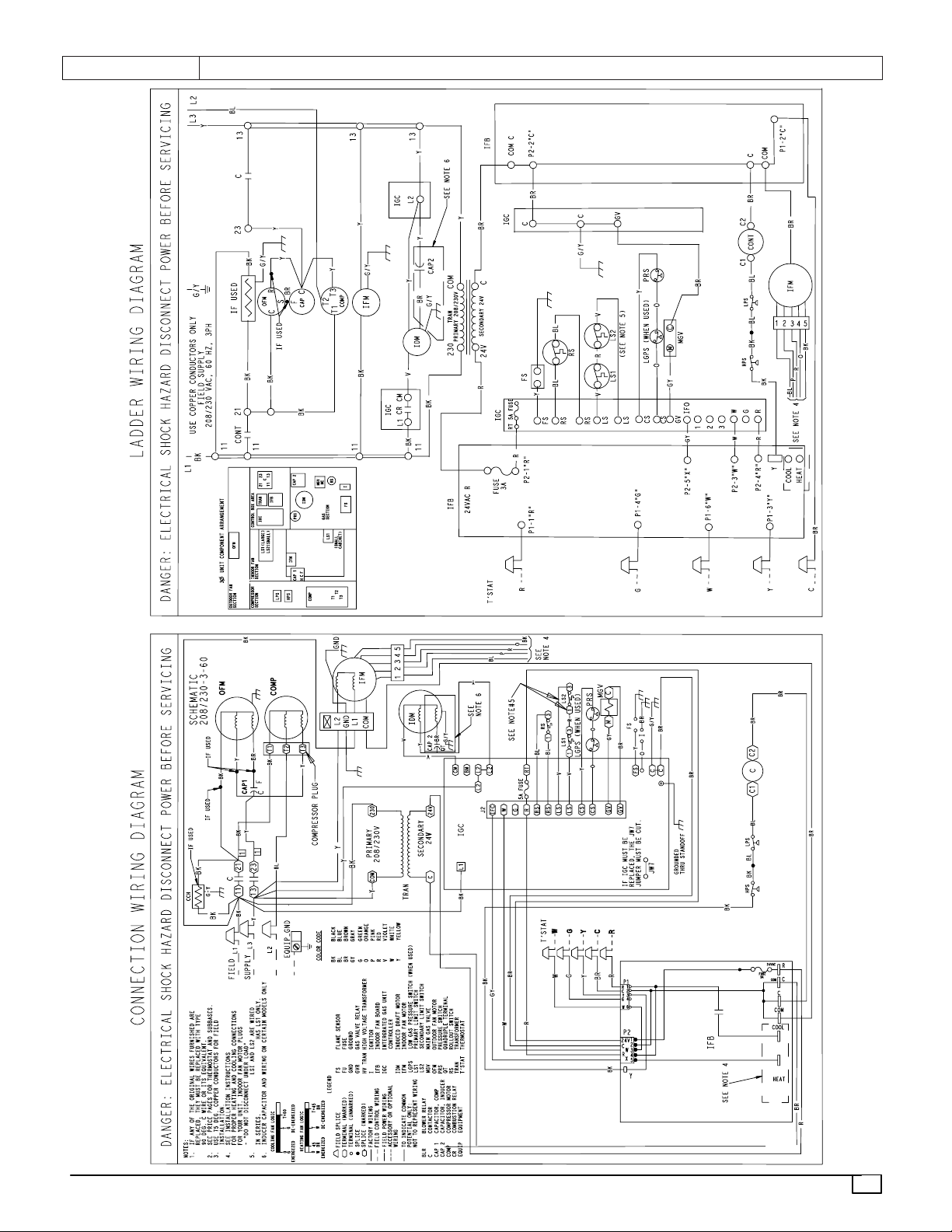

FIGURE 12 208/230 -- 3 -- 60 WIRING DIAGRAM
ON MODEL SIZES 24 -- 36,
MODEL SIZES 42 -- 60

14
PRE--STARTUP
FIRE, EXPLOSION, ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
1. Follow recognized safety practices and wear
protective goggles when checking or servicing
refrigerant system.
2. Do not operate compressor or provide any electric
power to unit unless compressor terminal cover is in
place and secured.
3. Do not remove compressor terminal cover until all
electrical sources are disconnected and tagged.
4. Relieve and recover all refrigerant from system
before touching or disturbing anything inside
terminal box if refrigerant leak is suspected around
compressor terminals.
5. Never attempt to repair soldered connection while
refrigerant system is under pressure.
6. Do not use torch to remove any component. System
contains oil and refrigerant under pressure.
To remove a component, wear protective goggles
and proceed as follows:
a. Shut off electrical power to unit and install
lockout tag.
b. Relieve and reclaim all refrigerant from
system using both high-- and low--pressure
ports.
c. Cut component connecting tubing with tubing
cutter and remove component from unit.
d. Carefully unsweat remaining tubing stubs
when necessary. Oil can ignite when exposed
to torch flame.
!WARNING
Use the Start--Up Checklist supplied at the end of this book
and proceed as follows to inspect and prepare the unit for
initial start--up:
1. Remove access panel.
2. Read and follow instructions on all DANGER,
WARNING, CAUTION, and INFORMATION labels
attached to, or shipped with unit.
3. Make the following inspections:
a. Inspect for shipping and handling damage, such as
broken lines, loose parts, disconnected wires, etc.
b. Inspect for oil at all refrigerant tubing connections
and on unit base. Detecting oil generally indicates
a refrigerant leak.
c. Leak--test all refrigerant tubing connections using
electronic leak detector, or liquid--soap solution. If
a refrigerant leak is detected, see following Check
for Refrigerant Leaks section.
d. Inspect all field-- and factory--wiring connections.
Be sure that connections are completed and tight.
e. Ensure wires do not touch refrigerant tubing or
sharp sheet metal edges.
f. Inspect coil fins. If damaged during shipping and
handling, carefully straighten fins with a fin comb.
FIRE, EXPLOSION HAZARD
Failure to follow this warning could result in personal
injury, death or property damage.
Do not purge gas supply into the combustion chamber.
Do not use a match or other open flame to check for gas
leaks.
!WARNING
4. Verify the following conditions:
a. Make sure gas line is free of air. Before lighting the
unit for the first time, perform the following with the
gas valve in the OFF position:
NOTE: If the gas supply pipe was not purged before
connecting the unit, it will be full of air. It is recommended
that the ground joint union be loosened, and the supply line
be allowed to purge until the odor of gas is detected. Never
purge gas lines into a combustion chamber. Immediately
upon detection of gas odor, retighten the union. Allow 5
minutes to elapse, then light unit.
b. Ensure fan hub is positioned correctly with respect
to motor housing.
c. Make sure that air filter(s) is in place.
d. Make sure that condensate drain trap is filled with
water to ensure proper drainage.
e. Make sure that all tools and miscellaneous loose
parts have been removed.
STARTUP
STEP 1 — Check for refrigerant leaks
Proceed as follows to locate and repair a refrigerant leak
and to charge the unit:
1. Locate leak and make sure that refrigerant system
pressure has been relieved and reclaimed from both
high-- and low--pressure ports.
2. Repair leak following accepted practices.
NOTE: Install a filter drier whenever the system has been
opened for repair.
3. Add a small charge of R--410A refrigerant vapor to
system and leak--test unit.
4. Recover refrigerant from refrigerant system and
evacuate to 500 microns if no additional leaks are
found.
5. Charge unit with R--410A refrigerant, using a
volumetric charging cylinder or accurate scale. Refer to
unit rating plate for required charge. Be sure to add
extra refrigerant to compensate for internal volume of
filter drier.
STEP 2 — Start--up heating and make adjustments
Complete the required procedures given in the
Pre--Start--Up section before starting the unit. Do not
jumper any safety devices when operating the unit. Make
sure that burner orifices are properly aligned. Unstable

15
operation my occur when the burner orifices in the manifold
are misaligned.
Follow the lighting instructions on the heating section
operation label (located inside the burner or blower access
door) to start the heating section.
NOTE: Make sure that gas supply has been purged and that
all gas piping has been checked for leaks.
Check Heating Control
Start and check the unit for proper heating control operation
as follows (see furnace lighting instructions located inside
burner or blower access panel):
1. Place room thermostat SYSTEM switch in the HEAT
position and the fan switch in the AUTO position.
2. Set the heating temperature control of the thermostat
above room temperature.
3. The induced--draft motor will start.
4. On a call for heating, the main burner should light within
5 seconds of the sparker being energized.If the burners
do not light, there is a 22 second delay before another 5
second try. If the burners still do not light, this sequence
is repeated. If the burners do not light within 15 minutes
from the initial call for heat, there is a lockout. To reset
the control, break the 24--v power to W.
5. The indoor (evaporator) fan motor will turn on 45
seconds after the flame has been established. The
indoor (evaporator) fan motor will turn off 45 seconds
after the thermostat has been satisfied.
NOTE: The integrated gas unit controller (IGC) has the
capability to automatically reduce the indoor
(evaporator) fan motor “ON” delay and increase the
indoor (evaporator) “OFF” delay in the event of high
duct static and/or partially--clogged filter.
Check Gas Input
Check gas input and manifold pressure after unit start--up
(see Table 4). If adjustment is required, proceed as
follows:
NOTE: The rated gas inputs shown in Table 4 are for
altitudes from sea level to 2000 feet above sea level.
These inputs are based on natural gas with a heating
value of 1050 Btu/ft3at 0.65 specific gravity, or Propane
with a heating value of 2500 Btu/ft3at 1.5 specific gravity.
When the gas supply being used has a different heating
value or specific gravity, refer to national and local codes,
or contact your distributor to determine the required
orifice size.
In the USA:
The input rating for altitudes above 2,000 feet must be
reduced by 4% for each 1,000 feet above see level.
(For installations below 2,000 feet, refer to the unit rating
plate.)
For installations above 2,000 feet. multiply the input on
the rating plate by the de--rate multiplier in Table 3 for
correct input rate.
Table 3 -- Altitude Derate Multiplier for U.S.A.
ALTITUDE (ft) PERCENT OF
DERATE D E --- R A T E M U LT I P L I E R *
0--- 2000 01.00
2001 --- 3000 8 --- 1 2 0.90
3001 --- 4000 12---16 0.86
4001 --- 5000 16---20 0.82
5001 --- 6000 20---24 0.78
6001 --- 7000 24---28 0.74
7001 --- 8000 28---32 0.70
8001 --- 9000 32---36 0.66
9001 --- 10,000 36---40 0.62
* De--rate multiplier factors are based on midpoint altitude
for altitude range.
In Canada:
The input rating for altitudes from 2,000 to 4,500 feet
above sea level must be derated 10% by an authorized
Gas Conversion Station or Dealer.
Example:
90,000 BTU/hr Input Furnace Installed at 4300 feet:
Furnace Input
Rate at Sea Level XD e --- r a t e Multiplier =Furnace Input Rate at Installation Altitude
90,000 X 0.90 = 81,000
UNIT DAMAGE HAZARD
Failure to follow this caution may result in reduced unit
and/or component life.
Do Not redrill an orifice. Improper drilling (burrs,
out--of--round holes, etc.) can cause excessive burner
noise and misdirection of burner flame. If orifice hole
appears damaged or it is suspected to have been
redrilled, check orifice hole with a numbered drill bit of
correct size.
!CAUTION
Adjust Gas Input
The gas input to the unit is determined by measuring the
gas flow at the meter or by measuring the manifold
pressure. Measuring the gas flow at the meter is
recommended for natural gas units. The manifold
pressure must be measured to determine the input of
propane gas units.
Measure Gas Flow (Natural Gas Units)
Minor adjustment to the gas flow can be made by
changing the manifold pressure. The manifold pressure
must be maintained between 3.2 and 3.8 in. wc.

16

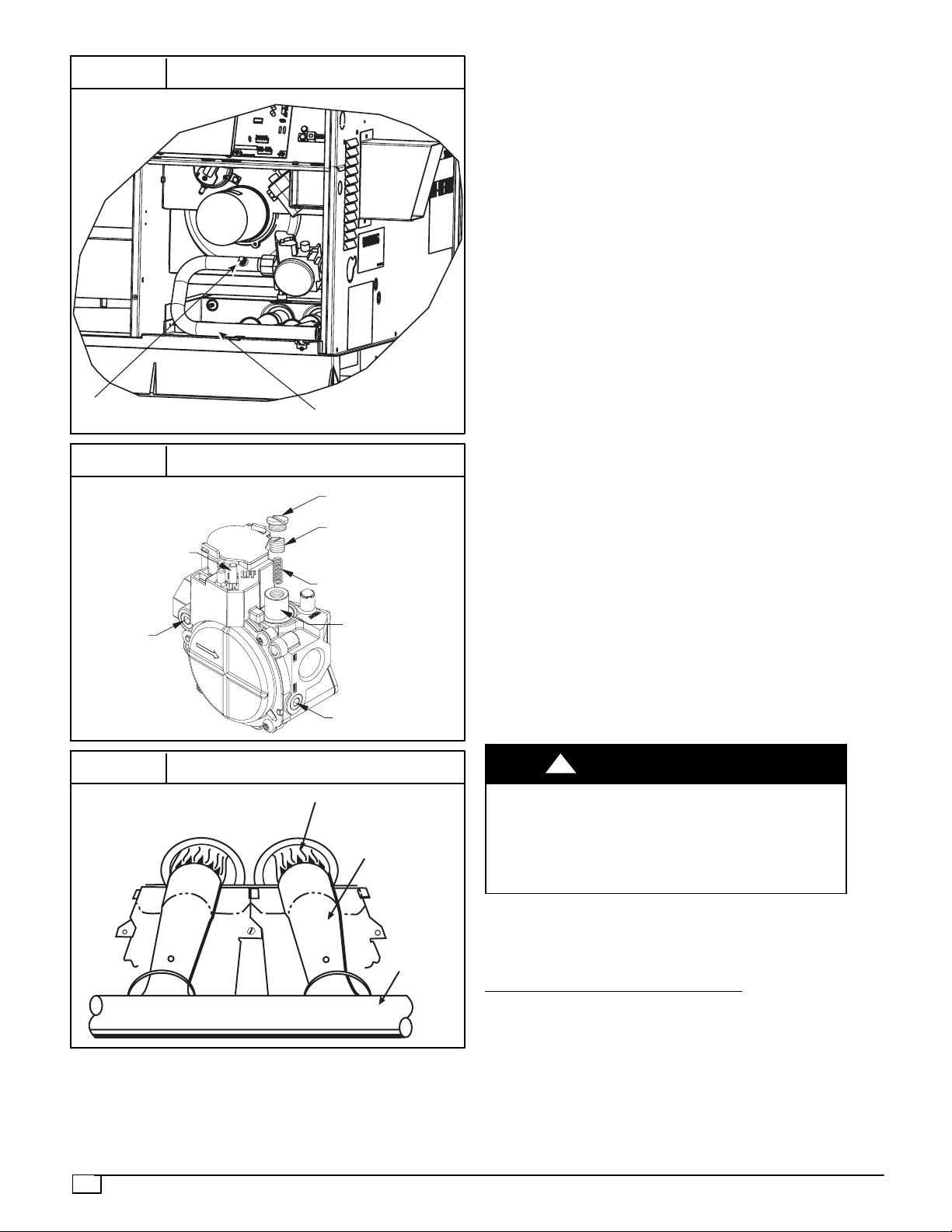

FIGURE 13 Burner Assembly
Pipe Plug Manifold
Figure 14 Gas Valve Components
REGULATOR
COVER SCREW
ADJUSTMENT
SCREW
REGULATOR SPRING
(PROPANE - WHITE)
NATURAL - SILVER)
GAS PRESSURE
REGULATOR
ADJUSTMENT
MANIFOLD
PRESSURE TAP
INLET
PRESSURE TAP
ON/OFF SWITCH
PLASTIC
(
Figure 15 Monoport Burner
MANIFOLD
BURNER
BURNER FLAME
If larger adjustments are required, change main burner
orifices following the recommendations of national and
local codes.
NOTE: All other appliances that use the same meter must
be turned off when gas flow is measured at the meter.
Proceed as follows:
1. Turn off gas supply to unit.
2. Remove pipe plug on manifold (see Figure 13) and
connect manometer. Turn on gas supply to unit.
3. Record number of seconds for gas meter test dial to
make one revolution.
4. Divide number of seconds in Step 3 into 3600 (number
of seconds in one hour).
5. Multiply result of Step 4 by the number of ft3(cubic feet)
shown for one revolution of test dial to obtain ft3of gas
flow per hour.
6. Multiply result of Step 5 by BTU heating value of gas to
obtain total measured input in BTU/h. Compare this
value with heating input shown in Table 4 (Consult the
local gas supplier if the heating value of gas is not
known).
Example: Assume that the size of test dial is 1 ft3, one
revolution takes 32 seconds, and the heating value of the
gas is 1050 BTU/ft3. Proceed as follows:
1. 32 seconds to complete one revolution.
2. 3600 / 32 = 112.5.
3. 112.5 x 1 = 112.5 ft3of gas flow/hr.
4. 112.5 x 1050 = 118,125 BTU/h input.
If the desired gas input is 115,000 BTU/h, only a minor
change in the manifold pressure is required.
Observe manifold pressure and proceed as follows to
adjust gas input:
1. Remove cover screw over regulator adjustment screw
on gas valve (see Figure 14).
2. Turn regulator adjustment screw clockwise to increase
gas input, or turn regulator adjustment screw
counterclockwise to decrease input. Manifold pressure
must be between 3.2 and 3.8 inches water column.
FIRE AND UNIT DAMAGE HAZARD
Failure to follow this warning could result in personal
injury or death and/or property damage.
Unsafe operation of the unit may result if manifold
pressure is outside this range.
!WARNING
3. Replace cover screw cap on gas valve.
4. Turn off gas supply to unit. Remove manometer from
pressure tap and replace pipe plug on gas valve. Turn
on gas to unit and check for leaks.
Measure Gas Flow (Propane Units)
Refer to Propane kit installation instructions for gas input
measurement procedure.
NOTE:For installations below 2,000 feet, refer to the unit
rating plate for proper Propane conversion kit part
number. For installations above 2,000 feet, contact your
distributor for proper Propane conversion kit.

17
Check Burner Flame
With burner access panel removed, observe the unit
heating operation. Watch the burner flames to see if they
are light blue and soft in appearance, and that the flames
are approximately the same for each burner. Propane will
have blue flame (see Figure 15). Refer to the Maintenance
section for information on burner removal.
Airflow and Temperature Rise
The heating section for each size unit is designed and
approved for heating operation within the temperature--rise
range marked on the unit rating plate.
Table 7 shows the approved temperature rise range for
each heating input, and the air delivery CFM at various
temperature rises for a given external static pressure. The
heating operation airflow must produce a temperature rise
that falls within the approved range.
Refer to Indoor Airflow and Airflow Adjustments section to
adjust heating airflow when required.
Heating Sequence of Operation
(see Figures 11, 12, and unit wiring label.)
On a call for heating, terminal W of the thermostat is
energized, starting the induced--draft motor. When the
pressure switch senses that the induced--draft motor is
moving sufficient combustion air, the burner sequence
begins. This function is performed by the Integrated Gas
Control (IGC) board. The indoor (evaporator) fan motor is
energized 45 seconds after flame is established. When the
thermostat is satisfied and W is de--energized, the burners
stop firing and the indoor (evaporator) fan motor shuts off
after a 45 second time--off delay.
NOTE: The integrated gas unit controller (IGC) has the
capability to automatically reduce the indoor (evaporator)
fan motor “ON” delay and increase the indoor (evaporator)
“OFF” delay in the event of high duct static and/or
partially--clogged filter.
Table 4 -- Heating Inputs
HEATING INPUT
(BTU/h)
NUMBER
OF
GAS SUPPLY PRESSURE (inches water column) MANIFOLD PRESSURE
NUMBER
OF
ORIFICES
Natural{Propane *{
MANIFOLD
PRESSURE
(inches water column)
ORIFICES
Min Max Min Max Natural{Propane *†
40,000 24.0 13.0 11.0 13.0 3.2 -- 3.8 10.0 -- 11.0
60,000 24.0 13.0 11.0 13.0 3.2 -- 3.8 10.0 -- 11.0
90,000 34.0 13.0 11.0 13.0 3.2 -- 3.8 10.0 -- 11.0
115,000 34.0 13.0 11.0 13.0 3.2 -- 3.8 10.0 -- 11.0
130,000 34.0 13.0 11.0 13.0 3.2 -- 3.8 10.0 -- 11.0
* When a unit is converted to Propane, different size orifices must be used. See separate, natural--to--Propane conversion kit
instructions.
{Based on altitudes from sea level to 2000 feet above sea level. For altitudes above 2000 feet, reduce input rating 4 percent for
each additional 1000 feet above sea level. In Canada, from 2000 feet above sea level to 4500 feet above sea level, de--rate the unit
10 percent.
LED Monitor
An LED (light--emitting diode) indicator is provided on the
Integrated Gas Control board (IGC) to monitor operation.
The IGC is located by removing the burner access panel.
During normal operation, the LED is continuously on (See
Table 5 for error codes).
Table 5 -- LED INDICATIONS
ERROR CODE LED INDICATION
Normal Operation On
Hardware Failure Off
Limit Switch Fault 2 Flashes
Flame Sense Fault 3 Flashes
Four Consecutive Limit Faults 4 Flashes
Ignition Lockout Fault 5 Flashes
Induced--Draft Motor Fault 6 Flashes
Rollout Switch Fault 7 Flashes
Internal Control Fault 8 Flashes
Temporary Lock--Out (1 hr) 9 Flashes
Notes:
1. There is a 3 second pause between error code
displays.
2. If more than one error code exists, all applicable error
codes will be displayed in numerical sequence.
3. This chart is on the wiring diagram located inside the
burner access panel.
Limit Switches
Normally closed limit switch (LS) completes the control
circuit. If the supply air temperature rises above the
maximum allowable temperature, the limit switch opens
and the control circuit “breaks.” Any interruption in the
control circuit instantly closes the gas valve and stops gas
flow to the burners. The blower motor continues to run until
LS resets.
When the air temperature at the limit switch drops to the
low--temperature setting of the limit switch, the switch
closes and completes the control circuit. The direct--spark
ignition system cycles and the unit returns to normal heating
operation.
Rollout Switch
The function of the rollout switch is to close the main gas
valve in the event of flame rollout. The switch is located
above the main burners. When the temperature at the
rollout switch reaches the maximum allowable
temperature, the control circuit trips, closing the gas valve
and stopping gas flow to the burners. The indoor
(evaporator) fan motor (IFM) and induced draft motor
continue to run until switch is reset. The Integrated Gas
Control (IGC) Board LED will display FAULT CODE 7.

18
STEP 3 — Start--up cooling and make adjustments
Complete the required procedures given in the
Pre--Start--Up section before starting the unit. Do not
jumper any safety devices when operating the unit. Do not
operate the compressor when the outdoor temperature is
below 40˚F(4.4˚C) (unless accessory low--ambient kit is
installed). Do not rapid--cycle the compressor. Allow 5
minutes between on cycles to prevent compressor
damage.
Check Cooling Control Operation
Start and check the unit for proper cooling control operation
as follows:
1. Place room thermostat SYSTEM switch in OFF
position. Observe that blower motor starts when FAN
switch is placed in ON position and shuts down when
FANswitchisplacedinAUTOposition.
2. Place SYSTEM switch in COOL position and FAN
switch in AUTO position. Set cooling control below
room temperature. Observe that compressor, outdoor
(condenser) fan, and indoor (evaporator) blower
motors start. Observe that cooling cycle shuts down
when control setting is satisfied. The indoor
(evaporator) fan motor will continue to run for 60
seconds.
NOTE: 3--phase, scroll compressors will run
backwards if not wired correctly. Unit must be checked
to ensure proper compressor 3--phase power lead
orientation. If not corrected within 5 minutes, the
internal protector will shut off the compressor. To
change the rotation of the compressor, swap any two of
the three power leads. When turning backwards, the
difference between compressor suction and discharge
pressures will be minimal.
3. When using an auto--changeover room thermostat,
place both SYSTEM and FAN switches in AUTO
positions. Observe that unit operates in Heating mode
when temperature control is set to call for heating
(above room temperature) and operates in Cooling
mode when temperature control is set to call for cooling
(below room temperature).
Checking and Adjusting Refrigerant Charge
The refrigerant system is fully charged with R--410A
refrigerant and is tested and factory sealed.
NOTE:Adjustment of the refrigerant charge is not required
unless the unit is suspected of not having the proper
R--410A charge.
The charging label and the tables shown refer to system
temperatures and pressures in cooling mode only. A
refrigerant charging label is attached to the outside of the
service access door. The chart includes the required
liquid line temperature at given discharge line pressures
and outdoor ambient temperatures.
An accurate thermocouple or thermistor type
thermometer and a gauge manifold are required when
using the subcooling charging method for evaluating the
unit charge. Do not use mercury or small dial--type
thermometers because they are not adequate for this
type of measurement.
NOTE: Allow system to operate a minimum of 15 minutes
before checking or adjusting charge.
Proceed as follows:
1. Remove cap from high and low--pressure service
fittings.
2. Using hoses with valve core depressors, attach high
and low--pressure gauge hose to high and
low--pressure service fittings.
3. Start unit in Cooling Mode and let unit run until system
pressures stabilize.
4. Measure and record the following:
a. Outdoor ambient--air temperature (dry bulb).
b. Liquid line temperature.
c. Discharge (high--side) pressure (psig).
d. Suction (low--side) pressure (psig) -- for reference
only.
5. Using “Cooling Charging Charts,” compare outdoor--air
temperature (dry bulb) with the discharge line pressure
(psig) to determine desired system operating liquid line
temperature (See Table 6).
6. Compare actual liquid line temperature with desired
liquid line temperature. Using a tolerance of +/-- 2˚F
(1.1˚C), add refrigerant if actual temperature is higher
than proper liquid line temperature, or remove
refrigerant if actual temperature is lower than desired
liquid line temperature.
UNIT DAMAGE HAZARD
Failure to follow this caution may result in unit
damage.
When evaluating the refrigerant charge, an indicated
adjustment to the specified factory charge must
always be very minimal. If a substantial adjustment is
indicated, an abnormal condition exists somewhere in
the cooling system, such as insufficient airflow across
either coil or both coils.
!CAUTION
NOTE: If the problem causing the inaccurate readings is a
refrigerant leak, refer to the Check for Refrigerant Leaks
section.

19
Table 6 -- Cooling Charging Chart
75 (24) 82 (28) 95 (35) 105 (41) 115 (46)
Pressure
(psig) 5 10152025
Pressure
(kPa) 36811
14
018 10.2 (5.7) 189 66 61 56 51 46 41 1303 19 16 13 11 8 5 024 11.7 (6.5) 10.4 (5.8) 9.9 (5.5) 196 68 63 58 53 48 43 1351 20 17 15 12 9 6 030 15.9 (8.8) 13.8 (7.7) 15.0 (8.3) 14.5 (8.1) 203 71 66 61 56 51 46 1399 21 19 16 13 10 8 036 14.5 (8.1) 14.1 (7.8) 12.9 (7.2) 11.8 (6.5) 11.0 (6.1) 210 73 68 63 58 53 48 1448 23 20 17 14 11 9
042 14.1 (7.8) 13.6 (7.6) 11.8 (6.6) 10.3 (5.7) 9.1 (5.0) 217 75 70 65 60 55 50 1496 24 21 18 15 13 10
048 9.1 (5.1) 8.5 (4.7) 5.9 (3.3) 5.1 (2.9) 224 77 72 67 62 57 52 1544 25 22 19 16 14 11
060 16.3 (9.1) 15.8 (8.8) 14.7 (8.2) 13.7 (7.6) 13.0 (7.2) 231 79 74 69 64 59 54 1593 26 23 20 18 15 12
238 81 76 71 66 61 56 1641 27 24 21 19 16 13 245 82 77 72 67 62 57 1689 28 25 22 20 17 14 252 84 79 74 69 64 59 1737 29 26 23 21 18 15 260 86 81 76 71 66 61 1792 30 27 25 22 19 16 268 88 83 78 73 68 63 1848 31 29 26 23 20 17 276 90 85 80 75 70 65 1903 32 30 27 24 21 19 284 92 87 82 77 72 67 1958 33 31 28 25 22 20 292 94 89 84 79 74 69 2013 35 32 29 26 23 21 300 96 91 86 81 76 71 2068 36 33 30 27 24 22 309 98 93 88 83 78 73 2130 37 34 31 28 26 23 318 100 95 90 85 80 75 2192 38 35 32 29 27 24 327 102 97 92 87 82 77 2254 39 36 33 31 28 25 336 104 99 94 89 84 79 2316 40 37 34 32 29 26 345 106 101 96 91 86 81 2378 41 38 35 33 30 27 354 108 103 98 93 88 83 2440 42 39 36 34 31 28 364 110 105 100 95 90 85 2509 43 40 38 35 32 29 374 112 107 102 97 92 87 2578 44 41 39 36 33 30 384 113 108 103 98 93 88 2647 45 42 40 37 34 31 394 115 110 105 100 95 90 2716 46 44 41 38 35 32 404 117 112 107 102 97 92 2785 47 45 42 39 36 33 414 119 114 109 104 99 94 2854 48 46 43 40 37 34 424 121 116 111 106 101 96 2923 49 47 44 41 38 35 434 123 118 113 108 103 98 2992 50 48 45 42 39 36 444 124 119 114 109 104 99 3061 51 48 46 43 40 37 454 126 121 116 111 106 101 3130 52 49 47 44 41 38 464 128 123 118 113 108 103 3199 53 50 48 45 42 39 474 129 124 119 114 109 104 3268 54 51 48 46 43 40 484 131 126 121 116 111 106 3337 55 52 49 47 44 41 494 132 127 122 117 112 107 3406 56 53 50 47 45 42 504 134 129 124 119 114 109 3475 57 54 51 48 46 43 514 136 131 126 121 116 111 3544 58 55 52 49 46 44 524 137 132 127 122 117 112 3612 58 56 53 50 47 45 534 139 134 129 124 119 114 3681 59 56 54 51 48 45
4- Refer to the required Subcooling in the table based on the model size and the Outdoor Ambient temperature.
1- Measure Discharge line pressure by attaching a gauge to the service port.
2- Measure the Liquid line temperature by attaching a temperature sensing device to it. 3- Insulate the temperature sensing device so that the Outdoor Ambient doesn’t affect the reading.
9 - Remove charge if the measured temperature is lower than the table value.
Required Subcooling F ( C)
Outdoor Ambient Temperature
Required Liquid Line Temperature for a Specific Subcooling (R-410A)
Required Subcooling (
o
C)Required Subcooling (
o
F)
6- Find the Pressure Value in the table corresponding to the the measured Pressure of the Compressor Discharge line. 8- Add Charge if the measured temperature is higher than the table value. 7- Read across from the Pressure reading to obtain the Liquid line temperature for a required Subcooling
Charging Procedure
5- Interpolate if the Outdoor ambient temperature lies in between the table values.
50VL500005
10.7 (5.9)
12.2 (6.8)
16.4 (9.1)
85 (29)
9.9 (5.5)
11.5 (6.4)
16.1 (8.9)
13.5 (7.5)
12.8 (7.1)
7.9 (4.4)
Model
Size
15.4 (8.6)
9.5 (5.3)
11.2 (6.2)
6.9 (3.8)
8.5 (4.7) 7.8 (4.3)
oo

20
Indoor Airflow and Airflow Adjustments
UNIT OPERATION HAZARD
Failure to follow this caution may result in unit damage.
For cooling operation, the recommended airflow is 350
to 450 cfm for each 12,000 BTU/h of rated cooling
capacity. For heating operation, the airflow must
produce a temperature rise that falls within the range
stamped on the unit rating plate.
CAUTION
!
NOTE: Be sure that all supply--and return--air grilles are
open, free from obstructions, and adjusted properly. Airflow
can be changed using the User Interface.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Disconnect electrical power to the unit and install lockout
tag before changing blower speed.
!WARNING
There are independent fan speeds for heating and
cooling marked “HEAT” and “COOL” on the interface fan
board (IFB) (see Figure 16). The unit is factory--shipped
with heating and cooling speeds noted in Table 8. There
are 3 additional speed tap wires available for use in either
heating or cooling (For color coding on the indoor fan
motor leads, see Table 7). The additional 3 speed tap
wires are shipped loose with vinyl caps and are located in
the control box, near the Interface Fan Board (IFB).
To change heating speed, remove the vinyl cap off of the
desired speed tap wire (Refer to Table 7 for color coding).
Remove the current speed tap wire from the “HEAT”
terminal on the Interface Fan Board (IFB) (see Figure 16)
and place vinyl cap over the connector on the wire.
Connect the desired speed tap wire to the “HEAT”
terminal on the IFB. Table 8 shows the temperature rise
associated with each fan speed for a given static
pressure. Make sure that the speed chosen delivers a
temperature rise within the rise range listed on the unit
rating plate.
To change cooling speed, remove the vinyl cap off of the
desired speed tap wire (Refer to Table 7 for color coding).
Remove the current speed tap wire from the “COOL”
terminal on the Interface Fan Board (IFB) (see Figure 16)
and place vinyl cap over the connector on the wire.
Connect the desired speed tap wire to the “COOL”
terminal IFB. For optimum performance, add the wet coil
pressure drop in Table 9 to the system static to determine
the correct cooling airflow speed in Table 8 .
NOTE:For cooling operation, the recommended airflow is
350 to 450 CFM for each 12,000 BTU/h of rated cooling
capacity.

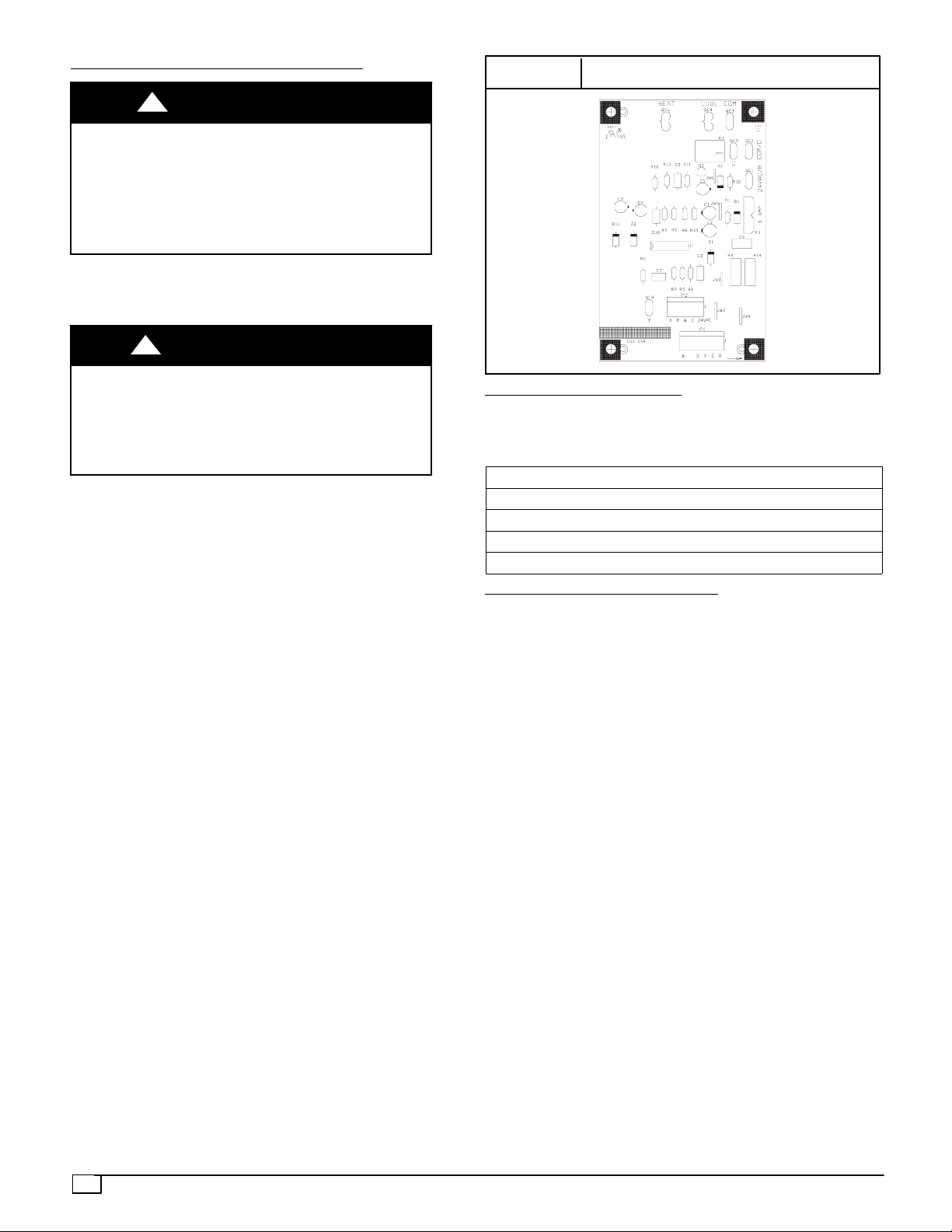

FIGURE 16 Interface Fan Board (IFB)
Continuous Fan Operation
The continuous fan operates at the same fan speed as
cooling operation.
Table 7 -- Color Coding for Indoor Fan Motor Leads
Black = High Speed
Orange = Med--High Speed
Red = Med Speed
Pink = Med--Low Speed
Blue = Low Speed
Cooling Sequence of Operation
With the room thermostat SYSTEM switch in the COOL
position and the FAN switch in the AUTO position, the
cooling sequence of operation is as follows:
1. When the room temperature rises to a point that is
slightly above the cooling control setting of the
thermostat, the thermostat completes the circuit
between thermostat terminal R to terminals Y and G.
2. The normally open contacts of energized contactor (C)
close and complete the circuit through compressor
motor (COMP) to condenser (outdoor) fan motor
(OFM). Both motors start instantly.
3. The set of normally open contacts of energized relay
BM close and complete the circuit through evaporator
blower (indoor) fan motor (IFM).
NOTE:Once the compressor has started and then stopped,
it should not be started again until 5 minutes have elapsed.
The cooling cycle remains on until the room temperature
drops to a point that is slightly below the cooling control
setting of the room thermostat. At this point, the thermostat
breaks the circuit between thermostat terminal R to
terminals Y and G. These open circuits deenergize
contactor coil C. The compressor and condenser (outdoor)
motor stop. After a 60 second delay, the evaporator (indoor)
motor stops. The unit is in a standby condition, waiting for
the next call for cooling from the room thermostat.
